  1. CS/COE0447Computer Organization & Assembly Language CHAPTER 1

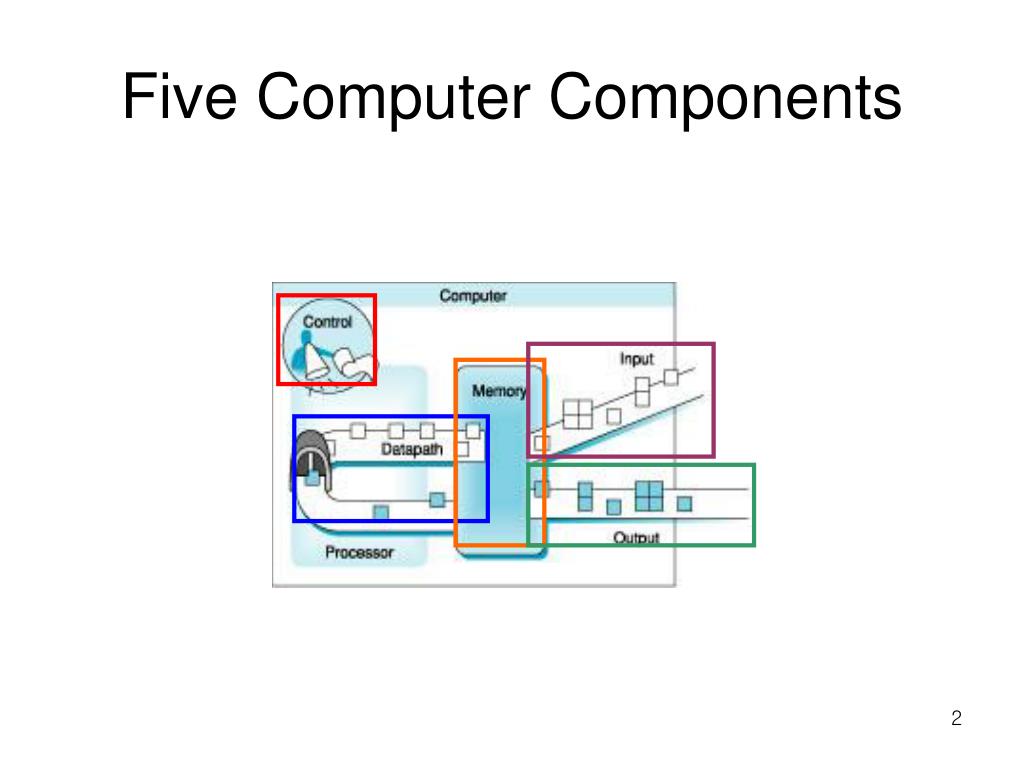

  2. Five Computer Components

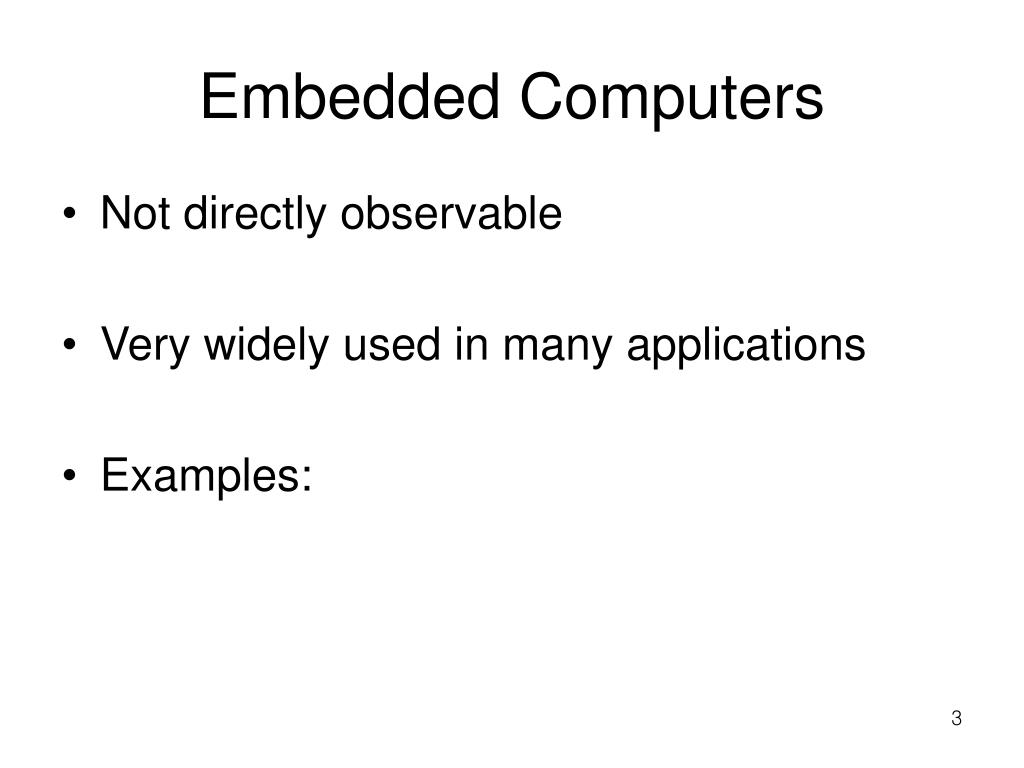

  3. Embedded Computers • Not directly observable • Very widely used in many applications • Examples:

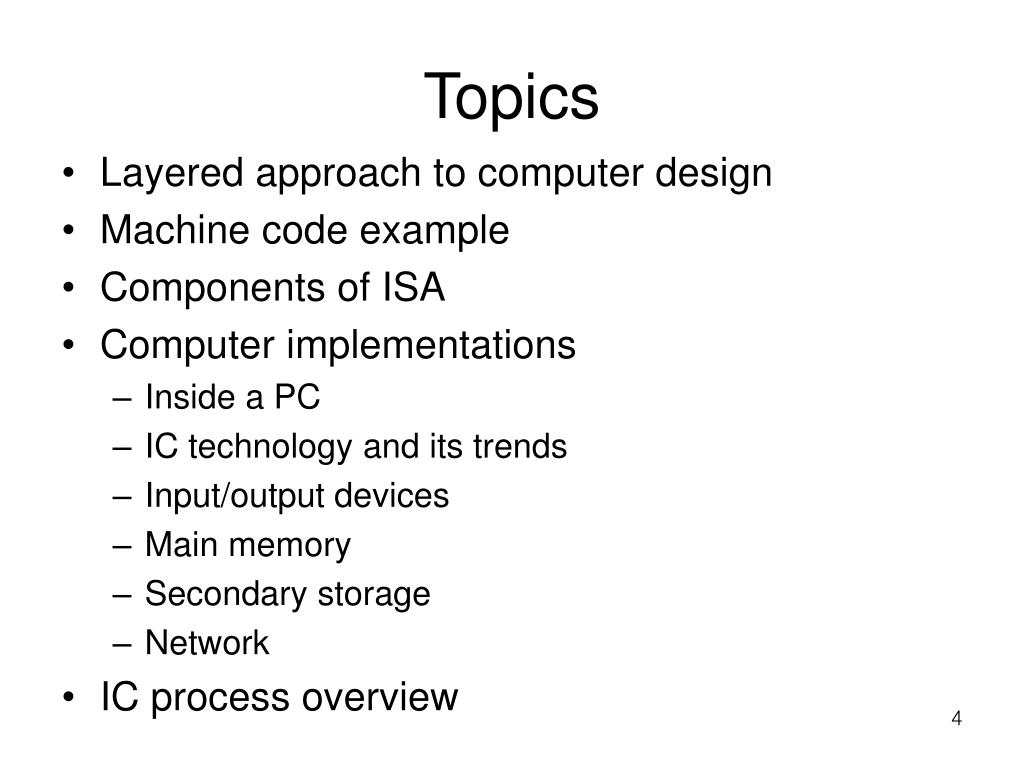

  4. Topics • Layered approach to computer design • Machine code example • Components of ISA • Computer implementations • Inside a PC • IC technology and its trends • Input/output devices • Main memory • Secondary storage • Network • IC process overview

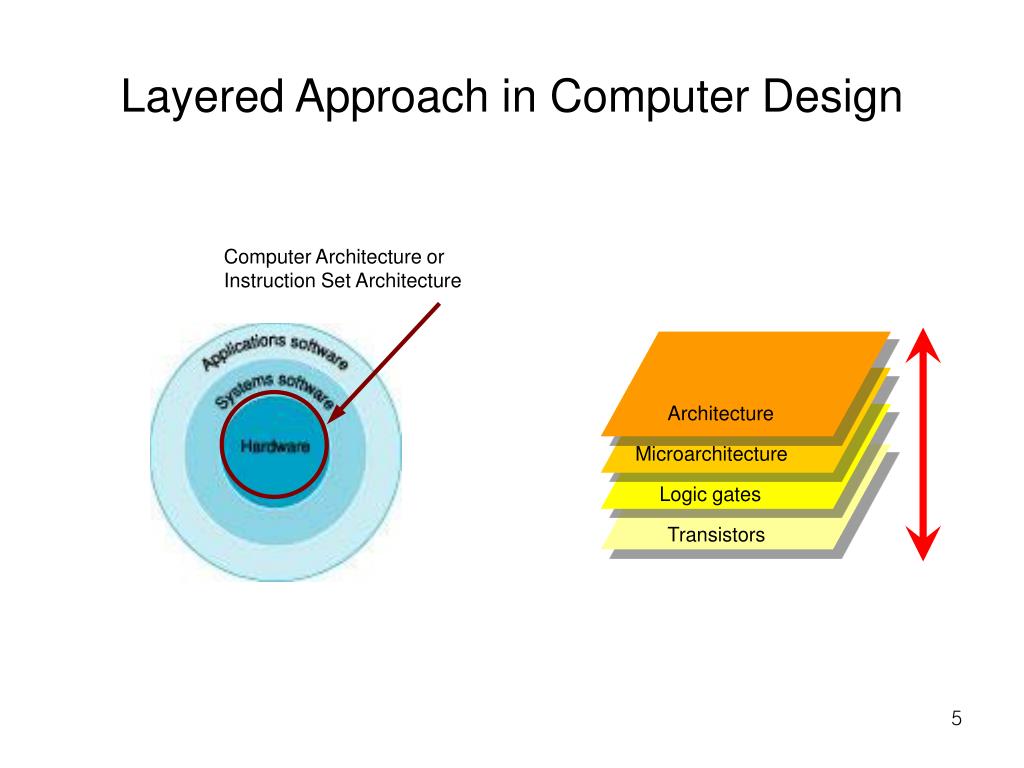

  5. Architecture Microarchitecture Logic gates Transistors Layered Approach in Computer Design Computer Architecture or Instruction Set Architecture

  6. void swap(int v[], int k) { int temp; temp = v[k]; v[k] = v[k+1]; v[k+1] = temp; } swap: muli $t0, $a0, 4 add $t0, $a1, $t0 lw $t1, 0($t0) lw $t2, 4($t0) sw $t2, 0($t0) sw $t1, 4($t0) jr $ra 00000000101000010… 00000000000110000… 10001100011000100… 10001100111100100… 10101100111100100… 10101100011000100… 00000011111000000… assembler compiler Machine Code Example

  7. Components of ISA • In most cases, a “programmer’s reference manual” (PRM) will disclose the ISA of a processor • To understand an ISA, find in PRM • Data types the processor supports • Supported instructions and their definitions • Registers (general-purpose & special purpose) • Processor modes • Exception mechanism

  8. Inside a PC • Integrated Circuits (ICs) • CPU (Central Processing Unit), companion chipset, memory, peripheral I/O chip (e.g., USB, IDE, IEEE1394, …) • Printed Circuit (PC) boards (next 2 slides) • Substrate for ICs and interconnection • Distribution of clock, power supply • Heat dissipation • Hard disk, CD-RW DVD-RW, (floppy disk) • Power supply • Chassis • Holds boards, power supply, and provides physical interface for user and other systems • Connectors and cables

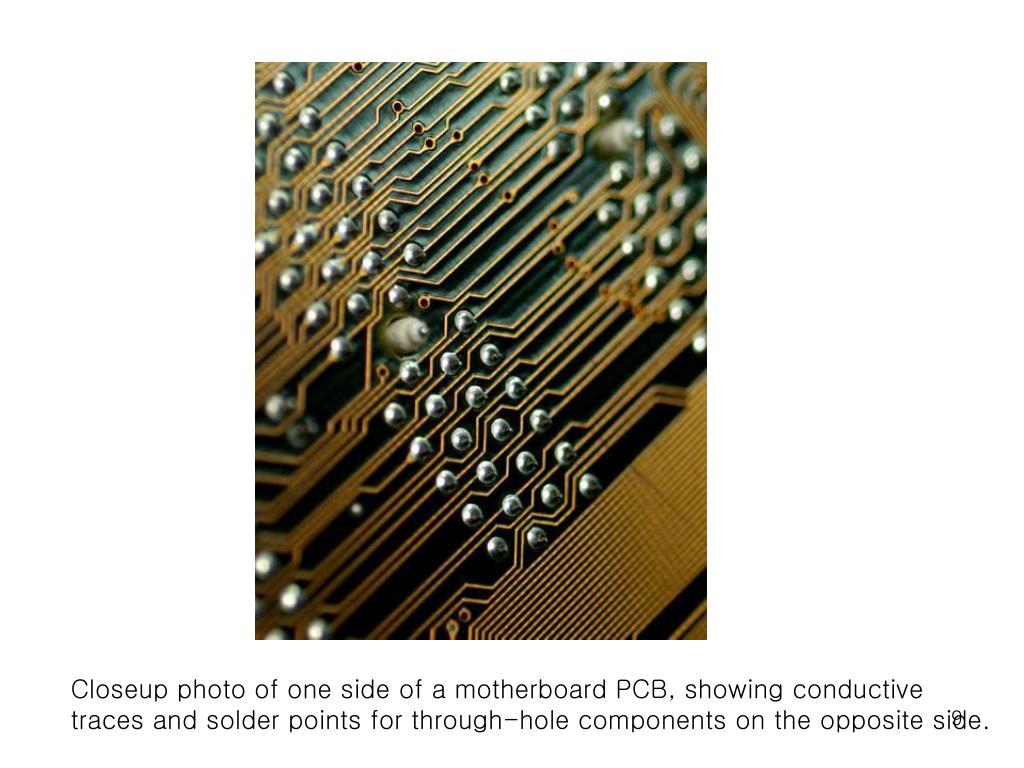

  9. Closeup photo of one side of a motherboard PCB, showing conductive traces and solder points for through-hole components on the opposite side.

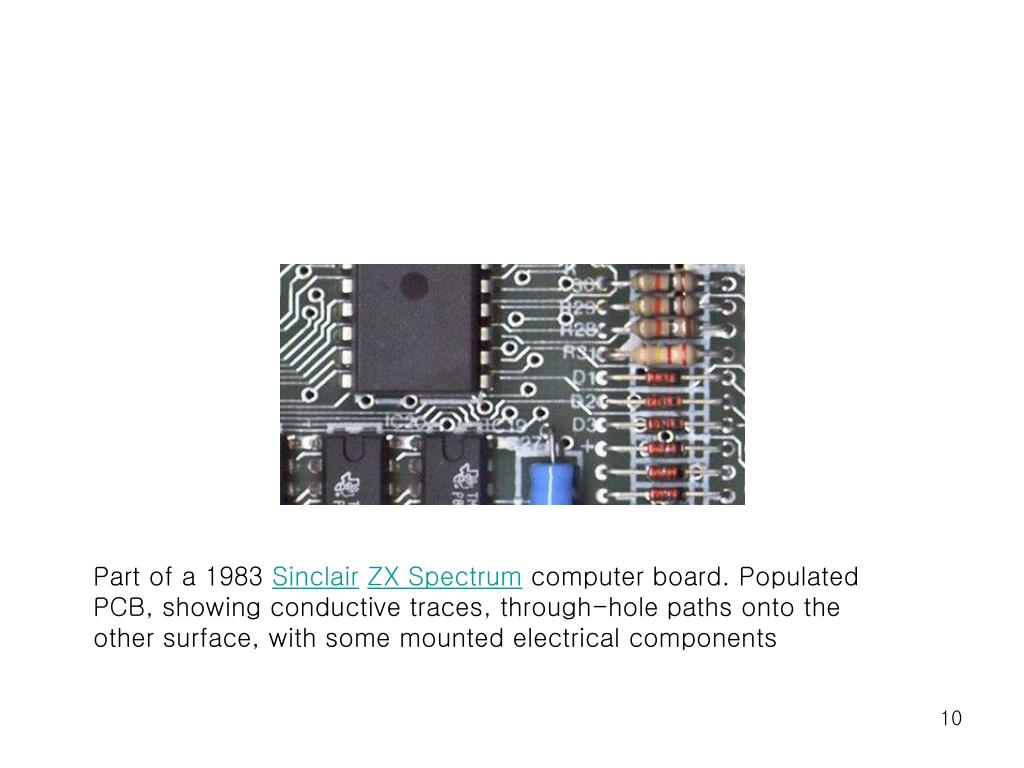

  10. Part of a 1983 SinclairZX Spectrum computer board. Populated PCB, showing conductive traces, through-hole paths onto the other surface, with some mounted electrical components

  11. Integrated Circuits • Primarily crystalline silicon • 1mm~25mm on a side • 100 ~ 1000M transistors • 25 ~ 250M “logic gates” • CMOS (Complementary Metal Oxide Semiconductor) technology

  12. Technology Trend (Processor Complexity) 2x transistors/chip every 1.5 years!

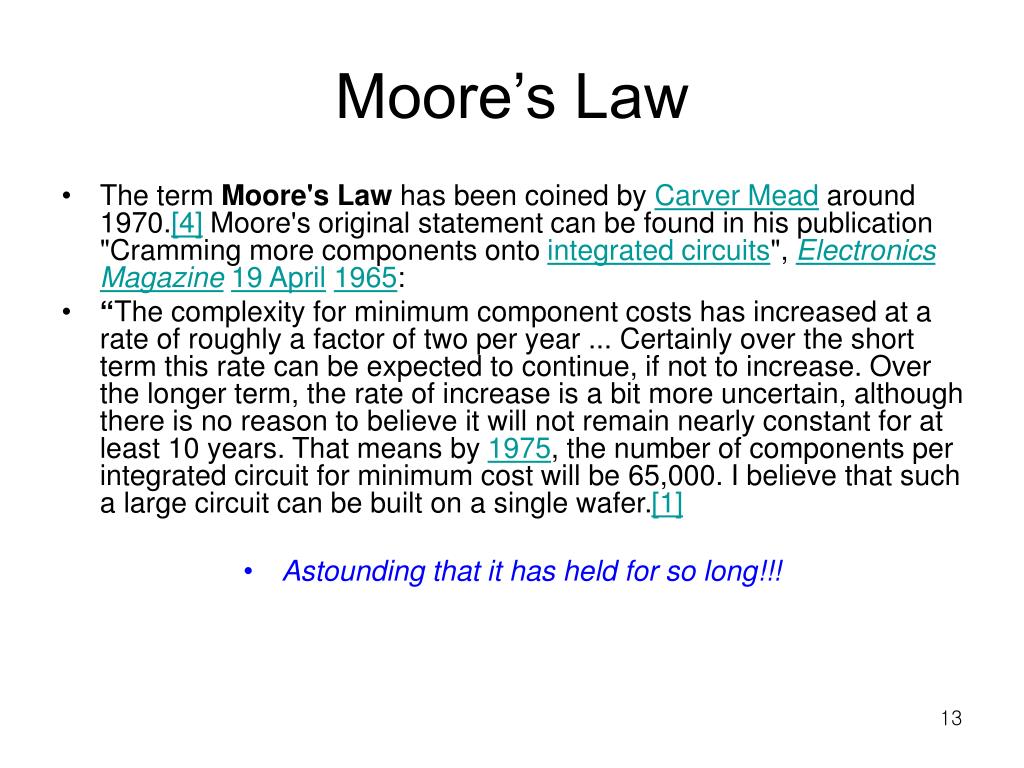

  13. Moore’s Law • The term Moore's Law has been coined by Carver Mead around 1970.[4] Moore's original statement can be found in his publication "Cramming more components onto integrated circuits", Electronics Magazine19 April1965: • “The complexity for minimum component costs has increased at a rate of roughly a factor of two per year ... Certainly over the short term this rate can be expected to continue, if not to increase. Over the longer term, the rate of increase is a bit more uncertain, although there is no reason to believe it will not remain nearly constant for at least 10 years. That means by 1975, the number of components per integrated circuit for minimum cost will be 65,000. I believe that such a large circuit can be built on a single wafer.[1] • Astounding that it has held for so long!!!

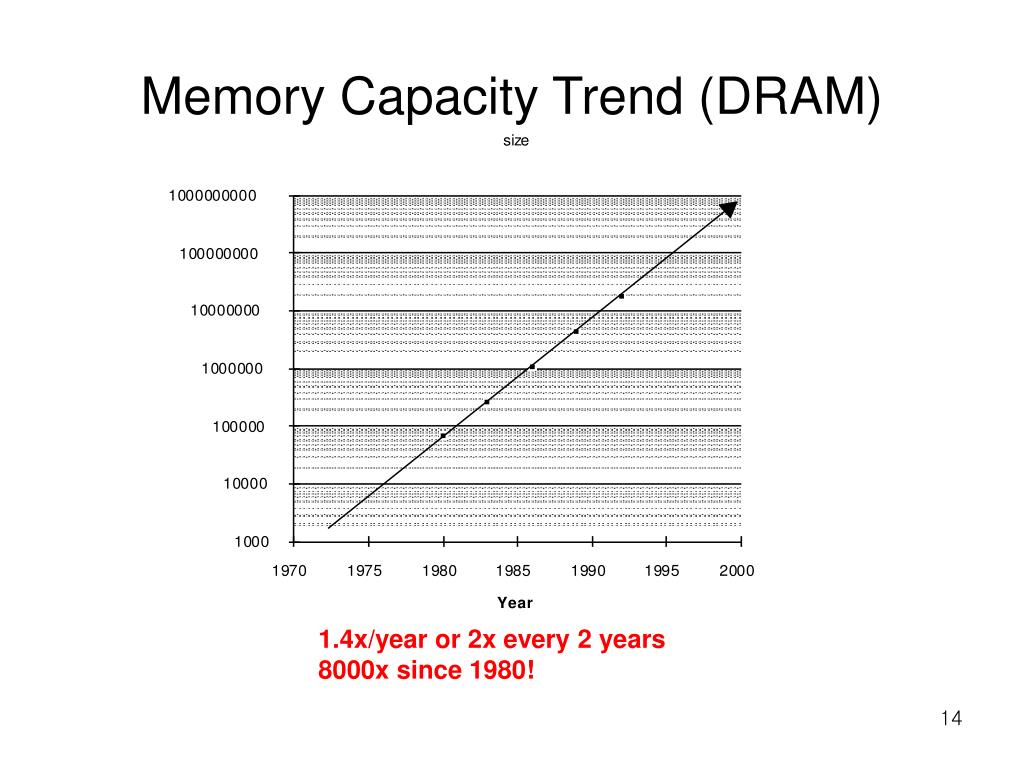

  14. Memory Capacity Trend (DRAM) 1.4x/year or 2x every 2 years 8000x since 1980!

  15. Technology Advances (!) • Memory • DRAM capacity: 2x / 2 years (since ’96) • 64x size improvement in last decade • Processor • Speed (in terms of clock frequency): 2x / 1.5 years (since ’85) • 100x performance improvement in last decade • Disk • Capacity: 2x / 1 year (since ’97) • 250x size improvement in last decade

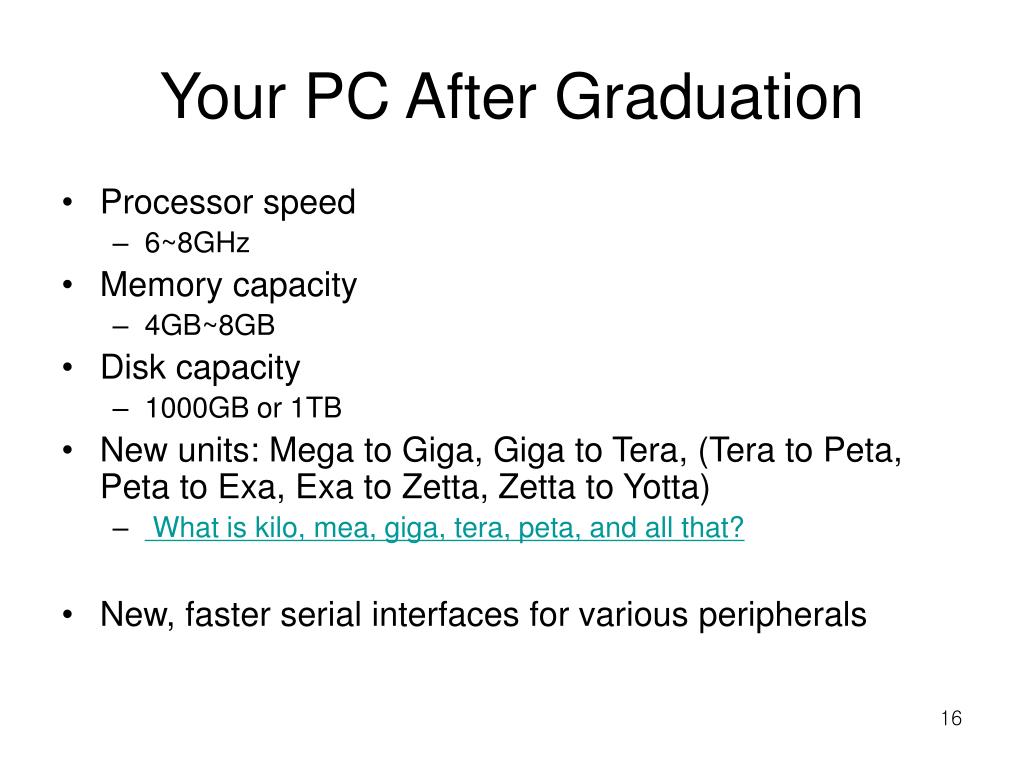

  16. Your PC After Graduation • Processor speed • 6~8GHz • Memory capacity • 4GB~8GB • Disk capacity • 1000GB or 1TB • New units: Mega to Giga, Giga to Tera, (Tera to Peta, Peta to Exa, Exa to Zetta, Zetta to Yotta) • What is kilo, mea, giga, tera, peta, and all that? • New, faster serial interfaces for various peripherals

  17. A PC in the mid 90s • IBM PC AT • Based on 80286 (80586 is Pentium-1) • Processor speed • 20MHz (?) compared to 5,000MHz • Memory capacity • 1MB compared to 4000MB • Disk capacity • 40MB compared to 1000GB • No CD-ROM! • 14 inch monitor (not flat!), VGA (640x480) • Wheel mouse • 2 buttons

  18. Input Devices • Accepts input from human (or from other machine) • Desktop computers • Keyboard • Mouse (touchpad) • Joystick • … • Servers • Terminals on network • Cell phone – Embedded computers • Keypad

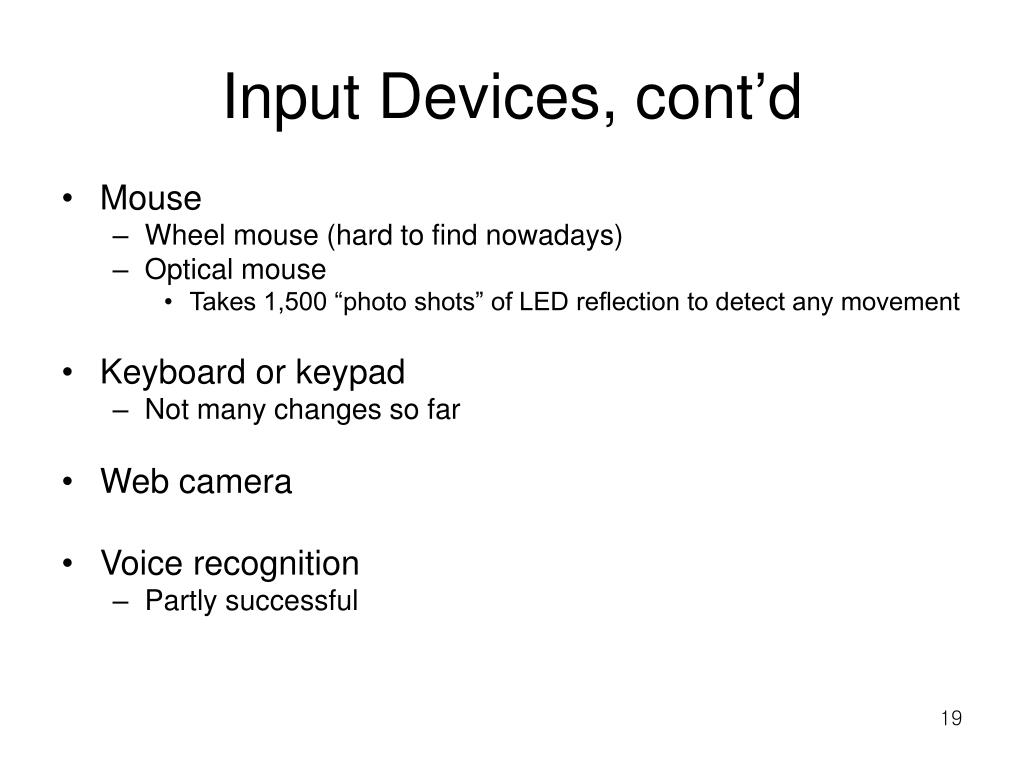

  19. Input Devices, cont’d • Mouse • Wheel mouse (hard to find nowadays) • Optical mouse • Takes 1,500 “photo shots” of LED reflection to detect any movement • Keyboard or keypad • Not many changes so far • Web camera • Voice recognition • Partly successful

  20. Output Devices • Passes information to human (or to other machine) • Desktop computers • Display (CRT or LCD) • Sound • … • Servers • Terminals on network • Cell phone – Embedded computers • Screen • Sound • Vibration

  21. Output Devices, cont’d • Display • CRT to LCD • LCD size from 10 inch to 24 inch • Resolution from 640x480 to 1600x1200 • Sound • Simple “tick” to theatre-like effects

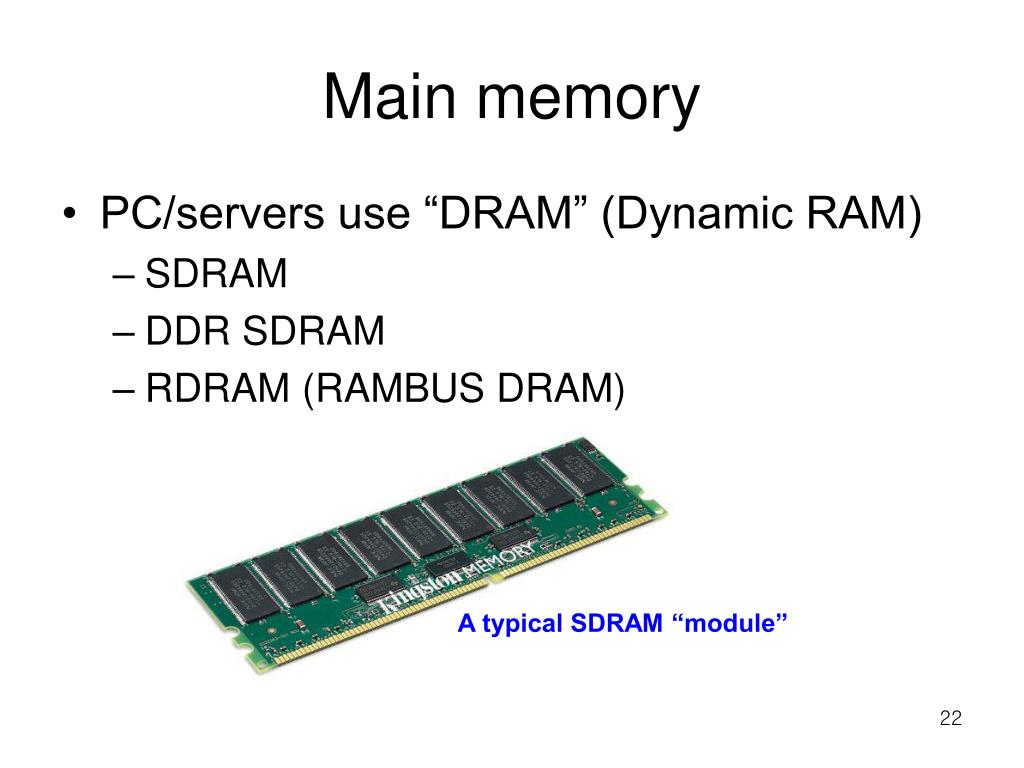

  22. Main memory • PC/servers use “DRAM” (Dynamic RAM) • SDRAM • DDR SDRAM • RDRAM (RAMBUS DRAM) A typical SDRAM “module”

  23. SRAM, SDRAM, FLASH all in a same chip! Main memory, cont’d • Embedded computers use DRAM or SRAM (or both) depending on applications

  24. Storage • Secondary storage (cf. main memory) • Non-volatile • Stores programs, user-saved data, etc. • In PC/server domain, magnetic disk (hard-disk) is usually used • In embedded computers, “flash” memory or “ROM” is usually employed

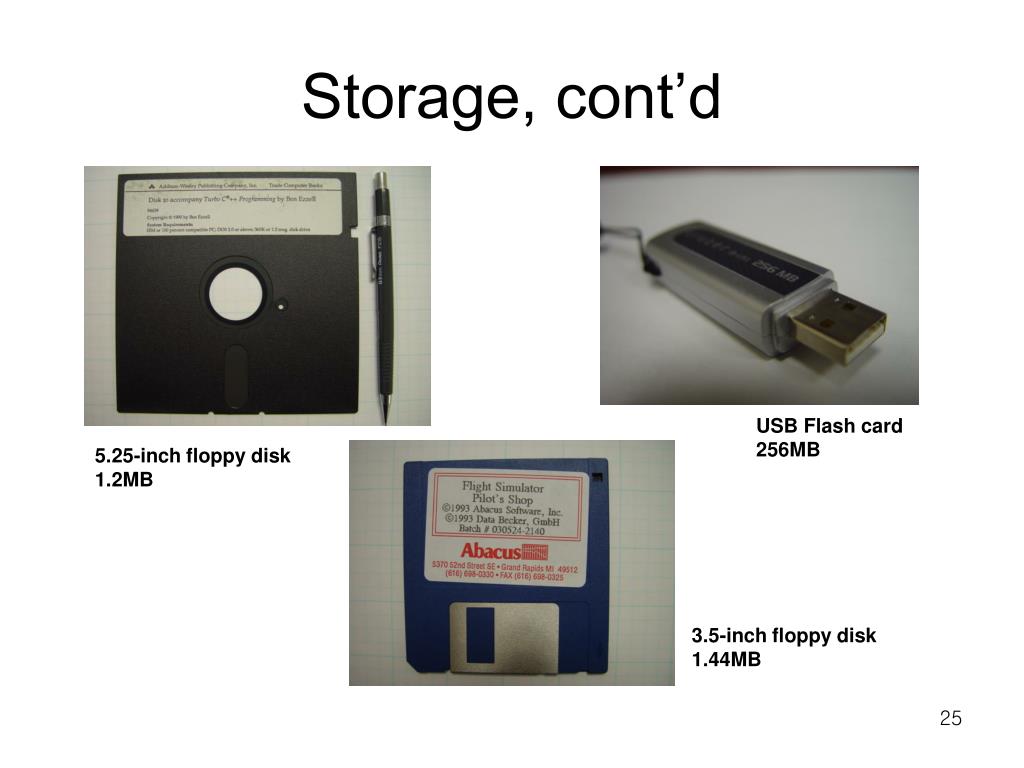

  25. USB Flash card 256MB 5.25-inch floppy disk 1.2MB 3.5-inch floppy disk 1.44MB Storage, cont’d

  26. Storage, cont’d

  27. Computer Networks • Local Area Network (LAN) • Within limited distance (e.g., in a building) • Mostly based on Ethernet • 10Mbps, 100Mbps, 1Gbps, 10Gbps, … • Wide Area Network • Connecting networks far apart • At home, • Modem: 14.4Kbps, 28.8Kbps, 33.6Kbps, 56Kbps • Cable modem/DSL: several hundred Kbps ~ several Mbps • Higher-speed DSL technologies • Proliferation of wireless LAN (IEEE802.11) • 1 ~ 100Mbps

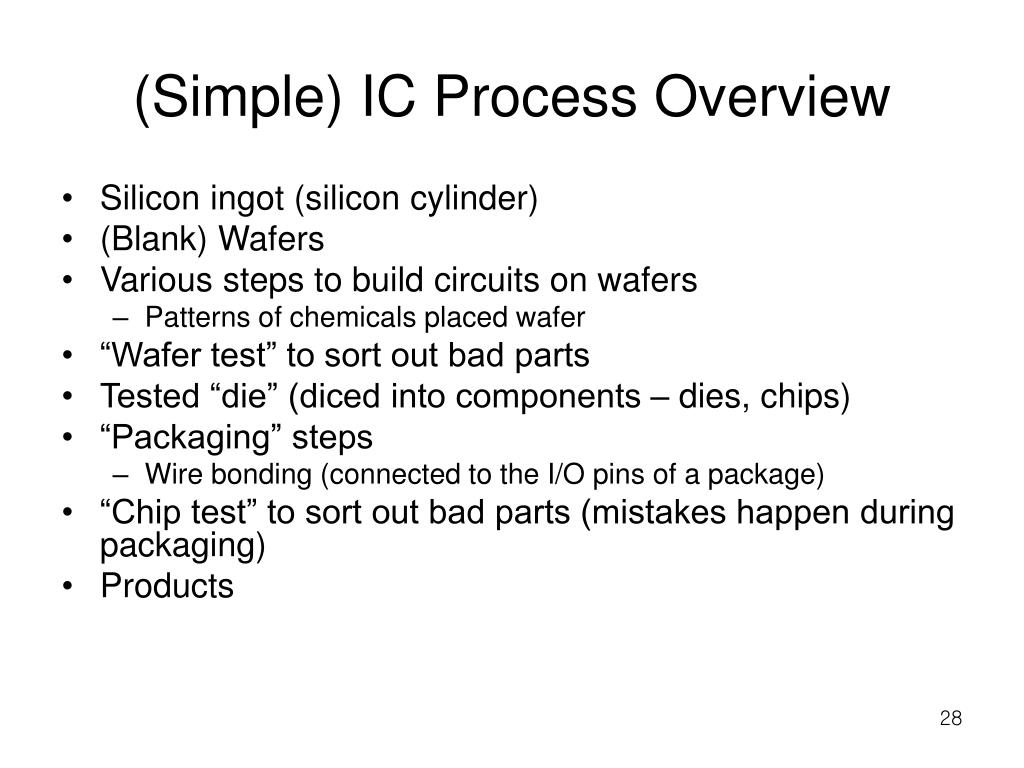

  28. (Simple) IC Process Overview • Silicon ingot (silicon cylinder) • (Blank) Wafers • Various steps to build circuits on wafers • Patterns of chemicals placed wafer • “Wafer test” to sort out bad parts • Tested “die” (diced into components – dies, chips) • “Packaging” steps • Wire bonding (connected to the I/O pins of a package) • “Chip test” to sort out bad parts (mistakes happen during packaging) • Products
