Linear Logarithmic Equations & y = ax n

Linear Logarithmic Equations & y = ax n. Exponentia l form. Suppose that y = ax n. Then logy = log(ax n). So logy = loga + logx n (law1). Or logy = nlogx + loga (law3) . Now let Y = logy, X = logx, m = n, c = loga. This gives us Y = mX + c. Linear form.

fran
Download Presentation

Linear Logarithmic Equations & y = ax n

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Linear Logarithmic Equations & y = axn Exponential form Suppose that y = axn Then logy = log(axn) So logy = loga + logxn (law1) Or logy = nlogx + loga(law3) Now let Y = logy, X = logx, m = n, c = loga This gives us Y = mX + c Linear form The linear form is easier to manipulate and can be converted back to the exponential form when required.

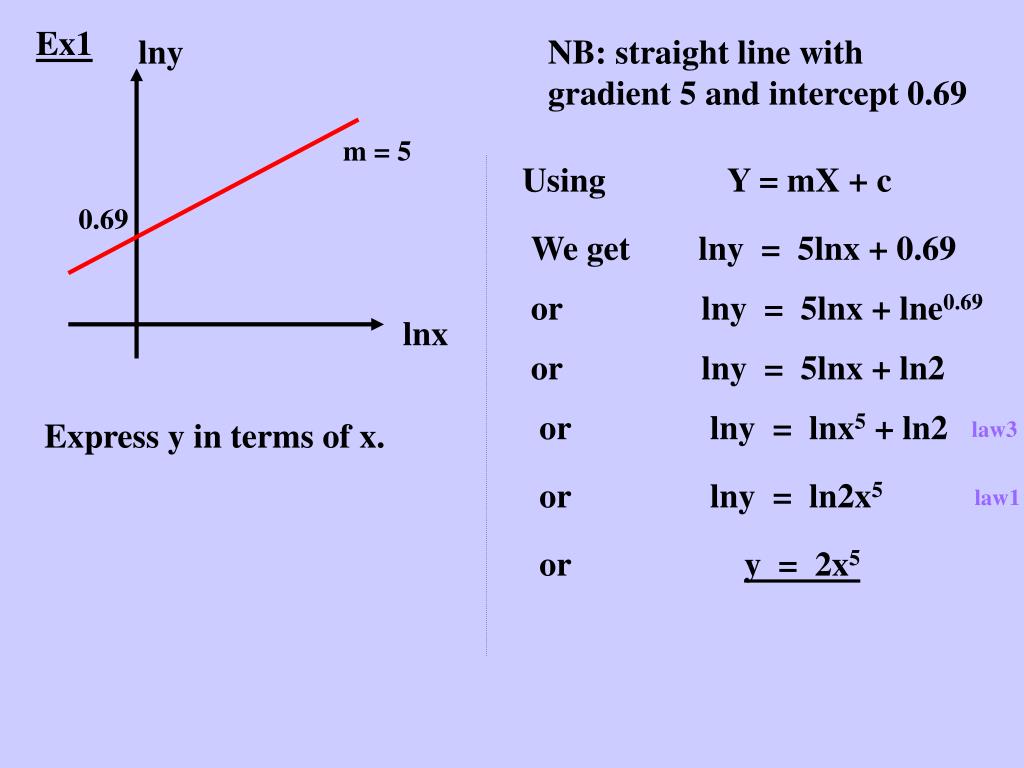

  2. Ex1 lny NB: straight line with gradient 5 and intercept 0.69 m = 5 Using Y = mX + c 0.69 We get lny = 5lnx + 0.69 or lny = 5lnx + lne0.69 lnx or lny = 5lnx + ln2 or lny = lnx5 + ln2 Express y in terms of x. law3 or lny = ln2x5 law1 or y = 2x5

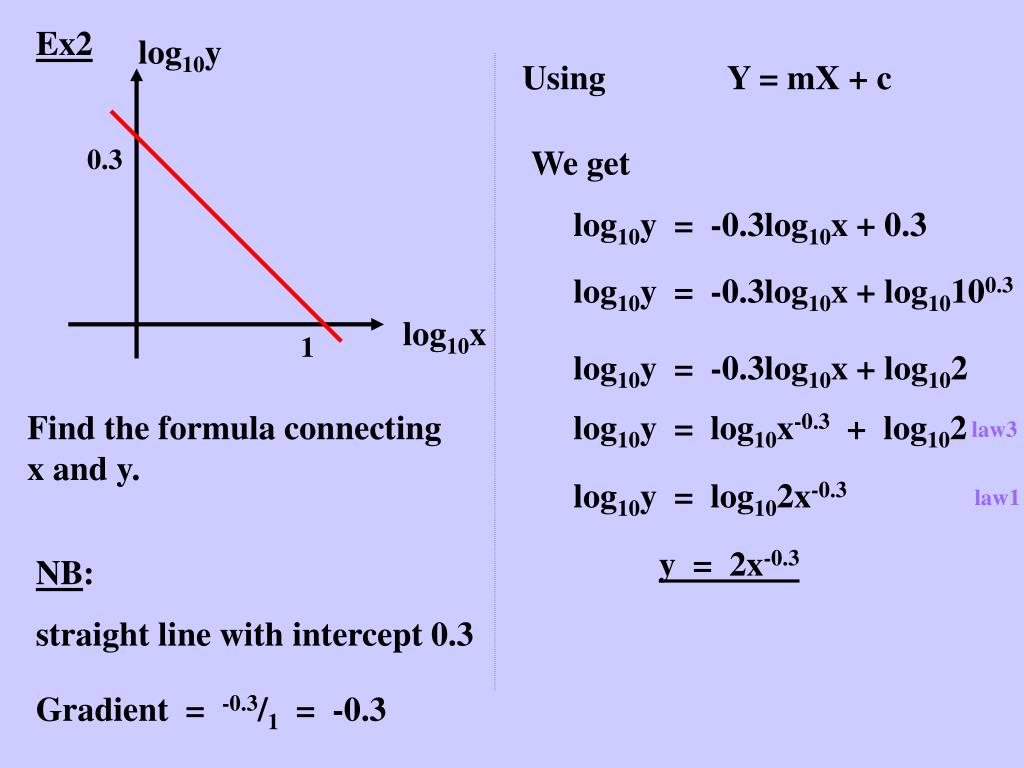

  3. Ex2 log10y Using Y = mX + c 0.3 We get log10y = -0.3log10x + 0.3 log10y = -0.3log10x + log10100.3 log10x 1 log10y = -0.3log10x + log102 Find the formula connecting x and y. log10y = log10x-0.3 + log102 law3 log10y = log102x-0.3 law1 y = 2x-0.3 NB: straight line with intercept 0.3 Gradient = -0.3/1 = -0.3
