  1. Gas Treatment Plant Chris, Stephanie, Kyle, Mariam

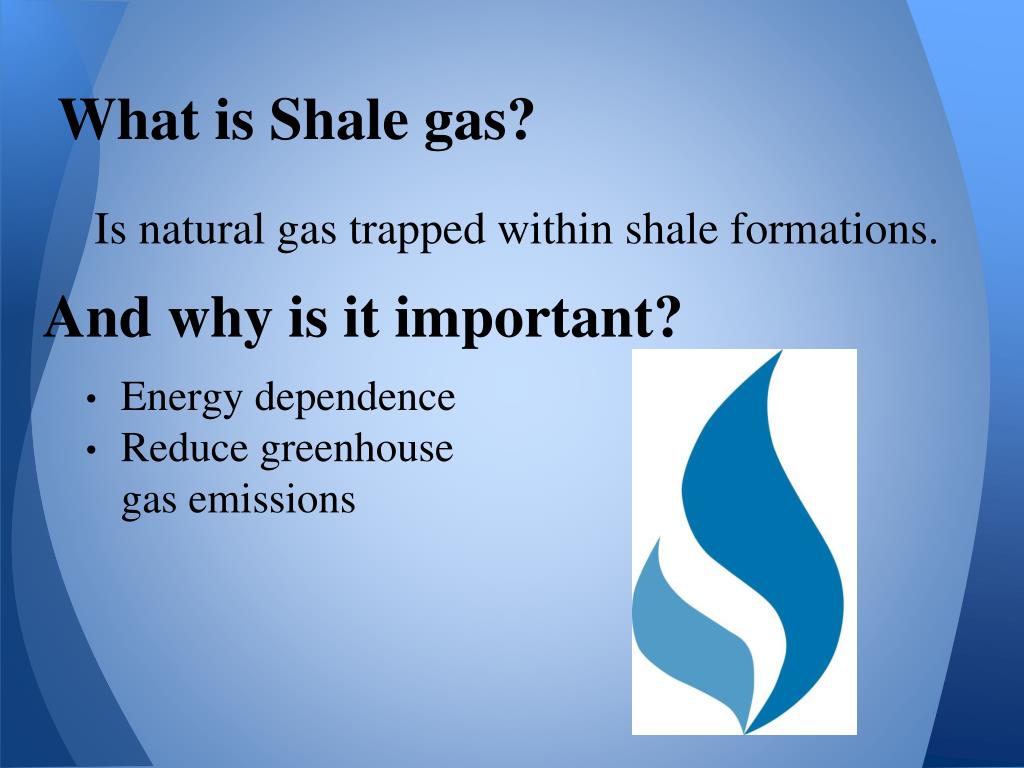

  2. What is Shale gas? Is natural gas trapped within shale formations. And why is it important? • Energy dependence • Reduce greenhouse gas emissions

  3. Purpose • Take raw shale gas and purify. • Produce compressed natural gas/pipeline gas. • Produce liquefied natural gas (LNG) • Supply methane for Ammonia Plant, Air Separations and Syngas Plant, the Direct Iron Reduction Plant, and Combined Heat/Power plant. • Supply Nitrogen (N2) to Ammonia Plant. • Produce natural gas liquids (NGL) for sale.

  4. Shale Gas Composition

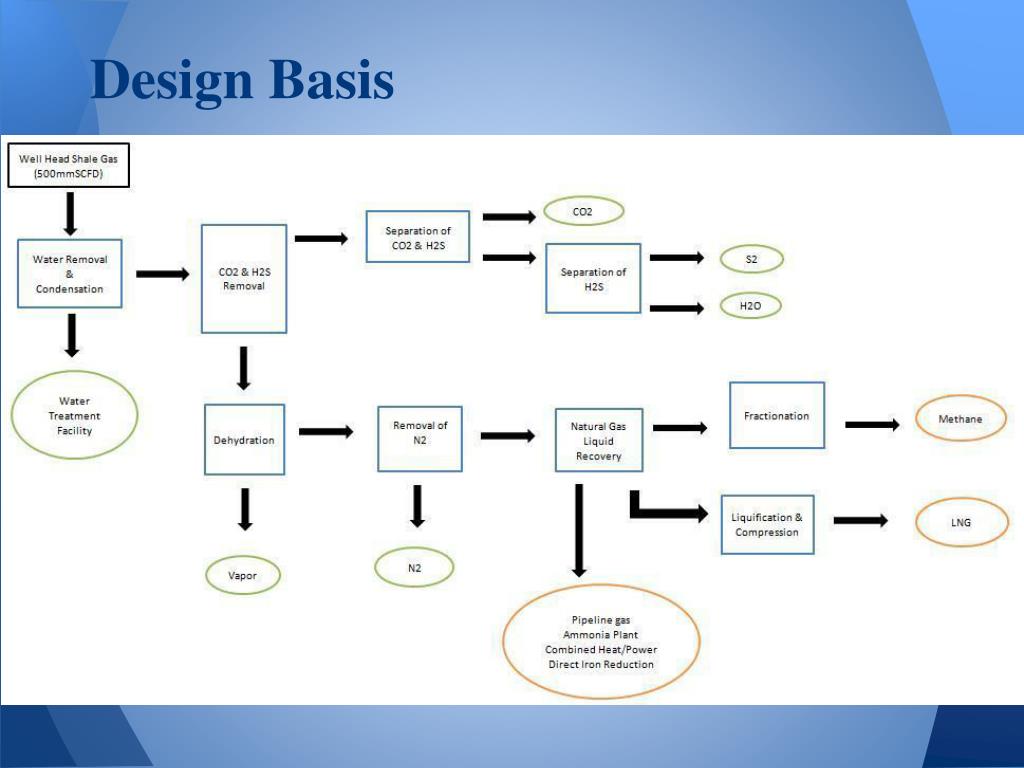

  5. Design Basis

  6. First Step: Water Removal and Condensation

  7. First Step: Water Removal and Condensation Gravity Separation Example of Horizontal Separator

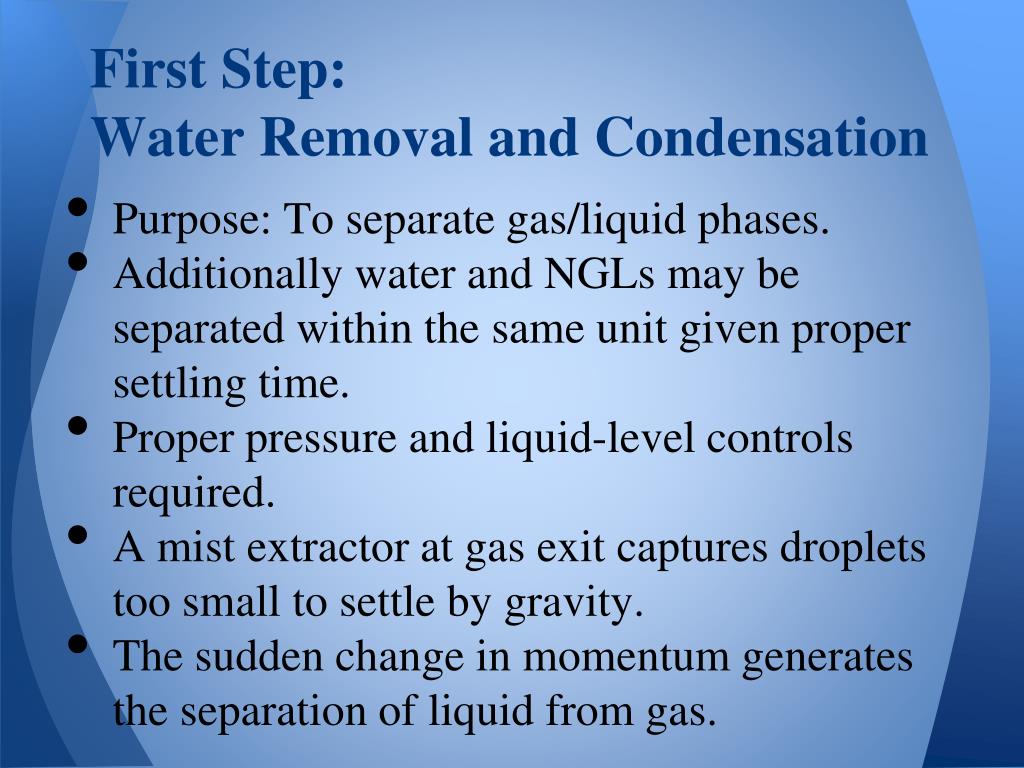

  8. First Step: Water Removal and Condensation • Purpose: To separate gas/liquid phases. • Additionally water and NGLs may be separated within the same unit given proper settling time. • Proper pressure and liquid-level controls required. • A mist extractor at gas exit captures droplets too small to settle by gravity. • The sudden change in momentum generates the separation of liquid from gas.

  9. Second Step: Acid Gas Removal

  10. Second Step: Acid Gas Removal Amine Treating • Most commonly used process for removing sour gas in natural gas purification plants Most Common Amines Used • Monoethanolamine • Diethanolamine • Methylethanolamine • Diisopropylamine

  11. Second Step: Acid Gas Removal Pressure Swing Adsorption (PSA)

  12. Second Step: Acid Gas Removal Benfield Process • Thermally regenerated cyclical solvent process • Uses an activated, inhibited hot potassium carbonate solution to remove CO2, H2S and other acid gas components

  13. Second Step: Acid Gas Removal Sulfinol Process • For selective absorption of H2S, COS and mercaptans, while co-absorbing only part of the CO2 • The solvent is composed of Sulfolane, DIPA or MDEA and water • Great for treating large quantity of gas such as natural gas which are at elevated pressure

  14. Second Step: Separation H2S and CO2

  15. Second Step: Separation H2S and CO2 Room- Temperature Ionic Liquid (RTILs) • An ionic liquid comprising an anion having a carboxylate function and an effective amount of water is used as an adsorbent to selectively complex the CO2 yielding a gaseous stream with a greatly reduced CO2 content.

  16. Third Step: Separation of H2S and recycle

  17. Third Step: Separation of H2S and recycle Claus Process

  18. Third Step: Separation of H2S and recycle Scot process

  19. Third Step: Separation of H2S and recycle Clauspol process

  20. Fourth Step: Dehydration

  21. Fourth Step: Dehydration Glycol Separation • Commonly used • Triethylene Glycol • Glycol absorbs water • Can potentially vaporize hydrocarbons

  22. Fifth Step: Nitrogen Removal

  23. Fifth Step: Nitrogen Removal Methods: Cryogenics, Pressure Swing Adsorption, Membrane separation and lean oil absorption. Cryogenics: The only widely acceptable method on the industrial scale. • Costs $0.30-0.50/Mscf for plants handling 75 MMscfd • Costs $1.00+/Mscf for plants handling 2 MMscfd or less. • Methane and Nitrogen condense at different temperatures -256F and -346F respectively. Membrane Process: No membrane alone has the Nitrogen/Methane separation characteristics. PSA and Lean Oil Absorption: Prohibitively high capital costs and require lower volume flows.

  24. Sixth Step: Natural Gas Liquid Recovery

  25. Sixth Step: Natural Gas Liquid Recovery Turbo Expander and Demethanizer • Turbine through which a high pressure gas is expanded to produce work that is often used to drive a compressor • Low-temperature distillation column to separate CH4 and Natural Gas Liquids (NGLs)

  26. Seventh Step: Fractionation

  27. Seventh Step: Fractionation

  28. Eighth Step: Liquefaction and compression

  29. Eighth Step: Liquefied Natural Gas (LNG) Production Composition: • Methane 90-95% • Nitrogen 1-4% • C2+ hydrocarbons 1-5% • CO2 <1% Example of coil-wound LNG heat exchanger

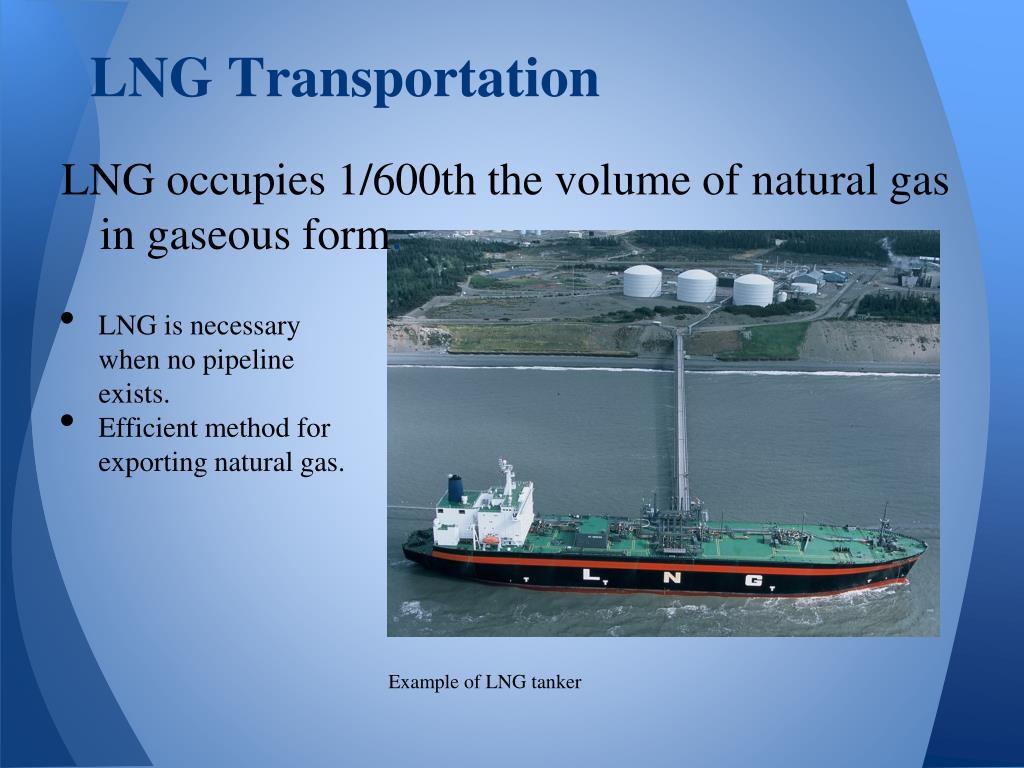

  30. LNG Transportation LNG occupies 1/600th the volume of natural gas in gaseous form. • LNG is necessary when no pipeline exists. • Efficient method for exporting natural gas. Example of LNG tanker

  31. Questions?
