ADVANCED DATABASES

ODMG Object Model,Object Definition Language (ODL)

Khawaja Mohiuddin

Assistant Professor

Department of Computer Sciences

Bahria University (Karachi Campus)

[email protected]

https://sites.google.com/site/khawajamcs

Contents for this lecture are taken from:

Chapter 10 of “Database Systems: Models, Languages …”, 6th Ed.” by Elmasri and Navathe

(Chapter 11 of “Fundamentals of Database Systems” 6th Ed. by Elmasri and Navathe)


Objectives

Objectives

  • To get to know how Object Data Management Group (ODMG) was formed

  • To understand the ODMG modeling terminology

  • To learn how Interfaces and Classes are defined in ODMG object model

  • To learn how Objects are inherited

  • To know the built-in Interfaces and Classes in ODMG object model

  • To understand the Object Definition Language (ODL)

  • To learn the graphical notations used in ODL


The odmg object model

The ODMG Object Model

  • Many experimental ODBMS prototypes created:

    • Orion system by MCC, OpenOODB by Texas Instruments, Iris system by Hewlett-Packard laboratories, Ode system by AT&T Bell Labs, ENCORE/ObServer project at Brown University, etc.

  • Many Commercial ODBMS are available:

    • GemStone Object Server of GemStone Systems, ONTOS DB of Ontos, Objectivity/DB of Objectivity Inc., Versant Object Database and FastObjects by Versant Corporation, ObjectStore of Object Design, and Ardent Database of Ardent, etc.

  • Because of the popularity of relational and object-relational systems, ODMS did not find widespread use.


The odmg object model cont d

The ODMG Object Model (cont’d.)

  • The lack of a standard for ODMS for several years may also have caused some potential users to shy away from converting to this new technology.

  • Need for a standard model and language was recognized.

  • A consortium of object DBMS vendors and users, called Object Data Management Group(ODMG), proposed a standard whose current specification is known as the ODMG 3.0 standard.

  • The standard includes the object model, the object definition language (ODL), the object query language (OQL), and the bindings to object-oriented programming languages.


The odmg terminology

The ODMG Terminology

  • ODMG object model is meant to provide a standard data model for object databases, just as relational model describes a standard data model for relational databases

  • Objects and Literals

    • Basic building blocks of the object model

    • Object has both object identifier and state (current value)

    • literal has a state (value) but no object identifier

    • Object’s state changes, literal’s does not


The odmg terminology cont d

The ODMG Terminology (cont’d.)

  • Object has five aspects:

    • Identifier

      • a unique system-wide identifier (Object_id)

      • every object must have an object identifier

    • Name

      • an object may be given a unique name

      • not all individual objects will have names

      • mainly objects that hold collections of objects (extents) will have a name.

      • these names are used as entry points to the database

      • the user can then locate other objects that are referenced from these objects

      • it is possible to give more than one name to an object

      • all names within a particular ODMS must be unique


The odmg terminology cont d1

The ODMG Terminology (cont’d.)

  • Lifetime

    • specifies whether persistent object or transient object

    • persistent object is a database object

    • transient object is an object in an executing program that disappears after the program terminates

    • lifetimes are independent of types (some may be transient whereas others may be persistent for same type)

  • Structure

    • specifies how object is constructed by using type constructors

    • specifies whether an object is atomic or not

    • atomic object refers to a single object that follows a user-defined type, such as Employee or Department


The odmg terminology cont d2

The ODMG Terminology (cont’d.)

  • Structure (cont’d.)

    • if not atomic, then object will be composed of other objects. Example: collection object

    • atomic object is different from atom constructor covered in Section 11.1.3, which referred to all values of built-in data types

  • Creation

    • refers to the manner in which an object can be created

    • typically accomplished via an operation new for a special Object_Factory interface

    • (Will cover in more detail later)


The odmg terminology cont d3

The ODMG Terminology (cont’d.)

  • Literal

    • Value that does not have an object identifier

    • value may have a simple or complex structure

    • Three types of literals: atomic, structured, and collection

      • Atomic literals correspond to the values of predefined, basic data types. Example: long, short, float, boolean, char, string, etc.

      • Structured literals correspond roughly to values constructed using tuple constructor, include built-in structured literals like Date, Interval, Time, etc. and user-defined structured literals defined as needed by each application

      • Collection literals specify a literal value that is a collection of objects or values. The collection itself does not have an Object_id


The odmg terminology cont d4

The ODMG Terminology (cont’d.)

  • Behavior refers to operations

  • State refers to properties (attributes and relationships)

  • Interface

    • Specifies only behavior of an object type

    • Typically noninstantiable(no objects are created corresponding to an interface)

    • May have state properties (attributes and relationships), but these cannot be inherited

    • Serves to define operations that can be inherited by other interfaces and classes


The odmg terminology cont d5

The ODMG Terminology (cont’d.)

  • Class

    • Specifies both state (attributes) and behavior (operations) of an object type

    • Instantiable(objects can be created)

    • objects are typically created based on the user-specified class declarations that form a database schema


Interface and class definitions in odmg

Interface and Class Definitions in ODMG

  • interface Object {

  • ...

  • booleansame_as(in object other_object);

  • object copy();

  • void delete();

  • };

  • Class Date : Object {

  • enum Weekday

  • {Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday};

  • enum Month

  • {January, February, March, April, May, June,

  • July, August, September, October, November, December };

  • unsigned short year();

  • unsigned short month();

  • unsigned short day();

  • ...

  • booleanis_equal(in Date other_date); ... };


Interface and class definitions in odmg cont d

Interface and Class Definitions in ODMG (cont’d.)

interface Collection : Object {

...

exception ElementNotFound{ Object element; };

unsigned long cardinality();

booleanis_empty();

...

booleancontains_element(in Object element);

void insert_element(in Object element);

void remove_element(in Object element)

raises(ElementNotFound);

iteratorcreate_iterator(in boolean stable);

... };

interface set : Collection {

set create_union(in set other_set);

...

booleanis_subset_of(in set other_set);

... };


Inheritance in the object model of odmg

Inheritance in the Object Model of ODMG

  • Behavior inheritance

    • Also known as IS-A or interface inheritance

    • Specified by the colon (:) notation

    • Requires the supertype to be an interface

    • Multiple inheritance is allowed

  • EXTENDS inheritance

    • Specified by keyword extends

    • Inherit both state and behavior strictly among classes

    • Multiple inheritance via extends not permitted


Built in interfaces and classes in the object model

Built-in Interfaces and Classes in the Object Model

  • Collection objects

    • Inherit the basic Collection interface

  • I = O.create_iterator()

    • Creates an iteratorobject Ifor the collection object O

  • Collection objects further specialized into:

    • set, list, bag, array, and dictionary


Built in interfaces and classes in the object model cont d

Built-in Interfaces and Classes in the Object Model (cont’d.)


Atomic user defined objects

Atomic (User-Defined) Objects

  • Specified using keyword class in ODL

  • Attribute

    • Property; describes some aspect of an object

  • Relationship

    • Two objects in the database are related

    • Only binary relationships are explicitly represented

    • Keyword inverse

      • Specifies that two properties define a single conceptual relationship in inverse directions

  • Operation signature:

    • Operation name, argument types, return value


Atomic user defined objects cont d

Atomic (User-Defined) Objects (cont’d.)

class EMPLOYEE

( extent ALL_EMPLOYEES

key Ssn )

{

attribute string Name;

attribute string Ssn;

attribute date Birth_date;

attribute enum Gender{M, F} Sex;

attribute short Age;

relationship DEPARTMENT Works_for

inverse DEPARTMENT::Has_emps;

void reassign_emp(in string

New_dname)

raises(dname_not_valid);

};

class DEPARTMENT

( extent ALL_DEPARTMENTS

key Dname, Dnumber )

{

attribute string Dname;

attribute short Dnumber;

attribute structDept_mgr {EMPLOYEE

Manager, date Start_date}

Mgr;

attribute set<string> Locations;

attribute structProjs {string

Proj_name, time Weekly_hours)

Projs;

relationship set<EMPLOYEE> Has_emps

inverse EMPLOYEE::Works_for;

void add_emp(in string New_ename) raises(ename_not_valid);

void change_manager(in string New_mgr_name; in date

Start_date); };


Extents keys and factory objects

Extents, Keys, and Factory Objects

  • Extent

    • Contains all persistent objects of class

    • Behaves as a set object (see EMPLOYEE class)

  • Key

    • One or more properties whose values are unique for each object in extent

    • A class with an extent can have one or more keys (see DEPARTMENT class)

  • Factory object

    • Used to generate or create individual objects via its operations (provides constructor operations)


More on factory objects

More on Factory Objects

  • By inheriting this interface, users can create their own factory interfaces for each user-defined (atomic) object type, and can implement the operation new differently for each type of object

interface ObjectFactory {

Object new();

};

interface SetFactory : ObjectFactory {

Set new_of_size(in long size);

};

interface ListFactory : ObjectFactory {

List new_of_size(in long size);

};

interface ArrayFactory : ObjectFactory {

Array new_of_size(in long size);

};


The object definition language odl

The Object Definition Language ODL

  • Support semantic constructs of ODMG object model

  • Its main use is to create object specifications, i.e. classes and interfaces

  • Independent of any particular programming language


Graphical notation for odl

Graphical Notation for ODL


Summary

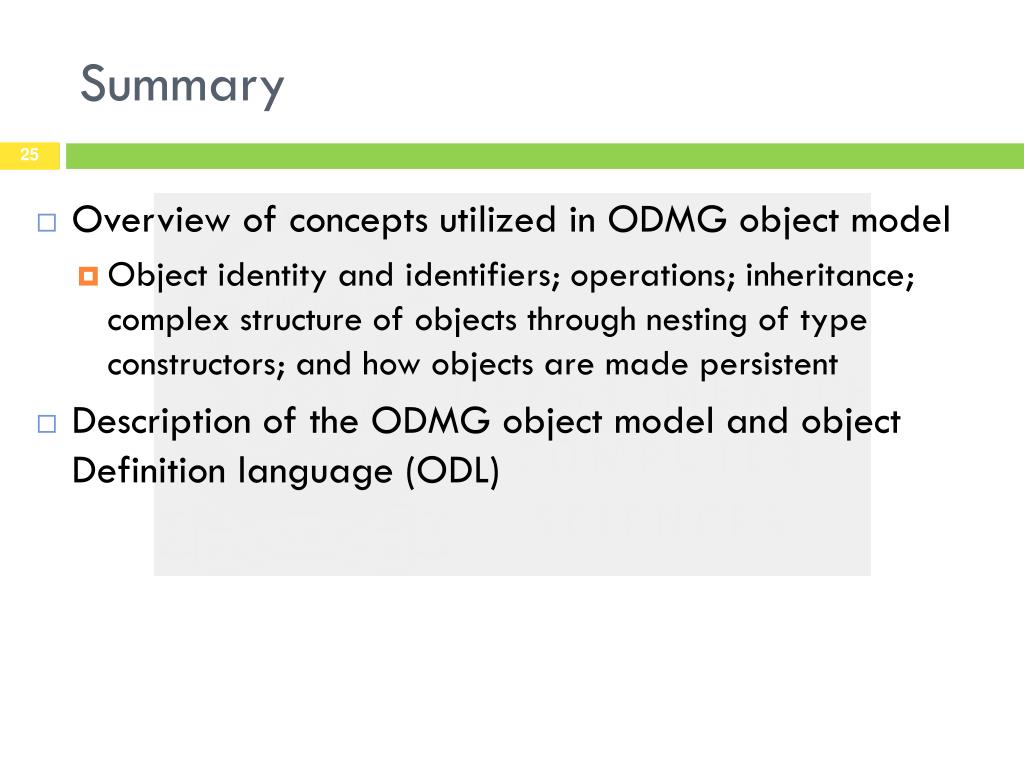

Summary

  • Overview of concepts utilized in ODMG object model

    • Object identity and identifiers; operations; inheritance; complex structure of objects through nesting of type constructors; and how objects are made persistent

  • Description of the ODMG object model and object Definition language (ODL)
