Presentation Transcript

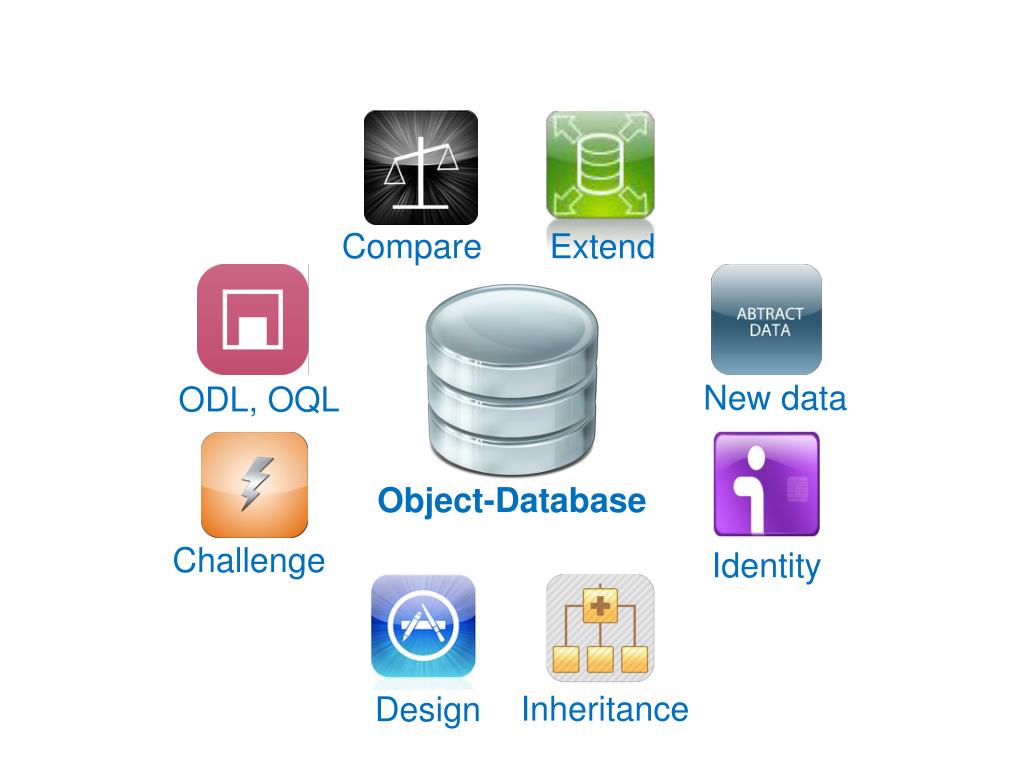

Object database

Compare

Extend

New data

ODL, OQL

Object-Database

Challenge

Identity

Inheritance

Design


Objectives

Objectives

  • Overview of ODMG Data Model

  • Object Data Language – ODL

  • Object Query Language - OQL


Odmg data model

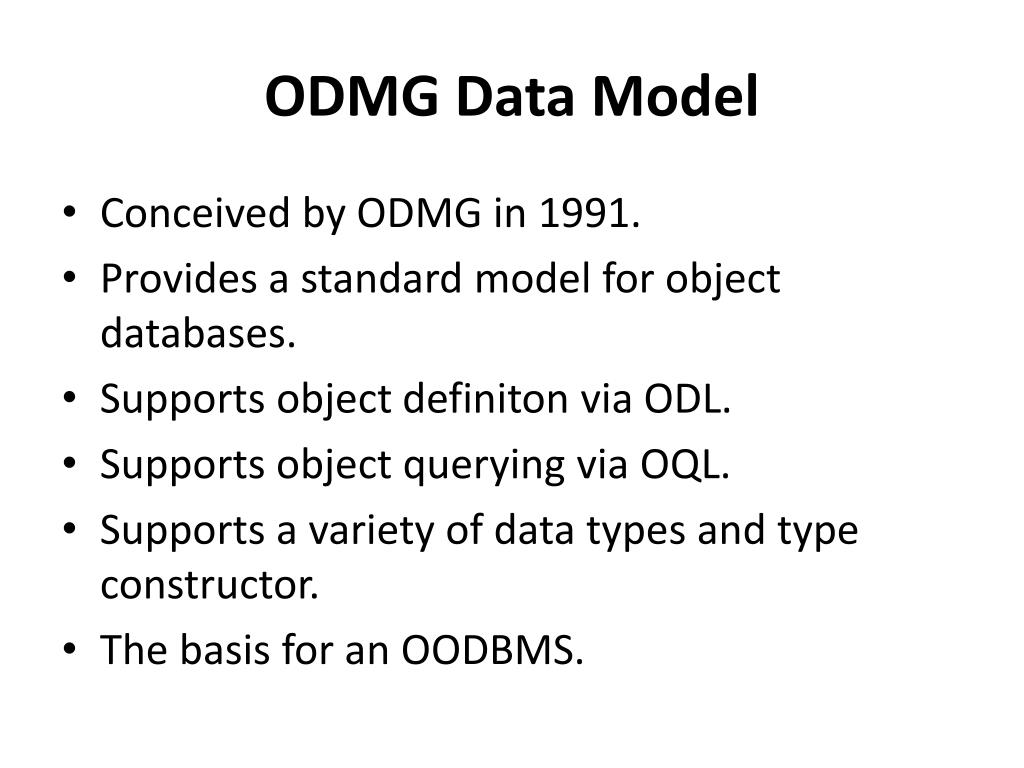

ODMG Data Model

  • Conceived by ODMG in 1991.

  • Provides a standard model for object databases.

  • Supports object definiton via ODL.

  • Supports object querying via OQL.

  • Supports a variety of data types and type constructor.

  • The basis for an OODBMS.


Object vs class

Object vs Class

Collection of object

OBJECT

CLASS

Unique oid

Same properties

Using Object Data Language to specify properties of class.

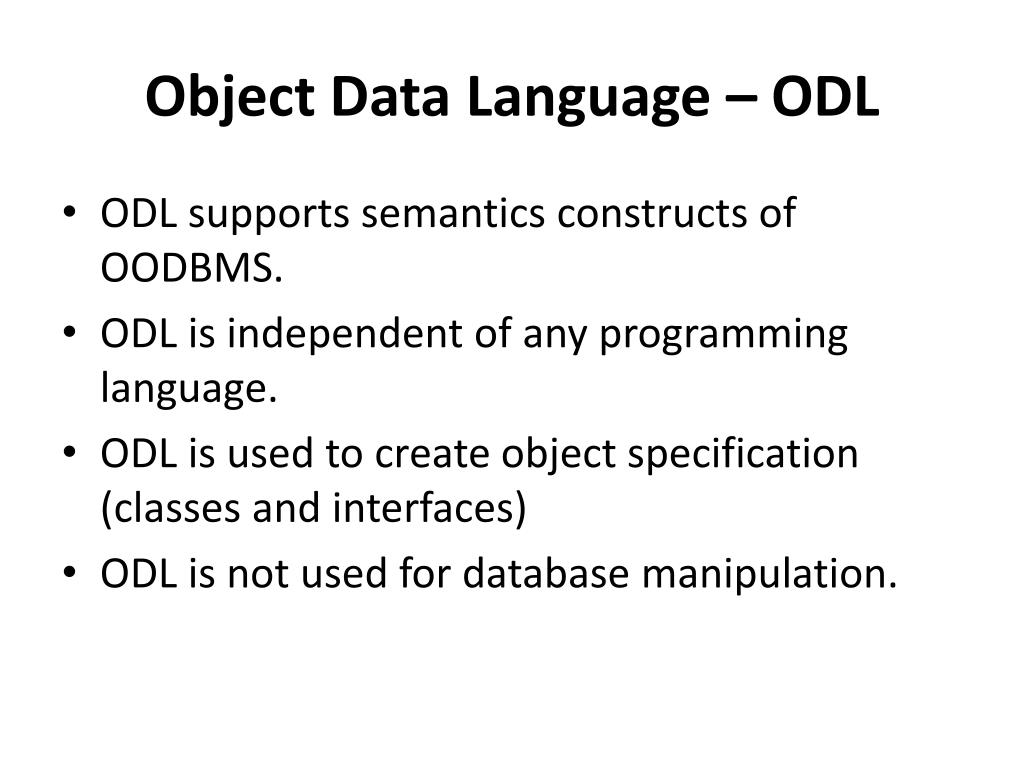

Object data language odl

Object Data Language – ODL

  • ODL supports semantics constructs of OODBMS.

  • ODL is independent of any programming language.

  • ODL is used to create object specification (classes and interfaces)

  • ODL is not used for database manipulation.


Class

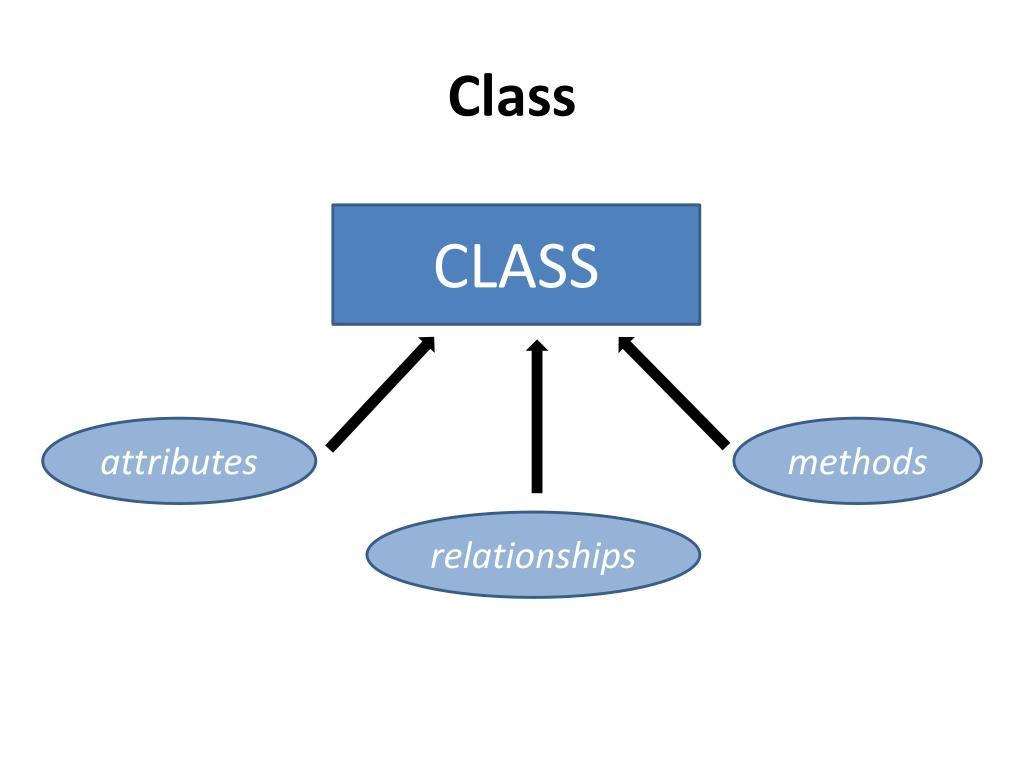

Class

CLASS

attributes

methods

relationships

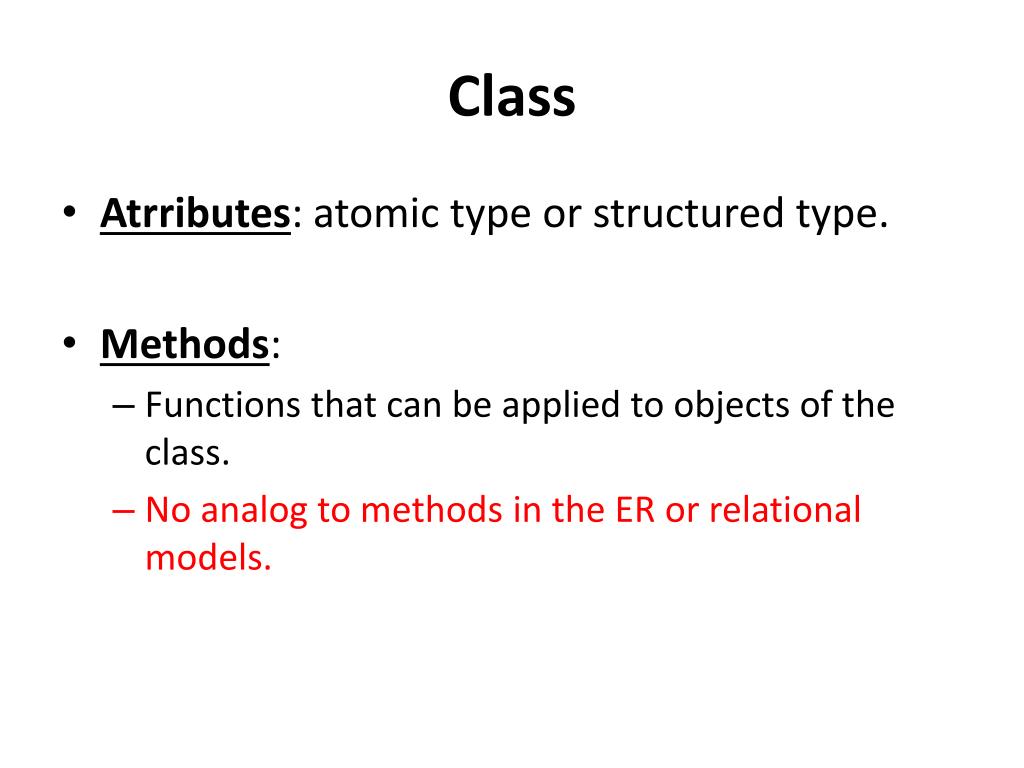

Class1

Class

  • Atrributes: atomic type or structured type.

  • Methods:

    • Functions that can be applied to objects of the class.

    • No analog to methods in the ER or relational models.


Class2

Class

  • Relationships:

    • Type is a reference to an object or a collection such references.

    • Show how an object is related to one or more objects of the same class or of a different class.

    • Has a corresponding inverse relationship.


Example

Example

showAt

nowShowing

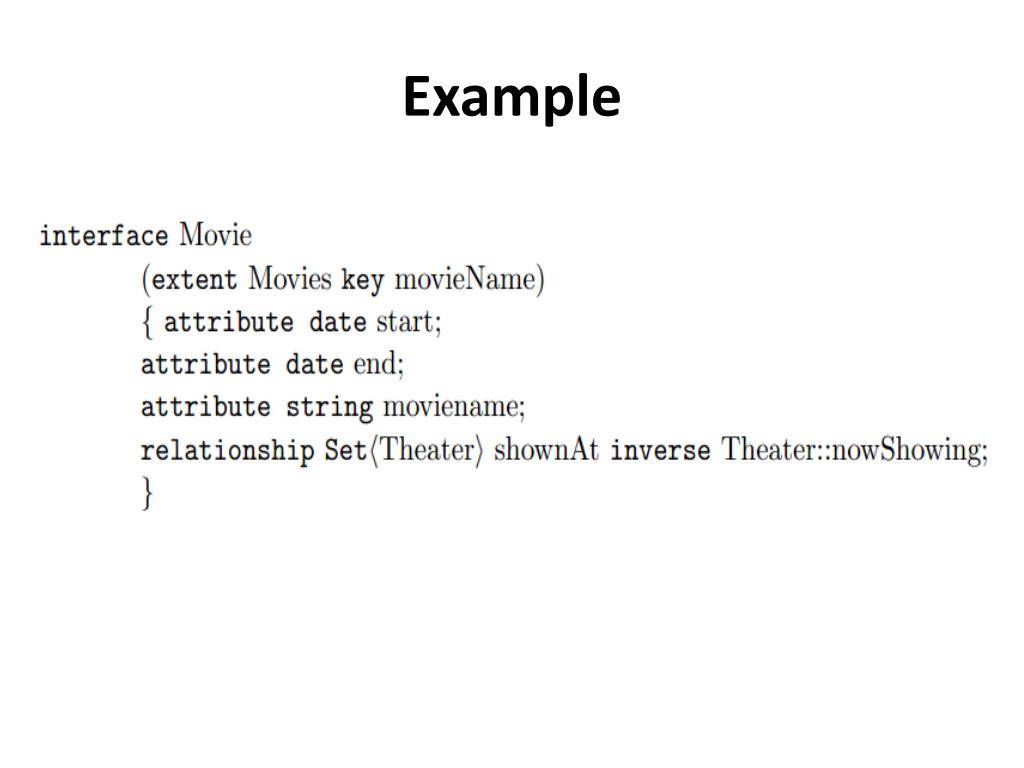

Example1

Example


Example2

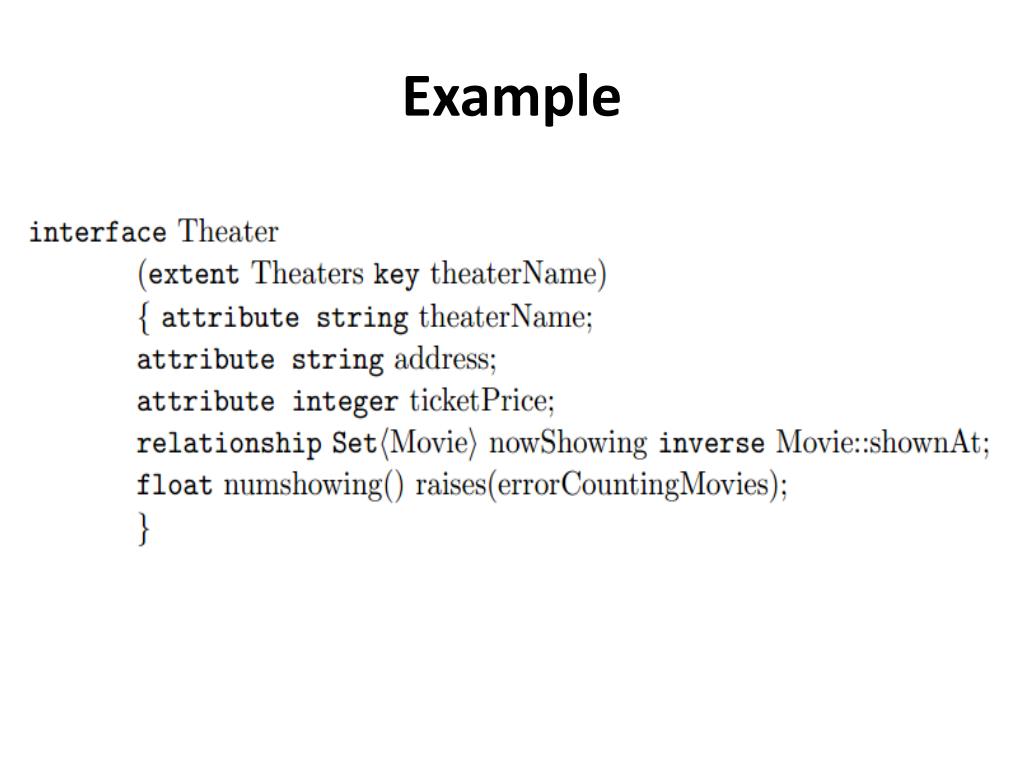

Example


Example3

Example


Object query language oql

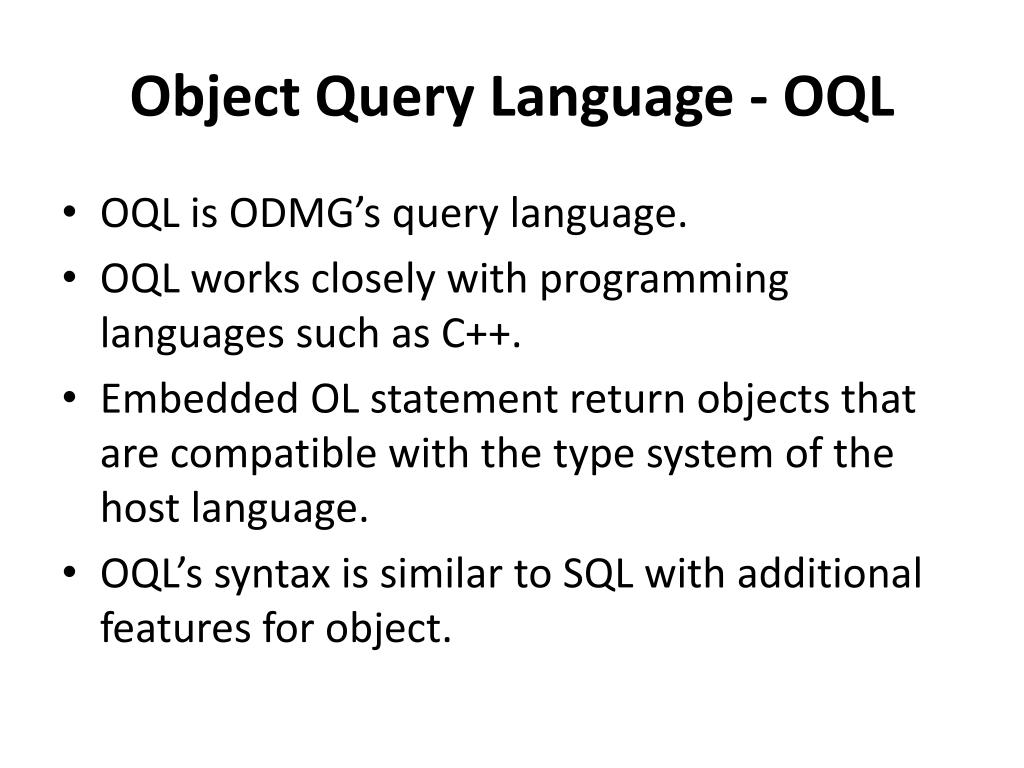

Object Query Language - OQL

  • OQL is ODMG’s query language.

  • OQL works closely with programming languages such as C++.

  • Embedded OL statement return objects that are compatible with the type system of the host language.

  • OQL’s syntax is similar to SQL with additional features for object.


Example4

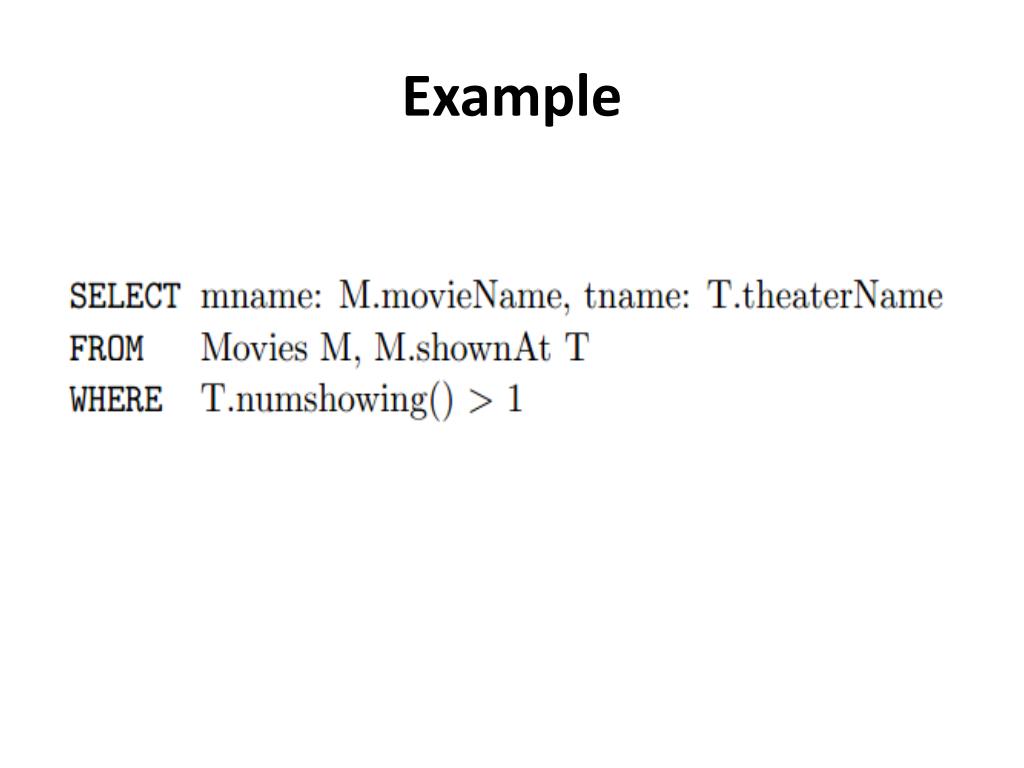

Example


Example5

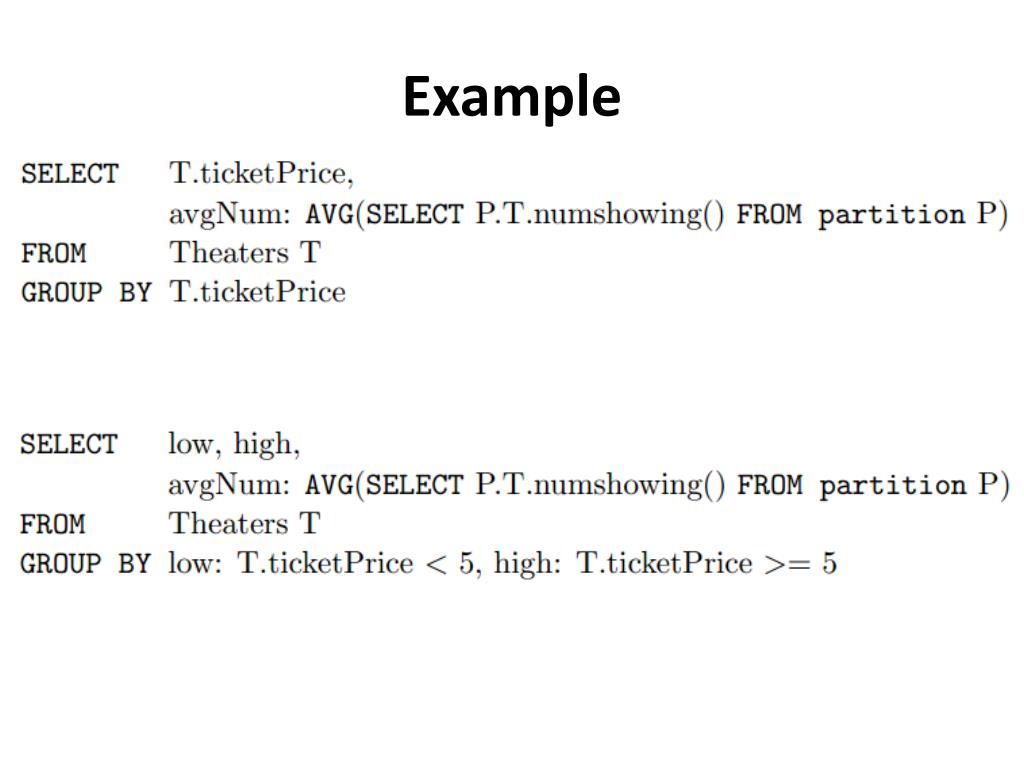

Example

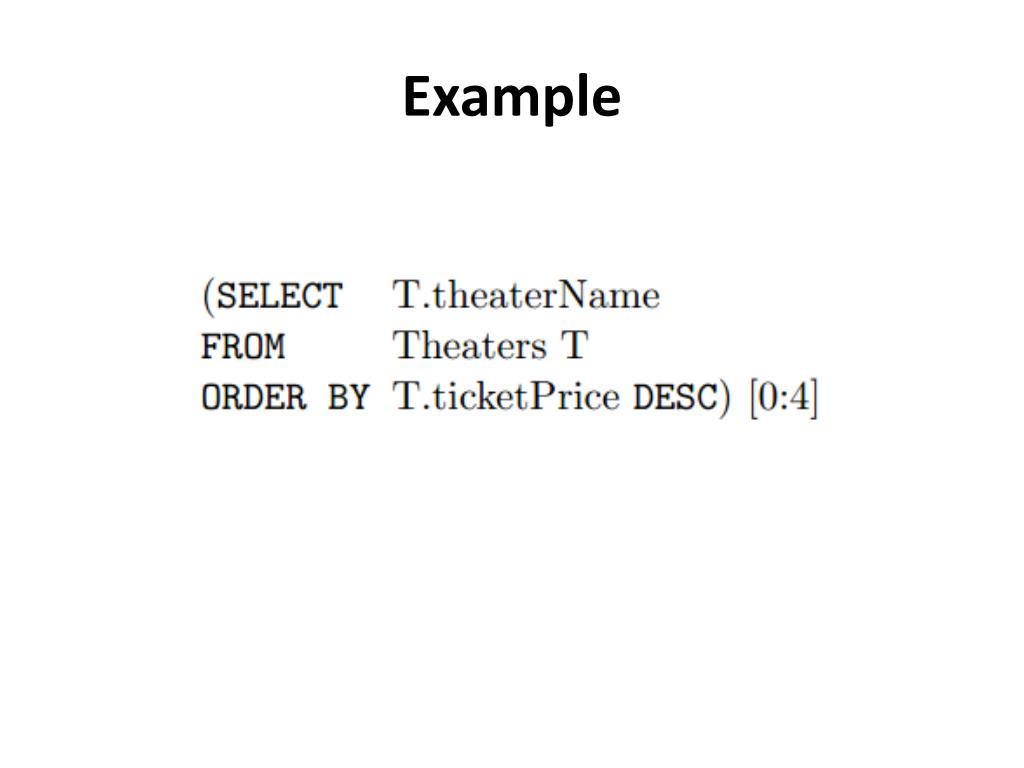

Example6

Example


Object database

Compare

Extend

New data

ODL, OQL

Object-Database

Challenge

Identity

Inheritance

Design


Rdbms versus ordbms

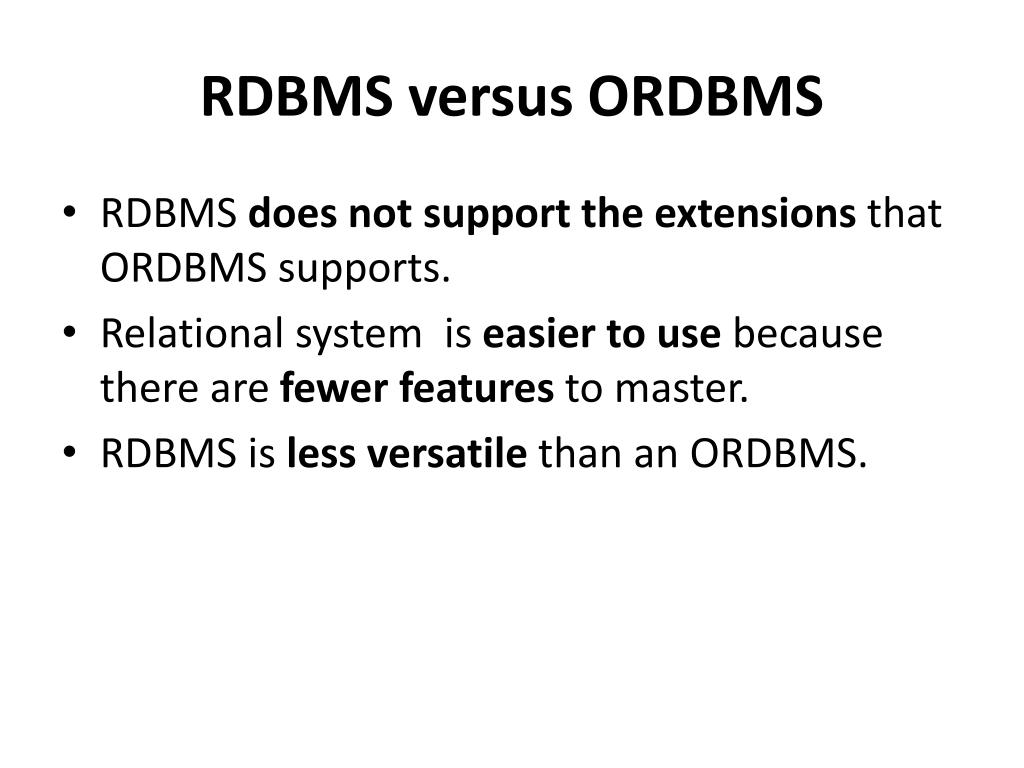

RDBMS versus ORDBMS

  • RDBMS does not support the extensions that ORDBMS supports.

  • Relational system is easier to use because there are fewer features to master.

  • RDBMS is less versatile than an ORDBMS.


Oodbms vs ordbms similarities

OODBMS vs ORDBMSSimilarities

  • Both support user-defined ADTs, structired types, object type and inheritance.

  • Both support a query language for manipulating collection type:

    • ORDBMS: extended form of SQL

    • OODBMS: ODL/OQL.

  • ORDBMS add OODBMS features to an RDBMS.

    OODBMS have developed query language based on relational query language.

  • Both provide DBMS functionality.


Oodbms vs ordbms differences

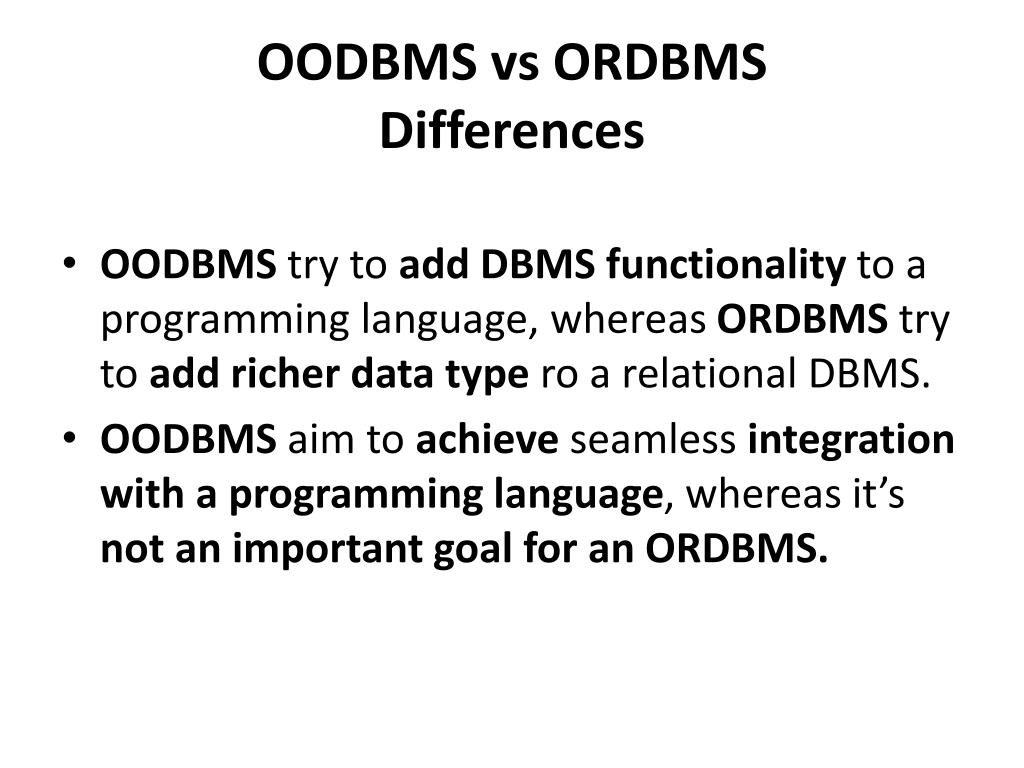

OODBMS vs ORDBMSDifferences

  • OODBMS try to add DBMS functionality to a programming language, whereas ORDBMS try to add richer data type ro a relational DBMS.

  • OODBMS aim to achieve seamless integration with a programming language, whereas it’s not an important goal for an ORDBMS.


Oodbms vs ordbms differences1

OODBMS vs ORDBMSDifferences

  • The query facilities of OQL are not support efficiently in most OODBMS, whereas they are the centerpiece of an ORDBMS.

  • OODBMS have been optimized to directly support object oriented applications and specific OO languages.

    ORDBMSs are supported by most of the ‘major players’ in the DBMS market place.
