Link a d converters and microcontrollers using long transmission lines

Link A/D converters and Microcontrollers using Long Transmission Lines

John WUPrecision Analog - Data Converter Applications [email protected]


Transmission line effect considerations

Transmission Line Effect Considerations

  • Definition of the Highest Frequency Signal

  • Transmission Line Model

  • Reflection Concept

  • Termination Topology

  • Crosstalk Analysis


Application example

Application Example


Transmitted data and clock

Transmitted Data and Clock

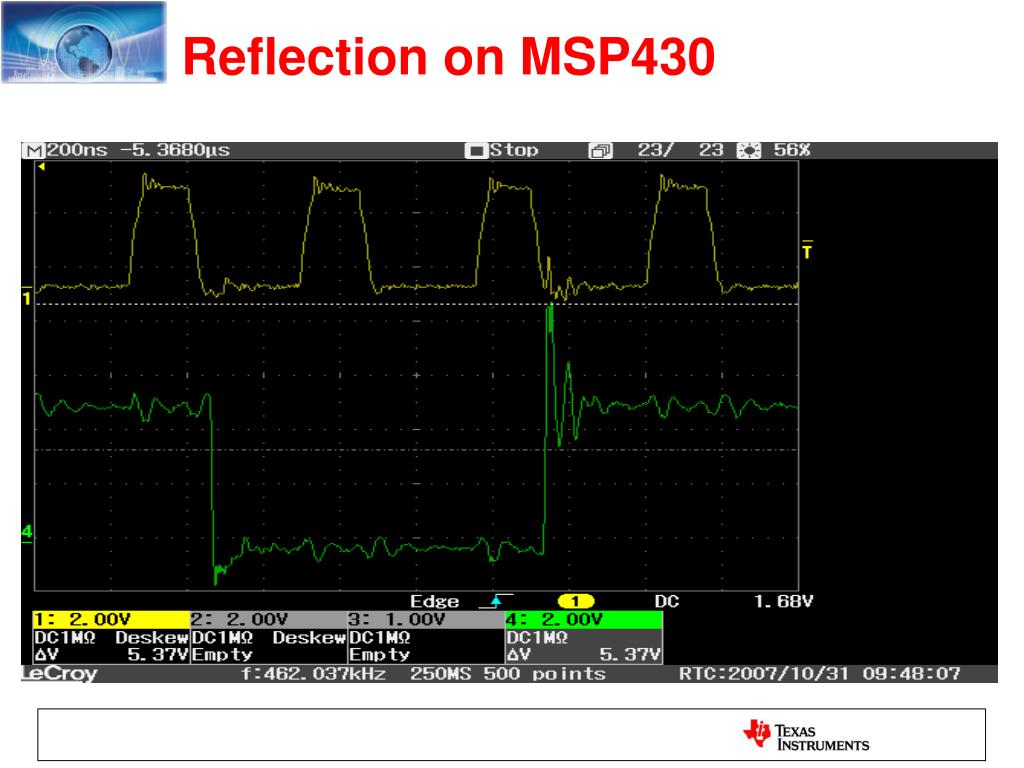

Reflection on msp430

Reflection on MSP430


With termination on msp430

With Termination on MSP430


Reflection on ads8326 evm

Reflection on ADS8326 EVM


With termination on ads8326

With Termination on ADS8326

?


Definition of the highest frequency signal

Definition of the highest frequency signal

What is the highest frequency signal

in a 2.25MHz sample clock rate

ADC ?


Definition of the highest frequency signal1

Definition of the highest frequency signal

The highest frequency signal is determined by the signal rise or fall time


Rise time vs bandwidth

Rise Time vs. Bandwidth

The rise time and bandwidth are related by:

For example:

clock rate = 2.25 MHz,

trise CLK = 10 ns

trise Data= 2 ns

The highest frequency signal or bandwidth is:

= 175MHz


Rise time measurement

Rise Time Measurement

  • The displayed Tr = 2ns (10-90%) on an oscilloscope

  • 3-dB bandwidth of a probe is 500MHz (Tr = 0.7ns)

  • 3-dB bandwidth of an oscilloscope input is 350MHz (Tr=1ns)

  • What is the measured input signal Tr ?


Rise time degradation

Rise Time Degradation

  • Tdisplayed2= Tprobe2 + Tscope2 + Tsignal2

  • Tsignal2 = Tdisplayed2 -Tprobe2 -Tscope2

  • Tsignal = SQRT(22 - 0.72 - 12 )=1.6ns!

  • 1.6ns) = 220MHz

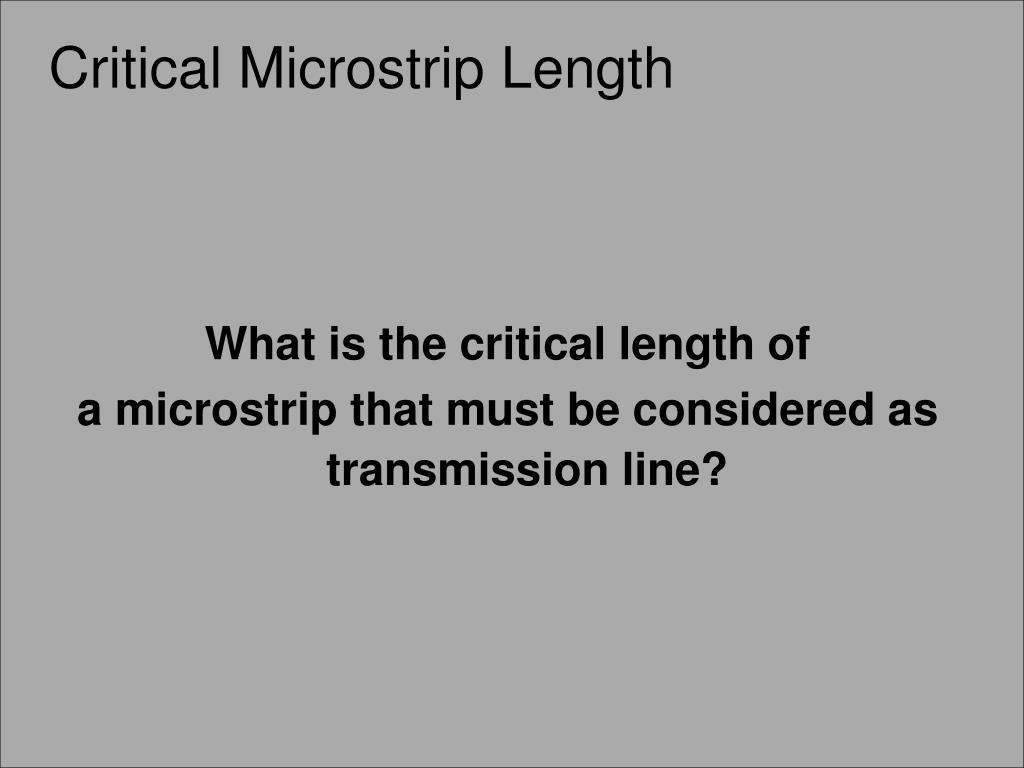

Critical microstrip length

Critical Microstrip Length

What is the critical length of

a microstrip that must be considered as transmission line?


Rise time vs propagation delay

Rise Time vs. Propagation Delay


Propagation delay vs dielectric constant

Propagation Delay vs. Dielectric Constant

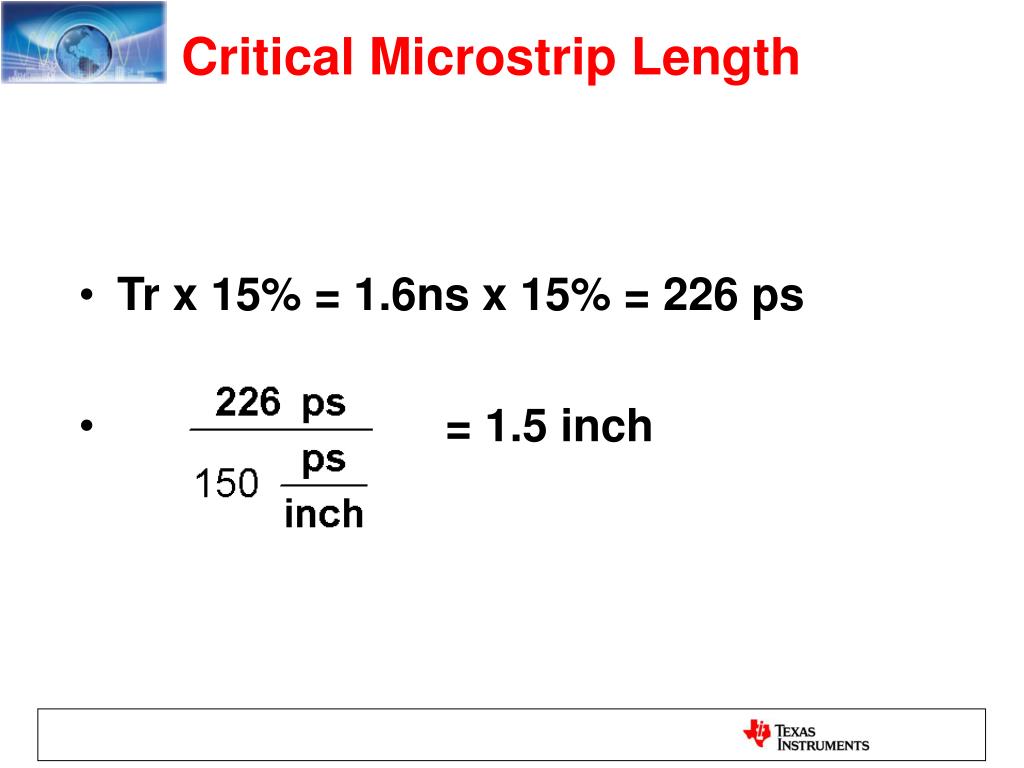

Critical microstrip length1

Critical Microstrip Length

  • Tr x 15% = 1.6ns x 15% = 226 ps

  • = 1.5 inch

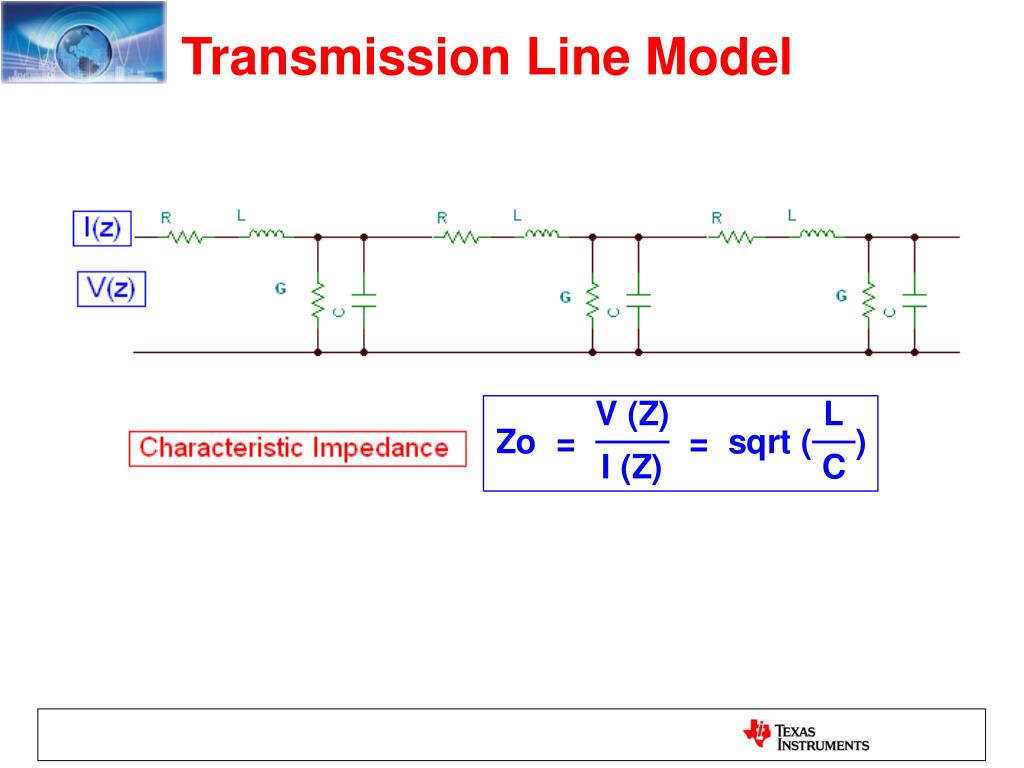

Transmission line model

Transmission Line Model


Characteristic impedance of twisted pair cable microstrip

Characteristic Impedance of Twisted Pair Cable & Microstrip


Reflection factor

Г

Reflection Factor

Zo

Z L

If Z L >> Zo; Г = +1

If Z L<< Zo; Г = -1


S parameters for reflection

S Parameters for Reflection


Reflection analysis

Reflection Analysis

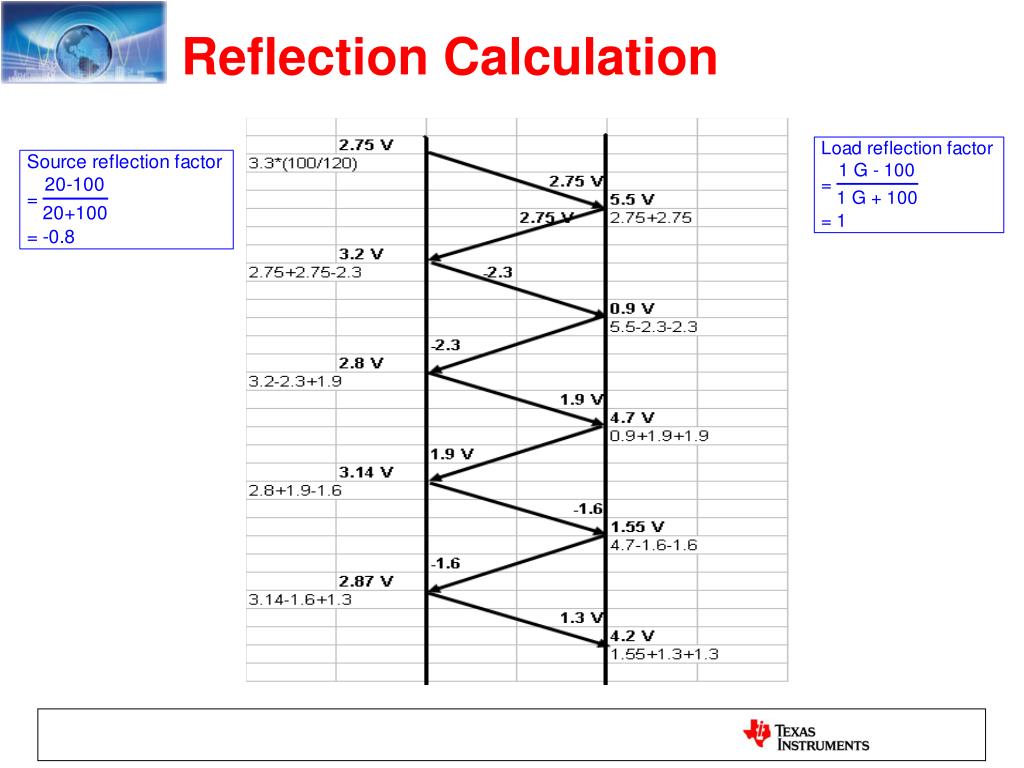

Reflection calculation

Reflection Calculation


Calculated vs measured reflection

Calculated vs. Measured Reflection

  • Tr/7


Critical length of a transmission line

Critical Length of a Transmission Line

What is the critical length of

a transmission line that must be terminated?


Rise time vs propagation delay1

Rise Time vs. Propagation Delay

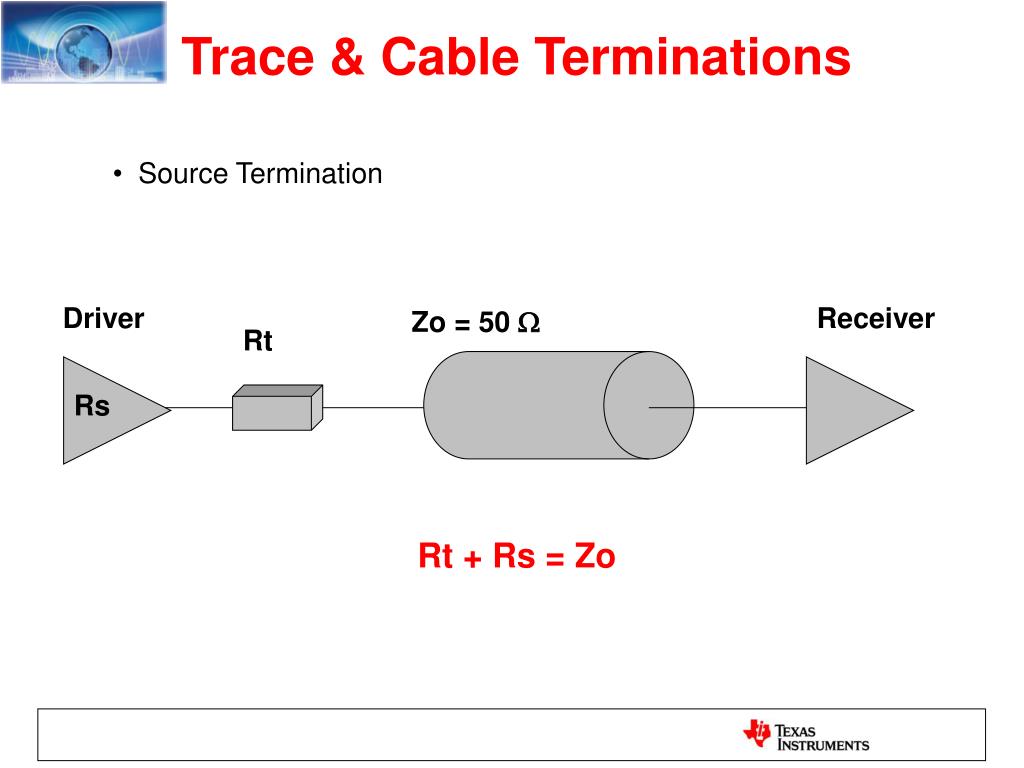

Trace cable terminations

Source Termination

Trace & Cable Terminations

Driver

Receiver

Zo = 50 W

Rt

Rs

Rt + Rs = Zo


Trace cable terminations1

Trace & Cable Terminations

  • AC termination

AC Termination

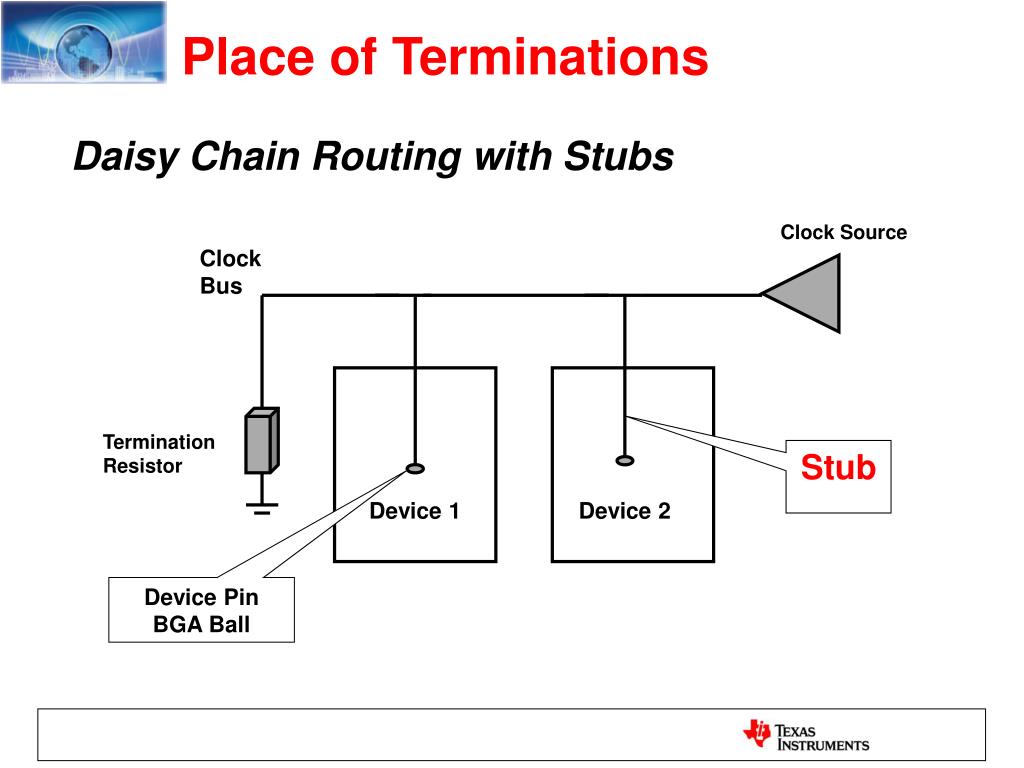

Place of terminations

Daisy Chain Routing with Stubs

Place of Terminations

Clock Source

Clock Bus

Termination Resistor

Stub

Device 1

Device 2

Device Pin

BGA Ball


Short stubs create signal integrity problems

Short stubs create signal integrity problems

Stub Length=0.5”

Stub Length=0.25”

Reference:

Altera

application note 224


Daisy chain routing without stubs

Daisy Chain Routing without Stubs

Device Pin

BGA Ball

Clock Source

Clock Bus

Device 1

Device 2

Termination Resistor

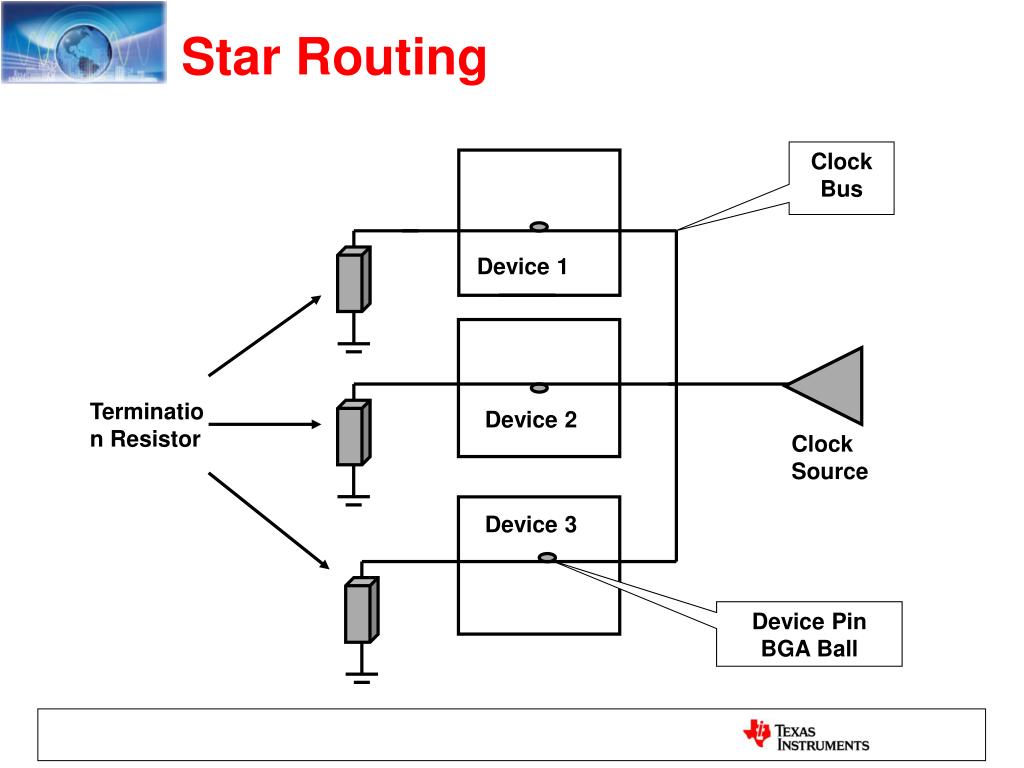

Star routing

Star Routing

Clock Bus

Device 1

Termination Resistor

Device 2

Clock Source

Device 3

Device Pin

BGA Ball

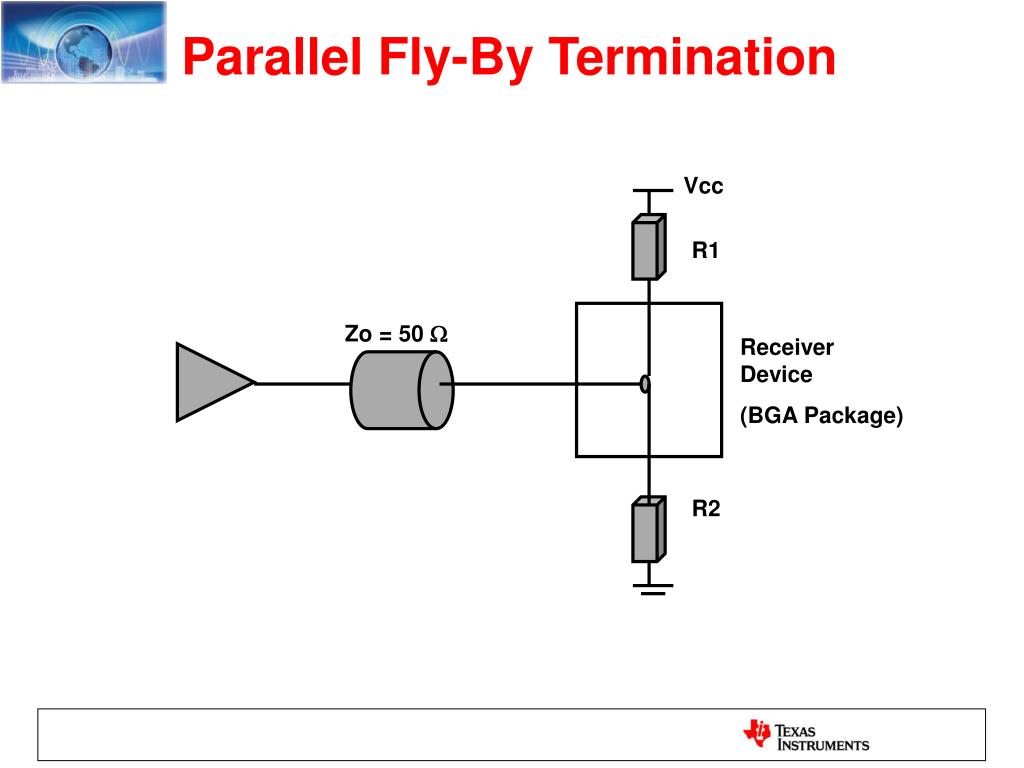

Parallel fly by termination

Parallel Fly-By Termination

Vcc

R1

Zo = 50 W

Receiver Device

(BGA Package)

R2

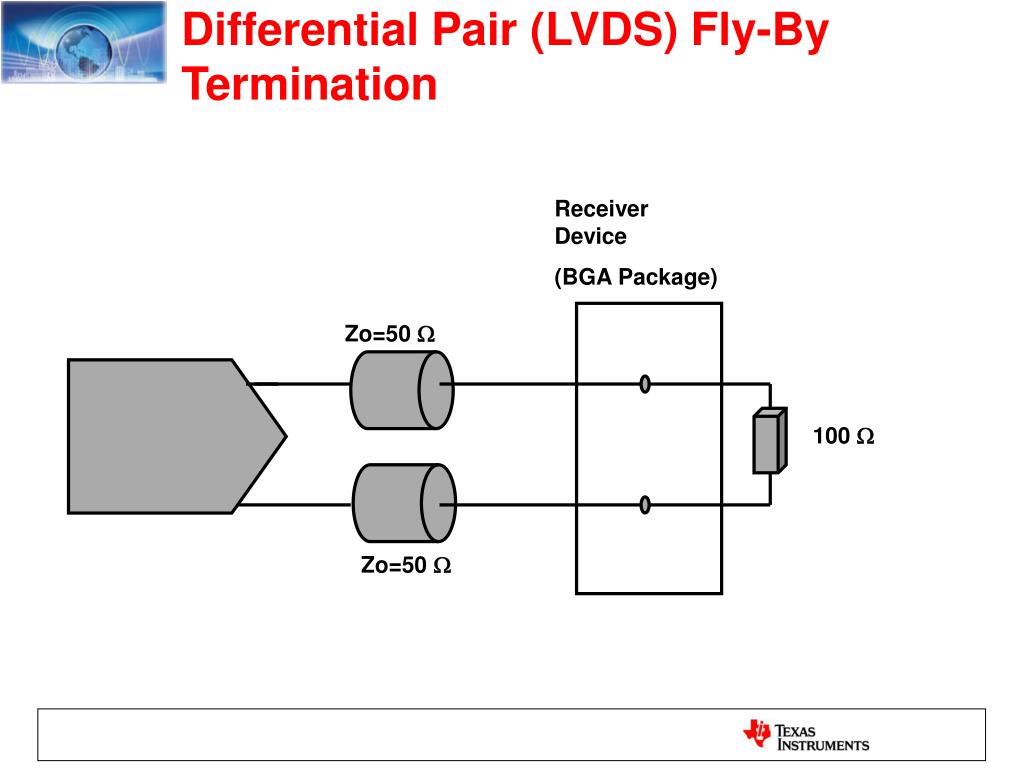

Differential pair lvds fly by termination

Differential Pair (LVDS) Fly-By Termination

Receiver Device

(BGA Package)

Zo=50 W

100 W

Zo=50 W


Crosstalk analysis

Crosstalk Analysis

  • Cross Talk occurs on PCB and twisted wire cable

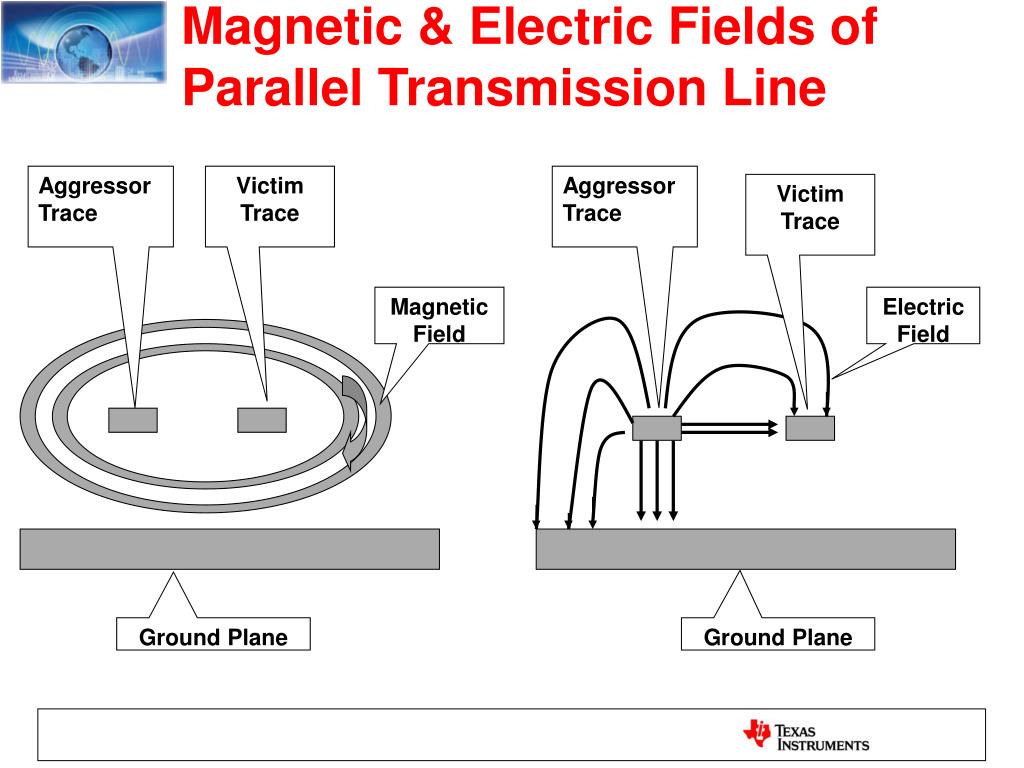

Magnetic electric fields of parallel transmission line

Magnetic & Electric Fields of Parallel Transmission Line

Aggressor

Trace

Victim

Trace

Aggressor

Trace

Victim

Trace

Magnetic Field

Electric Field

Ground Plane

Ground Plane


Cross talk analysis

Cross Talk Analysis

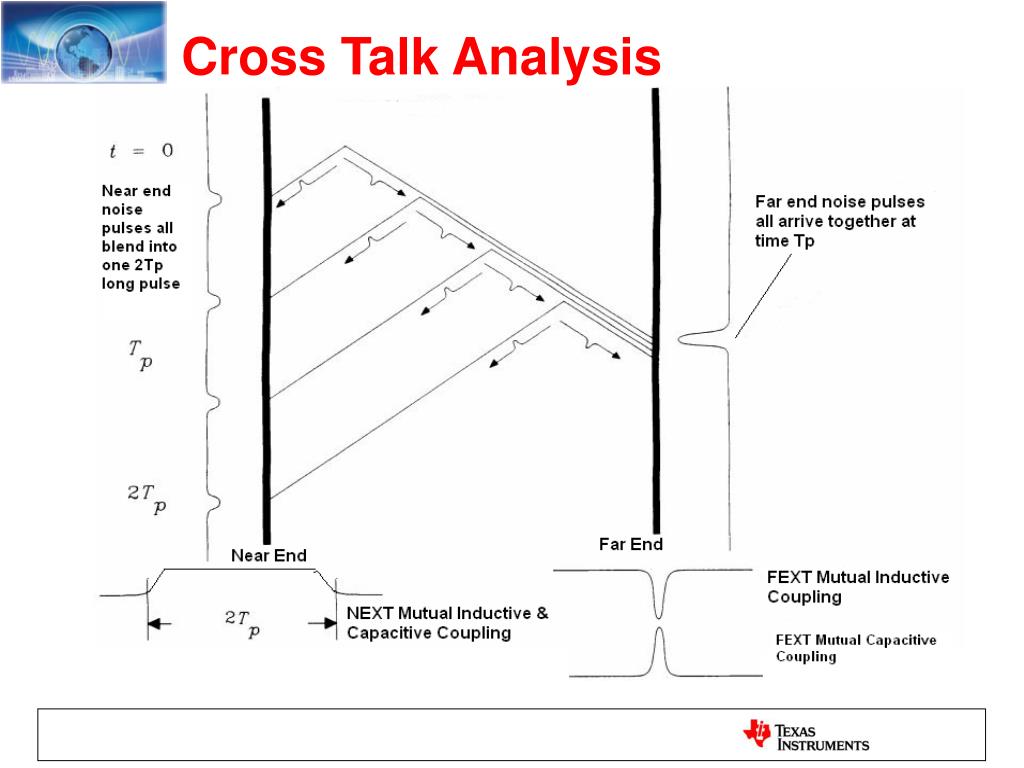

Cross talk analysis1

Cross Talk Analysis

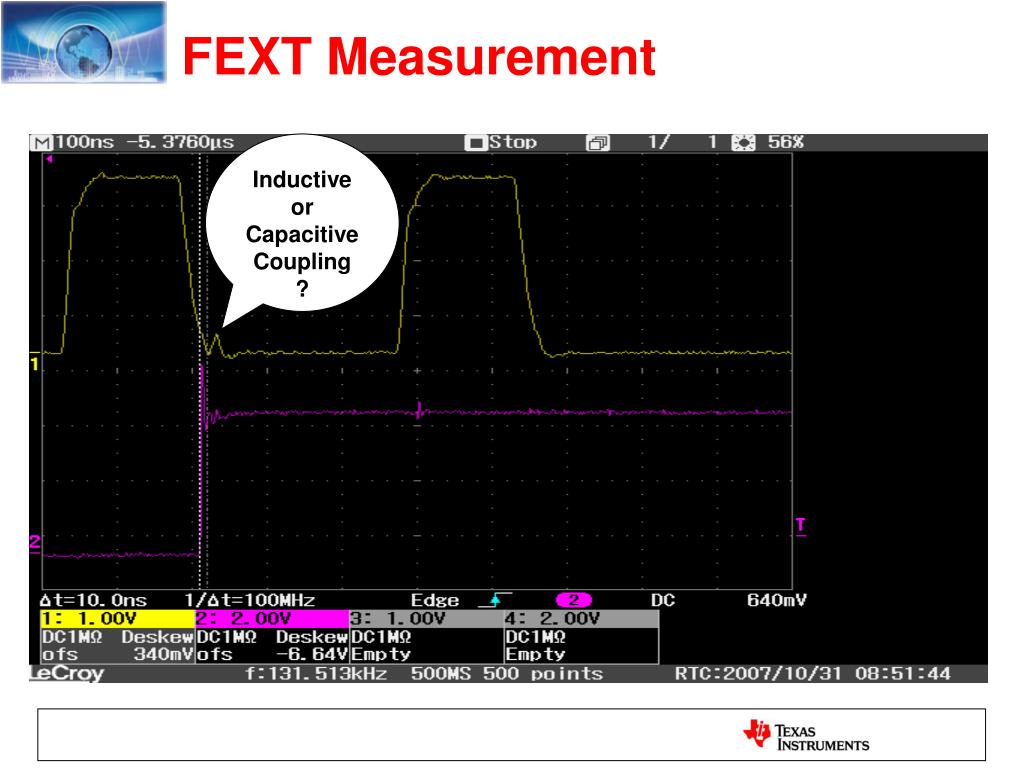

Fext measurement

FEXT Measurement

Inductive or Capacitive Coupling

?


Reduced fext measurement

Reduced FEXT Measurement


Next measurement

NEXT Measurement


Reduced next measurement

Reduced NEXT Measurement

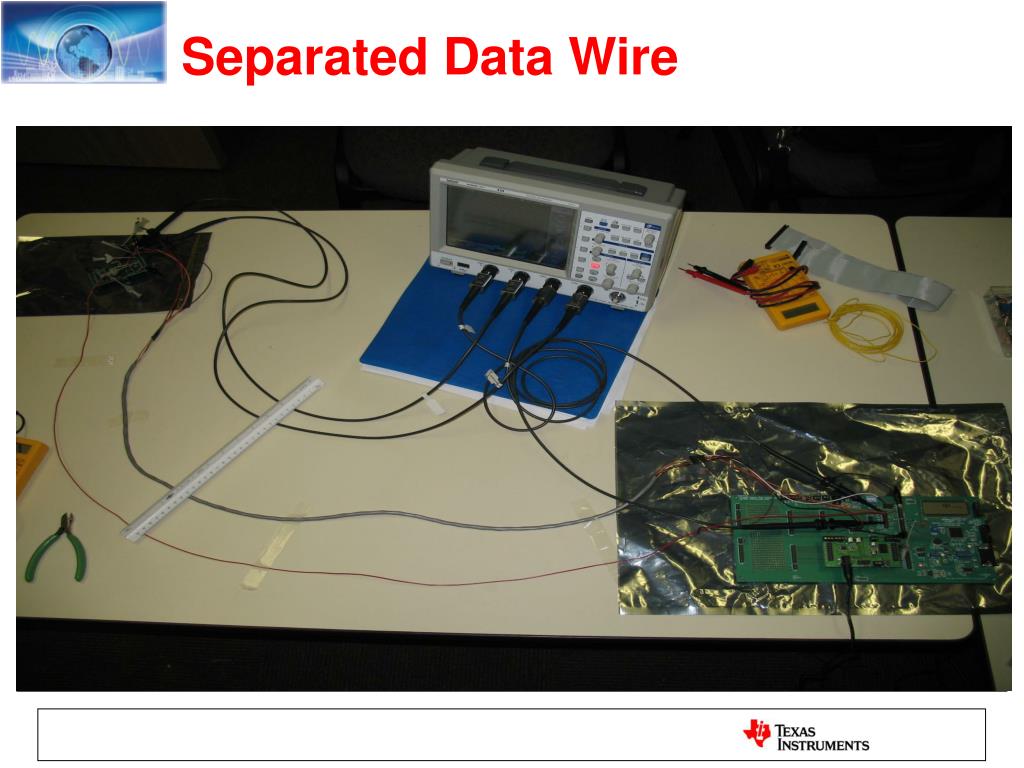

Separated data wire

Separated Data Wire


Cross talk reduced by termination

Cross Talk Reduced by Termination

X-talk


Final termination solution

Final Termination Solution

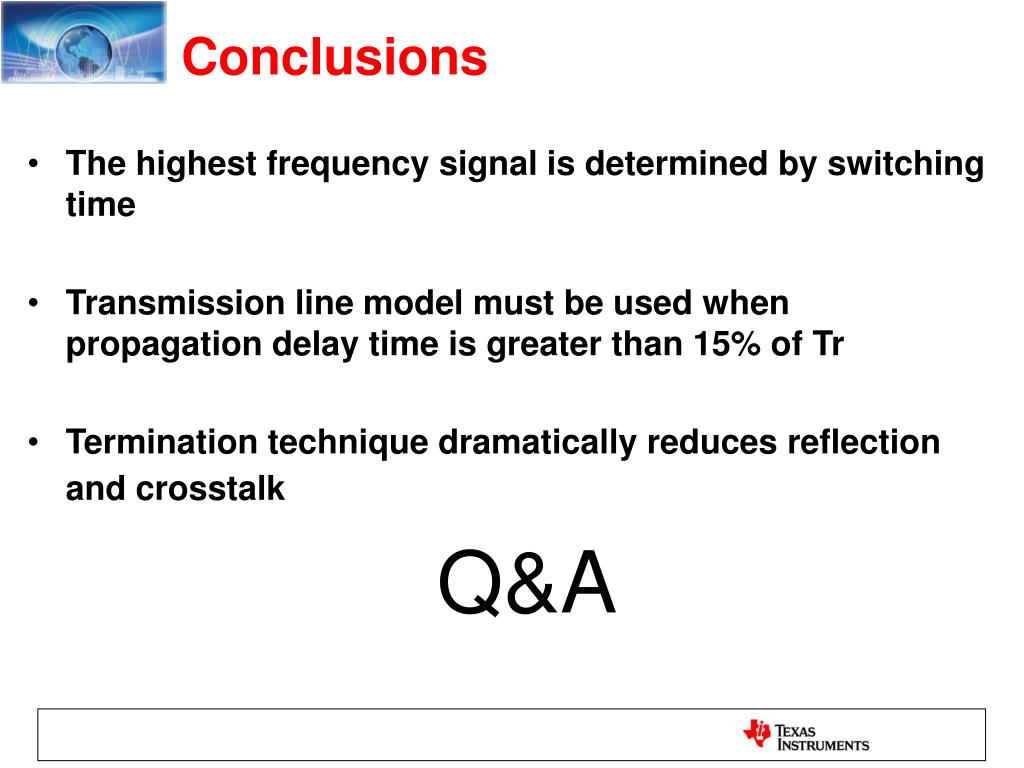

Conclusions

Conclusions

  • The highest frequency signal is determined by switching time

  • Transmission line model must be used when propagation delay time is greater than 15% of Tr

  • Termination technique dramatically reduces reflection and crosstalk

    Q&A


Acknowledgement

Acknowledgement

Thanks Phil Lizzi for providing the “real life” transmission line application example

Reference:

  • “Managing Signal Quality”Mentor Graphics/Xilinx, 2005http://www.xilinx.com/publications/xcellonline/xcell_53/xc_pdf/xc_mentor53.pdf

  • “High-Speed Board Layout Guideline” Altera application note 224, Sept. 2003
