Presentation Transcript



Chapter 10

Sunlight as an ultimate energy source

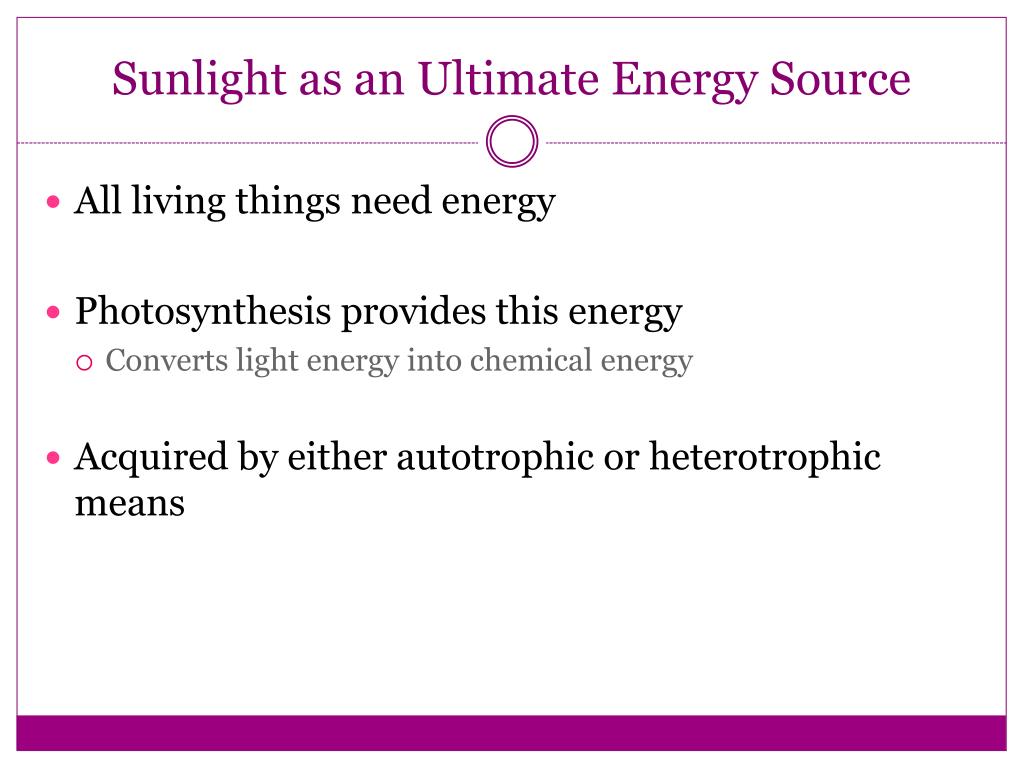

Sunlight as an Ultimate Energy Source

  • All living things need energy

  • Photosynthesis provides this energy

    • Converts light energy into chemical energy

  • Acquired by either autotrophic or heterotrophic means




  • Live without consuming anything from other living things

    • Require water, soil minerals, and CO2

  • Producers of the biosphere

    • Photoautotrophs

      • Use light as energy sources

      • E.g. plants, algae, protists, and bacteria

  • Live on compounds produced by other organisms

  • Consumers of the biosphere

    • Eat living organisms for energy

      • E.g. animals

  • Decomposers of the biosphere

    • Breaks down dead organic matter

      • E.g. fungi

Anatomy of a leaf

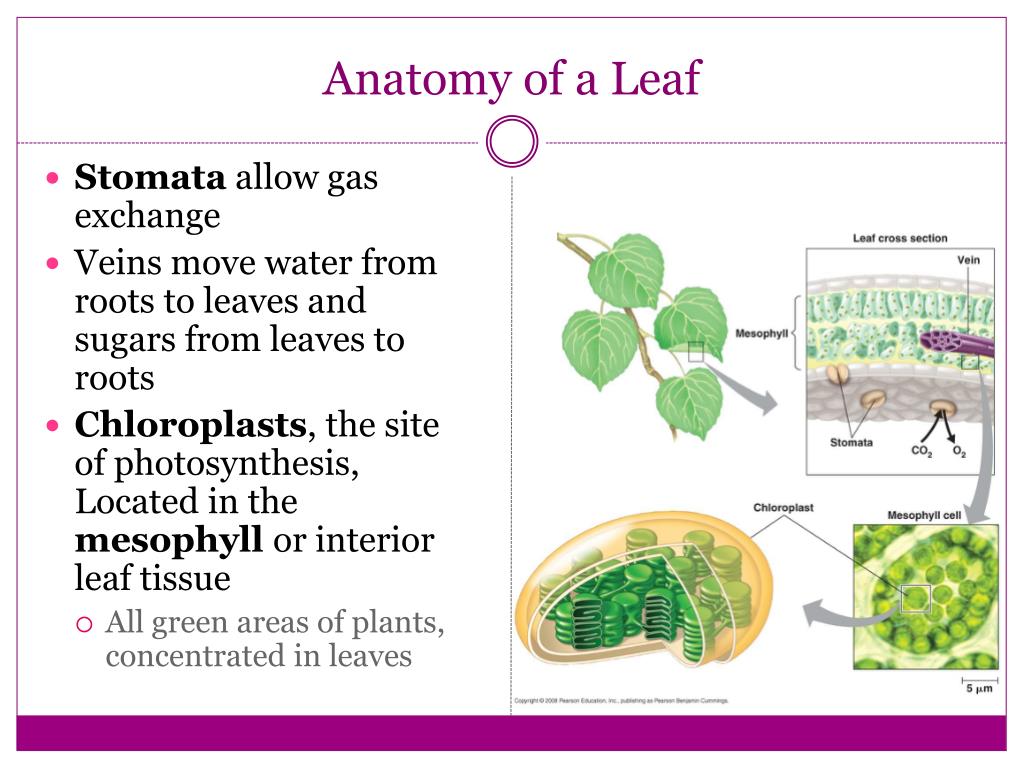

Anatomy of a Leaf

  • Stomata allow gas exchange

  • Veins move water from roots to leaves and sugars from leaves to roots

  • Chloroplasts, the site of photosynthesis, Located in the mesophyllor interior leaf tissue

    • All green areas of plants, concentrated in leaves

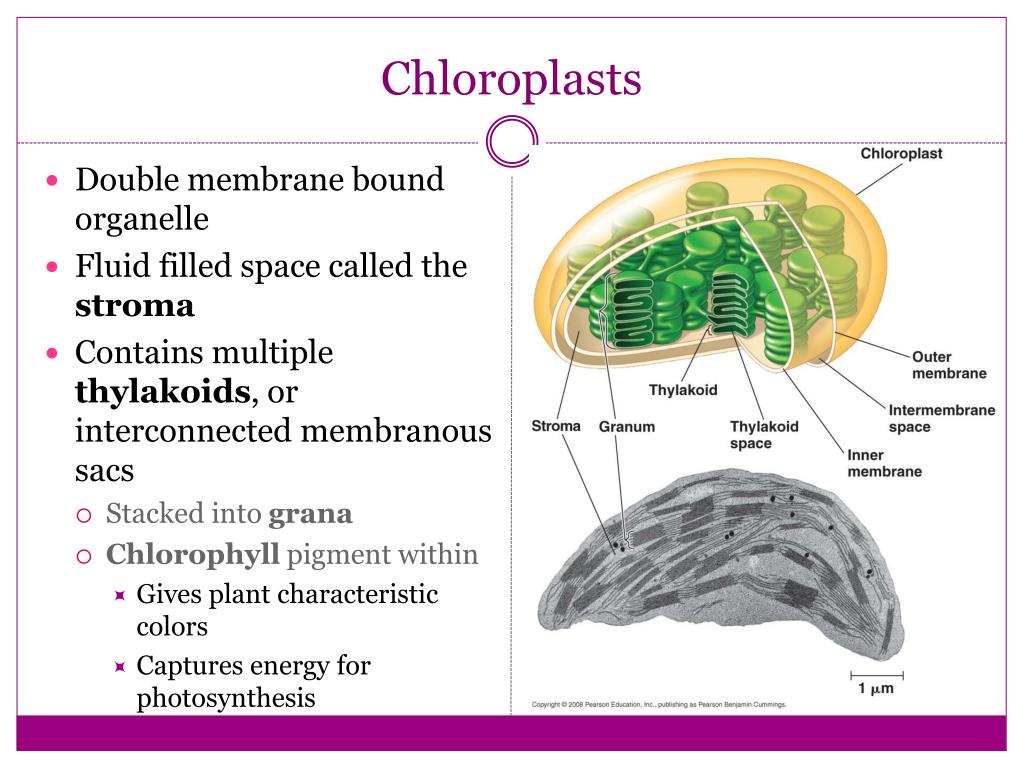

  • Double membrane bound organelle

  • Fluid filled space called the stroma

  • Contains multiple thylakoids, or interconnected membranous sacs

    • Stacked into grana

    • Chlorophyll pigment within

      • Gives plant characteristic colors

      • Captures energy for photosynthesis

Equation of photosynthesis

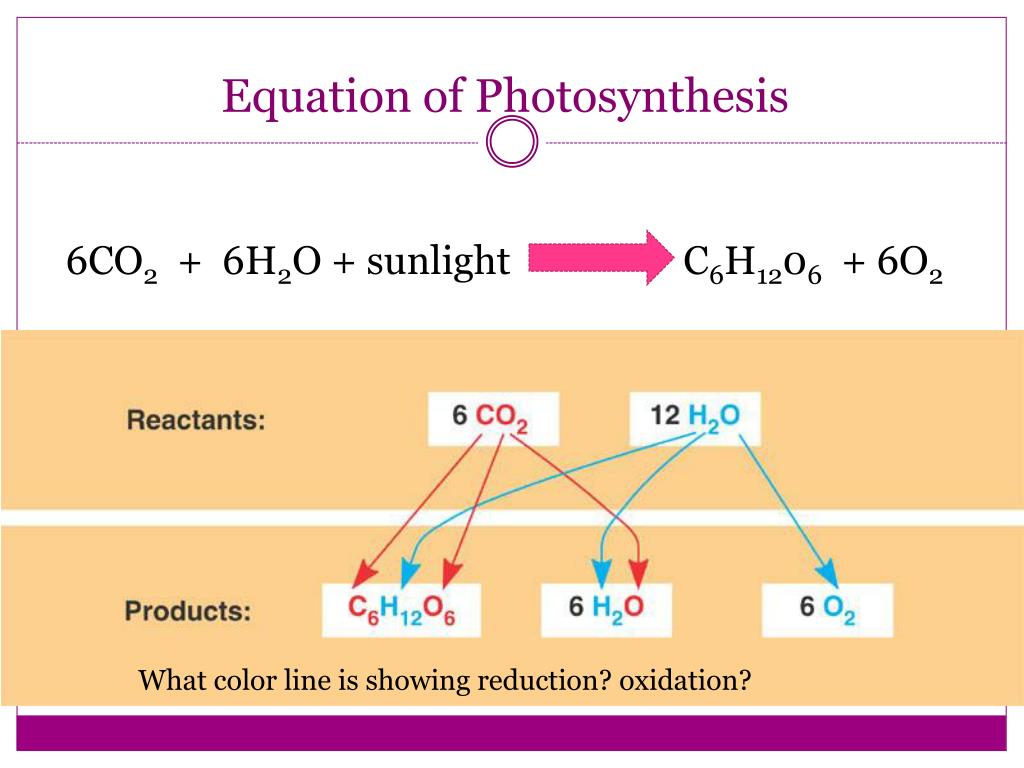

Equation of Photosynthesis

6CO2 + 6H2O + sunlight C6H1206 + 6O2

What color line is showing reduction? oxidation?

Redox revisited

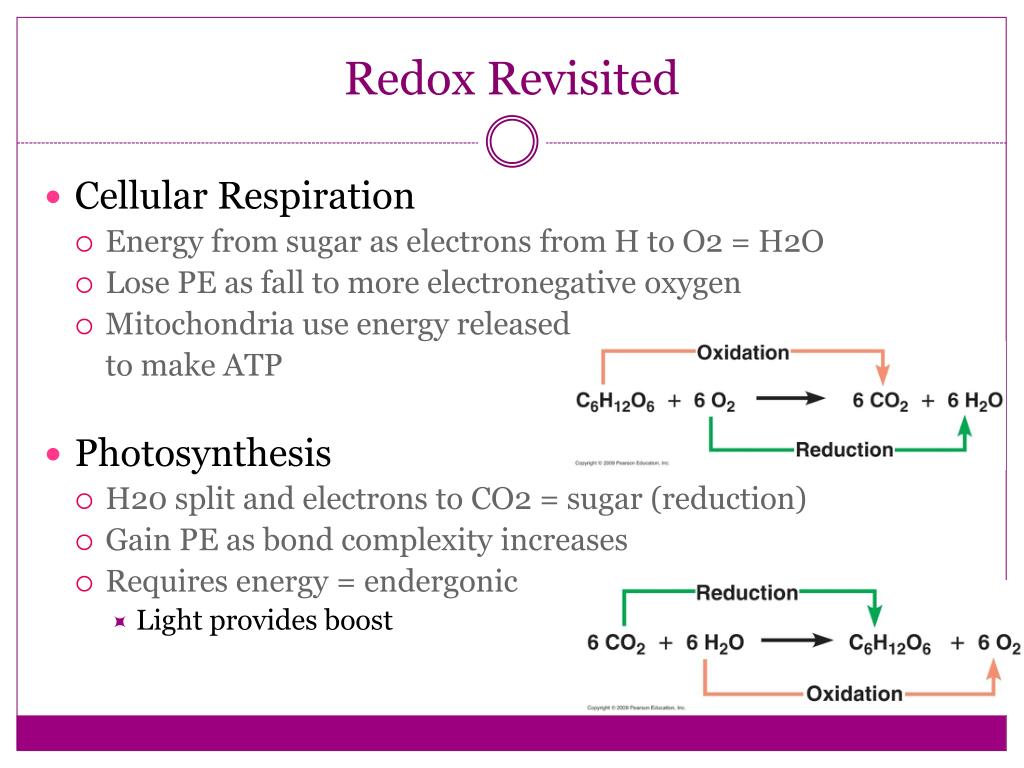

Redox Revisited

  • Cellular Respiration

    • Energy from sugar as electrons from H to O2 = H2O

    • Lose PE as fall to more electronegative oxygen

    • Mitochondria use energy released

      to make ATP

  • Photosynthesis

    • H20 split and electrons to CO2 = sugar (reduction)

    • Gain PE as bond complexity increases

    • Requires energy = endergonic

      • Light provides boost

Photosynthesis an overview

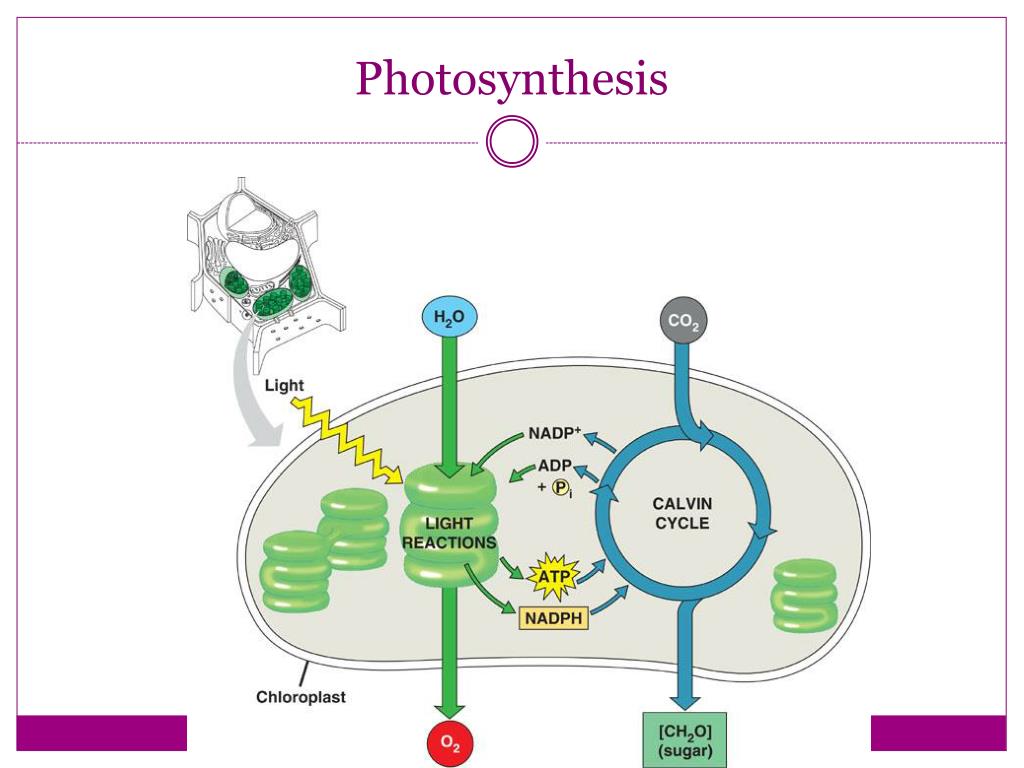

Photosynthesis: An Overview

  • Light reactions [photo part]

    • Solar energy to chemical energy

    • Light drives transfer of e -’s and H+

      • NADP+ NADPH (reduction or oxidation?)

    • Create ATP using chemiosmosis to power photophosphorylation

    • NO sugar produced

  • Calvin cycle (dark reaction) [synthesis part]

    • CO2 incorporated into organic molecules, carbon fixation

      • Add e -’s from NADPH and ATP to reduce into carbohydrates

    • Makes sugar

    • Doesn’t need light directly



Understanding sunlight

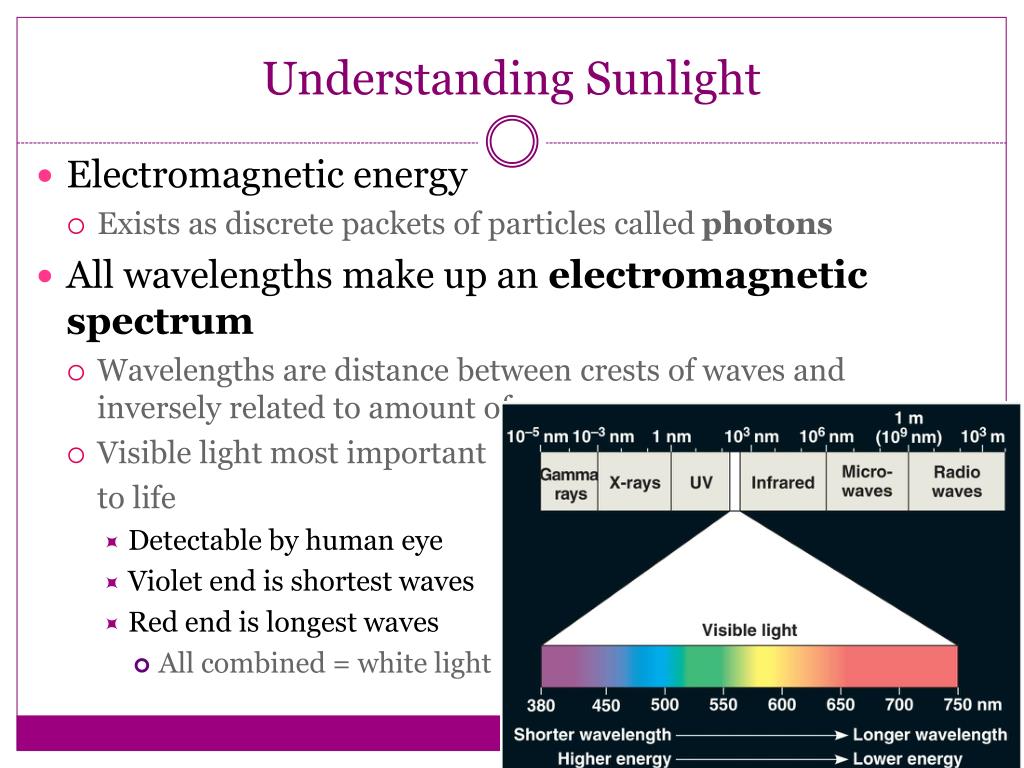

Understanding Sunlight

  • Electromagnetic energy

    • Exists as discrete packets of particles called photons

  • All wavelengths make up an electromagnetic spectrum

    • Wavelengths are distance between crests of waves and inversely related to amount of energy

    • Visible light most important

      to life

      • Detectable by human eye

      • Violet end is shortest waves

      • Red end is longest waves

        • All combined = white light

Photosynthetic pigments

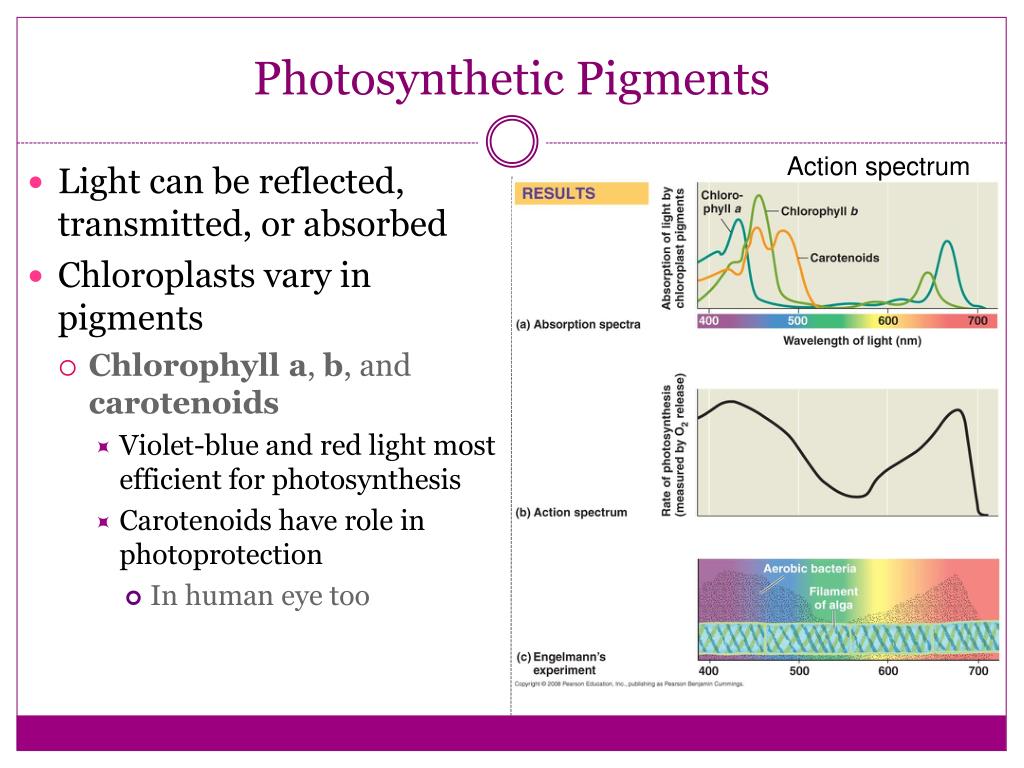

Photosynthetic Pigments

Action spectrum

  • Light can be reflected, transmitted, or absorbed

  • Chloroplasts vary in pigments

    • Chlorophyll a, b, and carotenoids

      • Violet-blue and red light most efficient for photosynthesis

      • Carotenoids have role in photoprotection

        • In human eye too

Excitation of chlorophyll

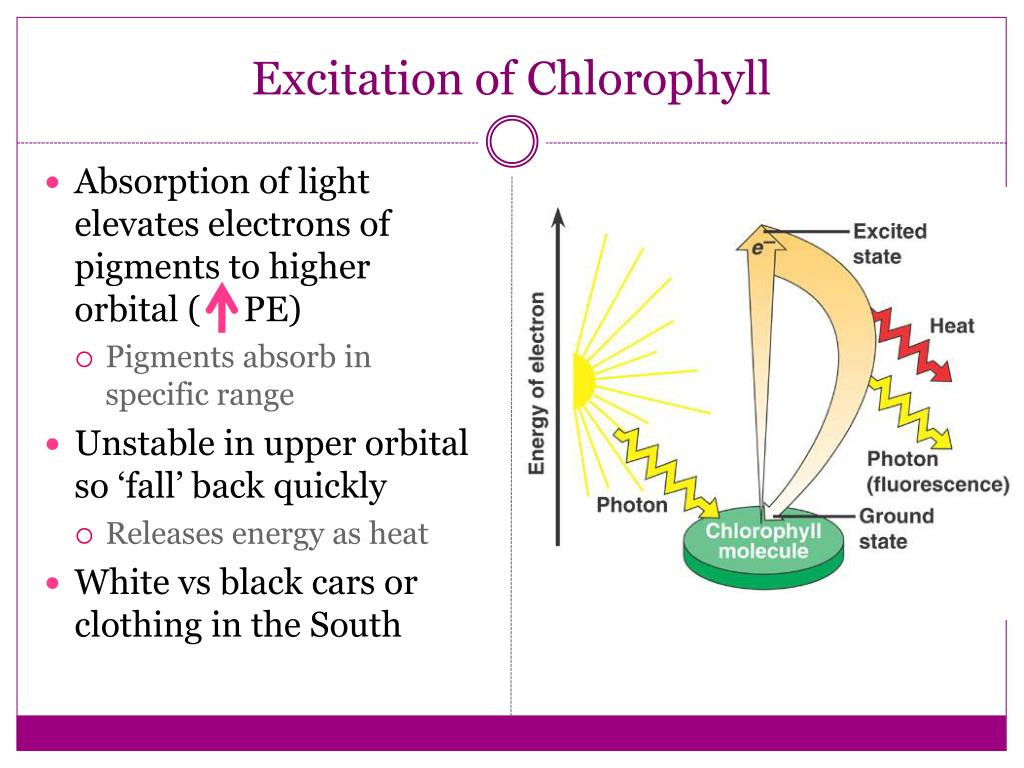

Excitation of Chlorophyll

  • Absorption of light elevates electrons of pigments to higher orbital ( PE)

    • Pigments absorb in specific range

  • Unstable in upper orbital so ‘fall’ back quickly

    • Releases energy as heat

  • White vs black cars or clothing in the South

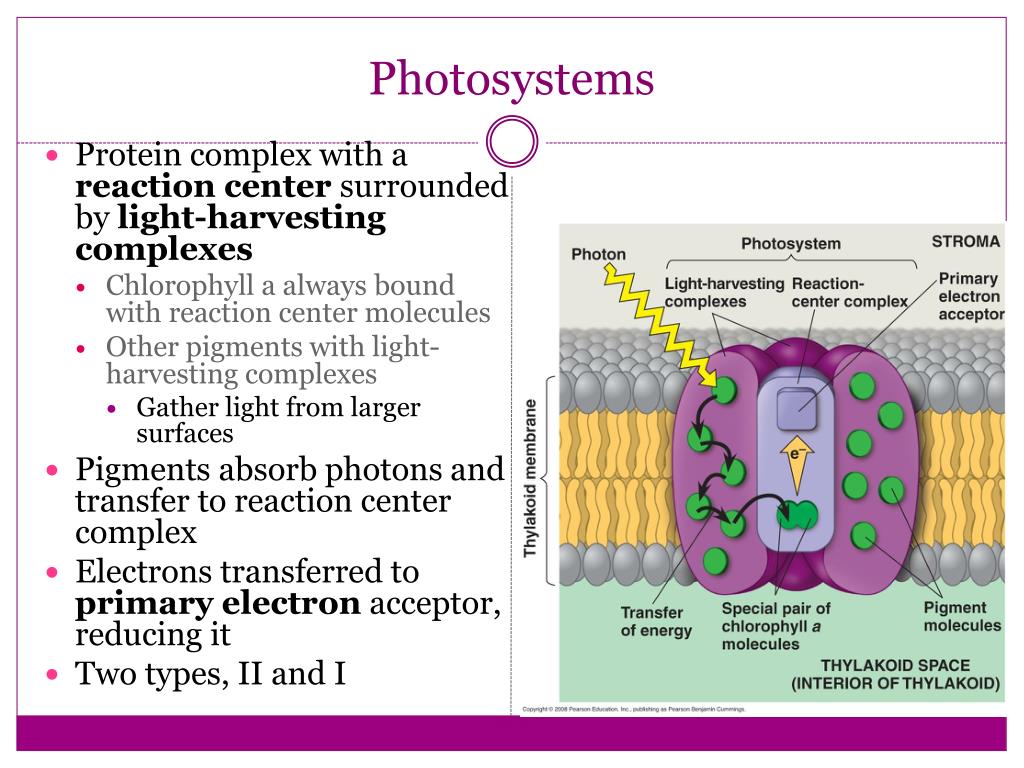

  • Protein complex with a reaction center surrounded by light-harvesting complexes

    • Chlorophyll a always bound with reaction center molecules

    • Other pigments with light-harvesting complexes

      • Gather light from larger surfaces

  • Pigments absorb photons and transfer to reaction center complex

  • Electrons transferred to primary electron acceptor, reducing it

  • Two types, II and I

Light reaction

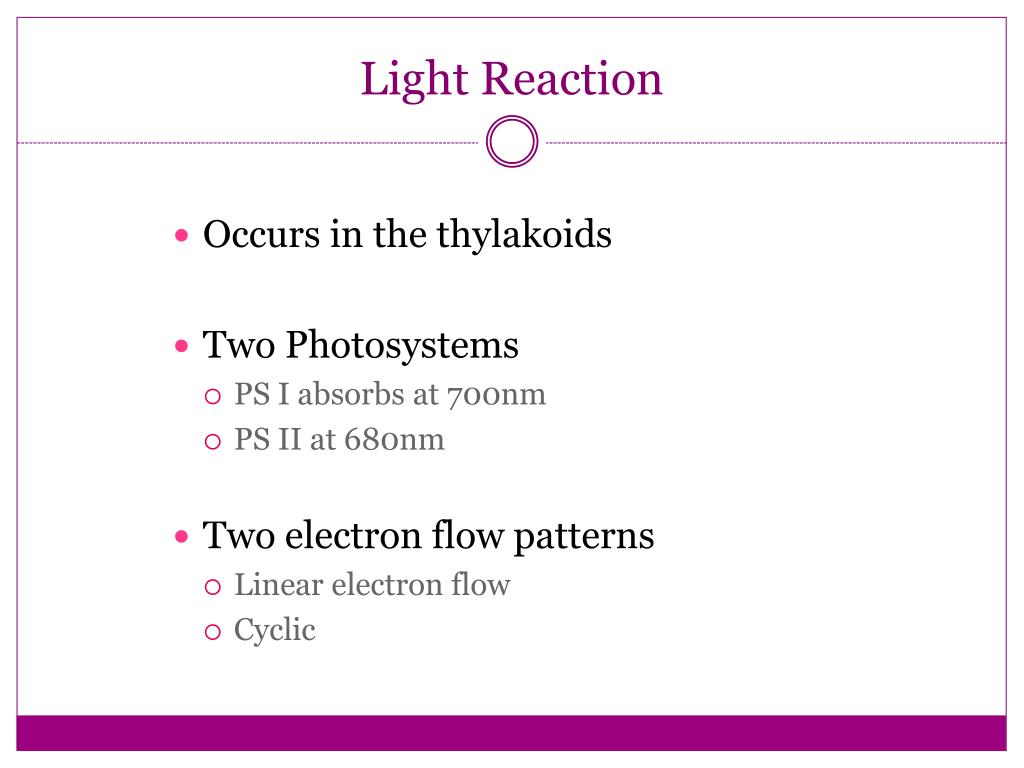

Light Reaction

  • Occurs in the thylakoids

  • Two Photosystems

    • PS I absorbs at 700nm

    • PS II at 680nm

  • Two electron flow patterns

    • Linear electron flow

    • Cyclic

Linear electron flow

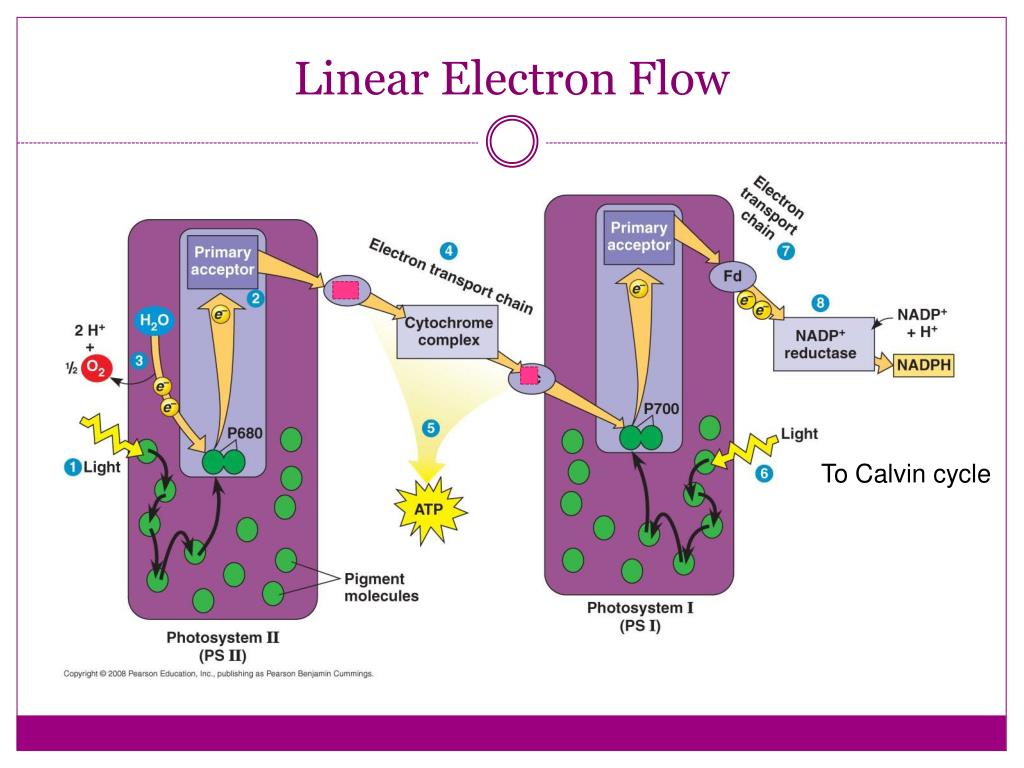

Linear Electron Flow

To Calvin cycle

Comparing chemiosmosis

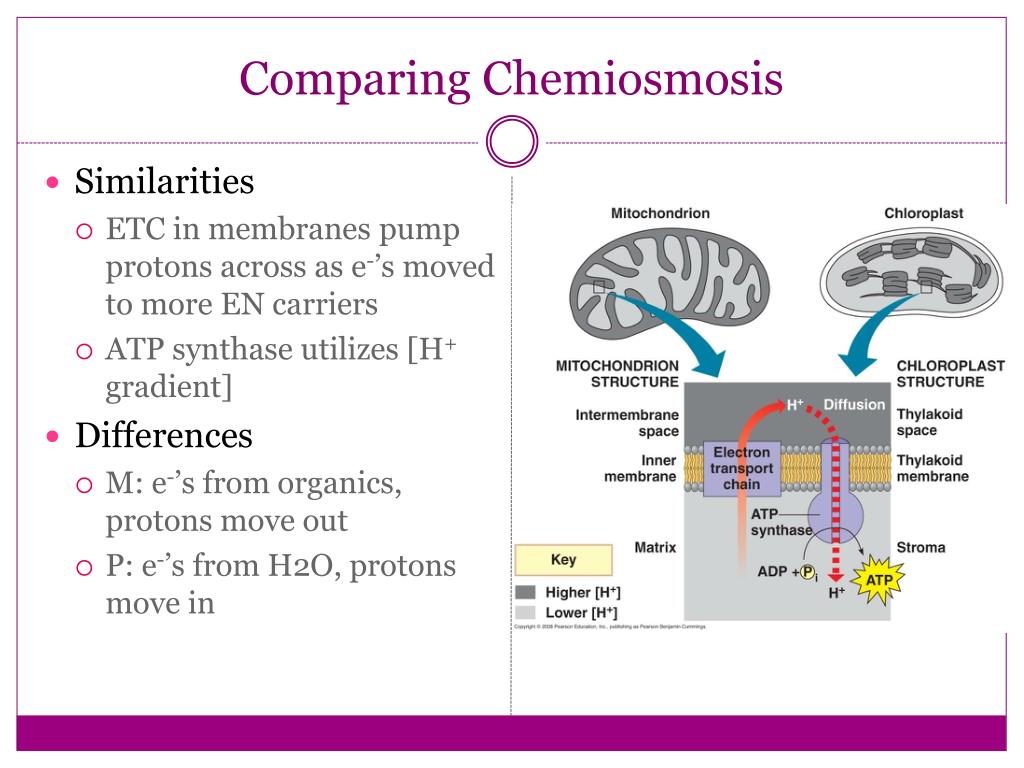

Comparing Chemiosmosis

  • Similarities

    • ETC in membranes pump protons across as e-’s moved to more EN carriers

    • ATP synthase utilizes [H+ gradient]

  • Differences

    • M: e-’s from organics, protons move out

    • P: e-’s from H2O, protons move in

Calvin cycle

Calvin Cycle

  • Anabolic reaction in the stroma

  • Products from light reaction are reactants for dark

  • (3) CO2 molecules combine to create (1) 3 carbon sugars (glyceraldehyde 3-phosphate, G3P)

    • Cycle must occur 3 times for 1 molecule to be made

  • Broken into 3 steps

    • Carbon fixation

    • Reduction

    • Regeneration of CO2 acceptor (RuBP)







Carbon fixation

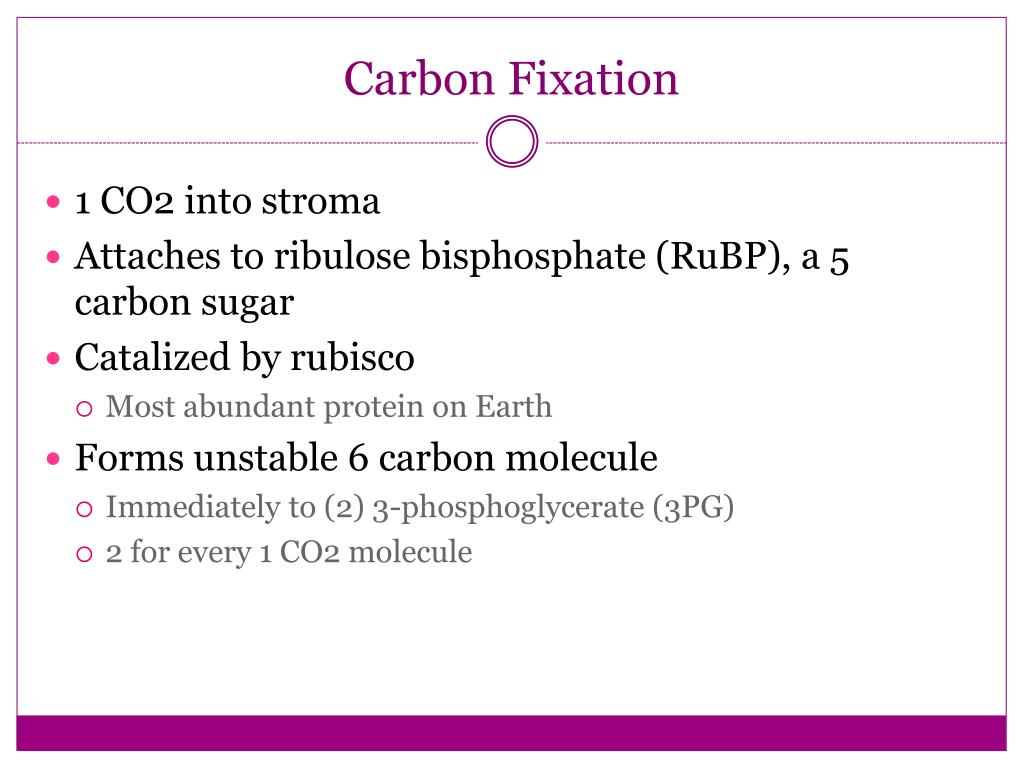

Carbon Fixation

  • 1 CO2 into stroma

  • Attaches to ribulose bisphosphate (RuBP), a 5 carbon sugar

  • Catalized by rubisco

    • Most abundant protein on Earth

  • Forms unstable 6 carbon molecule

    • Immediately to (2) 3-phosphoglycerate (3PG)

    • 2 for every 1 CO2 molecule



  • 3PG gains a phosphate from ATP to create 1,3-bisphosphoglycerate

  • NADPH reduces 1,3-bisphosphoglycerate to G3P

  • 3 cycles (3 CO2’s) create 6 G3P

    • Only 1 leaves (3 carbons out)

    • Other 5 recycled (15 carbons remain)

Regeneration of co2 acceptor

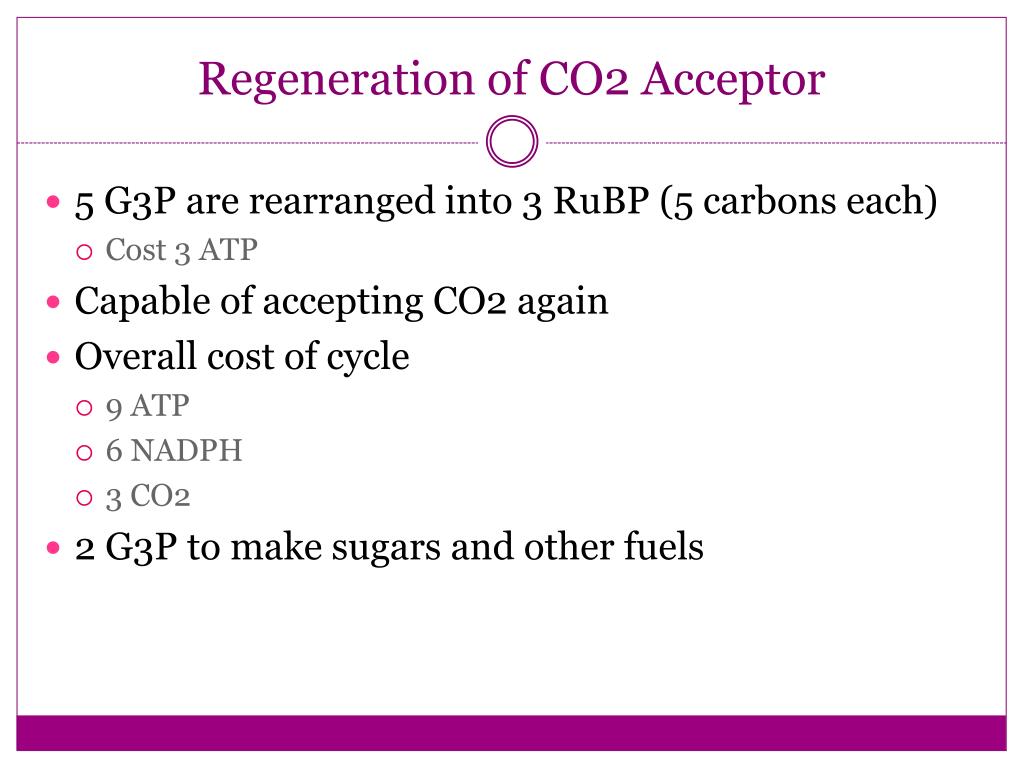

Regeneration of CO2 Acceptor

  • 5 G3P are rearranged into 3 RuBP (5 carbons each)

    • Cost 3 ATP

  • Capable of accepting CO2 again

  • Overall cost of cycle

    • 9 ATP

    • 6 NADPH

    • 3 CO2

  • 2 G3P to make sugars and other fuels

Review of photosynthesis

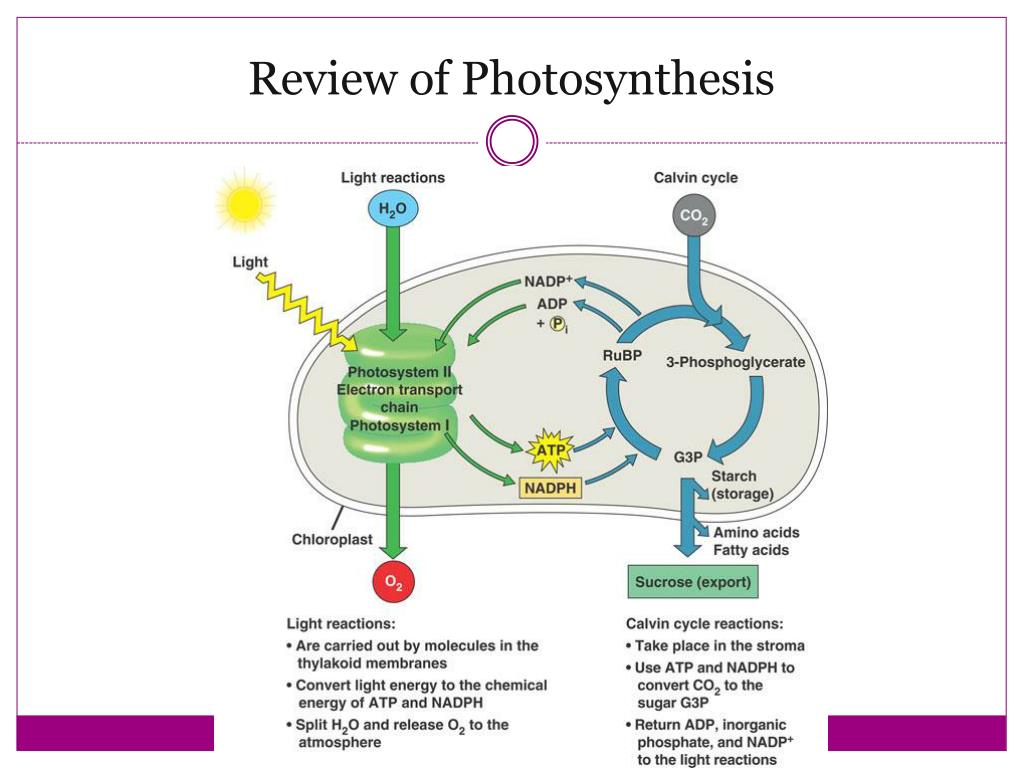

Review of Photosynthesis
