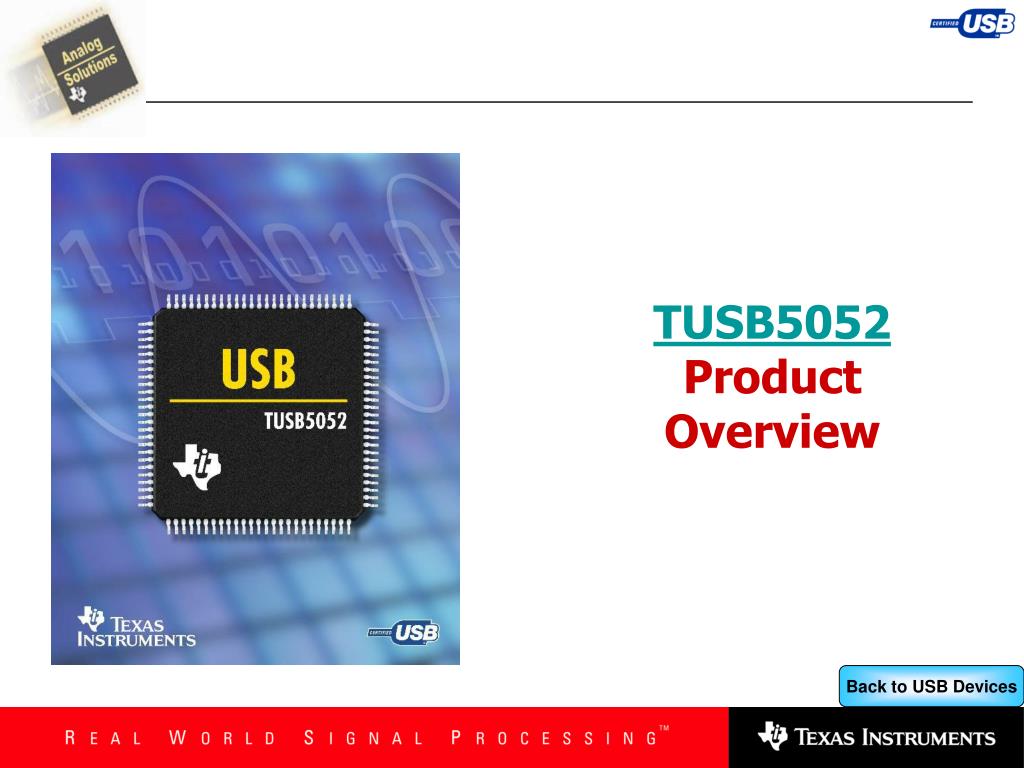

TUSB5052ProductOverview


Tusb5052 usb 1 1 5 port hub controller w dual uarts

TUSB5052USB 1.1 5–port Hub Controller w/ Dual UARTs

  • USB Hub

    • USB 1.1 Compliant (Full–speed)

    • Configurable as 0 to 5 downstream ports.

  • Dual USB–to–serial Bridge

    • Integrated Enhanced UARTS to 460kbaud

  • Integrated 8052 Microcontroller

    • 16K RAM for application code space

    • 12 General Purpose I/O Pins

    • Supports Control, Interrupt, or Bulk Transactions

Compatibility with USB peripherals

Certified compliance and inter–operability

Supports up to 7 attached devices

Flexible Architecture to meet a multitude of customer-defined applications

Docking Station for Legacy Port Expansion

Point-of-Sales Terminals

Industrial Control Stations

Features

Benefits

Applications

1 ku SRP = $5.10

More Information


Tusb5052evm

TUSB5052EVM

  • Features

    • Full function USB 1.1 Hub

    • Jump start development or use as a complete USB-to-RS-232 converter

    • Bridging FW, drivers, and schematics provided

    • Quick connect to a USB-enabled host

  • What’s Included?

    • Drivers and Firmware

      • Download Object Code

      • Source Available with SWLA

    • Populated EVM Board

    • Schematic

    • User's Guide

  • Available for 180 day loan by sending a request to [email protected] with the following information:

    • Company name

    • Physical address of company

    • Name of contact at company who will be responsible for the board

    • Phone number and e-mail of contact in #3

    • Application

    • Production plans including volumes and schedules

More Information


Tusb5052evm software

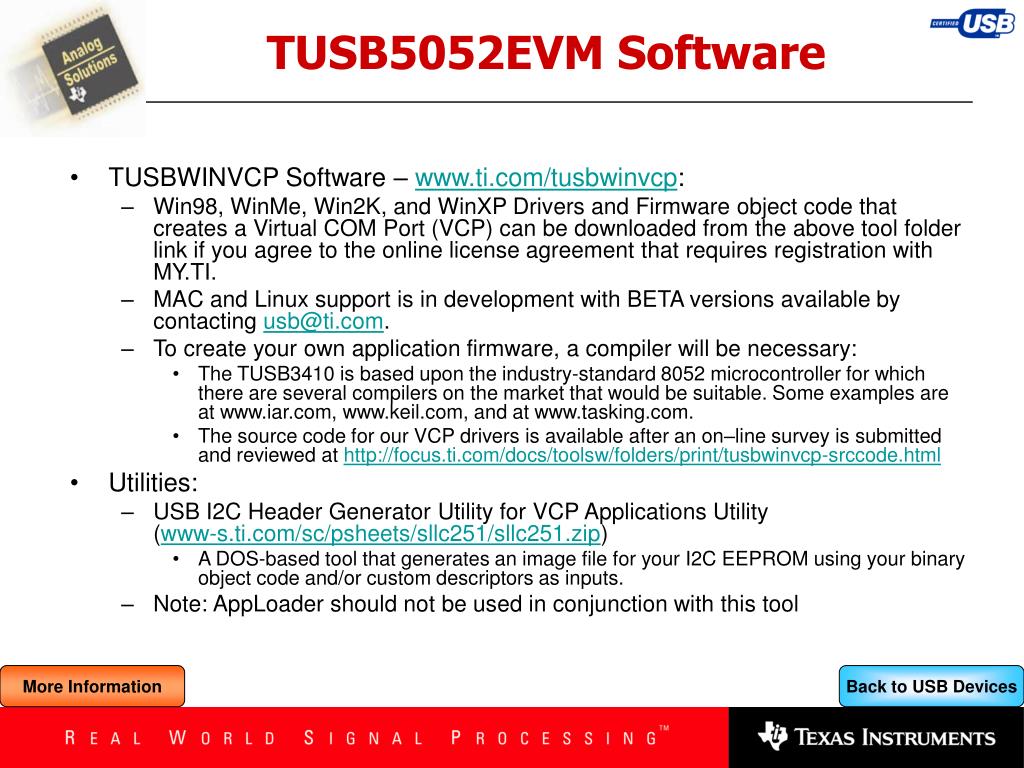

TUSB5052EVM Software

  • TUSBWINVCP Software – www.ti.com/tusbwinvcp:

    • Win98, WinMe, Win2K, and WinXP Drivers and Firmware object code that creates a Virtual COM Port (VCP) can be downloaded from the above tool folder link if you agree to the online license agreement that requires registration with MY.TI.

    • MAC and Linux support is in development with BETA versions available by contacting [email protected]

    • To create your own application firmware, a compiler will be necessary:

      • The TUSB3410 is based upon the industry-standard 8052 microcontroller for which there are several compilers on the market that would be suitable. Some examples are at www.iar.com, www.keil.com, and at www.tasking.com.

      • The source code for our VCP drivers is available after an on–line survey is submitted and reviewed at http://focus.ti.com/docs/toolsw/folders/print/tusbwinvcp-srccode.html

  • Utilities:

    • USB I2C Header Generator Utility for VCP Applications Utility(www-s.ti.com/sc/psheets/sllc251/sllc251.zip)

      • A DOS-based tool that generates an image file for your I2C EEPROM using your binary object code and/or custom descriptors as inputs.

    • Note: AppLoader should not be used in conjunction with this tool

More Information


Key documentation

Key Documentation

  • TUSB5052 Data Manual

    • slls454: focus.ti.com/lit/ds/symlink/tusb5052.pdf

  • VIDs, PIDs, and Firmware: Design Decisions When Using TI USB Device Controllers Application Note

    • slla154: focus.ti.com/lit/an/slla154/slla154.pdf

  • Application of TIs VCP Software Solution Guide

    • slla170a: focus.ti.com/lit/an/slla170/slla170a.pdf

  • TUSB2136/TUSB3210/TUSB3410/TUSB5052 Firmware Debugging Guide :

    • sllu027: focus.ti.com/lit/an/sllu027a/sllu027a.pdf

  • TUSB2136/TUSB3210/TUSB5052 USB Firmware Programming Flow 8052 Embedded

    • sllu020: focus.ti.com/lit/ug/sllu020a/sllu020a.pdf
