Bouncing droplets

Bouncing droplets

Sweden


Bouncing waterdroplets

BouncingWaterdroplets

  • ”Investigate the motion of water dropletsfalling on a hydrophobicsurface (e. g. coated with soot or teflon).”

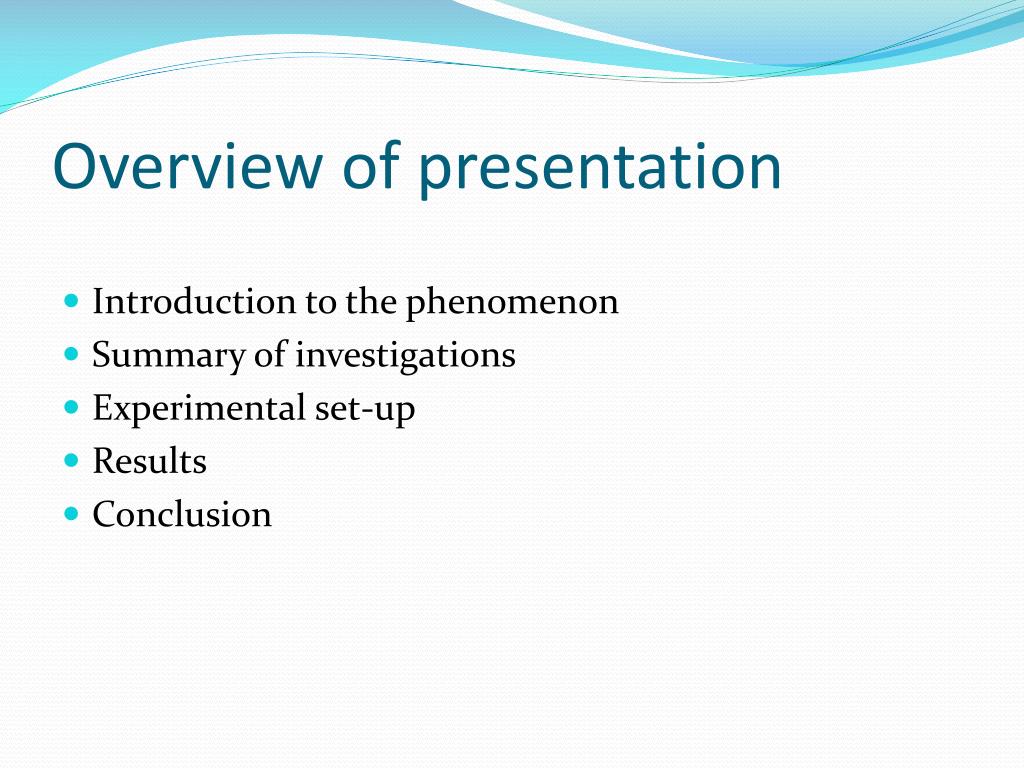

Overview of presentation

Overview of presentation

  • Introduction to the phenomenon

  • Summary of investigations

  • Experimental set-up

  • Results

  • Conclusion


Bouncing waterdroplet

Bouncingwaterdroplet

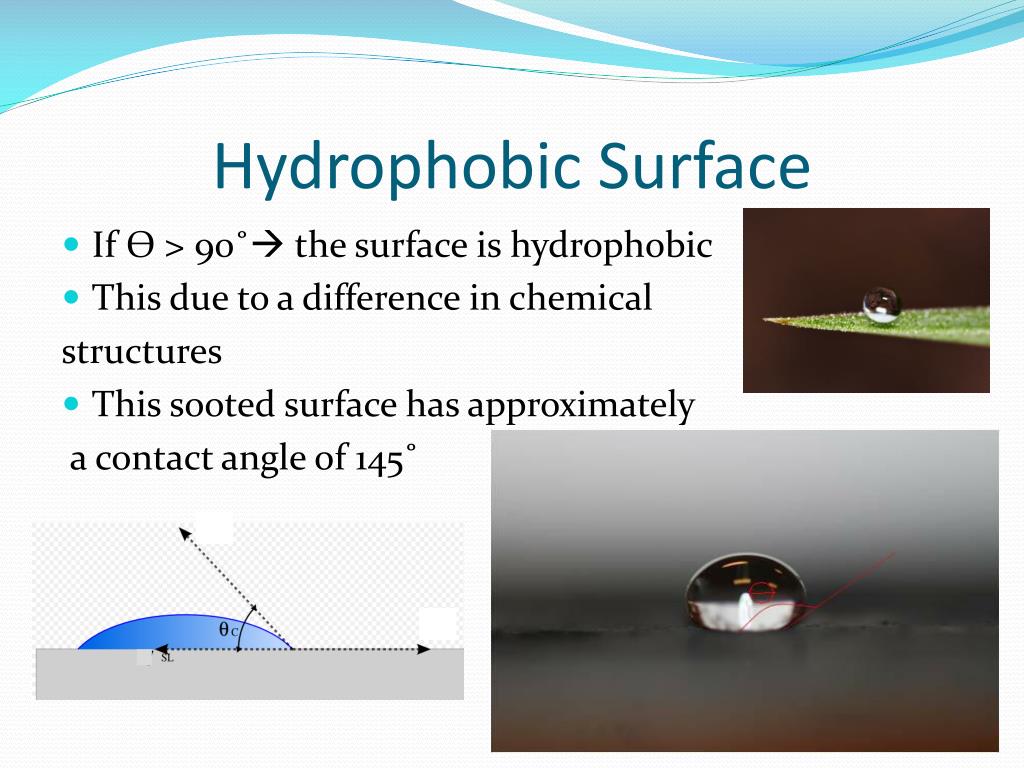

Hydrophobic surface

Hydrophobic Surface

  • If Ѳ > 90˚ the surface is hydrophobic

  • This due to a difference in chemical

    structures

  • This sootedsurface has approximately

    a contactangle of 145˚


Investigations

Investigations

Whatcan be changed

”Investigate the motion of water dropletsfalling on a hydrophobicsurface”

Whatwill it affect

  • Heightof release

    Yet to be investigated

  • Radius

  • Density

  • Surface tension

  • Number of dropletsformed

  • Conservationof kineticenergy , surface tension – Weber number

    Yet to be investigated

  • Velocity

  • Height of bounce

  • Energy loss

  • Contact time


Material

Material

  • High speed camera

  • Spotlights

  • Stand

  • Water in a pipette

  • Soot coated aluminium plate

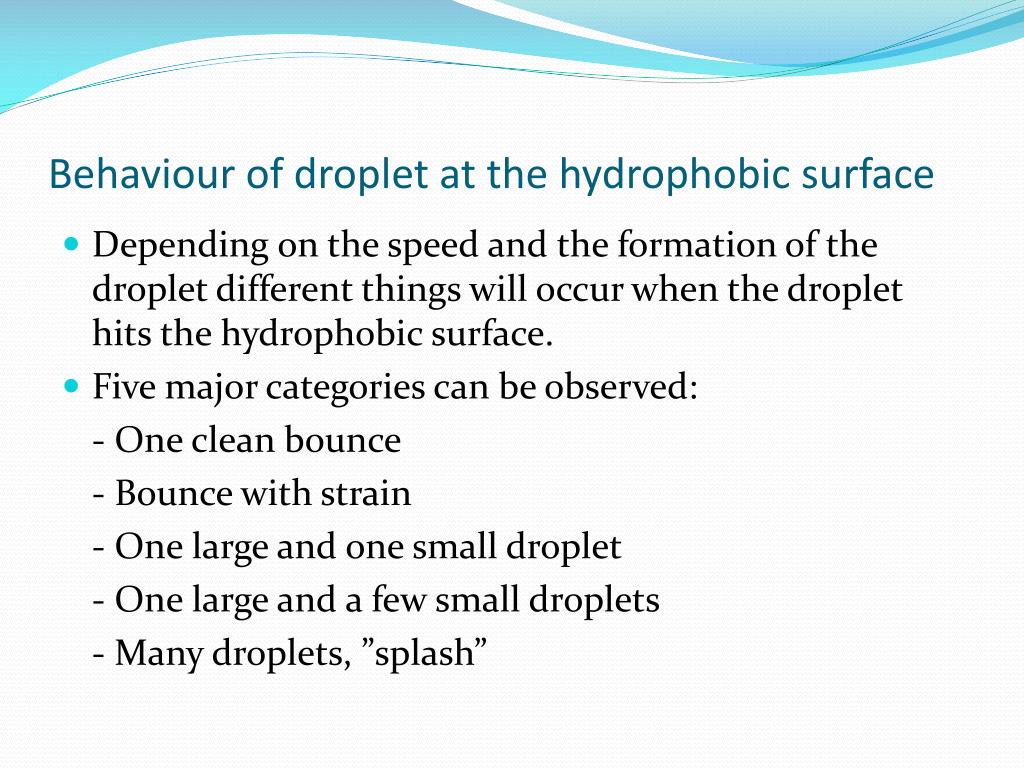

Behaviour of droplet at the hydrophobic surface

Behaviour of droplet at the hydrophobicsurface

  • Depending on the speed and the formation of the droplet different thingswilloccurwhen the droplet hits the hydrophobicsurface.

  • Five major categoriescan be observed:

    - One cleanbounce

    - Bounce with strain

    - One large and one small droplet

    - One large and a few small droplets

    - Manydroplets, ”splash”


One clean bounce

One Clean Bounce

Kineticenergydue to velocitycauses the droplet to expand

Surface tension affects in the oppositedirection strives for the water molecules to be as close as possible

Therefore, when the surface area gets largerenergy is stored causing the bouncewhen the molecularforces (caused by surface tension) pulls the waterdroplet back


Bounce with strain

Bounce with Strain


Weber number

Weber Number

  • Comparisonbetween the kineticenergy and the surface tension of the dropletcanhelpusunderstandwhateffect the different energies and parameters willhave on the dropletwhen hitting the surface.

  • results in Wehaving a dimensionlessnumber, the valuewillhave no unit

  • Used to confirm that surface tension affectswhether it will be a bounce or a splash


Weber number1

Weber Number

Weber-Number at different Velocities

1 .Clean Bounce

2. Bounce with strain

3. One largeone small

4. One large, few small

5. Many

Velocity

We < 40 = BounceWe > 140 = Splash


Conclusion

Conclusion

”Investigate the motion of water dropletsfalling on a hydrophobicsurface (e. g. coated with soot or teflon).”

  • Weber number is a wellfunctioningmeasurewhendetermininghow the dropletwillbehavewhen hitting the surface. We < 40 = ”Bounce”, We > 140 = ”Splash” it also provides us with a proof for the importance of the surface tension of the water.
