Pulsar MX from 5kVA up to 20kVA

15 & 20 kVA

8 & 10 kVA

MX 16U Frame

4 & 5 kVA

2 Pulsar MX + ModularEasy(European model)

Pulsar MX RT

5 & 10 kVA

MX 10U FrameComing Oct 2007!


Pulsar mx at a glance l.jpg

New range : upgrade without upfront cost, 2 major products :

Pulsar MX : Best-in-class On-Line UPS  at 5 kVA

Best-in-class features

2 hot-swappable Power and Battery sub-modules w/o load interruption

Flexible connectivity

Best supervision & management

Pulsar MX 16U Frame : 15 & 20 kVA Modular Solution

Similar features

Based on 5kVA power & battery sub-modules

Pulsar MX 10U Frame : 5 & 10 kVA Modular Solution – Coming 9/2007

Similar features

Based on 5kVA power & battery sub-modules

Parallels up to 10kVA for capacity or redundancy

Designed to meet the requirements of key channels

Distribution

Jobs

OEM / Key Accounts

Pulsar MX at a glance


Pulsar mx rt pulsar mx frame l.jpg

Rack kit

MX EXB 1xEXB 45 min

2xEXB 80 min

3xEXB 120 min

Power sub-module

Battery sub-module

Pulsar MX RT, Pulsar MX Frame

5 kVA / 4.5 kW

15 kVA / 13.5 kWMX Frame

10 kVA + 5 kVA redundant5 kVA + 2 x 5 kVA redundant

20 kVA / 18 kW MX Frame

15 kVA + 5 kVA redundant10 kVA + 2 x 5 kVA redundant

JUNE 06

JULY 07

Tower/Rack10 min

Rack mounting kit included

Rack mounting kit included

Empty MX Frame for P&B s-m hosting / upgrades from 5kVA standalone units

MX Transformer5000

Battery sub-module

5 kva Power sub-module


Availability online double conversion l.jpg

Business continuity and high quality power :

Input voltage range : 120 - 280 Volts (single phase input for MX & MX Frame) 250 - 465 Volts (three phase input for MX Frame) without batteries draining

AC bypass /AC normal separate or common (MX Frame)

PFC system: THDI < 7%

Input frequency range : 40-70Hz

High quality output : THDU < 3%

Voltage fluctuation

Frequency variation

Input

On-line mode

Automatic bypass

Perfect waveform

Bypass-mode

Output

Filter

Availability : Online double conversion

  • Benefits :

    • 0ms transfer time

    • Compatible with poor quality grid and genset

    • No battery draining

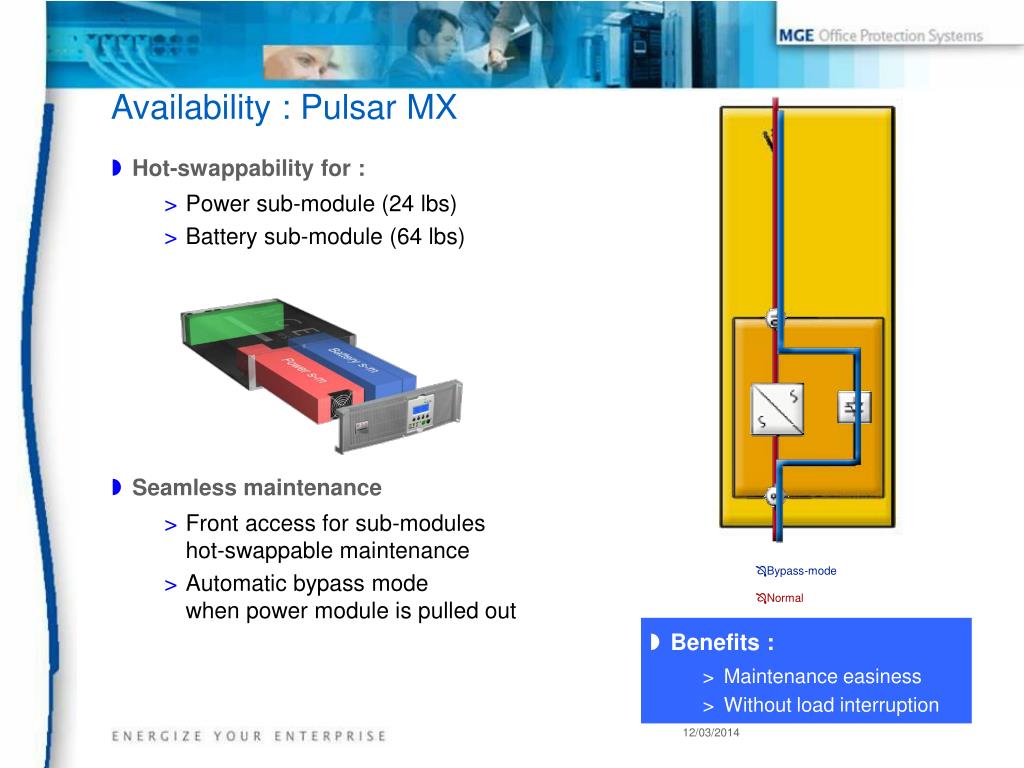

Availability pulsar mx l.jpg

Hot-swappability for :

Power sub-module (24 lbs)

Battery sub-module (64 lbs)

Seamless maintenance

Front access for sub-modules hot-swappable maintenance

Automatic bypass mode when power module is pulled out

  • Bypass-mode

  • Normal

Availability : Pulsar MX

  • Benefits :

    • Maintenance easiness

    • Without load interruption


Availability parallel operation with mx modulareasy l.jpg

Pulsar MX

ModularEasy

Load

Pulsar MX

Availability : Parallel operation with MX ModularEasy

  • Start from a single Pulsar MX + ModularEasy

  • Combine a second Pulsar MX

  • Achieve parallel operation w/o load interruption : 1UPS + 1 redundant UPS

Pulsar Mx price base= 100

ModularEasy = 35

Pulsar Mx price base= 100

  • Benefits :

    • No oversized investment at first step

    • Parallel operation based on standard UPSs

    • Seamless operation for the secured device


Availability pulsar mx frame 15000 20000 l.jpg

Pulsar MX Frame : modular system based on Pulsar MX 5000 Power and Battery sub-modules

dynamic redundancy from N+1 to N+3:

« Meta UPS » management

front access hot swappability (power or battery sub-modules)

automatic static switch bypass sized at 20kVA for increased availability

Make-before-break manual general bypass lockable

Availability : Pulsar MX Frame 15000 & 20000

  • Benefits :

    • Optimum availability


Availability parallel operation with pulsar mx frame l.jpg

Ex : Redundancy mode

Ex : Power extension mode

Load: 18kVA

4 UPS + 0 UPS redundant

Load: 12kVA

3 UPSs + 1 UPS redundant

Pulsar MX Frame20000

Pulsar MX Frame20000

90%

90%

90%

90%

60%

60%

60%

60%

5 kVA Power s-m

5 kVA Power s-m

5 kVA Power s-m

5 kVA Power s-m

5 kVA Power s-m

5 kVA Power s-m

5 kVA Power s-m

5 kVA Power s-m

Availability : Parallel operation with Pulsar MX Frame

  • Dynamic redundancy from N+1 to N+3


Availability pulsar mx 5000 l.jpg

8 /5min

35 /20min

60 /40 min

95 /60min

Availability : Pulsar MX 5000

  • 10min standard at 70 % load = 3U

  • 3U EXB battery module = 2 x Battery sub-modules inside

  • Automatic battery detection

  • Up to 2 hours with 3 EXB modules

5 KVA @70%/100%


Pulsar mx frame battery extension l.jpg

Pulsar MX Frame 20 kVA 8min

POWER

BATT

DC

bus

POWER

BATT

DC

bus

POWER

BATT

DC

bus

POWER

BATT

DC

bus

Pulsar MX FRAME Battery Extension

  • Example #1: 20kVA configuration

Backup time

20 KVA @70%/100%

8 /5mn

35 /20mn

60 /40 mn

95 /60mn


Pulsar mx frame battery extension11 l.jpg

Pulsar MX Frame 15 kVA 8min

Pulsar MX FRAME Battery Extension

  • Example #2: 15kVA configuration

POWER

BATT

DC

bus

POWER

BATT

DC

bus

POWER

BATT

DC

bus

Backup time

15 KVA @70%/100%

8 /5mn

35 /20mn

60 /40 mn

95 /60mn


Pulsar mx frame exb integration recommendations l.jpg
Pulsar MX Frame: EXB integration recommendations

  • Rack

    • Do not forget to order

      • 6 foot Battery extension cables (68528)

        • 3 cables for any 15kVA installation

        • 4 cables for any 20kVA installation

      • Rail kit already included

  • Tower

    • For Pulsar MX 15kVA

      • Caster Kit (casters + floor mount stand + seismic bracket) (87410)

      • 1x MX / EX RT Battery integration System (86005)

      • 3x 6 foot battery.cable (68528)

    • For Pulsar MX Frame 20 kVA + 12 EXB please order:

      • Caster Kit (casters + floor mount stand + seismic bracket) (87410)

      • 1x MX / EX RT Battery integration System (86005)

      • 1x additional MX / EX RT Battery Integration System (86005) for 12 EXBs

      • 4x 6 foot battery.cable (68528)


Pulsar mx frame exb integration recommendations13 l.jpg
Pulsar MX Frame: EXB integration recommendations

  • Tower Configurations – 15kVA Installation

3 Extensions

9x EXBs

3x 6 foot cables

2x Batt.Integ.Kit

2 Extension

6x EXBs

3x 6 foot cables

1x Batt.Integ.Kit

1x Caster Kit

1 Extension

3x EXBs

3x 6 foot cables

1x Batt.Integ.Kit


Pulsar mx frame exb integration recommendations14 l.jpg

1 Extension

4x EXBs

4x 6 foot cables

1x Batt.Integ.Kit

2 Extensions

8x EXBs

4x 6 foot cables

1x Batt.Integ.Kit

1x Caster Kit

3 Extensions

12x EXBs

4x 6 foot cables

2x Batt.Integ.Kit

1x Caster Kit

Pulsar MX Frame: EXB integration recommendations

  • Tower Configurations – 20kVA Installation


Flexibility pulsar mx frame 2 models 15 20 kva l.jpg
Flexibility: Pulsar MX Frame 2 models : 15 & 20 kVA

  • 1 versatile model for stand-alone & rack enclosures (31.5”+ depth)

    • Pulsar MX Frame 15 / 20000 = 16U for rack (D = 29.1”), 31.3” high for tower (with optional caster kit)

    • Delivered with: 8 min runtime + rail kit

    • Optional Caster kit and Network Management Card

MX Frame stand alone

Pulsar MX Frame rack integration

  • Benefits :

    • Integration in high density rack cabinets

    • Integration in technical rooms


Comprehensive and multi protocol supervision l.jpg

Local soft supervision and point to point shutdown

Remote supervision via

NMS or EPM, MGE superviser

HP OpenView

IBM Netview

CA Unicenter

HP Insight Manager

DB9 Serial port/USB

Personal Solution-Pac

NMC Card

Local electrical supervision

and shutdown

NMC modBus/ jbus (12/06)

Web supervision

MC Contacts/serial card

UPS control

DB9 5 voltage free output contacts 2 A 48 V DC

Building Management System

Comprehensive and multi-protocol supervision


Tco power extension without upfront cost l.jpg

MX Frame 20 kVA 18 kW

Pulsar MX 5 kVA 4.5 kW

MX 10U Frame 10kVA9 kW

MX Frame 15 kVA 13.5 kW

100

235

315

370

TCO : Power extension without upfront cost

  • Seamless migration from 5 up to 20 kVA at optimized cost


Pulsar mx migration 5kva standalone to 20kva frame l.jpg

MX 20kVA

(16U) FRAME

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

MX5000RT

(3U) Chassis

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

MX 20kVA

MX5000RT

(16U) FRAME

(3U) Chassis

Pulsar MX Migration5kVA Standalone to 20kVA Frame

MX5000RT

(3U) Chassis

POWER

Sub-module

BATTERY

Sub-module


Pulsar mx systems complete systems kits available l.jpg

MX5000RT

MX5000RT

(3U) Chassis

(3U) Chassis

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

POWER

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

BATTERY

Sub-module

Pulsar MX SystemsComplete Systems/Kits Available

Pulsar MX

Pulsar MX

(16U) FRAME

(16U) FRAME

POWER

Sub-module

BATTERY

Sub-module

Pulsar MX 5000

Transformer

Pulsar MX RT 5kVA HV

Part# 87050

Includes: (1) Pulsar MX RT (3U) Chassis with Rail Kit (1) Power Sub-module (1) Battery Sub-moduleFully assembled in one box

Pulsar MX RT 5kVA LV

Part# 87150

Includes: (1) Pulsar MX RT (3U) Chassis with Rail Kit (1) Power Sub-module (1) Battery Sub-moduleFully assembled in one box

(1) MX 5000 Transformer (2U)

Pulsar MX 15kVA HV

Part# 87415

Includes: (1) Pulsar MX (16U) Chassis with Rail Kit

(3) Power Sub-modules

(3) Battery Sub-modules

Each component in a separate box

Pulsar MX 20kVA HV

Part# 87420

Includes: (1) Pulsar MX (16U) Chassis with Rail Kit

(4) Power Sub-modules

(4) Battery Sub-modules

Each component in a separate box

(3U) Chassis



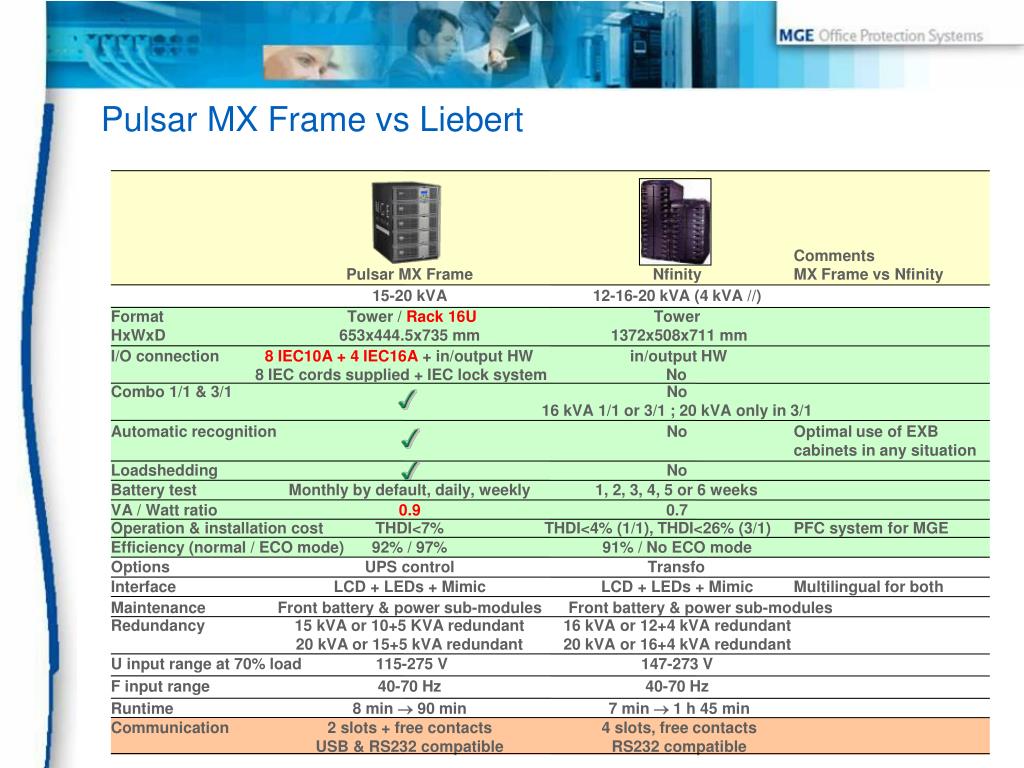

Pulsar mx frame vs apc l.jpg
Pulsar MX Frame vs APC

Comments Pulsar MX Frame Symmetra LX MX Frame vs LX

15-20 kVA 12-16 kVA (4 kVA //)

Tower / Rack 16U 19U Both models 800 mmHxWxD 653x444.5x735 mm 838x472x688 mm depth compatible

I/O connection 8 IEC10A+4 IEC16A+in/output HW 8 IEC10A+10 IEC16A+in/ouput HW 8 IEC cords supplied + IEC lock system No

Redundancy 15 kVA or 10+5 KVA redundant 12 kVA or 8+4 kVA redundant20 kVA or 15+5kVA redundant 16 kVA or 12+4 kVA redundant

Loadshedding No

F input range 40-70 Hz 45-65 Hz

VA / Watt ratio 0.9 0.7 More Watt for MGE

Efficiency (normal / ECO mode) 92% / 97% 90% / No ECO mode

Interface LCD + LEDs + Mimic LCD + LEDs Multilingual LCD for both

Combo 1/1 & 3/1

Automatic recognition

Maintenance Front battery & power sub-modules Front battery & power sub-modules

Battery test Monthly by default, daily, weekly Weekly by default, 14 days

1 UPS redundant 1 battery & 1 power module 1 battery & 1 power module

U input range at 70% load 115-275 V 155-276 V

Runtime 8 min  90 min 7.5 min  4 h 35

Options UPS control MBP, Transfo, PDU


Pulsar mx frame vs chloride l.jpg
Pulsar MX Frame vs Chloride

Comments Pulsar MX Frame Linear Plus MX Frame vs Linear Plus

15-20 kVA 12-18 kVA (6 kVA //)

Format Tower / Rack 16U Tower HxWxD 653x444.5x735 mm 800x(3x300)x675 mm

Interface LCD + LEDs + Mimic LCD + LEDs LCD only in English for Chloride

I/O connection 8 IEC10A+4 IEC16A+in/output HW in/output HW 8 IEC cords supplied + IEC lock system No

Maintenance Front battery & power sub-modules No Chloride: MBP in standard

Redundancy 15 kVA or 10+5 KVA redundant 18 kVA or 12+6 kVA redundant20 kVA or 15+5kVA redundant -

Combo 1/1 & 3/1 No Combo for Linear+ 10 kVA

Automatic recognition No Optimal use of EXB cabinets in any situation

Loadshedding No

Options UPS control No

U input range at 70% load 115-275 V 176-276 V

F input range 40-70 Hz 47.5-52.5 Hz

VA / Watt ratio 0.9 0.7 More Watt for MGE

Operation & installation cost THDI<7% THDI<5%(1/1) ; THDI<25% (3/1)

Efficiency (normal / ECO mode) 92% / 97% 91% / No ECO mode

Communication 2 slots + free contacts 1 slot + free contacts USB & RS232 compatible RS232 compatible

1 UPS redundant 1 battery & 1 power module 1 battery & 1 power module

Runtime 8 min  90 min 10 min  1 h 00

Battery test Monthly by default, daily, weekly From 7 to 180 days Accurate adjustment but not daily


Pulsar mx frame vs socomec l.jpg
Pulsar MX Frame vs Socomec

Comments Pulsar MX Frame Modulys MX Frame vs Modulys

15-20 kVA 18-24 kVA (6 kVA //)

HxWxD 653 (16U) x444.5x735 mm 1824 (41U) x550x625 mm

I/O connection 8 IEC10A + 4 IEC16A + in/output HW 1 IEC10A + in/output HW 8 IEC cords supplied + IEC lock system No

Automatic recognition ? Optimal use of EXB cabinets in any situation

Battery test Monthly by default, daily, weekly ?

U input range at 70% load 115-275 V 161-276 V

F input range 40-70 Hz 45-55 Hz

VA / Watt ratio 0.9 0.7

Efficiency (normal / ECO mode) 92% / 97% 89% / 97%

Communication 2 slots + free contacts 2 slots, free contacts USB & RS232 compatible RS232 compatible

Tower / Rack

Combo 1/1 & 3/1

Maintenance Front battery & power sub-modules Front battery & power modules

Redundancy 15 kVA or 10+5 KVA redundant 18 kVA or 12+6 kVA redundant Socomec keeps the same 20 kVA or 15+5 kVA redundant 24 kVA or 18+6 kVA redundant UPS in a dedicated frame

Interface LCD + LEDs + Mimic LCD + LEDs Multilingual LCD for both

Runtime 8 min  90 min 8 min  35 min

Loadshedding

Options UPS control Transfo, UPS control

Operation & installation cost THDI<7% THDI<6%(1/1)


Pulsar mx frame vs liebert l.jpg
Pulsar MX Frame vs Liebert

Comments Pulsar MX Frame Nfinity MX Frame vs Nfinity

15-20 kVA 12-16-20 kVA (4 kVA //)

Format Tower / Rack 16U Tower HxWxD 653x444.5x735 mm 1372x508x711 mm

I/O connection 8 IEC10A + 4 IEC16A + in/output HW in/output HW 8 IEC cords supplied + IEC lock system No

Combo 1/1 & 3/1 No 16 kVA 1/1 or 3/1 ; 20 kVA only in 3/1

Automatic recognition No Optimal use of EXB cabinets in any situation

Loadshedding No

Battery test Monthly by default, daily, weekly 1, 2, 3, 4, 5 or 6 weeks

VA / Watt ratio 0.9 0.7

Operation & installation cost THDI<7% THDI<4% (1/1), THDI<26% (3/1) PFC system for MGE

Efficiency (normal / ECO mode) 92% / 97% 91% / No ECO mode

Options UPS control Transfo

Interface LCD + LEDs + Mimic LCD + LEDs + Mimic Multilingual for both

Maintenance Front battery & power sub-modules Front battery & power sub-modules

Redundancy 15 kVA or 10+5 KVA redundant 16 kVA or 12+4 kVA redundant 20 kVA or 15+5 kVA redundant 20 kVA or 16+4 kVA redundant

U input range at 70% load 115-275 V 147-273 V

F input range 40-70 Hz 40-70 Hz

Runtime 8 min  90 min 7 min  1 h 45 min

Communication 2 slots + free contacts 4 slots, free contacts USB & RS232 compatible RS232 compatible


ad
