  1. Configuring your Home Wireless Network Presented by Lou Koch March 14, 2006 Adapted from Presentation at APCUG By Jay Ferron ADMT, CISM, CISSP, MCDBA, MCSE, MCT, NSA-IAM

  2. Questions • How many of you have more than one computer at home? • How many of you connect to the Internet using broadband (Cable or DSL) • How many already have a home router? • Already have a wireless router? For those who have not already done so, we will show you how to install a WLAN tonight. More critically we will discuss ways to secure your wireless network

  3. Agenda • Connecting things together • Home network - terminology • Security – Firewalls, Filtering, etc • Setting up a home router • Setting up Print and File Sharing • Questions

  4. Home Network • Internet – ISP • Wire to home • Modem • Translates electronic data • Router • Disperses electronic data • Network Adaptor • Required for each Computer • Wired • NIC (network interface card) or ethernet card • Wireless • Wireless Adaptor

  5. NetworkOne or more devices connected together • To the Internet with a router • To each other in order to share Resources: • Internet Connections • Sharing Files • Sharing Printers • WAN, LAN, WLAN, PAN • WAN – Wide Area Network … many computers, locations • LAN – Local Area Network … few computers, 1 location • PAN – Personal Area Network … home network • WLAN – Wireless Local Area Network

  6. Wireless • Wireless Networking Standards • 802.11 a, b, and g • configuration specifications to insure compatibility • Different speed/range capabilities • Equipment conforming to “g” is most popular/available • Good for 100-400 feet … in a house • General rule – don’t mix equipment made to different standards • Bluetooth • Standard which is often used for peripheral devices • Printers, scanners, cell phones, etc • Short range (10 ft), high speed

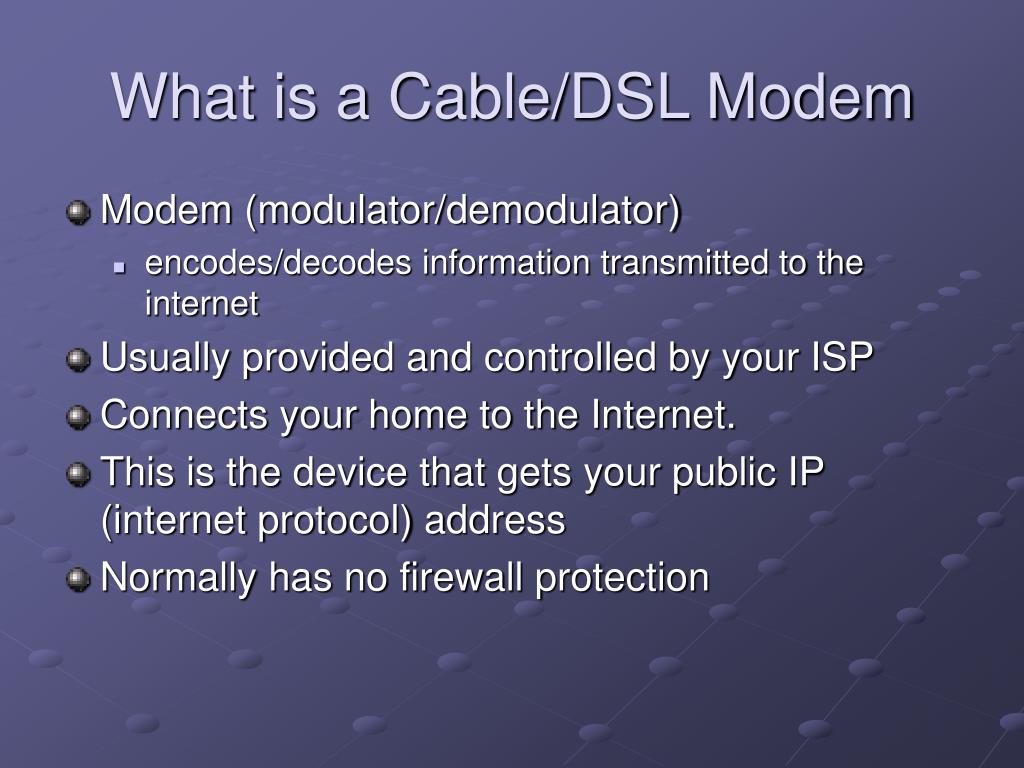

  7. What is a Cable/DSL Modem • Modem (modulator/demodulator) • encodes/decodes information transmitted to the internet • Usually provided and controlled by your ISP • Connects your home to the Internet. • This is the device that gets your public IP (internet protocol) address • Normally has no firewall protection

  8. What is a Router • Connects one network to another … Sometimes called a “Gateway” • Connects your computer to the internet (cable modem or DSL Line) – keeps LAN traffic local • Routers keep track of IP addresses and physical (MAC) addresses of hosts • IP (Internet Protocol) address … your computers internet address • MAC (Media Access Control) … id for each physical communication device

  9. What is an Access Point • A point where computers access a network • Device which links wireless users to network • Transmits and receives data (Transceiver) • Bridge between wireless and wired networks • Can be linked together to cover broad area • No security or firewall implemented

  10. What is a Firewall • A device that filters packets of data or traffic • Its job is to be a traffic cop • You configure the firewall: • What will allow to pass • What will it block • Hides your home network from the outside world • Can be either in hardware or software • Most popular routers for home have built in firewall protection

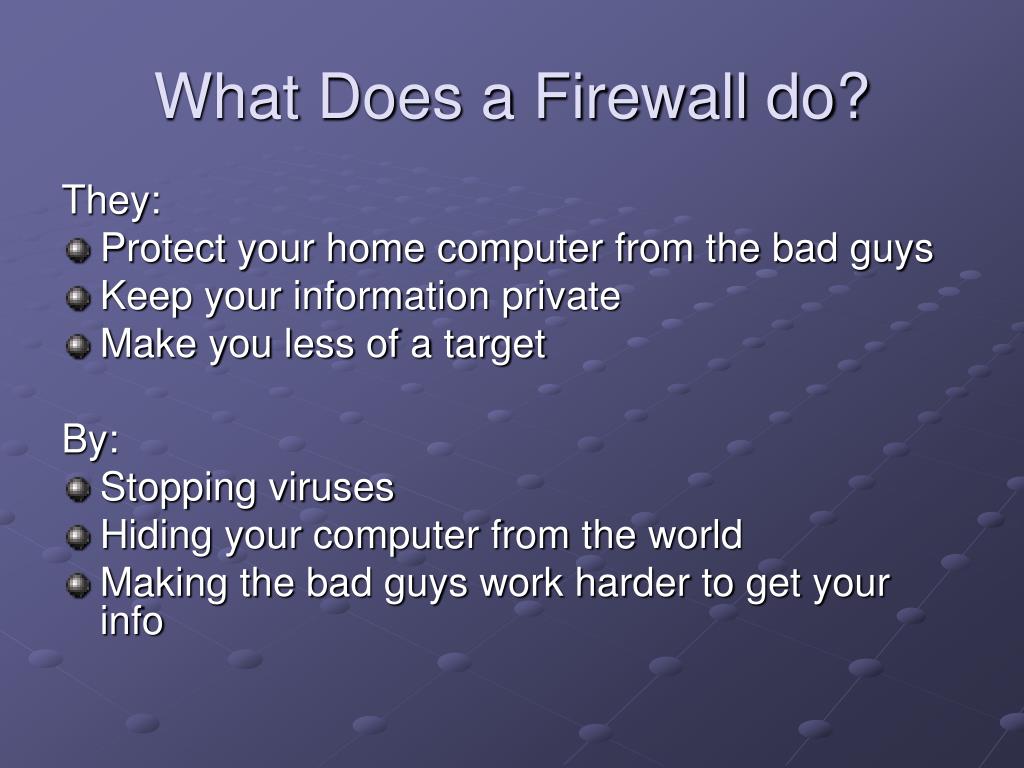

  11. What Does a Firewall do? They: • Protect your home computer from the bad guys • Keep your information private • Make you less of a target By: • Stopping viruses • Hiding your computer from the world • Making the bad guys work harder to get your info

  12. Internet Firewall Home Network Firewall Protection • Checks incoming traffic from the network before it gets to your home network …. default – Blocks all Incoming connections • Traffic leaving your home network … default - Allow all outbound connections • Hardware firewalls protect you home network by stop all traffic before it get to your computers • Personal software firewall on your computer blocks incoming and outgoing (lets you know what is leaving your computer)

  13. HardwareFirewall Routers The idea is layers of protection • Examples of home combo units include • Belkin(we will demo tonight) • Dlink • Linksys • Netgear

  14. Software Firewalls • Adding a second level of protection • Controlling what leaves your computer • By being aware of application level attacks • By allow you to schedule • Usage of the internet by time (control access at night) • By location (block content for young children)

  15. Software Firewalls for Home Use • Examples • Zone Alarm (Free) • McAfee Firewall • Symantec’s Norton Personal Firewall • Computer Associates with Firewall (free) • Windows Firewall in XP Service Pack 2 (free)

  16. Configure Wireless Firewall/router Overview • Basic Settings … name, ip address, etc Check for firmware updates • Set Account name and password Change name and password … don’t used default • Wireless Settings SSID broadcast … make sure that remote computers are set to automatically connect Do not enable DMZ Do enable ping blocking • Security - Blocking and Filtering Wireless Security encryption MAC filtering • Back up settings

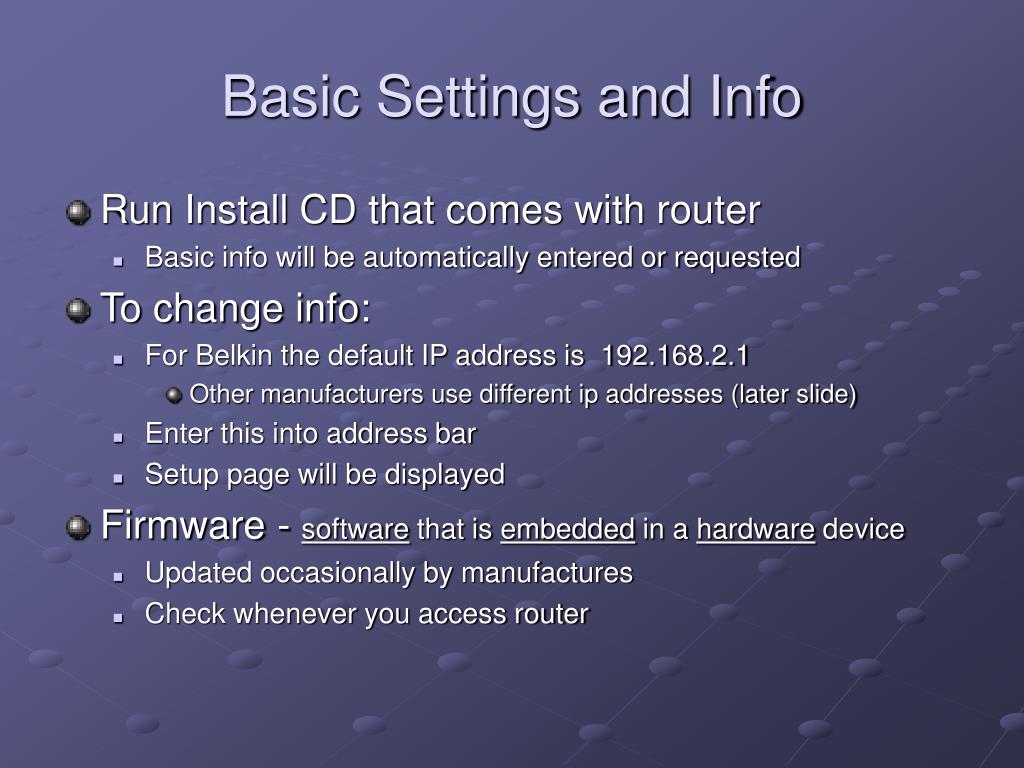

  17. Basic Settings and Info • Run Install CD that comes with router • Basic info will be automatically entered or requested • To change info: • For Belkin the default IP address is 192.168.2.1 • Other manufacturers use different ip addresses (later slide) • Enter this into address bar • Setup page will be displayed • Firmware - software that is embedded in a hardware device • Updated occasionally by manufactures • Check whenever you access router

  18. Account Name • Change name • Default name is set by manufacturer … eg, Belkin54 • Bad guys know defaults and default administrative passwords • Create Administrative Password • Use Strong Password • Record your password where you can find it so you can make changes

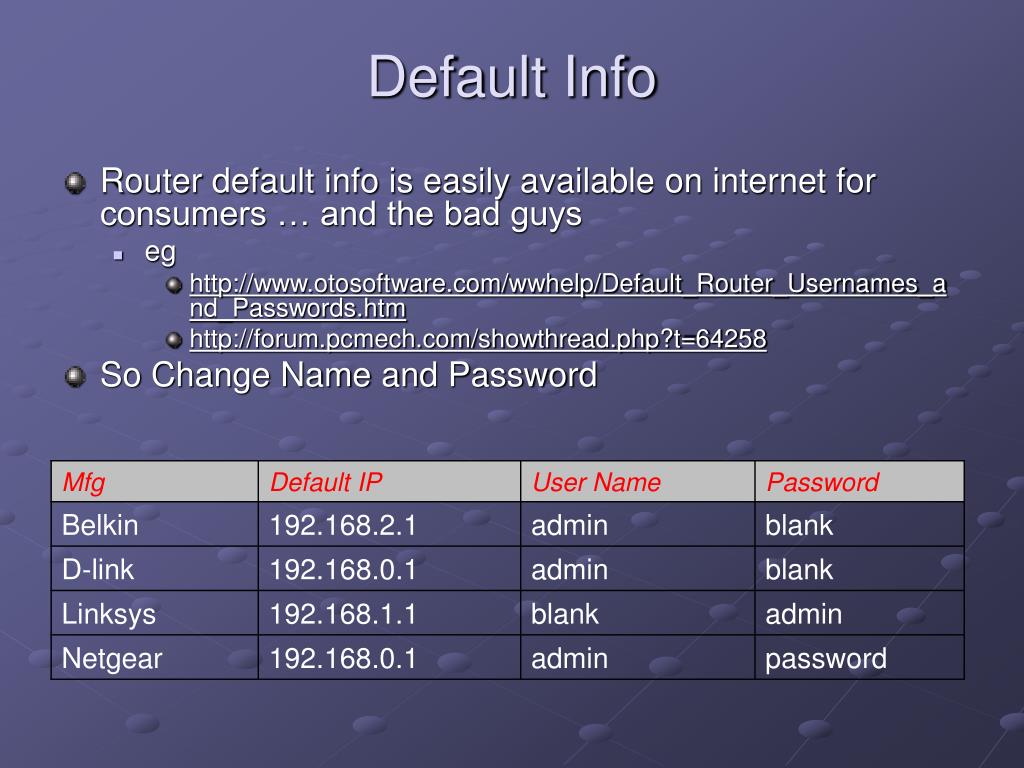

  19. Default Info • Router default info is easily available on internet for consumers … and the bad guys • eg • http://www.otosoftware.com/wwhelp/Default_Router_Usernames_and_Passwords.htm • http://forum.pcmech.com/showthread.php?t=64258 • So Change Name and Password

  20. Passwords Your computer password is the foundation of your computer security • No Password = No Security • Old Passwords & Same Password = Reduced Security • Set and change the “administrator” password on router (and your computer logon) • STRONG PASSWORD … 6-8 digit passwords • use upper, lower case, numbers and symbols

  21. Wireless Settings • SSID - service set identifier • name given to your wireless network • Broadcasting this ID makes network visible to PCs in area • can be turned off so it will not be detected by other PCs in area • Be sure to set up your own pc to automatically detect and logon to your WLAN • DMZ – • allows you to select a PC to access WLAN outside the firewall • do not enable unless firewall interferes with some activity • Ping Blocking –troubleshooting tool • Signal sent and echo received indicates valid ip address • Used by hackers to find active computers • Enable ping blocking … won’t send echo back

  22. SecurityBlocking and Filtering • Encryption – coding transmissions • Multiple variations. 2 most common: • WPA-PSK … Wireless Protected Access (Pre-shared key) • Use same password for all computers • Preferred Choice • WEP … Wired equivalent privacy • 64 or 128 bit encryption … doesn’t matter • Enter Password … converts to hex code • Must enter hex code • 2nd Choice (if WPA not supported)

  23. MAC Filtering • MAC address … Media Access Control address • Unique ID permanently attached to each communication device by manufacturer – hardware id • Can find MAC address: run  cmd  ipconfig/all • Enter MAC addresses of acceptable network clients • If address is not on filter list, access to network will be denied • Very effective security method

  24. RECAPSteps to protect your wireless network • Change the default password on your router • 2. Enable WPA(PSK) or WEP on router and wireless workstation • Use MAC address filtering • SSID broadcast off • Prohibit Peer-to-peer (Ad Hoc) networking • 5. Keep current on hardware bios upgrades

  25. Print and File SharingOverview • Print and File Sharing: • Useful, but Risky if all computers are not secure • Setting up Network for Printer and File sharing • Interface card • Set Interface card to allow • Each computer in network • Make sure each computer is part of network • Printer • Make sure that Print sharing is allowed for printer • Load appropriate print drivers on each computer • Firewall Settings • Reset network IP range to trusted zone • Place files to share in “Shared Documents” folder

  26. Print and File SharingDetails (1) • Be sure WLAN is working and secure • Interface card • Start  connect to  NIC or WLAN card  properties • Check “File and Printer sharing on Microsoft Networks” • Repeat for all PCs on Network • Printer • Start  Printers and Faxes  shared printer • Select properties  sharing  check “share this Printer)

  27. Print and File SharingDetails (2) • Firewall • Be sure WLAN IPs are allowed in Firewall for all PCs • Zone Alarm •  Firewall  zones  add  IP range  <enter appropriate range> • Network ID for each computer • Under My Computer  Properties  Computer name • Click Change and add WLAN name as Workgroup • Shared Documents Folder for each computer • Any files in the Shared Documents folder will be accessible from all computers

  28. Questions
