Presentation Transcript


Torsion of thin walled closed cross sections

Torsion of Thin-Walled Closed Cross-Sections

Objective:

To find stress formula and angle of twist

expressions for thin-walled closed section.


Torsion of thin walled closed cross sections

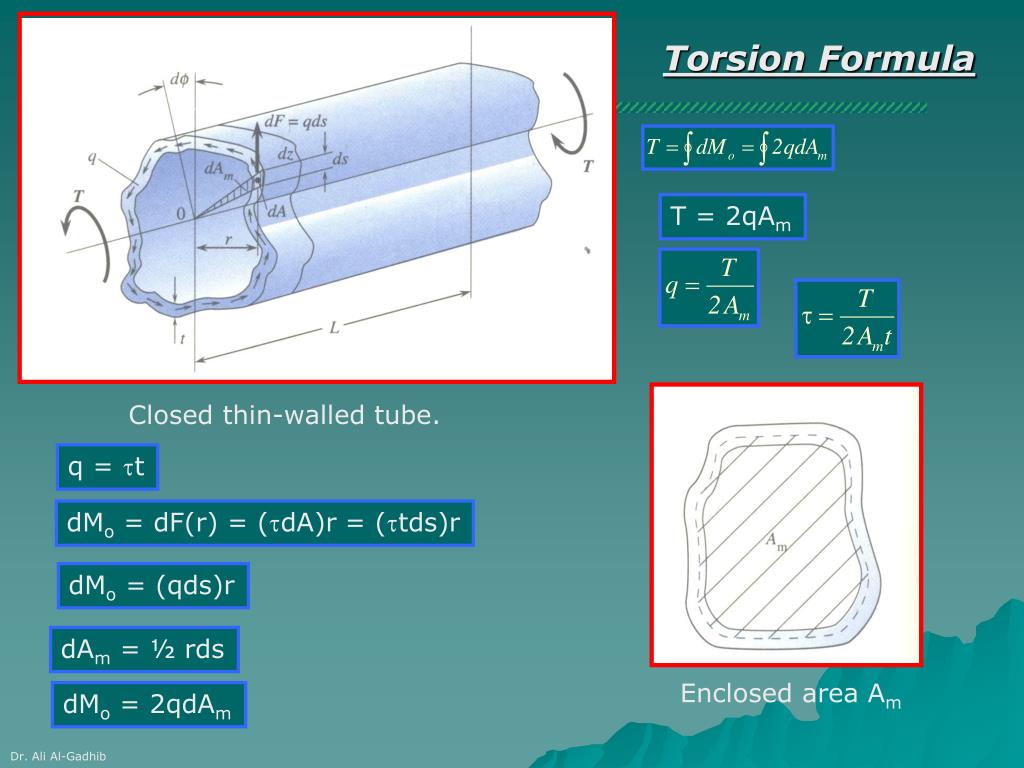

Torsion Formula

T = 2qAm

Closed thin-walled tube.

q = t

dMo = dF(r) = (dA)r = (tds)r

dMo = (qds)r

dAm = ½ rds

Enclosed area Am

dMo = 2qdAm


Torsion of thin walled closed cross sections

Angle of Twist 


Torsion of thin walled closed cross sections

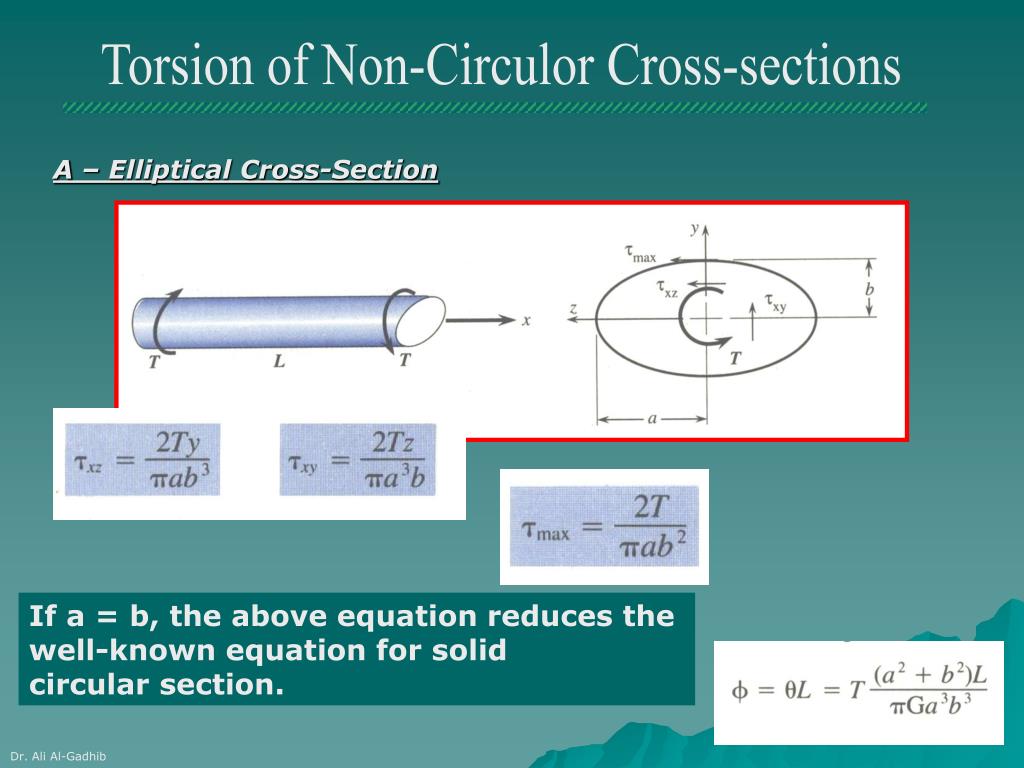

Torsion of Non-Circulor Cross-sections

A – Elliptical Cross-Section

If a = b, the above equation reduces the

well-known equation for solid

circular section.


Torsion of thin walled closed cross sections

Rectangular Cross-Section:


Torsion of thin walled closed cross sections

t=a

L

t

l=b

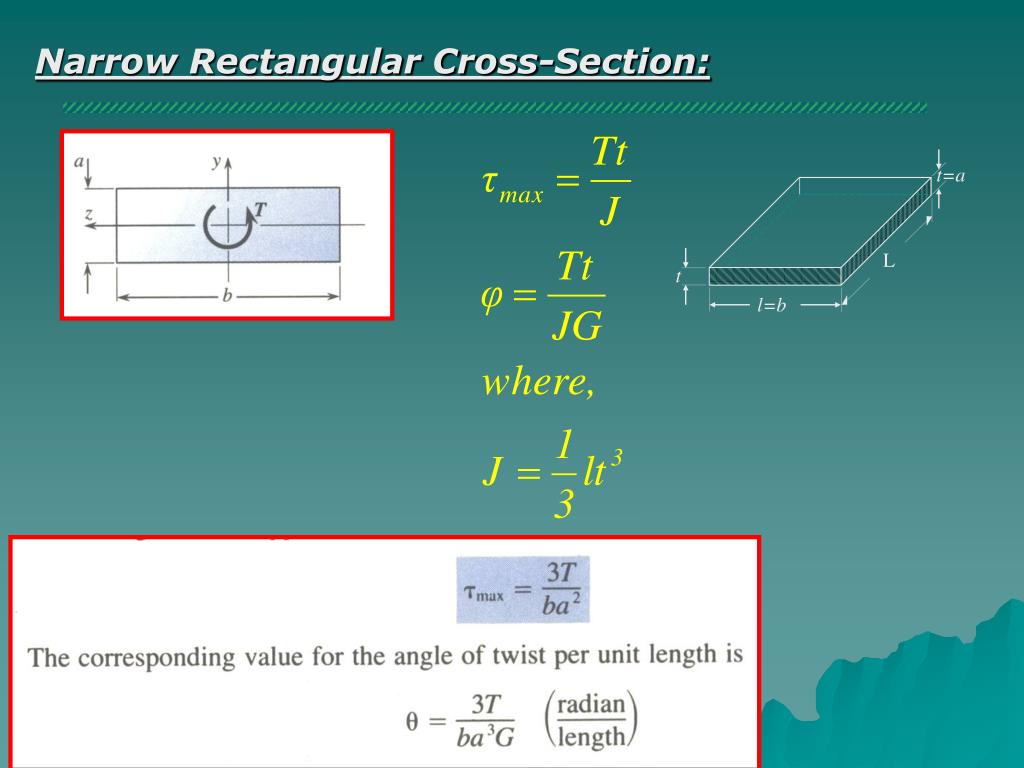

Narrow Rectangular Cross-Section:


Torsion of thin walled closed cross sections

t1

L1

t1

L2

t2

l2

l1

t

t2

t

l3

b

t3

L3

a

t4

t

L4

If ‘t’ is constant then the above

becomes:

l1+l2+l3

l1+l2+l3+l4

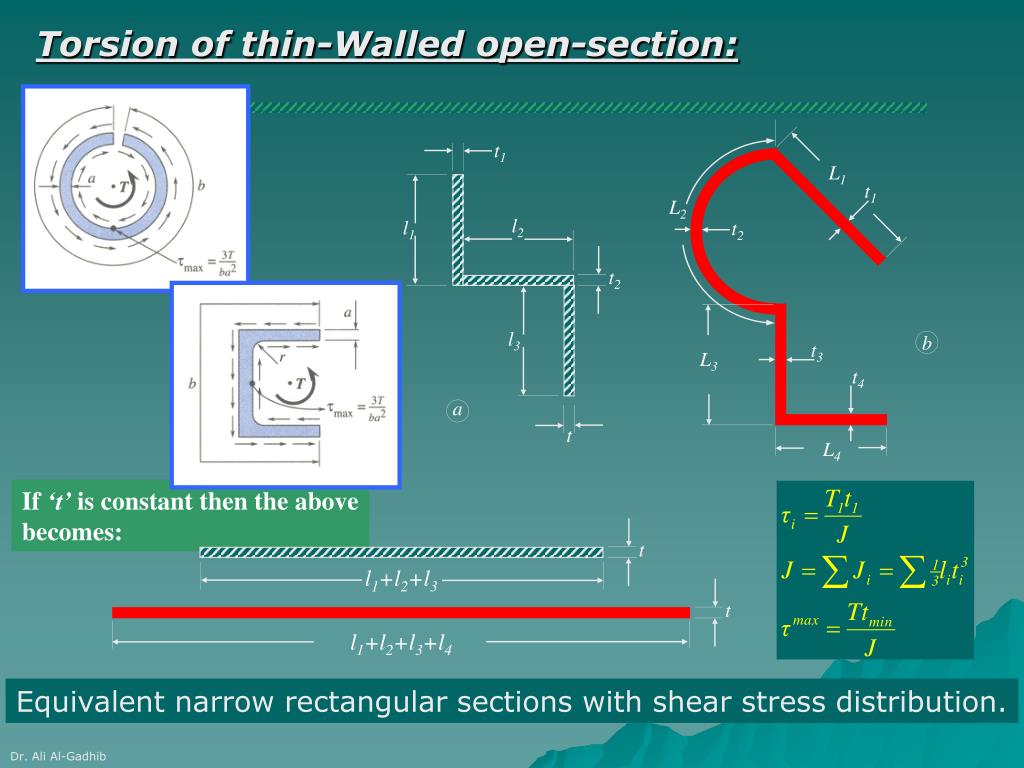

Torsion of thin-Walled open-section:

Equivalent narrow rectangular sections with shear stress distribution.


Torsion of thin walled closed cross sections

The enD
