  1. Artificial Intelligence Constraint Programming 1 Ian Gent ipg@cs.st-and.ac.uk

  2. Artificial Intelligence Constraint Programming 1 Part I : Constraint Satisfaction Problems

  3. Constraint Satisfaction Problems • CSP = Constraint Satisfaction Problems • AI exams, CSP =/= Communicating Sequential Processes • A CSP consists of: • a set of variables, X • for each variable xi in X, a domain Di • Di is a finite set of possible values • a set of constraints restricting tuples of values • if only pairs of values, it’s a binary CSP • A solution is an assignment of a value in Di to each variable xi such that every constraint satisfied

  4. Who Cares? • Many problems can be represented as CSP’s • e.g. scheduling, timetabling, graph coloring, puzzles, supply chain management, parcel routing, party arranging … • Many Constraint Programming toolkits available • CHIP • ILOG Solver [expensive commercially] • Eclipse [free academically] • Mozart [available as rpm for Linux]

  5. Colouring as CSP • Can we colour all 4 nodes with 3 colours so that no two connected nodes the same colour? • Variable for each node • All Di = { red, green, blue} • Constraint for each edge • all constraints of the form • xi xj • Solution gives a colouring • It’s a binary CSP

  6. SAT as a CSP • Variable in CSP for each variable/letter in SAT • Each domain Di = {true, false} • Constraint corresponds to each clause • disallows unique tuple which falsifies clause • e.g. (not A) or (B) or (not C) •  not < A = true, B = false, C = true > • Not binary CSP unless all clauses 2-clauses

  7. N-Queens as a CSP • Chessboard puzzle • e.g. when n = 8… • place 8 queens on a 8x8 chessboard so that no two attack each other • Variable xi for each row i of the board • Domain = {1, 2, 3 … , n} for position in row • Constraints are: • xi xj queens not in same column • xi - xj  i-j queens not in same SE diagonal • xj - xi  i - j queens not in SW diagonal

  8. Constraint Satisfaction Problems • CSP = Constraint Satisfaction Problems • AI exams, CSP =/= Communicating Sequential Processes • A CSP consists of: • a set of variables, X • for each variable xi in X, a domain Di • Di is a finite set of possible values • a set of constraints restricting tuples of values • if only pairs of values, it’s a binary CSP • A solution is an assignment of a value in Di to each variable xi such that every constraint satisfied

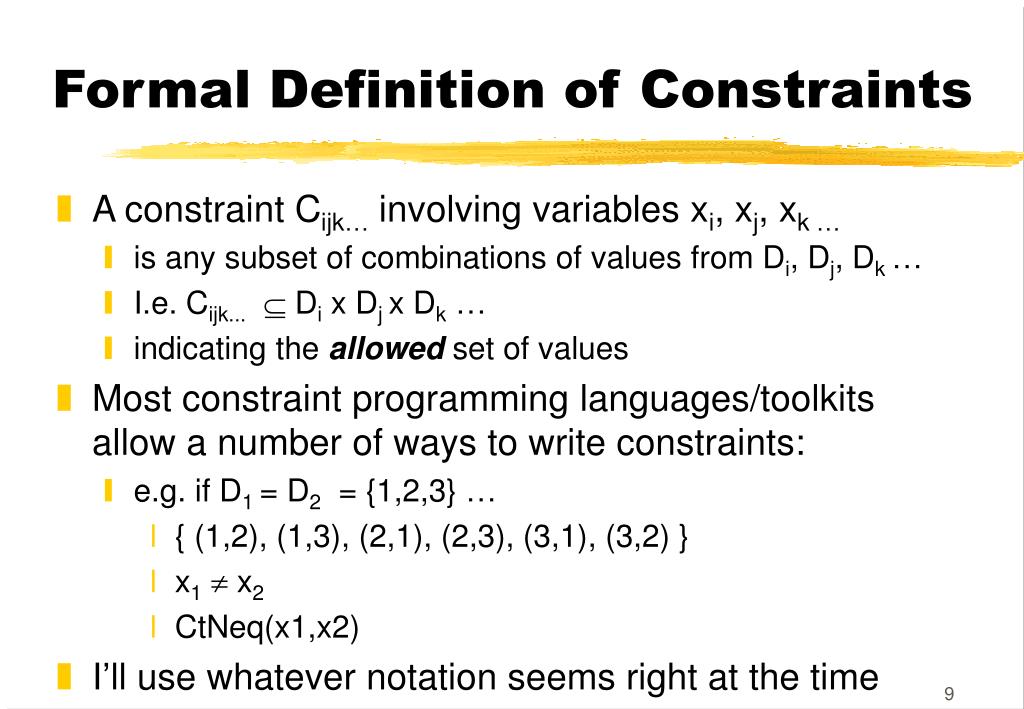

  9. Formal Definition of Constraints • A constraint Cijk… involving variables xi, xj, xk … • is any subset of combinations of values from Di, Dj, Dk … • I.e. Cijk... Di x Dj x Dk … • indicating the allowed set of values • Most constraint programming languages/toolkits allow a number of ways to write constraints: • e.g. if D1 = D2 = {1,2,3} … • { (1,2), (1,3), (2,1), (2,3), (3,1), (3,2) } • x1 x2 • CtNeq(x1,x2) • I’ll use whatever notation seems right at the time

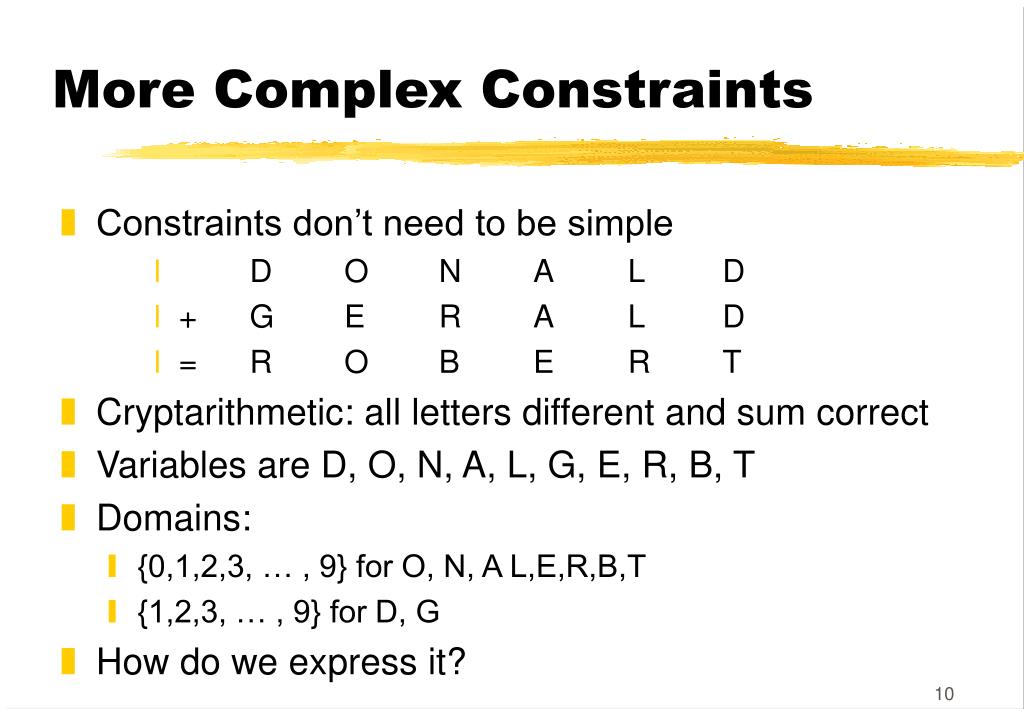

  10. More Complex Constraints • Constraints don’t need to be simple • D O N A L D • + G E R A L D • = R O B E R T • Cryptarithmetic: all letters different and sum correct • Variables are D, O, N, A, L, G, E, R, B, T • Domains: • {0,1,2,3, … , 9} for O, N, A L,E,R,B,T • {1,2,3, … , 9} for D, G • How do we express it?

  11. Donald + Gerald = Robert • We can write one long constraint for the sum: • 100000*D + 10000*O + 1000*N + 100*A+ 10*L + D + 100000*G + 10000*E + 1000*R + 100*A+ 10*L + D = 100000*R + 10000*O + 1000*B + 100*E+ 10*R + T • But what about the difference between variables? • Could write D =/= O, D=/=N, … B =/= T • Or express it as a single constraint on all variables • AllDifferent(D,O,N,A,L,G,E,R,B,T) • These two constraints • express the problem precisely • both involve all the 10 variables in the problem

  12. Search in Constraints • The basics of search are (guess what) the same as usual • Depth first search is the most commonly used • What toolkits (Solver, Mozart … ) add is • propagation during search done automatically • In particular they offer efficient implementations of propagation algorithms like • Forward checking • Maintaining Arc consistency

  13. Forward Checking • The simplest good propagation is Forward Checking • The idea is very simple • If you set a variable and it is inconsistent with some other variable, backtrack! • To do this we need to keep up to date the current state of each variable • Add a data structure to do this, the current domain CD • Initially, CDi= Di • When we set variable xj = v • remove xi = u from CDi if some constraint is not consistent with both xj = v, xi= u

  14. Forward Checking • For implementation, we have to cope with undoing the effects of forward checking after backtracking • One way is to store CDi on the stack at each depth in search, so it can be restored • expensive on space • very easy in languages which make copies automatically, e.g. Lisp, Prolog • Another is to store only the changes to CDi • then undo destructive changes to data structures on backtracking • usually faster but can be more fiddly to implement

  15. Forward Checking, example • Variables x, y • Dx = Dy = {1,2,3,4,5} • Constraint x < y - 1 • Initially CDx = CDy = {1,2,3,4,5} • If we set x = 2, then: • the only possible values are y = 4, y = 5 • so set CDy = {4,5} • If we set x = 4, then • no possible values of y remain, I.e. CDy = { } • retract choice of x = 4 and backtrack

  16. Heuristics • As usual we need efficient variable ordering heuristics • One is very important, like unit propagation in SAT: • If any CD is of size 1 • we must set that variable to the remaining value • More generally, a common heuristic is “minimum remaining value” • I.e. choose variable with smallest size CD • motivated by most constrained first, or also some theoretical considerations.

  17. Next time • Arc Consistency • Special kinds of constraints, like all different • Formulation of constraint problems • How to organise a party
