  1. Cable Modems NAT Routers and all that A home setup – a network stub.

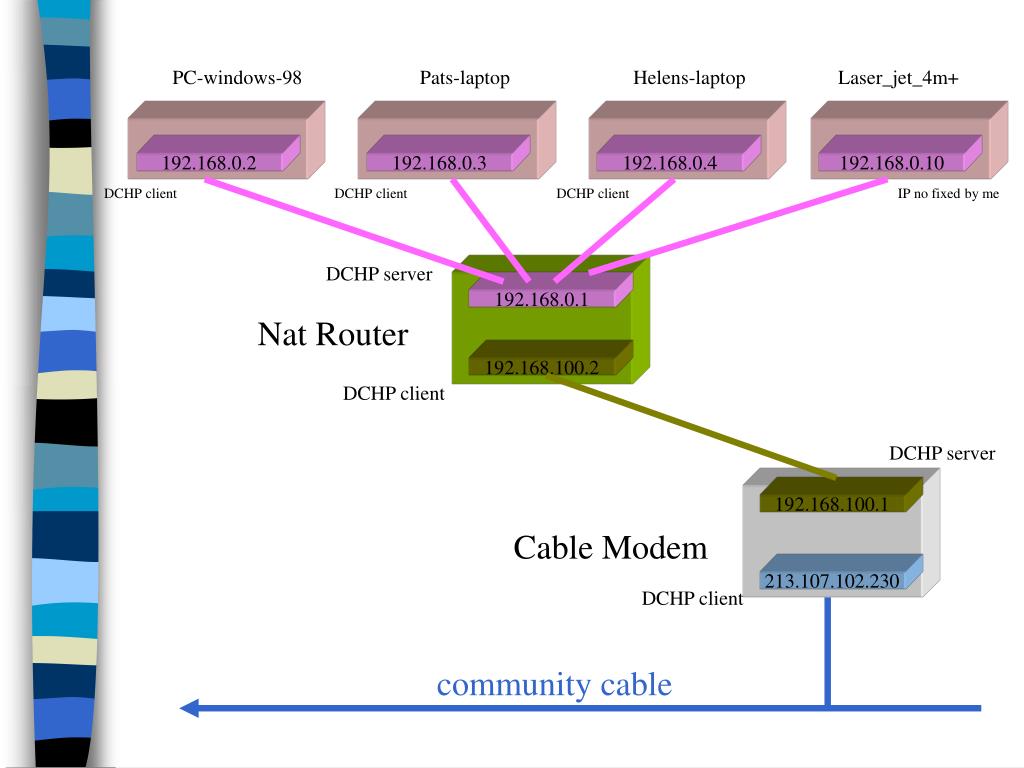

  2. PC-windows-98 Pats-laptop Helens-laptop Laser_jet_4m+ 192.168.0.2 192.168.0.3 192.168.0.4 192.168.0.10 DCHP client DCHP client DCHP client IP No fixed by me DCHP server 192.168.0.1 Nat Router 192.168.100.2 DCHP client DCHP server 192.168.100.1 Cable Modem 213.107.102.230 DCHP client community cable

  3. Nat Router

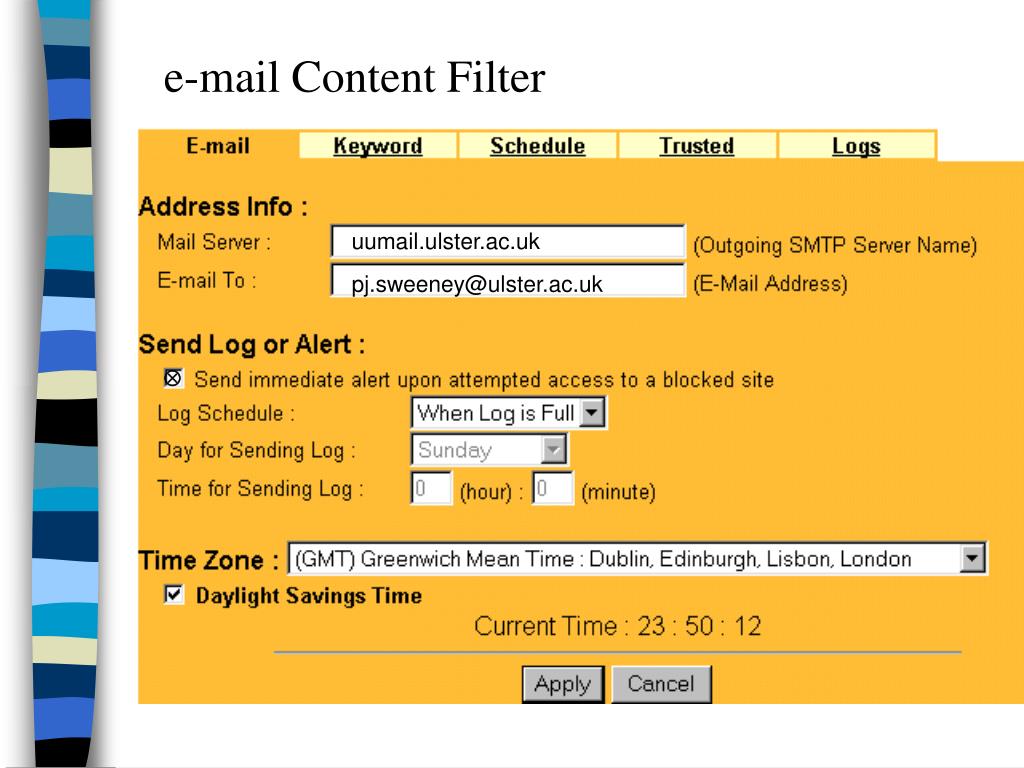

  4. e-mail Content Filter uumail.ulster.ac.uk pj.sweeney@ulster.ac.uk 

  5. e-mail Content Filter keyword blocking

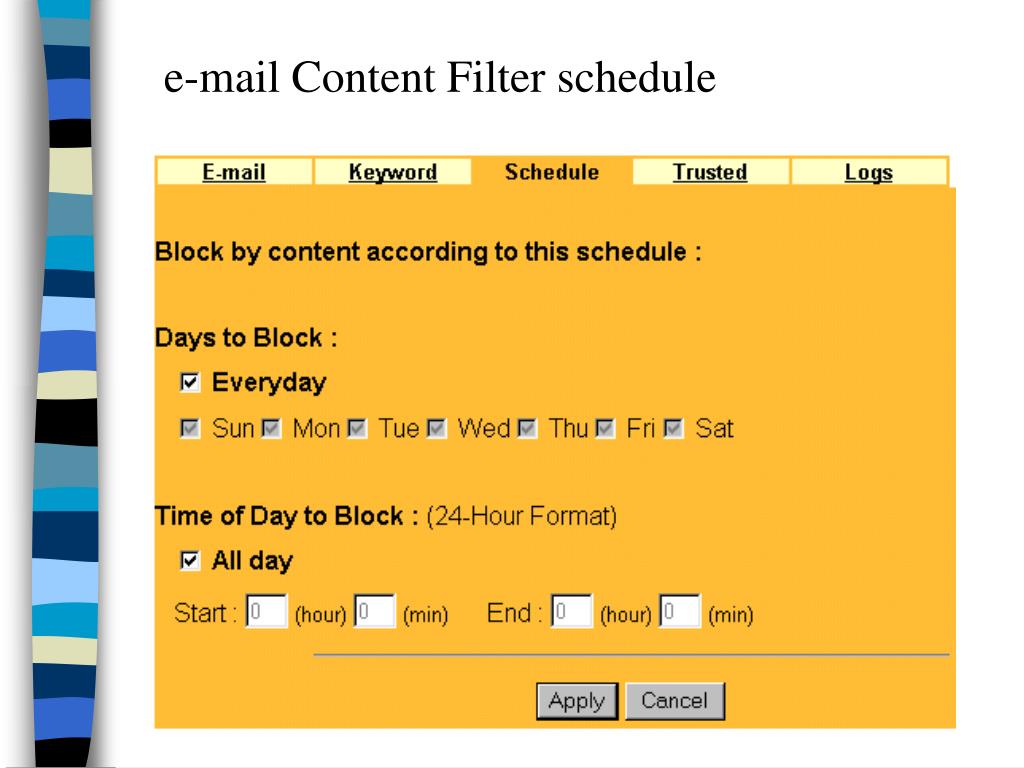

  6. e-mail Content Filter schedule

  7. e-mail Content Filter trusted?

  8. Content Filter logs

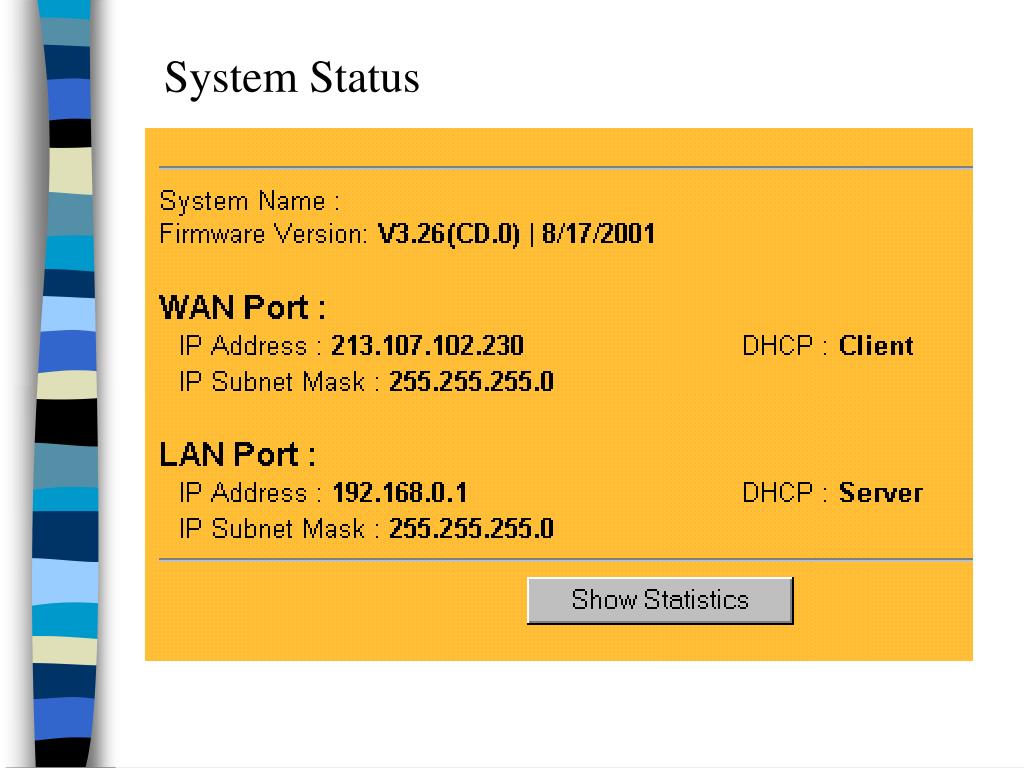

  9. System Status

  10. This IP has been allocated to NTL

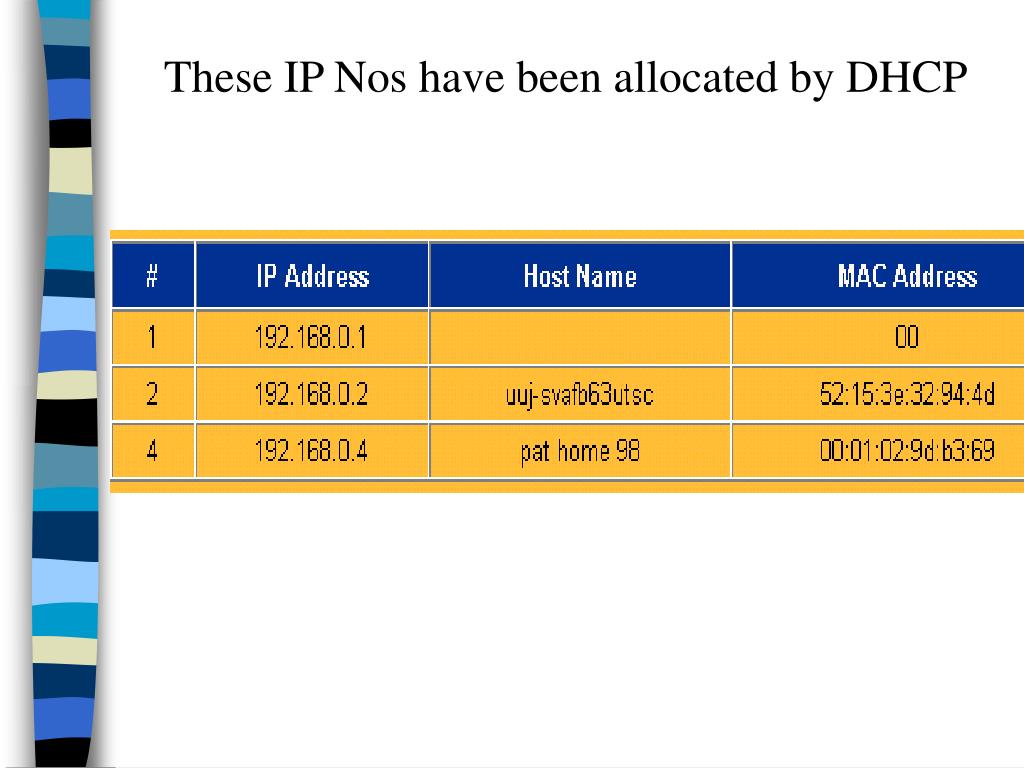

  11. These IP Nos have been allocated by DHCP

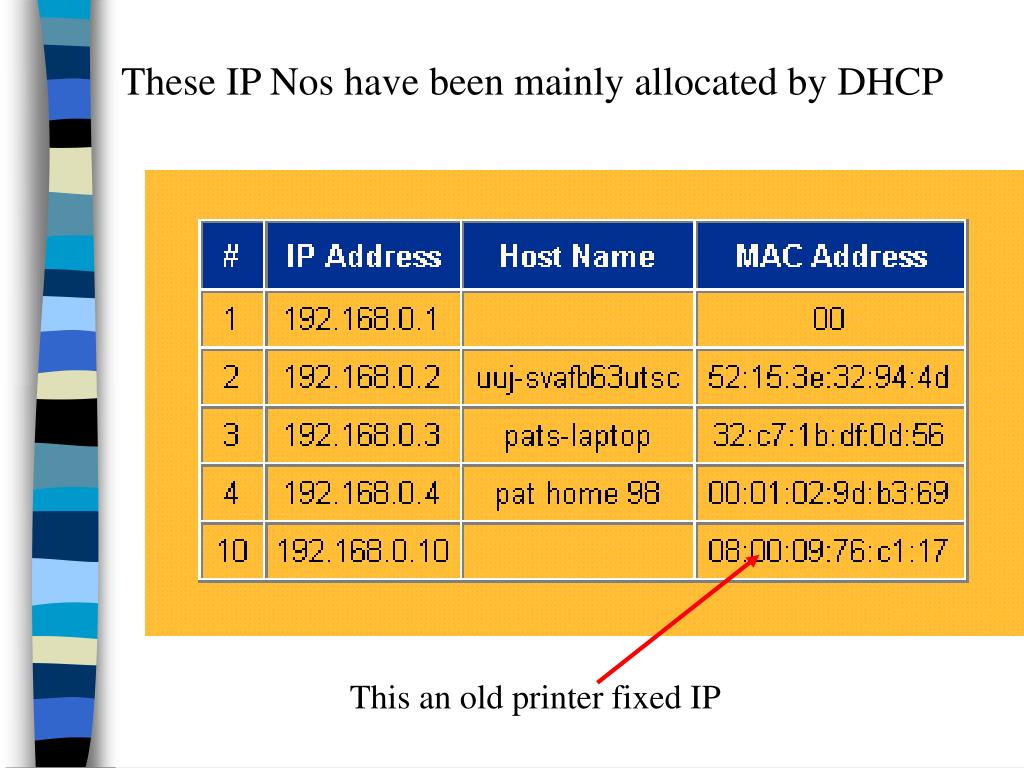

  12. These IP Nos have been mainly allocated by DHCP This an old printer fixed IP

  13. Entry in the Domain Name System for this cable customer cpc1-glen1-… ...ntl.com

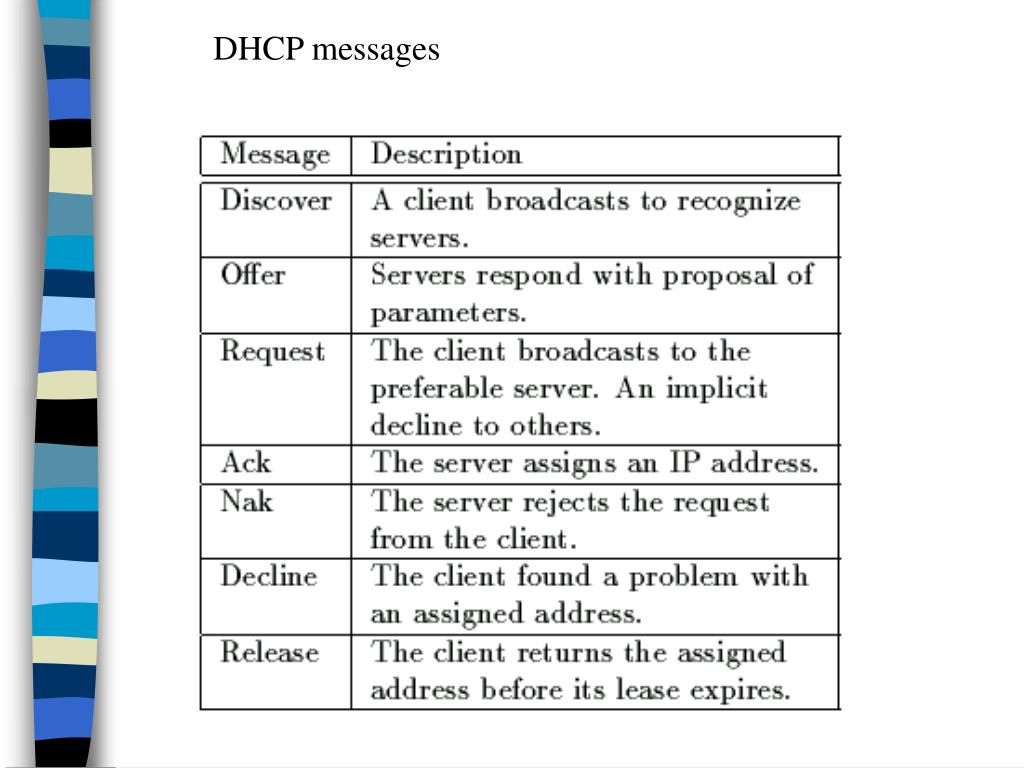

  14. DHCP messages

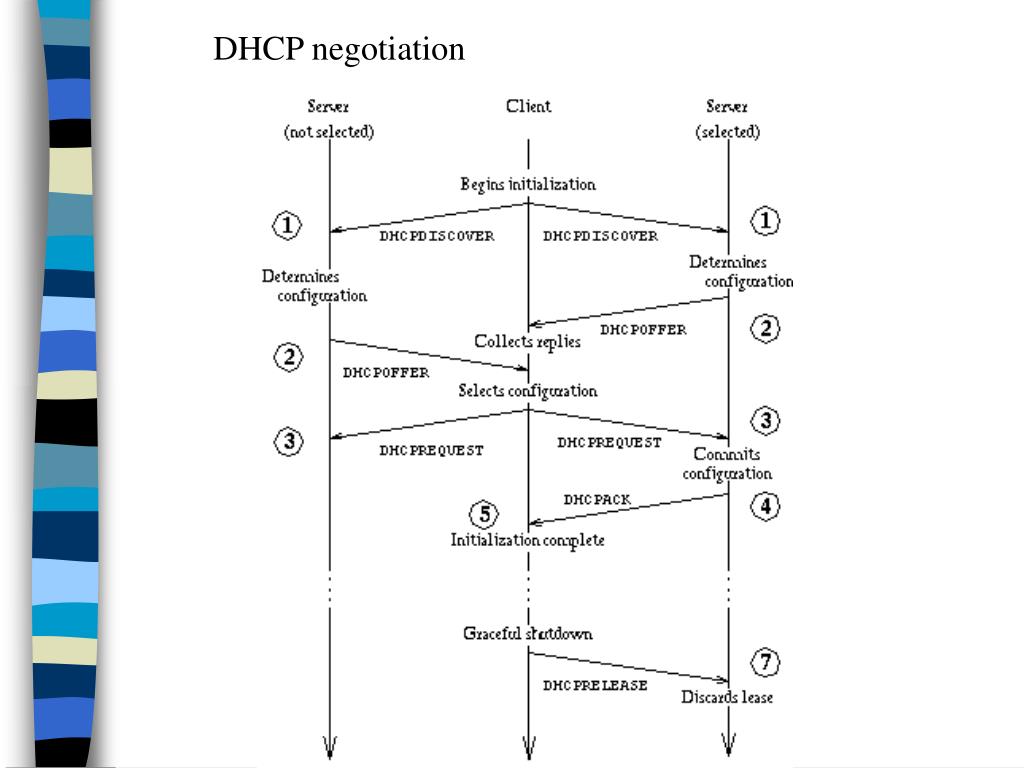

  15. DHCP negotiation

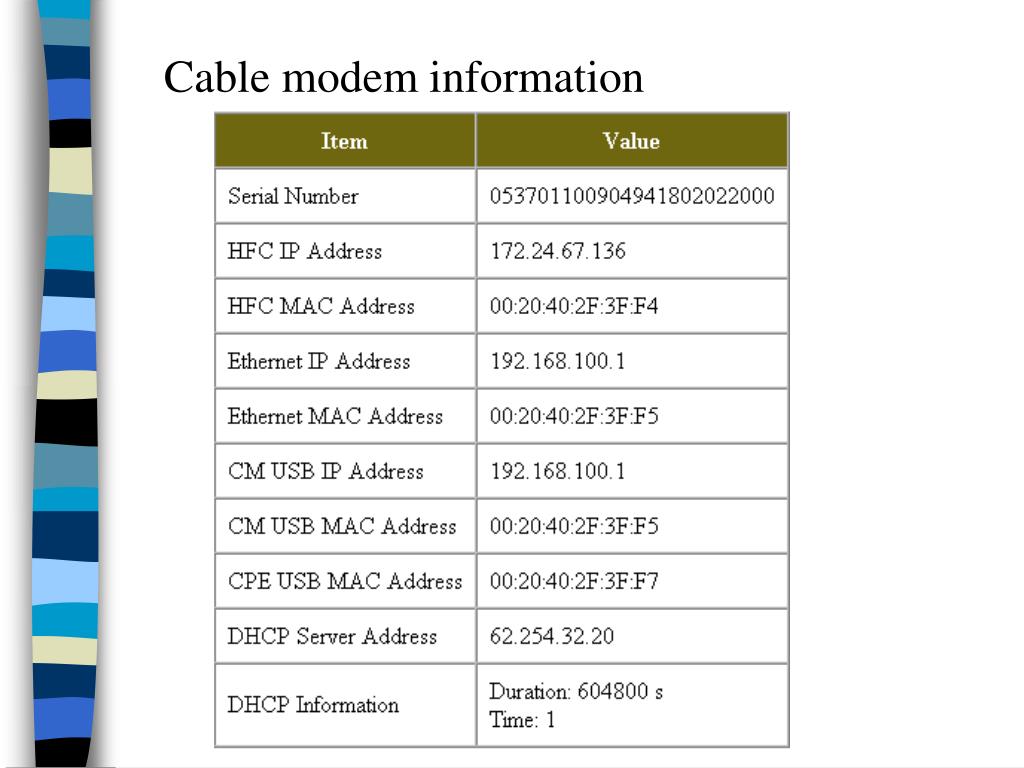

  16. Cable modem information

  17. This page provides information about the startup process of the Cable Modem. If there is a problem with the startup, the word "Failed" may appear in the Status column.

  18. PC-windows-98 Pats-laptop Helens-laptop Laser_jet_4m+ 192.168.0.2 192.168.0.3 192.168.0.4 192.168.0.10 DCHP client DCHP client DCHP client IP no fixed by me DCHP server 192.168.0.1 Nat Router 192.168.100.2 DCHP client DCHP server 192.168.100.1 Cable Modem 213.107.102.230 DCHP client community cable
