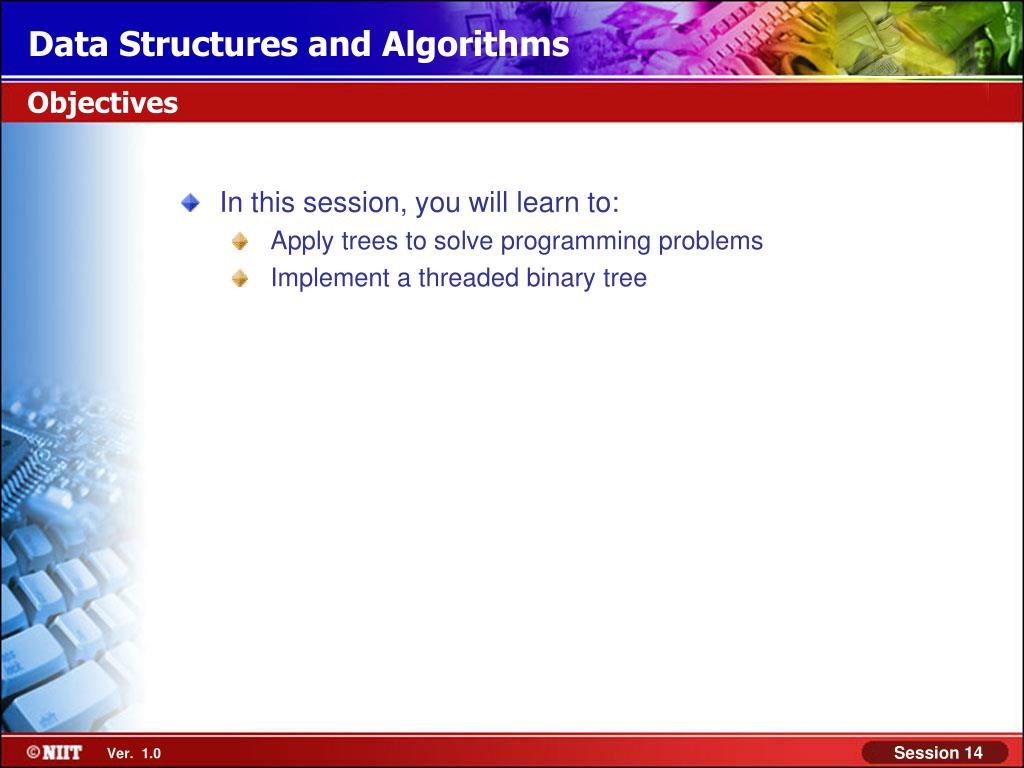

  1. Objectives • In this session, you will learn to: • Apply trees to solve programming problems • Implement a threaded binary tree

  2. Indexing • The following is an example of an index. • Data on disk files is usually organized as records containing several fields, one of which is often used as a key field. • The key field is used to uniquely identify each record in a file. • Indexing is one of the data access methods for accessing records from the disk files. • Indexing is implemented through a table called index. • Index consists of two entries: • Key fields of all the records • Offset position of each record

  3. Indexing (Contd.) • To access the record with key field 59, search the index for this key value to retrieve its corresponding offset value, which is 1200. • Read the record from the file starting from this offset position. • You can implement a binary search tree to store these index values. • This approach enables faster search for a key value. 52 36 68 44 24 59 72 40 55 35 43 Index Key Fields Stored in a Binary Search Tree

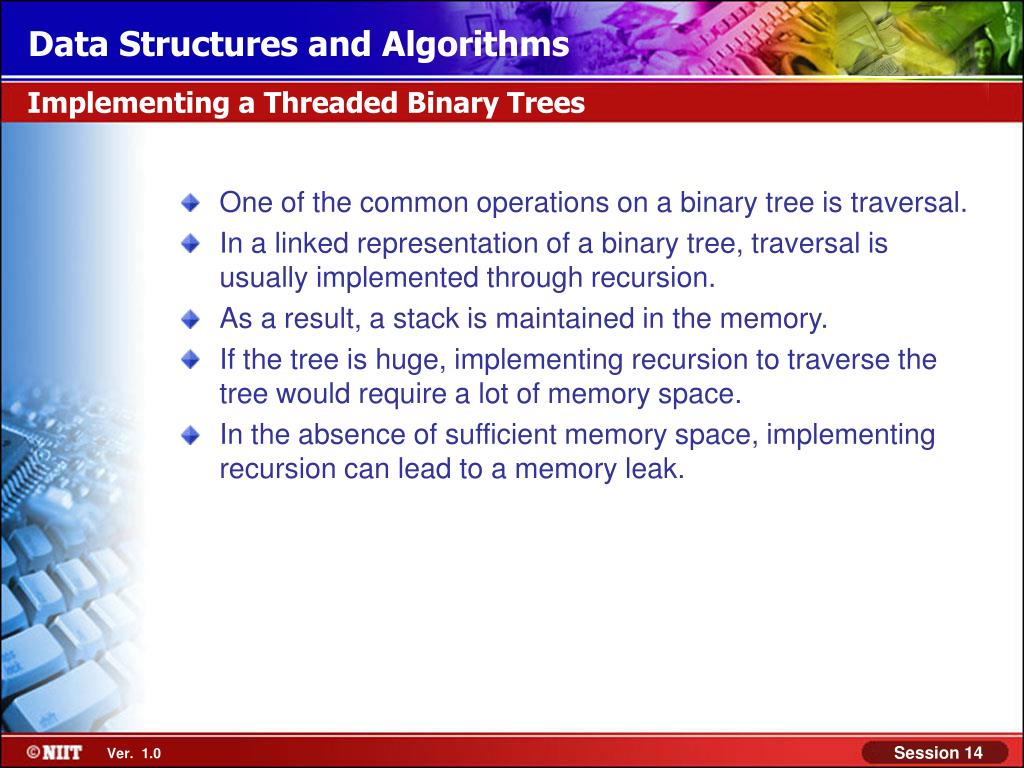

  4. Implementing a Threaded Binary Trees • One of the common operations on a binary tree is traversal. • In a linked representation of a binary tree, traversal is usually implemented through recursion. • As a result, a stack is maintained in the memory. • If the tree is huge, implementing recursion to traverse the tree would require a lot of memory space. • In the absence of sufficient memory space, implementing recursion can lead to a memory leak.

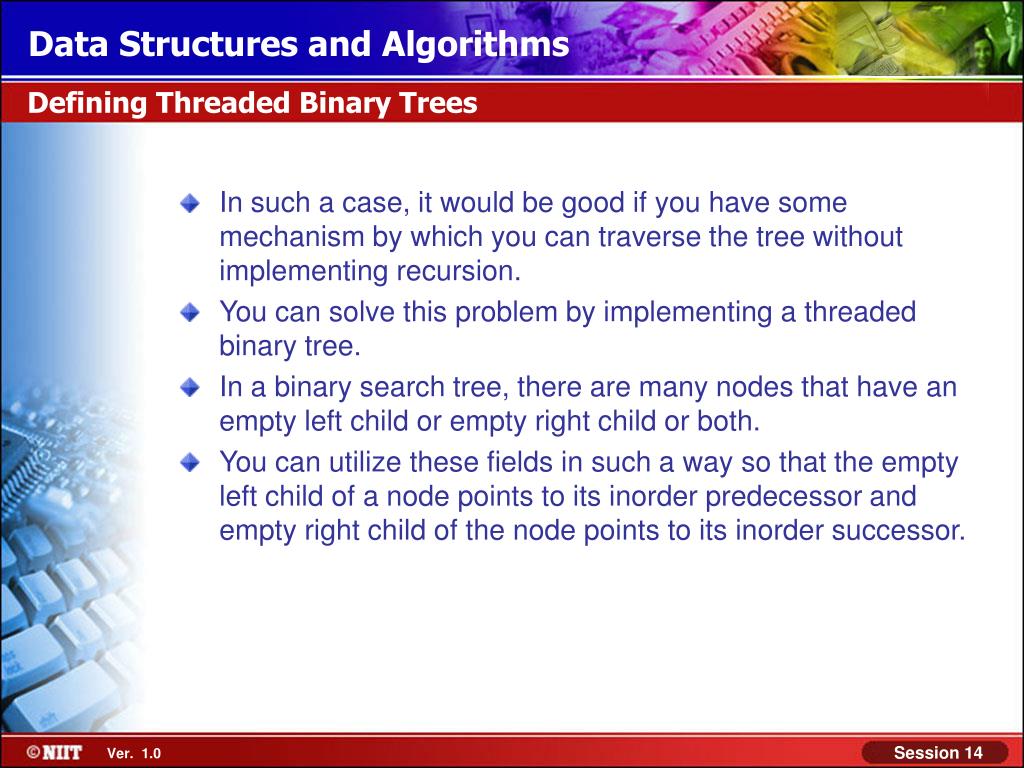

  5. Defining Threaded Binary Trees • In such a case, it would be good if you have some mechanism by which you can traverse the tree without implementing recursion. • You can solve this problem by implementing a threaded binary tree. • In a binary search tree, there are many nodes that have an empty left child or empty right child or both. • You can utilize these fields in such a way so that the empty left child of a node points to its inorder predecessor and empty right child of the node points to its inorder successor.

  6. Defining Threaded Binary Trees (Contd.) • Consider the following binary search tree. • Most of the nodes in this tree hold a NULL value in their left or right child fields. • In this case, it would be good if these NULL fields are utilized for some other useful purpose. . . 65 . . . . 40 72 . . 30 50 69 80 60

  7. Defining Threaded Binary Trees (Contd.) • The empty left child field of a node can be used to point to its inorder predecessor. • Similarly, the empty right child field of a node can be used to point to its inorder successor. • Such a type of binary tree is known as a threaded binary tree. • A field that holds the address of its inorder successor or predecessor is known as thread. . . 65 . . . . 40 72 . 30 50 69 80 60

  8. Defining Threaded Binary Trees (Contd.) • Node 30 does not have an inorder predecessor because it is the first node to be traversed in inorder sequence. • Similarly, node 80 does not have an inorder successor. . . 65 . . . . 40 72 . 30 50 69 80 60

  9. Defining Threaded Binary Trees (Contd.) • Therefore, you take a dummy node called the header node. • The right child of the header node always points to itself. Header Node . . 65 . . . . 40 72 . 30 50 69 80 60

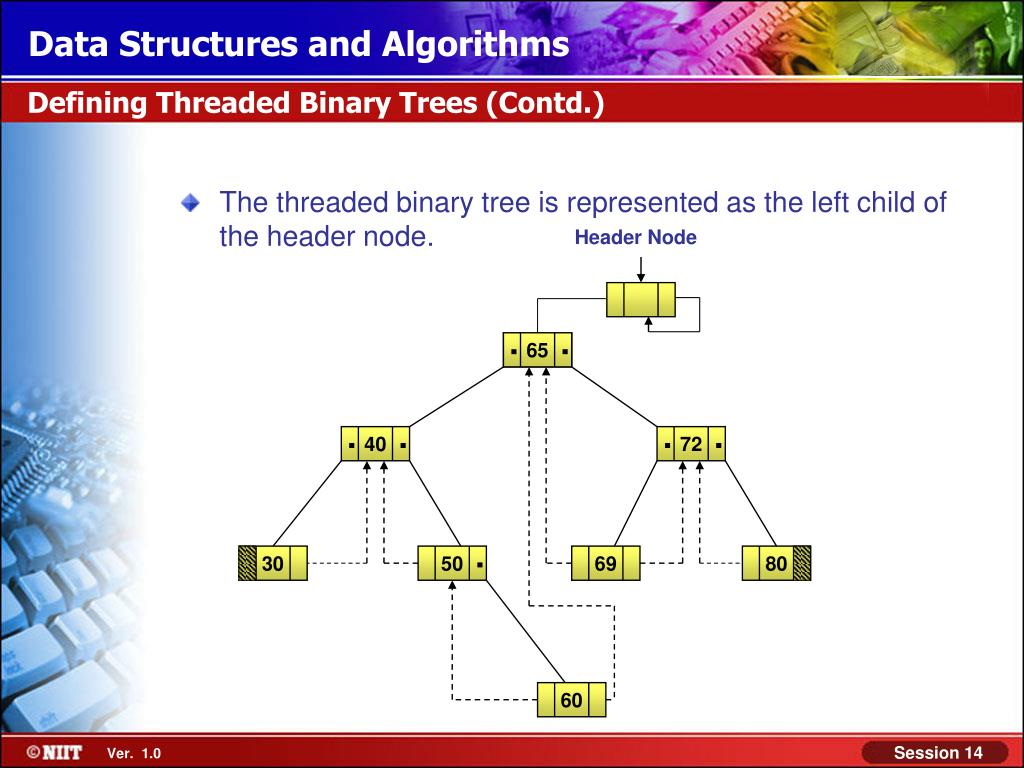

  10. Defining Threaded Binary Trees (Contd.) • The threaded binary tree is represented as the left child of the header node. Header Node . . 65 . . . . 40 72 . 30 50 69 80 60

  11. Defining Threaded Binary Trees (Contd.) • The left thread of node 30 and the right thread of node 80 point to the header node. Header Node . . 65 . . . . 40 72 . . . 30 50 69 80 60

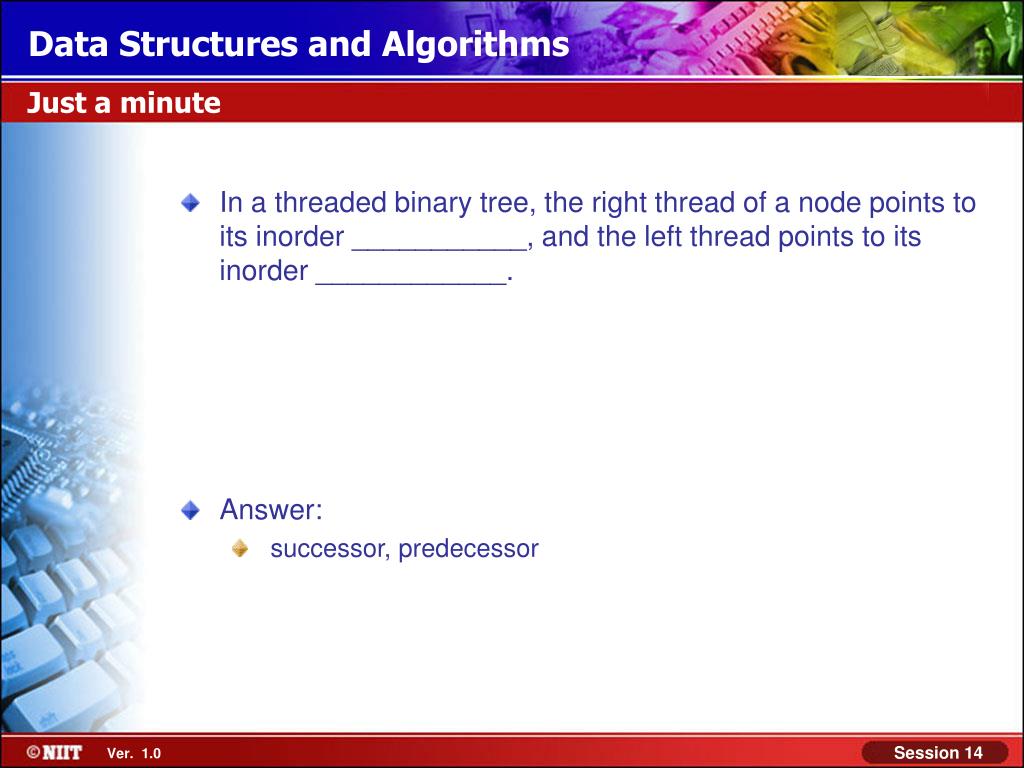

  12. Just a minute • In a threaded binary tree, the right thread of a node points to its inorder ___________, and the left thread points to its inorder ____________. • Answer: • successor, predecessor

  13. Representing a Threaded Binary Tree • The structure of a node in a threaded binary tree is a bit different from that of a normal binary tree. • Unlike a normal binary tree, each node of a threaded binary tree contains two extra pieces of information, namely left thread and right thread. • The left and right thread fields of a node can have two values: • 1: Indicates a normal link to the child node • 0: Indicates a thread pointing to the inorder predecessor or inorder successor Information 2389 4631 Left Thread Data Address of Right Child Right Thread Address of Left Child

  14. Representing a Threaded Binary Tree (Contd.) • Various operations in a threaded binary tree are as follows: • Traversal • Search • Insert • Delete

  15. Just a minute • How do you identify a root node in a threaded binary tree? • Answer: • In a threaded binary tree, the root node is identified as the left child of the header node. If the tree is empty, the left child of the header node becomes a thread pointing to itself.

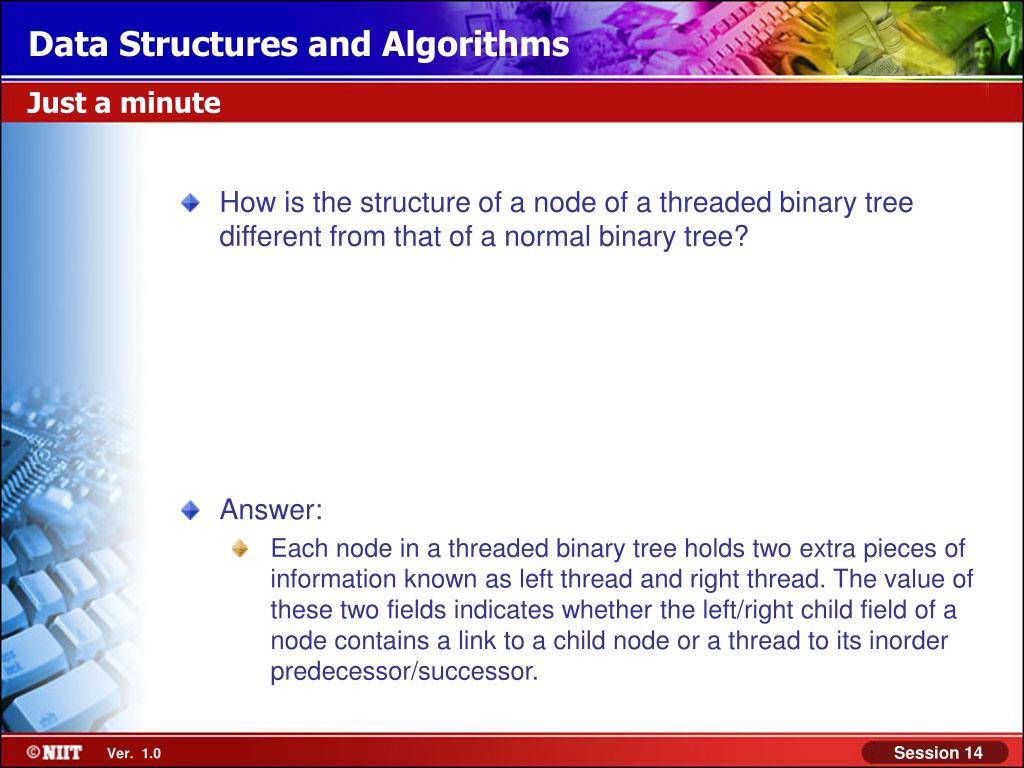

  16. Just a minute • How is the structure of a node of a threaded binary tree different from that of a normal binary tree? • Answer: • Each node in a threaded binary tree holds two extra pieces of information known as left thread and right thread. The value of these two fields indicates whether the left/right child field of a node contains a link to a child node or a thread to its inorder predecessor/successor.

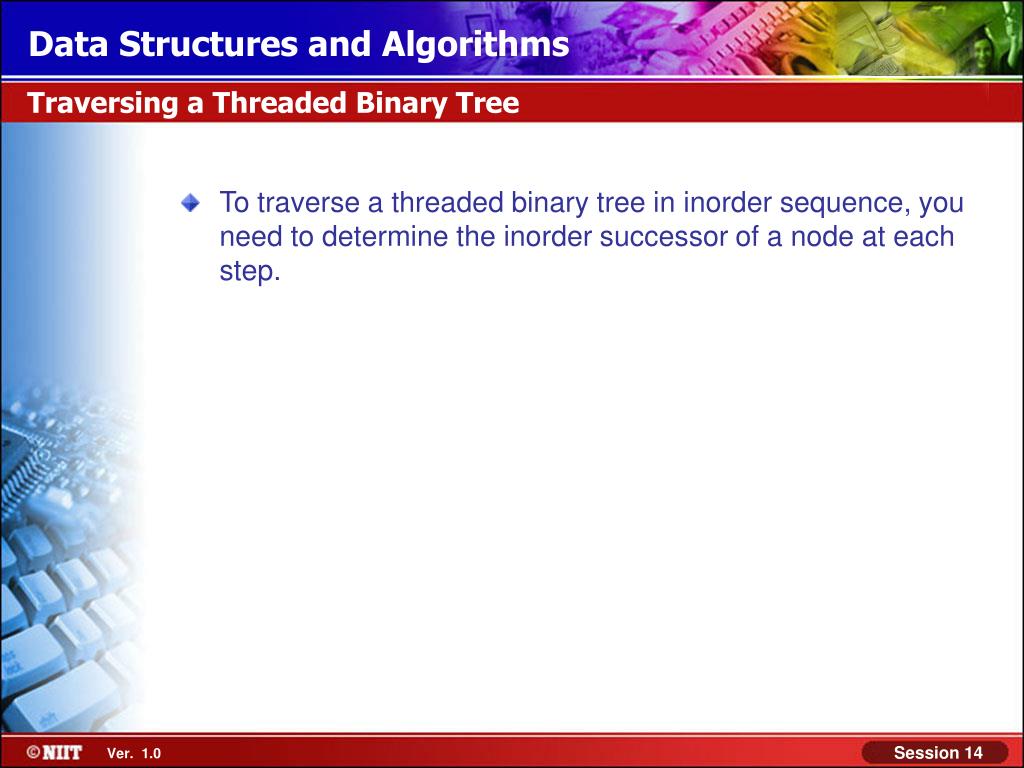

  17. Traversing a Threaded Binary Tree • To traverse a threaded binary tree in inorder sequence, you need to determine the inorder successor of a node at each step.

  18. Traversing a Threaded Binary Tree (Contd.) • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. • Write an algorithm to locate the inorder successor of a node in a threaded binary tree. • Algorithm to find the inorder successor of a node in a threaded binary tree.

  19. Traversing a Threaded Binary Tree (Contd.) • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. Header Node . . 65 . . . . 40 72 . . 30 50 69 80 • Let us find the inorder successor of node 65 60

  20. Traversing a Threaded Binary Tree (Contd.) • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. Header Node . . currentNode 65 . . . . 40 72 . . 30 50 69 80 • Let us find the inorder successor of node 65. 60

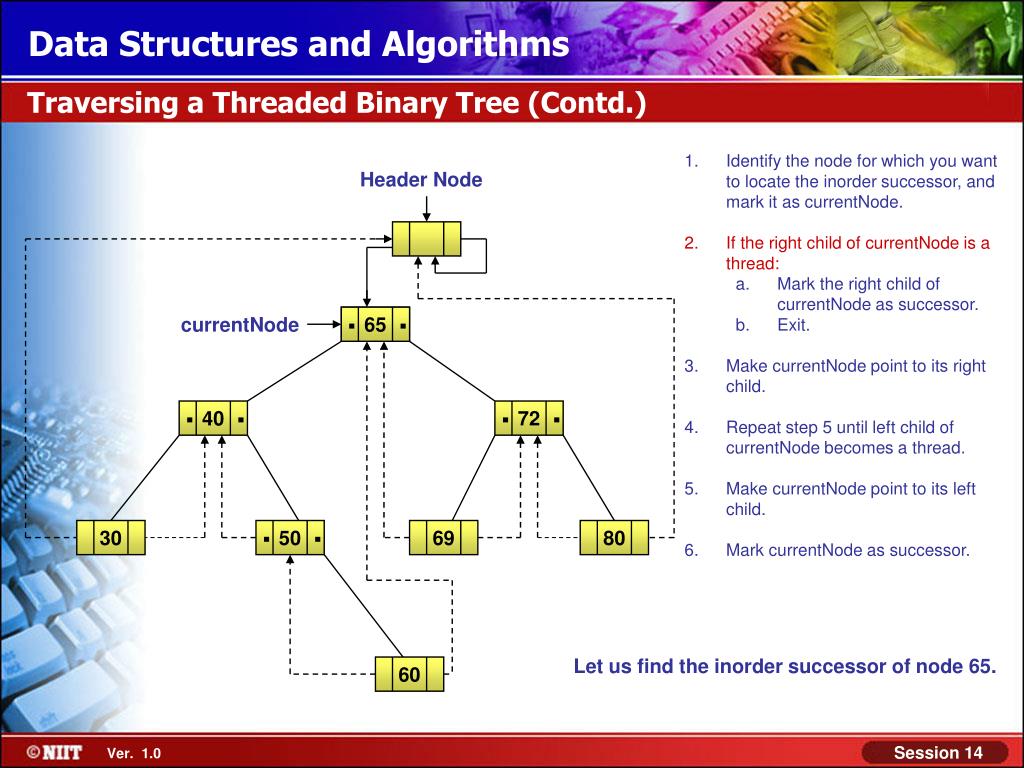

  21. Traversing a Threaded Binary Tree (Contd.) • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. Header Node . . currentNode 65 . . . . 40 72 . . 30 50 69 80 • Let us find the inorder successor of node 65. 60

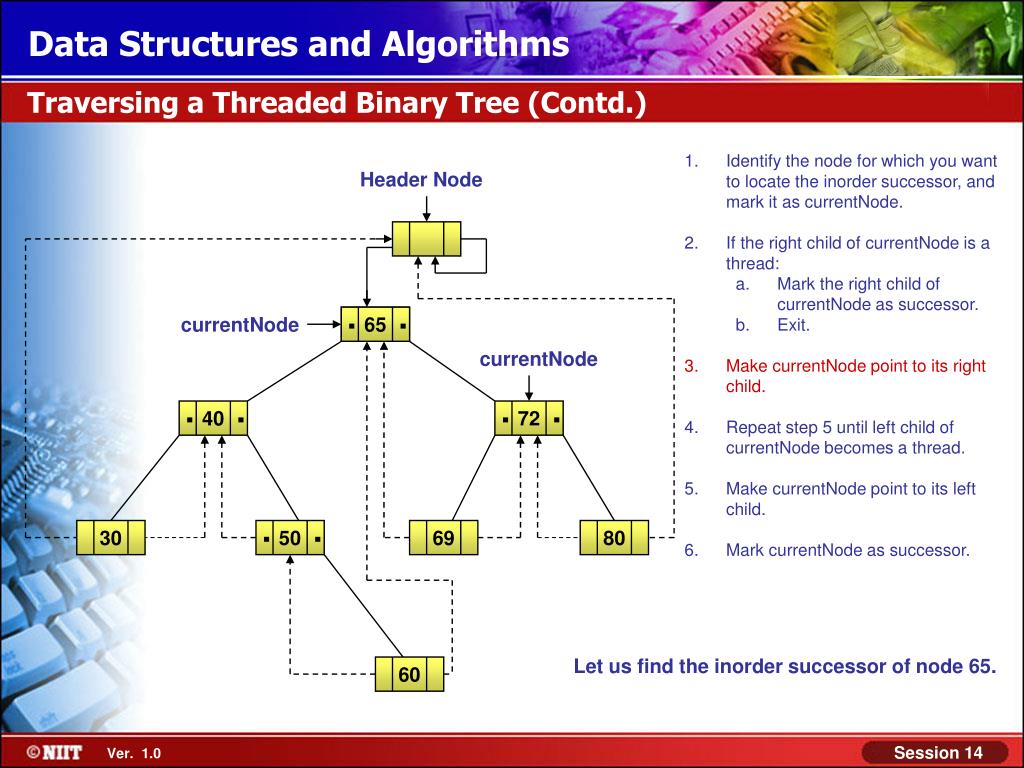

  22. Traversing a Threaded Binary Tree (Contd.) • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. Header Node . . currentNode 65 currentNode . . . . 40 72 . . 30 50 69 80 • Let us find the inorder successor of node 65. 60

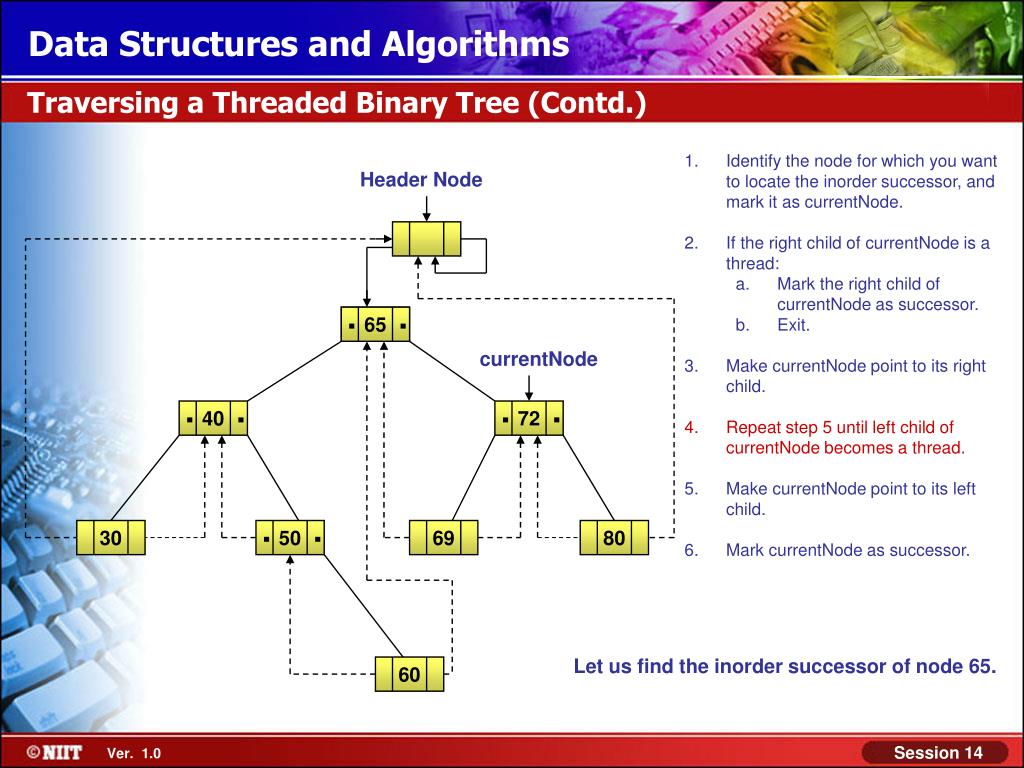

  23. Traversing a Threaded Binary Tree (Contd.) • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 • Let us find the inorder successor of node 65. 60

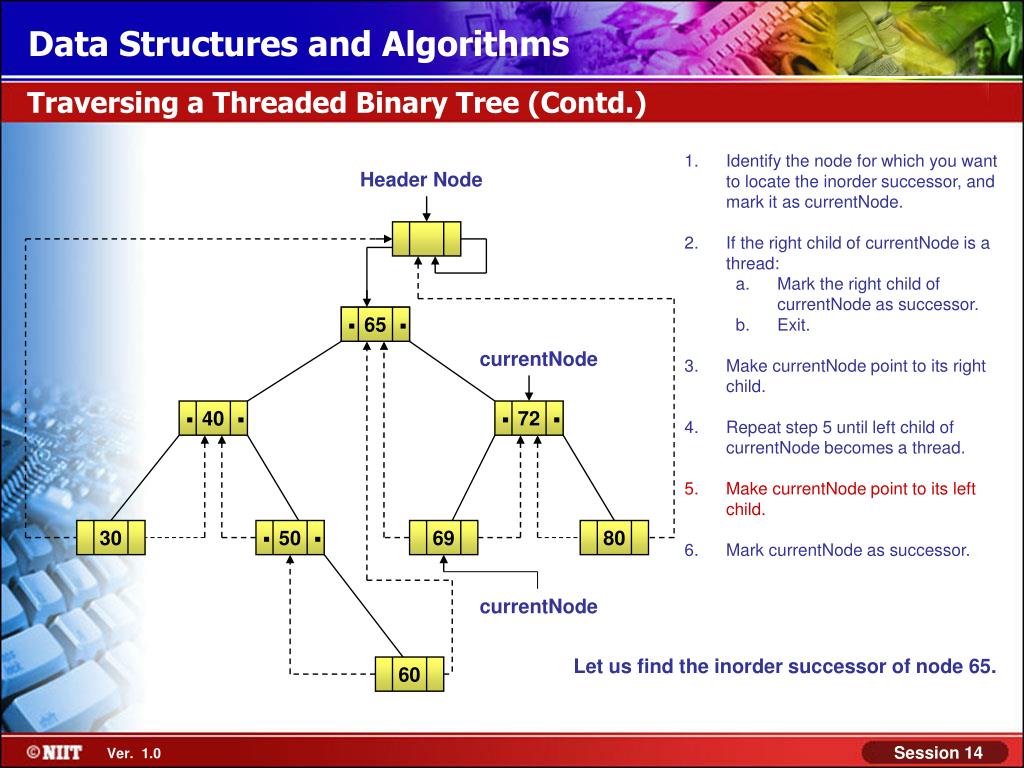

  24. Traversing a Threaded Binary Tree (Contd.) • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 currentNode • Let us find the inorder successor of node 65. 60

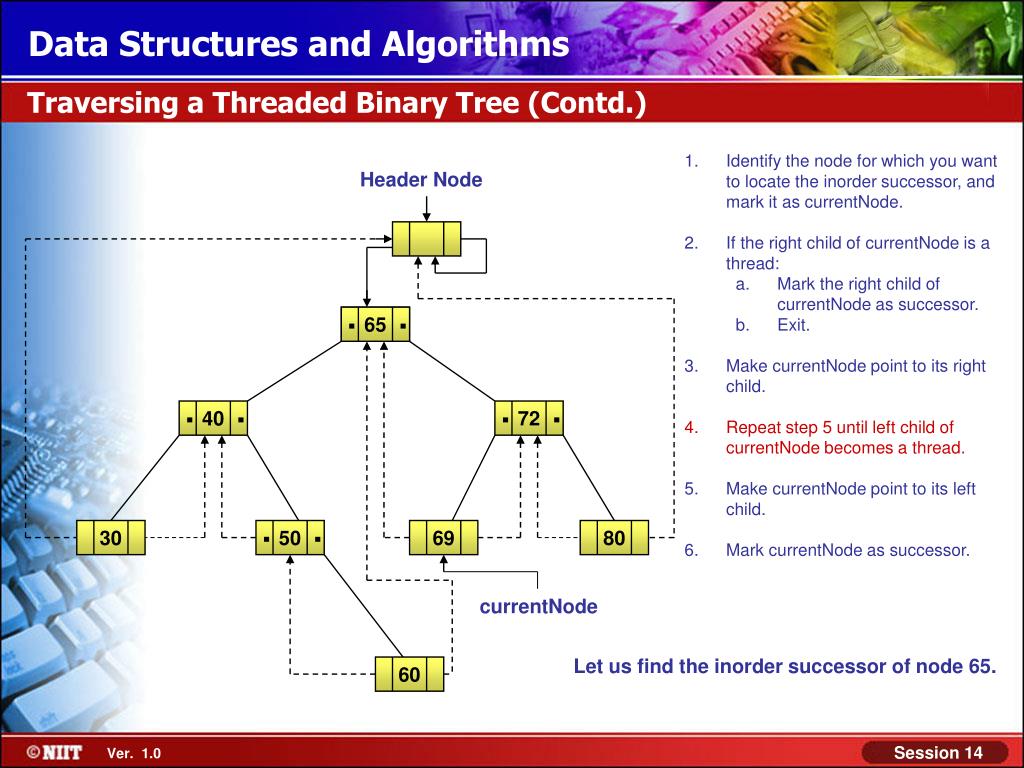

  25. Traversing a Threaded Binary Tree (Contd.) • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. Header Node . . 65 . . . . 40 72 . . 30 50 69 80 currentNode • Let us find the inorder successor of node 65. 60

  26. Traversing a Threaded Binary Tree (Contd.) Inorder successor located • Identify the node for which you want to locate the inorder successor, and mark it as currentNode. • If the right child of currentNode is a thread: • Mark the right child of currentNode as successor. • Exit. • Make currentNode point to its right child. • Repeat step 5 until left child of currentNode becomes a thread. • Make currentNode point to its left child. • Mark currentNode as successor. Header Node . . 65 . . . . 40 72 successor . . 30 50 69 80 currentNode • Let us find the inorder successor of node 65. 60

  27. Traversing a Threaded Binary Tree (Contd.) • Write an algorithm to traverse a threaded binary tree in inorder sequence.

  28. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. Header Node • Algorithm to traverse a threaded binary tree in inorder sequence. . . 65 . . . . 40 72 . . 30 50 69 80 60

  29. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. Header Node . . 65 . . . . 40 72 . . 30 50 69 80 60

  30. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. Header Node . . currentNode 65 . . . . 40 72 . . 30 50 69 80 60

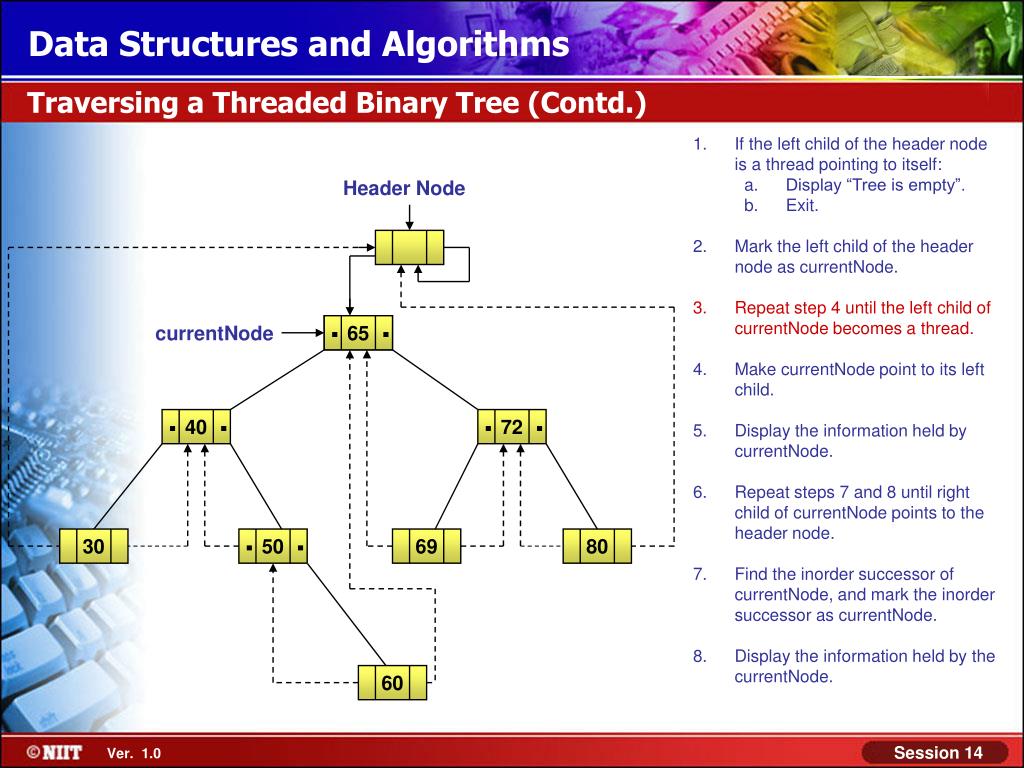

  31. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. Header Node . . currentNode 65 . . . . 40 72 . . 30 50 69 80 60

  32. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. Header Node . . currentNode 65 currentNode . . . . 40 72 . . 30 50 69 80 60

  33. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 60

  34. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 currentNode 60

  35. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. Header Node . . 65 . . . . 40 72 . . 30 50 69 80 currentNode 60

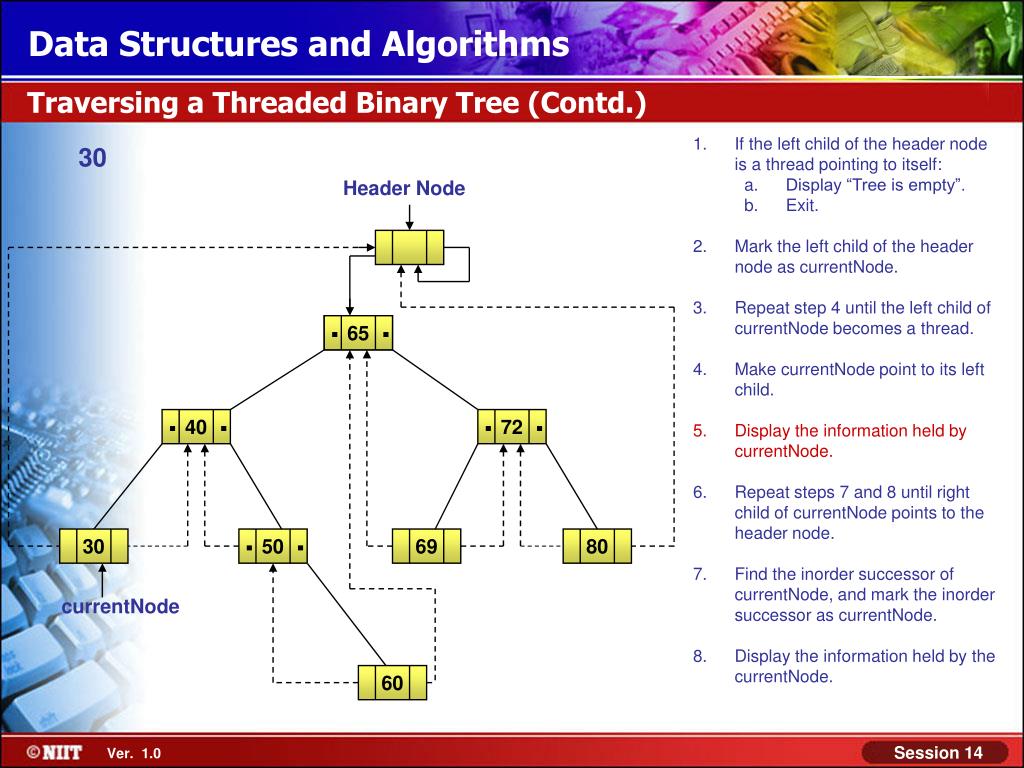

  36. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 30 Header Node . . 65 . . . . 40 72 . . 30 50 69 80 currentNode 60

  37. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 30 Header Node . . 65 . . . . 40 72 . . 30 50 69 80 currentNode 60

  38. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 30 Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 currentNode 60

  39. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 30 40 Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 60

  40. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 30 40 Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 currentNode 60

  41. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 30 40 Header Node . . 65 . . . . 40 72 . . 30 50 69 80 currentNode 60

  42. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 30 40 Header Node . . 65 . . . . 40 72 . . 30 50 69 80 currentNode 60 currentNode

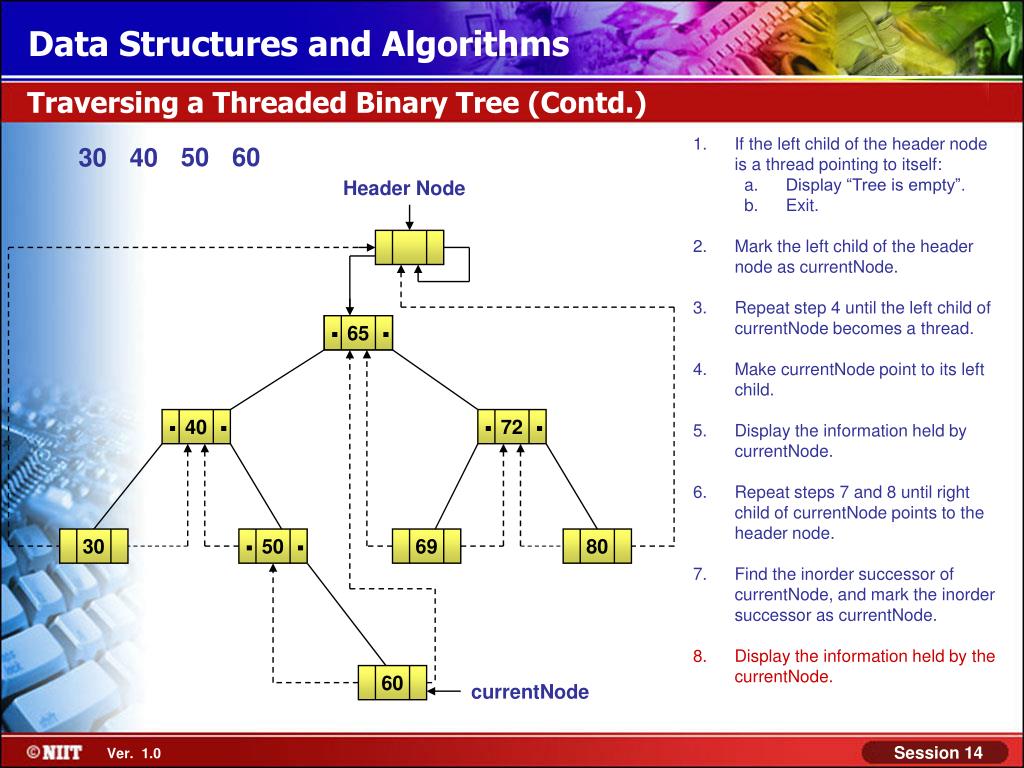

  43. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 60 30 40 Header Node . . 65 . . . . 40 72 . . 30 50 69 80 60 currentNode

  44. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 60 30 40 Header Node . . currentNode 65 . . . . 40 72 . . 30 50 69 80 60 currentNode

  45. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 60 65 30 40 Header Node . . currentNode 65 . . . . 40 72 . . 30 50 69 80 60

  46. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 60 65 30 40 Header Node . . currentNode 65 . . . . 40 72 . . 30 50 69 80 currentNode 60

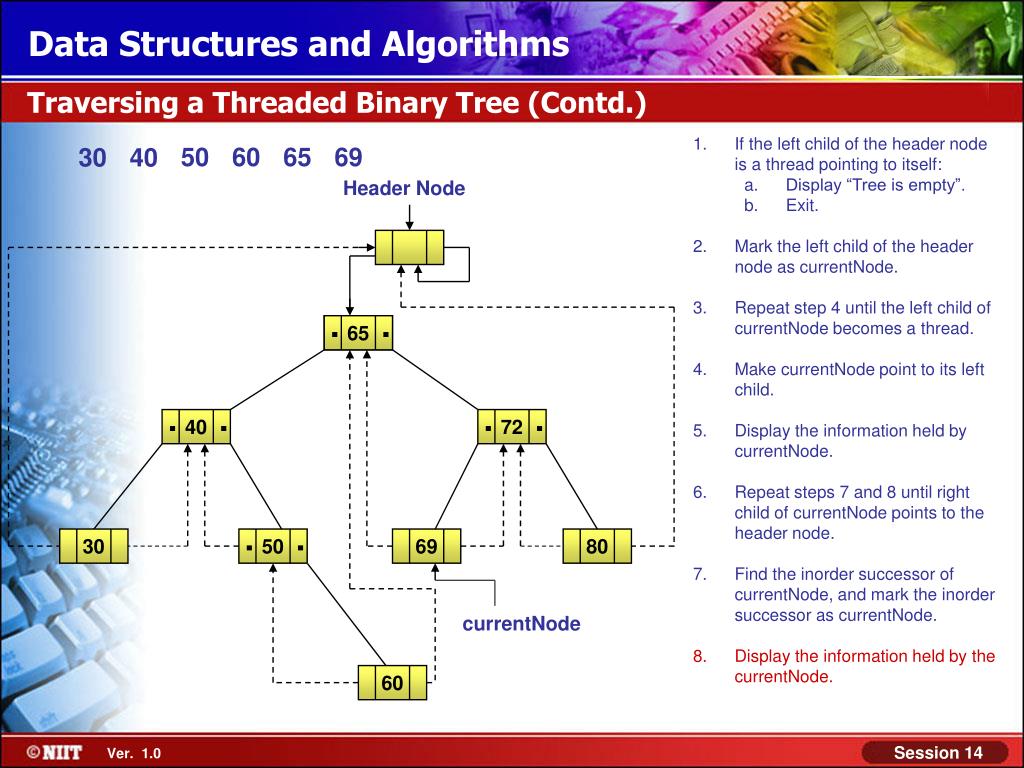

  47. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 60 65 69 30 40 Header Node . . 65 . . . . 40 72 . . 30 50 69 80 currentNode 60

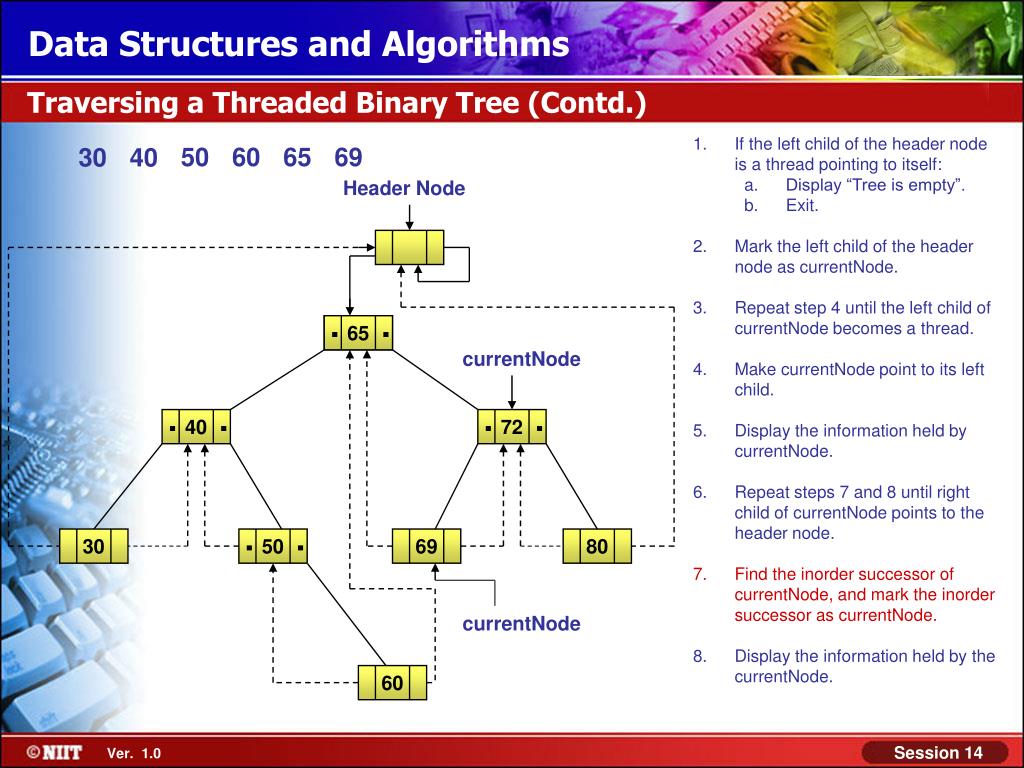

  48. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 60 65 69 30 40 Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 currentNode 60

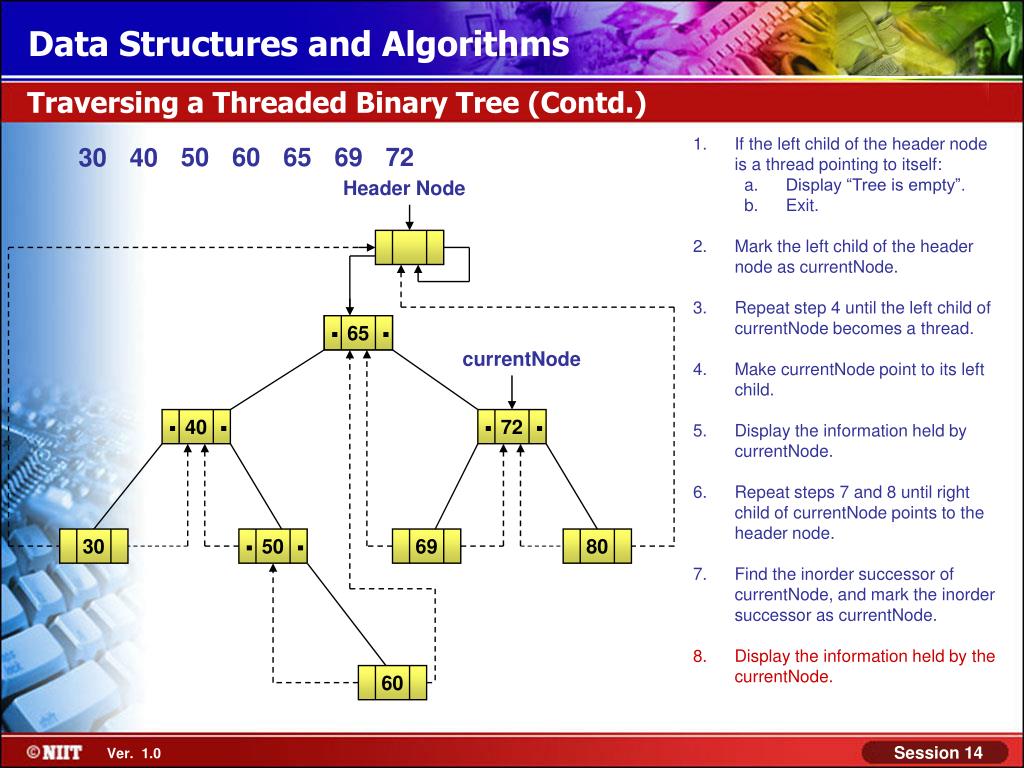

  49. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 60 65 69 72 30 40 Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 60

  50. Traversing a Threaded Binary Tree (Contd.) • If the left child of the header node is a thread pointing to itself: • Display “Tree is empty”. • Exit. • Mark the left child of the header node as currentNode. • Repeat step 4 until the left child of currentNode becomes a thread. • Make currentNode point to its left child. • Display the information held by currentNode. • Repeat steps 7 and 8 until right child of currentNode points to the header node. • Find the inorder successor of currentNode, and mark the inorder successor as currentNode. • Display the information held by the currentNode. 50 60 65 69 72 30 40 Header Node . . 65 currentNode . . . . 40 72 . . 30 50 69 80 currentNode 60
