Cloud imagery and motion
Cloud Imagery and Motion

Mark Anderson, Scott Cornelsen, and Tom Wilkerson

Space Dynamics Laboratory

Utah State University, Logan, UT 84341

435-797-4679 [email protected],

[email protected], [email protected]

Presentation for Working Group on Space-Based Lidar Winds

Bar Harbor, ME June 23-25, 2003

Research Support: IPO, NASA, and SDL

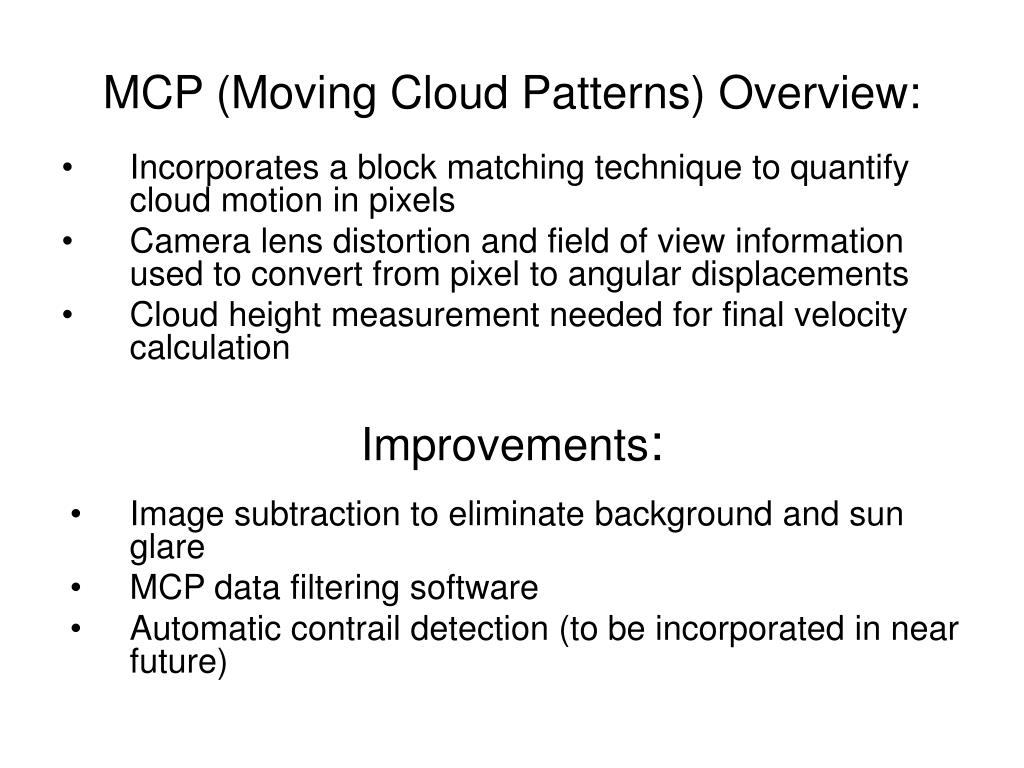

Mcp moving cloud patterns overview
MCP (Moving Cloud Patterns) Overview:

  • Incorporates a block matching technique to quantify cloud motion in pixels

  • Camera lens distortion and field of view information used to convert from pixel to angular displacements

  • Cloud height measurement needed for final velocity calculation

  • Image subtraction to eliminate background and sun glare

  • MCP data filtering software

  • Automatic contrail detection (to be incorporated in near future)

Improvements:

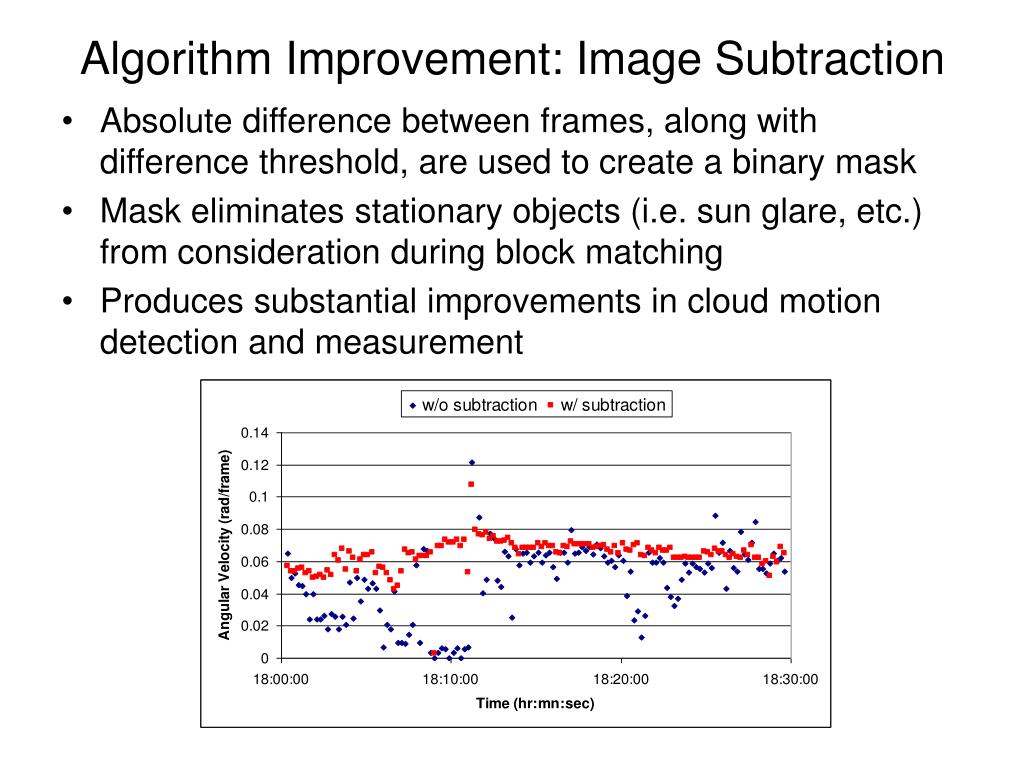

Algorithm improvement image subtraction
Algorithm Improvement: Image Subtraction

  • Absolute difference between frames, along with difference threshold, are used to create a binary mask

  • Mask eliminates stationary objects (i.e. sun glare, etc.) from consideration during block matching

  • Produces substantial improvements in cloud motion detection and measurement

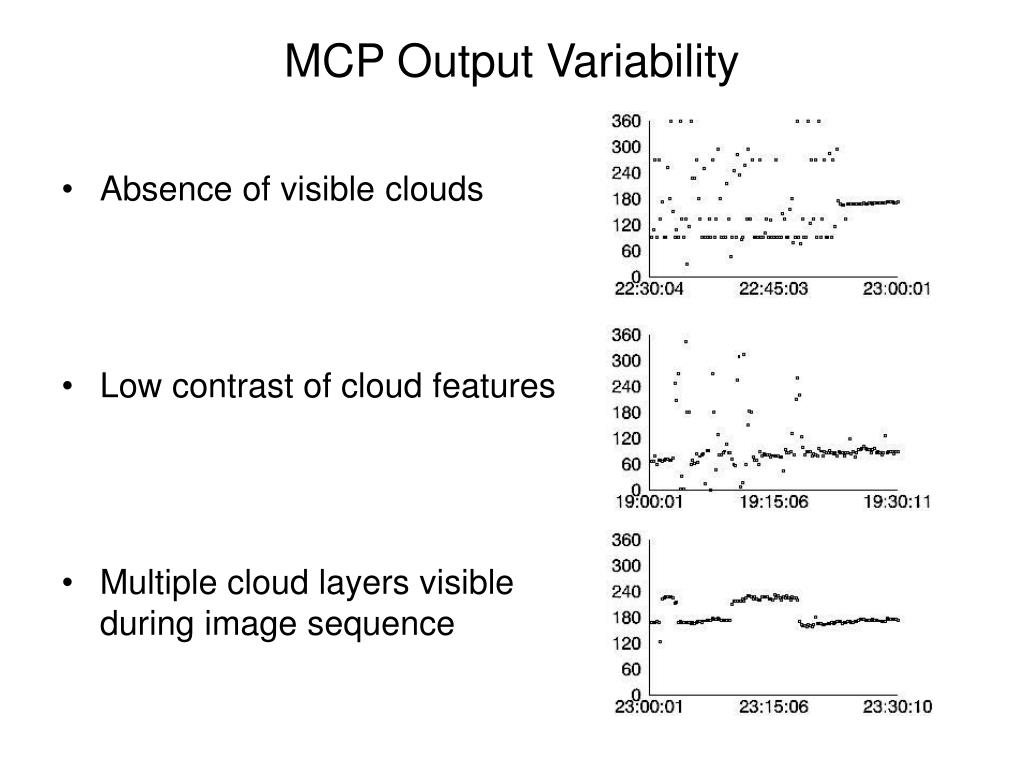

Mcp output variability
MCP Output Variability

  • Absence of visible clouds

  • Low contrast of cloud features

  • Multiple cloud layers visible during image sequence

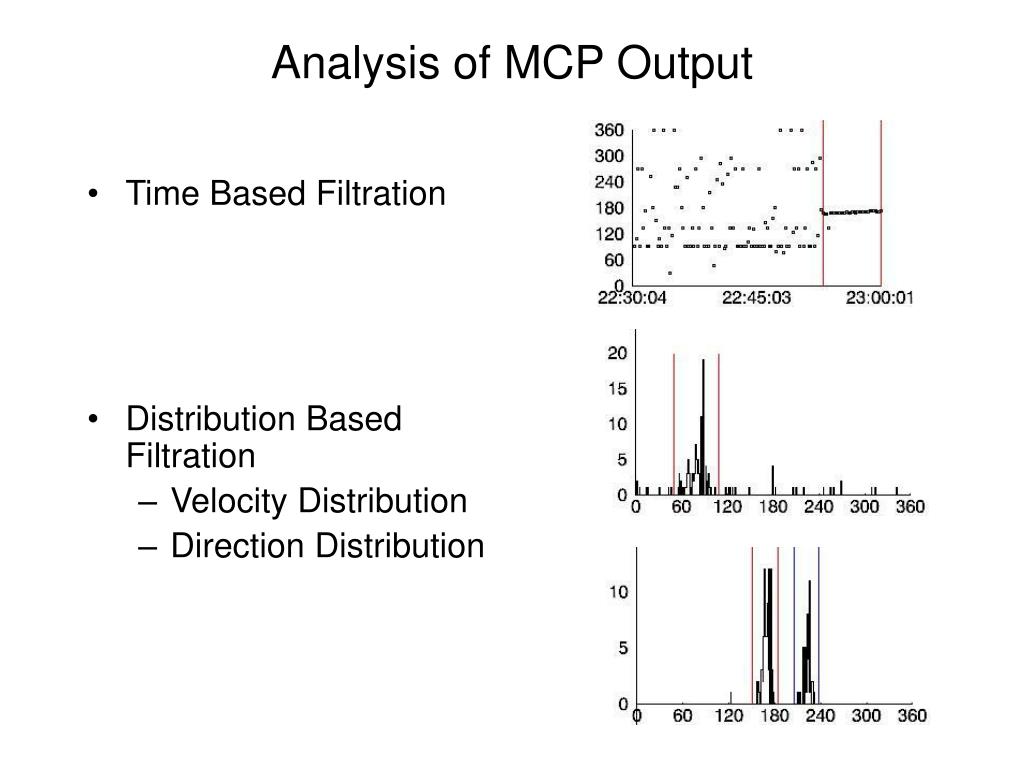

Analysis of mcp output
Analysis of MCP Output

  • Time Based Filtration

  • Distribution Based Filtration

    • Velocity Distribution

    • Direction Distribution

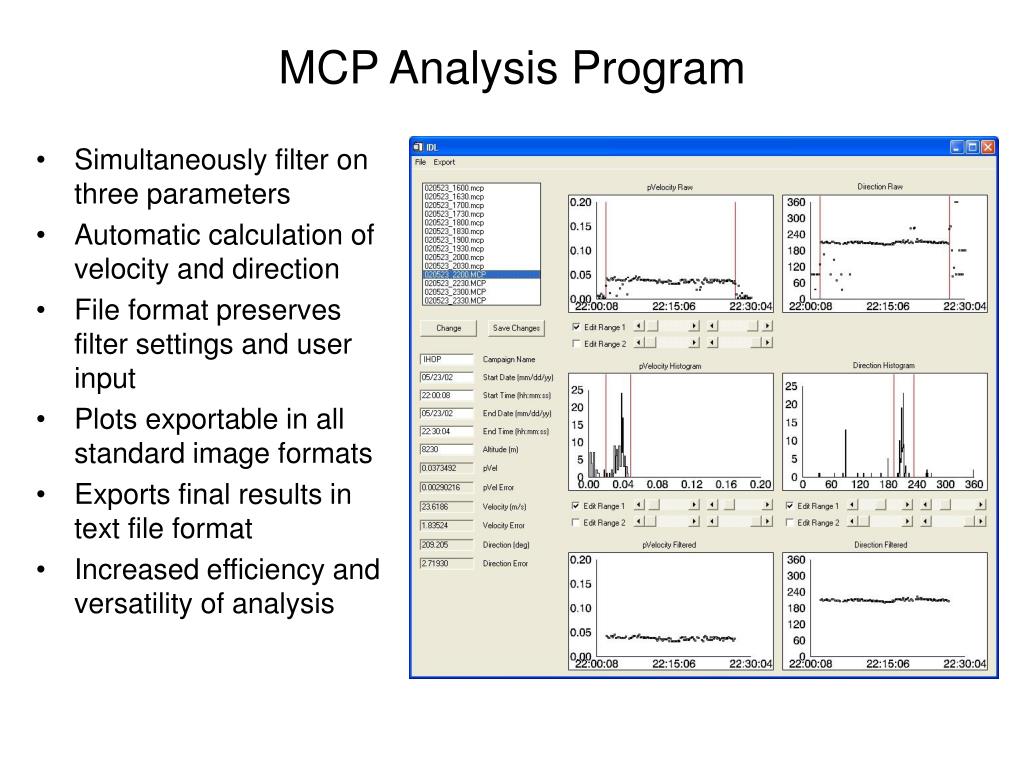

Mcp analysis program
MCP Analysis Program

  • Simultaneously filter on three parameters

  • Automatic calculation of velocity and direction

  • File format preserves filter settings and user input

  • Plots exportable in all standard image formats

  • Exports final results in text file format

  • Increased efficiency and versatility of analysis


Utility of contrail analysis
Utility of Contrail Analysis

  • Automatic detection of contrails to avoid improper analysis in sky-scanning observation.

  • Determination of the number of contrails present.

  • Identification of contrail location.

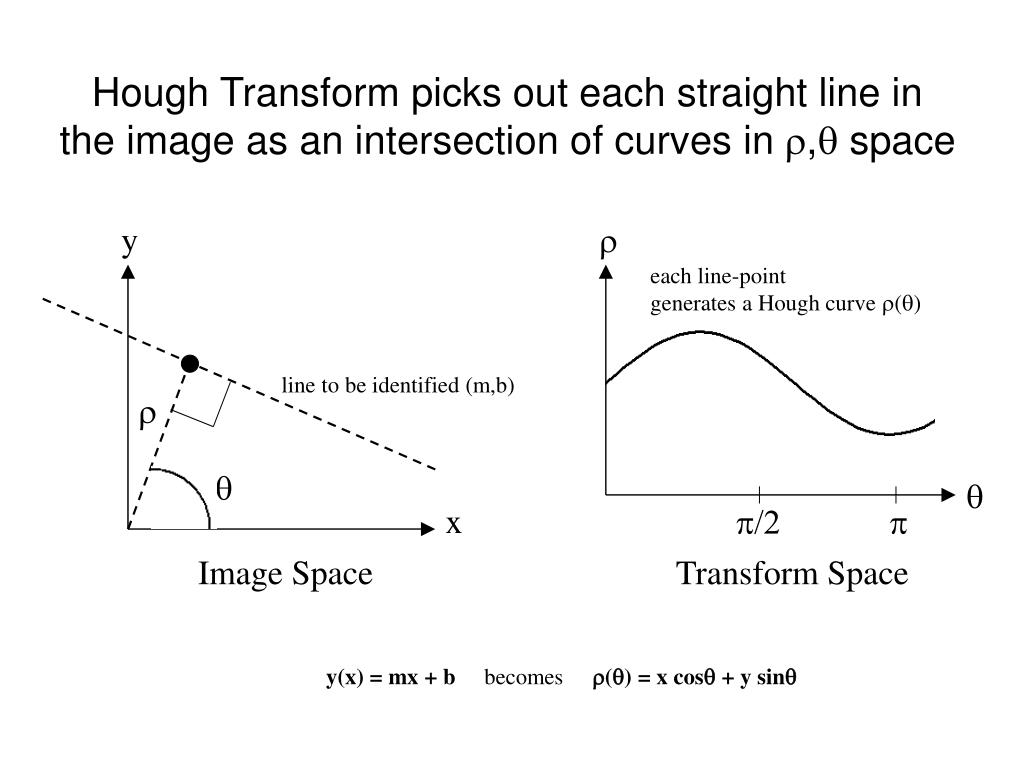

Hough transform picks out each straight line in the image as an intersection of curves in space
Hough Transform picks out each straight line in the image as an intersection of curves in , space

y

r

q

x

r

each line-point

generates a Hough curve ()

line to be identified (m,b)

q

p/2

p

Image Space

Transform Space

y(x) = mx + b becomes () = x cos + y sin


Contrail detection sequence

Hough Transform

ρ

θ

Detected Maximums

ρ

θ

Contrail Detection Sequence

Original Image

Edges Detected

Composite Image

3

1

4

5

3

6

2

4

5

1

6

2


Summary
Summary

  • Notable improvement in quality of MCP measurements due to image subtraction algorithms

  • Efficiency and versatility of MCP output analysis improved with new software

  • Contrail detection identifies possible times of inaccurate analysis by other instruments
