Lattice verilog training part ii jimmy gao

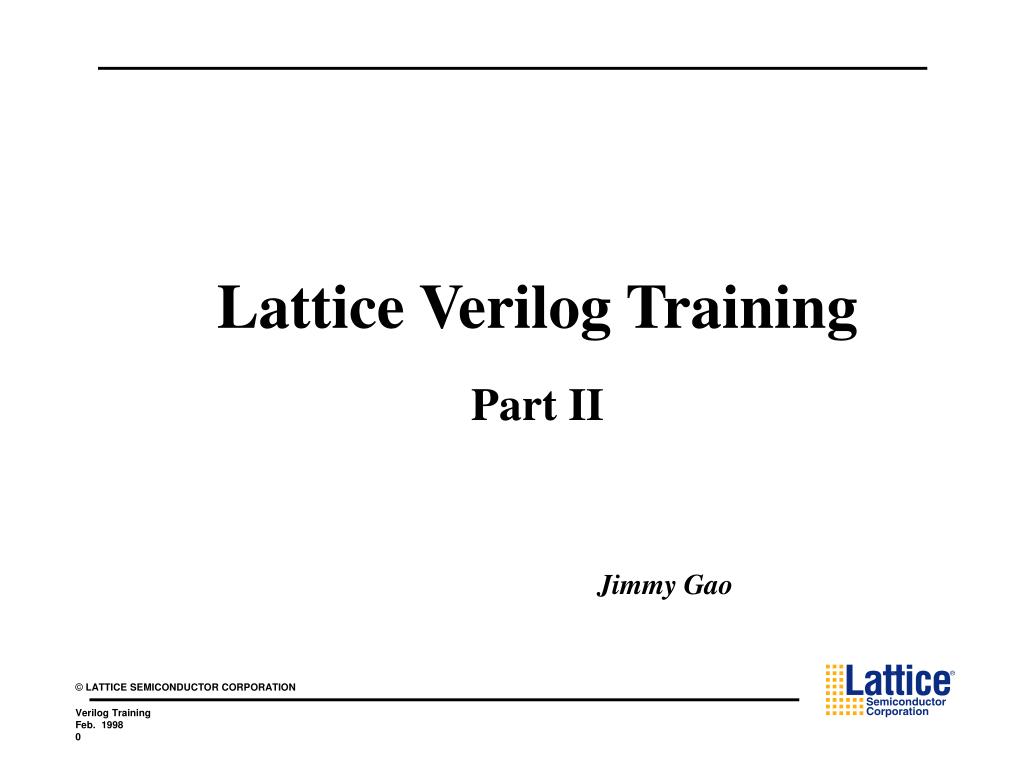

Lattice Verilog Training

Part II

Jimmy Gao


Lattice verilog training part ii jimmy gao

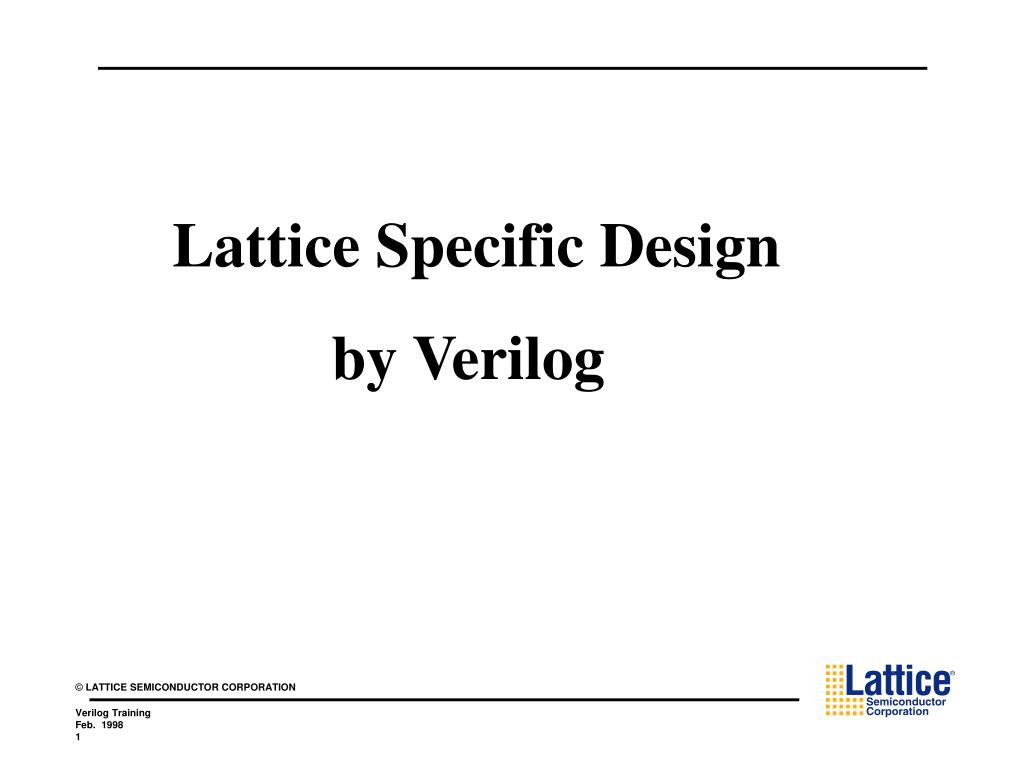

Lattice Specific Design

by Verilog


Global oe polarity

Global OE Polarity

Global OE

Multi-Polarity OEs Design not fit for Single-OE

Lattice CPLD Architecture; All Global OE must has the same Polarity

assign q1 = oe1? qint1 : 8’bZZZZZZZZ;

// q2 = (!oe2)? qint2 : 8’bZZZZZZZZ;

assign q2 = oe1? qint2 : 8’bZZZZZZZZ;

GLB # 0

GLB # 16

Lattice Single Global OE CPLD Architecture


Lattice specific global oe

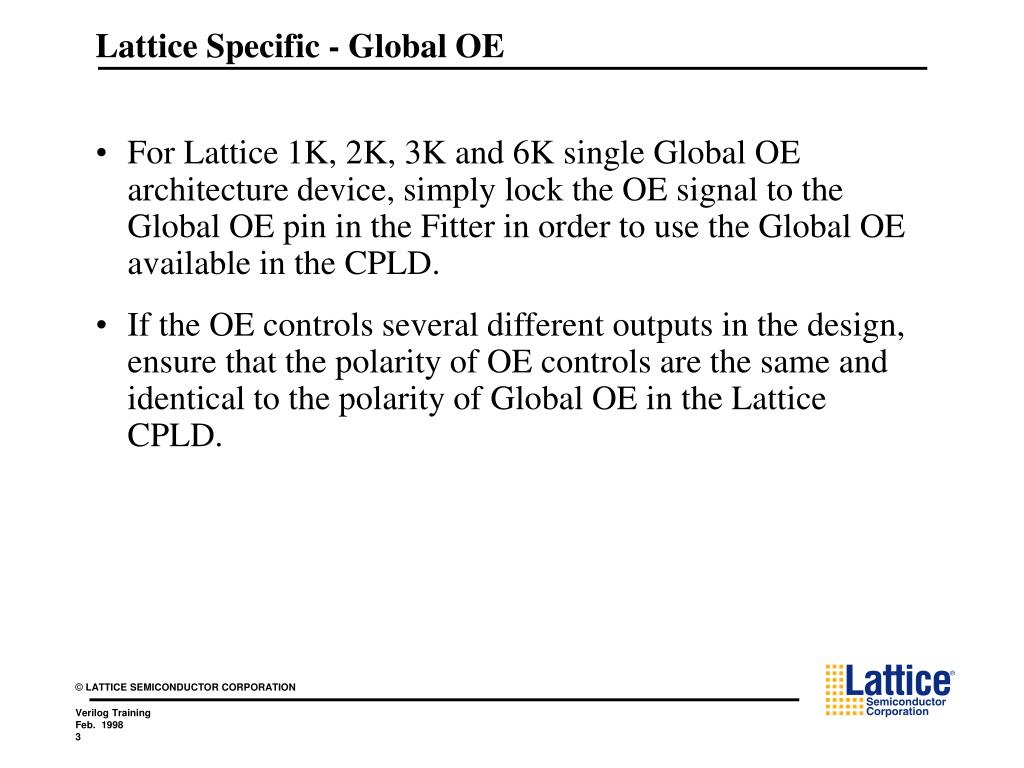

Lattice Specific - Global OE

  • For Lattice 1K, 2K, 3K and 6K single Global OE architecture device, simply lock the OE signal to the Global OE pin in the Fitter in order to use the Global OE available in the CPLD.

  • If the OE controls several different outputs in the design, ensure that the polarity of OE controls are the same and identical to the polarity of Global OE in the Lattice CPLD.


Global reset polarity

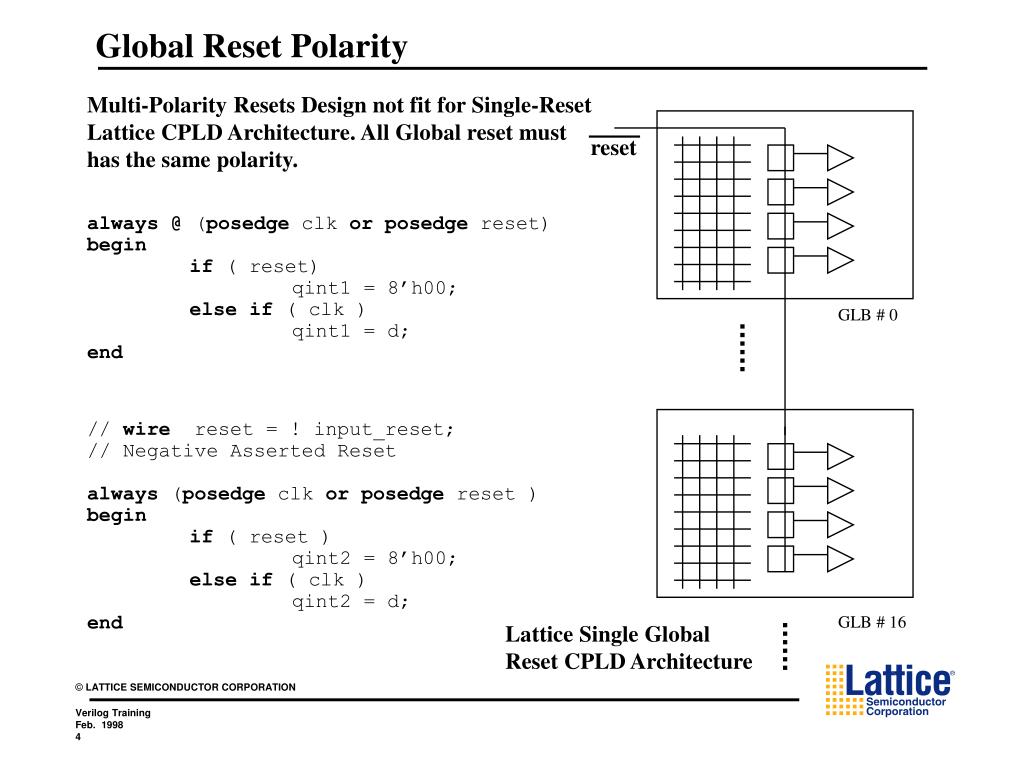

Global Reset Polarity

Multi-Polarity Resets Design not fit for Single-Reset Lattice CPLD Architecture. All Global reset must has the same polarity.

always @ (posedge clk orposedge reset)

begin

if ( reset)

qint1 = 8’h00;

else if ( clk )

qint1 = d;

end

// wire reset = ! input_reset;

// Negative Asserted Reset

always (posedge clk orposedge reset )

begin

if ( reset )

qint2 = 8’h00;

else if ( clk )

qint2 = d;

end

reset

GLB # 0

GLB # 16

Lattice Single Global Reset CPLD Architecture


Lattice specific global reset

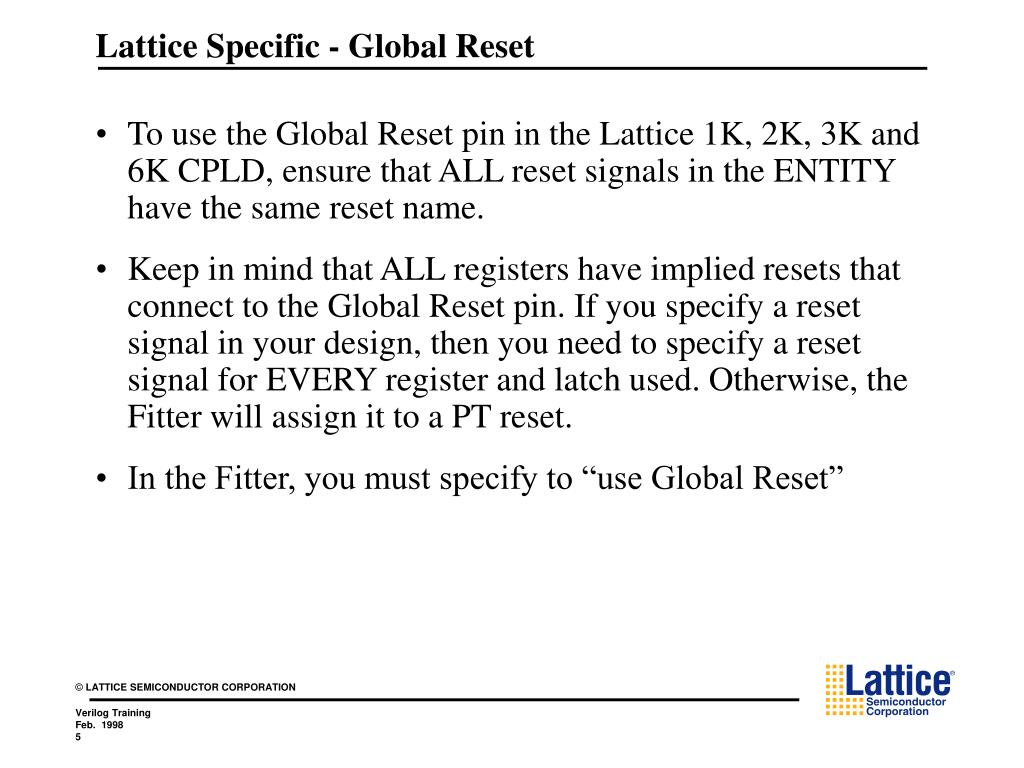

Lattice Specific - Global Reset

  • To use the Global Reset pin in the Lattice 1K, 2K, 3K and 6K CPLD, ensure that ALL reset signals in the ENTITY have the same reset name.

  • Keep in mind that ALL registers have implied resets that connect to the Global Reset pin. If you specify a reset signal in your design, then you need to specify a reset signal for EVERY register and latch used. Otherwise, the Fitter will assign it to a PT reset.

  • In the Fitter, you must specify to “use Global Reset”


Global reset and pt reset

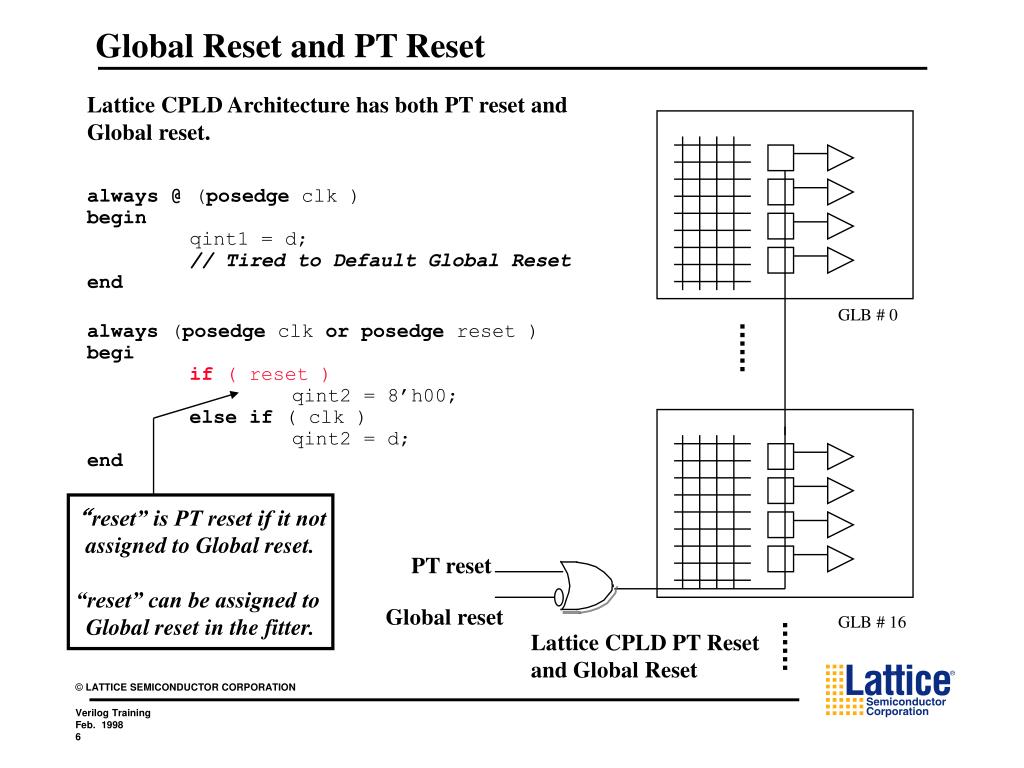

Global Reset and PT Reset

Lattice CPLD Architecture has both PT reset and Global reset.

always @ (posedge clk )

begin

qint1 = d;

// Tired to Default Global Reset

end

always (posedge clk orposedge reset )

begi

if ( reset )

qint2 = 8’h00;

else if ( clk )

qint2 = d;

end

GLB # 0

“reset” is PT reset if it not

assigned to Global reset.

“reset” can be assigned to

Global reset in the fitter.

PT reset

Global reset

GLB # 16

Lattice CPLD PT Reset and Global Reset


Lattice specific lattice macros

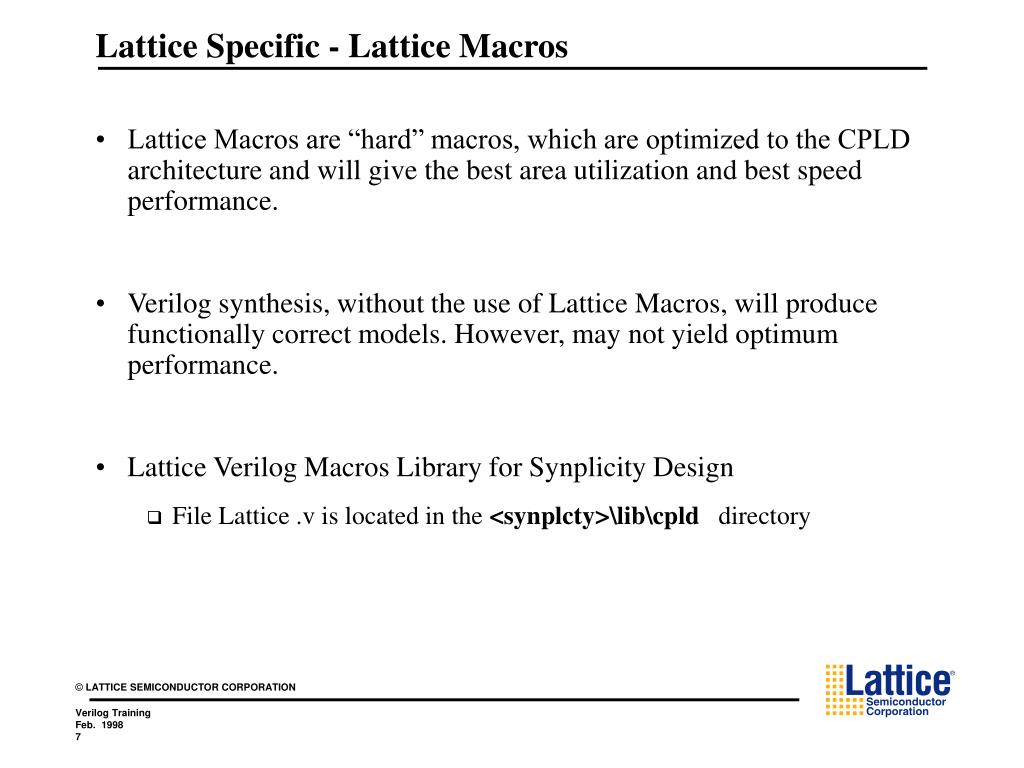

Lattice Specific - Lattice Macros

  • Lattice Macros are “hard” macros, which are optimized to the CPLD architecture and will give the best area utilization and best speed performance.

  • Verilog synthesis, without the use of Lattice Macros, will produce functionally correct models. However, may not yield optimum performance.

  • Lattice Verilog Macros Library for Synplicity Design

    • File Lattice .v is located in the <synplcty>\lib\cpld directory


Lattice specific wide xors

Lattice Specific - Wide XORs

// This design example shows 8-input XOR gate

module widexor(a, yout);

input [7:0]a;

outputyout;

assign yout = a[0]^a[1]^a[2]^a[3]^a[4]^a[5]^a[6]^a[7];

endmodule

// include the Lattice Verilog Library

// c:\synplcty\lib\cpld\lattice.v in the synthesizing list

// refer to Lattice Hard Macro XOR8

// module XOR8(Z0,A0,A1,A2,A3,A4,A5,A6,A7); //synthesis black_box

// input A0, A1, A2, A3, A4, A5, A6, A7; output Z0; endmodule

module widexor(a, yout);

input [7:0]a;

outputyout;

XOR8 x1(yout, a[0],a[1],a[2],a[3],a[4],a[5],a[6],a[7]);

endmodule

  • The above design works, but uses 2 GLB levels. Using the Lattice “hard” Macro for an 8-input XOR gate (xor8) results in 1 GLB level.


Lattice specific io cell as a register

Lattice Specific - IO Cell as a Register

  • Verilog file is similar to any Register description

    moduleioreg (…);

    …………

    always @ (posedge clka or posedge rset)

    begin

    if (rset )

    qout = 1’b0;

    else

    begin

    if (clka)

    qout = qin;

    end

    end

    endmodule

  • A “property file” is created to direct the Register to the IO Cell and is used in the Fitter

    # This is a property file to go with a Verilog design with entity IOREG

    # It assigns a register to a IO Cell Register

    # The instance name “qoutFD21” is taken from the EDIF netlist

    PROPERTY IOREG INST qoutFD21 REGTYPE IOC ENDPROPERTY

(edif IOREG

(edifVersion 2 0 0)

(edifLevel 0)

………………

(instance qoutFD21

(viewRef prim

(cellRef FD21

(libraryRef lattice))))

………………


Lattice specific io cell as a register1

Lattice Specific - IO Cell as a Register

  • Verilog file is similar to any Register description

    Use Lattice Hard Macro “ID21”.

    // module ID21 (Q0, XI0, CLK);

    // output Q0;

    // input XI0, CLK;

    // endmodule

    module ioreg (qout, qin, clock);

    output qout;

    input qin, clock;

    ID21 reg1 (.Q0(qout), .XI0(qin), .CLK(clock));

    endmodule

  • Use Lattice input register hard macro ID11, ID14, ID18, ID21, ID24 and ID28 to implement the IO Cell register.


Lattice specific input reg or bi directional input reg

Lattice Specific - Input Reg or Bi-directional Input Reg

module BIID11 ( Q0, XB0, A, CLK, OE);

inout XB0;

input A, CLK, OE;

output Q0;

endmodule

module ID11 ( Q0, XI0, CLK);

input XI0, CLK;

output Q0;

endmodule

OE

A

XB0

Q0

D

Q

CLK

Bi-Directional Input Register

BIID11, BIID14, …. BIID88

XI0

Q0

D

Q

CLK

Input Register

ID11, ID14, … ID28


Lattice specific io cell as a latch

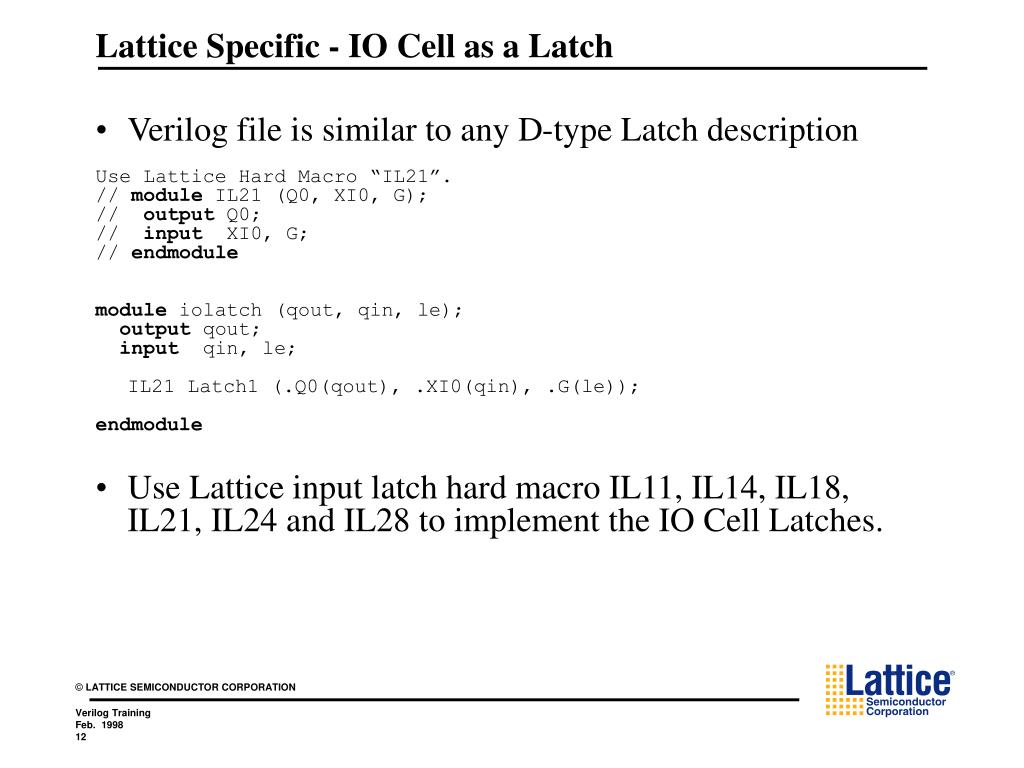

Lattice Specific - IO Cell as a Latch

  • Verilog file is similar to any D-type Latch description

    Use Lattice Hard Macro “IL21”.

    // module IL21 (Q0, XI0, G);

    // output Q0;

    // input XI0, G;

    // endmodule

    module iolatch (qout, qin, le);

    output qout;

    input qin, le;

    IL21 Latch1 (.Q0(qout), .XI0(qin), .G(le));

    endmodule

  • Use Lattice input latch hard macro IL11, IL14, IL18, IL21, IL24 and IL28 to implement the IO Cell Latches.


Lattice specific input latch or bi dir input latch

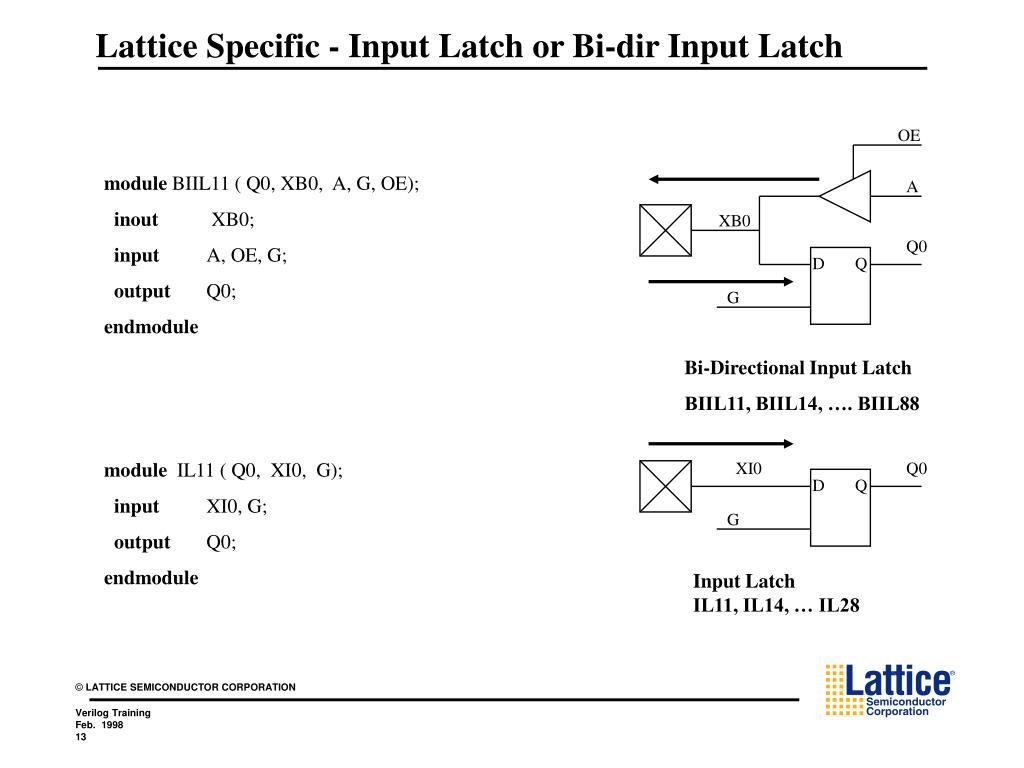

Lattice Specific - Input Latch or Bi-dir Input Latch

module BIIL11 ( Q0, XB0, A, G, OE);

inout XB0;

input A, OE, G;

output Q0;

endmodule

module IL11 ( Q0, XI0, G);

input XI0, G;

output Q0;

endmodule

OE

A

XB0

Q0

D

Q

G

Bi-Directional Input Latch

BIIL11, BIIL14, …. BIIL88

XI0

Q0

D

Q

G

Input Latch

IL11, IL14, … IL28


Lattice specific pin numbers

Lattice Specific - Pin Numbers

  • Pin numbers can be assigned in a PIN file (.ppn) or a PROPERTY file (.prp) or directly in the Fitter.

  • PIN file is attached to the design during compilation with the Lattice fitter.

  • PIN file syntax:

    <pin_name><pin_direction><pin_number>

  • Example of PIN file (example.ppn) :

    oeout15

    clkin21

    enablein7

    bus0bidi2

    bus1bidi3

    bus2bidi4


Lattice specific pin numbers cont d

Lattice Specific - Pin Numbers (cont’d)

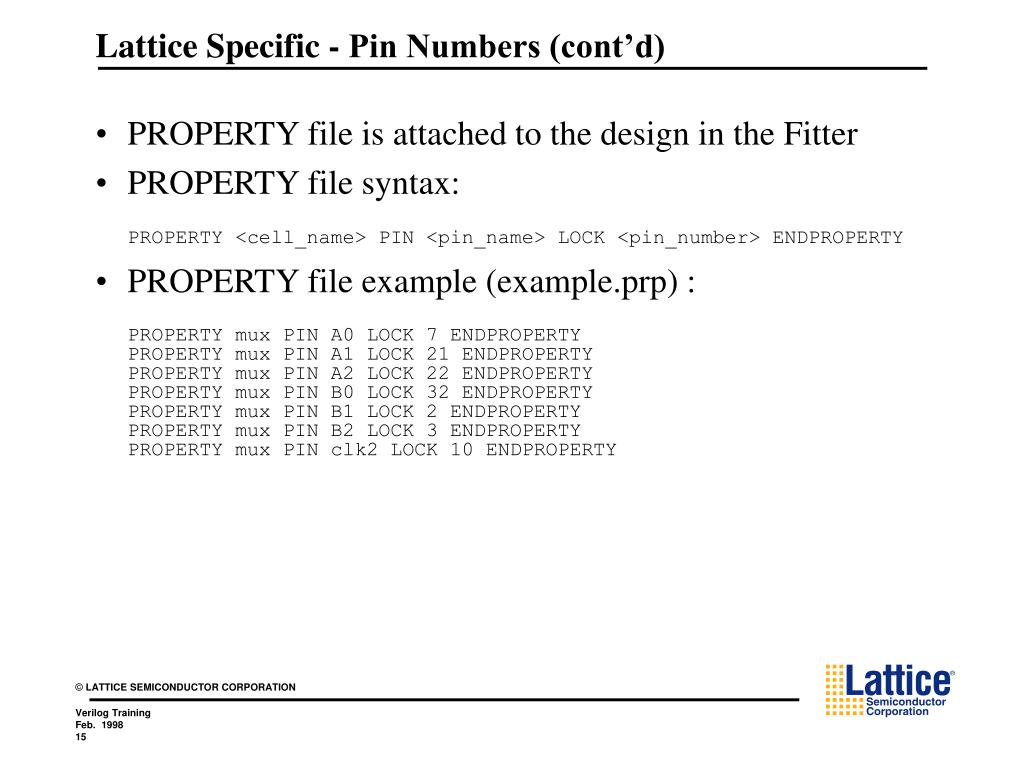

  • PROPERTY file is attached to the design in the Fitter

  • PROPERTY file syntax:

    PROPERTY <cell_name> PIN <pin_name> LOCK <pin_number> ENDPROPERTY

  • PROPERTY file example (example.prp) :

    PROPERTY mux PIN A0 LOCK 7 ENDPROPERTY

    PROPERTY mux PIN A1 LOCK 21 ENDPROPERTY

    PROPERTY mux PIN A2 LOCK 22 ENDPROPERTY

    PROPERTY mux PIN B0 LOCK 32 ENDPROPERTY

    PROPERTY mux PIN B1 LOCK 2 ENDPROPERTY

    PROPERTY mux PIN B2 LOCK 3 ENDPROPERTY

    PROPERTY mux PIN clk2 LOCK 10 ENDPROPERTY


Synplicity lattice specific design attributes

Synplicity/Lattice Specific Design Attributes

  • Pin/Port Attribute

    Example:

    module demo ( sysioclk, rst, I, …);

    //Set IO Cell Clock

    input sysioclk; /* synthesis clk=ioclk0 */

    input rst;

    input [0:1] I;

    …………

    …………

    endmodule

Signal Attribute: clk=“ioclk0”

sysioclk


Synplicity lattice specific design attributes1

Synplicity/Lattice Specific Design Attributes

u_ioclK0

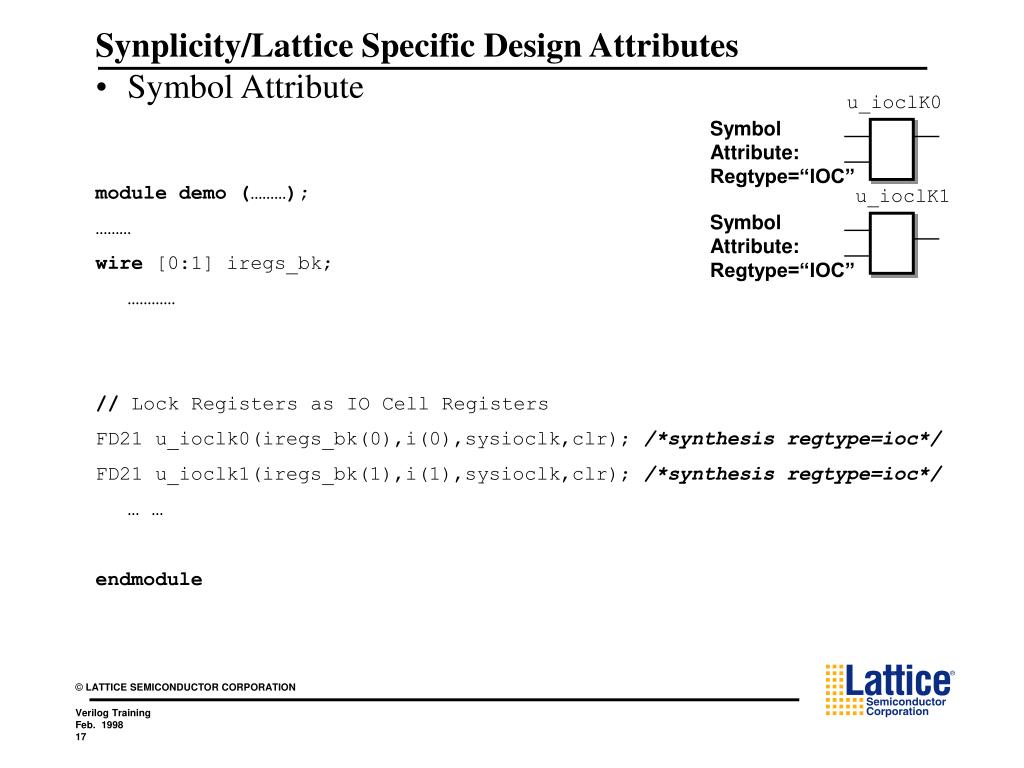

  • Symbol Attribute

    module demo (………);

    ………

    wire [0:1] iregs_bk;

    …………

    // Lock Registers as IO Cell Registers

    FD21 u_ioclk0(iregs_bk(0),i(0),sysioclk,clr); /*synthesis regtype=ioc*/

    FD21 u_ioclk1(iregs_bk(1),i(1),sysioclk,clr); /*synthesis regtype=ioc*/

    … …

    endmodule

Symbol Attribute: Regtype=“IOC”

u_ioclK1

Symbol

Attribute:

Regtype=“IOC”


Lattice verilog training part ii jimmy gao

Lab Three - Input Registers & Property File

Please Turn to your Verilog Lab Book for the Verilog Design Lab No. Three


Lattice verilog training part ii jimmy gao

Lattice Attributes

& Property File

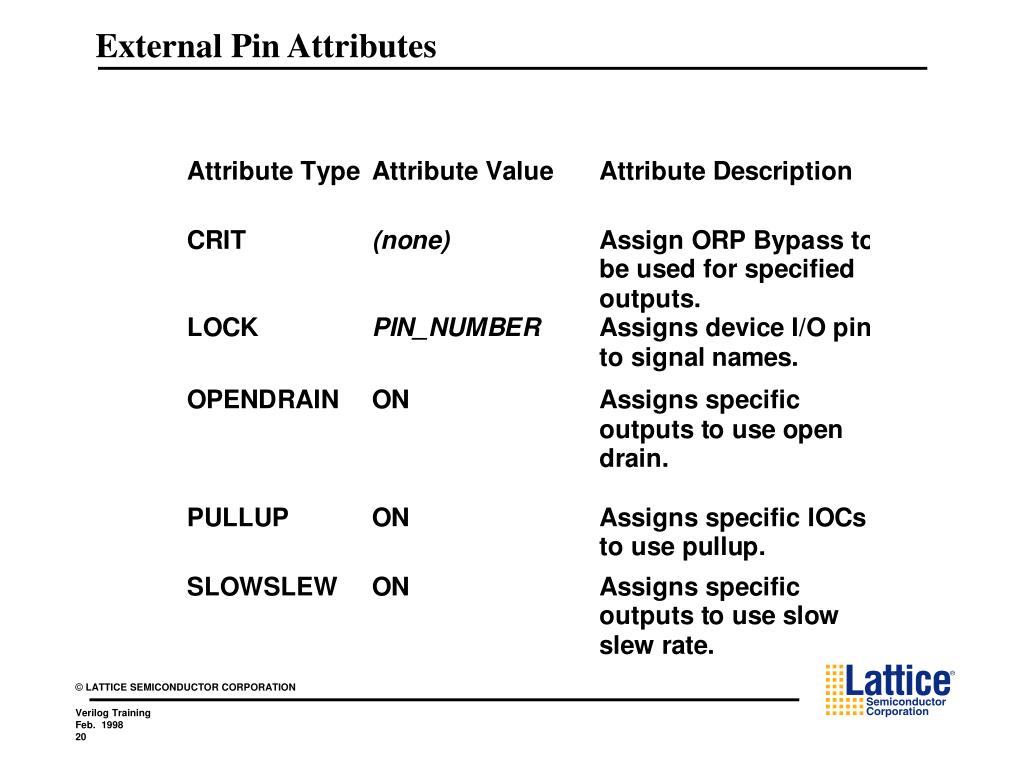

External pin attributes

External Pin Attributes

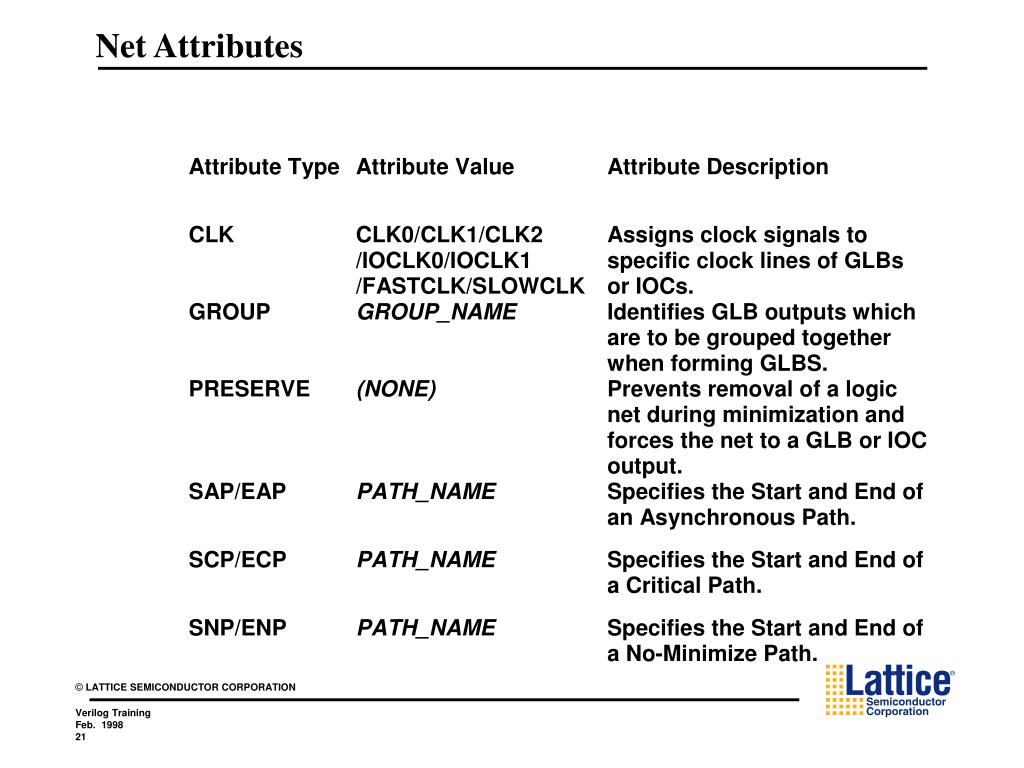

Net attributes

Net Attributes

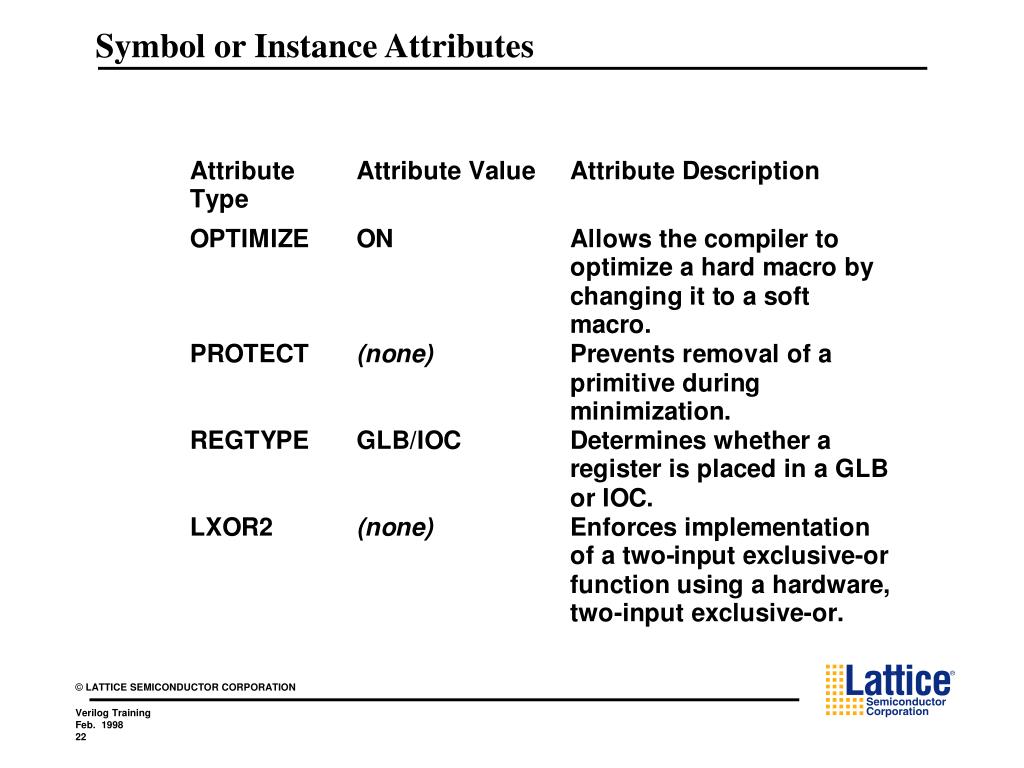

Symbol or instance attributes

Symbol or Instance Attributes

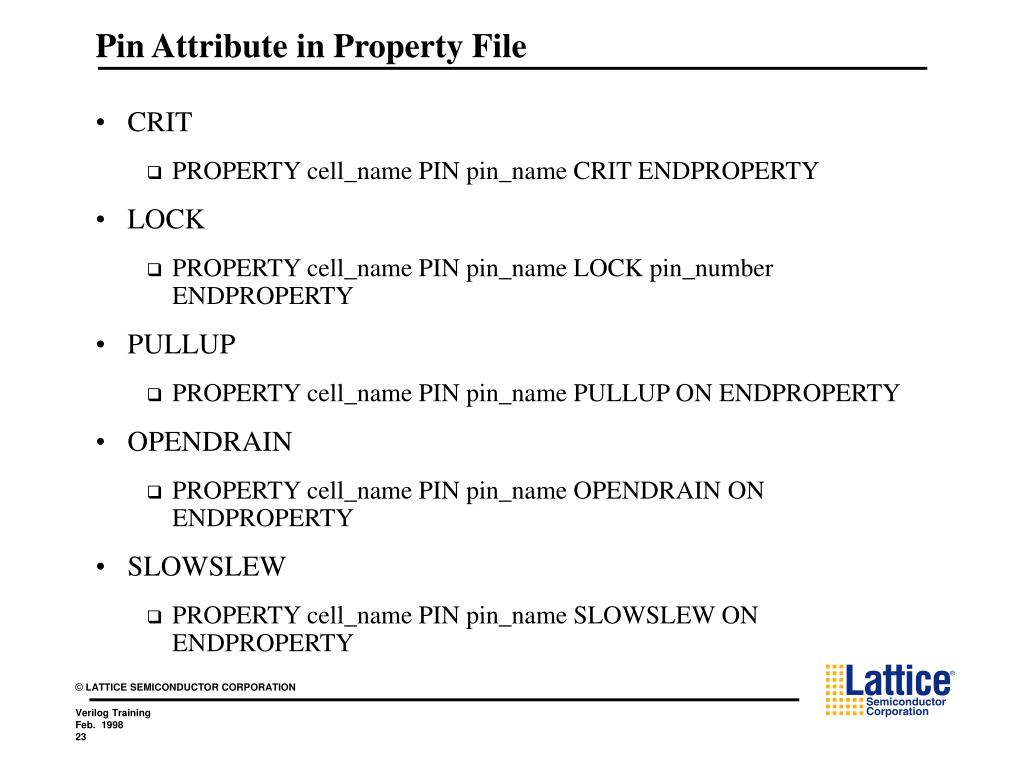

Pin attribute in property file

Pin Attribute in Property File

  • CRIT

    • PROPERTY cell_name PIN pin_name CRIT ENDPROPERTY

  • LOCK

    • PROPERTY cell_name PIN pin_name LOCK pin_number ENDPROPERTY

  • PULLUP

    • PROPERTY cell_name PIN pin_name PULLUP ON ENDPROPERTY

  • OPENDRAIN

    • PROPERTY cell_name PIN pin_name OPENDRAIN ON ENDPROPERTY

  • SLOWSLEW

    • PROPERTY cell_name PIN pin_name SLOWSLEW ON ENDPROPERTY


Net attributes in property file

Net Attributes in Property File

  • CLK

    • PROPERTY cell_name NET net_name CLK CLK0|CLK1|CLK2|IOCLK0|IOCLK2|FASTCLK|SLOWCLK ENDPROPERTY

  • GROUP

    • PROPERTY cell_name NET net_name GROUP group_name ENDPROPERTY

  • PRESERVE

    • PROPERTY cell_name NET net_name PRESERVE ENDPROPERTY

  • SAP/EAP

    • PROPERTY cell_name NET net_name SAP path_name ENDPROPERTY

    • PROPERTY cell_name NET net_name EAP path_name ENDPROPERTY

  • SCP/ECP

    • PROPERTY cell_name NET net_name SCP path_name ENDPROPERTY

    • PROPERTY cell_name NET net_name ECP path_name ENDPROPERTY

  • SNP/ENP

    • PROPERTY cell_name NET net_name SNP path_name ENDPROPERTY

    • PROPERTY cell_name NET net_name ENP path_name ENDPROPERTY


Symbol or instance attributes in property file

Symbol or Instance Attributes in Property File

  • OPTIMIZE

    • PROPERTY cell_name INST instance_name OPTIMIZE ON ENDPROPERTY

    • PROPERTY cell_name SYM OPTIMIZE ON ENDPROPERTY

  • PROTECT

    • PROPERTY cell_name INST instance_name PROTECT ENDPROPERTY

    • PROPERTY cell_name SYM PROTECT ENDPROPERTY

  • REGTYPE

    • PROPERTY cell_name INST instance_name REGTYPE GLB|IOC ENDPROPERTY

    • PROPERTY cell_name SYM REGTYPE GLB|IOC ENDPROPERTY

  • LXOR2

    • PROPERTY cell_name INST instance_name LXOR2 ENDPROPERTY

    • PROPERTY cell_name SYM LXOR2 ENDPROPERTY


Lattice verilog training part ii jimmy gao

State Machine Design Example

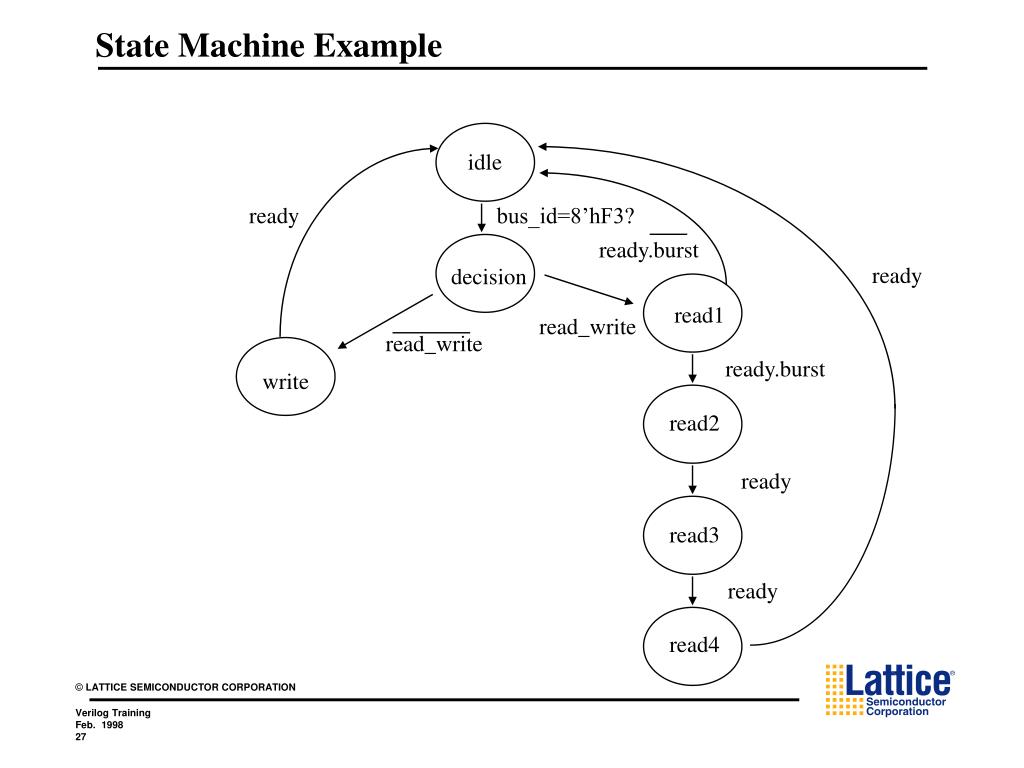

State machine example

ready.burst

State Machine Example

idle

ready

bus_id=8’hF3?

ready

decision

read1

read_write

read_write

ready.burst

write

read2

ready

read3

ready

read4


State machine example1

State Machine Example

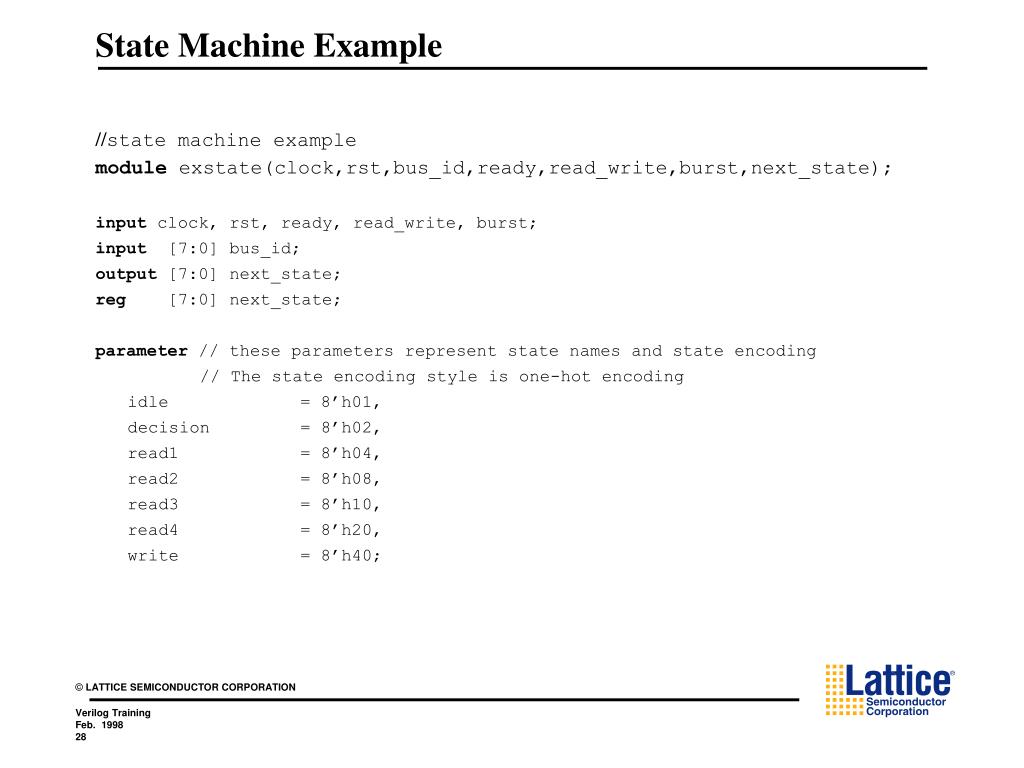

//state machine example

module exstate(clock,rst,bus_id,ready,read_write,burst,next_state);

input clock, rst, ready, read_write, burst;

input [7:0] bus_id;

output [7:0] next_state;

reg [7:0] next_state;

parameter // these parameters represent state names and state encoding

// The state encoding style is one-hot encoding

idle = 8’h01,

decision = 8’h02,

read1 = 8’h04,

read2= 8’h08,

read3= 8’h10,

read4= 8’h20,

write= 8’h40;

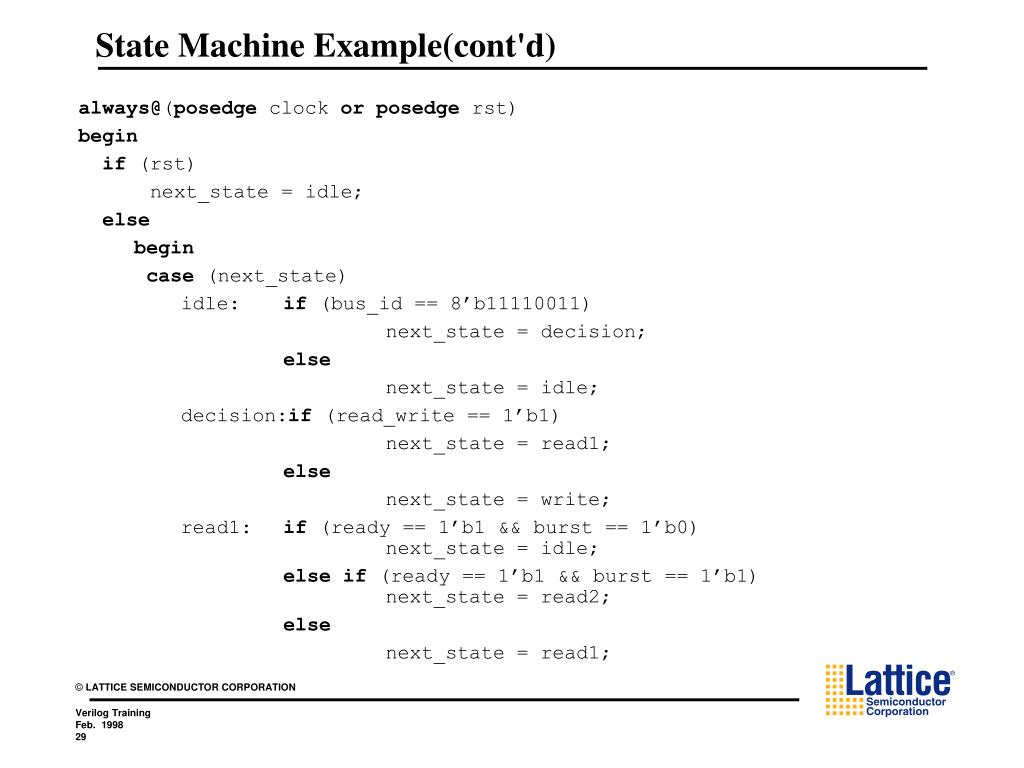

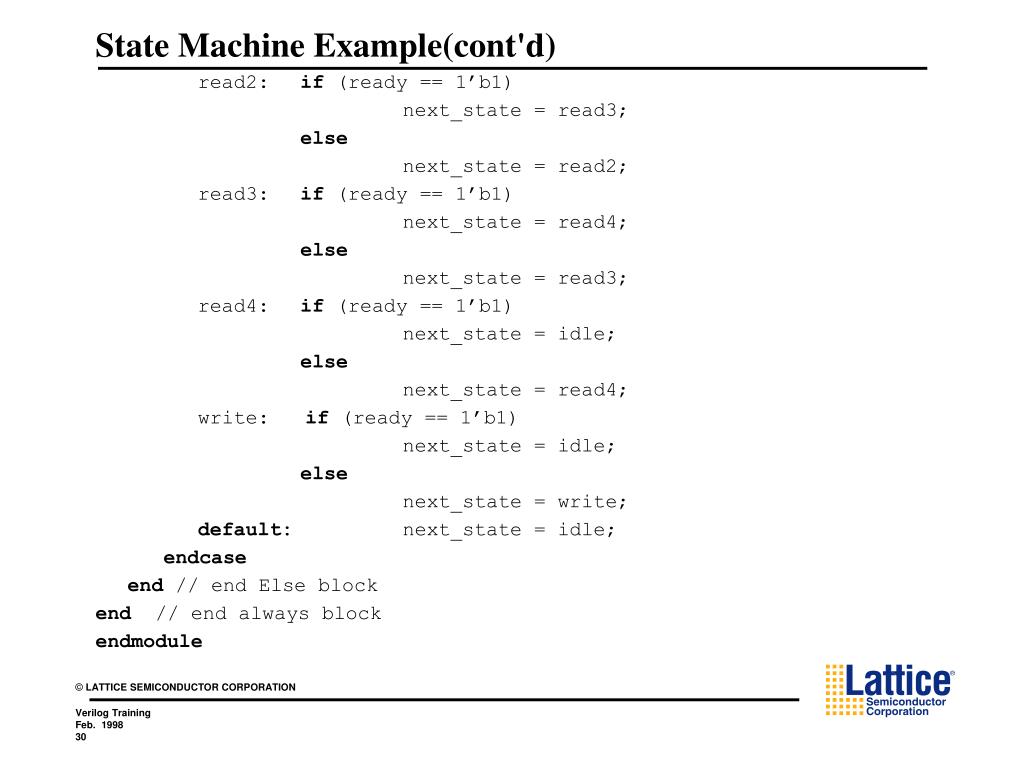

State machine example cont d

State Machine Example(cont'd)

always@(posedge clock orposedge rst)

begin

if (rst)

next_state = idle;

else

begin

case (next_state)

idle:if (bus_id == 8’b11110011)

next_state = decision;

else

next_state = idle;

decision:if (read_write == 1’b1)

next_state = read1;

else

next_state = write;

read1:if (ready == 1’b1 && burst == 1’b0) next_state = idle;

else if (ready == 1’b1 && burst == 1’b1) next_state = read2;

else

next_state = read1;


State machine example cont d1

State Machine Example(cont'd)

read2:if (ready == 1’b1)

next_state = read3;

else

next_state = read2;

read3:if (ready == 1’b1)

next_state = read4;

else

next_state = read3;

read4:if (ready == 1’b1)

next_state = idle;

else

next_state = read4;

write: if (ready == 1’b1)

next_state = idle;

else

next_state = write;

default: next_state = idle;

endcase

end // end Else block

end // end always block

endmodule


State encoding

State Encoding

parameter

Idle= xx, Decision= xx, Read= xx, Write= xx;


Cpld optimization state encoding

CPLD Optimization - State Encoding

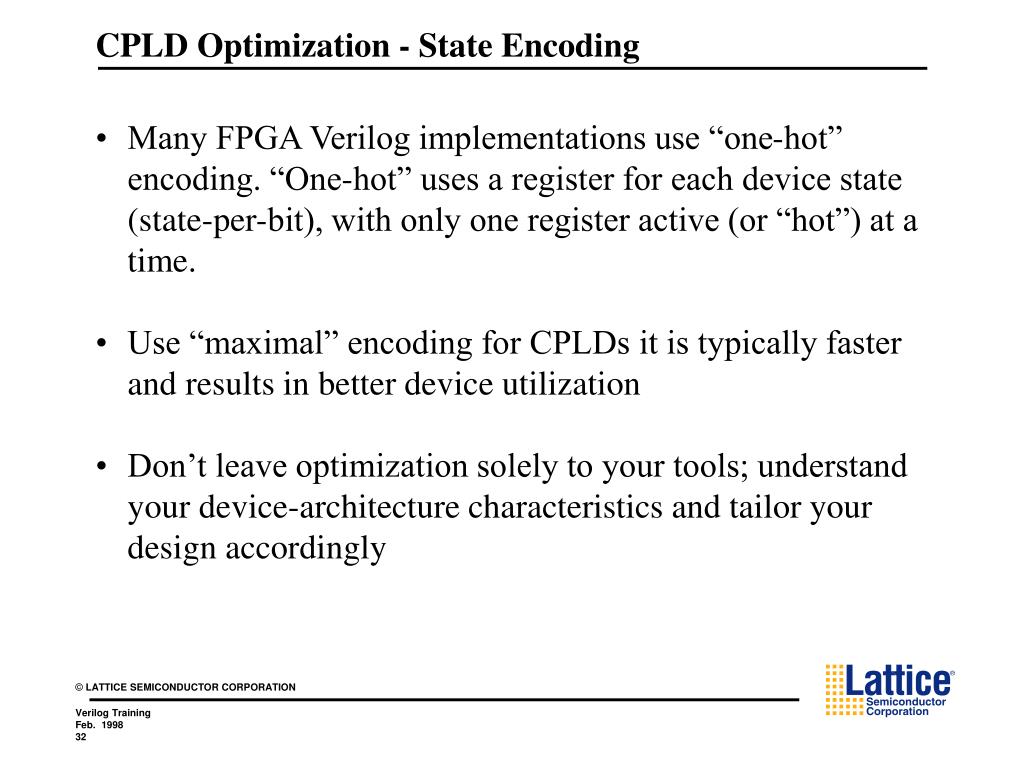

  • Many FPGA Verilog implementations use “one-hot” encoding. “One-hot” uses a register for each device state (state-per-bit), with only one register active (or “hot”) at a time.

  • Use “maximal” encoding for CPLDs it is typically faster and results in better device utilization

  • Don’t leave optimization solely to your tools; understand your device-architecture characteristics and tailor your design accordingly


Cpld optimization state encoding cont d

CPLD Optimization - State Encoding (cont’d)

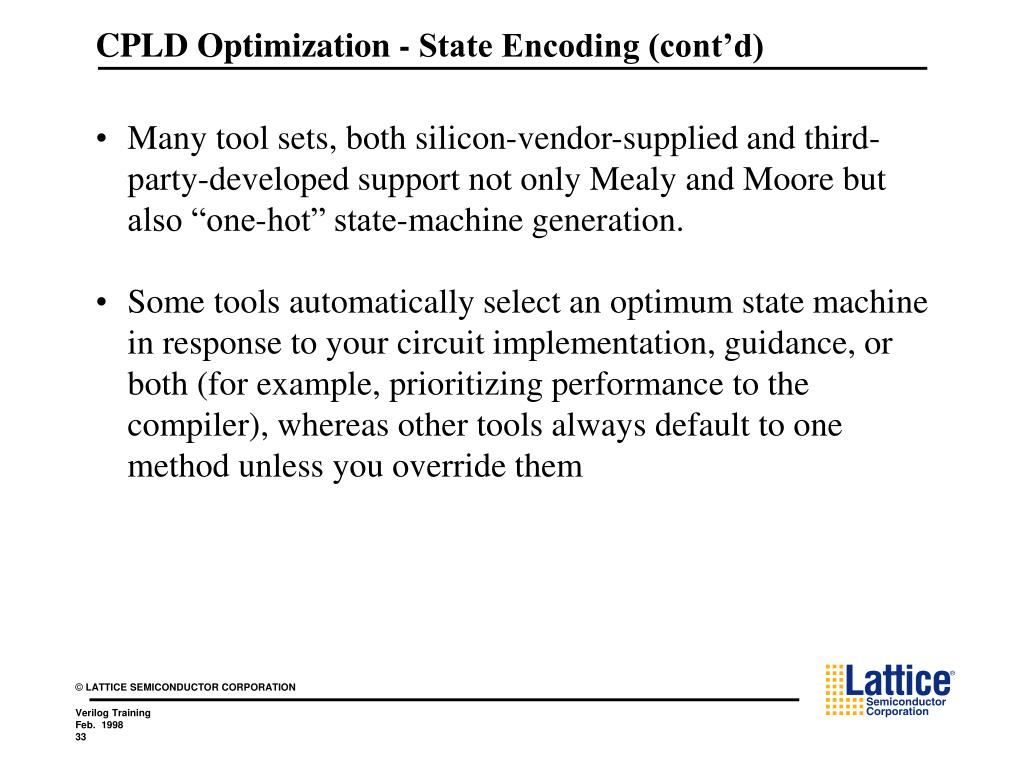

  • Many tool sets, both silicon-vendor-supplied and third-party-developed support not only Mealy and Moore but also “one-hot” state-machine generation.

  • Some tools automatically select an optimum state machine in response to your circuit implementation, guidance, or both (for example, prioritizing performance to the compiler), whereas other tools always default to one method unless you override them


Cpld optimization undefined states

CPLD Optimization - Undefined States

  • When all values are not explicitly defined, synthesis results may be unexpected.

  • Whether using if-else or case statements, not defining all possible values or states can result in unwanted “Latches”

    Example:

    parameter // these parameters represent state names

    idle = 3’b000, decision = 3’b001,read1 = 3’b010,

    read2= 3’b011, read3= 3’b100,read4 = 3’b101,

    write= 3’b110;

    Binary Encoding:

    Idle Decision Read1 Read2 Read3 Read4 Write

    3b’000 3’b001 3’b010 3’b011 3’b100 3’b101 3’b110

    Undefined State: 3’b111 Action: Use else or Default


Lattice verilog training part ii jimmy gao

Lab Four - State Machine Design, GDX Design & Design Projects

Please Turn to your Verilog Lab Book for the Verilog Design Lab No. Four


Lattice verilog training part ii jimmy gao

More on Verilog

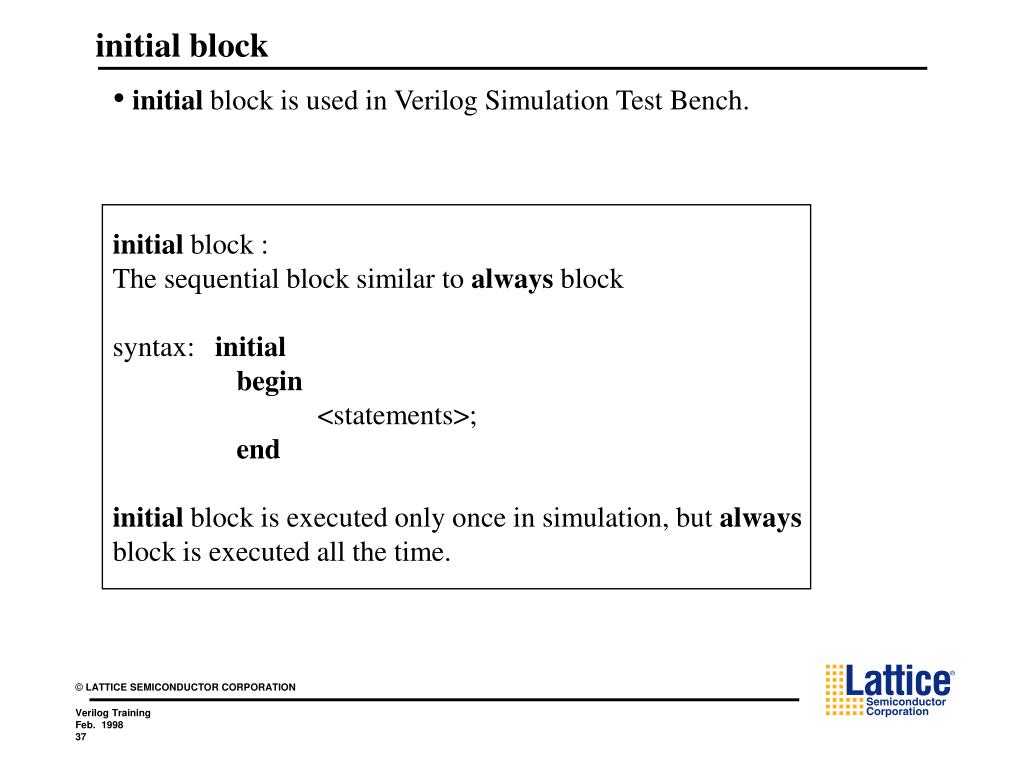

Initial block

initial block

  • initial block is used in Verilog Simulation Test Bench.

initial block :

The sequential block similar to always block

syntax:initial

begin

<statements>;

end

initial block is executed only once in simulation, but always

block is executed all the time.


Loops while for repeat forever

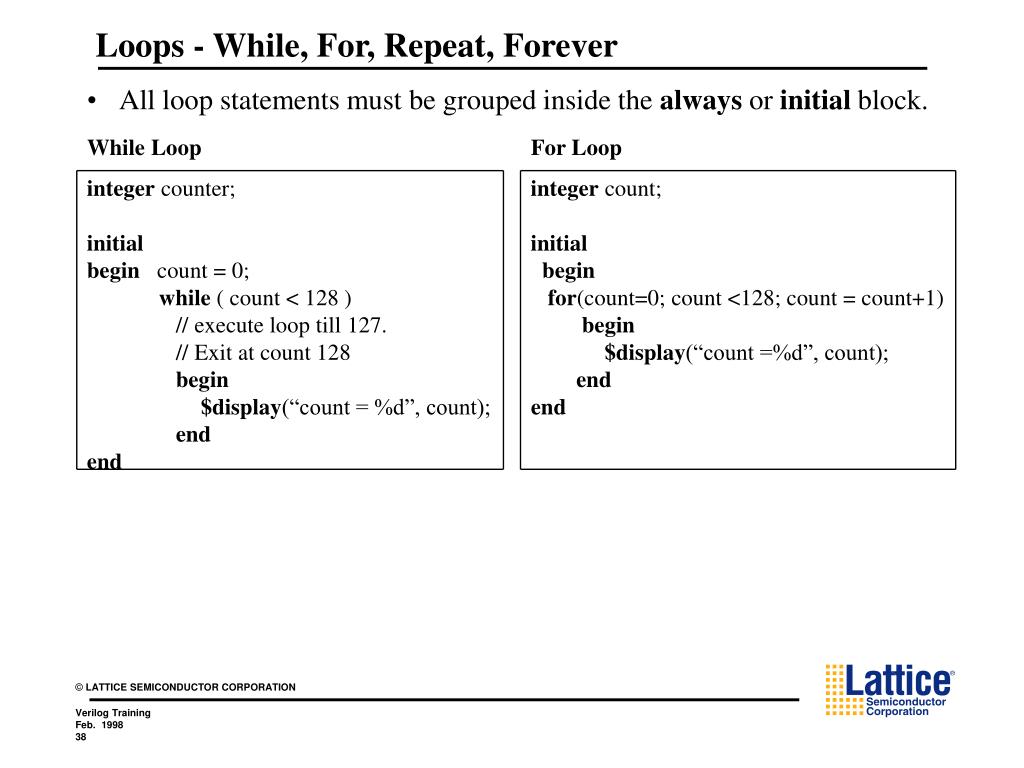

Loops - While, For, Repeat, Forever

  • All loop statements must be grouped inside the always or initial block.

    integer counter; integer count;

    initial initial

    begin count = 0; begin

    while ( count < 128 ) for(count=0; count <128; count = count+1)

    // execute loop till 127. begin

    // Exit at count 128 $display(“count =%d”, count);

    begin end

    $display(“count = %d”, count); end

    end

    end

While Loop

For Loop

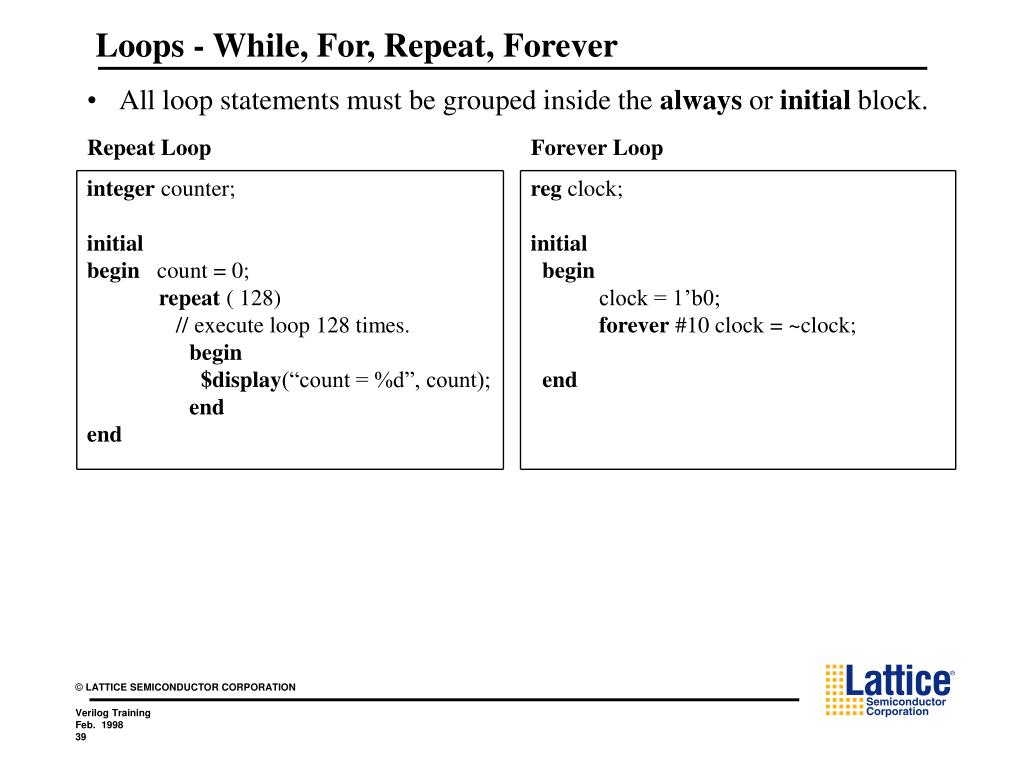

Loops while for repeat forever1

Loops - While, For, Repeat, Forever

  • All loop statements must be grouped inside the always or initial block.

    integer counter; reg clock;

    initial initial

    begin count = 0; begin

    repeat ( 128) clock = 1’b0;

    // execute loop 128 times. forever #10 clock = ~clock; begin $display(“count = %d”, count); end

    end

    end

Repeat Loop

Forever Loop


Lattice verilog training part ii jimmy gao

Task

  • Commonly used Verilog routine that is defined in a Verilog module and also local to the module.

  • Task can pass multiple values through output and inout argument.

    module operation;

    ………….

    reg [15:0] A, B;reg [15:0] AB_AND, AB_OR, AB_XOR;

    always @( A or B )

    begin// invoke the task bitwise_oper

    bitwise_oper(AB_AND, AB_OR, AB_XOR, A, B);

    end

    ……………

    //define Task bitwise_oper

    task bitwise_oper;

    output [15:0] ab_and, ab_or, ab_xor; // outputs from the task

    input [15:0] a, b; // input to the task

    begin

    #10 ab_and = a & b; ab_or = a | b; ab_xor = a ^ b;

    end

    endtask

    ……………..

    endmodule

Task

ab_and[15:0]

a[15:0]

ab_or[15:0]

bitwise_oper

b[15:0]

ab_xor[15:0]

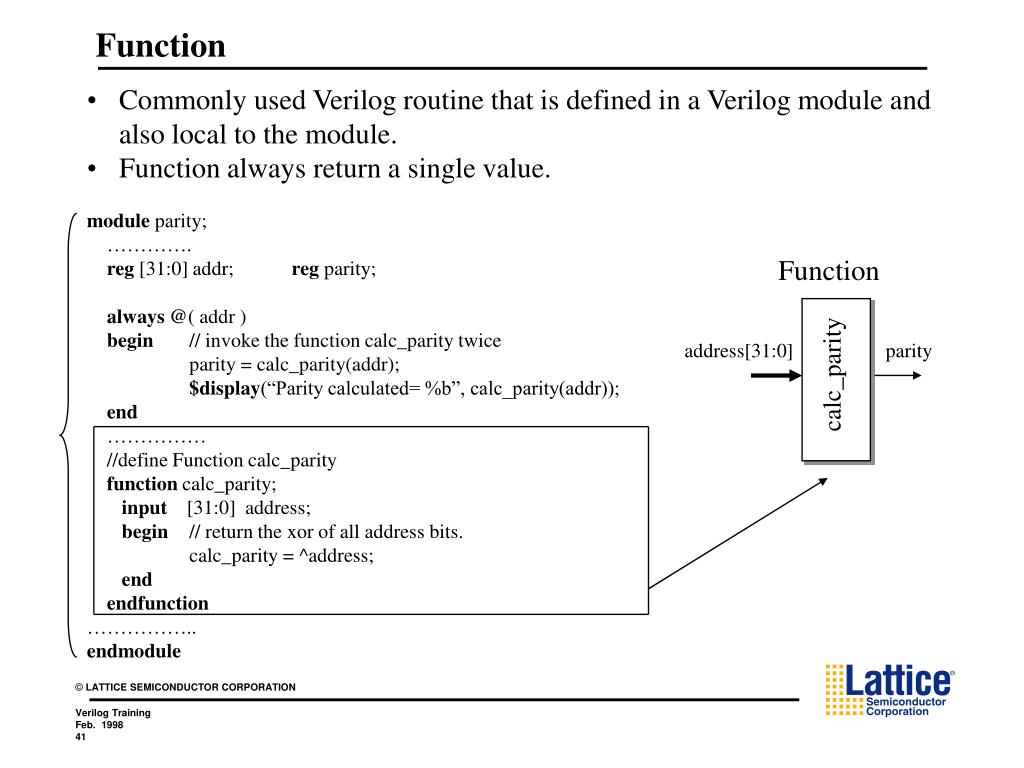

Function

Function

  • Commonly used Verilog routine that is defined in a Verilog module and also local to the module.

  • Function always return a single value.

    module parity;

    ………….

    reg [31:0] addr;reg parity;

    always @( addr )

    begin// invoke the function calc_parity twice

    parity = calc_parity(addr);

    $display(“Parity calculated= %b”, calc_parity(addr));

    end

    ……………

    //define Function calc_parity

    function calc_parity;

    input [31:0] address;

    begin// return the xor of all address bits.

    calc_parity = ^address;

    end

    endfunction

    ……………..

    endmodule

Function

address[31:0]

parity

calc_parity


Lattice verilog training part ii jimmy gao

Verilog

Compiler Directive


Timescale

`timescale

  • Use to define time delay values by using certain time unit in Verilog Simulation.

  • Format:

    • `timescale <reference_time_unit> / <time_precision>

  • Example:

    //Define a time scale for the module dummy_test_bench

    //Reference time unit is 100 nanoseconds and precision is 1 ns

    `timescale 100 ns / 1 ns

    module dummy_test_bench;

    reg toggle;wire clk_out;

    clk_bk myclk (.clkin(toggle), .clkout(clk_out);

    initial toggle = 1’b0;

    always #5// Flip toggle every 5 time units

    toggle = ~toggle;// 5 time units = 500 ns = 0.5 us

    endmodule

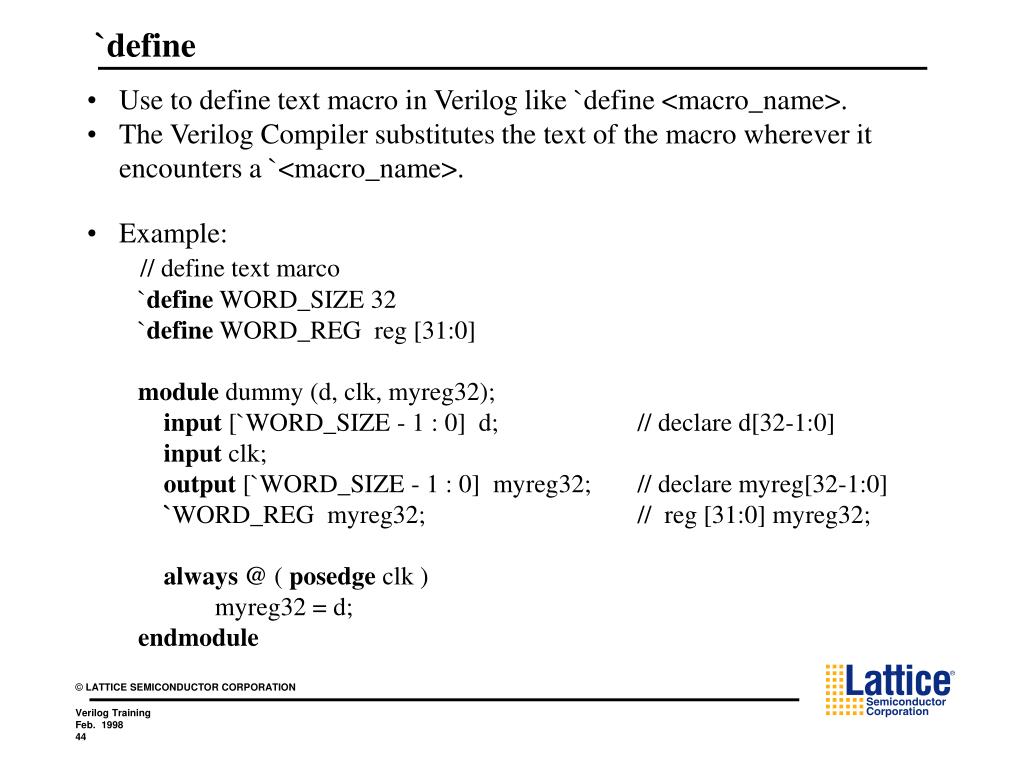

Define

`define

  • Use to define text macro in Verilog like `define <macro_name>.

  • The Verilog Compiler substitutes the text of the macro wherever it encounters a `<macro_name>.

  • Example:

    // define text marco

    `define WORD_SIZE 32

    `define WORD_REG reg [31:0]

    module dummy (d, clk, myreg32);

    input [`WORD_SIZE - 1 : 0] d; // declare d[32-1:0]

    input clk;

    output [`WORD_SIZE - 1 : 0] myreg32; // declare myreg[32-1:0]

    `WORD_REG myreg32; // reg [31:0] myreg32;

    always @ ( posedge clk )

    myreg32 = d;

    endmodule

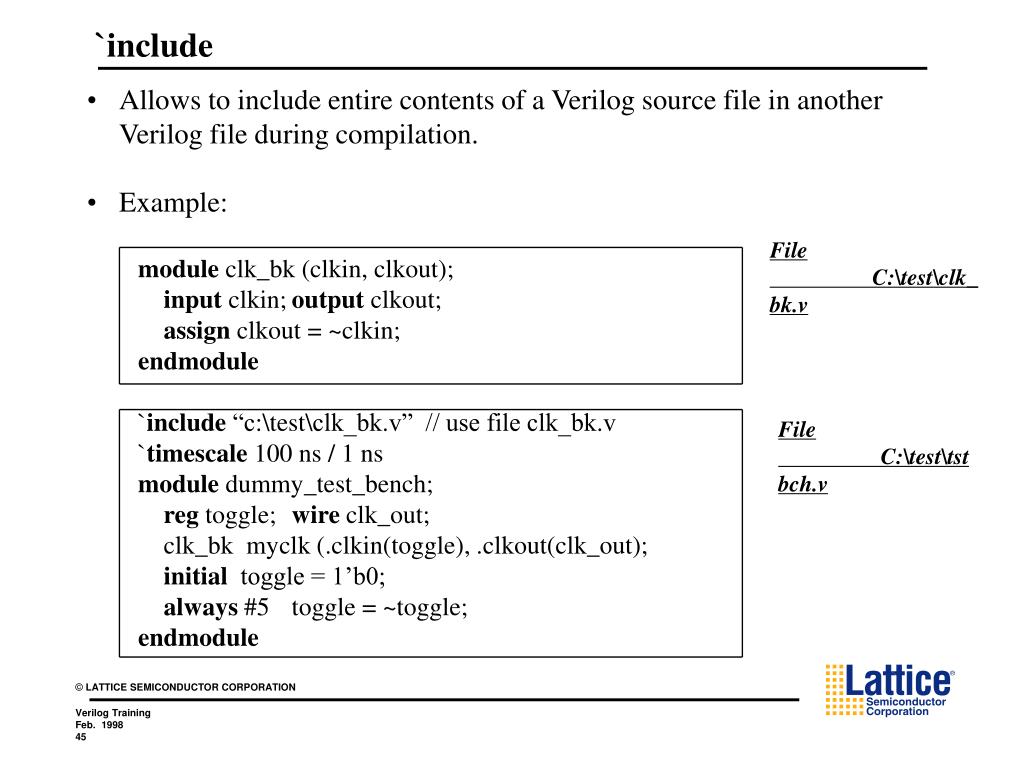

Include

`include

  • Allows to include entire contents of a Verilog source file in another Verilog file during compilation.

  • Example:

    module clk_bk (clkin, clkout);

    input clkin;output clkout;

    assign clkout = ~clkin;

    endmodule

    `include “c:\test\clk_bk.v” // use file clk_bk.v

    `timescale 100 ns / 1 ns

    module dummy_test_bench;

    reg toggle;wire clk_out;

    clk_bk myclk (.clkin(toggle), .clkout(clk_out);

    initial toggle = 1’b0;

    always #5toggle = ~toggle;

    endmodule

FileC:\test\clk_bk.v

File C:\test\tstbch.v

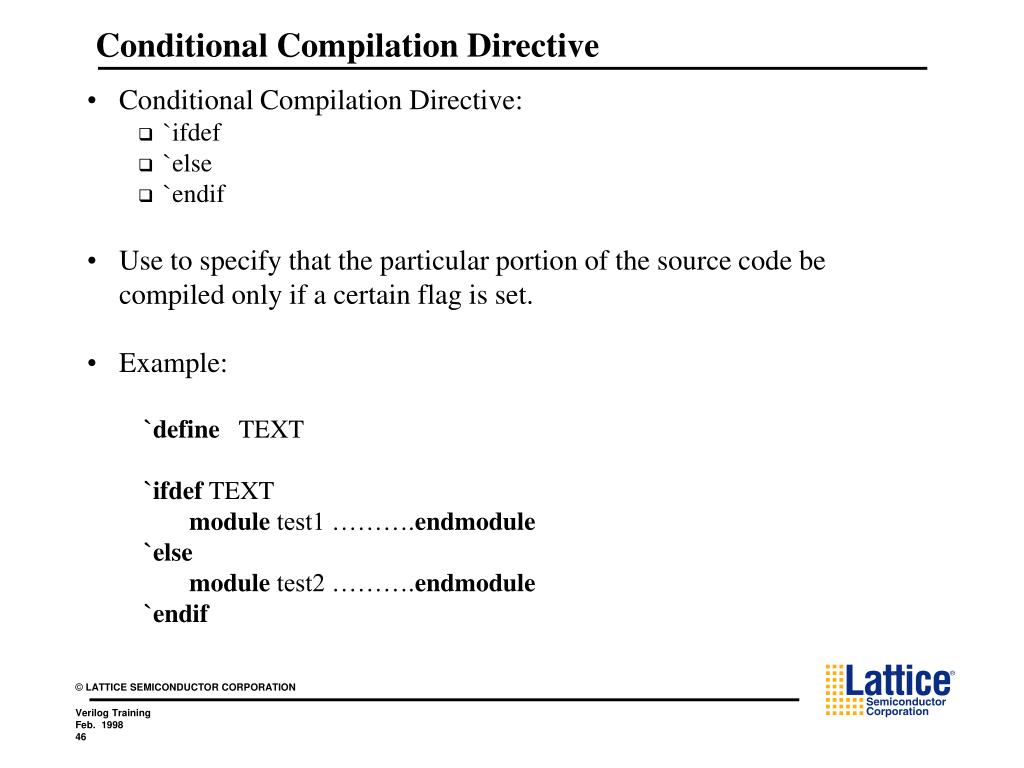

Conditional compilation directive

Conditional Compilation Directive

  • Conditional Compilation Directive:

    • `ifdef

    • `else

    • `endif

  • Use to specify that the particular portion of the source code be compiled only if a certain flag is set.

  • Example:

    `define TEXT

    `ifdef TEXT

    module test1 ……….endmodule

    `else

    module test2 ……….endmodule

    `endif


Lattice verilog training part ii jimmy gao

Verilog Simulation


Pds viewlogic verilog simulation flow example

pDS+ Viewlogic Verilog Simulation Flow Example

Verilog

Behavior Verilog Simulation

Verilog Test Bench

ViewLogic VCSi Verilog Simulator

Verilog

Synthesizer

Gate Level Verilog Netlist Timing Simulation

EDIF

Verilog

ispDS+ Fitter

Verilog Test Bench

.JED


Lattice verilog training part ii jimmy gao

Simulation

  • Simulation Goals

    • Debug Verilog source

    • Verify performance of CPLD implementation

  • Two Stages of Simulation:

    • Register transfer level Verilog functional simulation

      • (Design Entry Level)

    • Gate-level Verilog timing Simulation

      • (Post-fitting Gate-level)


Lattice verilog training part ii jimmy gao

Verilog Functional Simulation & Verilog TestBench

(Stimulus Block) Verilog Test-Bench

Simple Verilog test-bench

  • Stimulus block is the top-level block

  • Stimulus block drives signals in design block

    Sophisticated Verilog test-bench

  • Top-level block instantiates both Stimulus block & Design block

  • Stimulus block interacts with design block through interface

(Design Block)

Verilog Design to be verified

Stimulus

(Top-Level Block) Verilog TestBench

(Stimulus Block)

(Design Block)

Verilog Design to be verified


Lattice verilog training part ii jimmy gao

Verilog TestBench Concept

Verilog Design “my_design”

to be verified:

module my_design( a, b, x, y);

output x, y;

input a, b;

// module items

assign x = a & b;

assign y = a | b;

endmodule

test_my_design

a

x

a

x

b

y

my_design

b

y


Lattice verilog training part ii jimmy gao

Verilog TestBench Concept - Cont’d

  • Verilog module without interface

  • Test-bench block registers/wires declaration

  • instantiates design

  • block under test

  • bench

  • Initialize registers

`timescale 100 ns / 1 ns

module test_my_design;

reg a, b;

wire x, y;

my_design dut (.a(a),.b(b),.x(x),.y(y));

initial

a = 1’b0;

always

#50 a = ~a;

always

begin

#75 b = 1’b1;

#25 b = 1’b0;

end

endmodule

a

b


Lattice verilog training part ii jimmy gao

Verilog TestBench - Waveform Generation

50

100

a

`timescale 100 ns / 1 ns

module test_my_design;

reg a, b;

……………

initial

a = 1’b0;

always

#50 a = ~ a;

always

begin

#75 b = 1’b1;

#25 b = 1’b0;

end

endmodule

b

  • Constant on/off delay

  • Variable on/off delay


Verilog testbench relative timing stimulus

Verilog TestBench - Relative Timing Stimulus

`timescale 100 ns / 1 ns

module testbench;

reg [7:0] A_BUS;

……………

initial

begin

#10 A_BUS = 8’h00;

#10 A_BUS = 8’h01;

end

endmodule

00000000

00000001

10

20

30


Verilog testbench absolute timing stimulus

Verilog TestBench - Absolute Timing Stimulus

`timescale 100 ns / 1 ns

module testbench;

reg [7:0] A_BUS;

……………

initial

begin

#10 A_BUS <= 8’h00;

#20 A_BUS <= 8’h01;

end

endmodule

00000001

00000010

10

20

30


Lattice verilog training part ii jimmy gao

System Tasks

and Verilog Simulation


System tasks for displaying information

System Tasks for displaying information

  • $display; $write

    • For displaying values of variables or strings or expressions.

    • Format: $display ( p1, p2, ….. p3); where p# can be quoted strings or variables or expression. Same as $write.

    • Display Format:

      • %d or %DDisplay variable in decimal

      • %b or %BDisplay variable in binary

      • %s or %SDisplay string

      • %h or %HDisplay variable in hex

      • %c or %CDisplay ASCII Character

      • %m or %MDisplay hierarchical name (no argument required)

      • %v or %VDisplay strength

      • %o or %ODisplay variable in octal

      • %t or %TDisplay in current time format

      • %e or %EDisplay real number in scientific format (e.g., 3e10)

      • %f or %FDisplay real number in decimal format (e.g., 2.13)

      • %g or %GDisplay real number in scientific or decimal, whichever is shorter


System tasks for displaying information1

System Tasks for displaying information

  • $strobing

    • Similar to $display, but provide a synchronization mechanism to ensure that data is display only after all other assignment statements, which change the data in that time step, have executed.

    • Format: $strobing ( p1, p2, ….. p3); where p# can be quoted strings or variables or expression. Same display format as $display.

  • $monitor

    • For continuously monitoring the values of the variables or signals specified in the parameter list and displays all parameters in the list whenever the value of any one variable or signal changes.

    • Format: $monitor ( p1, p2, ….. p3); where p# can be variables, signal names, or quoted strings. Same display format as $display.

  • $monitoron

    • enables monitoring

  • $monitoroff

    • disables monitoring


System tasks for timing control

System Tasks for timing Control

  • $time

    • For getting the current simulation time.

  • $stop

    • Puts the simulation in an interactive mode. Used whenever you want to suspend the simulation and examine the values of signals in the design.

  • $finish

    • Terminates the simulation.


Examples

Examples

// Display bus value in binary

reg [3:0] bus;

$display(“At time %d, bus value is %b”, $time, bus);

// Result: At time 10 bus value is xxxx

// monitor signals of clock, reset and display their value

// only when either clock or reset change its value

initial begin

$monitor(“value of signals clock = %b reset = %b”, clock, reset ); end

// strobing - Displaying value of signal “a” and “c” at the same time

// when assignments are executed.

always @(posedge clock) begin a = b; c = d; end ;

always @(posedge clock)

$strobe(“Displaying a = %b, c = %d”, a, c );

// simulation suspension and termination

initial begin

clock = 1’b0; reset = 1’b1;

#100 $stop; // suspend the simulation at time = 100

#900 $finish;// terminate the simulation at time = 1000

end


System tasks for disk file handling

System Tasks for disk file handling

  • $fopen

    • Open a disk file.

    • Format1:$fopen (“<name_of_file>”);

    • Format2:<file_handle> = $fopen (“<name_of_file>”);

  • $fclose

    • Close a disk file.

    • Format:$fopen (<file_handle>);

  • $fdisplay; $fmonitor; $fwrite; fstrobe

    • Used to write to files.


Other system tasks

Other System Tasks

  • $random

    • For generating a random number.

  • $readmemb; readmemh

    • For initializing memories from a data file by reading numbers in binary or hexadecimal format.

  • $dumpvars; $dumpfile; $dumpall

    • For selecting instances or module instance signal, file, even all modules to dump.

  • $dumpon; $dumpoff

    • Enable or disable dump process.

  • $setup; $hold

    • Used to check the setup and hold constraints for a sequential element in the design.

  • $width

    • Used to check the width of a pulse.


Examples1

Examples

`timescale 100 ns / 1 ns

module vec_gen;

integer handle1;integer I;

reg Cin;reg [2:0] A, B;

reg [2:0] Exp_Sum;reg Exp_Cout;

<Instantiation of Design Module>;

initial begin

handle1 = $fopen(“adder3.vec”);

for ( I = 0; I <= 19; I = I + 1 )

begin

Cin = $random;

A = $random;

B = $random;

{Exp_Cout, Exp_Sum} = Cin + A + B;

$fwrite(handle1, “%b_%b_%b_%b_%b”,

A, B, Cin, Exp_Cout, Exp_Sum);

end

$fclose(handle1);

end

endmodule


Lattice verilog training part ii jimmy gao

Verilog Simulator Model


Programming language interface pli

Programming Language Interface (PLI)

  • The Programming Language Interface (PLI) of Verilog Hardware Design Language provides a set of interface routines to read internal data representation, write to internal data representation, and extract information about the simulation environment.

    • Verilog has already provides a set of standard system tasks and functions and compiler directives, which we have just discussed, for the Hardware Designers.

    • To customize the capability of the Verilog language by defining your own system tasks and functions, you can create your own Verilog PLI routines.


Verilog simulator model

Verilog Simulator Model

User-defined Verilog

Stimulus Test Bench

Invoke User-Defined System Task

User-Defined

System Task #1

Verilog Source or

Verilog Netlist

Standard &

User-defined

System Tasks

User-Defined

System Task #2

User-Defined

System Task #3

Architecture

Specific Verilog

Library

Verilog Compilation

Pass data

Invoke user-defined C routine

Access internal structures

PLI Library

Routines

Internal Design

Data Structure

User-Defined

C routine # 1

PLI Library Routines

User-Defined

C routine # 2

Simulation

User-Defined

C routine # 3

Simulation output

PLI Library Routines

to do miscellaneous

Operations


Back annotation of standard delay file

Back-Annotation of Standard Delay File

Post-layout

Timing Verilog

Netlist

SDF

User-Defined Verilog Test-Bench:

module ……………….

initial begin

$sdf_annotate(

“<sdf_file>”,

<module_instance>,

“<sdf_configuefile>”,

“<sdf_logfile>”,

“<mtm_spec>”,

“<scale_factors>”,

“<scale_type>”);

end

endmodule

Verilog Simulator

User-Define PLI Table File:

$sdf_annotate call=sdf_annotate_call acc+=mp,prx:%CELL%

Note:

Check VCS Reference Guide Chapter 3 & 4 for Detail about PLI and SDF usage.


Wrapped up example

Wrapped Up Example

MAC

mlt_o[7:0]

adr_o[7:0]

A[3:0]

Q[7:0]

B[3:0]

CLK

RST

module prep5(Q, CLK, MAC, RST, A, B);

output [7:0] Q;input CLK, MAC, RST;

input [3:0] A, B;reg [7:0] Q;

wire [7:0] mlt_o = A * B;// Multiplier

wire [7:0] adr_o = MAC ? mlt_o + Q : mlt_o;// Adder

// register with asynchronous reset

always@(posedge CLK or posedge RST)

beginif (RST) Q = 0;

elseQ = adr_o;

end

endmodule


Wrapped up example1

Wrapped Up Example

mac

ina

MAC

mlt_o[7:0]

A[3:0]

adr_o[7:0]

q[7:0]

a[3:0]

Q[7:0]

=

b[3:0]

inb

B[3:0]

clk

outvec

CLK

rst

RST

prep5

mac

cntl

test


Wrapped up example2

Wrapped Up Example

timescale 100 ps/100 ps

module test;

reg clk, mac, rst;reg [3:0] a, b; wire [7:0] q;

prep5 inst1 (.CLK(clk),.MAC(mac), .RST( rst),.A(a), .B(b), .Q( q));

parameter numvecs = 6; // actual number of vectors

reg [1:0] cntl[0:numvecs-1];reg [3:0] ina [0:numvecs-1];

reg [3:0] inb [0:numvecs-1];reg [7:0] outvec [0:numvecs-1];

integer i;integer numerrors;

initial

begin

// sequential test patterns entered at neg edge clk

// rst, mac; a, b,q

//just before next pos edge

cntl[0] = 2'b10;ina[0] = 4'd4; inb[0] = 4'd3; outvec[0] = 8'd0;

cntl[1] = 2'b00;ina[1] = 4'd4; inb[1] = 4'd3; outvec[1] = 8'd12;

cntl[2] = 2'b00;ina[2] = 4'd10; inb[2] = 4'd3; outvec[2] = 8'd30;

cntl[3] = 2'b01;ina[3] = 4'd6; inb[3] = 4'd2; outvec[3] = 8'd42;

cntl[4] = 2'b01;ina[4] = 4'd11; inb[4] = 4'd5; outvec[4] = 8'd97;

cntl[5] = 2'b11;ina[5] = 4'd10; inb[5] = 4'd3; outvec[5] = 8'd0;

end


Wrapped up example3

Wrapped Up Example

// set up clk with 1000 ns period; 10000=1000 100ps units=1000 ns period

parameter clkper = 10000;

initial clk = 1;alwaysbegin #(clkper / 2) clk = ~clk; end

reg invec_temp;

initial

beginnumerrors = 0;

$display("\nBeginning Simulation...");

//skip first rising edge

@(posedge clk);

for (i = 0; i <= numvecs-1; i = i + 1)

begin@(negedge clk); // apply test pattern at neg edge

{rst, mac} = cntl[i]; a = ina[i];b = inb[i];

@(posedge clk) #4500; //450 ns later

// check result at posedge + 450 ns

if ( q !== outvec[i] )

begin$display(

"\t\t ERROR pattern#%d t%d: rst, mac=%b

a= %d, b= %d Expected q: %d; Actual q: %d",

i, $stime,{rst, mac}, a, b, outvec[i], q);

numerrors = numerrors + 1;

end

end


Wrapped up example4

Wrapped Up Example

if (numerrors == 0)

$display("Good! End of Good Simulation.");

else

if (numerrors > 1)

$display("%0d ERRORS! End of Faulty

Simulation.",numerrors);

else

$display("1 ERROR! End of Faulty

Simulation.");

#1000 $finish; // after 100 ns later

end

endmodule


Lattice verilog training part ii jimmy gao

Verilog Simulation Lab

Section 1:Verilog Functional Simulation

Section 2:Verilog Timing Simulation

Please Turn to your Verilog Lab Book for the Verilog Simulation Lab one


Lattice verilog training part ii jimmy gao

Contact: Jeffery, Hawking , Nick

Telephone:0755-3273333

0755-3273550/8/3/4

Mobil:13823378853

E-mail:[email protected]


  • Login
