Verilog Intro: Part 1

1. Verilog Intro: Part 1

2. Hardware DescriptionLanguages • A Hardware Description Language (HDL) is a language used to describe a digital system, for example, a computer or a component of a computer. • A digital system can be described at several levels: • Register Transfer Level (RTL): registers and the transfers of information between registers. • Gate level: logical gates and flip-flops • Switch level: wires, resistors and transistors • Two Major HDLs in Industry • VHDL (Mostly in Europe) • Verilog HDL (Mostly in USA)

3. Verilog HDL vs. VHDL VHDL • “V” is short for Very High Speed Integrated Circuits. • Designed for and sponsored by US Department of Defense. • Designed by committee (1981-1985). • Syntax based on Ada programming language. • Was made an IEEE Standard in 1987. VerilogHDL • Was introduced in 1985 by Gateway Design System Corporation, now a part of Cadence Design Systems, Inc.'s Systems Division. • Was made an IEEE Standard in 1995 • Syntax based on C programming language.

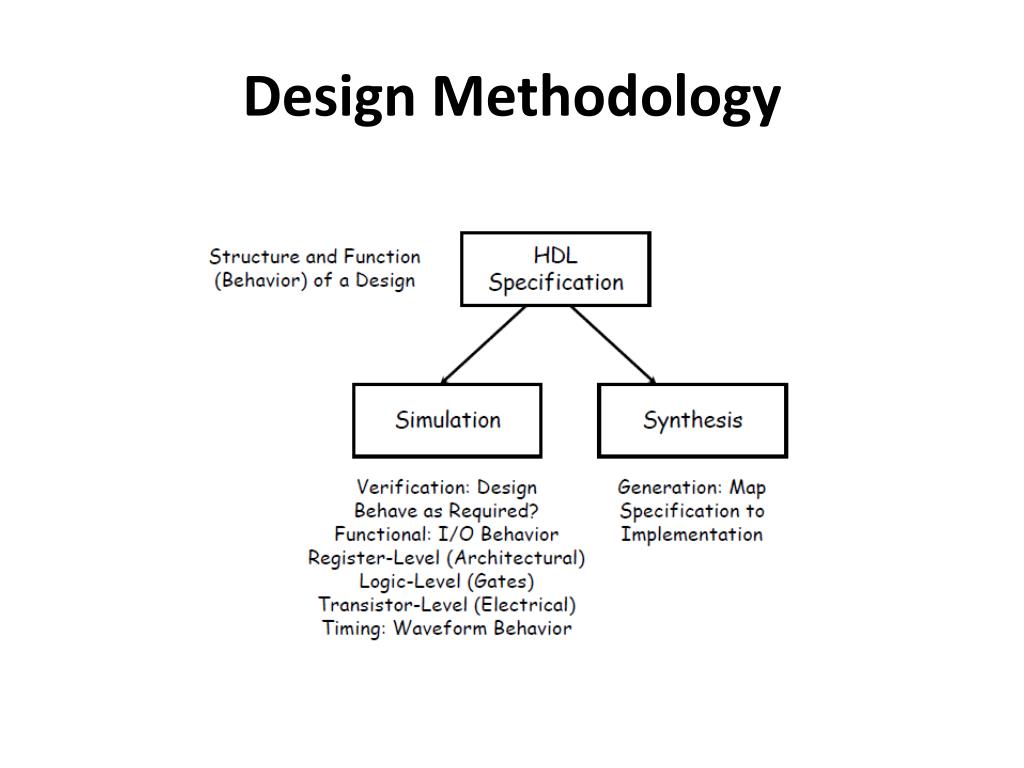

4. Design Methodology

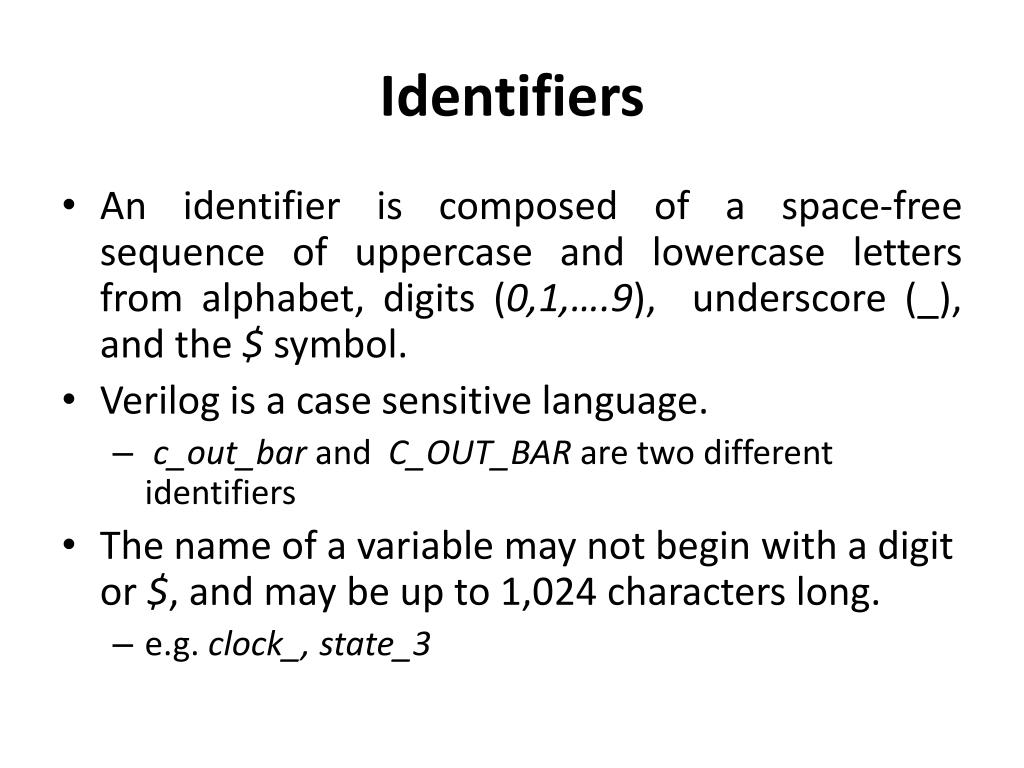

5. Identifiers • An identifier is composed of a space-free sequence of uppercase and lowercase letters from alphabet, digits (0,1,….9), underscore (_), and the $ symbol. • Verilog is a case sensitive language. • c_out_barand C_OUT_BAR are two different identifiers • The name of a variable may not begin with a digit or $, and may be up to 1,024 characters long. • e.g. clock_, state_3

6. Comments • There are two kinds of comments: single line and multiline. • A single-line comment begins with two forward slashes (//) • A multiline comment begins with the pair of characters /* and terminate with the characters */ • Example: • // This is a single-line comments • /* This is a multiline comments more comments here …………………………………. */

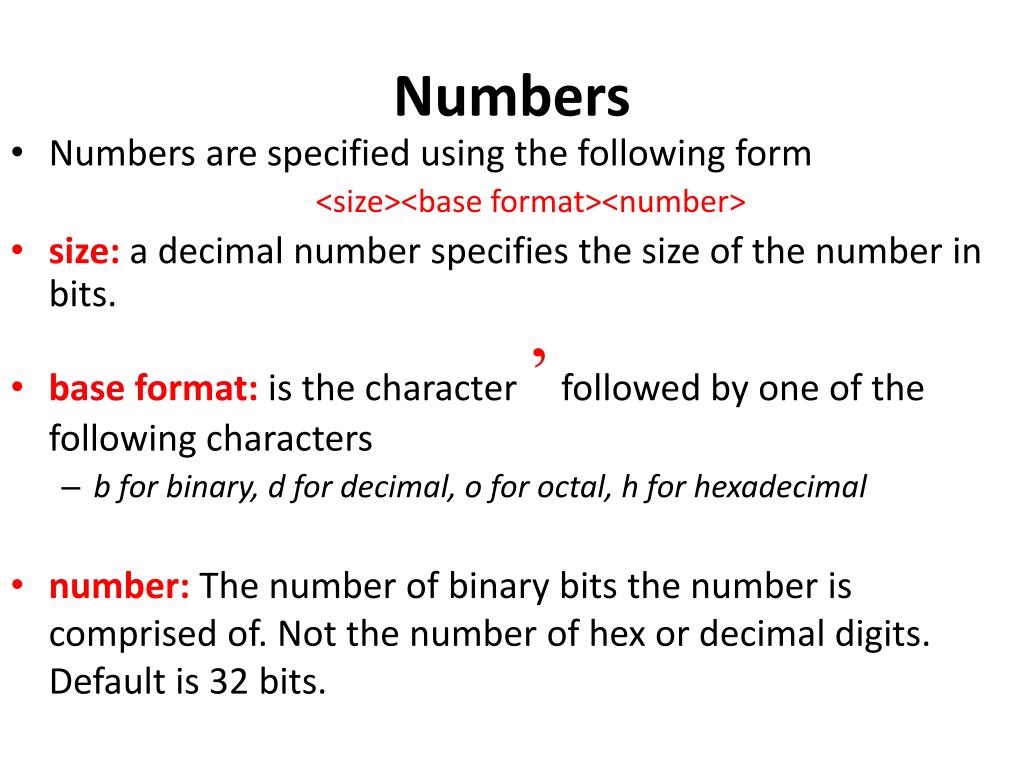

7. Numbers • Numbers are specified using the following form <size><base format><number> • size: a decimal number specifies the size of the number in bits. • base format: is the character ’ followed by one of the following characters • b for binary,d for decimal,oforoctal,hforhexadecimal • number:The number of binary bits the number is comprised of. Notthe number of hex or decimal digits. Default is 32 bits.

8. Numbers • Example: x = 347 // decimal number x = 4’b101 // 4- bit binary number 0101 x = 6’o12 // 6-bit octal number x = 16’h87f7 // 16-bit hex number h87f7 x = 2’b101010 x = 2’d83 • String in double quotes “ this is an introduction”

9. Operators • Bitwise Operators ~ NOT & AND | OR ^ XOR ~| NOR ~& NAND ^~ or ~^ XNOR • Logical & Relational Operators !, &&, | |, ==, !=, >=, <=, >, <

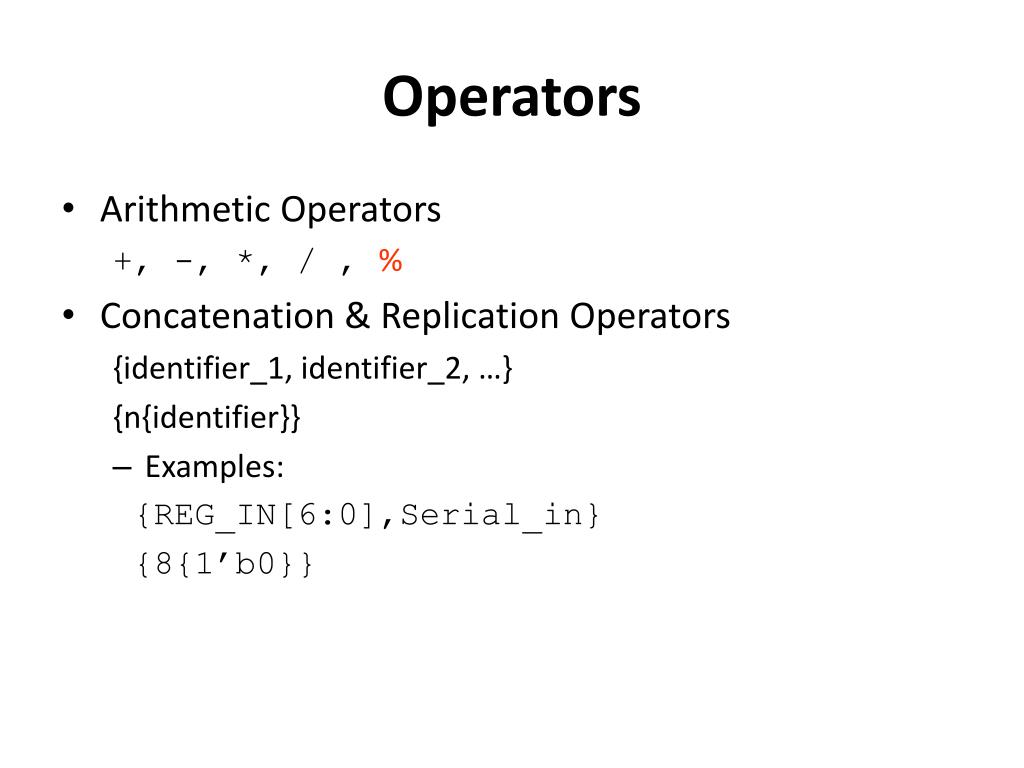

10. Operators • Arithmetic Operators +, -, *, / , % • Concatenation & Replication Operators {identifier_1, identifier_2, …} {n{identifier}} • Examples: {REG_IN[6:0],Serial_in} {8{1’b0}}

11. Value Logic System Data type for signals • Bits (value on a wire) • 0, 1 • x unknown value • Vectors of bits (parallel wires or registers) • A[3:0] is a vector of 4 bits: A[3], A[2], A[1], A[0] • Concatenating bits/vectors into a vector • B[7:0] = {A[3], A[3], A[3], A[3], A[3:0]}; • B[7:0] = {4{A[3]}, A[3:0]};

12. Data Types: Constants • A constant is declared with the keyword parameter in a statement assigning a name and a value to the constant • The value of a constant is fixed during simulation. • Examples: • parameter HIGH_INDEX= 31; // integer • parameter BYTE_SIZE = 8;

13. Data Types: Variables • Two basic families of data types for variables: Nets and Registers • Net variables – e.g. wire • Variable used simply to connect components together • Usually corresponds to a wire in the circuit. • Register variables – e.g. reg • Variable used to store data as part of a behavioral description • Like variables in ordinary procedural languages • Note: • regshould only be used with always and initial blocks • The regvariables store the last value that was procedurally assigned to them whereas the wire variables represent physical connections between structural entities such as gates.

14. Continuous Assignment • A continuous assignment statement is declared with the keyword assign, followed by a net(e.g. type wire) variable, an assignment operator(=), and an expression. • assign corresponds to a connection. • Target is never a regvariable. • assign A = B | (C & ~D); // not the use of ~ not ! • assign B[3:0] = 4'b01XX; • assign C[15:0] = 16'h00ff; //(MSB:LSB) • assign {Cout, S[3:0]} = A[3:0] + B[3:0] + Cin;

15. Procedural Assignment • Procedural assignments have the form <reg variable> = <expression> • where the <reg variable> must be a register or memory. • e.g. reg enable, d; enable = 0; d = 0;

16. Primitives • No declaration required (predefined) ; • Can only be instantiated • Example: and a1 (C, A, B); //instance name • Usually better to provide instance name for debugging. • Example: or o1 (SET, ~A, C ), o2(N, ABC,SET ); • Example: and #(10) a2(o, i1, i2); // name + delay

17. Program Structure: Modules • Any digital system is a set of modules. • Modules may run concurrently, but usually there is one top level module to specify a closed system containing both test data and hardware models. The top level module invokes instances of other modules. • A module is never called, it is instantiated. • Modules can be specified behaviorally or structurally (or a combination of the two). • A behavioral specification defines the behavior of a digital system using traditional programming language constructs (e. g.,if else, assignment statements). • A structural specification expresses the behavior of a digital system (module) as a hierarchical interconnection of submodules.

18. The Structure of a Module • The structure of a module is the following: module <module name> (<port list>); <declares> <module items> endmodule • <module name> is an identifier that uniquely names the module. • <port list> is a list of input, output and inout ports which are used to connect to other modules. • <declares> specifies data objects as registers, memories & wires as wells as procedural constructs such as functions & tasks. • <module items> may be • initial constructs, • always constructs, • continuous assignments or • instances of modules.

19. Taste of Verilog (Structural) moduleHalfAdder(sum, c_out, a, b ); input a, b; output sum, c_out; wirec_out_bar; xor g1(sum, a, b); nand g2(c_out_bar, a, b); not g3(c_out, c_out_bar); endmodule Module name Module ports Declaration of port modes Declaration of internal signal Instantiation of primitive gates Verilog keywords a sum b c_out_bar c_out

20. Taste of Verilog (Behavioral) moduleHalfAdder(sum, c_out, a, b ); input a, b; output sum, c_out; assign {c_out, sum} = a + b; endmodule

21. Test Bench module <test module name> ; // Data type declaration // Instantiate module ( call the module that isgoing to be tested) // Apply the stimulus // Display results endmodule

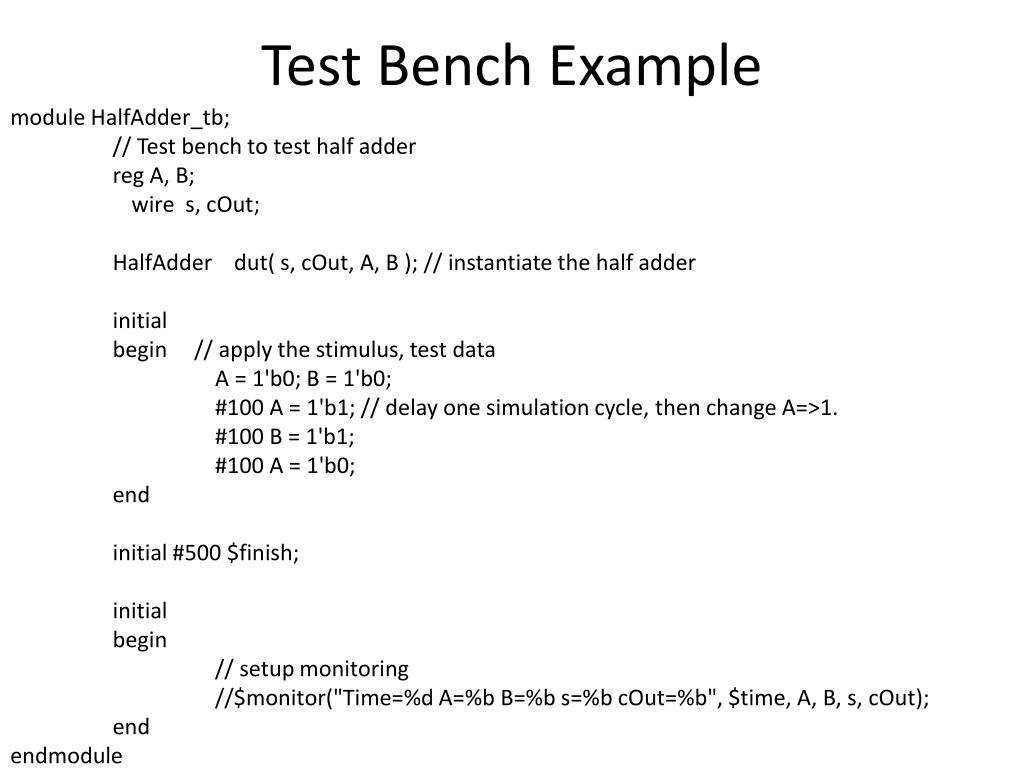

22. Test Bench Example module HalfAdder_tb; // Test bench to test half adder reg A, B; wire s, cOut; HalfAdderdut( s, cOut, A, B ); // instantiate the half adder initial begin // apply the stimulus, test data A = 1'b0; B = 1'b0; #100 A = 1'b1; // delay one simulation cycle, then change A=>1. #100 B = 1'b1; #100 A = 1'b0; end initial #500 $finish; initial begin // setup monitoring //$monitor("Time=%d A=%b B=%b s=%b cOut=%b", $time, A, B, s, cOut); end endmodule
