How to connect your laptop to the classroom wireless AP

1. How to connect your laptopto the classroom wireless AP

2. 1. Right click on the wireless icon, choose “view Available Wireless Networks”.

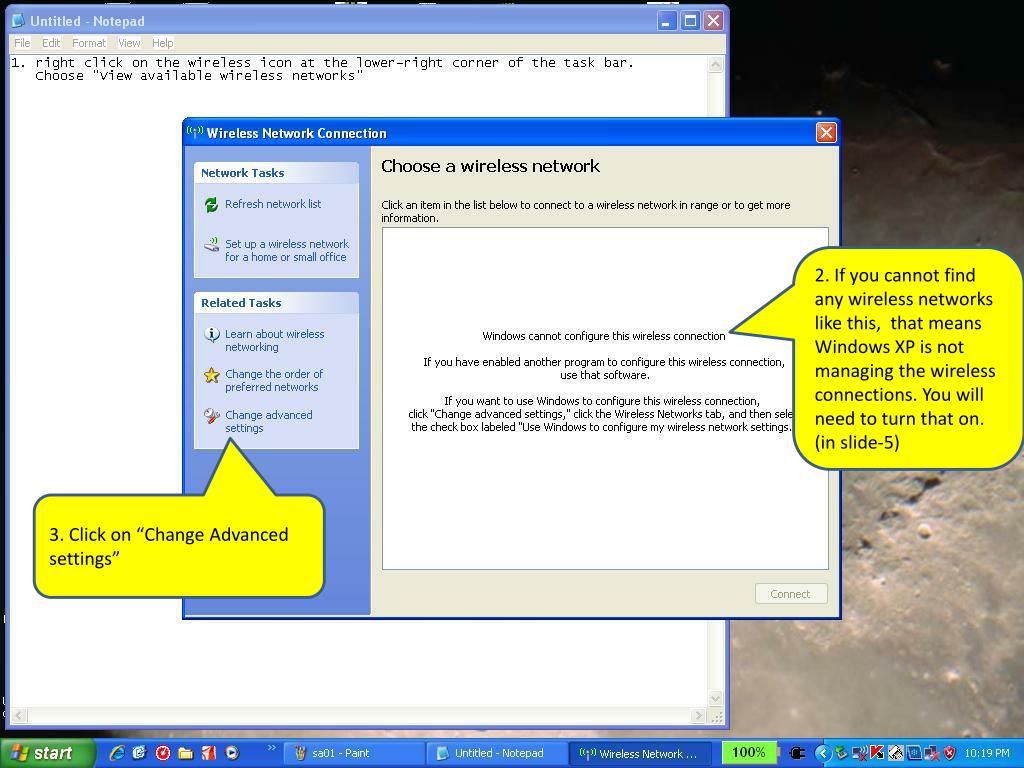

3. 2. If you cannot find any wireless networks like this, that means Windows XP is not managing the wireless connections. You will need to turn that on. (in slide-5) 3. Click on “Change Advanced settings”

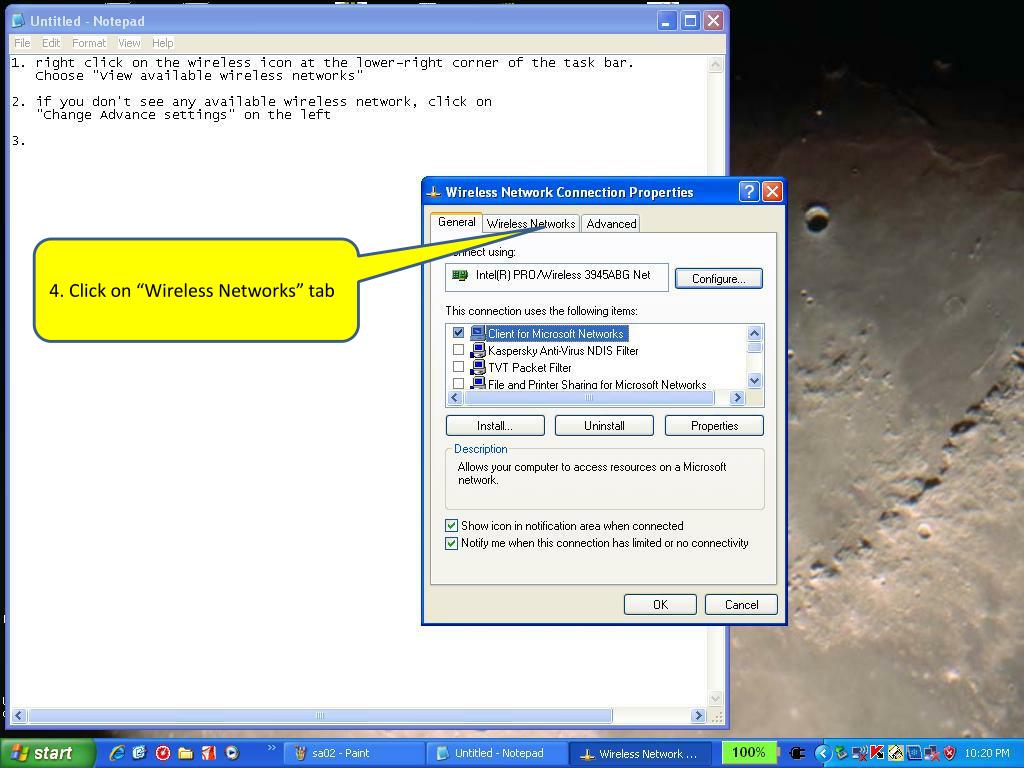

4. 4. Click on “Wireless Networks” tab

5. 5. Click to check on this checkbox 6. Click “View Wireless Networks”.

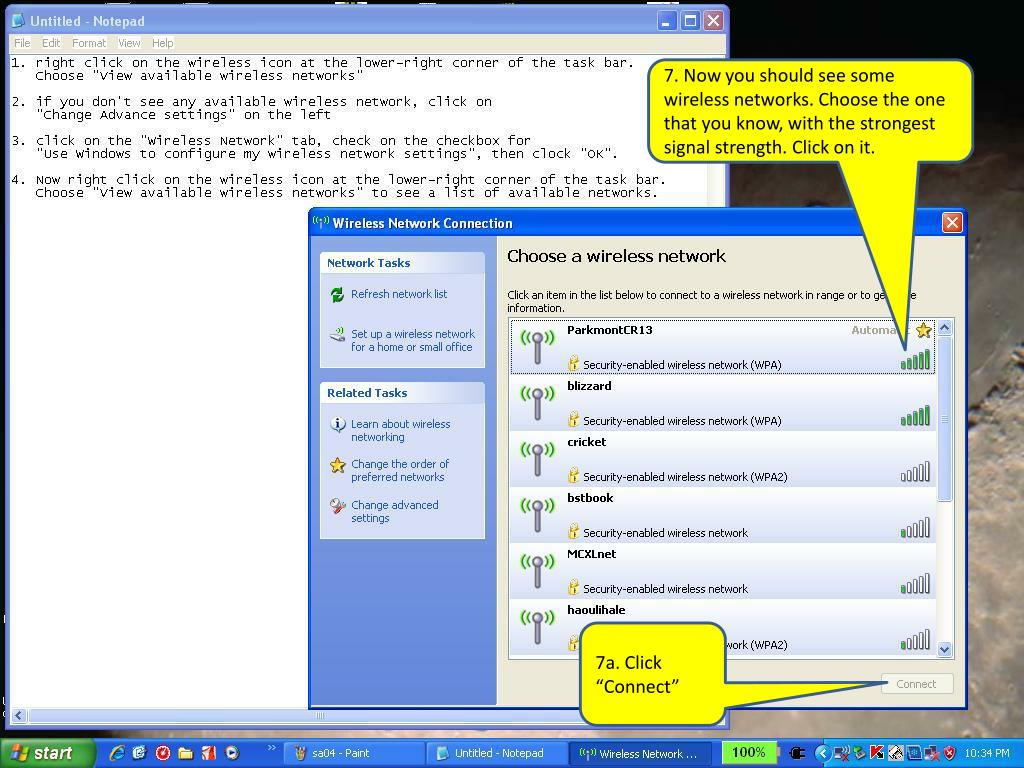

6. 7. Now you should see some wireless networks. Choose the one that you know, with the strongest signal strength. Click on it. 7a. Click “Connect”

7. 8. It will ask for your network key string. Find it on your wireless AP and type it in here.

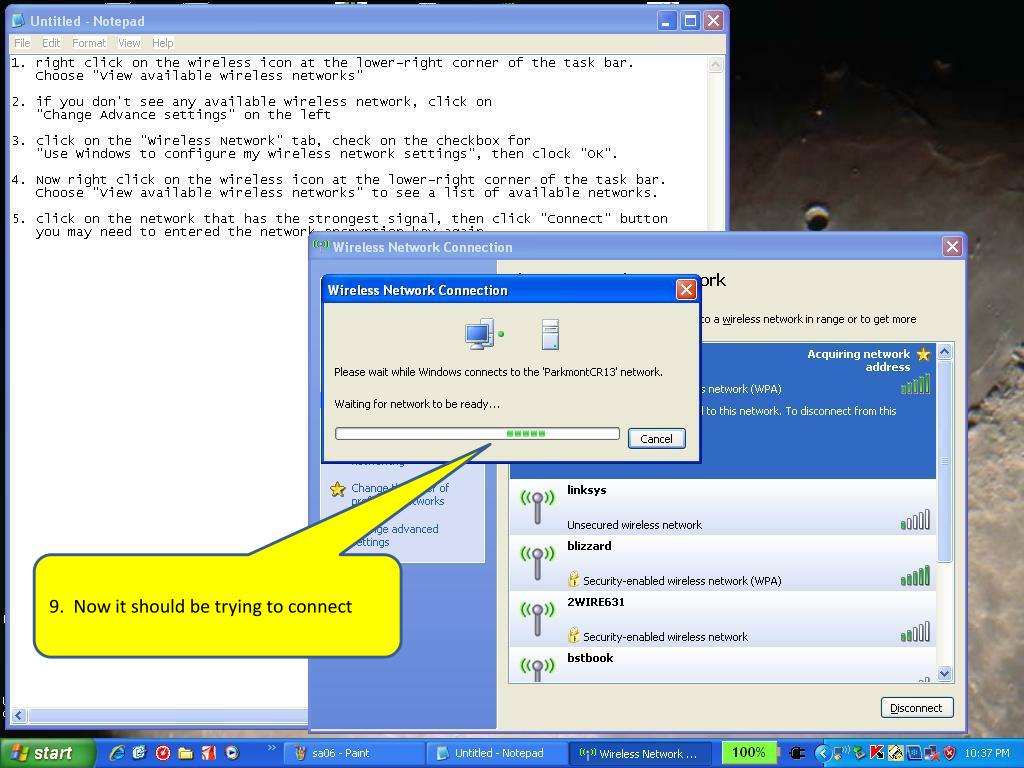

8. 9. Now it should be trying to connect

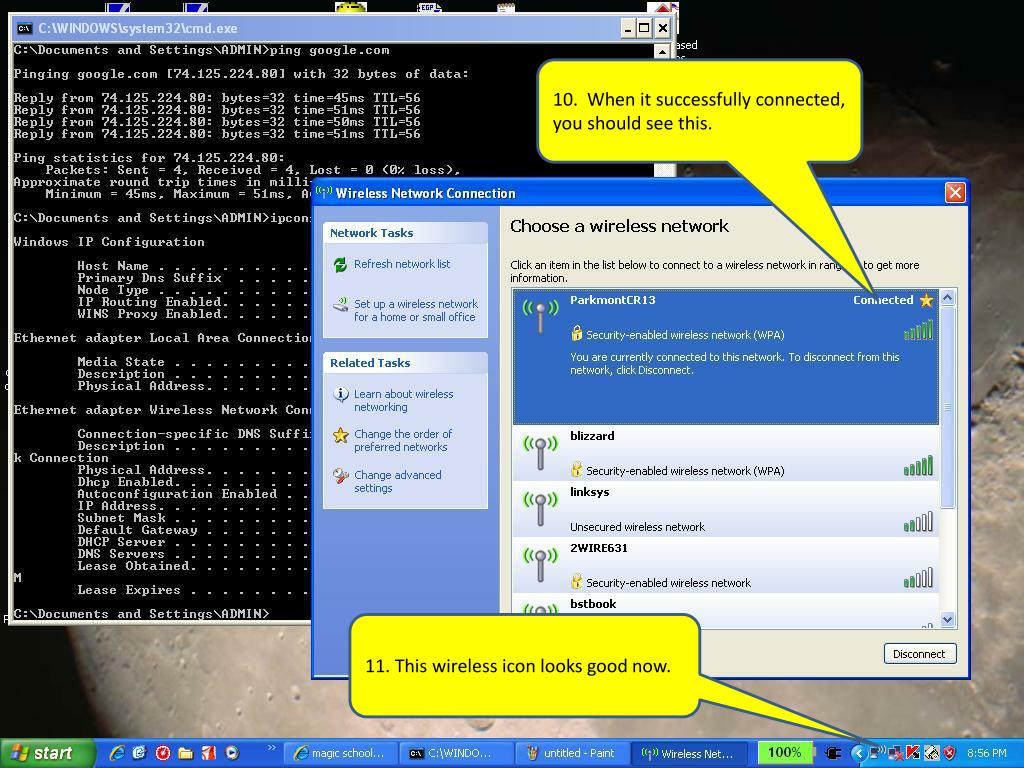

9. 10. When it successfully connected, you should see this. 11. This wireless icon looks good now.

10. 14. [optional:] Ping google.com to test the connectivity 15. [optional:] enter “ipconfig /all” to examine your network settings 12. [optional:] Place you cursor at the wireless icon and you should see this message. 13. [optional:] To ensure network connectivity, click on “Start”, choose “Run”, then type in “cmd”, click OK to start the Command Prompt window, which looks like above.

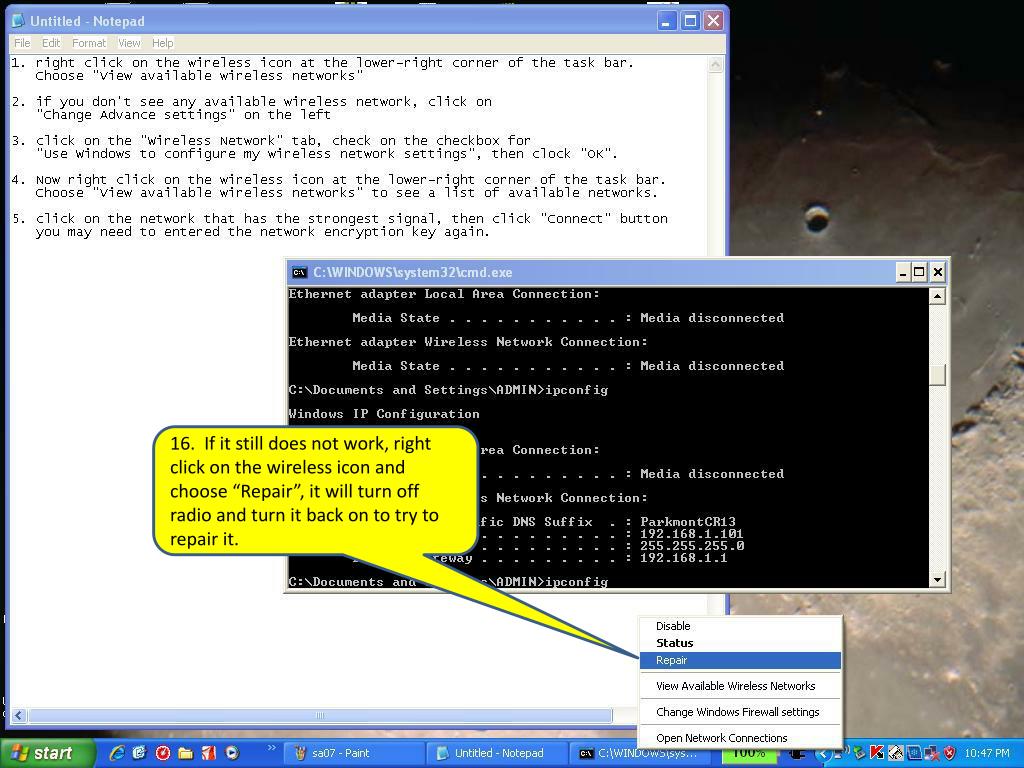

11. 16. If it still does not work, right click on the wireless icon and choose “Repair”, it will turn off radio and turn it back on to try to repair it.

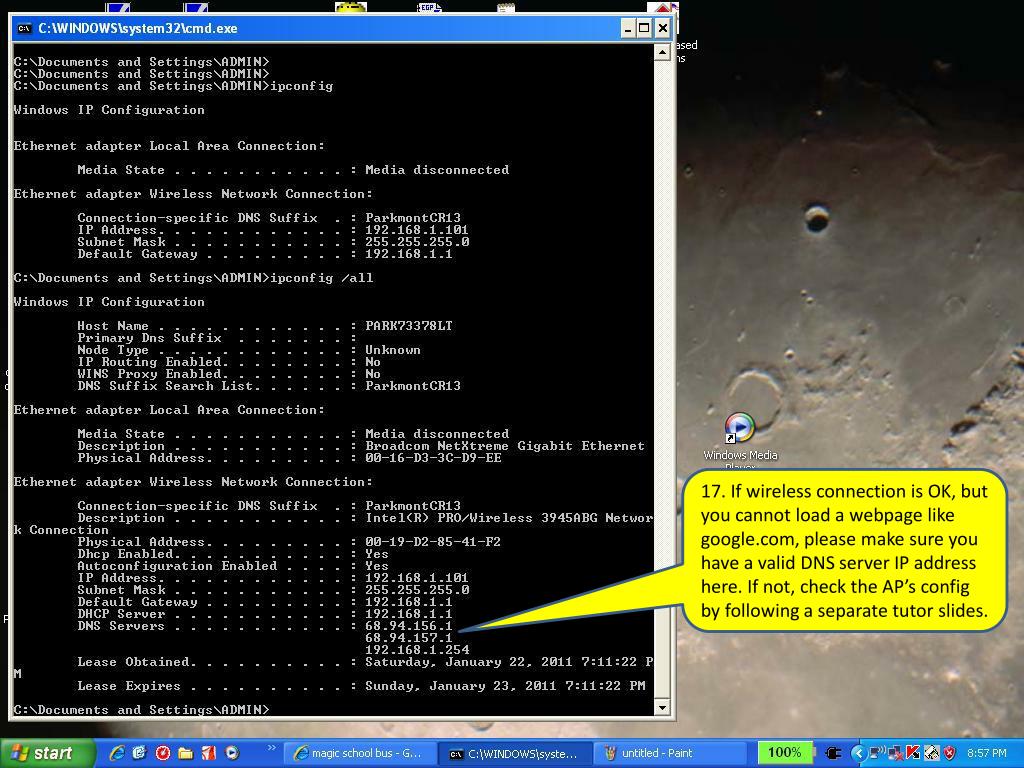

12. 17. If wireless connection is OK, but you cannot load a webpage like google.com, please make sure you have a valid DNS server IP address here. If not, check the AP’s config by following a separate tutor slides.

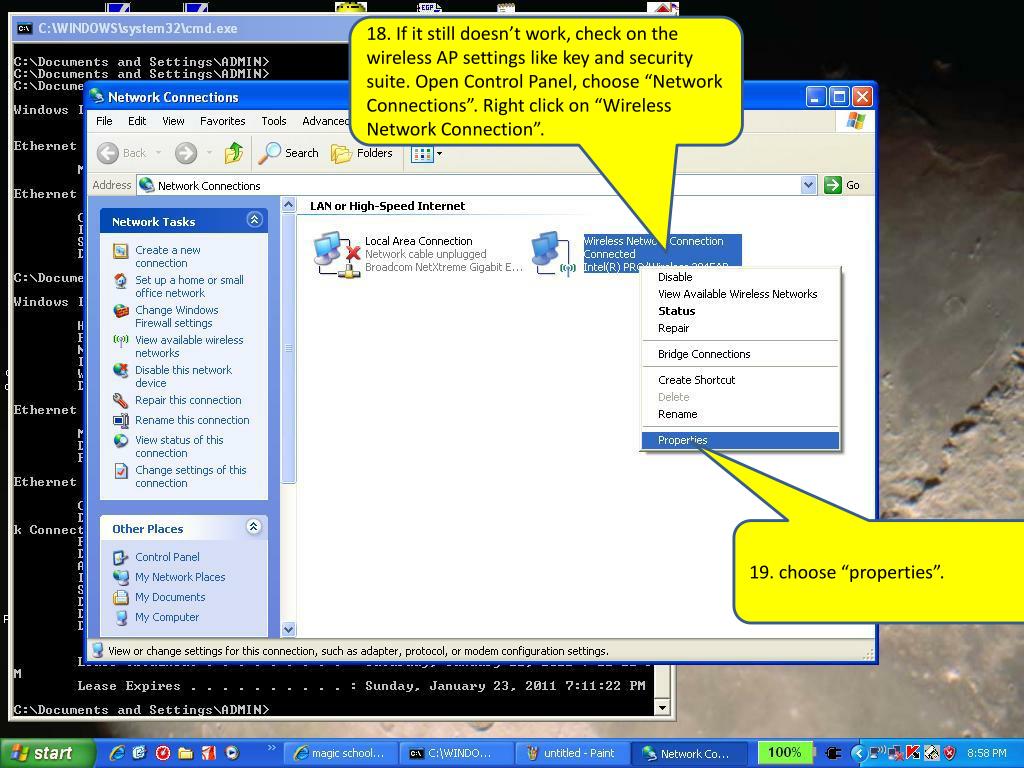

13. 18. If it still doesn’t work, check on the wireless AP settings like key and security suite. Open Control Panel, choose “Network Connections”. Right click on “Wireless Network Connection”. 19. choose “properties”.

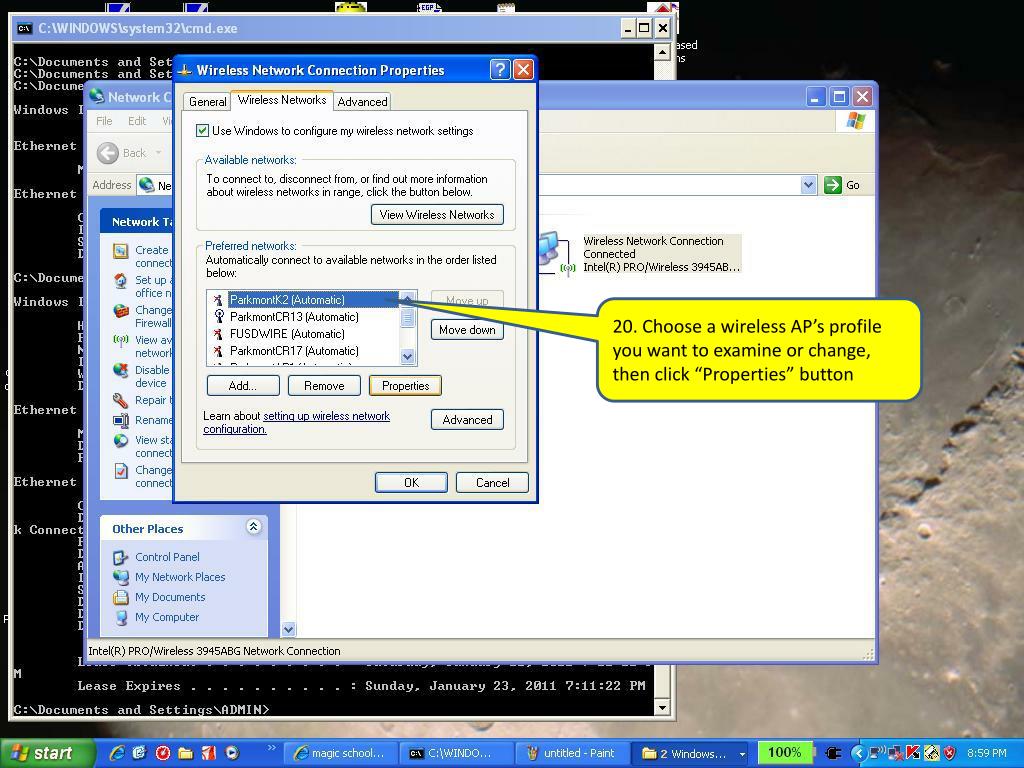

14. 20. Choose a wireless AP’s profile you want to examine or change, then click “Properties” button

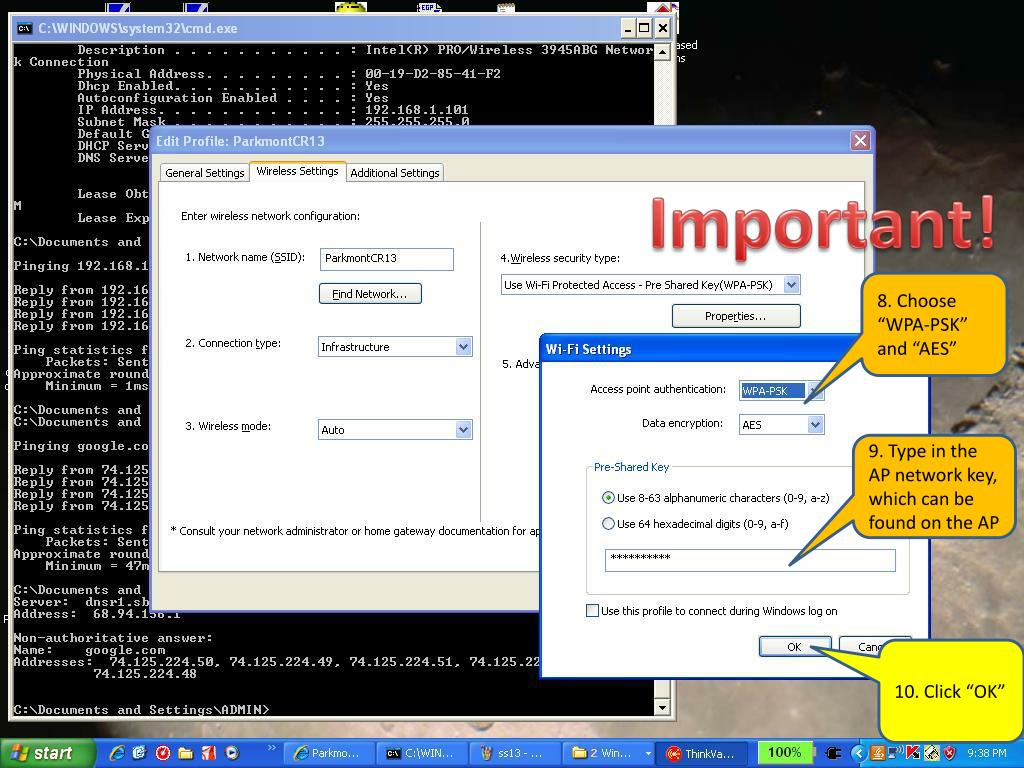

15. Important! 21. Choose “WPA-PSK” and “AES”, type in the correct AP network key, which can be found on top of your AP router. 23. Click OK 22. Click OK

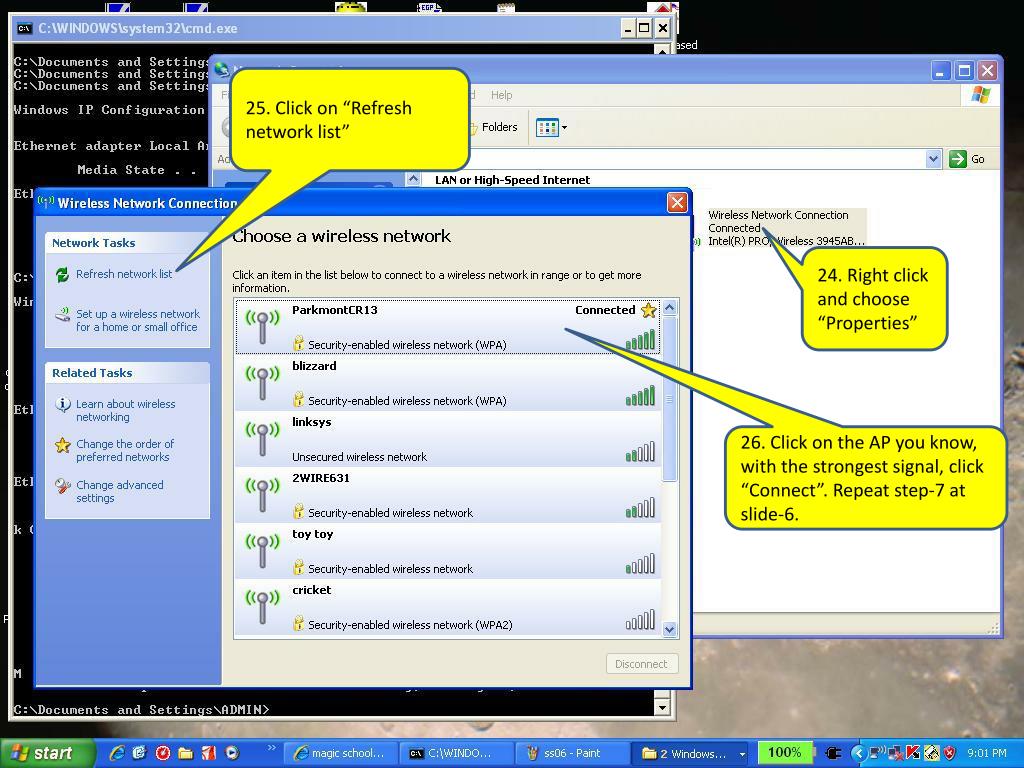

16. 25. Click on “Refresh network list” 24. Right click and choose “Properties” 26. Click on the AP you know, with the strongest signal, click “Connect”. Repeat step-7 at slide-6.

17. 27. Now it should be trying to connect

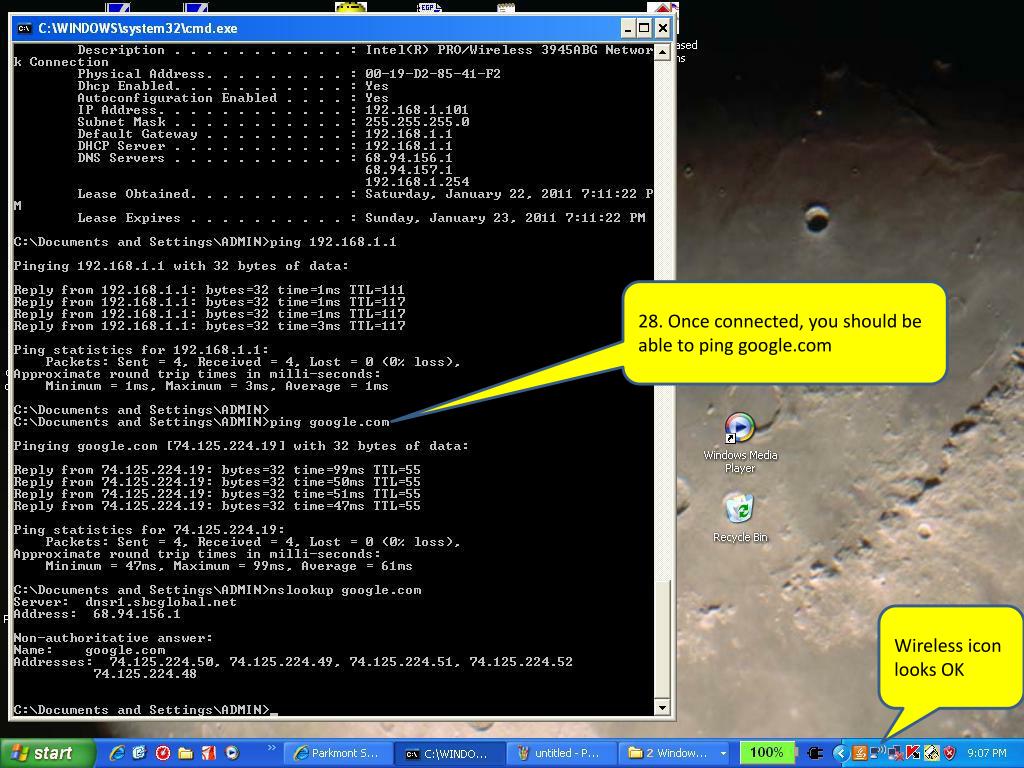

18. 28. Once connected, you should be able to ping google.com Wireless icon looks OK

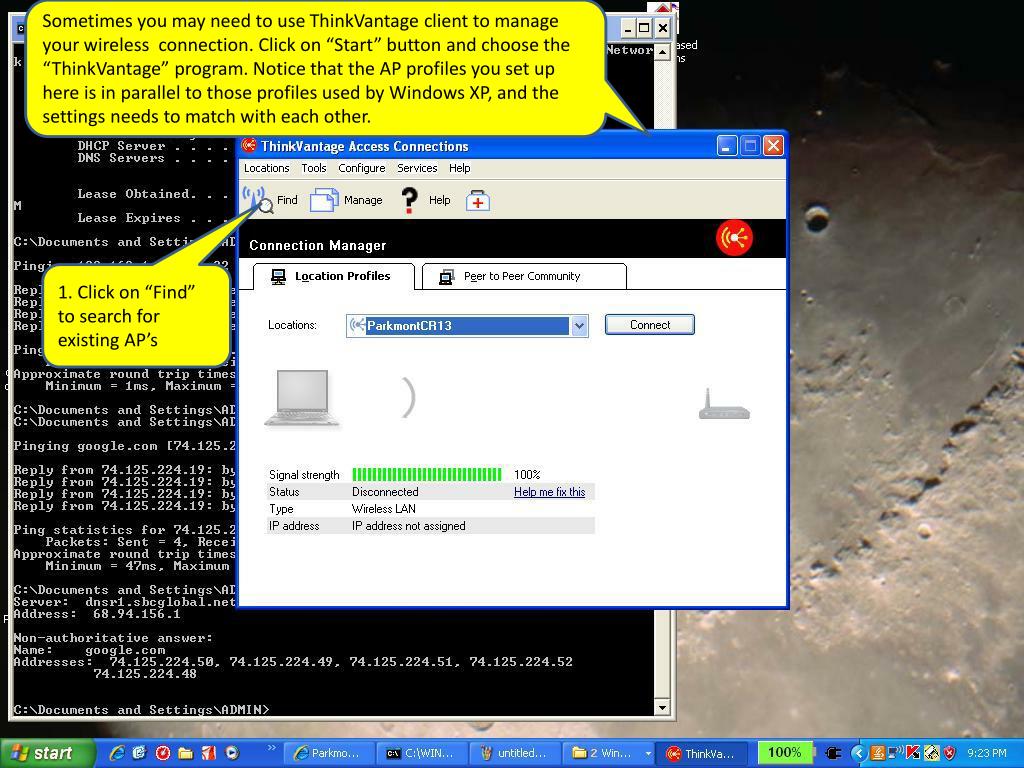

19. Sometimes you may need to use ThinkVantage client to manage your wireless connection. Click on “Start” button and choose the “ThinkVantage” program. Notice that the AP profiles you set up here is in parallel to those profiles used by Windows XP, and the settings needs to match with each other. 1. Click on “Find” to search for existing AP’s

20. 3. If connection failed, click on “Manage” to examine or change AP profile settings 2. Here you find a list of AP’s and their signal strength in relative positions. Click on the one with highest signal, then click the “Connect” button at below.

21. 5. Then click on “Wireless Settings” tab 4. Enter the AP’s name

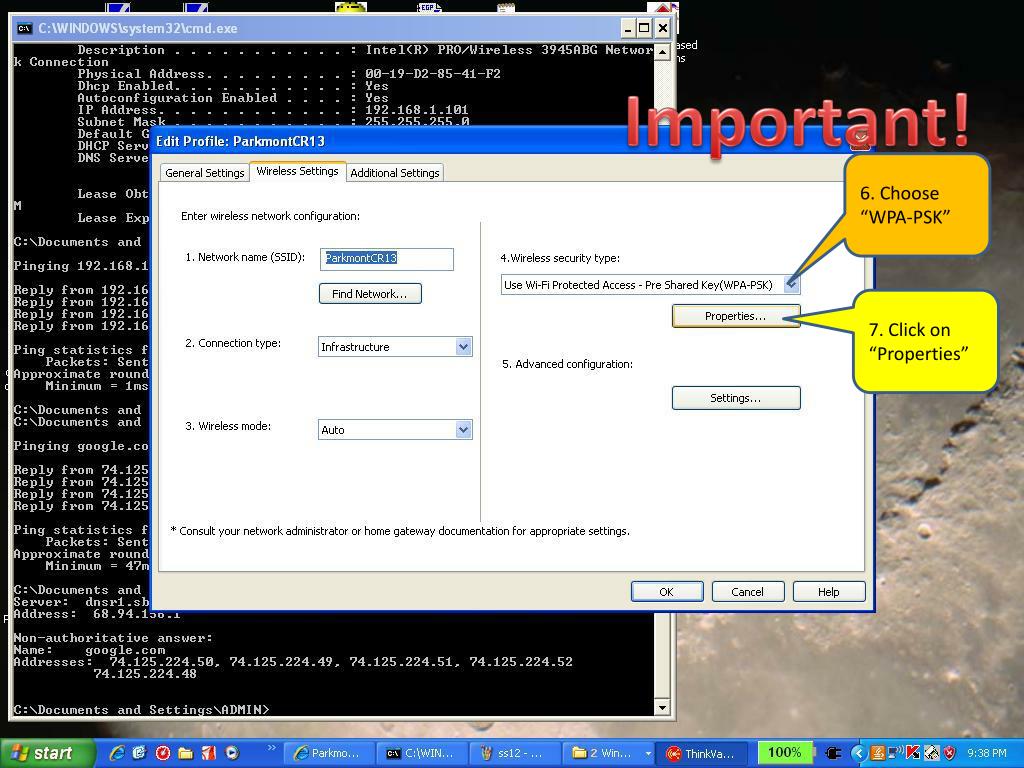

22. Important! 6. Choose “WPA-PSK” 7. Click on “Properties”

23. Important! 8. Choose “WPA-PSK” and “AES” 9. Type in the AP network key, which can be found on the AP 10. Click “OK”

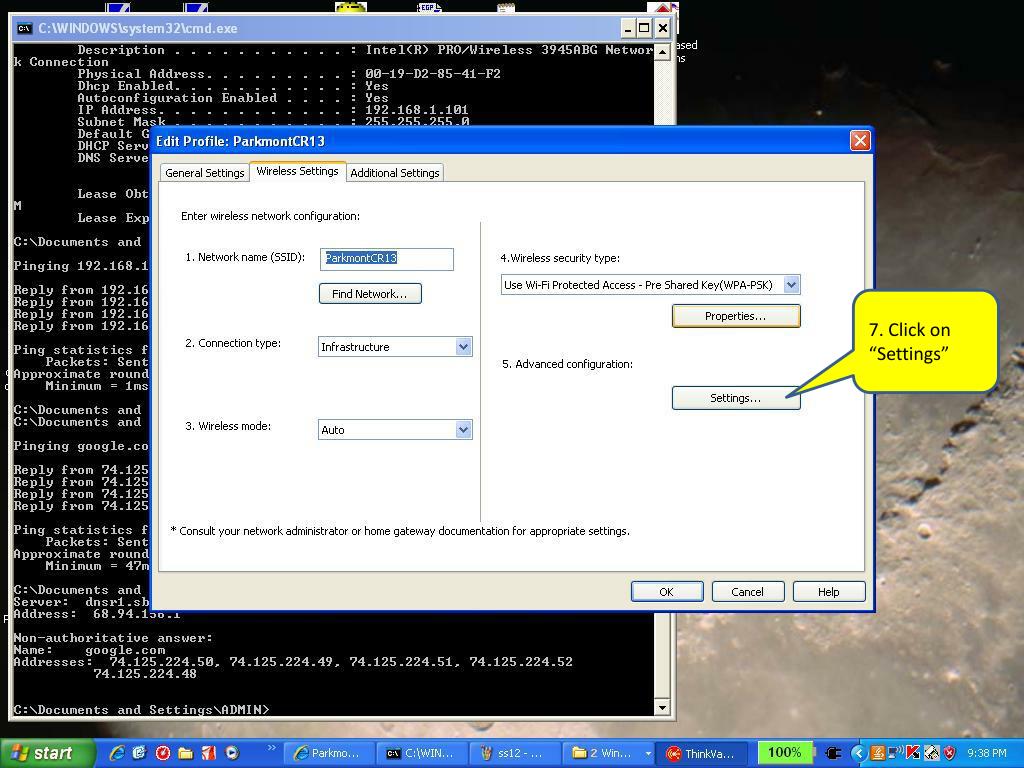

24. 7. Click on “Settings”

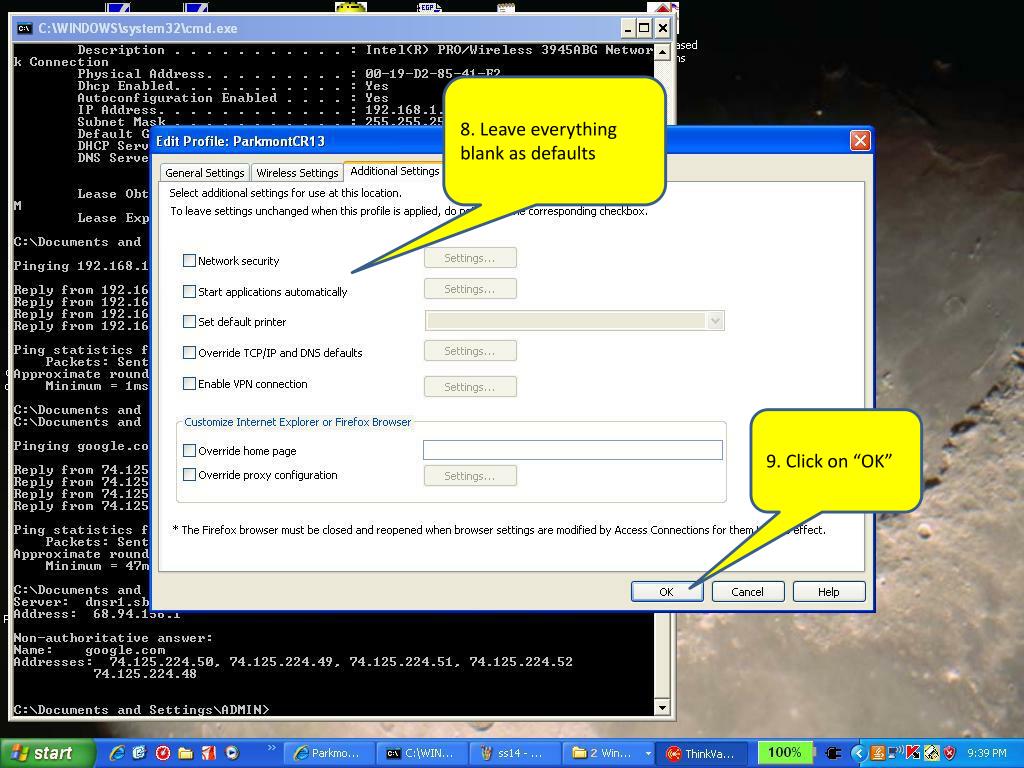

25. 8. Leave everything blank as defaults 9. Click on “OK”

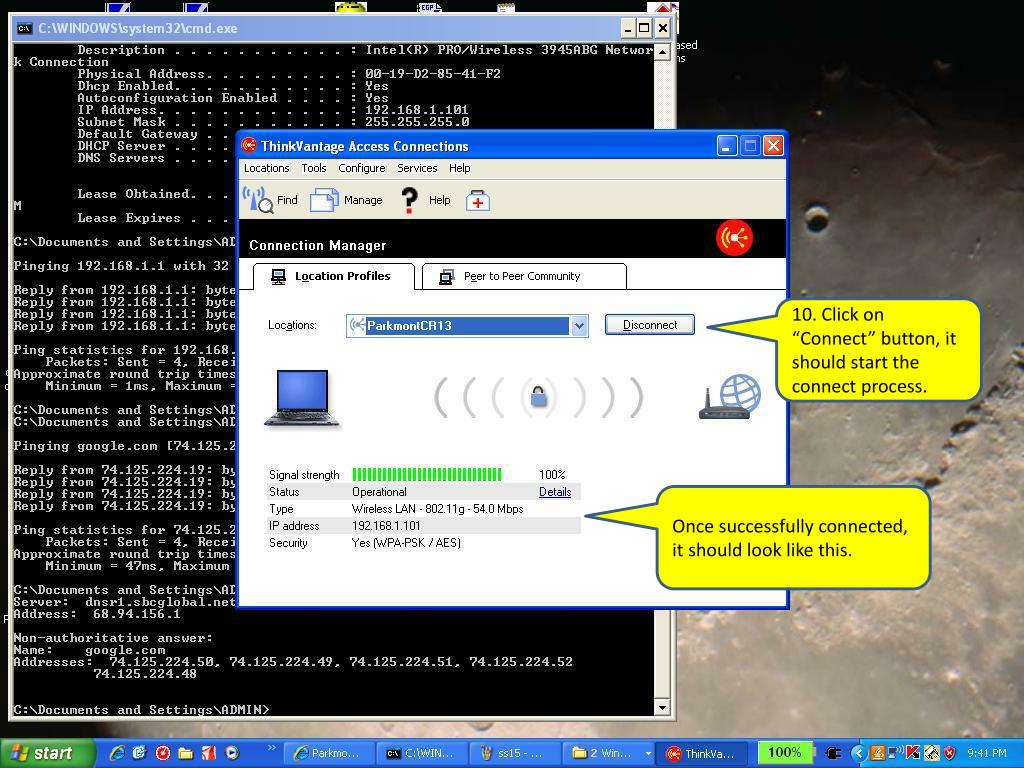

26. 10. Click on “Connect” button, it should start the connect process. Once successfully connected, it should look like this.

27. You may want to do a network speed test, to verify your network connection download and upload speeds. Go to http://speakeasy.net/speedtest Click on San Francisco

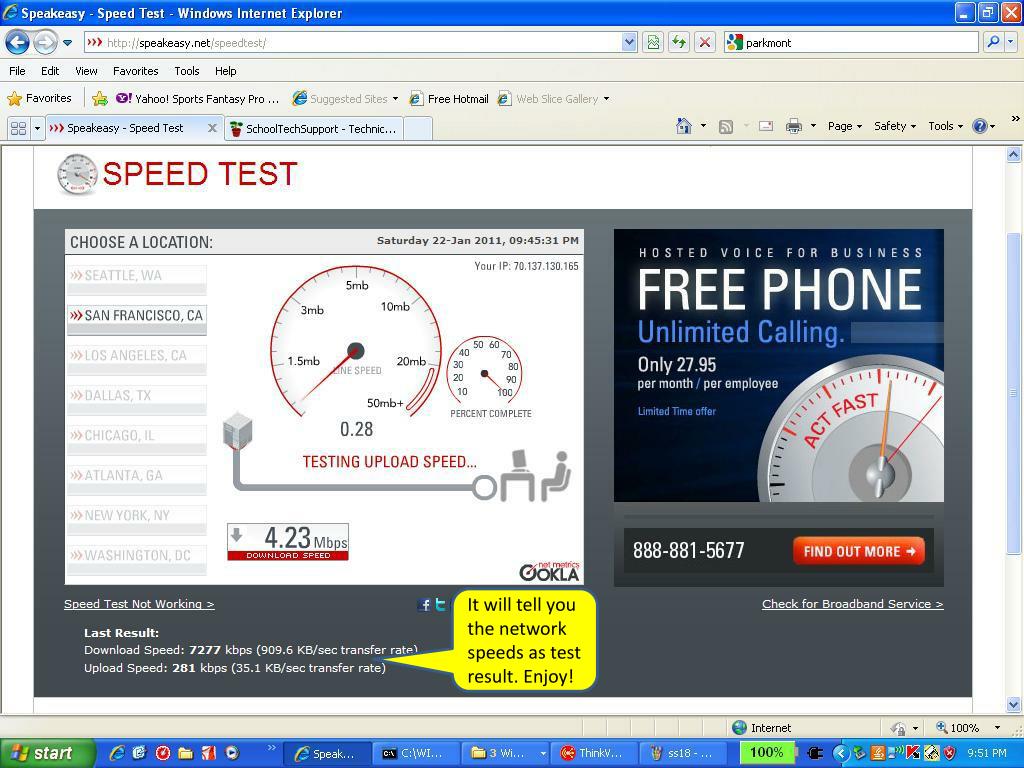

28. It will tell you the network speeds as test result. Enjoy!
