  1. Patch Based Synthesis for Single Depth Image Super-Resolution (ECCV 2012)Oisin Mac Aodha, Neill Campbell, Arun Nair and Gabriel J. Brostow Presented By: Itzik Ben Shabat January 2014

  2. Contents • Problem & Motivation • SR General Overview • Related Work • The Proposed Method • Results • Qualitative • Quantitative • Future Work • Paper review

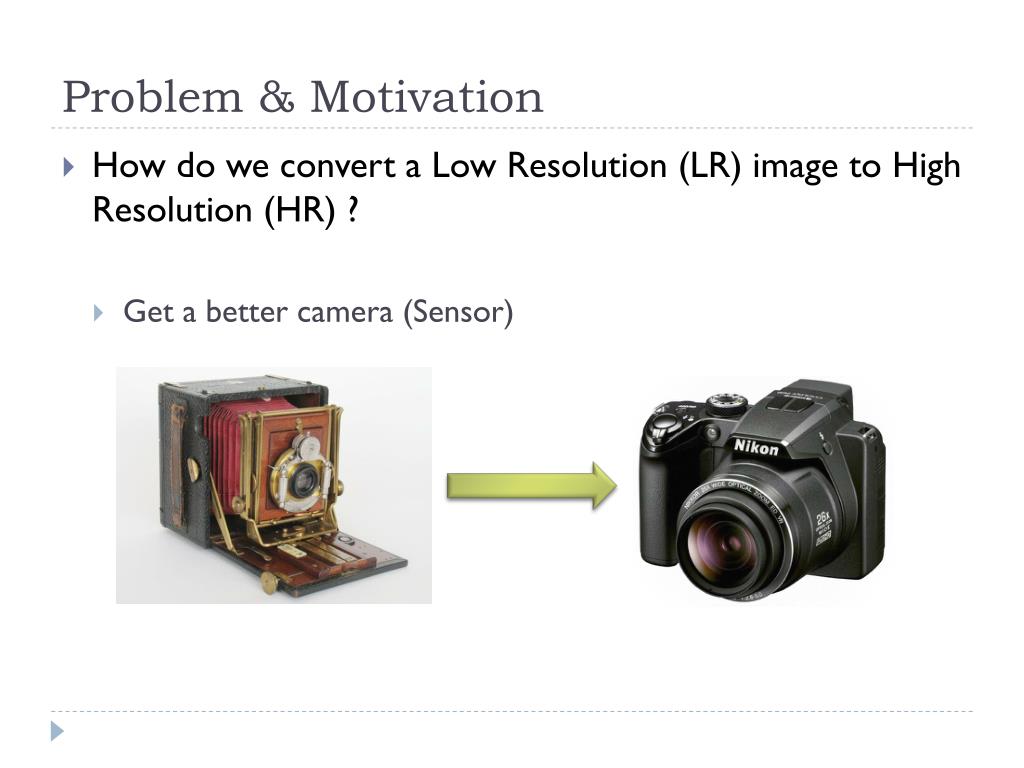

  3. Problem & Motivation • How do we convert a Low Resolution (LR) image to High Resolution (HR) ? • Get a better camera (Sensor)

  4. Problem & Motivation • Cant get a better camera? Super Resolve the image! (SR)

  5. Problem & Motivation • Now do it in RGB-D ! ! ! PMD CamCube - 200X200 MS Kinect - 640x480 PointGreyBumbleBee 2 - 640x480 at 48fps

  6. SR General Overview Common approaches: • Take multiple LR images from different angles and reconstruct the additional information (requires multiple images)

  7. SR General Overview Common approaches: • Use a LR to HR database (requires a database) • Focus on this approach

  8. Related Work • Intensity Images • EbSR [15] - Freeman, W.T., Liu, C.: Example-based super resolution. In: Advances in Markov Random Fields for Vision and Image Processing. MIT Press (2011) • Similar: • Filter input • Normalized Patch matching • Solving minimum energy problem (using BP) • Different • Not Designed for RGB-D images • Matching HR and interpolated LR patches

  9. Related Work • EbSR looking closer EbSR Output Ground trouth

  10. Related Work • Intensity Images • ScSr [17] - Yang, J., Wright, J., Huang, T.S., Ma, Y.: Image super-resolution via sparse representation. IEEE Transactions on Image Processing (2010) • Similar: • Use patches and minimization problem • Different: • Not designed for RGB-D images • Two dictionaries • Database structure (sparse representation) • Solves 2 minimization problems separately – global and local • No noise reduction implementation

  11. Related Work • Depth + Intensity Hybrids • Cross Bilateral [1] - Yang, Q., Yang, R., Davis, J., Nister, D.: Spatial-depth super resolution for range images. In: CVPR. (2007) • Similar: • Specific for RGB-D • Use bilateral filter • Different: • Requires additional input (destination resolution image) • Doesn’t use patches • Solves a fusion problem

  12. Related Work • Depth + Intensity Hybrids • MRF SR [25]- Diebel, J., Thrun, S.: An application of markov random fields to range sensing. In: NIPS. (2005) • Similar: • Uses MRF • Different: • Uses multi-resolution MRF • Requires additional input (destination resolution image) • Doesn’t use patches • Solves a fusion problem

  13. The Proposed Method • Challenges • Construct database • Noise • “Flying pixels” at discontinuities • Wrong depths for specular or dark materials • Edges – jarring artifacts (different than rgb image)

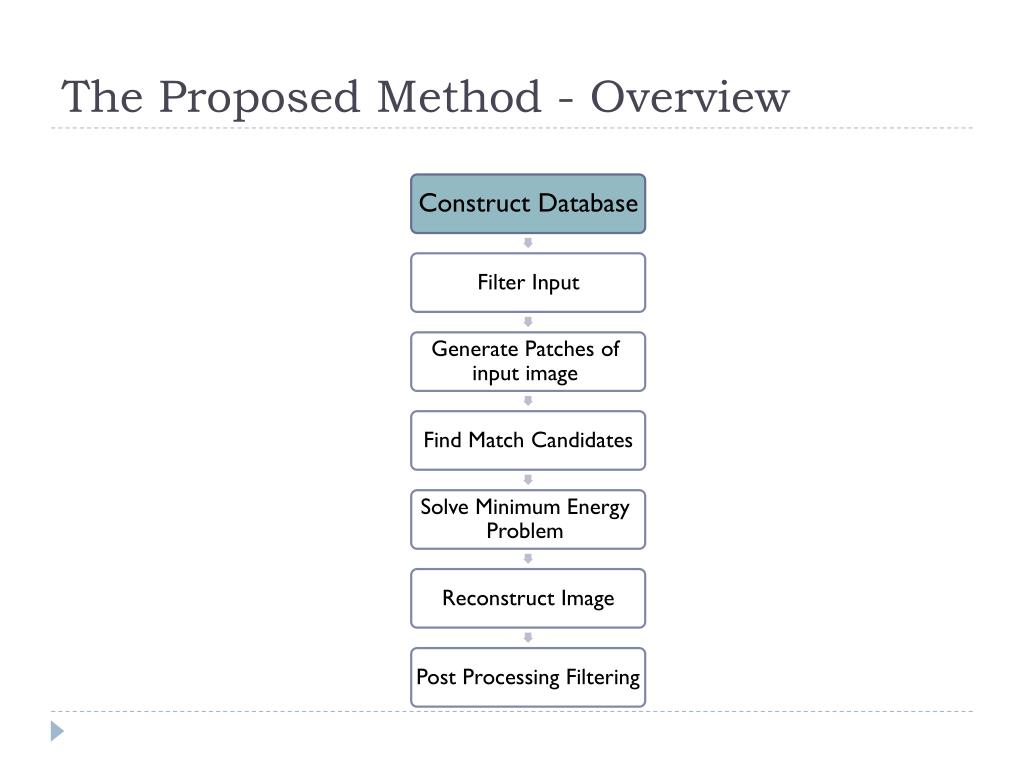

  14. The Proposed Method - Overview

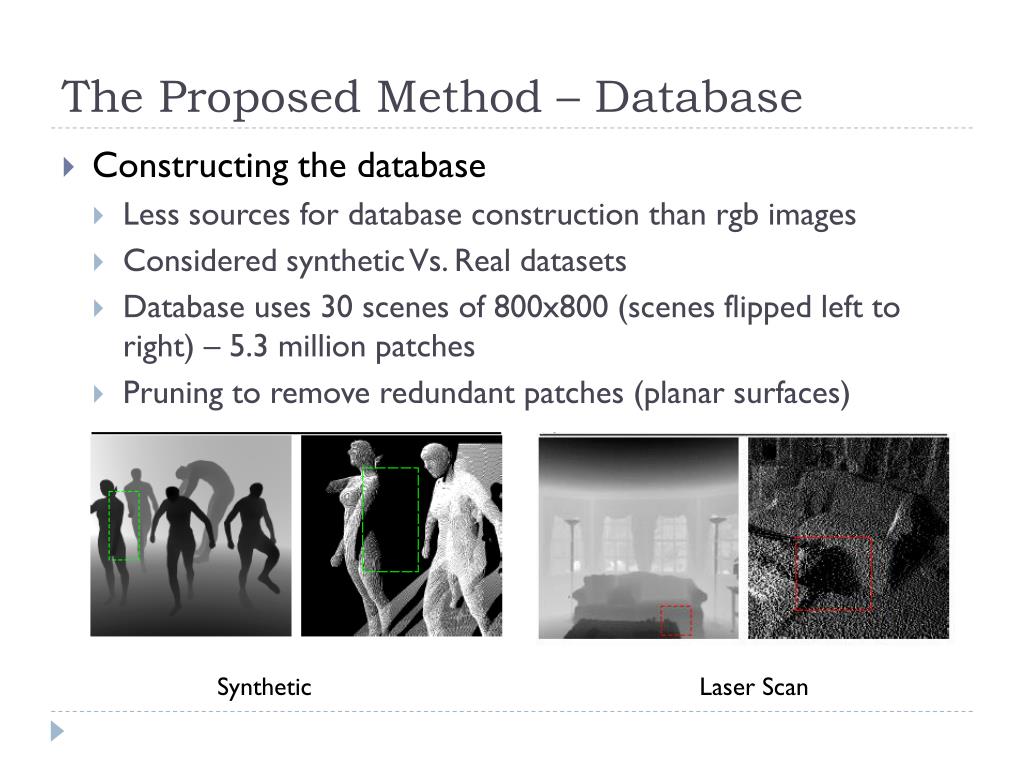

  15. The Proposed Method – Database • Constructing the database • Less sources for database construction than rgbimages • Considered synthetic Vs. Real datasets • Database uses 30 scenes of 800x800 (scenes flipped left to right) – 5.3 million patches • Pruning to remove redundant patches (planar surfaces) Synthetic Laser Scan

  16. The Proposed Method - Overview

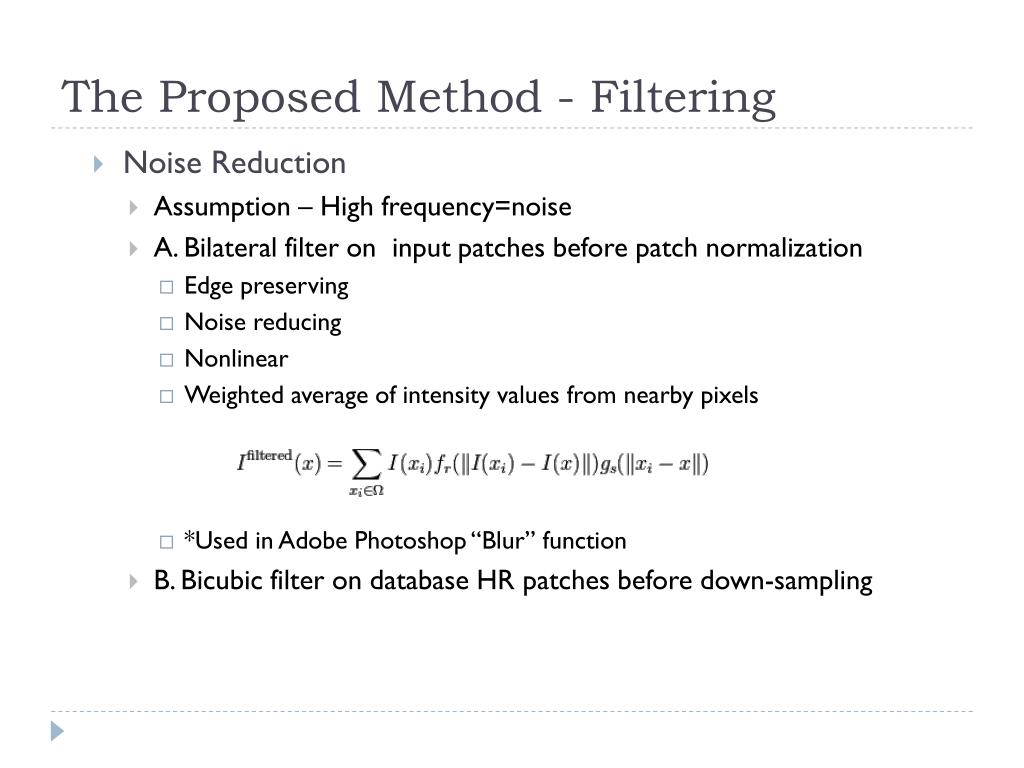

  17. The Proposed Method - Filtering • Noise Reduction • Assumption – High frequency=noise • A. Bilateral filter on input patches before patch normalization • Edge preserving • Noise reducing • Nonlinear • Weighted average of intensity values from nearby pixels • *Used in Adobe Photoshop “Blur” function • B. Bicubic filter on database HR patches before down-sampling

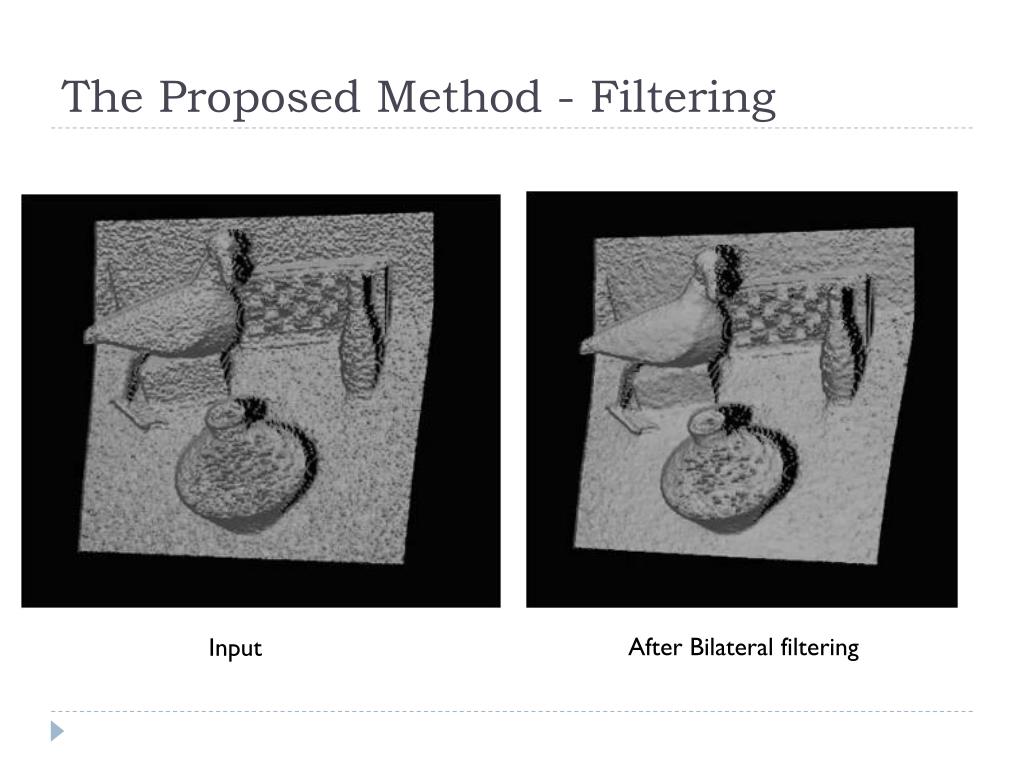

  18. The Proposed Method - Filtering After Bilateral filtering Input

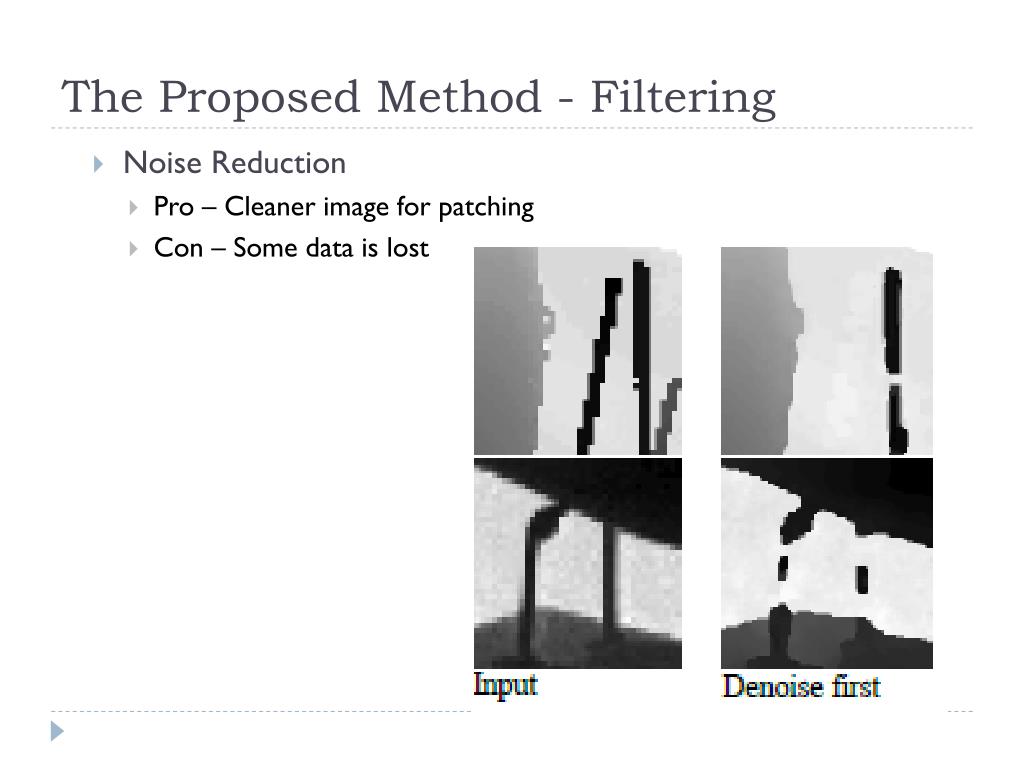

  19. The Proposed Method - Filtering • Noise Reduction • Pro – Cleaner image for patching • Con – Some data is lost

  20. The Proposed Method - Overview

  21. The Proposed Method – Matching Input Depth Image

  22. The Proposed Method – Matching Input Depth Image N non overlapping low resolution input patches xi For each xi we wish to find its corresponding high resolution yi Patches are normalized

  23. The Proposed Method – Matching High Resolution Database

  24. The Proposed Method – Matching Input Depth Image Output Depth Image High Resolution Database

  25. The Proposed Method – Matching Input Depth Image Output Depth Image High Resolution Database

  26. The Proposed Method – Matching Output Depth Image High Resolution Database

  27. The Proposed Method – Matching Input Depth Image Output Depth Image … High Resolution Database

  28. The Proposed Method – Matching Input Depth Image Output Depth Image … High Resolution Database

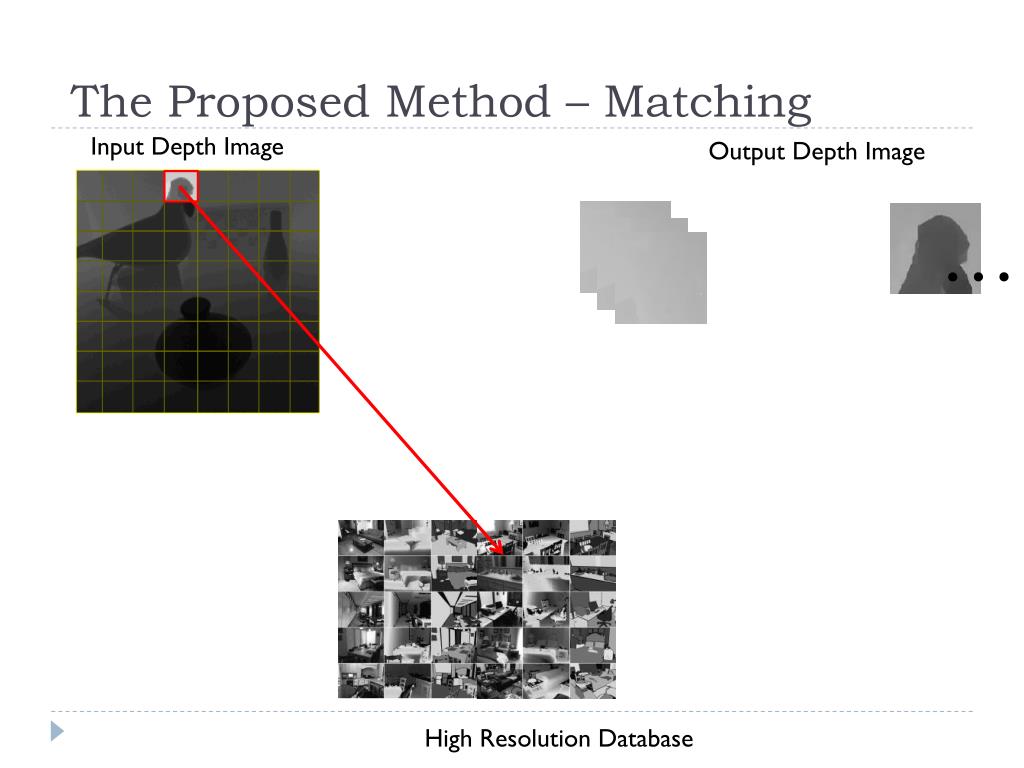

  29. The Proposed Method – Matching Input Depth Image Output Depth Image … High Resolution Database

  30. The Proposed Method – Matching Input Depth Image Output Depth Image … High Resolution Database

  31. The Proposed Method – Matching Input Depth Image Output Depth Image … … High Resolution Database

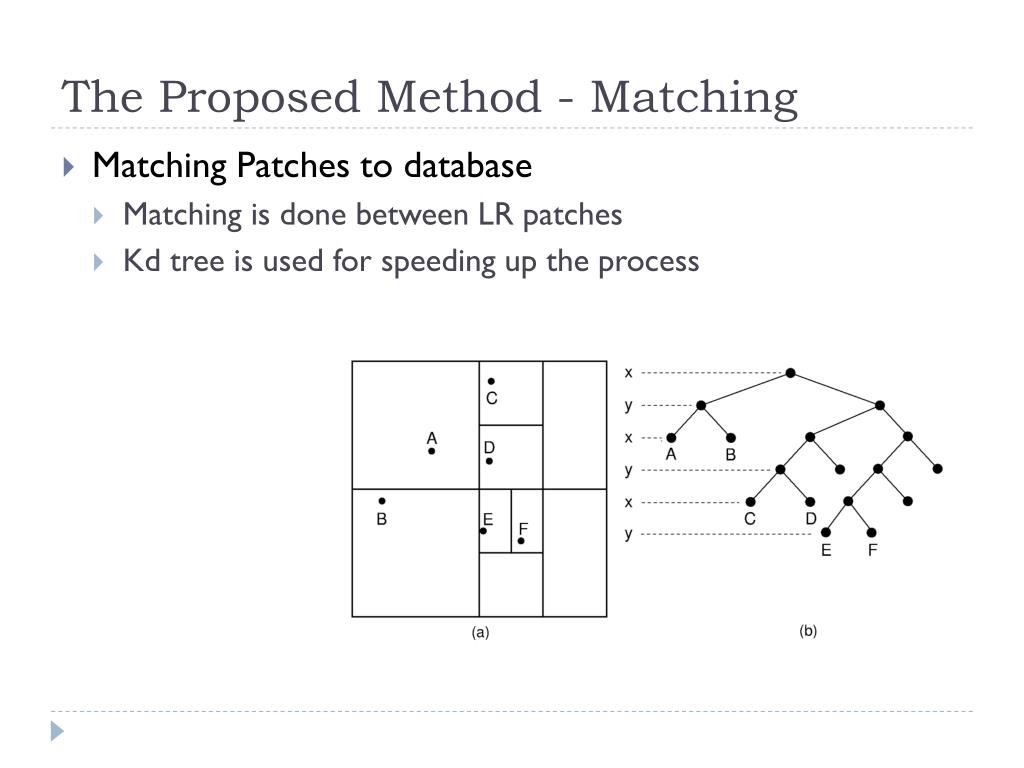

  32. The Proposed Method - Matching • Matching Patches to database • Matching is done between LR patches • Kd tree is used for speeding up the process

  33. The Proposed Method - Overview

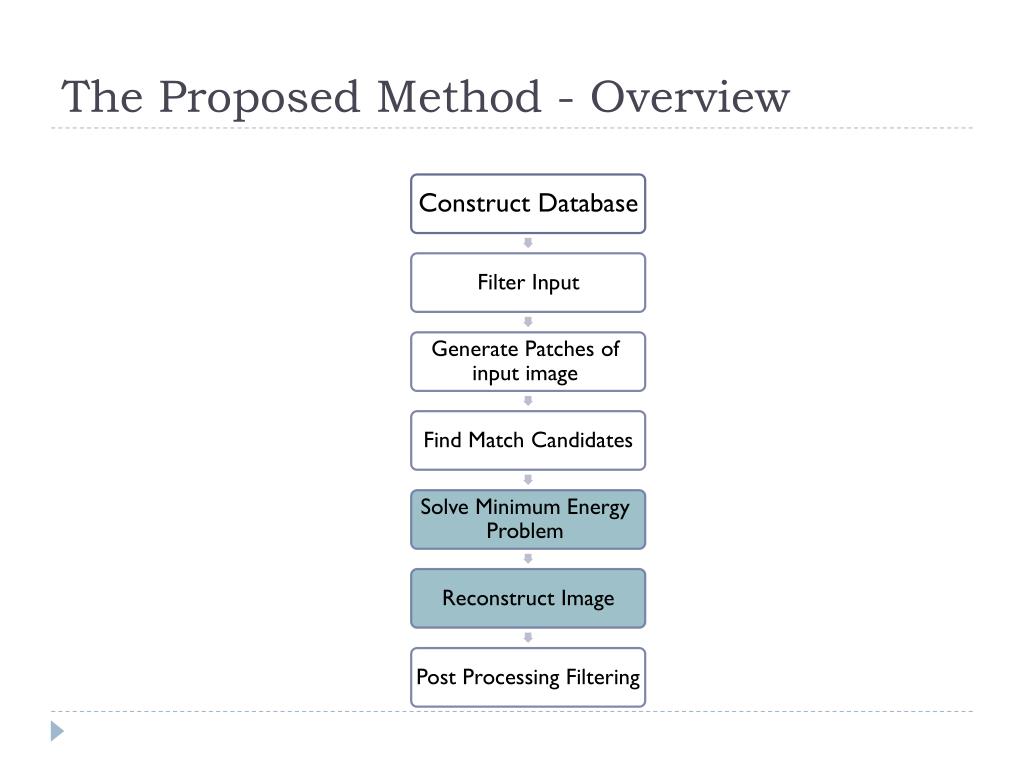

  34. The Proposed Method - Reconstruction • Solving minimum energy problem • Solved using TRW-S algorithm (based on belief propagation) • Ed -Unary Potential - Difference between normalized matching LR patches

  35. The Proposed Method - Reconstruction • Es -Pairwise Potential - Difference between un-normalized HR patch overlaps

  36. The Proposed Method - Reconstruction • Es - Pairwise Potential - yi yj

  37. The Proposed Method - Reconstruction • Es - Pairwise Potential - yi yj

  38. The Proposed Method - Reconstruction • Es - Pairwise Potential - yi yj

  39. The Proposed Method - Reconstruction • Es - Pairwise Potential - yi yj

  40. The Proposed Method - Reconstruction )2 )2 + ( Es=( - - yi yj

  41. The Proposed Method - Reconstruction • Normalization – is un-normalized based on the input patch min and max values

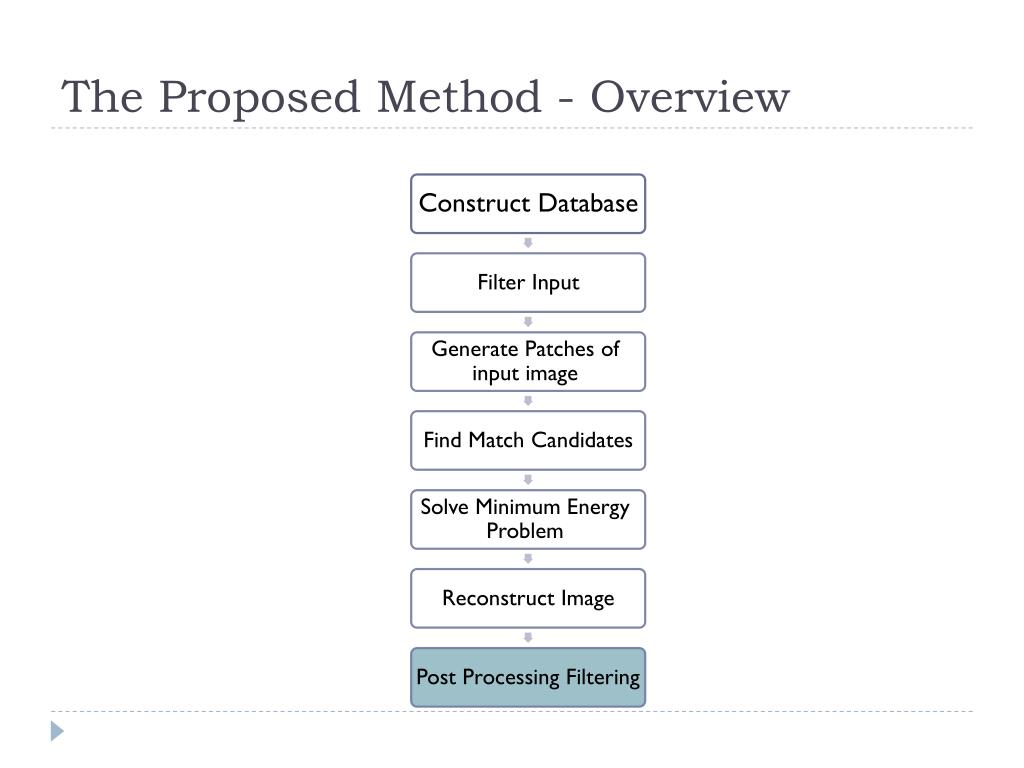

  42. The Proposed Method - Overview

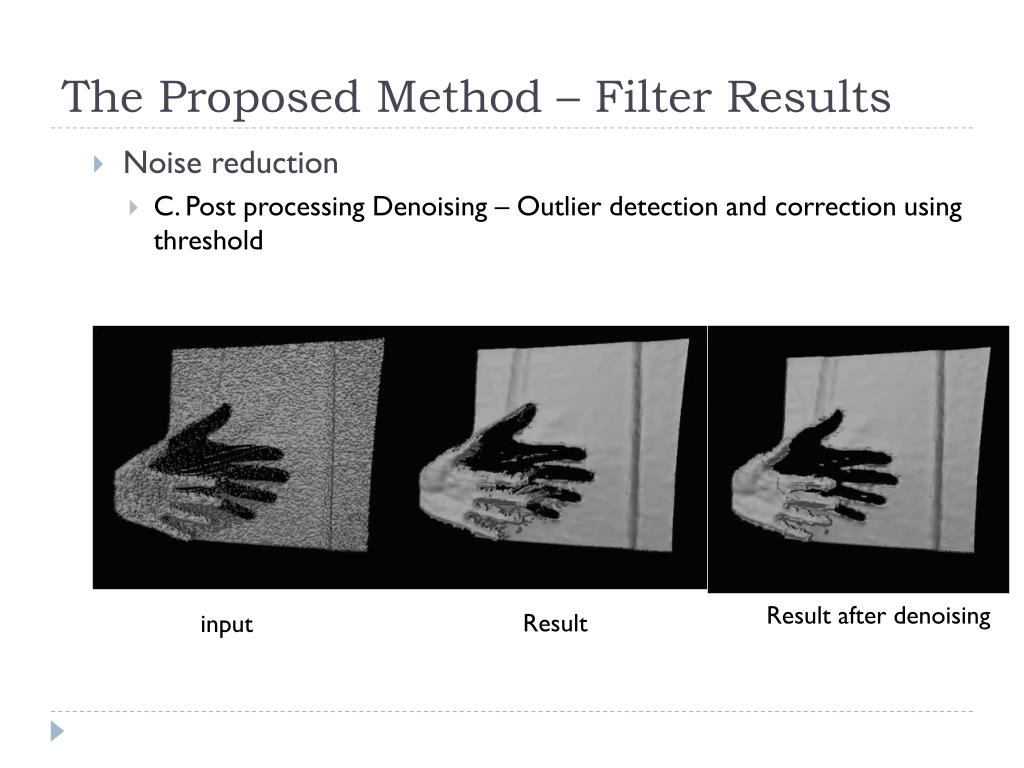

  43. The Proposed Method – Filter Results • Noise reduction • C. Post processing Denoising – Outlier detection and correction using threshold Result after denoising Result input

  44. Results - Qualitative • Exp 1: • Used Middleburry stereo dataset • Down-sampled the ground truth (X2,X4) • Reconstructed • Compared RMSE • Exp2: • 3 laser scans • Upsampled by 4 • Ground touth comparison • Exp3: • Use synthetic Vs. real database

  45. Results - Qualitative • Proposed method Vs. Other Methods (Exp. 2) Proposed Method

  46. Results - Qualitative • Proposed method - Real Vs. Synthetic training data (Exp. 3)

  47. Results - Quantitative Method used • Reminder: MRF RS Cross Bilateral ScSREbSR RGB-D image used RGB-D image used Method used Upsampling factor Method used RMSE

  48. Results - Qualitative Results Movie

  49. Conclusions • 1st or 2nd best from intensity based methods • MRF RS, Cross Bilateral are better but require more data • Speed is not realtime compatible • Super resolving moving depth videos • Synthetic data exhibit better results than scanned data for training.

  50. Future work • Extend to exploit temporal context (in video) • Exploit context when querying the database • Develop a sensor specific noise model for better results
