  1. Sensory Systems: Auditory

  2. What do we hear? • Sound is a compression wave: Speaker Air Molecules When speaker is stationary, the air is uniformly dense

  3. What do we hear? • Sound is a compression wave: Speaker When the speaker moves, it compresses the air in front of it.

  4. What do we hear? • Sound is a compression wave: Rarefaction Compression The speaker moves back leaving an area with less air behind - called rarefaction

  5. What do we hear? • Sound is a compression wave: Compression Speaker Rarefaction The speaker moves forward again starting the next wave

  6. What do we hear? • Sound is a compression wave - it only “looks” like a wave if we plot air pressure against time Period - amount of time for one cycle Frequency = number of cycles per second (1/Period) Air Pressure time ->

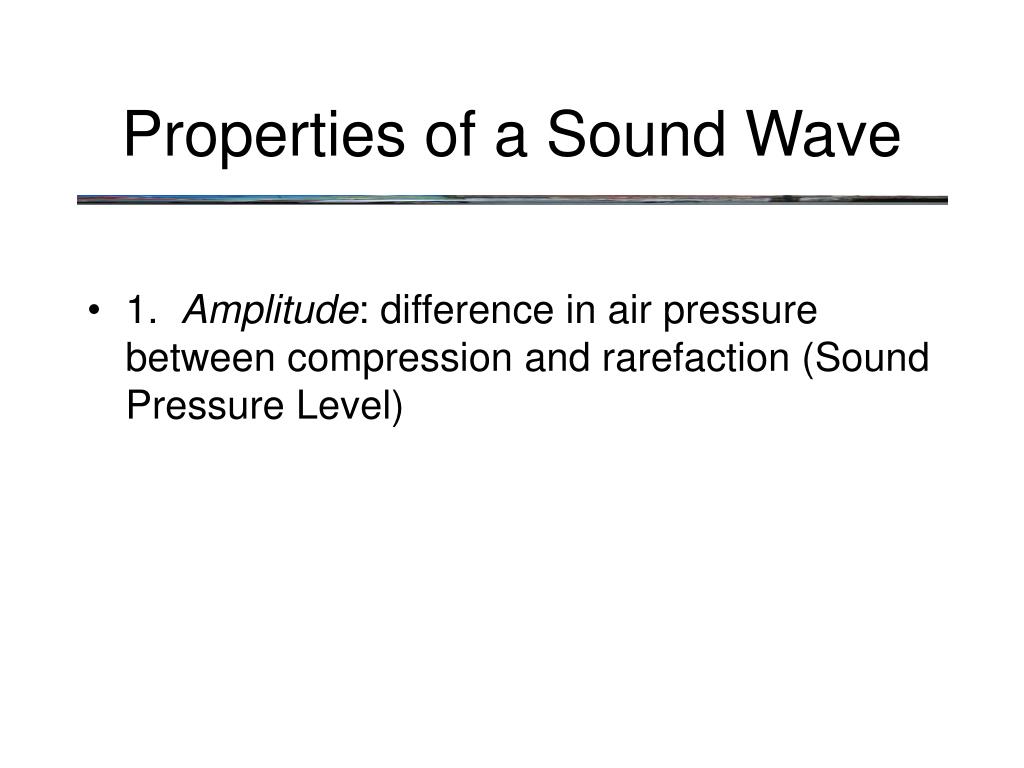

  7. Properties of a Sound Wave • 1. Amplitude: difference in air pressure between compression and rarefaction (Sound Pressure Level)

  8. Properties of a Sound Wave • 1. Amplitude: difference in air pressure between compression and rarefaction (Sound Pressure Level) • What is the perception that goes along with the sensation of sound amplitude?

  9. Properties of a Sound Wave • 1. Amplitude: difference in air pressure between compression and rarefaction (Sound Pressure Level) • What is the perception that goes along with the sensation of sound amplitude? LOUDNESS

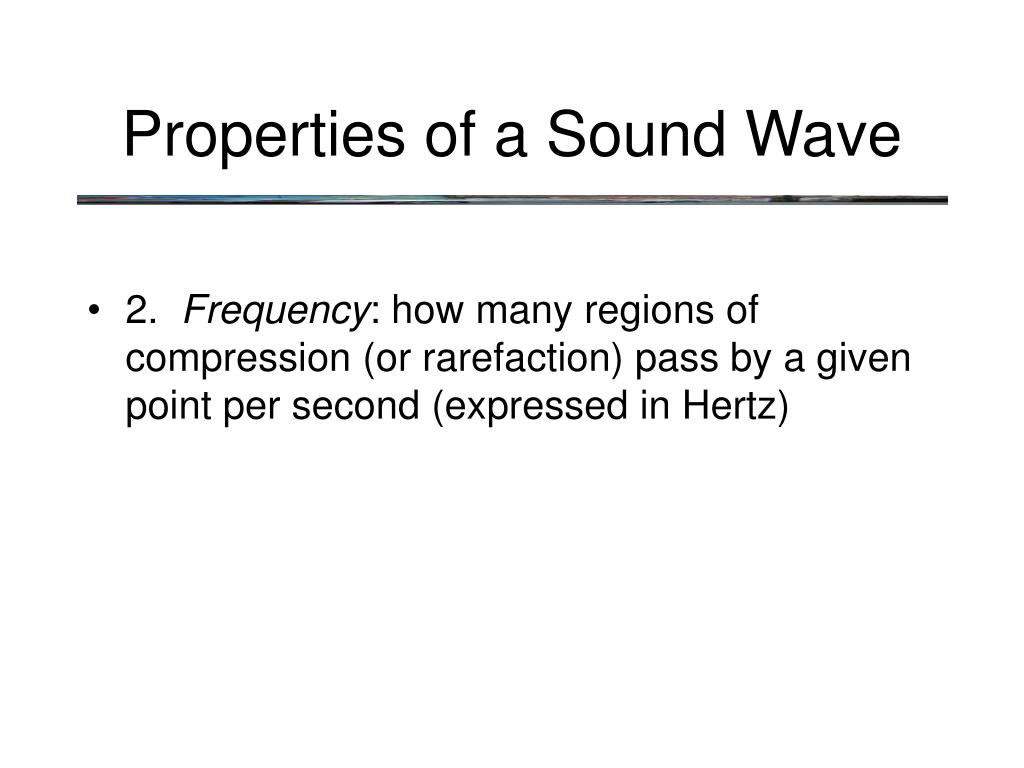

  10. Properties of a Sound Wave • 2. Frequency: how many regions of compression (or rarefaction) pass by a given point per second (expressed in Hertz)

  11. Properties of a Sound Wave • 2. Frequency: how many regions of compression (or rarefaction) pass by a given point per second (expressed in Hertz) • What is the perception that goes along with the sensation of frequency?

  12. Properties of a Sound Wave • 2. Frequency: how many regions of compression (or rarefaction) pass by a given point per second (expressed in Hertz) • What is the perception that goes along with the sensation of frequency? PITCH

  13. Sensing Vibrations

  14. Sensing Vibrations • Outer ear transmits and modifies sound (critical for sound localization)

  15. Sensing Vibrations • Middle ear turns compression waves into mechanical motion oval window stapes

  16. Sensing Vibrations • Middle ear turns compression waves into mechanical motion Oval window Ear Drum

  17. Sensing Vibrations • Middle ear turns compression waves into mechanical motion Oval window Ear Drum Compression Wave

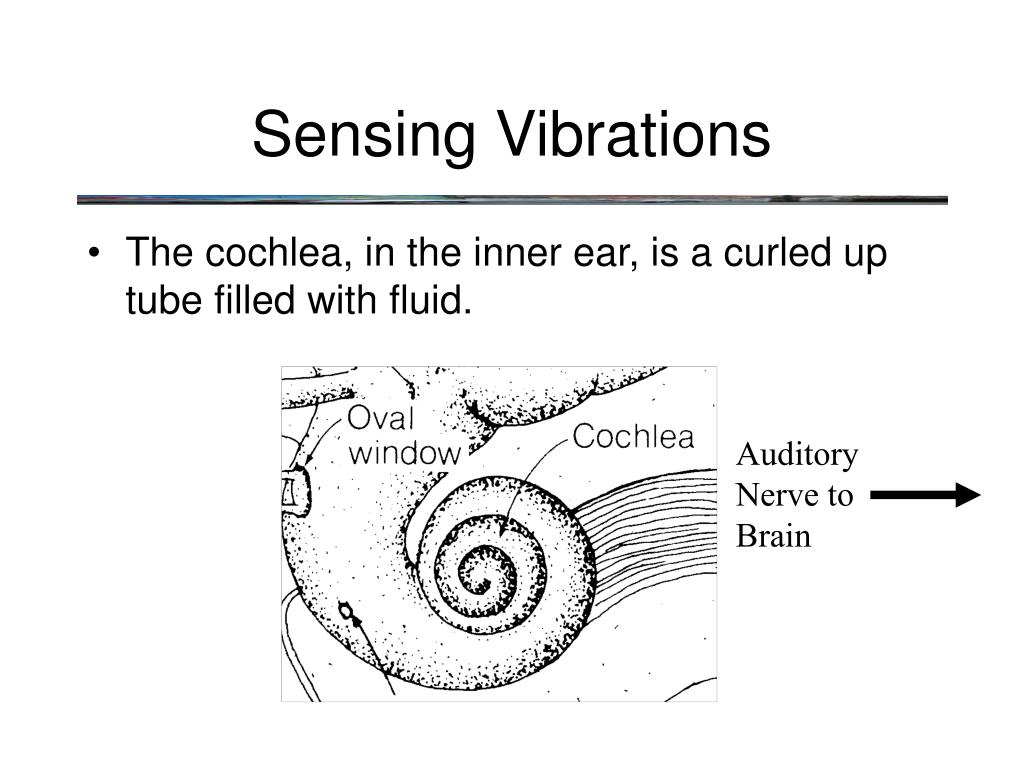

  18. Sensing Vibrations • The cochlea, in the inner ear, is a curled up tube filled with fluid. Auditory Nerve to Brain

  19. Sensing Vibrations • Inside the cochlea is the basilar membrane • Movement of the oval window causes ripples on the basilar membrane

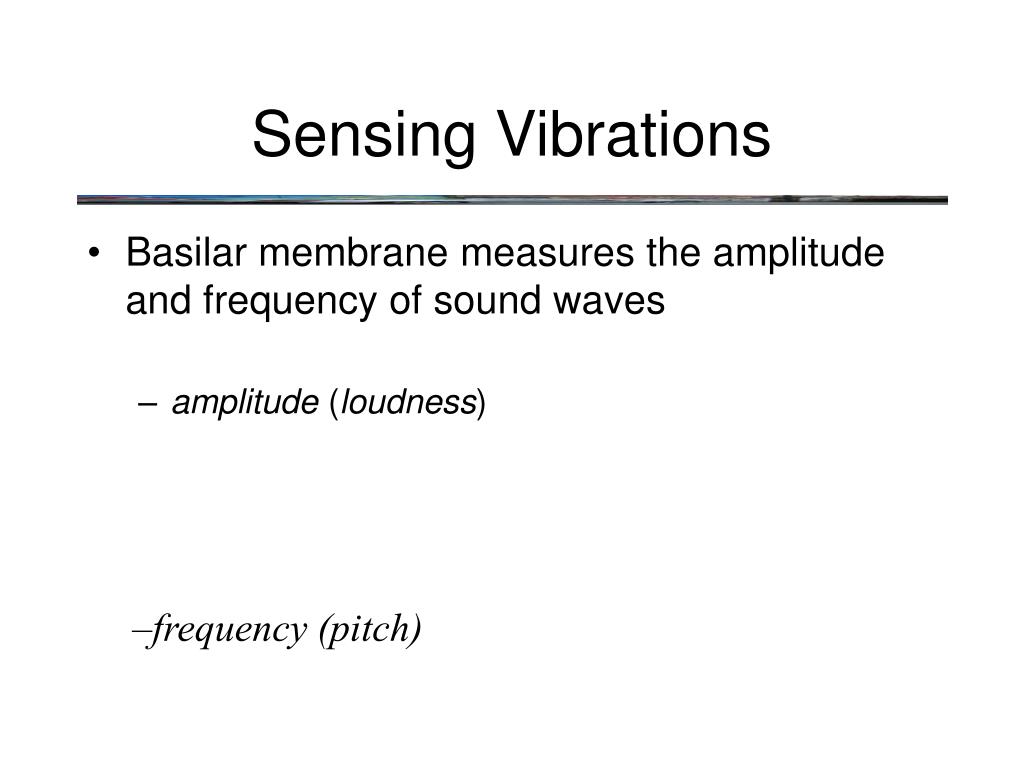

  20. Sensing Vibrations • Basilar membrane measures the amplitude and frequency of sound waves • amplitude (loudness) • frequency (pitch)

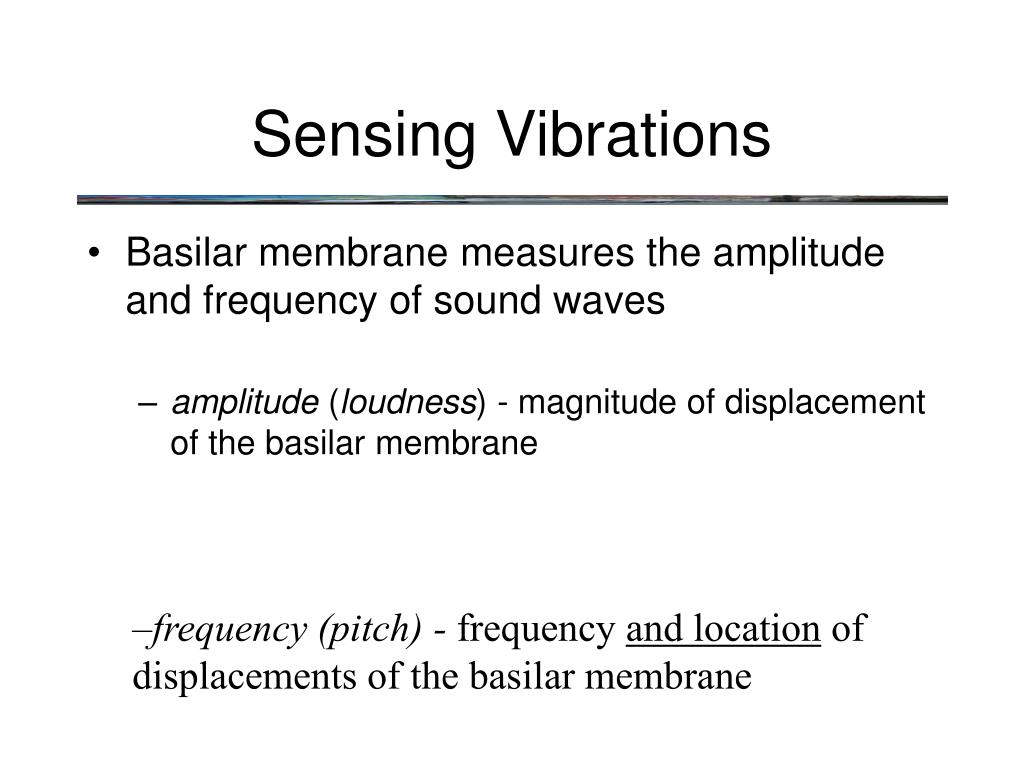

  21. Sensing Vibrations • Basilar membrane measures the amplitude and frequency of sound waves • amplitude (loudness) - magnitude of displacement of the basilar membrane • frequency (pitch)

  22. Sensing Vibrations • Basilar membrane measures the amplitude and frequency of sound waves • amplitude (loudness) - magnitude of displacement of the basilar membrane • frequency (pitch) - frequency and location of displacements of the basilar membrane

  23. Sensing Vibrations • Basilar membrane measures the amplitude and frequency of sound waves • frequency (pitch) - frequency and location of displacements of the basilar membrane

  24. Sensing Vibrations

  25. Sensing Vibrations • Basilar membrane measures the amplitude and frequency of sound waves • amplitude (loudness) - magnitude of displacement of the basilar membrane • frequency (pitch) - frequency and location of displacements of the basilar membrane

  26. Sensing Vibrations • Basilar membrane measures the amplitude and frequency of sound waves • frequency (pitch) - frequency and location of displacements of the basilar membrane

  27. Sensing Vibrations • Bundles of “hair cells” are embedded in basilar membrane

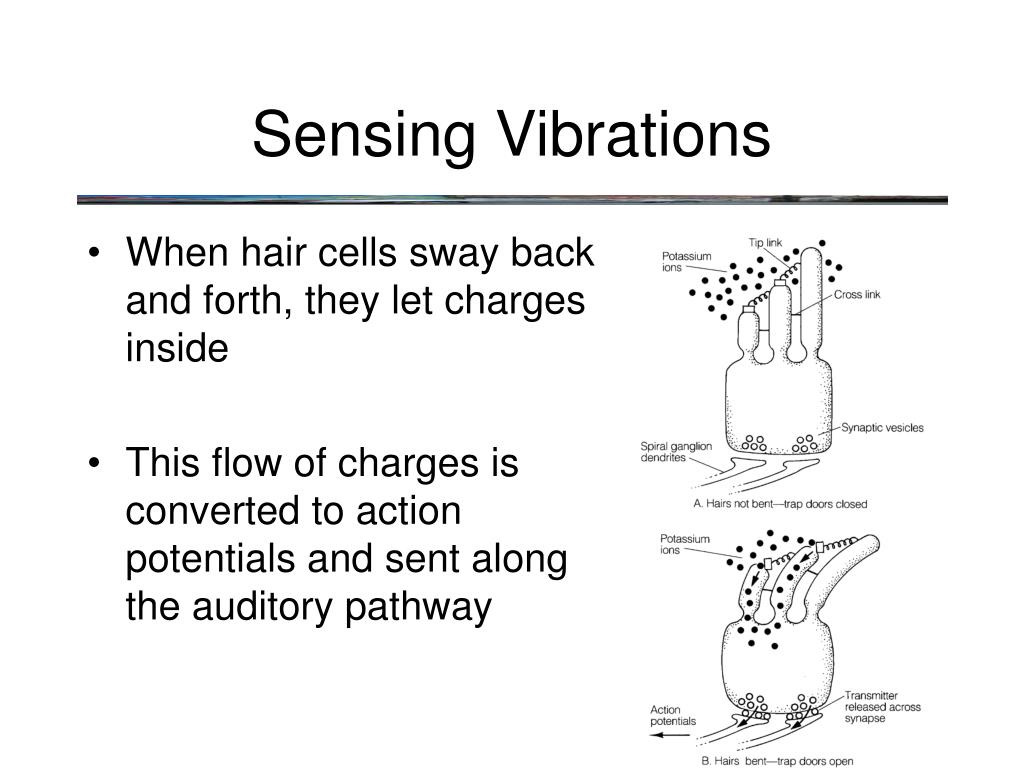

  28. Sensing Vibrations • When hair cells sway back and forth, they let charges inside • This flow of charges is converted to action potentials and sent along the auditory pathway

  29. The Auditory Pathway • The auditory pathway is complex and involves several “stations” along the way to the auditory cortex in the brain • Lots of processing must be done in real-time on auditory signals!

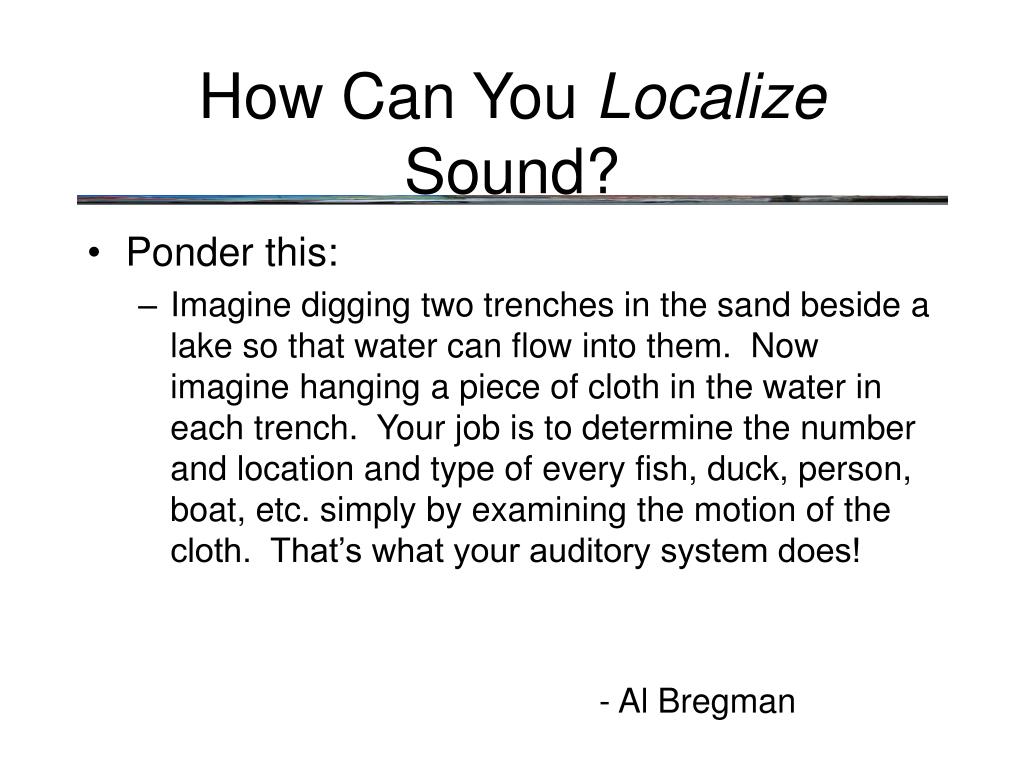

  30. How Can You Localize Sound? • Ponder this: • Imagine digging two trenches in the sand beside a lake so that water can flow into them. Now imagine hanging a piece of cloth in the water in each trench. Your job is to determine the number and location and type of every fish, duck, person, boat, etc. simply by examining the motion of the cloth. That’s what your auditory system does! - Al Bregman

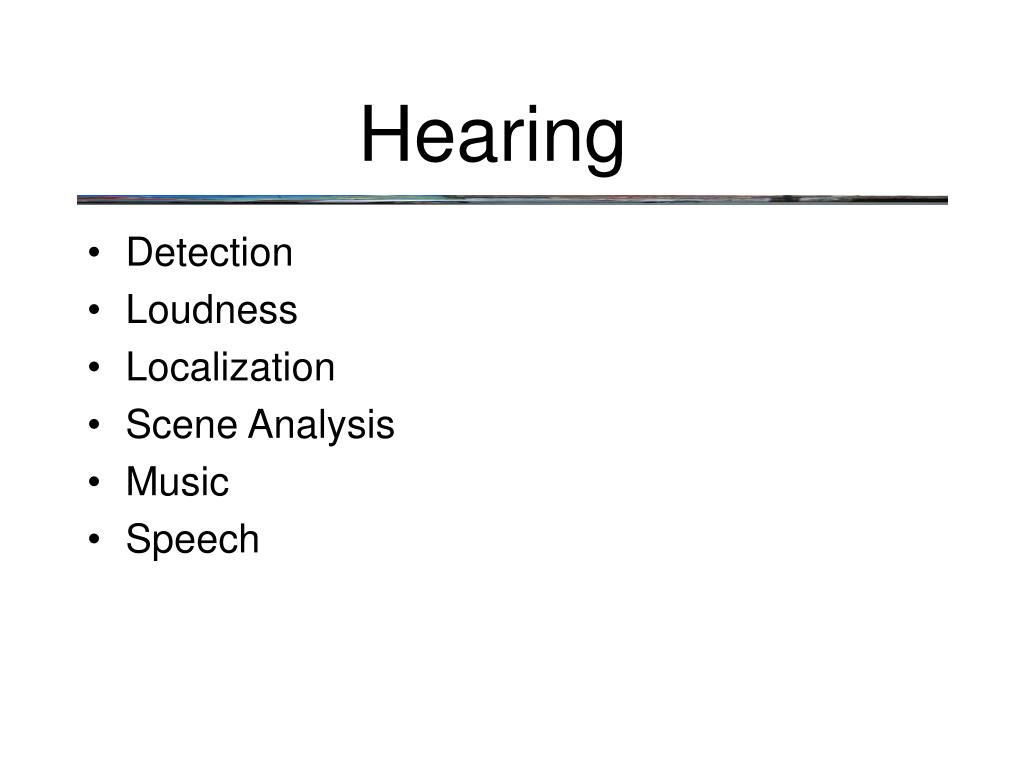

  31. Hearing • Detection • Loudness • Localization • Scene Analysis • Music • Speech

  32. Detection and Loudness • Sound level is measured in decibels (dB) - a measure of the amplitude of air pressure fluctuations

  33. Detection and Loudness • Sound level is measured in decibels (dB) - a measure of the amplitude of air pressure fluctuations • dB is a log scale - small increases in dB mean large increases in sound energy

  34. Detection and Loudness • Sound level is measured in decibels (dB) - a measure of the amplitude of air pressure fluctuations • dB is a log scale - small increases in dB mean large increases in sound energy • We have a dynamic range that is a factor of 7.5 million!

  35. Detection and Loudness • minimum sound level necessary to be heard is the detection threshold

  36. Detection and Loudness • detection threshold depends on frequency of sound: • very high and very low frequencies must have more energy (higher dB) to be heard • greatest sensitivity (lowest detection threshold) is between 1000 hz to 5000hz

  37. Detection and Loudness • Detection can be compromised by a masking sound • even masking sounds that are not simultaneous with the target can cause masking (forward and backward masking)

  38. Detection and Loudness • Loudness is the subjective impression of sound level (and not identical to it!)

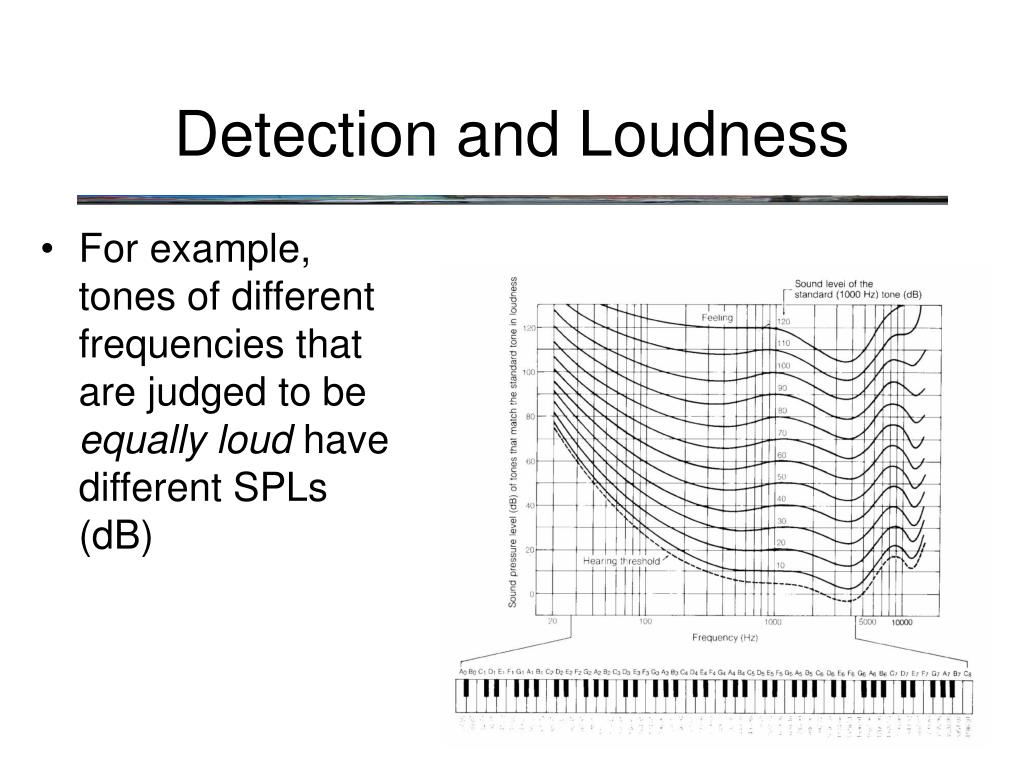

  39. Detection and Loudness • For example, tones of different frequencies that are judged to be equally loud have different SPLs (dB)

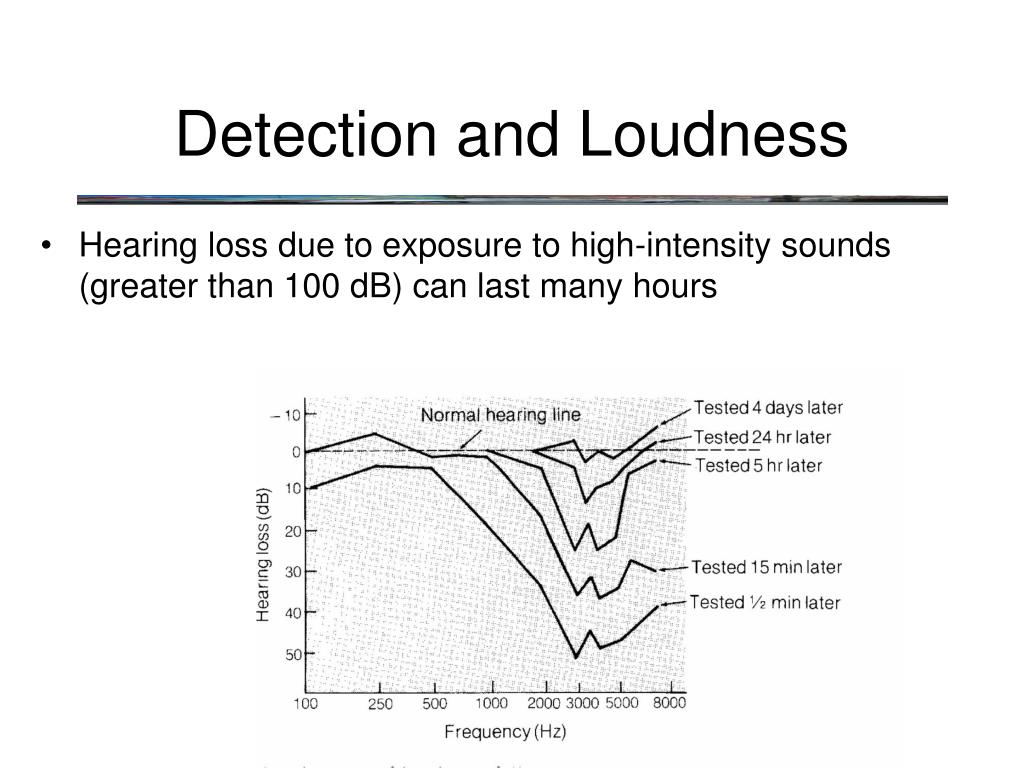

  40. Detection and Loudness • Hearing loss due to exposure to high-intensity sounds (greater than 100 dB) can last many hours

  41. Detection and Loudness • Incidence of noise-related hearing loss is increasing dramatically • iPods and other “earbud” music players are thought to be partly responsible • How loud is an iPod? • maximum volume is approximate but is somewhere between 100 dB (hearing damage in about 2 hours) to 115 dB (hearing damage in about 15 minutes) • Consequences: difficulty understanding speech, tinnitus, deafness • Your perception of loudness adapts so it’s hard to tell how loud your iPod is - LOCK THE VOLUME ON YOUR iPOD!

  42. Localization • recall the lake analogy: task is to localize the positions of the boats on a lake using the pattern of ripples at two points on the shore

  43. Localization • All you have is a pair of instruments (basilar membranes) that measure air pressure fluctuations over time

  44. Localization • There are several clues you could use:

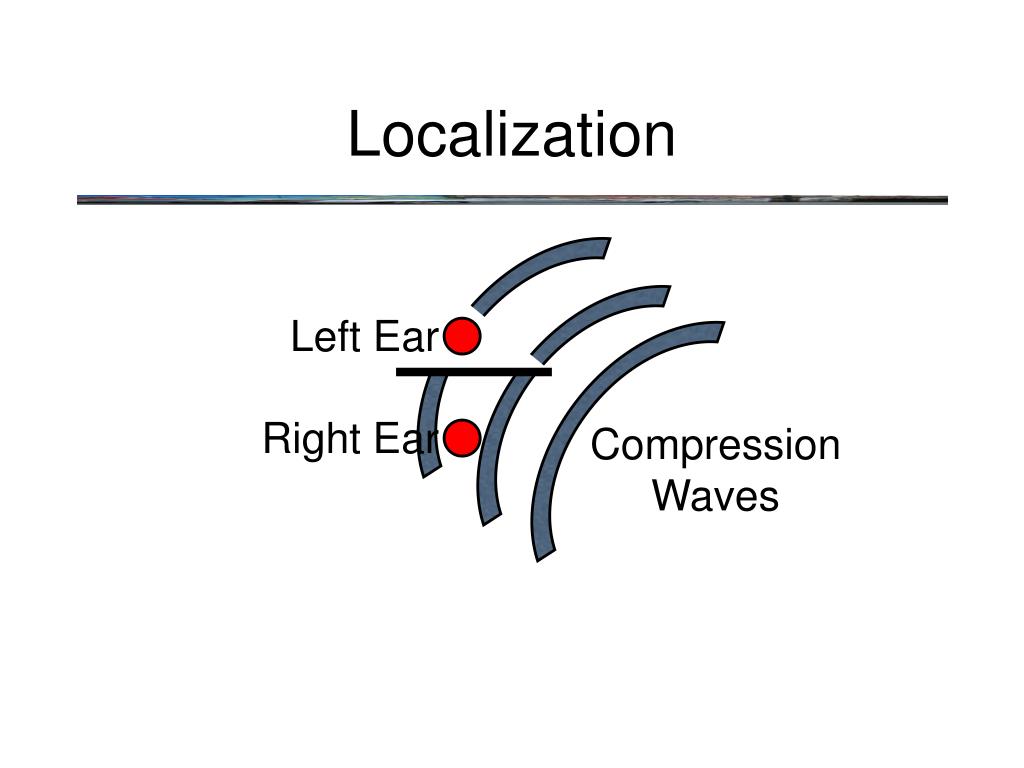

  45. Localization Left Ear Right Ear Compression Waves

  46. Localization • There are several clues you could use: • arrival time - sound arrives first at ear closest to source

  47. Localization Left Ear Right Ear Compression Waves

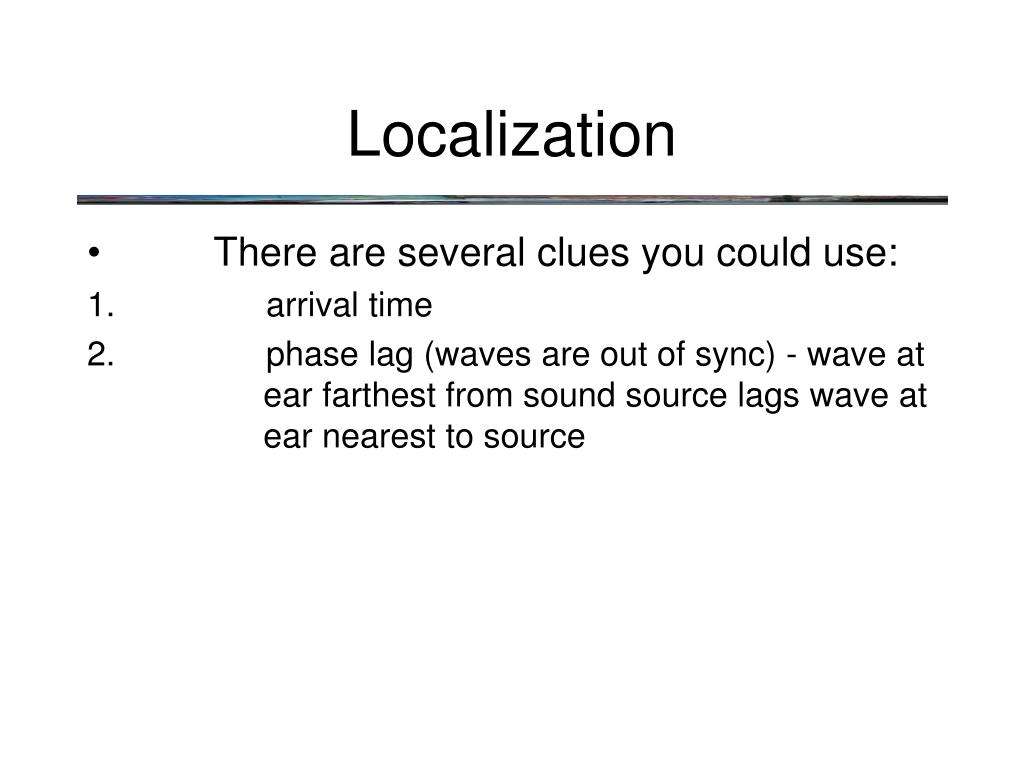

  48. Localization • There are several clues you could use: • arrival time • phase lag (waves are out of sync) - wave at ear farthest from sound source lags wave at ear nearest to source

  49. Localization Left Ear Right Ear Compression Waves

  50. Localization • There are several clues you could use: • arrival time • phase lag (waves are out of sync) • sound shadow (intensity difference)- sound is louder at ear closer to sound source
