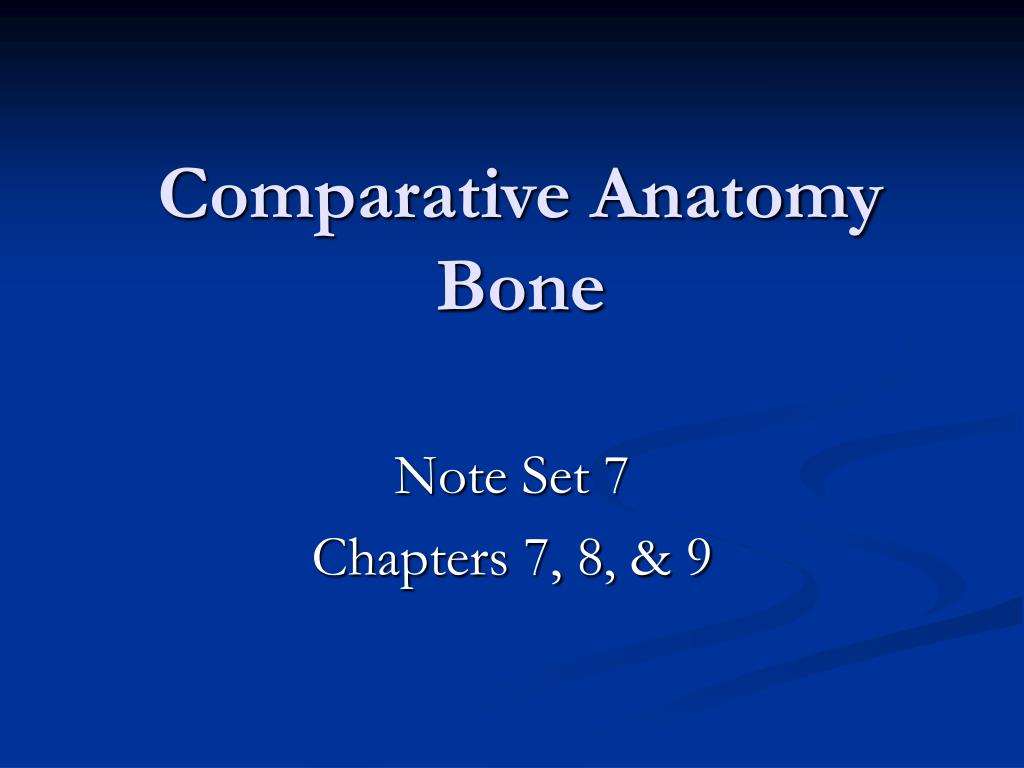

  1. Comparative AnatomyBone Note Set 7 Chapters 7, 8, & 9

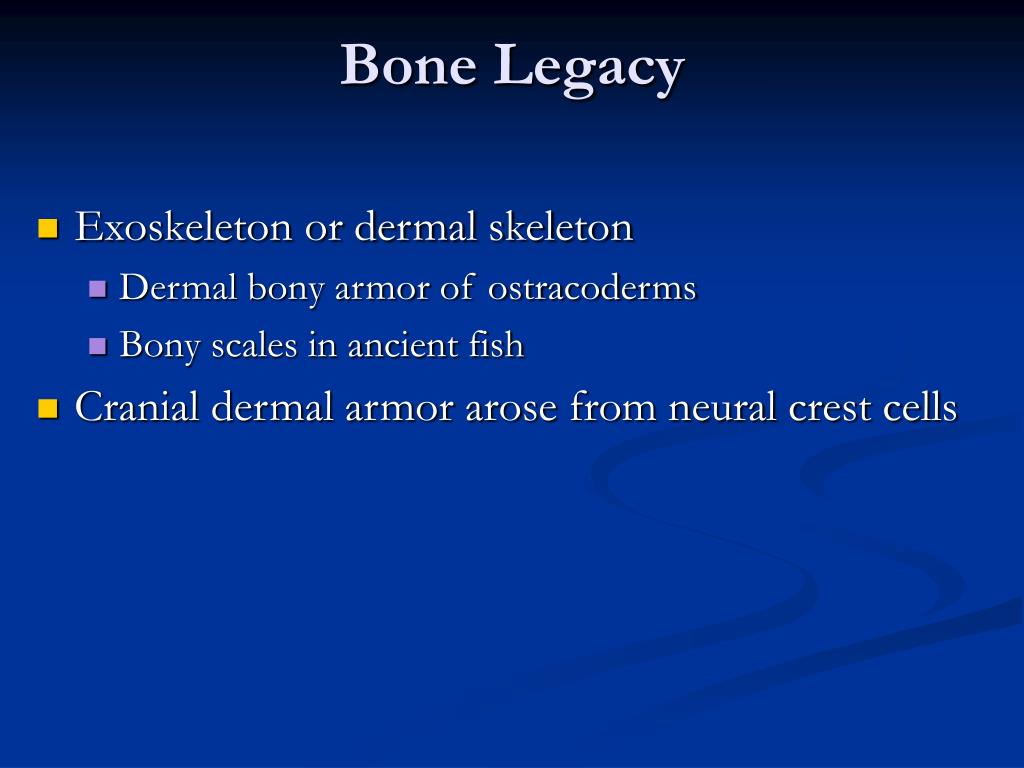

  2. Bone Legacy • Exoskeleton or dermal skeleton • Dermal bony armor of ostracoderms • Bony scales in ancient fish • Cranial dermal armor arose from neural crest cells

  3. Endoskeleton • Internal to skin • Where once exoskeleton • Ex: clavicle, nasal, frontal, and parietal bone • Other endoskeletal elements were never part of the dermal skeleton • Ex: scapula, vertebrae, ribs, sternum, brain case, and extremity bones

  4. Bone Evidence • All bone develops from mesenchyme • Neural crest cells • Membrane bone- arises from mesenchyme without passing through cartilaginous intermediate • exoskeleton • Replacement bone- arises from existing cartilage • endoskeleton

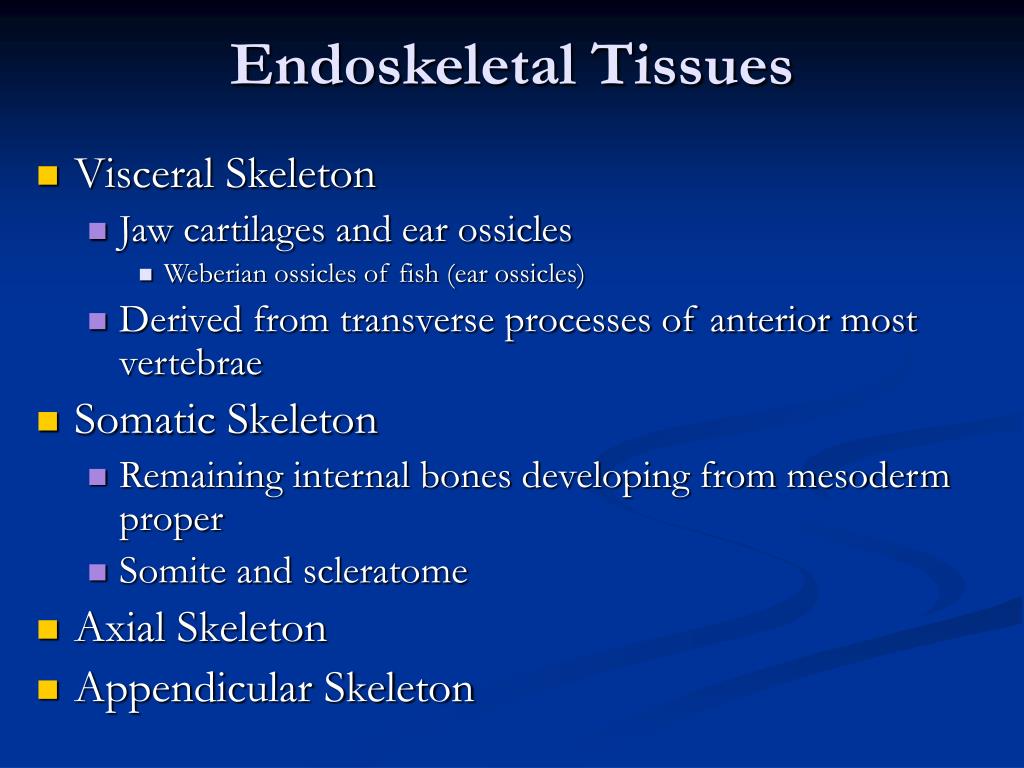

  5. Endoskeletal Tissues • Visceral Skeleton • Jaw cartilages and ear ossicles • Weberian ossicles of fish (ear ossicles) • Derived from transverse processes of anterior most vertebrae • Somatic Skeleton • Remaining internal bones developing from mesoderm proper • Somite and scleratome • Axial Skeleton • Appendicular Skeleton

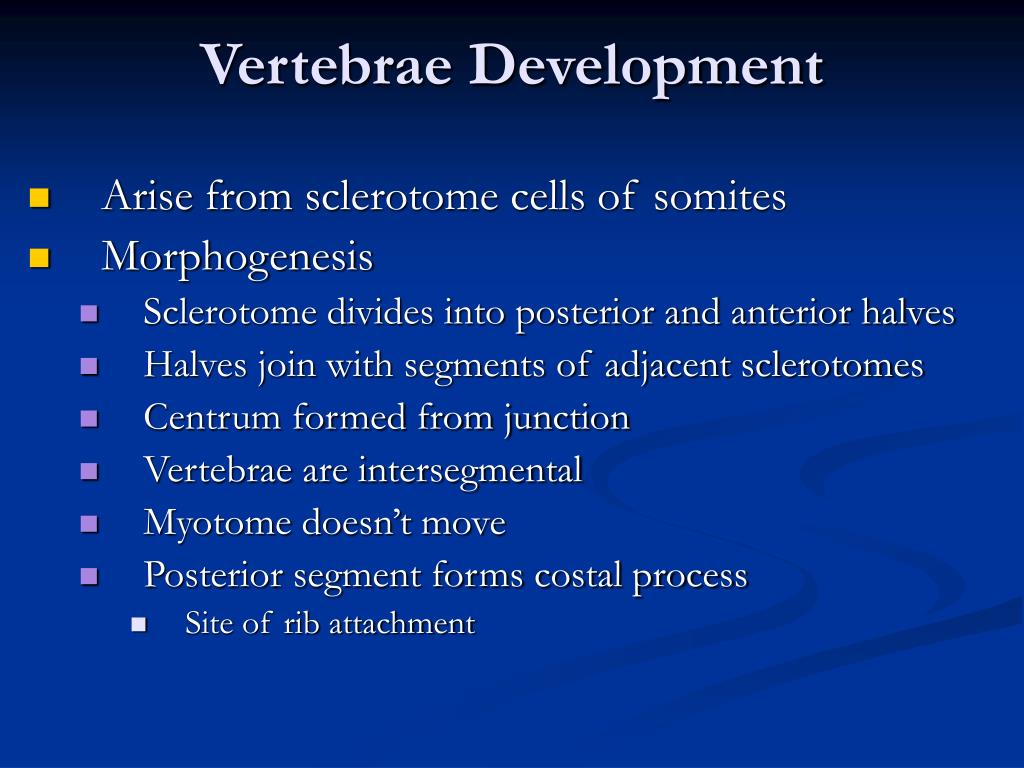

  6. Vertebrae Development • Arise from sclerotome cells of somites • Morphogenesis • Sclerotome divides into posterior and anterior halves • Halves join with segments of adjacent sclerotomes • Centrum formed from junction • Vertebrae are intersegmental • Myotome doesn’t move • Posterior segment forms costal process • Site of rib attachment

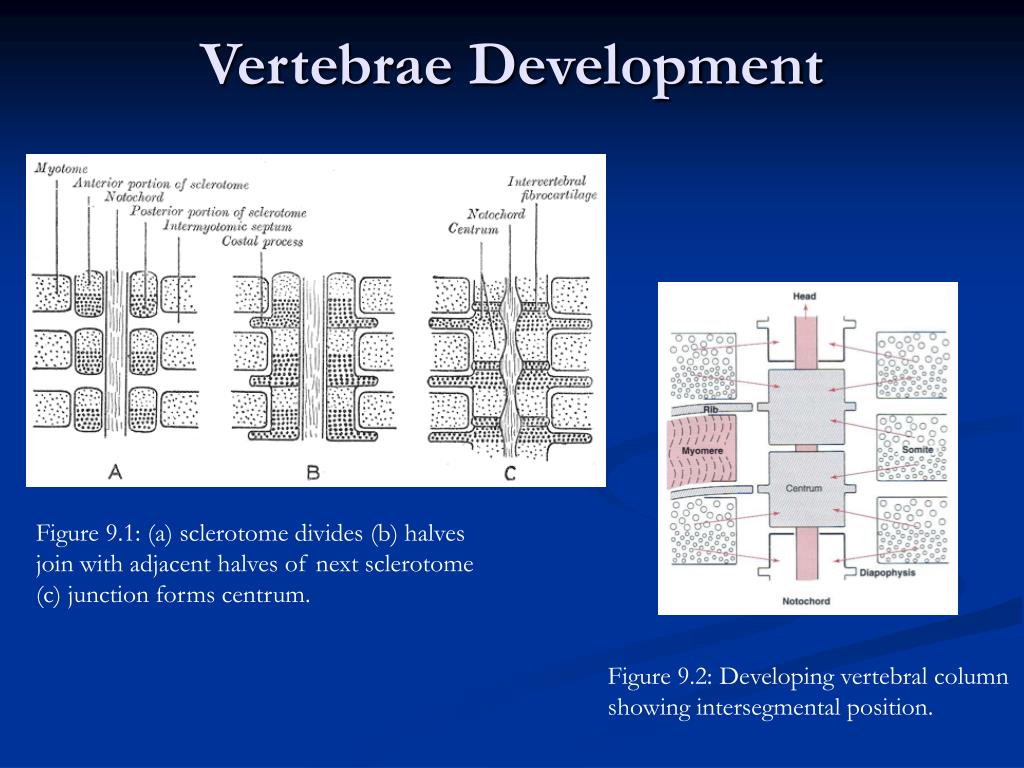

  7. Vertebrae Development Figure 9.1: (a) sclerotome divides (b) halves join with adjacent halves of next sclerotome (c) junction forms centrum. Figure 9.2: Developing vertebral column showing intersegmental position.

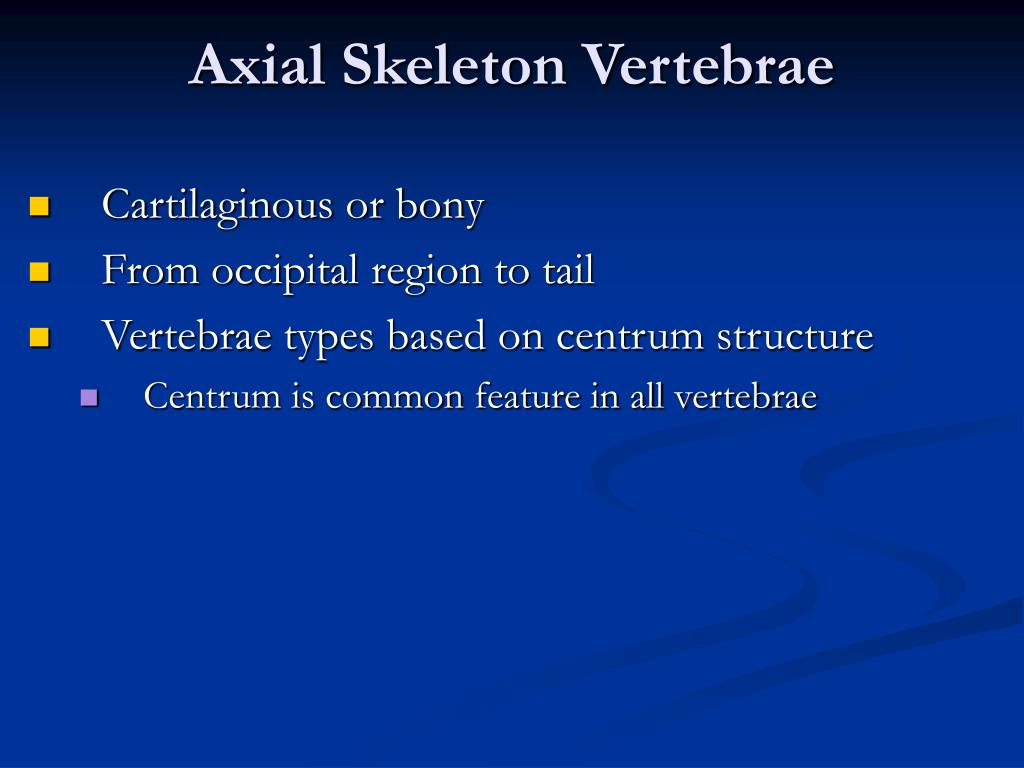

  8. Axial Skeleton Vertebrae • Cartilaginous or bony • From occipital region to tail • Vertebrae types based on centrum structure • Centrum is common feature in all vertebrae

  9. Centrum Structure • Acelous- flat anterior and posterior surface • Mammals • Amphicelous- concavities of anterior and posterior surfaces • Fish, primitive salamanders • Procelous- concanvity on anterior surface • Most reptiles • Opisthocelous- concavity of posterior surface • Most salamanders • Heterocelous- saddle-shaped • Neck of birds and turtles

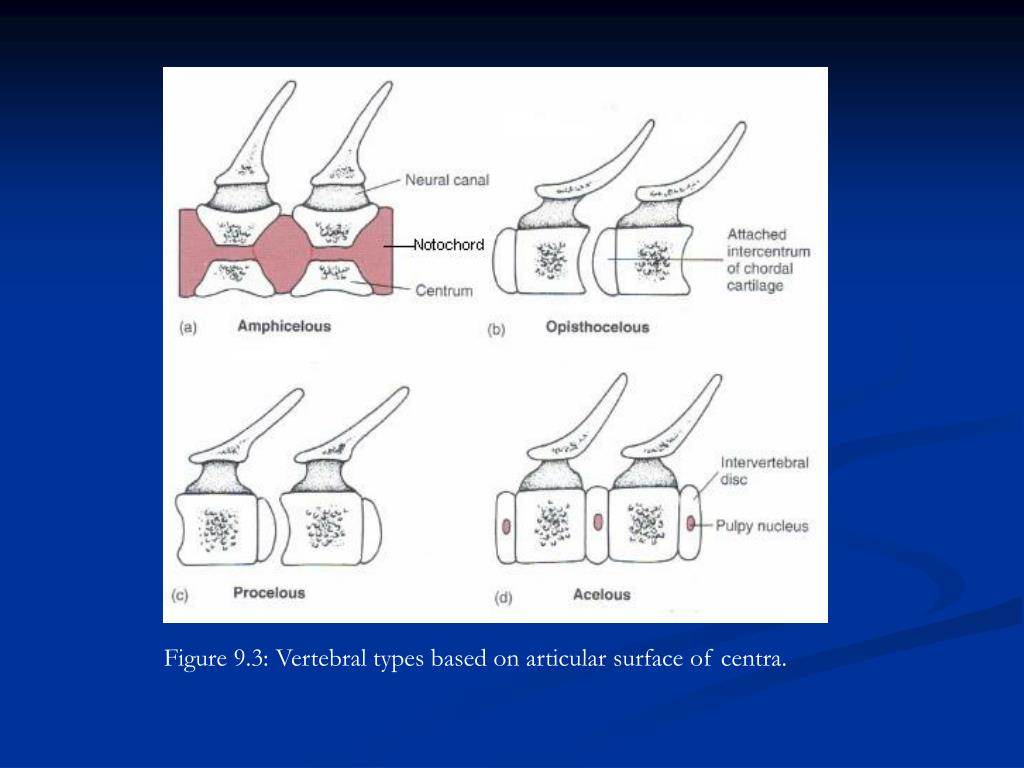

  10. Figure 9.3: Vertebral types based on articular surface of centra.

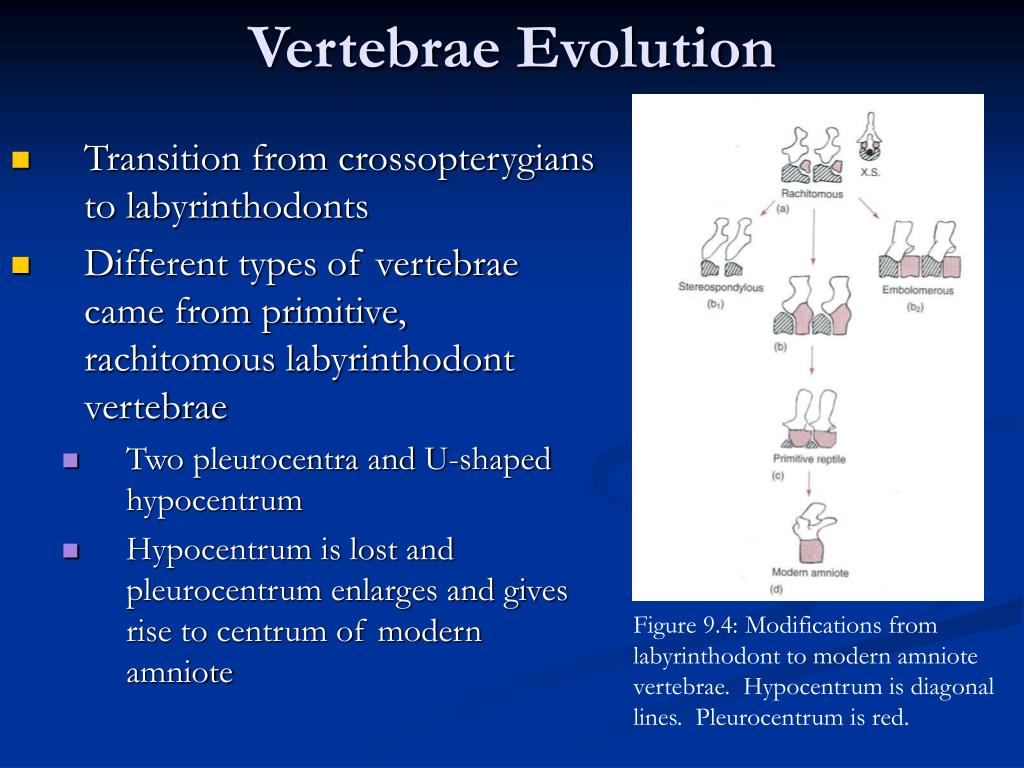

  11. Vertebrae Evolution • Transition from crossopterygians to labyrinthodonts • Different types of vertebrae came from primitive, rachitomous labyrinthodont vertebrae • Two pleurocentra and U-shaped hypocentrum • Hypocentrum is lost and pleurocentrum enlarges and gives rise to centrum of modern amniote Figure 9.4: Modifications from labyrinthodont to modern amniote vertebrae. Hypocentrum is diagonal lines. Pleurocentrum is red.

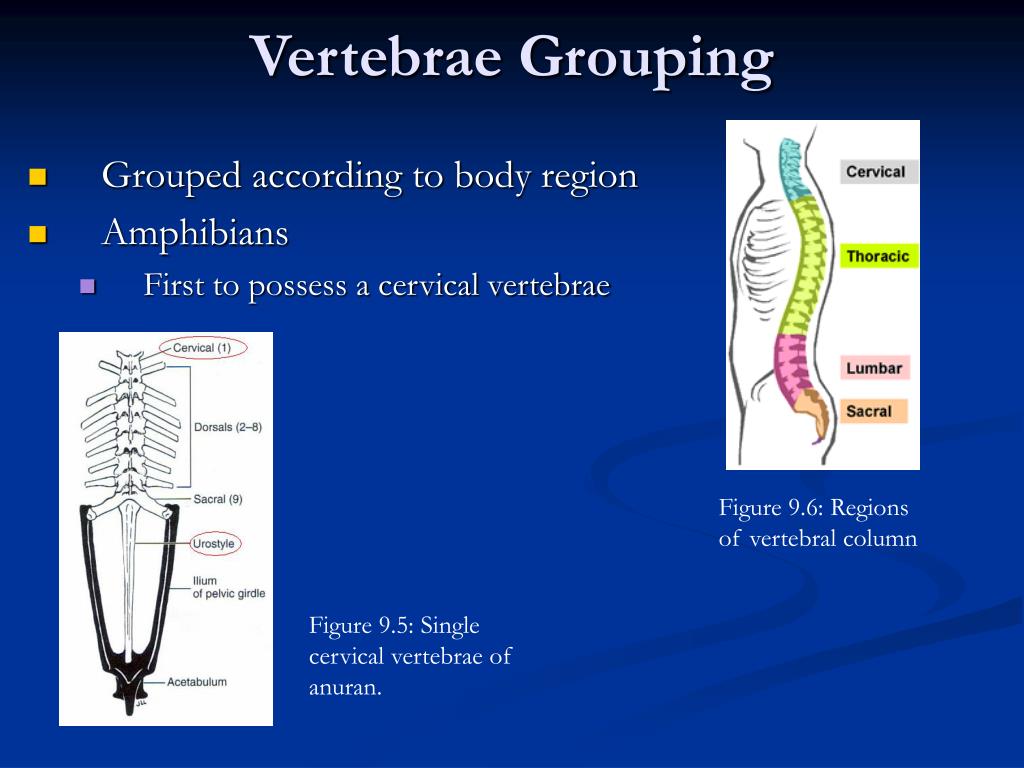

  12. Vertebrae Grouping • Grouped according to body region • Amphibians • First to possess a cervical vertebrae Figure 9.6: Regions of vertebral column Figure 9.5: Single cervical vertebrae of anuran.

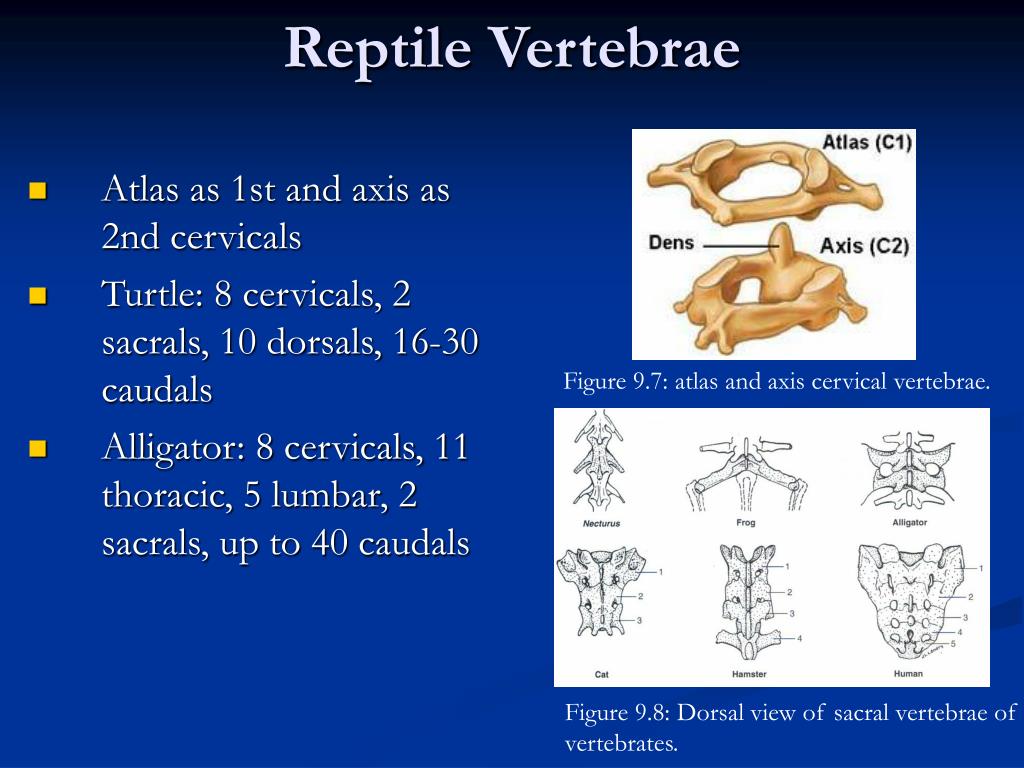

  13. Reptile Vertebrae • Atlas as 1st and axis as 2nd cervicals • Turtle: 8 cervicals, 2 sacrals, 10 dorsals, 16-30 caudals • Alligator: 8 cervicals, 11 thoracic, 5 lumbar, 2 sacrals, up to 40 caudals Figure 9.7: atlas and axis cervical vertebrae. Figure 9.8: Dorsal view of sacral vertebrae of vertebrates.

  14. Bird Vertebrae • Possess atlas and axis • 13-14 free cervicals, 4 fused thoracics, fused synsacrum, free caudals, pygostyle Figure 9.9: Pigeon vertebral column.

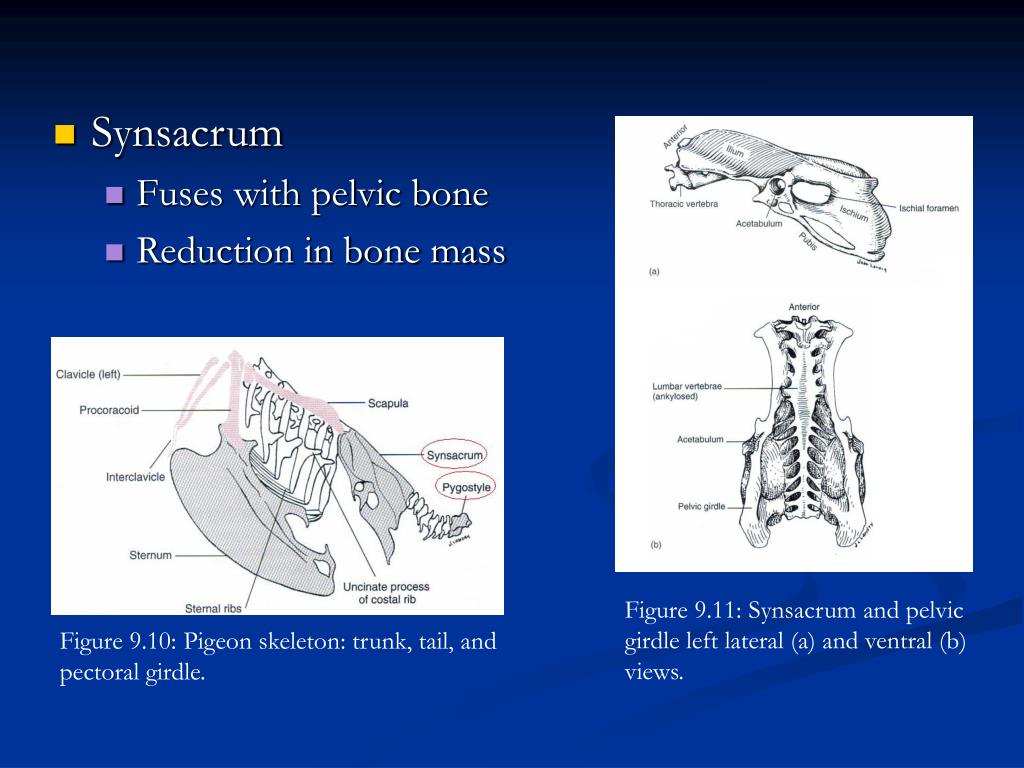

  15. Synsacrum • Fuses with pelvic bone • Reduction in bone mass Figure 9.11: Synsacrum and pelvic girdle left lateral (a) and ventral (b) views. Figure 9.10: Pigeon skeleton: trunk, tail, and pectoral girdle.

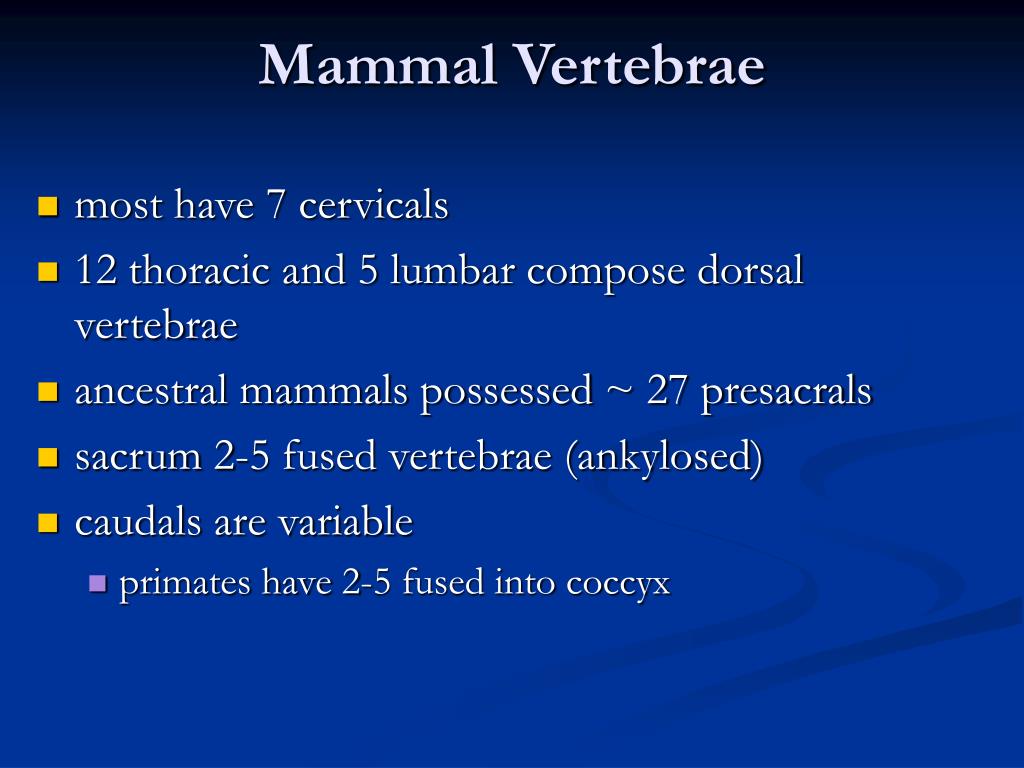

  16. Mammal Vertebrae • most have 7 cervicals • 12 thoracic and 5 lumbar compose dorsal vertebrae • ancestral mammals possessed ~ 27 presacrals • sacrum 2-5 fused vertebrae (ankylosed) • caudals are variable • primates have 2-5 fused into coccyx

  17. Ribs • Dogfish- develop dorsal ribs • Most teleost- develop ventral ribs • Tetrapods- have dorsal and ventral ribs • Dorsal ribs lost, enlargement of head of proximal ribs • 2 portions articulate with vertebrae • Tuberculum- dorsal head • Capitulum- ventral head Figure 9.12: Rib types - Dorsal and ventral ribs.

  18. Agnathans- no ribs • Amphibians- ribs never reach sternum • Birds- flat processes extending off ribs posteriorly (unicate processes) Figure 9.13: Unicate processes of bird. Figure 9.14: Vertebrae and ribs of alligator.

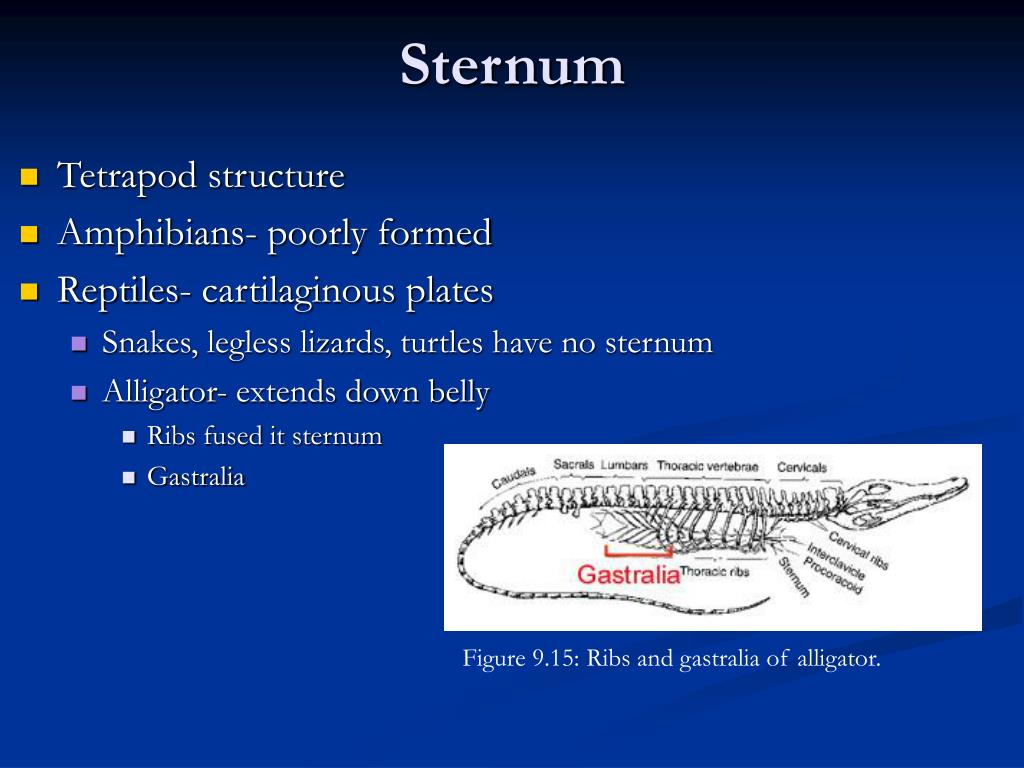

  19. Sternum • Tetrapod structure • Amphibians- poorly formed • Reptiles- cartilaginous plates • Snakes, legless lizards, turtles have no sternum • Alligator- extends down belly • Ribs fused it sternum • Gastralia Figure 9.15: Ribs and gastralia of alligator.

  20. Birds- unusual, keeled sternum in carinates • Mammals- well developed sternum • Rod shaped • Segments: manubrium, sternebrae, xiphisternum and xiphoid process Figure 9.17: Tetrapod sterna. Figure 9.16: Keeled sternum of bird.

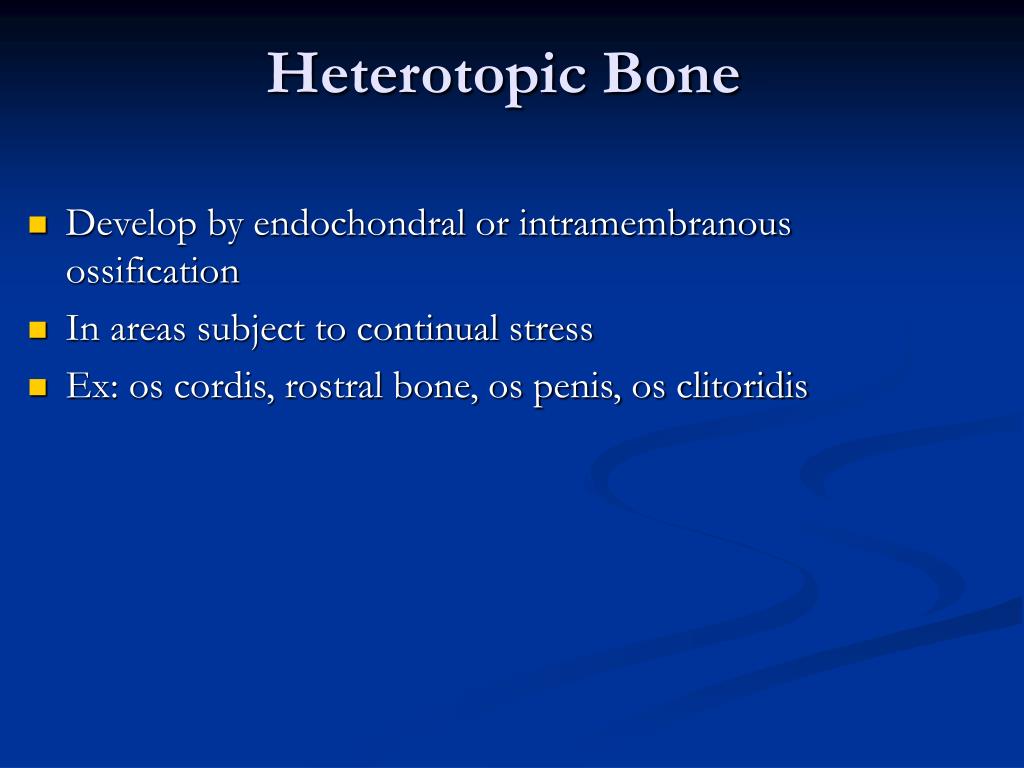

  21. Heterotopic Bone • Develop by endochondral or intramembranous ossification • In areas subject to continual stress • Ex: os cordis, rostral bone, os penis, os clitoridis

  22. Os cordis- interventricular septum in deer heart • Rostral bone- snout of pig • Os penis (baculum)- embedded in penis of lower primates • Os clitoridis- embedded in clitoris of otters • Others include falciform, sesamoid, patella, pisiform Figure 9.18: Heterotopic bones (book figure 7.11).

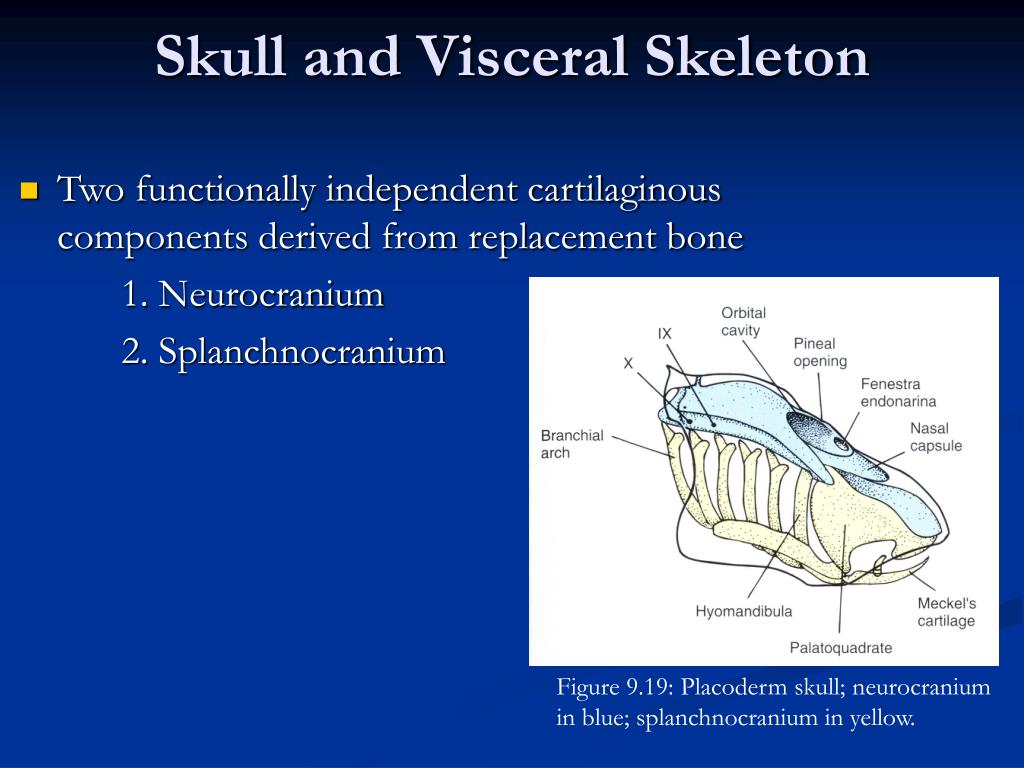

  23. Skull and Visceral Skeleton • Two functionally independent cartilaginous components derived from replacement bone 1. Neurocranium 2. Splanchnocranium Figure 9.19: Placoderm skull; neurocranium in blue; splanchnocranium in yellow.

  24. Neurocranium • Protects brain and anterior part of spinal cord • Sense organ capsules • Cartilaginous brain case is embryonic adaptation • Four ossification centers Figure 9.20: Development of cartilaginous neurocranium.

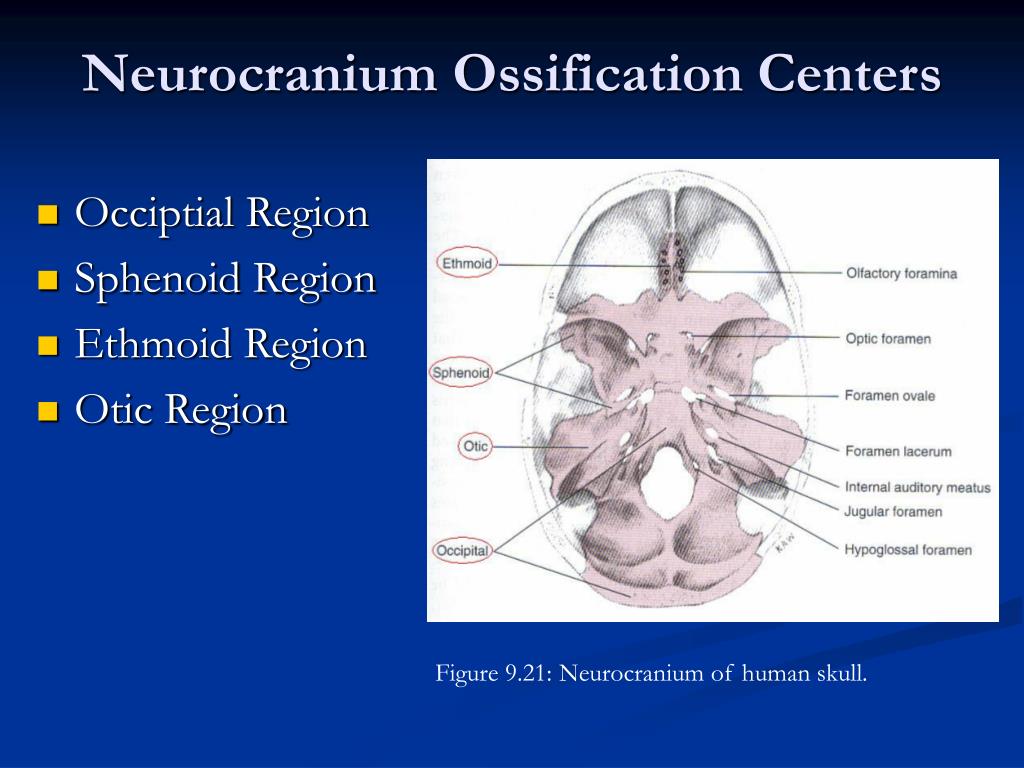

  25. Neurocranium Ossification Centers • Occiptial Region • Sphenoid Region • Ethmoid Region • Otic Region Figure 9.21: Neurocranium of human skull.

  26. Occipital Region • Basioccipital, 2 exoccipitals, suproccipital • Forms single occipital bone in mammals • Sphenoid Region • Basisphenoid, orbitosphenoid, presphenoid, laterosphenoid • Fuse to form one sphenoid bone in mammals Figure 9.22: Sphenoid bone.

  27. Figure 9.24: Sphenoid bone. Figure 9.23: Human skull (a) cribriform plate (b) crista galli (c) frontal bone (d) sphenoid bone (e) temporal bone (f) sella turcica.

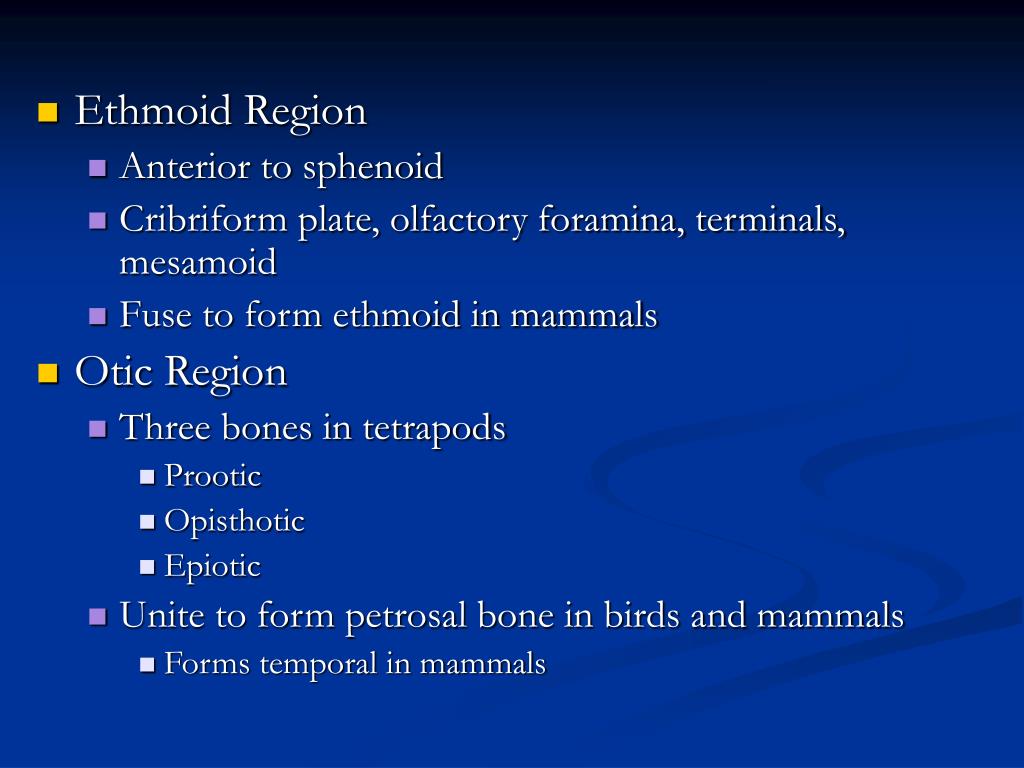

  28. Ethmoid Region • Anterior to sphenoid • Cribriform plate, olfactory foramina, terminals, mesamoid • Fuse to form ethmoid in mammals • Otic Region • Three bones in tetrapods • Prootic • Opisthotic • Epiotic • Unite to form petrosal bone in birds and mammals • Forms temporal in mammals

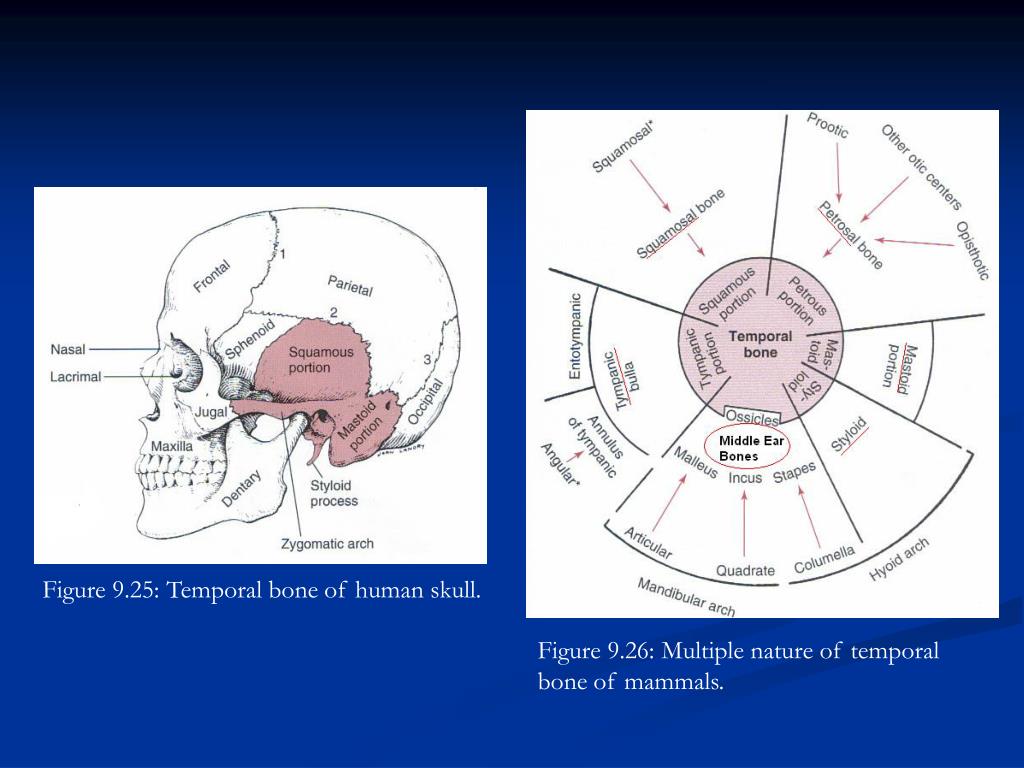

  29. Figure 9.25: Temporal bone of human skull. Figure 9.26: Multiple nature of temporal bone of mammals.

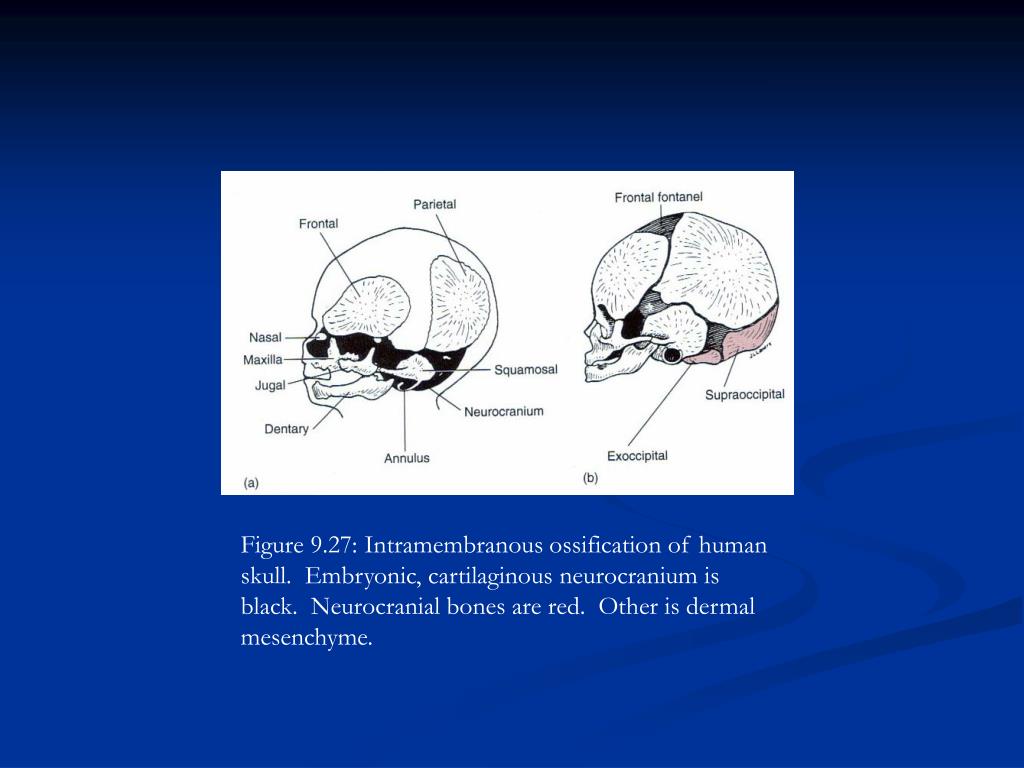

  30. Figure 9.27: Intramembranous ossification of human skull. Embryonic, cartilaginous neurocranium is black. Neurocranial bones are red. Other is dermal mesenchyme.

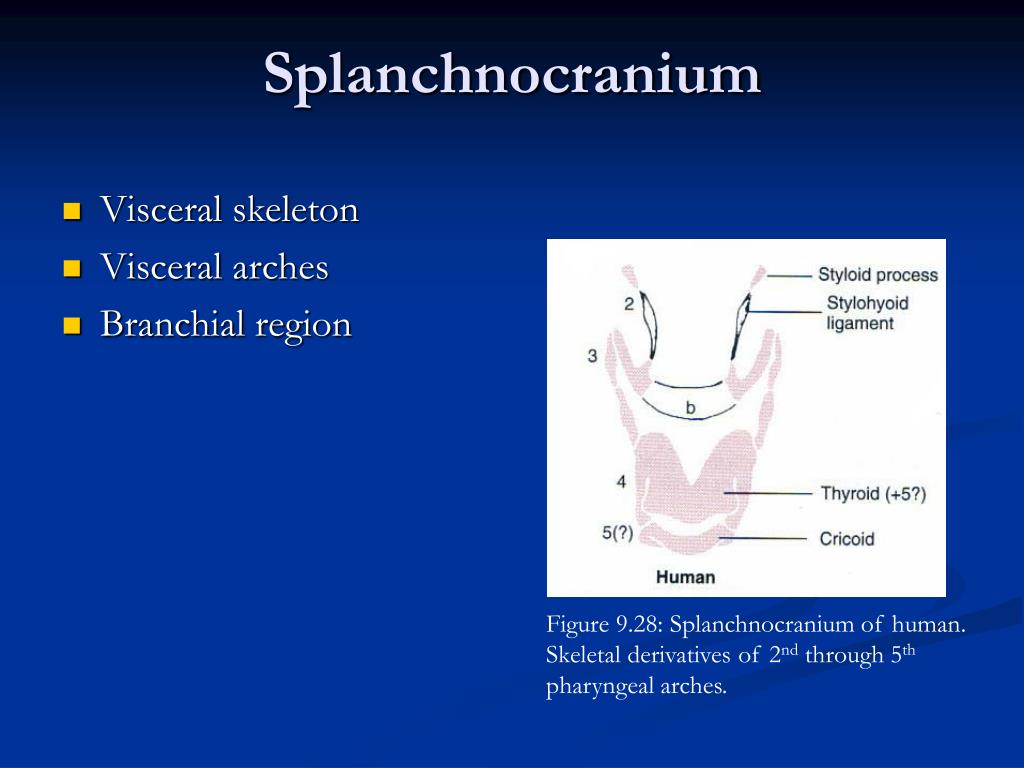

  31. Splanchnocranium • Visceral skeleton • Visceral arches • Branchial region Figure 9.28: Splanchnocranium of human. Skeletal derivatives of 2nd through 5th pharyngeal arches.

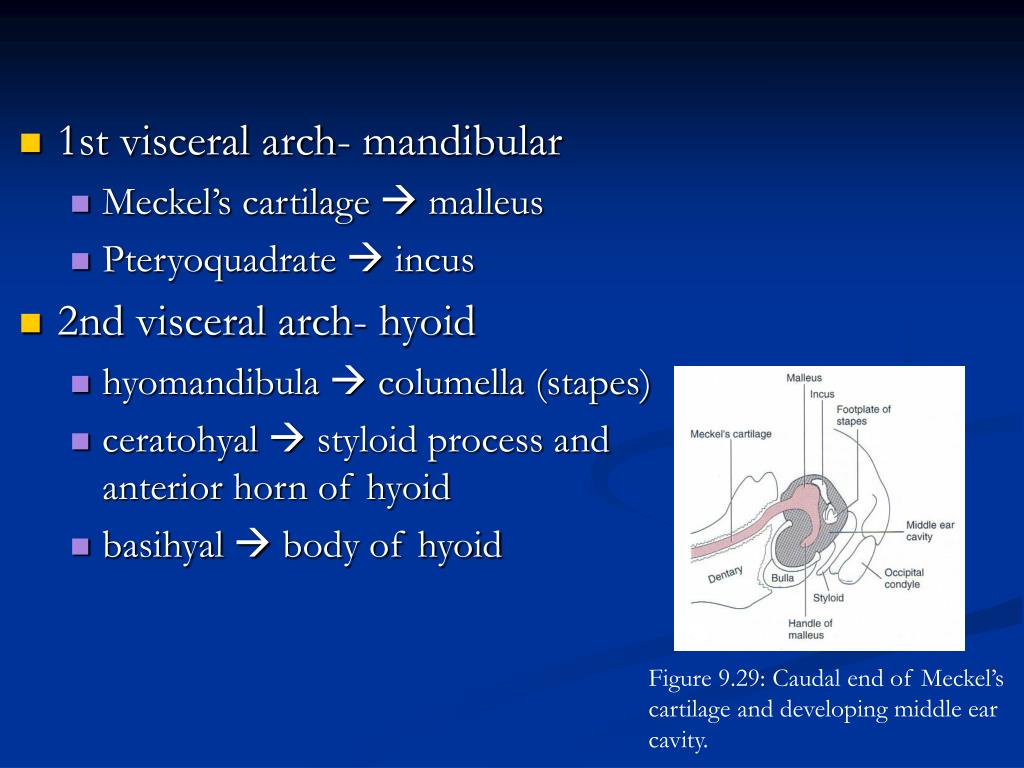

  32. 1st visceral arch- mandibular • Meckel’s cartilage  malleus • Pteryoquadrate  incus • 2nd visceral arch- hyoid • hyomandibula  columella (stapes) • ceratohyal  styloid process and anterior horn of hyoid • basihyal  body of hyoid Figure 9.29: Caudal end of Meckel’s cartilage and developing middle ear cavity.

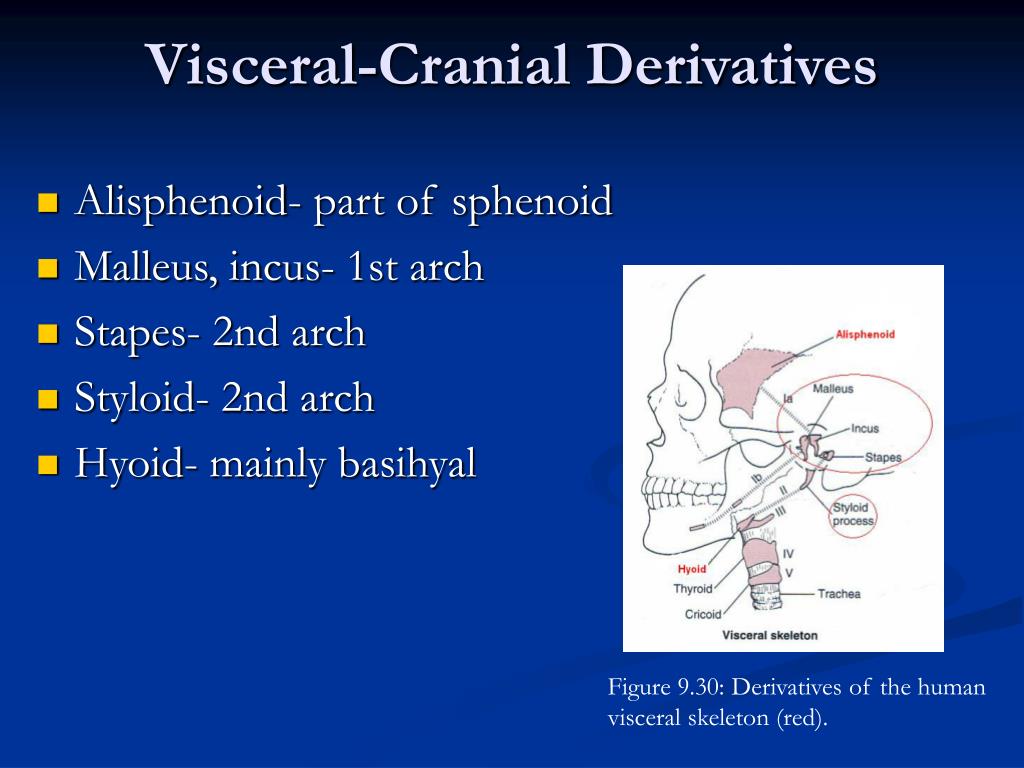

  33. Visceral-Cranial Derivatives • Alisphenoid- part of sphenoid • Malleus, incus- 1st arch • Stapes- 2nd arch • Styloid- 2nd arch • Hyoid- mainly basihyal Figure 9.30: Derivatives of the human visceral skeleton (red).

  34. Figure 9.31: Skeletal derivatives of pharyngeal arches.

  35. Dermatocranium • Membrane bone, not replacement bone • Dermal bones of skull • Upper jaw and face, palates, mandible Figure 9.32: Pattern that tetrapod dermatocrania may have evolved.

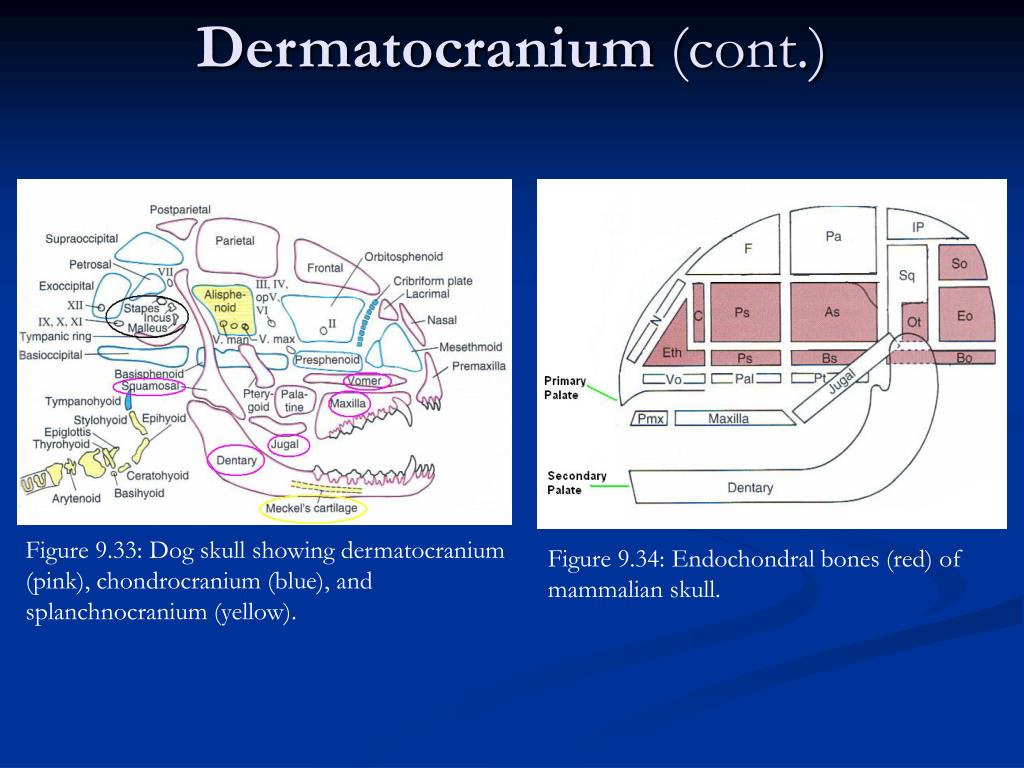

  36. Dermatocranium (cont.) Figure 9.33: Dog skull showing dermatocranium (pink), chondrocranium (blue), and splanchnocranium (yellow). Figure 9.34: Endochondral bones (red) of mammalian skull.

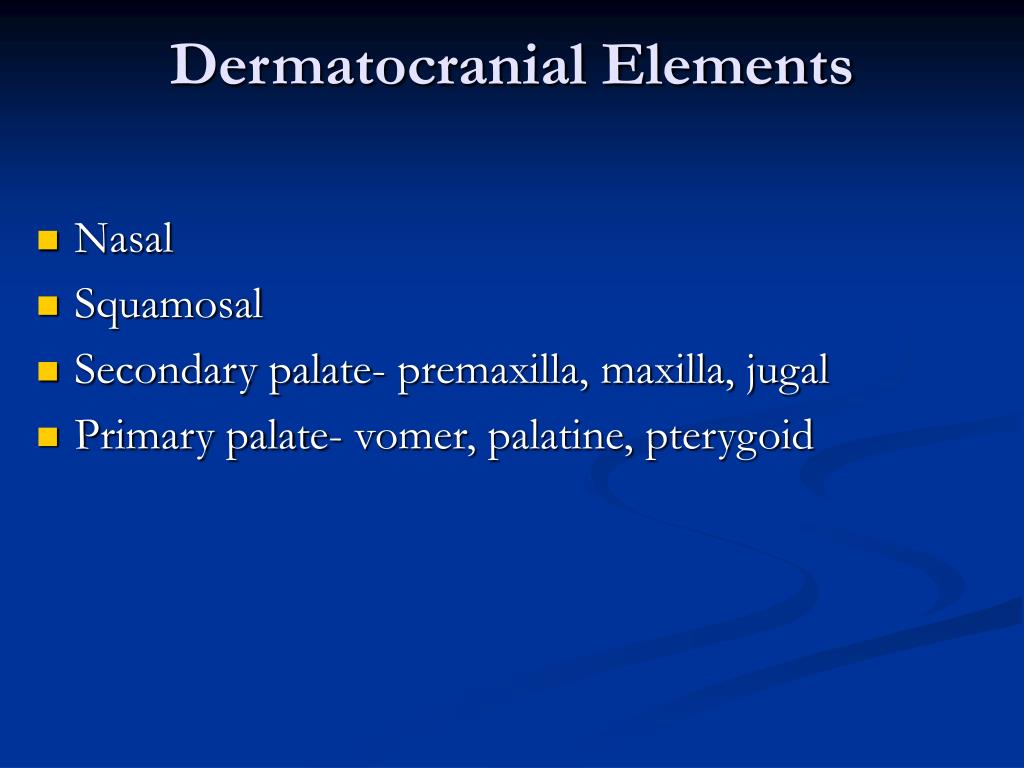

  37. Dermatocranial Elements • Nasal • Squamosal • Secondary palate- premaxilla, maxilla, jugal • Primary palate- vomer, palatine, pterygoid

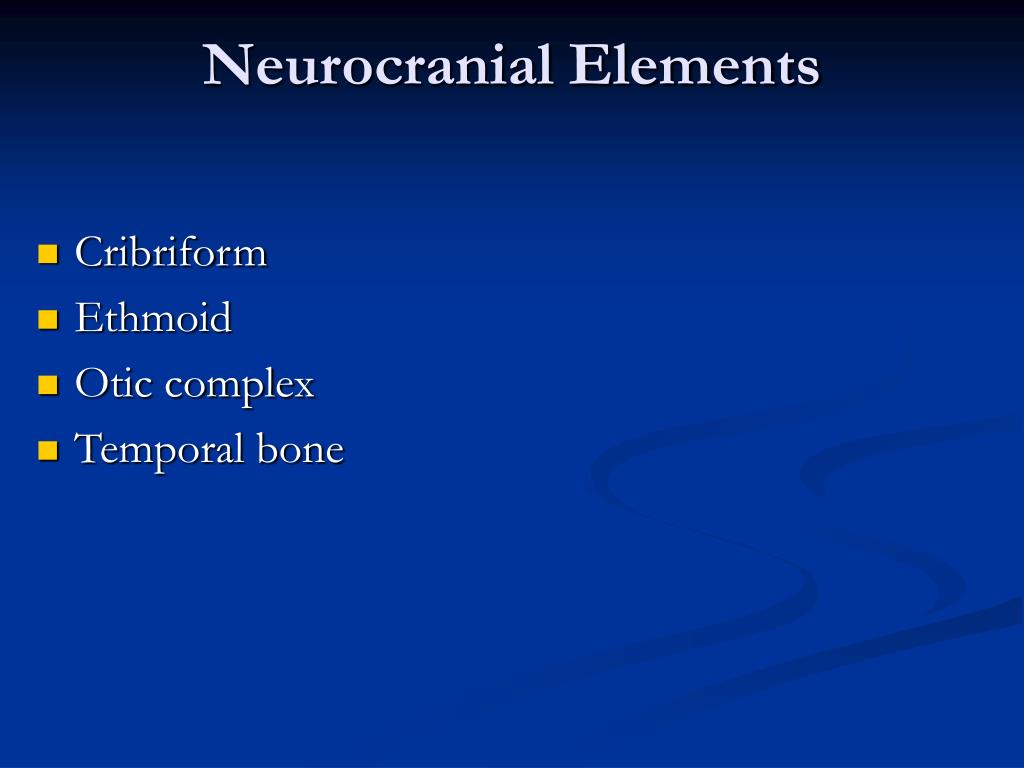

  38. Neurocranial Elements • Cribriform • Ethmoid • Otic complex • Temporal bone

  39. Splanchnocranial Elements • Maleus, incus, stapes • Styloid process- hyoid

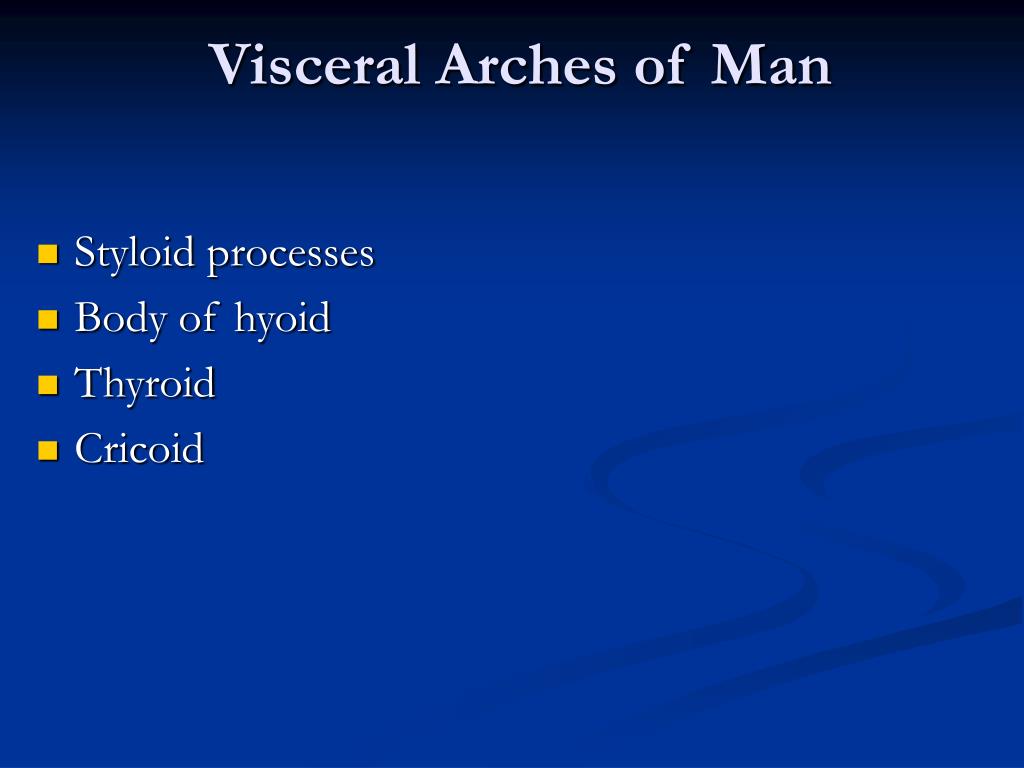

  40. Visceral Arches of Man • Styloid processes • Body of hyoid • Thyroid • Cricoid

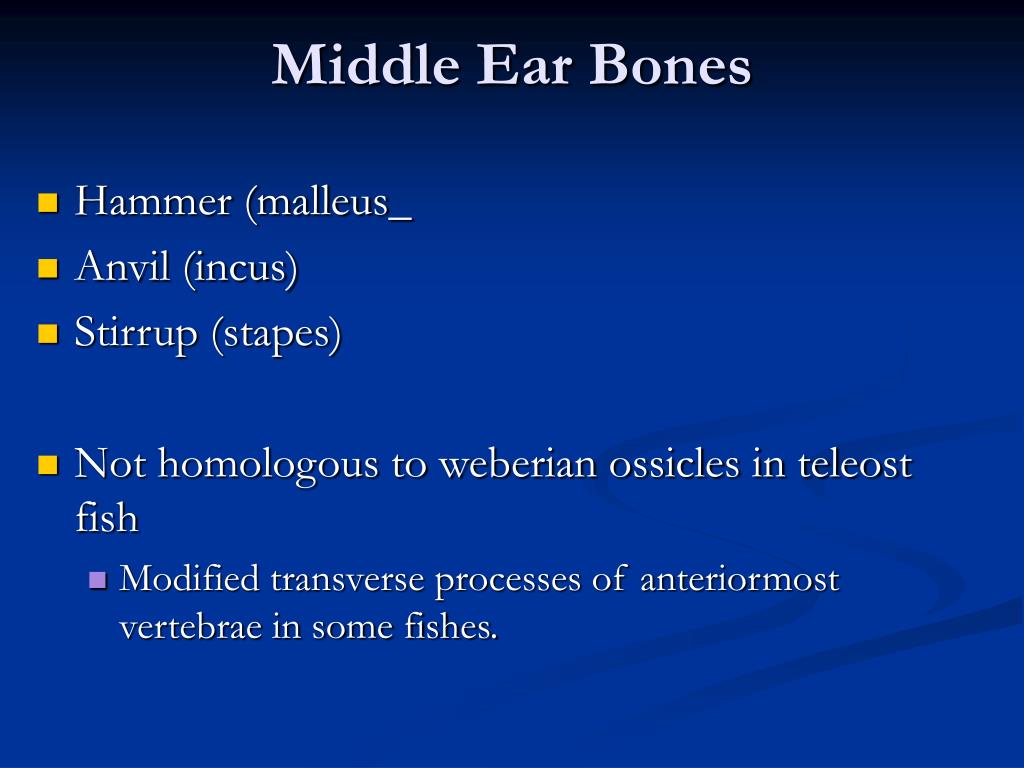

  41. Middle Ear Bones • Hammer (malleus_ • Anvil (incus) • Stirrup (stapes) • Not homologous to weberian ossicles in teleost fish • Modified transverse processes of anteriormost vertebrae in some fishes.

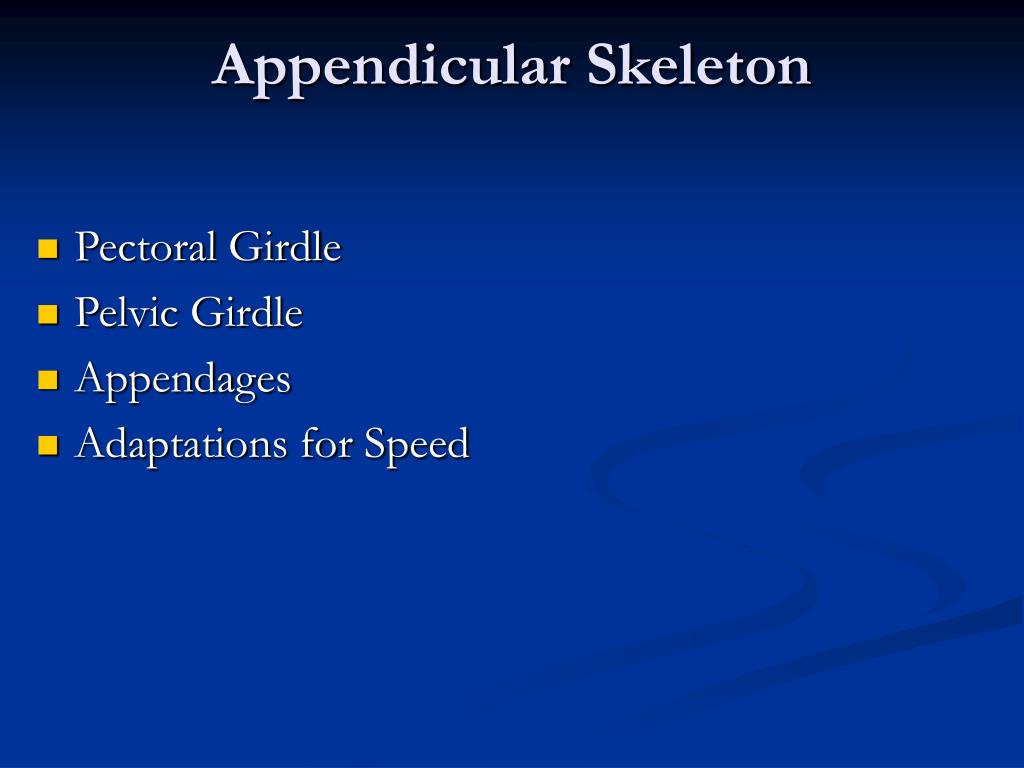

  42. Appendicular Skeleton • Pectoral Girdle • Pelvic Girdle • Appendages • Adaptations for Speed

  43. Pectoral Girdle • 2 sets of elements: cartilage or replacement bone and membrane bone • Replacement bones • Coracoid, scapula, suprascapula • Membrane bones • Clavicle, cleithrum, supracleithrum Figure 9.35: Pectoral girdle phylogenetic lines. Dermal bones are red. Replacement bones are black.

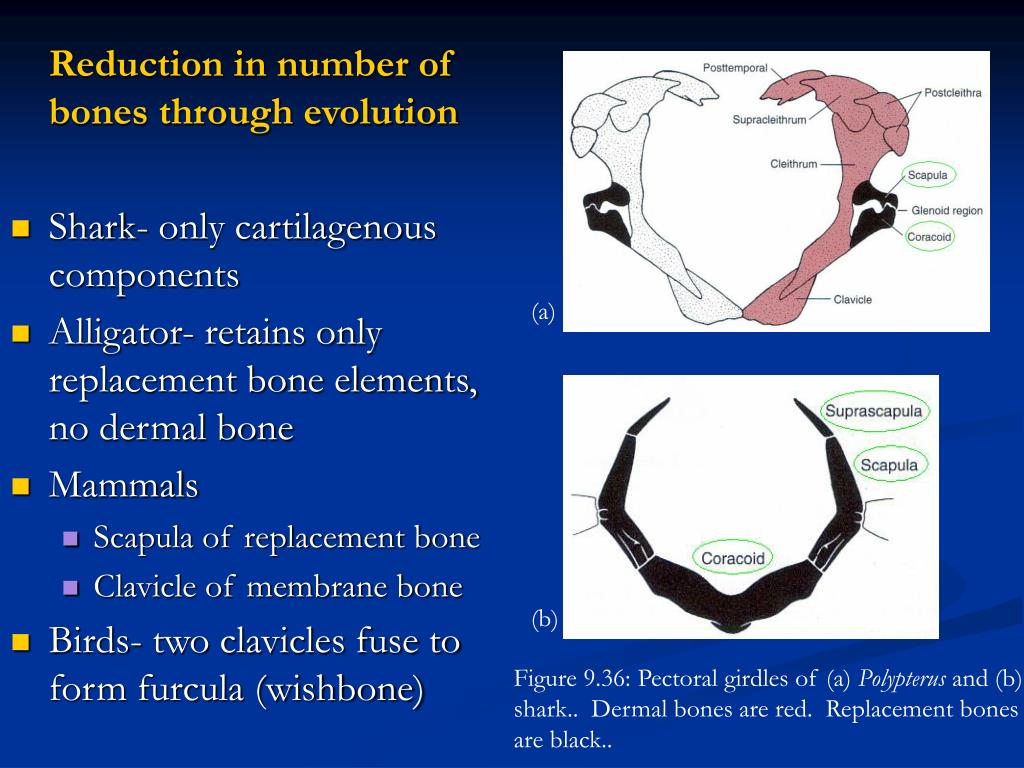

  44. Reduction in number of bones through evolution • Shark- only cartilagenous components • Alligator- retains only replacement bone elements, no dermal bone • Mammals • Scapula of replacement bone • Clavicle of membrane bone • Birds- two clavicles fuse to form furcula (wishbone) (a) (b) Figure 9.36: Pectoral girdles of (a) Polypterus and (b) shark.. Dermal bones are red. Replacement bones are black..

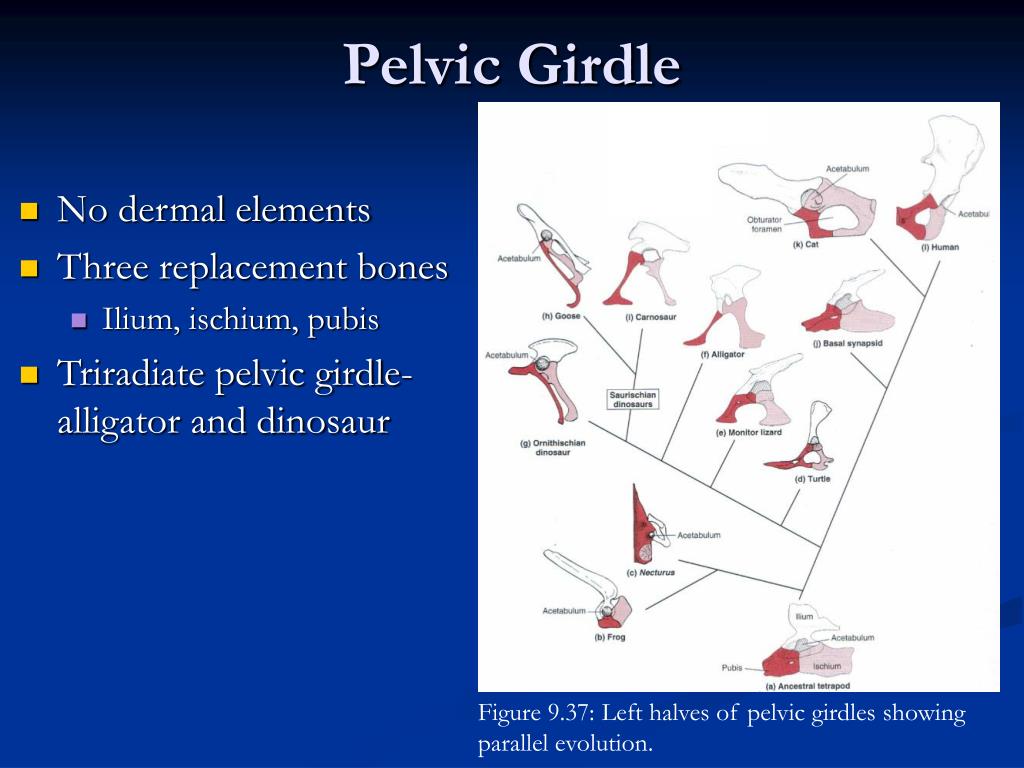

  45. Pelvic Girdle • No dermal elements • Three replacement bones • Ilium, ischium, pubis • Triradiate pelvic girdle- alligator and dinosaur Figure 9.37: Left halves of pelvic girdles showing parallel evolution.

  46. Appendages • Single unit in both fore and hind limbs most medial • Two units in fore and hind limb distal area Figure 9.38: Dorsal view of left forelimb or forefin of Devonian tetrapods.

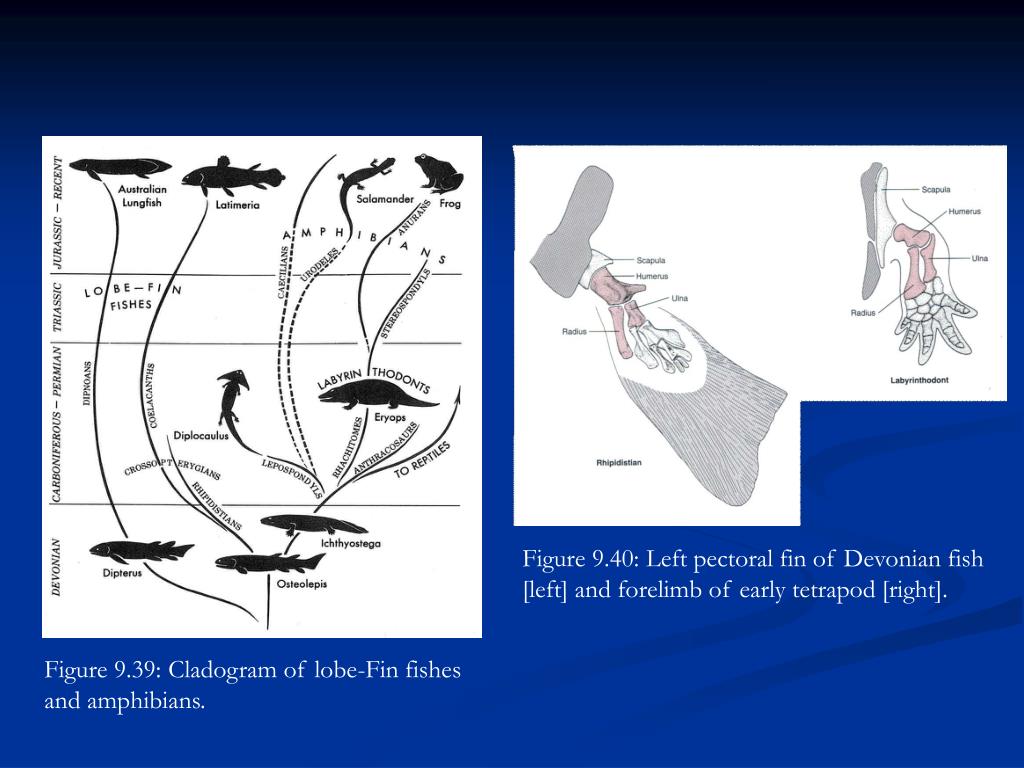

  47. Figure 9.40: Left pectoral fin of Devonian fish [left] and forelimb of early tetrapod [right]. Figure 9.39: Cladogram of lobe-Fin fishes and amphibians.

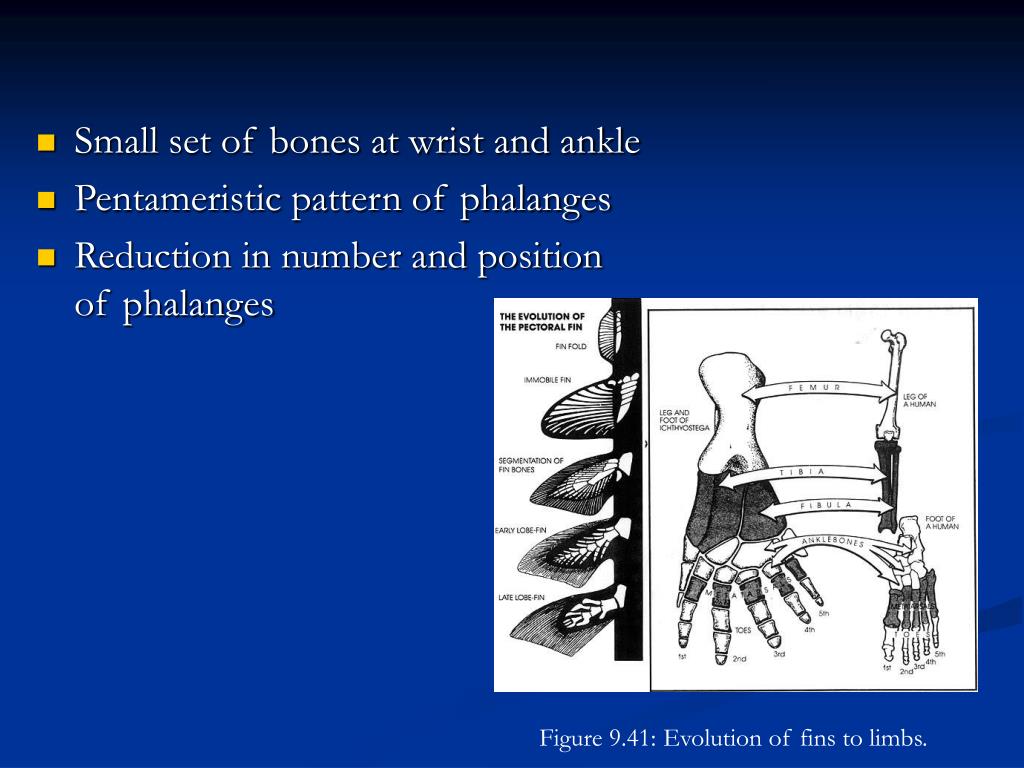

  48. Small set of bones at wrist and ankle • Pentameristic pattern of phalanges • Reduction in number and position of phalanges Figure 9.41: Evolution of fins to limbs.

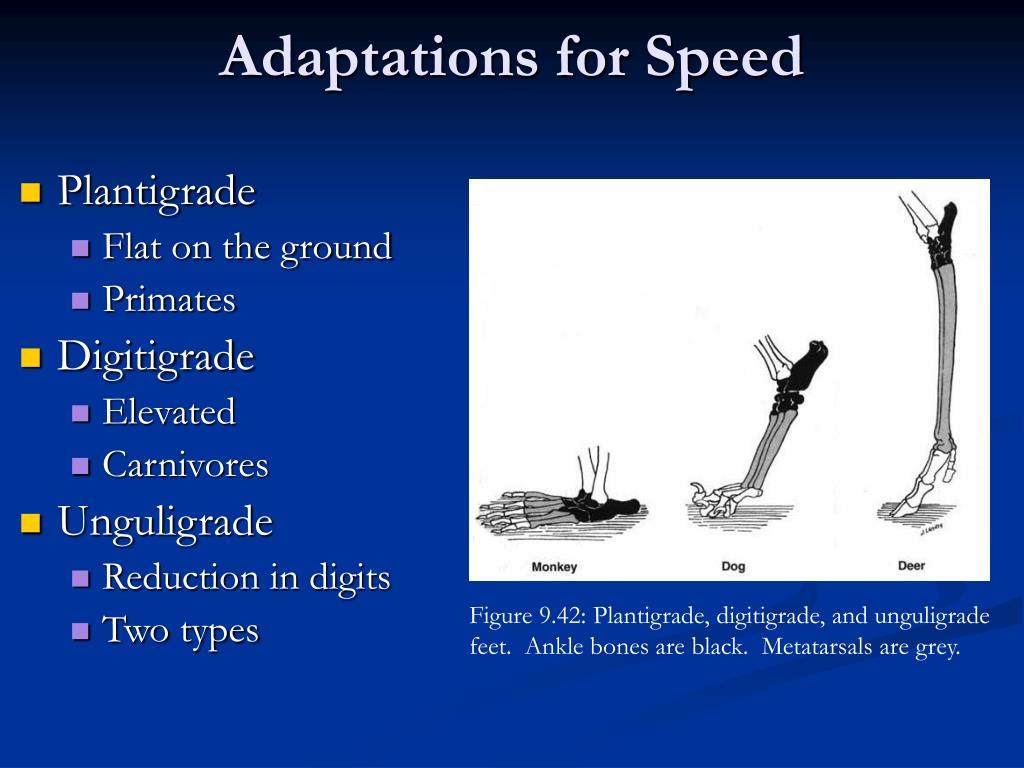

  49. Adaptations for Speed • Plantigrade • Flat on the ground • Primates • Digitigrade • Elevated • Carnivores • Unguligrade • Reduction in digits • Two types Figure 9.42: Plantigrade, digitigrade, and unguligrade feet. Ankle bones are black. Metatarsals are grey.

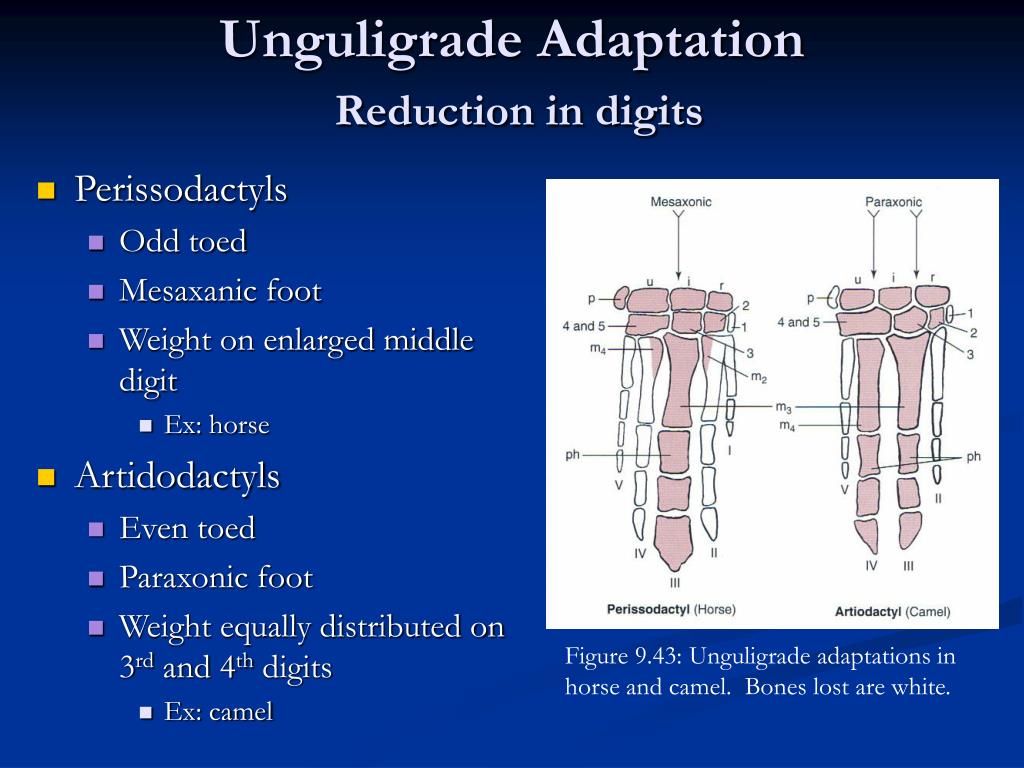

  50. Unguligrade AdaptationReduction in digits • Perissodactyls • Odd toed • Mesaxanic foot • Weight on enlarged middle digit • Ex: horse • Artidodactyls • Even toed • Paraxonic foot • Weight equally distributed on 3rd and 4th digits • Ex: camel Figure 9.43: Unguligrade adaptations in horse and camel. Bones lost are white.
