RA 100 – Imaging I

Radioactivity, Electromagnetic Radiation

And Tissue Imaging


Radioactivity
RADIOACTIVITY

  • Emission of particles and energy from an atom

  • Disintegration or decay of the nucleus of unstable atoms

    • RADIONUCLIDES

    • RADIOISOTOPES


Radioactivity1
RADIOACTIVITY

  • Number of neutrons affects stability

  • Too few or too many cause instability

  • Particles or energy are ejected

  • Proper ratio is restored


Radioactivity2
RADIOACTIVITY

  • Radioactivity measured in Curies or Becquerels – disintegrations or nuclear transformations per unit of time

  • Half-life: time it takes for radioactivity to reach half its initial value


Radioactivity3
RADIOACTIVITY

  • Results in the emission of:

    • Alpha particles

    • Beta particles

    • Gama rays

  • Alpha and Beta are particulate radiation

  • Gamma is electromagnetic radiation

  • All are capable of causing ionization


Particulate radiation
PARTICULATE RADIATION

  • ALPHA PARTICLES

    • CONSIST OF 2 PROTONS AND 2 NEUTRONS (HELIUM NUCLEUS)

    • DOUBLE POSITIVE CHARGE

    • HIGHLY IONIZING BUT DON’T TRAVEL FAR IN TISSUE

  • BETA PARTICLES

    • CONSIST OF HIGH SPEED ELECTRONS

    • NEGATIVE CHARGE

    • NOT AS DAMAGING, BUT TRAVEL FURTHER


Electromagnetic energy
ELECTROMAGNETIC ENERGY

  • Fluctuating magnetic and electrical fields

  • Contain no mass or charge

  • Photons – energy disturbances moving through space


Characteristics
CHARACTERISTICS

  • Electromagnetic energy has four characteristics that identify or describe it

    • VELOCITY

    • WAVELENGTH

    • FREQUENCY

    • AMPLITUDE

  • Visually expressed through a sine wave

  • Two dimensional representation of the electromagnetic field


Velocity
VELOCITY

  • Speed is CONSTANT for all forms of electromagnetic radiation

  • All travel at the speed of light

    • 186,000 miles per second

    • 3 x 108 meters per second


Wavelength
WAVELENGTH

  • Distance between crests or valleys on the sine wave

  • Top wave has a __________ wavelength

  • Bottom wave has a ___________wavelength


Frequency
FREQUENCY

  • Number of crests or valleys per unit of time

  • Rate of rise and fall of the wave

  • Top wave has a ____________frequency

  • Bottom wave has a ____________frequency


Amplitude

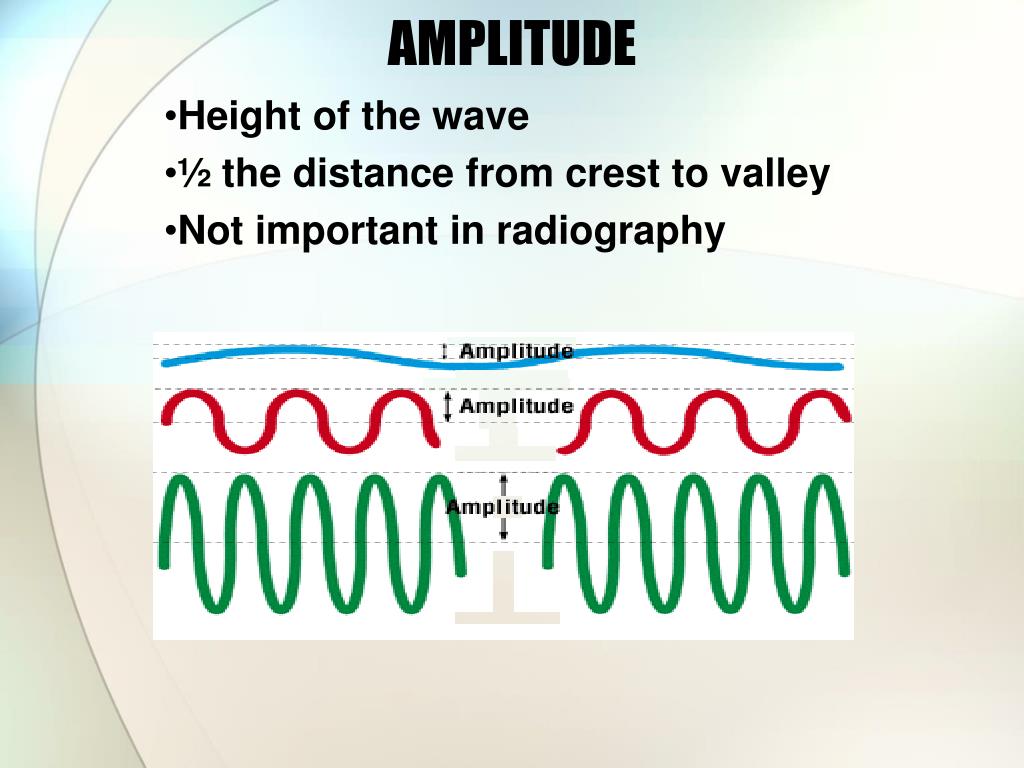

AMPLITUDE

  • Height of the wave

  • ½ the distance from crest to valley

  • Not important in radiography


Wavelength vs frequency
WAVELENGTH VS FREQUENCY

  • What is the relationship between wavelength and frequency?


Energy vs wavelength frequency
ENERGY VS WAVELENGTH / FREQUENCY

  • Energy of electromagnetic radiation refers to its strength or ability to penetrate matter

  • High energy radiation is more capable of penetrating matter

  • What is the relationship between energy and wavelength?

  • What is the relationship between energy and frequency



Electromagnetic spectrum

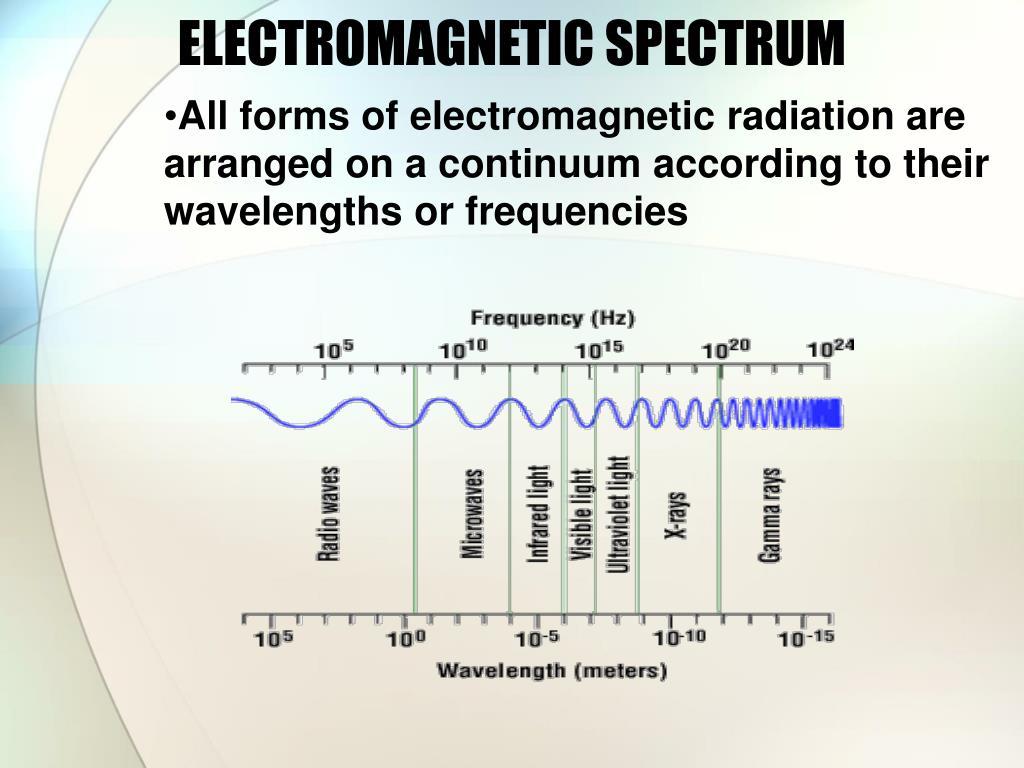

ELECTROMAGNETIC SPECTRUM

  • All forms of electromagnetic radiation are arranged on a continuum according to their wavelengths or frequencies


X ray energy and tissue imaging
X-RAY ENERGY AND TISSUE IMAGING

  • Three potential interactions between x-rays and the body

  • Pass through unaffected

  • Formation of scatter

  • Absorption (attenuation) of radiation


Factors affecting interaction with matter
FACTORS AFFECTING INTERACTION WITH MATTER

  • BEAM ENERGY

  • BEAM QUANTITY

  • TISSUE TYPE AND QUANTITY

    • TISSUE THICKNESS

    • ATOMIC NUMBER OF TISSUE

    • TISSUE DENSITY


Radiation and imaging
RADIATION AND IMAGING

  • Beam energy

    • As beam energy increases, what will happen most frequently?

    • As beam energy decreases, what will happen most frequently?

  • Beam intensity (quantity)

    • What will happen if beam intensity is increased?

    • What will happen if beam intensity is decreased?


Tissue factors and attenuation
TISSUE FACTORS AND ATTENUATION

  • Interaction between radiation and matter is at the atomic level

  • Interaction is a random chance

    • Radiation not attracted to any atom

    • If atom and electrons are in the path of the photon, interaction will occur

    • If not, no interaction

    • Increasing the number of atoms or electrons will increase chance for interaction

      • What will happen to attenuation?

      • What will happen to scatter?


Tissue factors and attenuation1
TISSUE FACTORS AND ATTENUATION

  • TISSUE THICKNESS – QUANTITY

    • As tissue thickness increases, what happens to attenuation?

    • Why?


Tissue factors and attenuation2
TISSUE FACTORS AND ATTENUATION

  • TISSUE ATOMIC NUMBER

    • As tissue atomic number increases, what happens to attenuation?

    • Why?


Tissue factors and attenuation3
TISSUE FACTORS AND ATTENUATION

  • TISSUE DENSITY

    • As tissue density increases, what happens to attenuation?

    • Why?


Differential absorption
DIFFERENTIAL ABSORPTION

  • DIFFERENT TISSUE TYPES ABSORB DIFFERENT AMOUNTS OF RADIATION

  • In order of most to least absorption:

    • Bone

    • Muscle

    • Water density

    • Fat

    • Air - gas



Pathology and attenuation
PATHOLOGY AND ATTENUATION

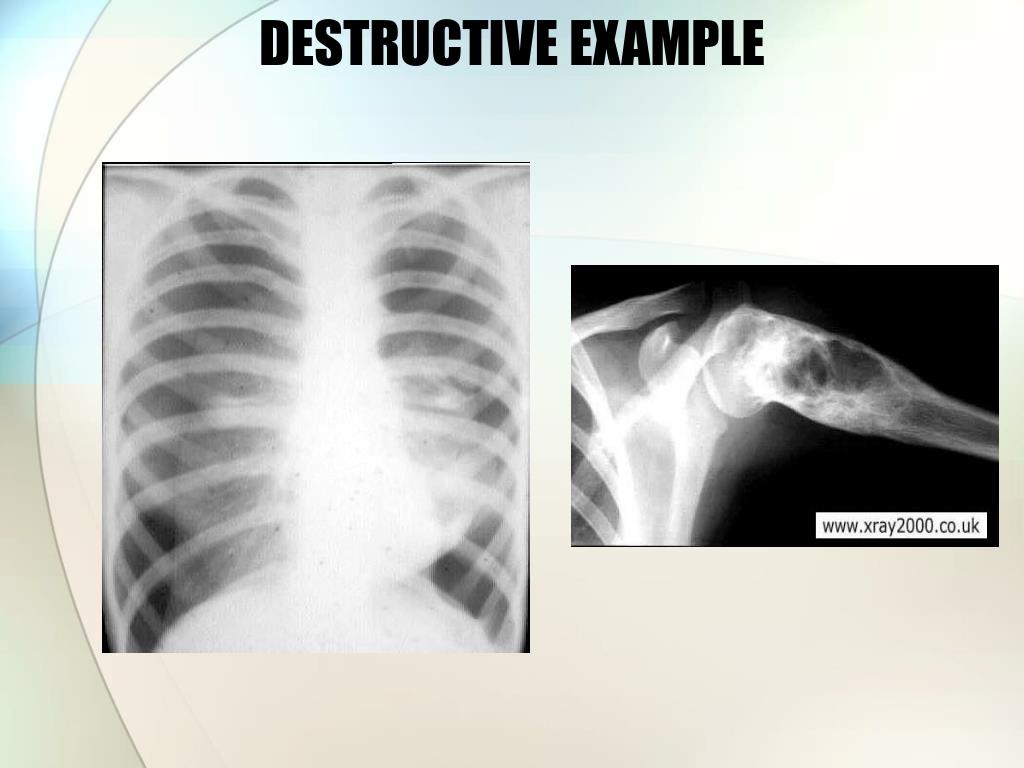

  • DESTRUCTIVE PATHOLOGY

    • Affected body tissue is decreased in thickness, effective atomic number and/or density

    • Less attenuation

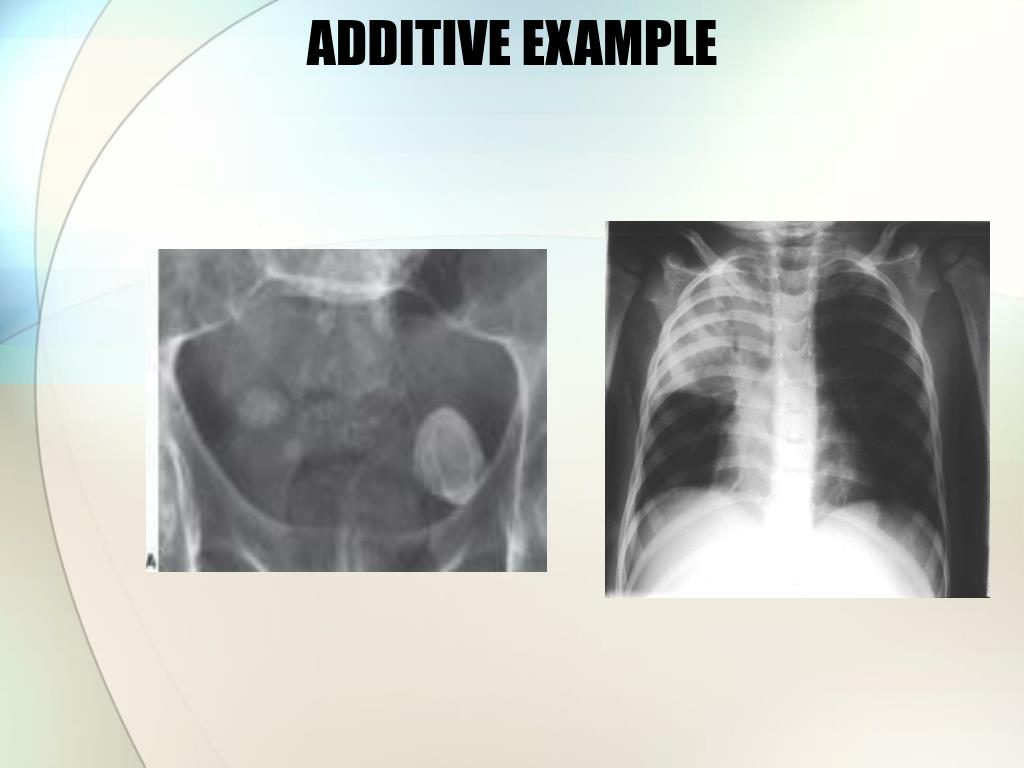

  • ADDITIVE PATHOLOGY

    • Affected body tissue is increased in thickness, effective atomic number and/or density

    • Greater attenuation


Pathology and attenuation1
PATHOLOGY AND ATTENUATION

  • DESTRUCTIVE CONDITIONS:

    • ATROPHY

    • EMPHYSEMA

    • BOWEL OBSTRUCTION

    • DEGERERATIVE ARTHRITIS

    • OSTEOPOROSIS


Pathology and attenuation2
PATHOLOGY AND ATTENUATION

  • ADDITIVE CONDITIONS:

    • EDEMA

    • TUMORS

    • PLEURAL EFFUSIONS

    • PULMONARY EDEMA

    • CARDIOMEGALY

    • ASCITES

    • HYDROCEPHALUS
