Seals patented installation system

Seals Patented Installation System

Working Area Preparation ( Step by step )

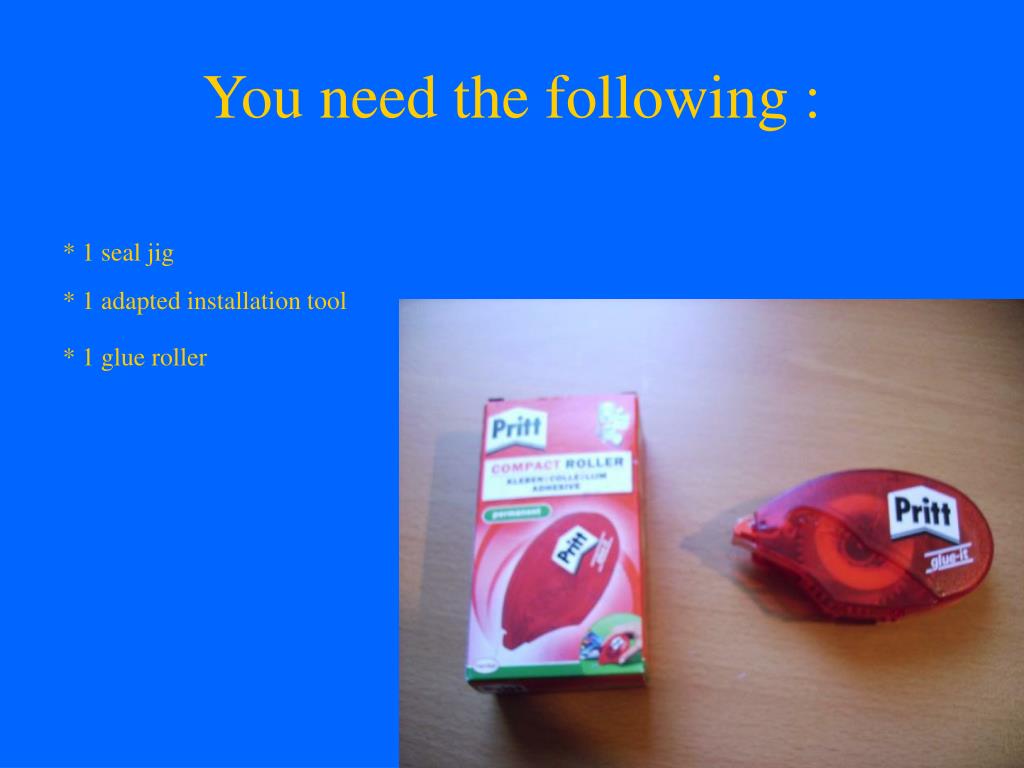

You need the following

You need the following :

* 1 seal jig

* 1 adapted installation tool

* 1 glue roller

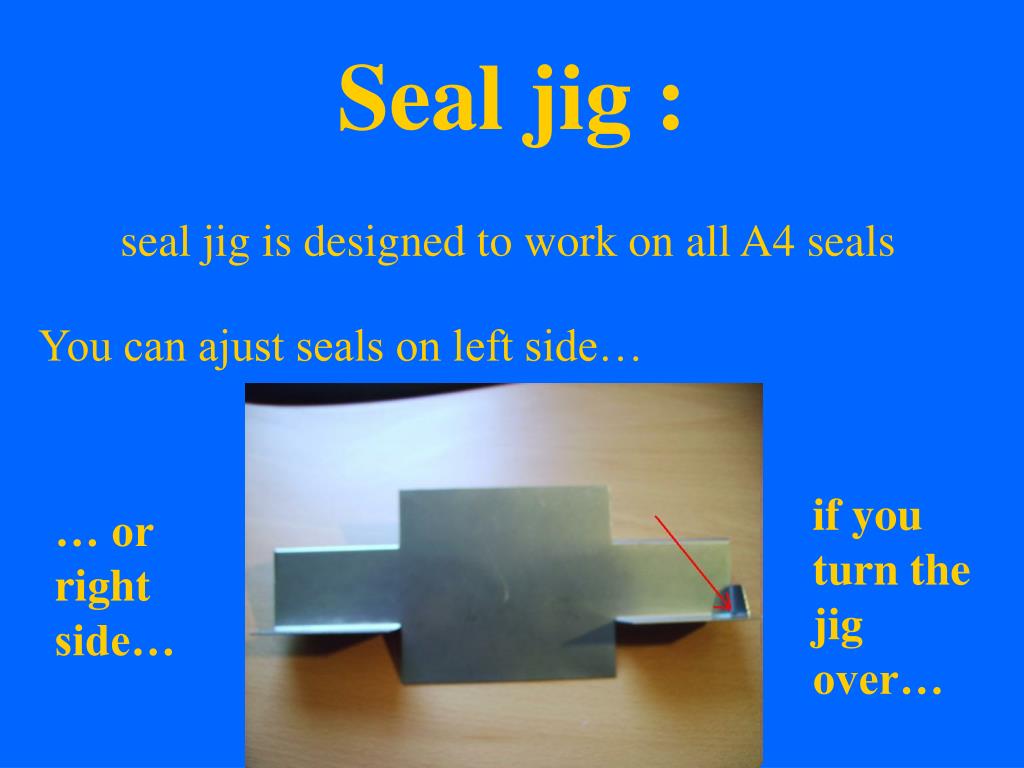

Seal jig

Seal jig :

seal jig is designed to work on all A4 seals

You can ajust seals on left side…

if you turn the jig over…

… or right side…

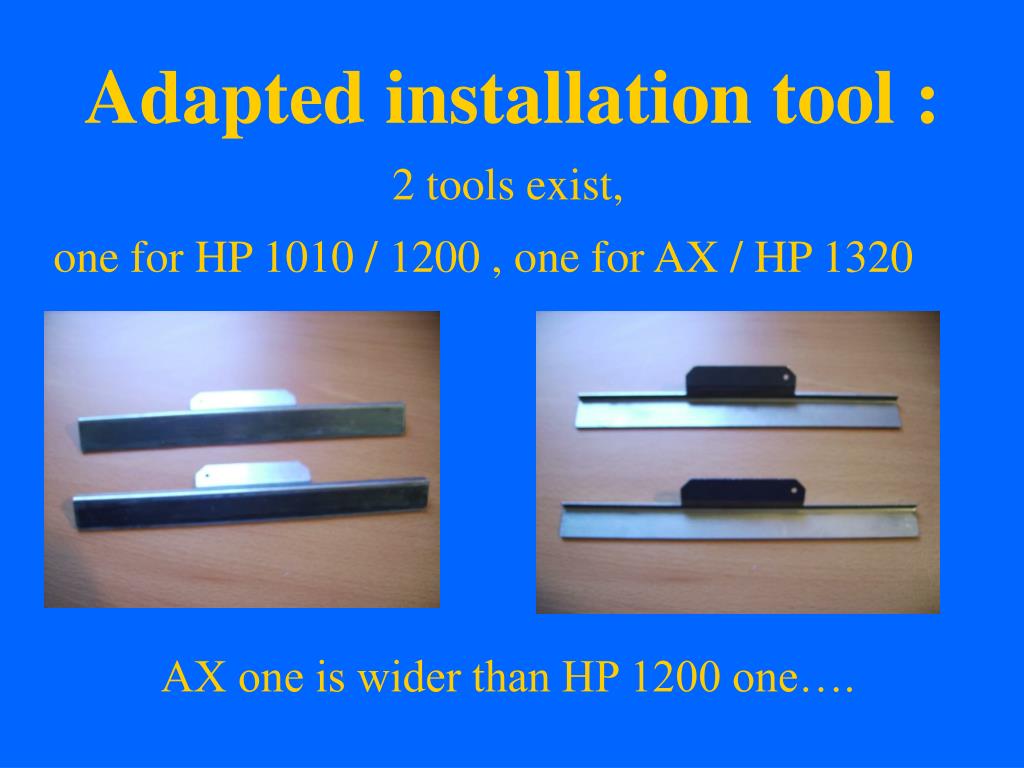

Adapted installation tool

Adapted installation tool :

2 tools exist,

one for HP 1010 / 1200 , one for AX / HP 1320

AX one is wider than HP 1200 one….


Glue roller

Glue roller :

is really inexpensive,

use Pritt permanent glue

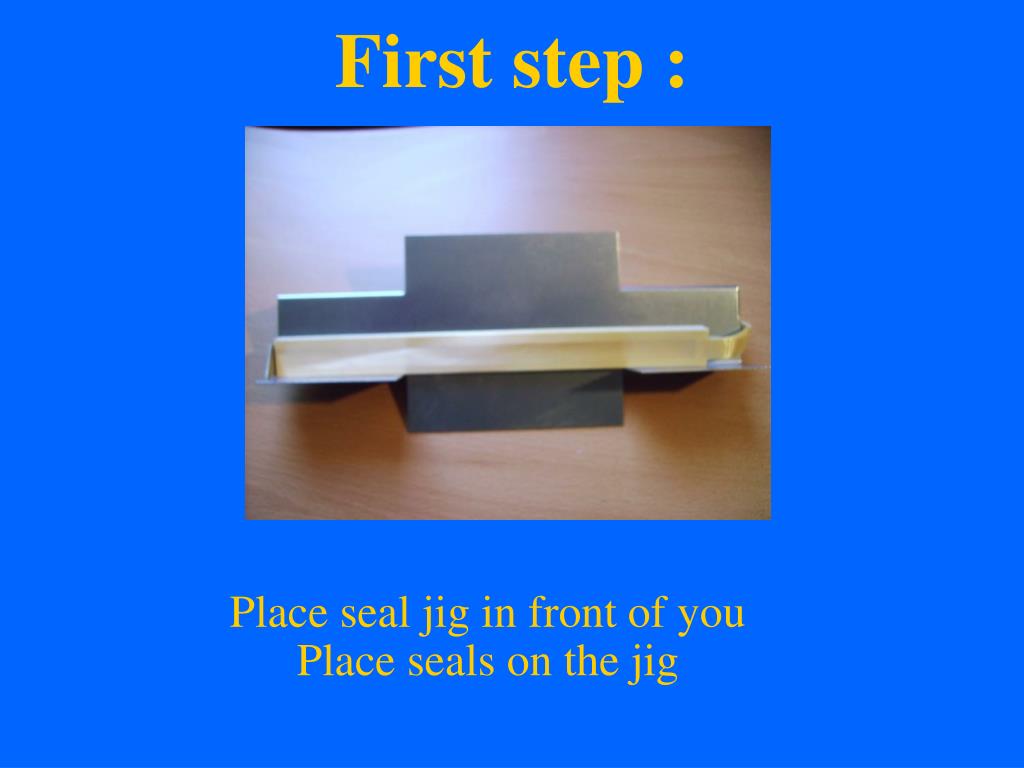

First step

First step :

Place seal jig in front of you

Place seals on the jig


Second step

Second step :

pasting the tool

Tool has to be sticky enough to hold the seal,

But less sticky than seal’s adhesive,

otherwise, seal will not stick on hopper and will stay on the tool….

Take glue roller and place glue on bottom both ends of the tool ( 2 cm ) plus 2-3 cm in the middle


Third step

Third step :

Place the insertion toll on the seal,

Using jig and handle as guides


Seals patented installation system

Then…..

Act as shown on my video…

If you do not see the video, please look at www.proton.fr home page…..


Seals patented installation system

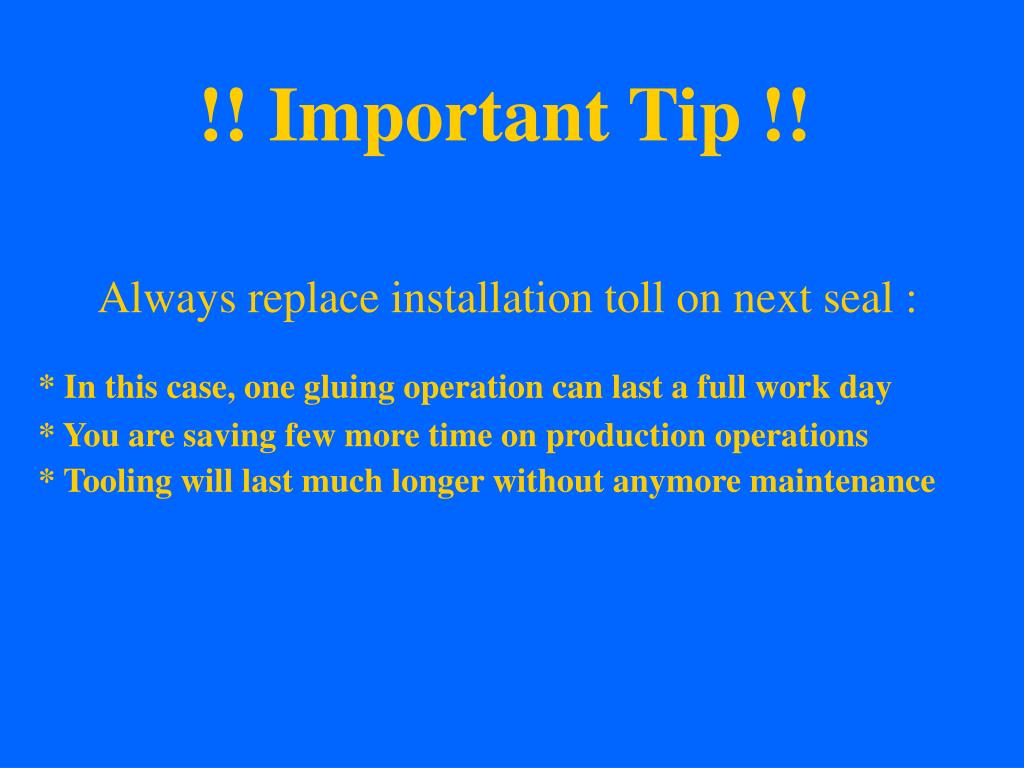

!! Important Tip !!

Always replace installation toll on next seal :

* In this case, one gluing operation can last a full work day

* You are saving few more time on production operations

* Tooling will last much longer without anymore maintenance


Seals patented installation system

Has been proud to show you it’s french patented sealing system…..
