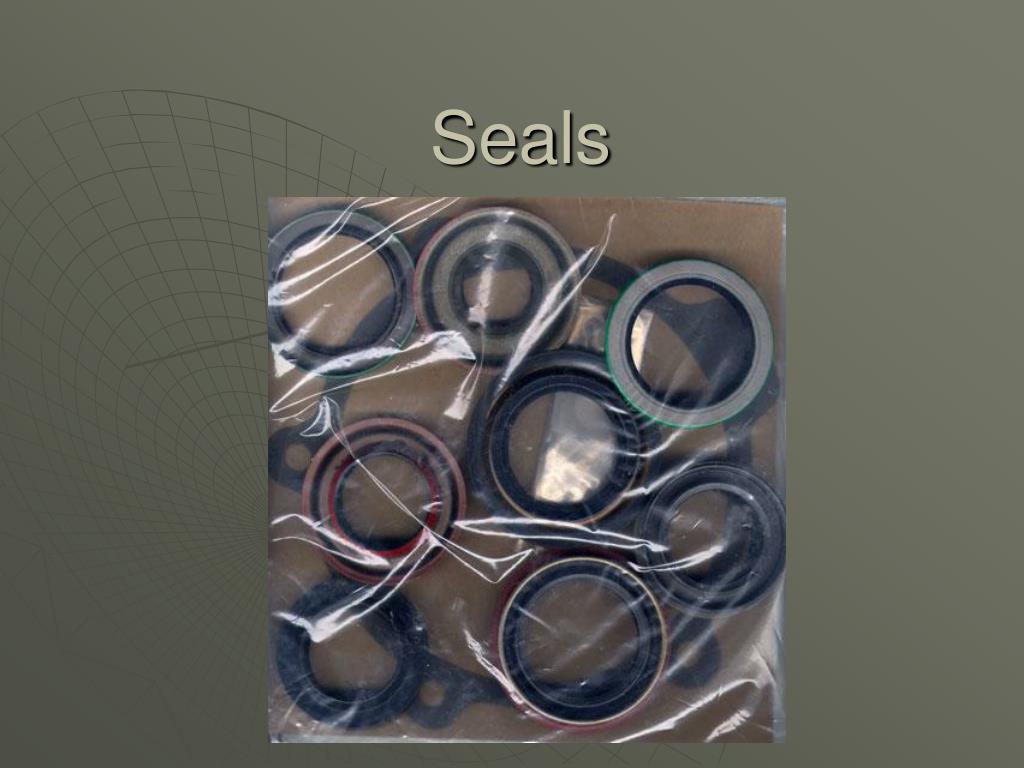

Seals

Seals


Purpose

Purpose

  • Keeps fluid where it is supposed to be

    • High pressure

      • Piston seals

      • Accumulator seals

      • Shaft sealing rings

      • Valve body gasket

    • Low pressure

      • Pan gasket

      • Output shaft seal

      • Front pump seal

      • Shift shaft seal

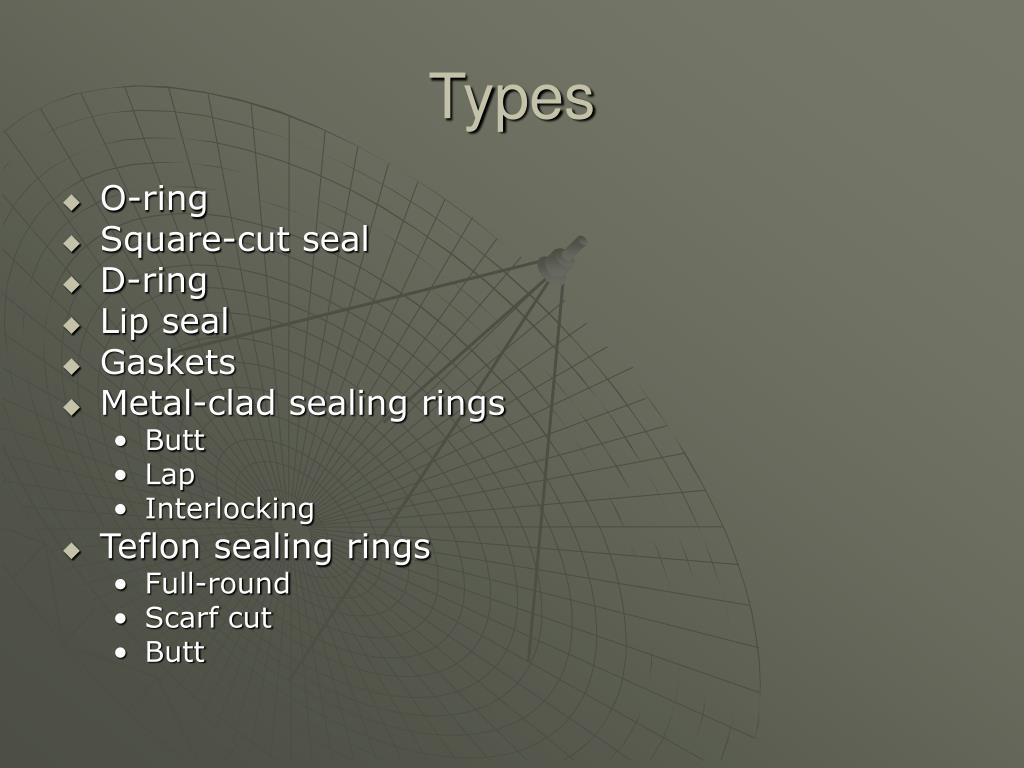

Types

Types

  • O-ring

  • Square-cut seal

  • D-ring

  • Lip seal

  • Gaskets

  • Metal-clad sealing rings

    • Butt

    • Lap

    • Interlocking

  • Teflon sealing rings

    • Full-round

    • Scarf cut

    • Butt

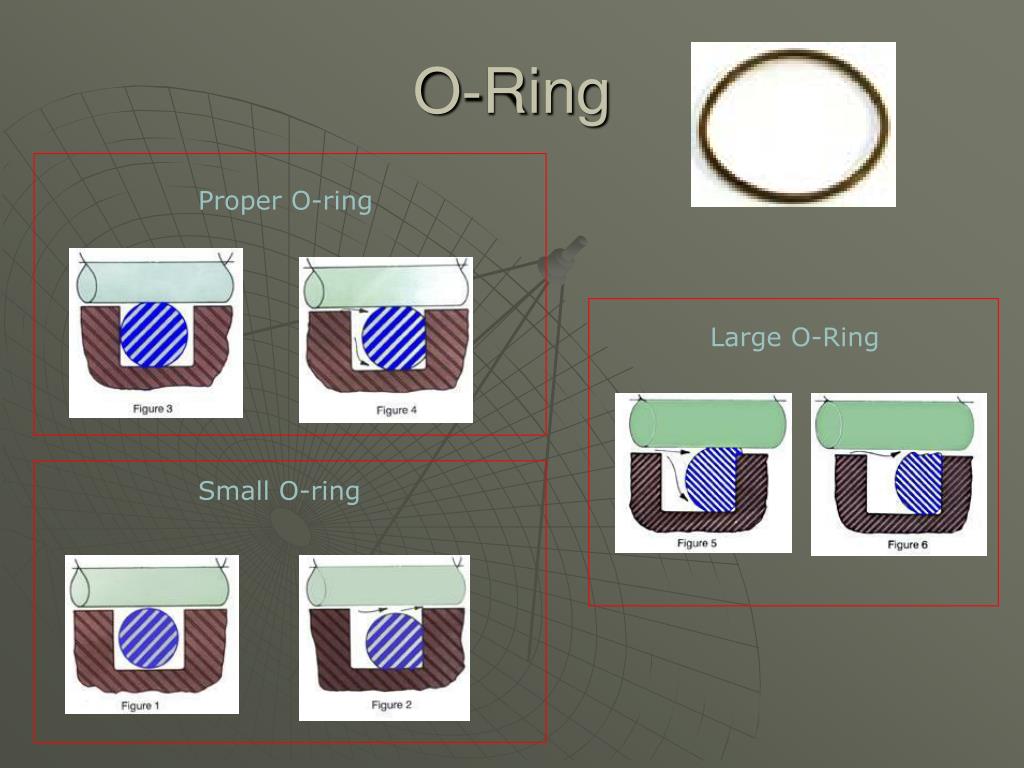

O ring

O-Ring

Proper O-ring

Large O-Ring

Small O-ring


Square lathe cut seal

Square (Lathe) Cut Seal

Increase Sealing area on the square cut seal

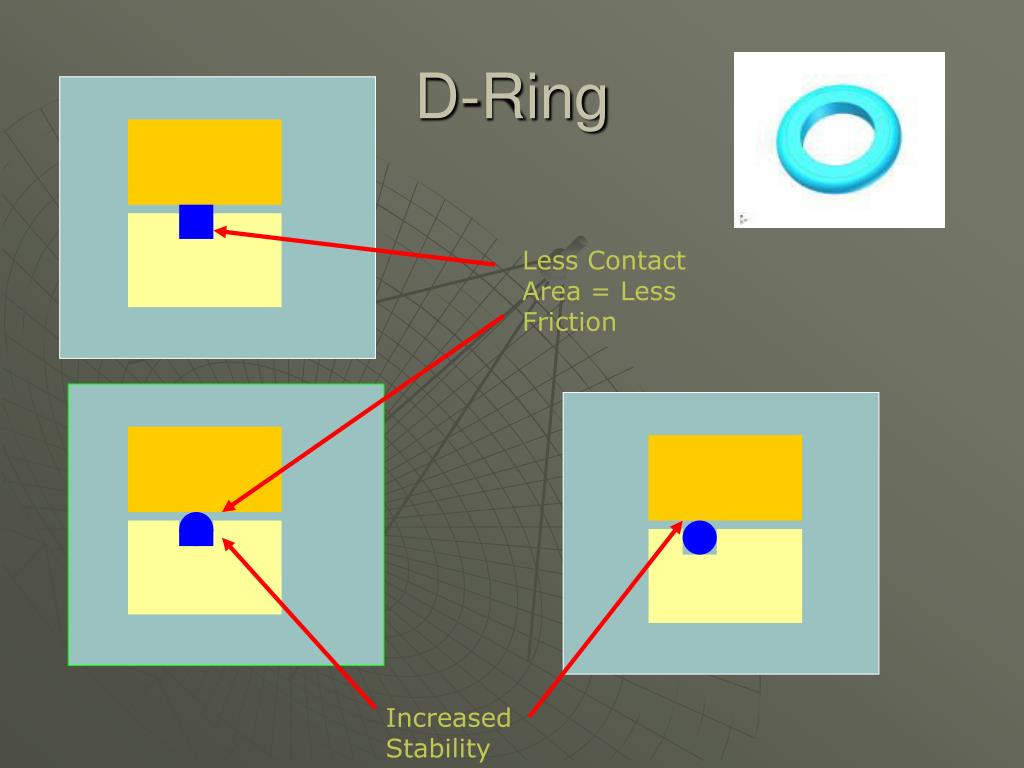

D ring

D-Ring

Less Contact Area = Less Friction

Increased Stability


Lip seals

Lip Seals

Incorrectly Installed Lip Seal

Correctly Installed Lip Seal

Clutch

Housing

Piston

Pressure


Gaskets

Gaskets

  • Types

    • Cork

      • Cheapest

      • May soften over time and allow bolts to lose torque

    • Paper

      • Usually used on the valve body

    • Cork/Rubber

    • Rubber

    • Steel Cored Rubber

      • These are often reusable

      • If they are reusable, don’t replace unless damaged


Metal clad sealing rings

Metal Clad Sealing Rings

  • End joint types

    • Butt

    • Interlocking

    • Lap

Butt

Lap

Inter-Locking


Teflon sealing rings

Teflon Sealing Rings

  • Types

    • Full Round

      • Must be installed with a sizing tool

      • Scarf-cut

      • Butt

Butt

Scarf-Cut

Full-Round
