Towards Intelligent and Interactive Networks

1. Integrating Networks with Mathematica Towards Intelligent and Interactive Networks R. J. Strijkers

2. Introduction • Who • Rudolf Strijkers Sponsored by TNO ICTPhD student in the SNE group of Cees de Laat Promoter: Prof. Dr. Robert Meijer • What • Design an alternative network model for next-generation networks • Why • Context and goals • How • Things done so far • Idea’s to explore

3. Observations in Networking • Current Internet protocols and communication concepts are not well suited for next-generation networks: sensor networks, high-speed networks and hybrid networks • Many aspects of a network have become programmable. This allows richer behavior than traditional best-effort end-to-end services • Emergence of sensor networks and high-speed networks stimulates new research into exploitation of programmable resources Ref: Realizing the Information Future (1994)

4. 6 Research goal • Design and implement an alternative network model for next-generation networks: • Operate in highly dynamic environments i.e.: automated adaptation to environment • Application-specific QoE: service isolation • Long life-span networks and evolving ICT systems: allow modification or not foreseen behavior to be added 4 S Application 1 3 2 S S 5 S S S 5 S S S S 6 5 6 S 6 S 5 7 10

5. Towards programmable network services • Extremes of application control over network services • no control : sockets • full control : all network services are exposed to applications networked applications streams next-generation applications WWWe-mail application-specific best-effort next-generation networks

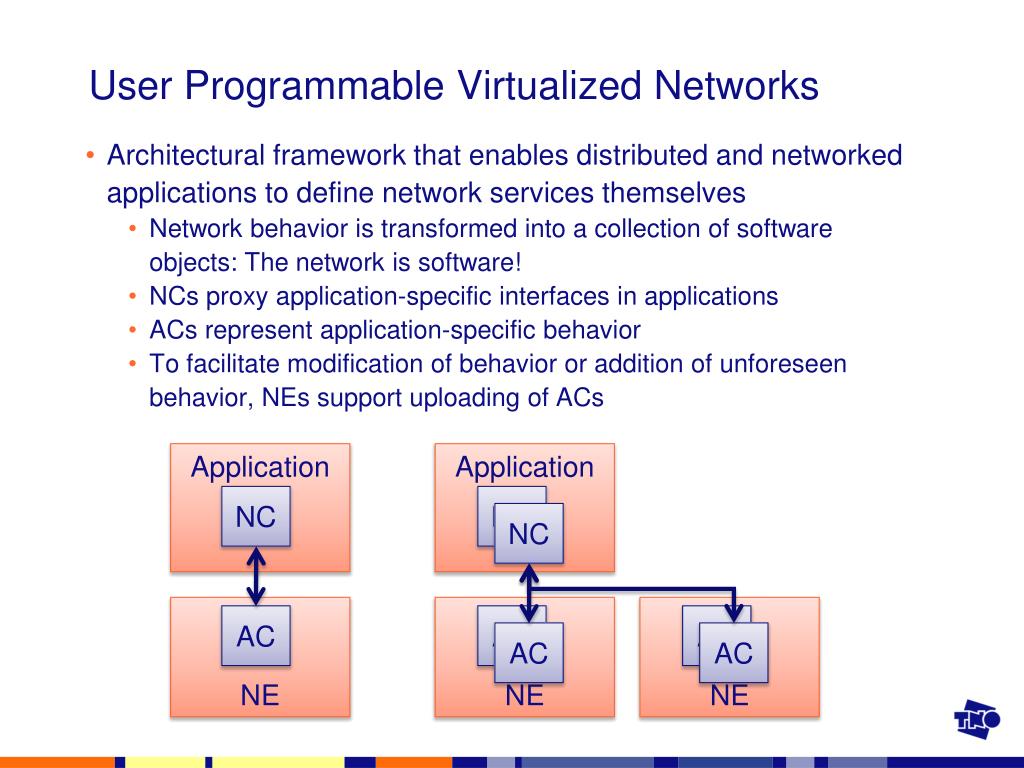

6. User Programmable Virtualized Networks • Architectural framework that enables distributed and networked applications to define network services themselves • Network behavior is transformed into a collection of software objects: The network is software! • NCs proxy application-specific interfaces in applications • ACs represent application-specific behavior • To facilitate modification of behavior or addition of unforeseen behavior, NEs support uploading of ACs Application Application NC NC NC NE NE NE AC AC AC AC AC

7. Example:A transaction service in Mathematica Needs["WebServices`"] <<DiscreteMath`Combinatorica` <<DiscreteMath`GraphPlot` InstallService[“http://localhost:3000/network_service/service.wsdl”] The following methods are available from the NetworkComponent: {GetAllLinks,GetAllElements,NetworkTokenTransaction} nodePath = ConvertIndicesToNodes[ ShortestPath[g,Node2Index[nids,"192.168.3.4"], Node2Index[nids,"139.63.77.49"]], nids]; Print["Path: ", nodePath]; If[NetworkTokenTransaction[nodePath, "green"]==True, Print["Committed"], Print["Transaction failed"]]; ConvertIndicesToNodes[ArticulationVertices[g]] Path: {192.168.3.4,192.168.3.1,139.63.77.30,139.63.77.49} Committed {139.63.77.30, 192.168.3.1}

8. Illustration:Dynamic rerouting application-specific traffic • Token networking implemented in Intel IXP2450 network processors (by Mihai Cristea) • Not fully UPVN yet, will be soon • End-hosts need modified TCP/IP stack to support tokenizing • Provides socket level granularity of control • Includes AAA on packet level in the network • Kernel development to include end-hosts • Legacy applications can be supported with specific adapters: • Run applications unmodified: Socket Hijacking library (by Damien Marchal) • Demonstrated a firewall use-case at OGF in Barcelona • Tested with FTP, GridFTP, OpenMPI and VLC

9. Demonstration session Mathematica! How did we implement this? Next, we present our architecture and implementation model

10. Binding user applications to network services • A network has to recognize traffic before it can apply specific behavior to it. • Tagging traffic is a way to glue applications to network behavior • Networks can know: • Everything : network behavior is fully provisioned : no tags needed • Nothing : the application knows everything : tag contains all the information • Tags are an indication for the richness of a network service • Lesson learned from active networks (AN) • Discrete AN : only an id • Integrated AN : complete program

11. generalised Token Based Networking CollaborativeGroup 1 3rd Party NegotiateService Policies and Rules Application 3 Specialized Network Service Token 2 NE NE AC AC AC AC

12. Experimental Setup • Request for network behavior • Can be predefined service bound to • a tag • Allows uploading of network services • Policies, AAA, administration • Provisioning of domains + end-hosts 1 App.1 Reservation Request 4 request bootstrap run request WS WS token CarpetD CarpetD 2 4 WS IDC1 configuration configuration App.2 Magic-carpet Magic-carpet 3 provisioning TBSIP TBSIP Gateway1 Gateway2

13. Multi Domain Implementation Architecture WS WS IDC1 IDC2 -gMPLS -TBSIP StarPlane WS -DRAC -VLAN Management User Host A Host B WS WS CarpetD App.1 CarpetD Transit networks App.1 App.3 Magic-carpet Magic-carpet Gateway1 Gateway2

14. gTBN in Grid Middleware • Applications-specific adaptation through virtualized network resources • Middleware manages resources and network services: Workflows Brokers • All application traffic is tagged • Multi domain services are achieved by negotiation between domains GRB Mathematica Mathematica Middleware NC NC NC NE NE NE NC

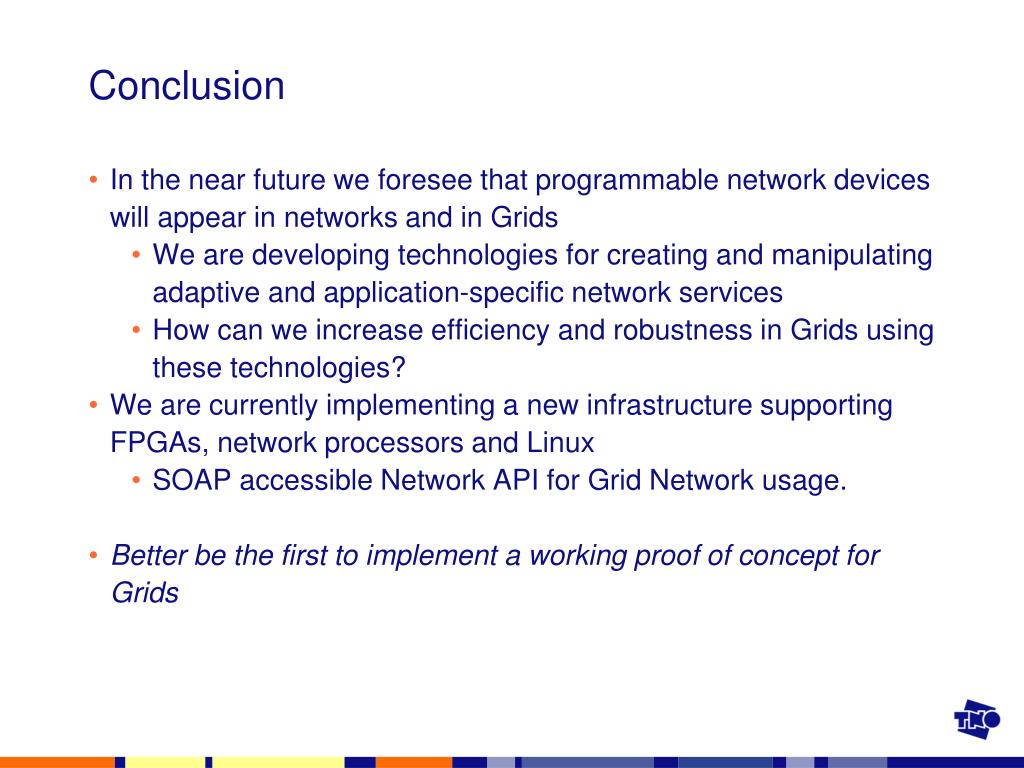

15. Conclusion • In the near future we foresee that programmable network devices will appear in networks and in Grids • We are developing technologies for creating and manipulating adaptive and application-specific network services • How can we increase efficiency and robustness in Grids using these technologies? • We are currently implementing a new infrastructure supporting FPGAs, network processors and Linux • SOAP accessible Network API for Grid Network usage. • Better be the first to implement a working proof of concept for Grids

16. Idea’s to explore • Network performance can have a huge impact on the performance of distributed applications • Program the network to follow high-speed paths or reroute low-priority traffic • We are currently developing the first proof of concepts in a gigabit test bed • Exploiting external tools to manipulate and program network services • ACs are exposed as SOAP web services • Implement UPVN support in Grid middleware technologies • integrates networks with resource provisioning middleware

17. Look into Future Work • We have looked at principles of application programmable network services and we have looked at a single entity • Next comes: • Applying the principles and components to develop a systems view • Introducing compiler technologies

18. Conclusion • Our goal is to find and explore next-generation networking principles: • Principles for interworking between applications and networks: User Programmable Virtualized Networks (UPVN)(eScience 2006) • Principles for binding applications to network behavior: generalized Token Based Networking (gTBN)(article to be submitted to IM2009) • Principles for automated network adaptation:Automated Adapting Networks (AANet)(IMS 2008, follow-up article & implementation in progress) • How can we implement this in Grid networks?
