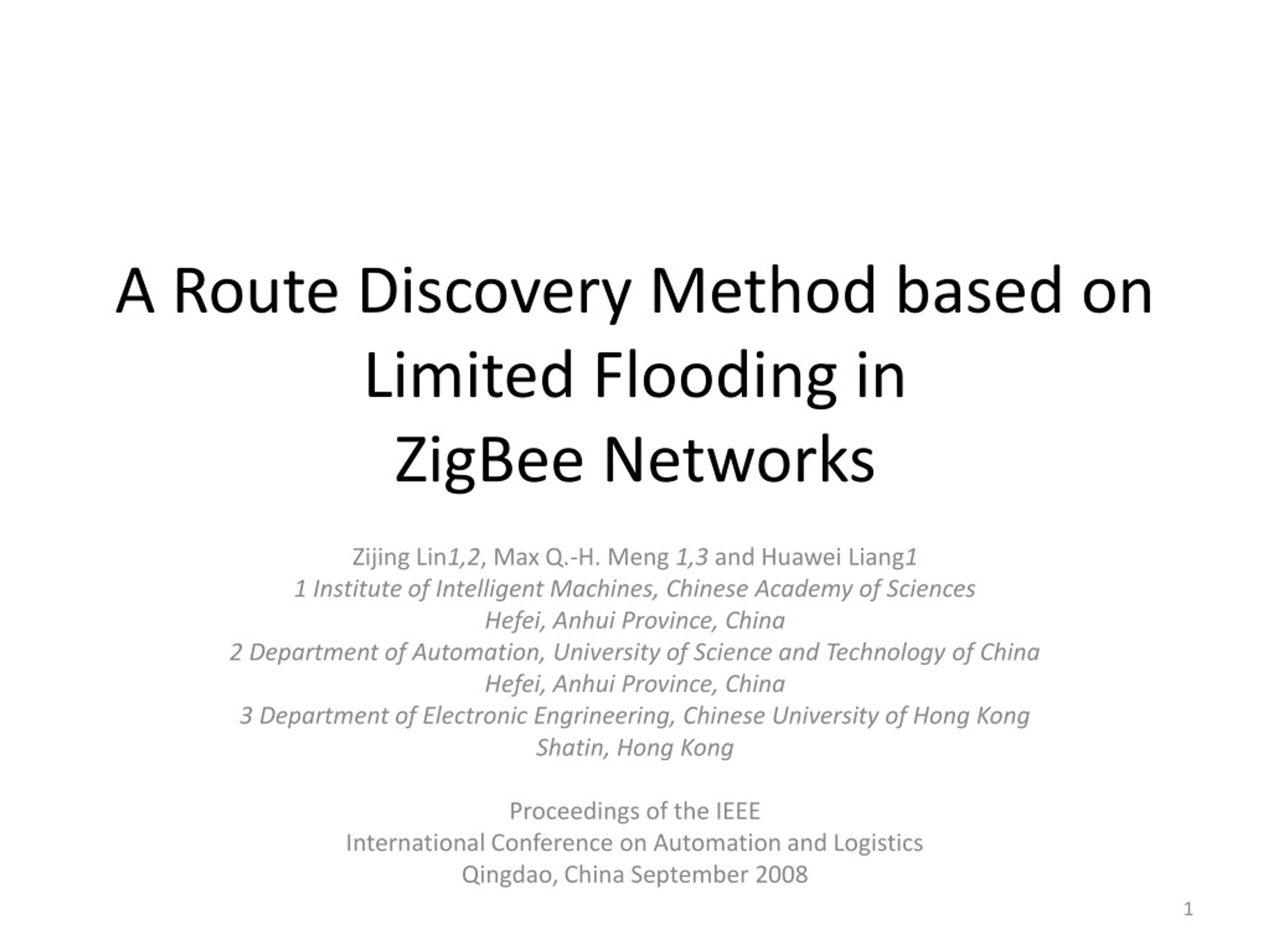

  1. A Route Discovery Method based on Limited Flooding inZigBee Networks Zijing Lin1,2, Max Q.-H. Meng 1,3 and Huawei Liang1 1 Institute of Intelligent Machines, Chinese Academy of Sciences Hefei, Anhui Province, China 2 Department of Automation, University of Science and Technology of China Hefei, Anhui Province, China 3 Department of Electronic Engrineering, Chinese University of Hong Kong Shatin, Hong Kong Proceedings of the IEEE International Conference on Automation and Logistics Qingdao, China September 2008

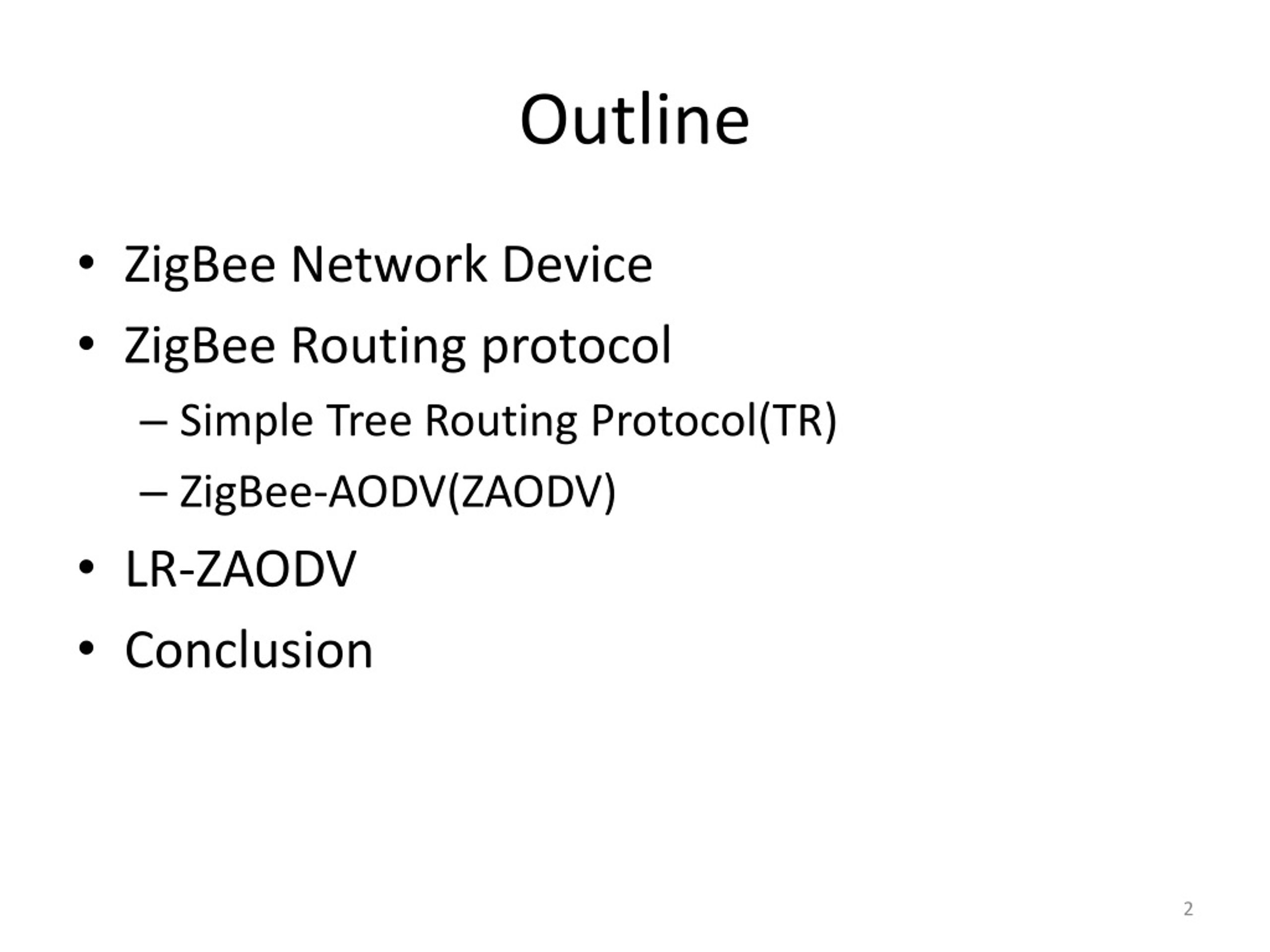

  2. Outline • ZigBee Network Device • ZigBee Routing protocol • Simple Tree Routing Protocol(TR) • ZigBee-AODV(ZAODV) • LR-ZAODV • Conclusion

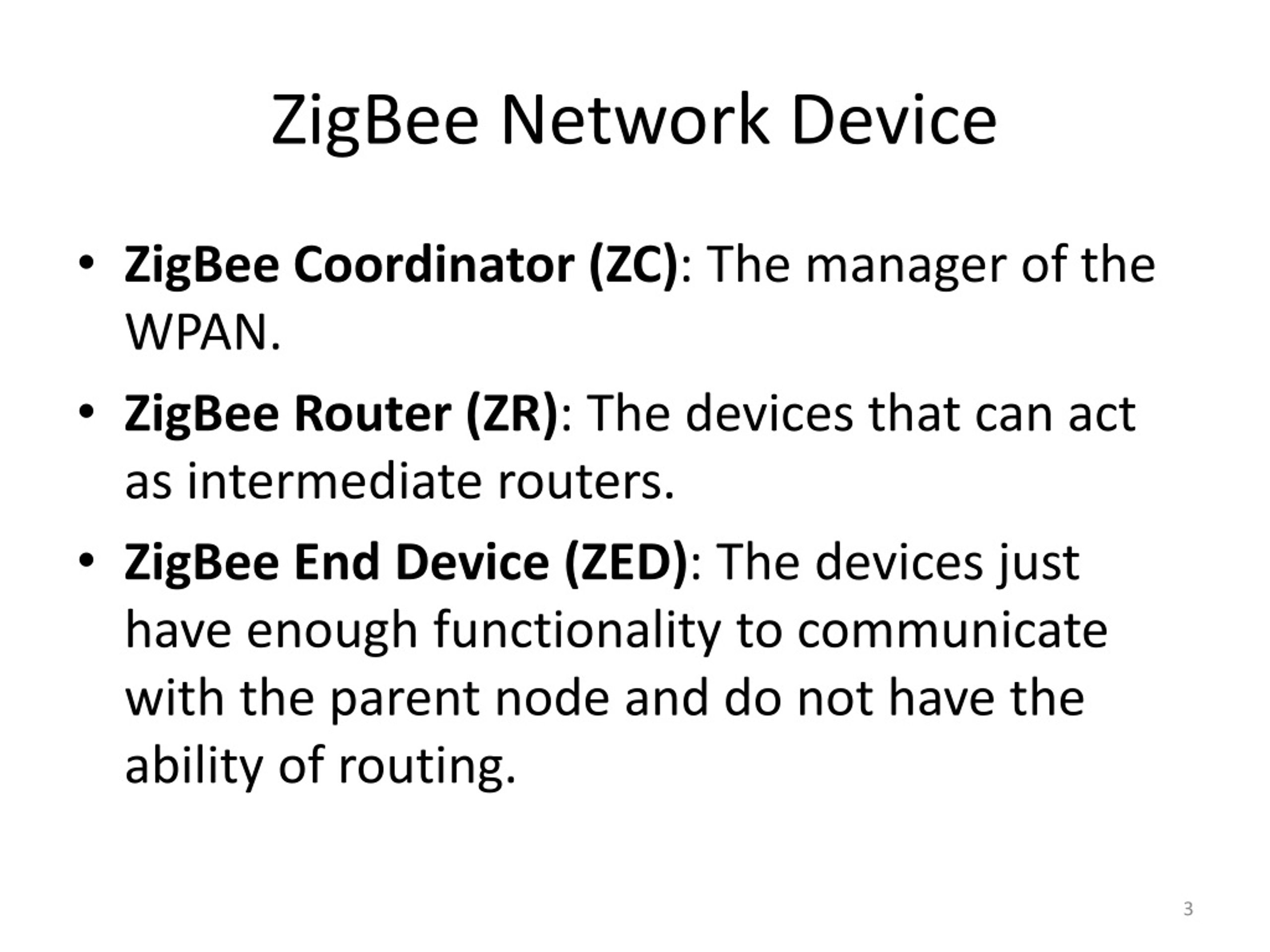

  3. ZigBee Network Device • ZigBee Coordinator (ZC): The manager of the WPAN. • ZigBee Router (ZR): The devices that can act as intermediate routers. • ZigBee End Device (ZED): The devices just have enough functionality to communicate with the parent node and do not have the ability of routing.

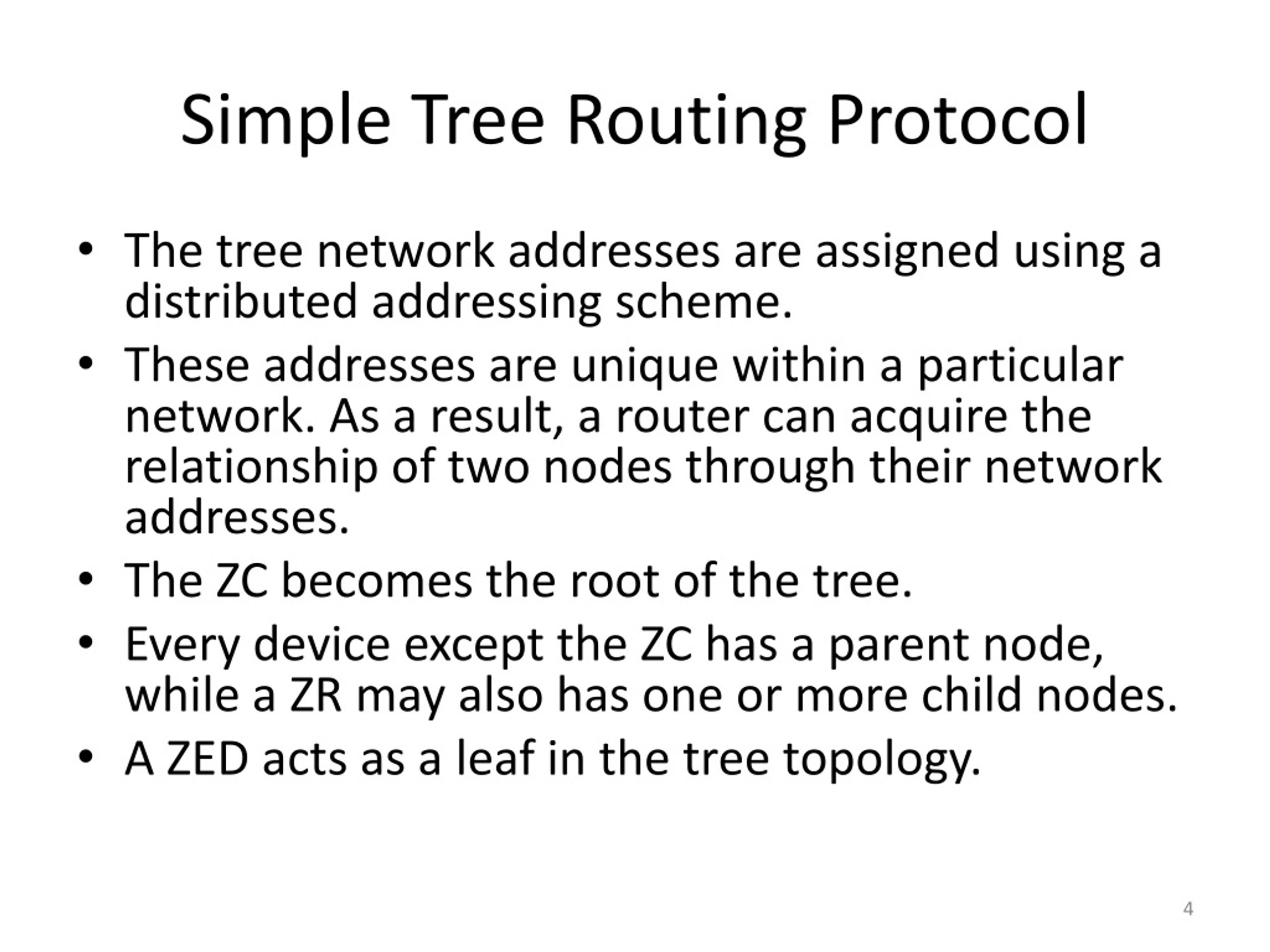

  4. Simple Tree Routing Protocol • The tree network addresses are assigned using a distributed addressing scheme. • These addresses are unique within a particular network. As a result, a router can acquire the relationship of two nodes through their network addresses. • The ZC becomes the root of the tree. • Every device except the ZC has a parent node, while a ZR may also has one or more child nodes. • A ZED acts as a leaf in the tree topology.

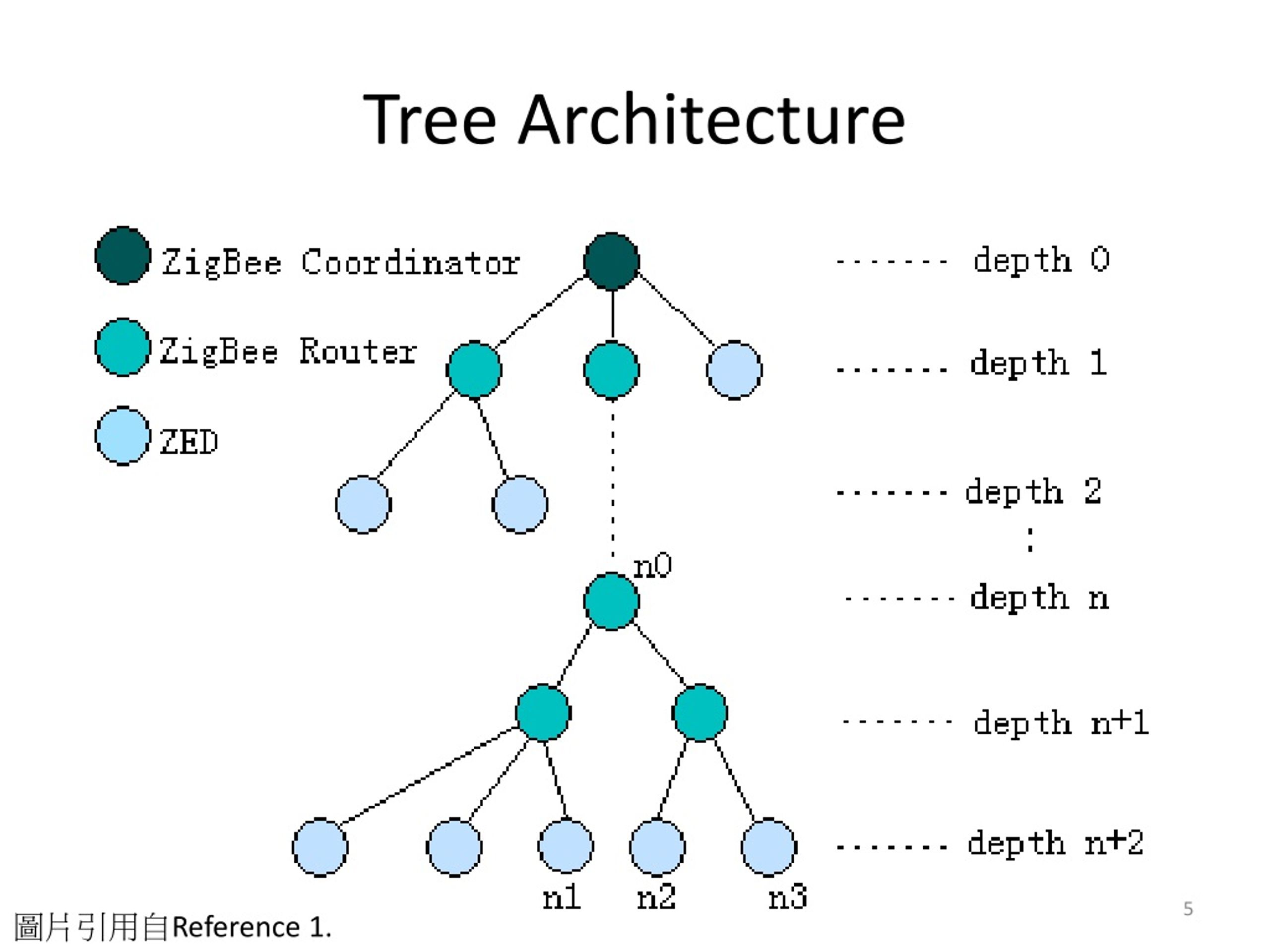

  5. Tree Architecture 圖片引用自Reference 1.

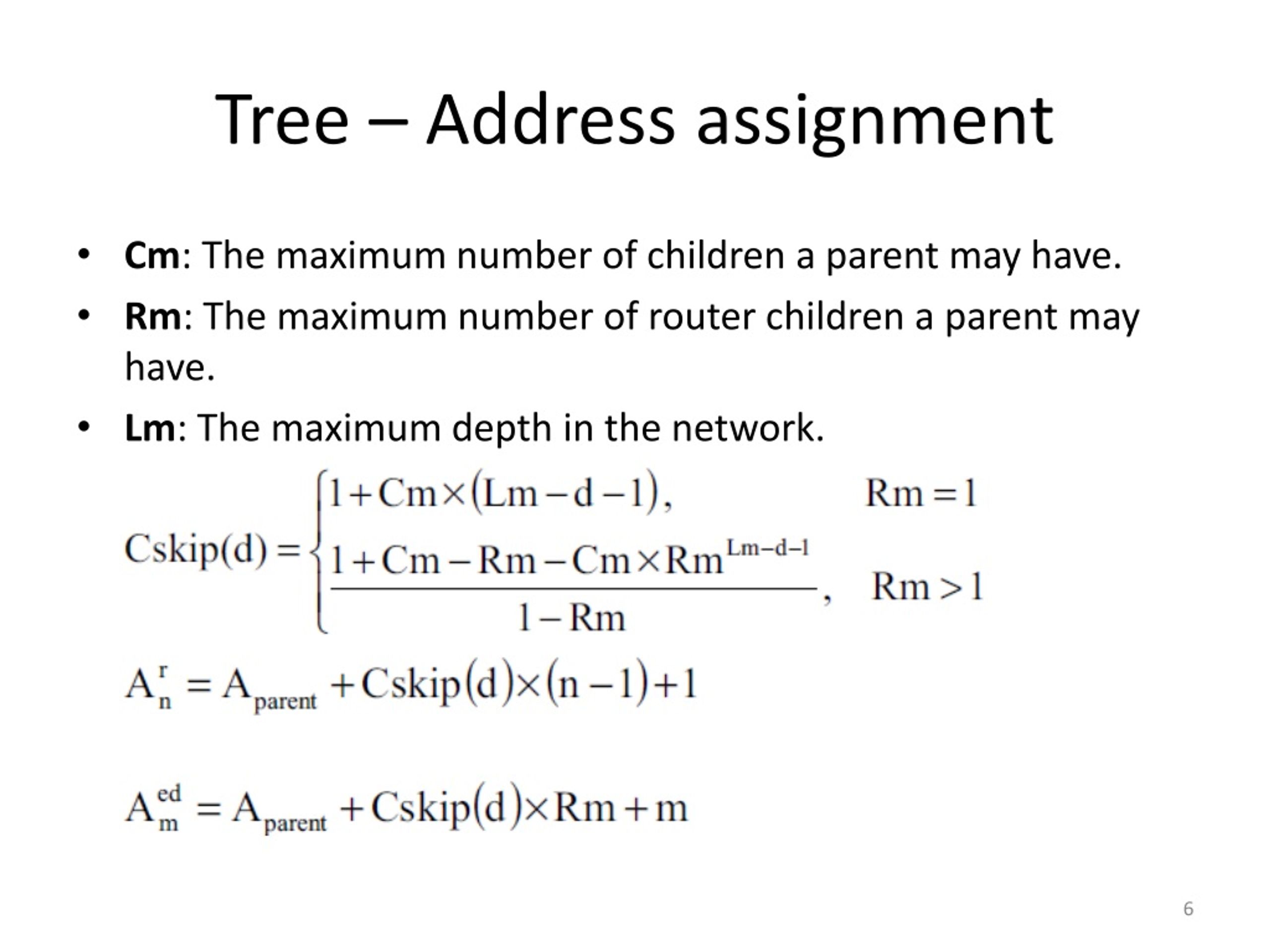

  6. Tree – Address assignment • Cm: The maximum number of children a parent may have. • Rm: The maximum number of router children a parent may have. • Lm: The maximum depth in the network.

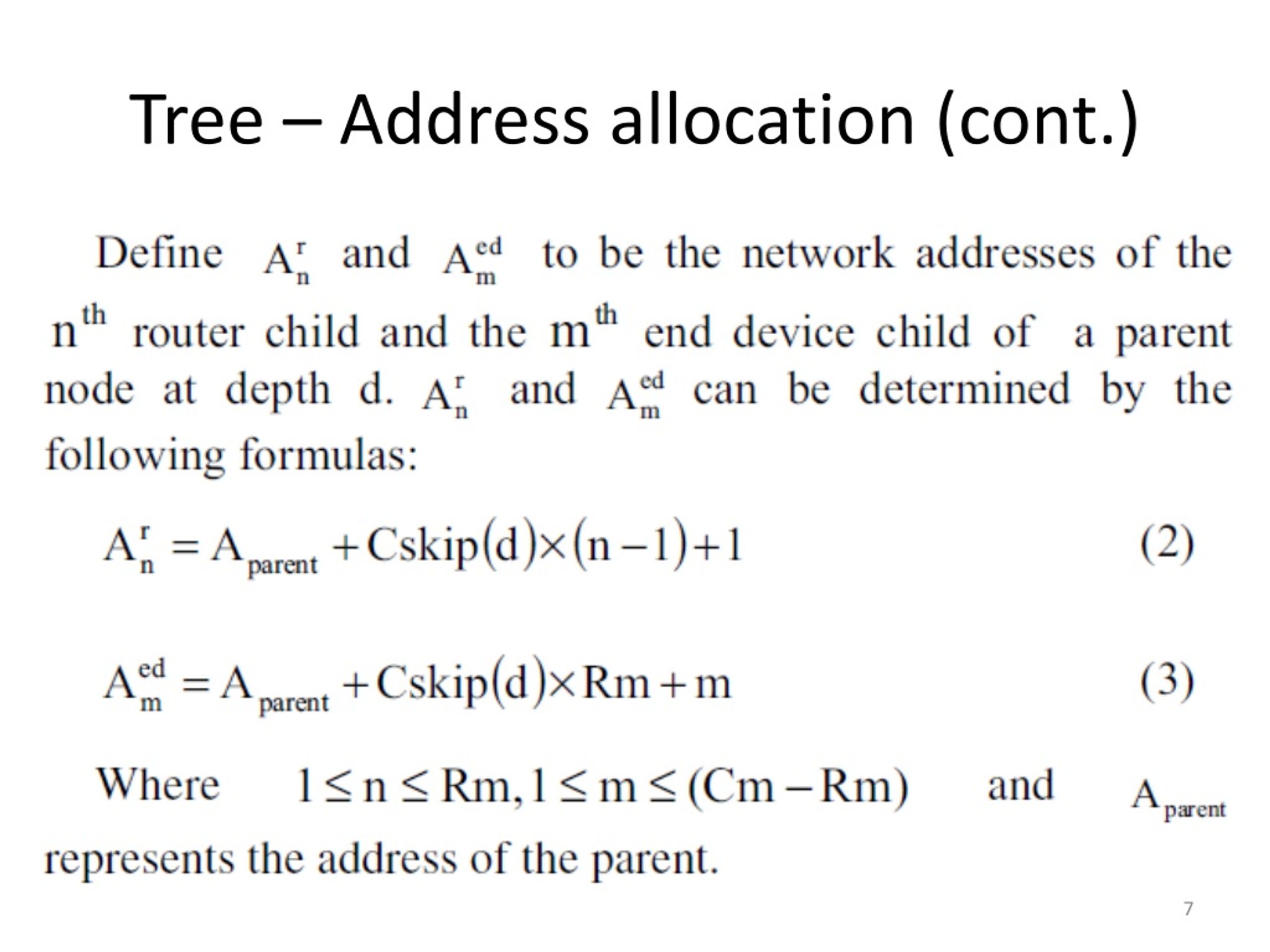

  7. Tree – Address allocation (cont.)

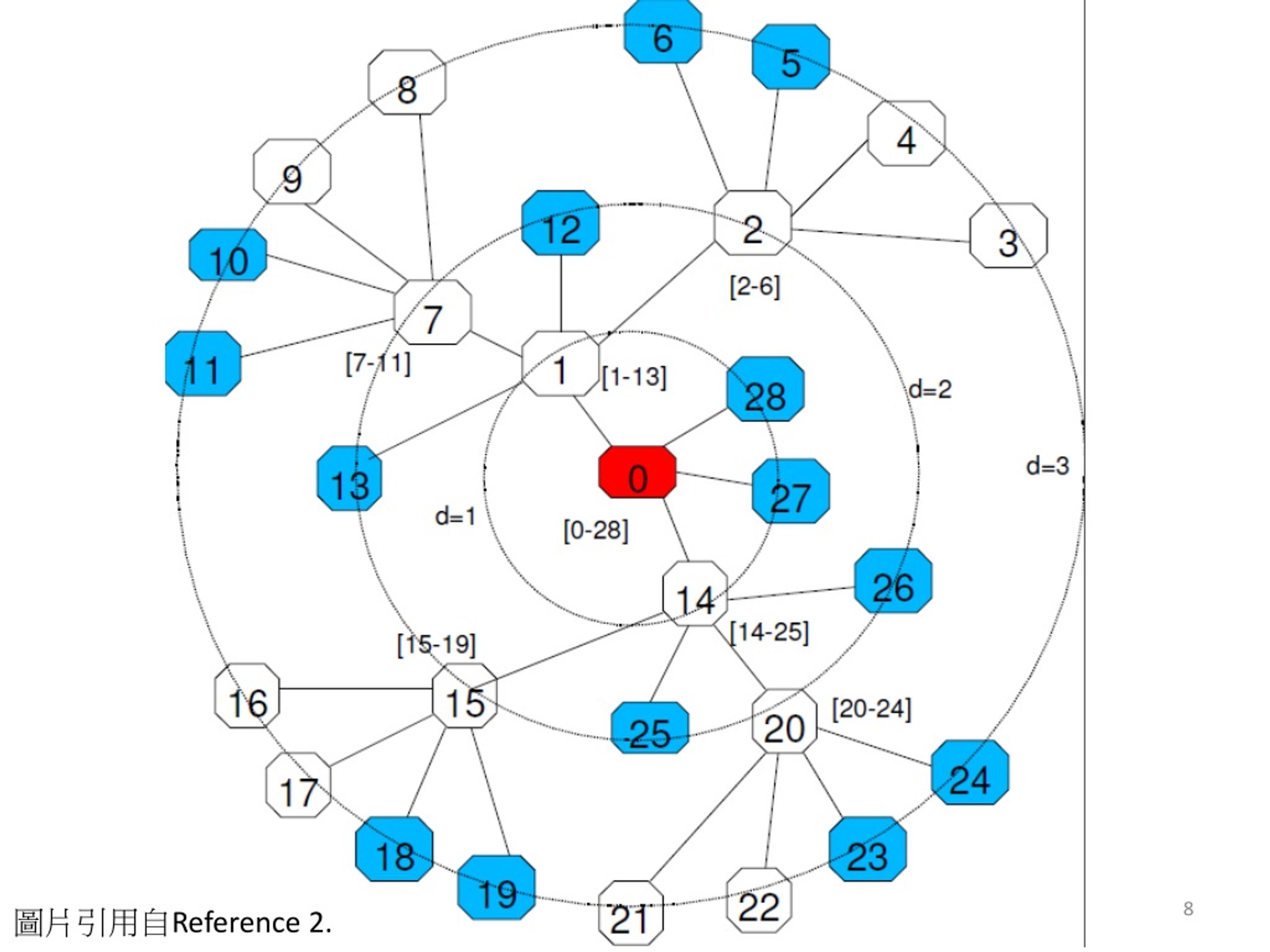

  8. 圖片引用自Reference 2.

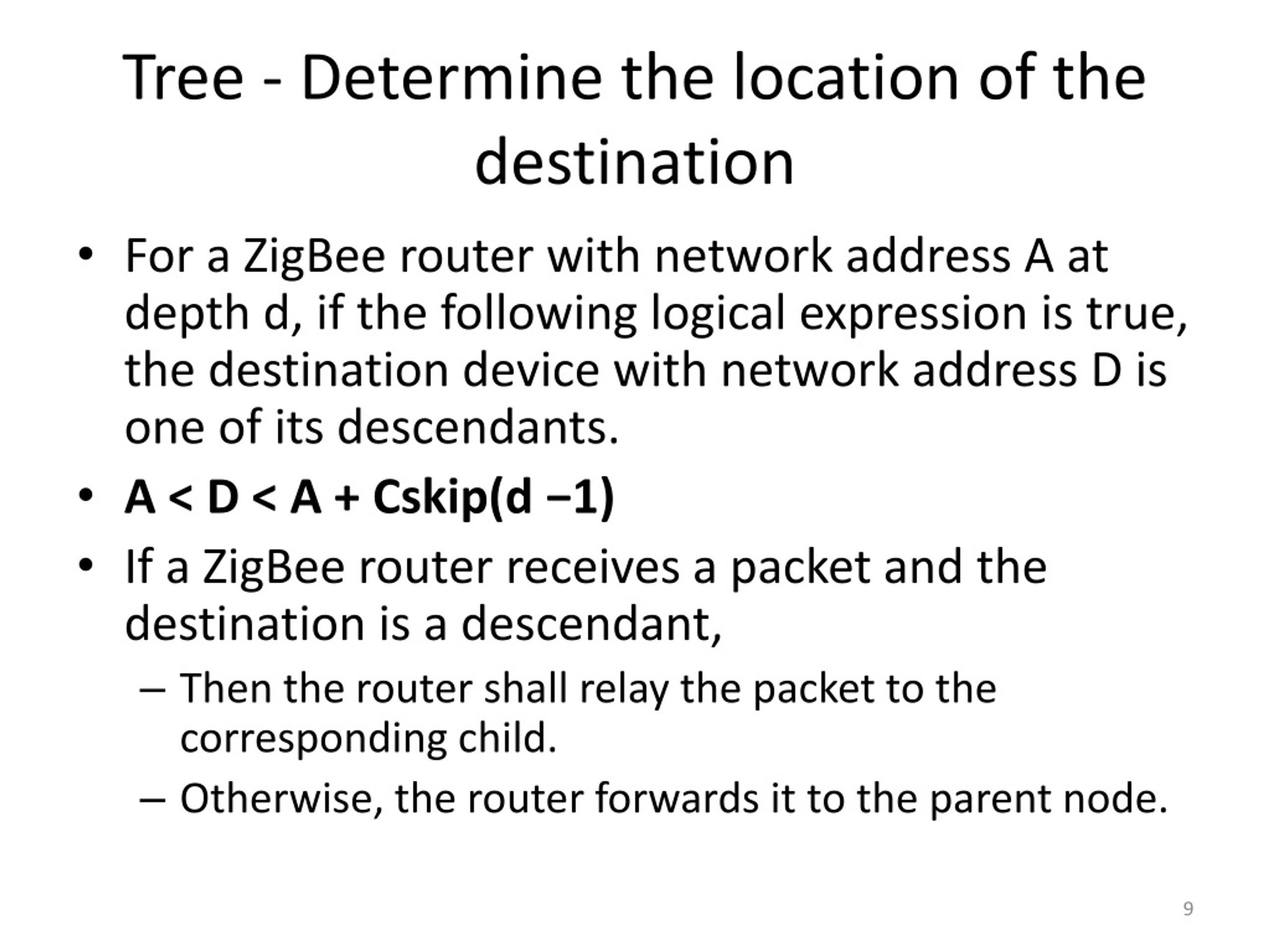

  9. Tree - Determine the location of the destination • For a ZigBee router with network address A at depth d, if the following logical expression is true, the destination device with network address D is one of its descendants. • A < D < A + Cskip(d −1) • If a ZigBee router receives a packet and the destination is a descendant, • Then the router shall relay the packet to the corresponding child. • Otherwise, the router forwards it to the parent node.

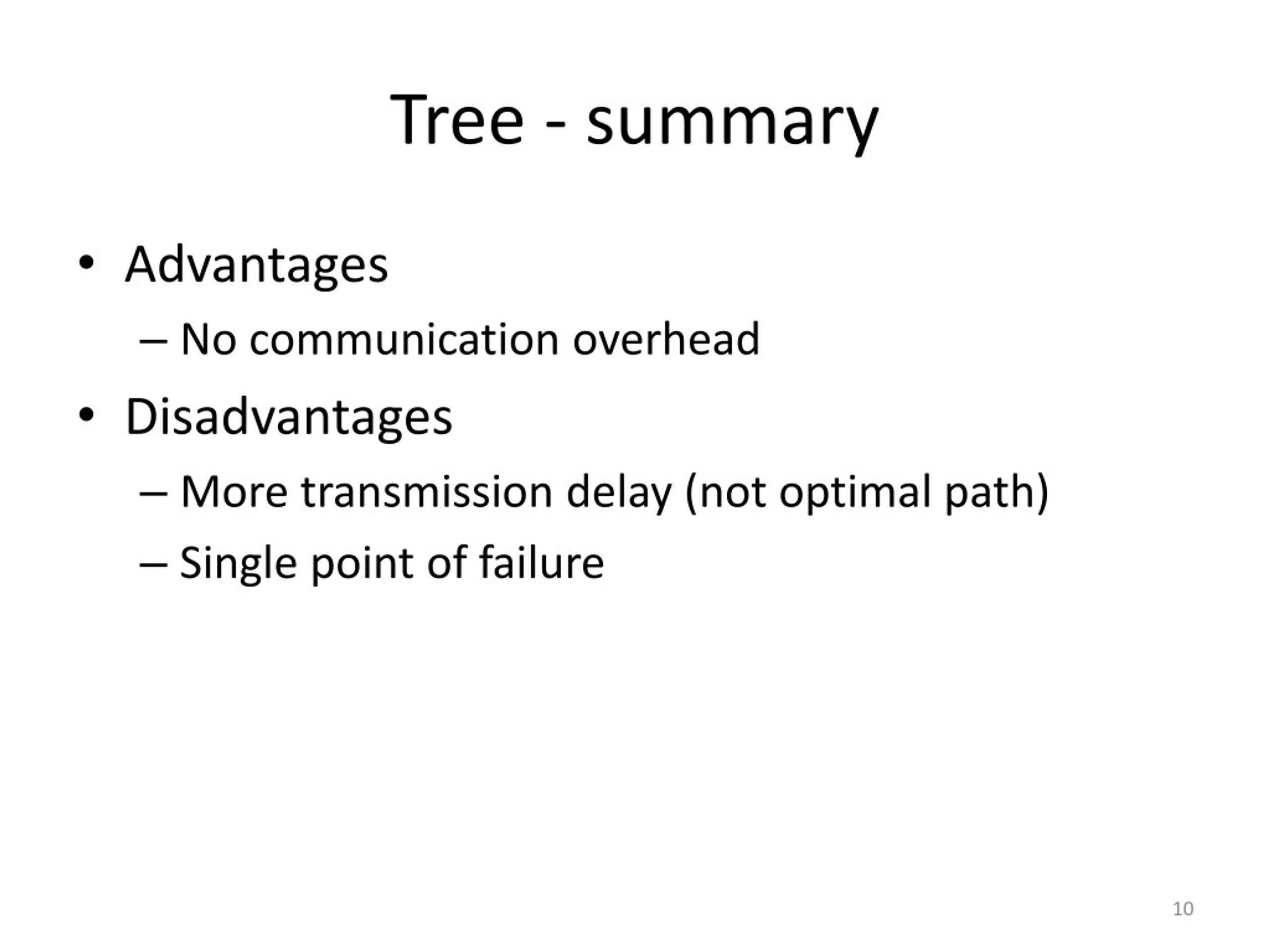

  10. Tree - summary • Advantages • No communication overhead • Disadvantages • More transmission delay (not optimal path) • Single point of failure

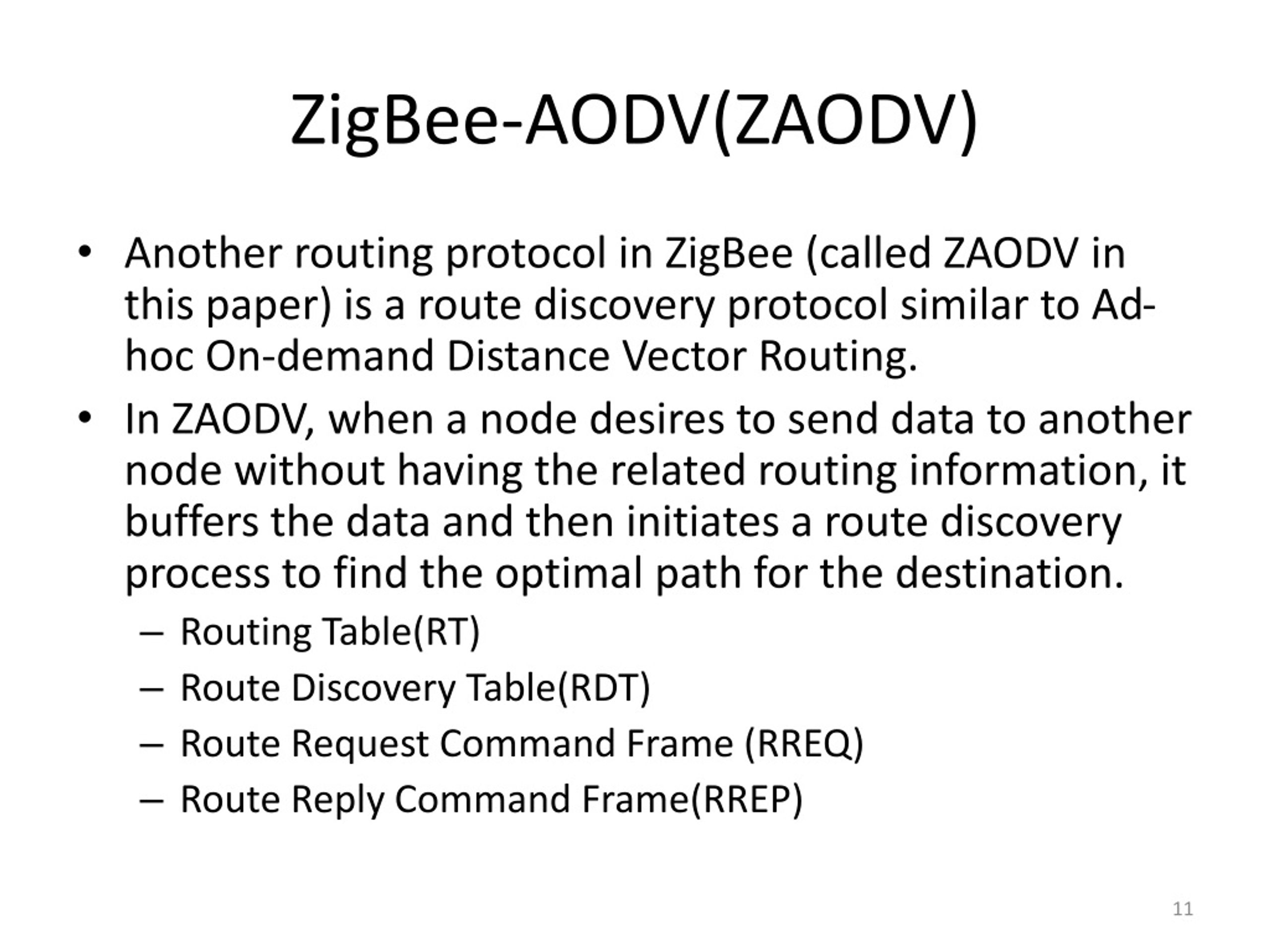

  11. ZigBee-AODV(ZAODV) • Another routing protocol in ZigBee (called ZAODV in this paper) is a route discovery protocol similar to Ad-hoc On-demand Distance Vector Routing. • In ZAODV, when a node desires to send data to another node without having the related routing information, it buffers the data and then initiates a route discovery process to find the optimal path for the destination. • Routing Table(RT) • Route Discovery Table(RDT) • Route Request Command Frame (RREQ) • Route Reply Command Frame(RREP)

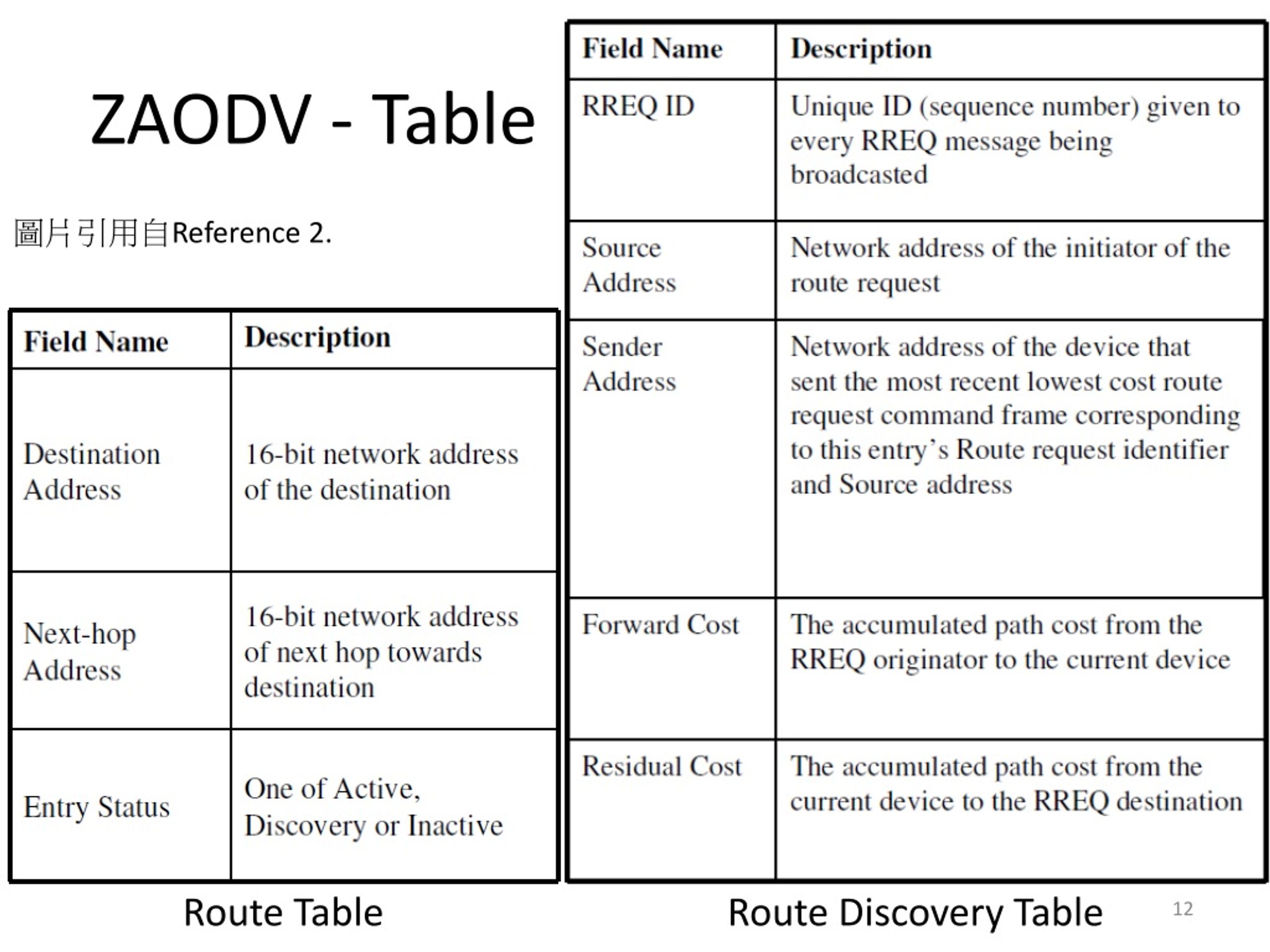

  12. ZAODV - Table 圖片引用自Reference 2. Route Table Route Discovery Table

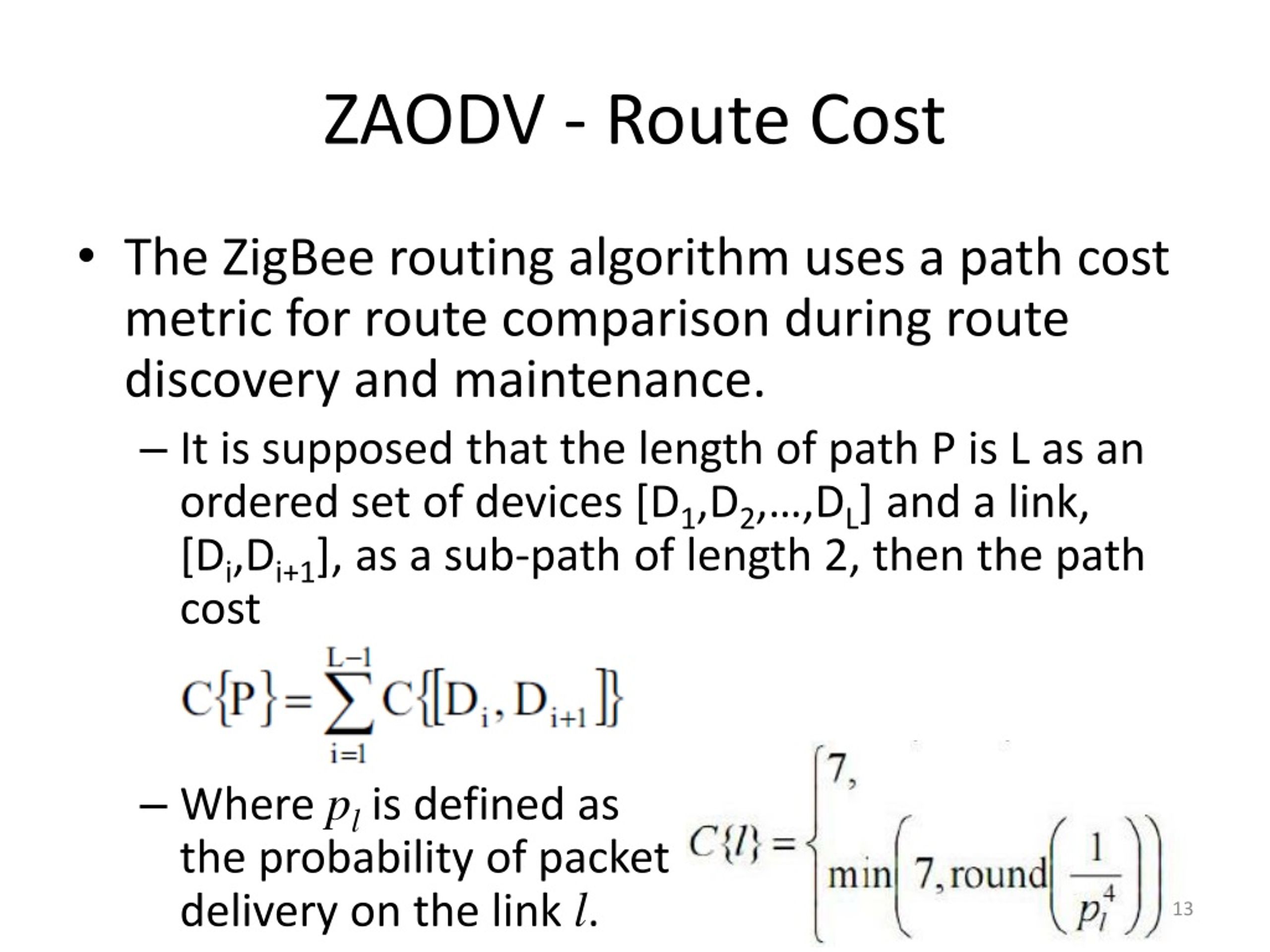

  13. ZAODV - Route Cost • The ZigBee routing algorithm uses a path cost metric for route comparison during route discovery and maintenance. • It is supposed that the length of path P is L as an ordered set of devices [D1,D2,…,DL] and a link, [Di,Di+1], as a sub-path of length 2, then the path cost • Where pl is defined as the probability of packet delivery on the link l.

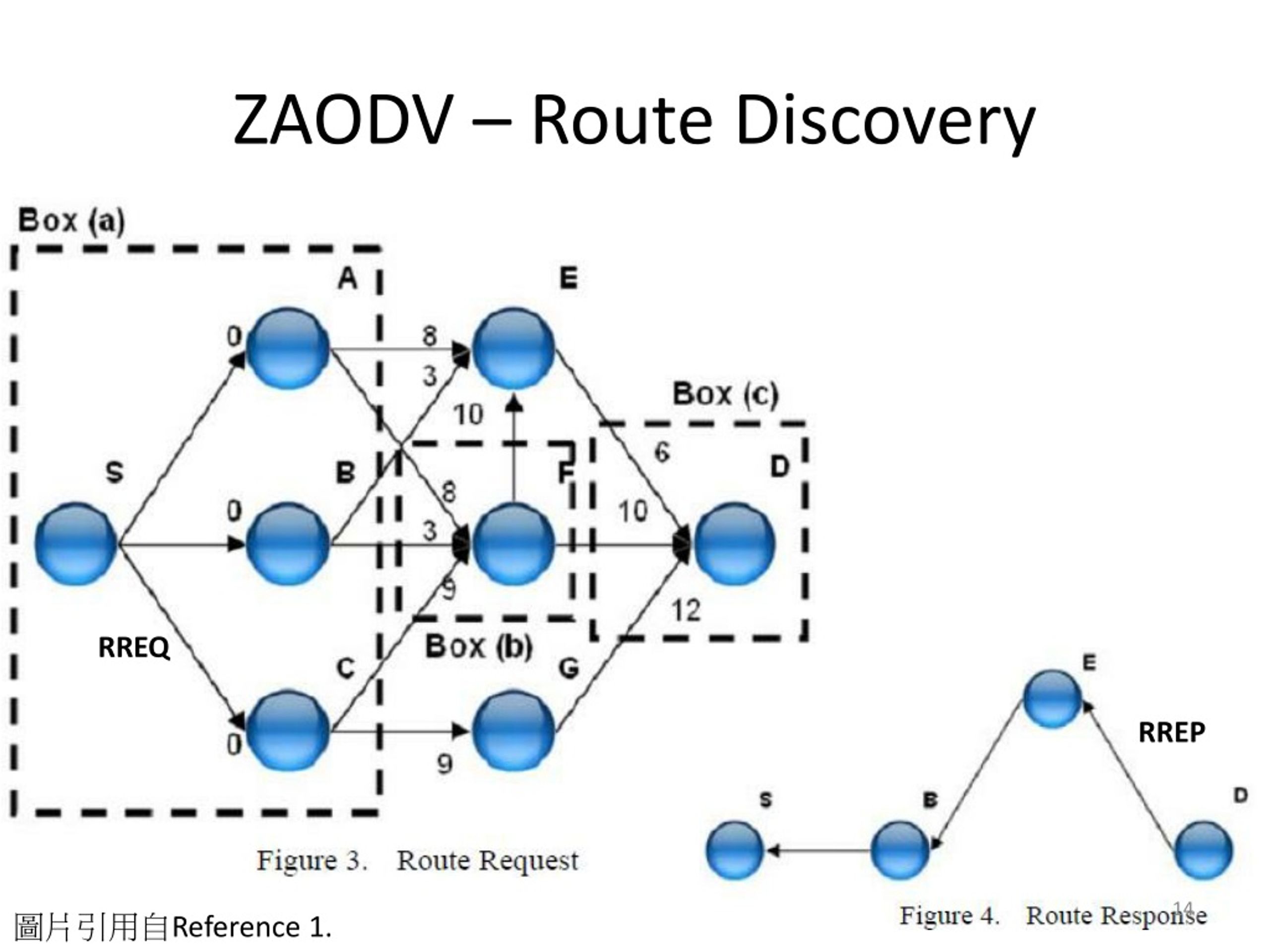

  14. ZAODV – Route Discovery RREQ RREP 圖片引用自Reference 1.

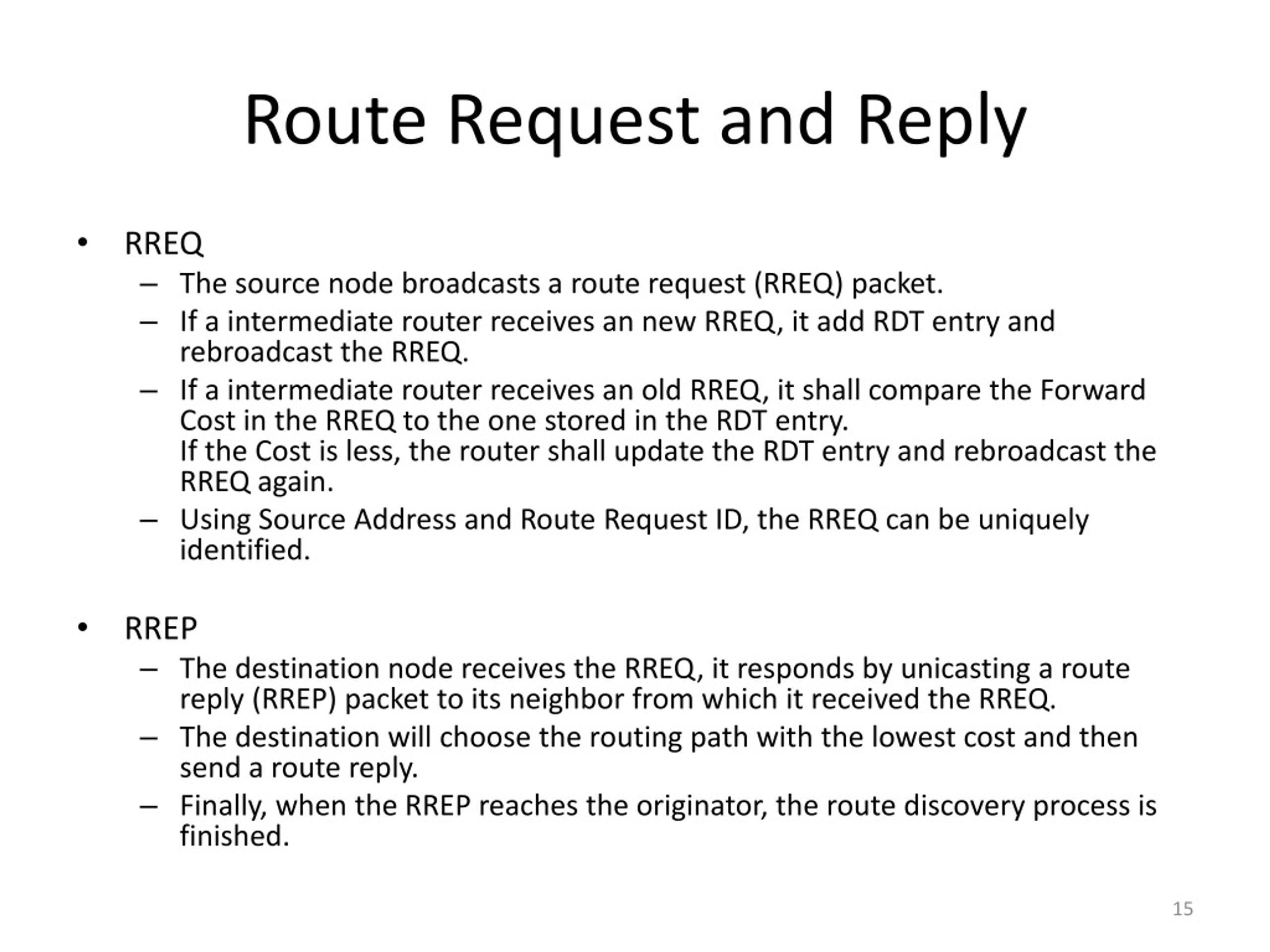

  15. Route Request and Reply • RREQ • The source node broadcasts a route request (RREQ) packet. • If a intermediate router receives an new RREQ, it add RDT entry and rebroadcast the RREQ. • If a intermediate router receives an old RREQ, it shall compare the Forward Cost in the RREQ to the one stored in the RDT entry.If the Cost is less, the router shall update the RDT entry and rebroadcast the RREQ again. • Using Source Address and Route Request ID, the RREQ can be uniquely identified. • RREP • The destination node receives the RREQ, it responds by unicasting a route reply (RREP) packet to its neighbor from which it received the RREQ. • The destination will choose the routing path with the lowest cost and then send a route reply. • Finally, when the RREP reaches the originator, the route discovery process is finished.

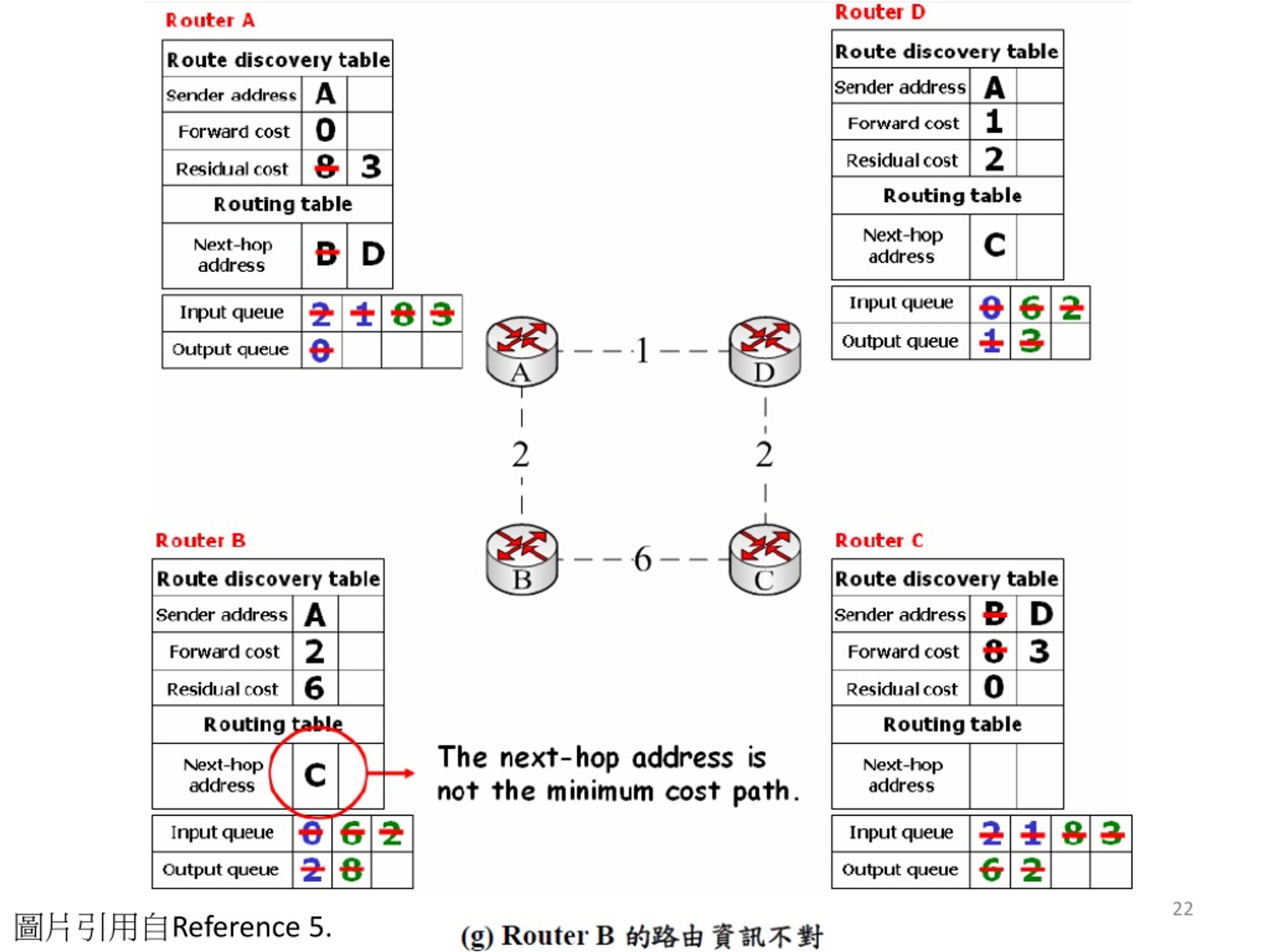

  16. 圖片引用自Reference 5.

  17. 圖片引用自Reference 5.

  18. 圖片引用自Reference 5.

  19. 圖片引用自Reference 5.

  20. 圖片引用自Reference 5.

  21. 圖片引用自Reference 5.

  22. 圖片引用自Reference 5.

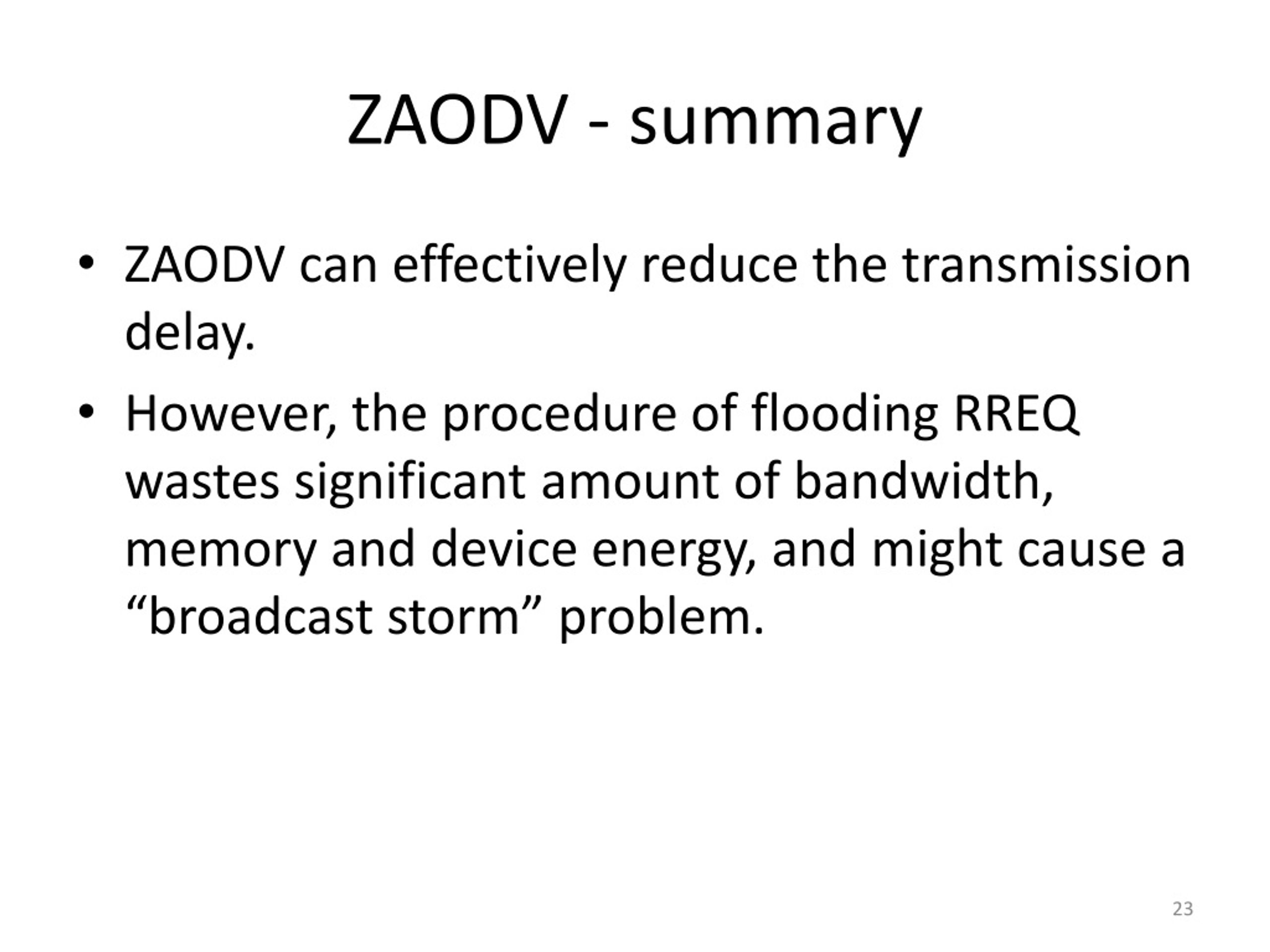

  23. ZAODV - summary • ZAODV can effectively reduce the transmission delay. • However, the procedure of flooding RREQ wastes significant amount of bandwidth, memory and device energy, and might cause a “broadcast storm” problem.

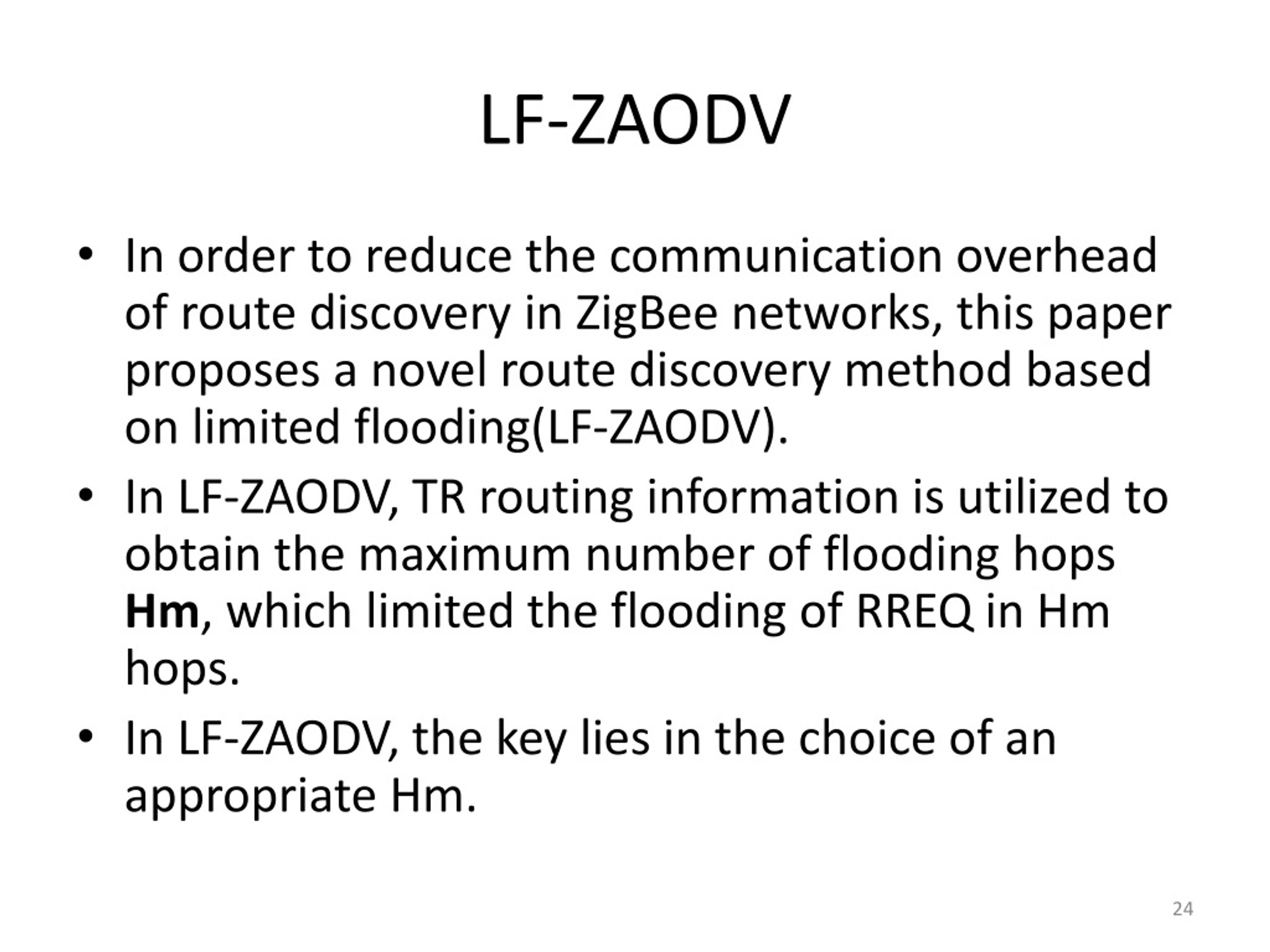

  24. LF-ZAODV • In order to reduce the communication overhead of route discovery in ZigBee networks, this paper proposes a novel route discovery method based on limited flooding(LF-ZAODV). • In LF-ZAODV, TR routing information is utilized to obtain the maximum number of flooding hops Hm, which limited the flooding of RREQ in Hm hops. • In LF-ZAODV, the key lies in the choice of an appropriate Hm.

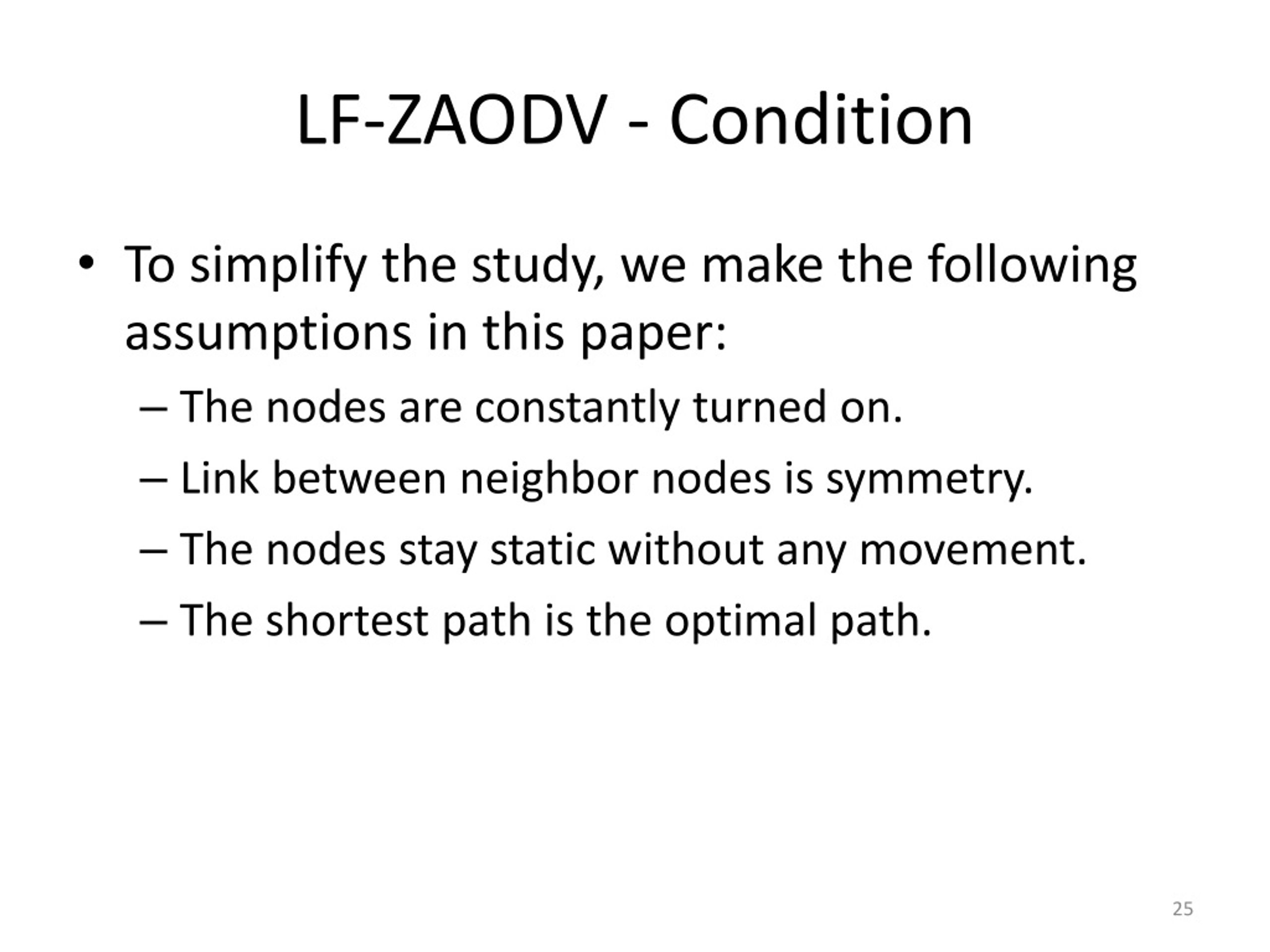

  25. LF-ZAODV - Condition • To simplify the study, we make the following assumptions in this paper: • The nodes are constantly turned on. • Link between neighbor nodes is symmetry. • The nodes stay static without any movement. • The shortest path is the optimal path.

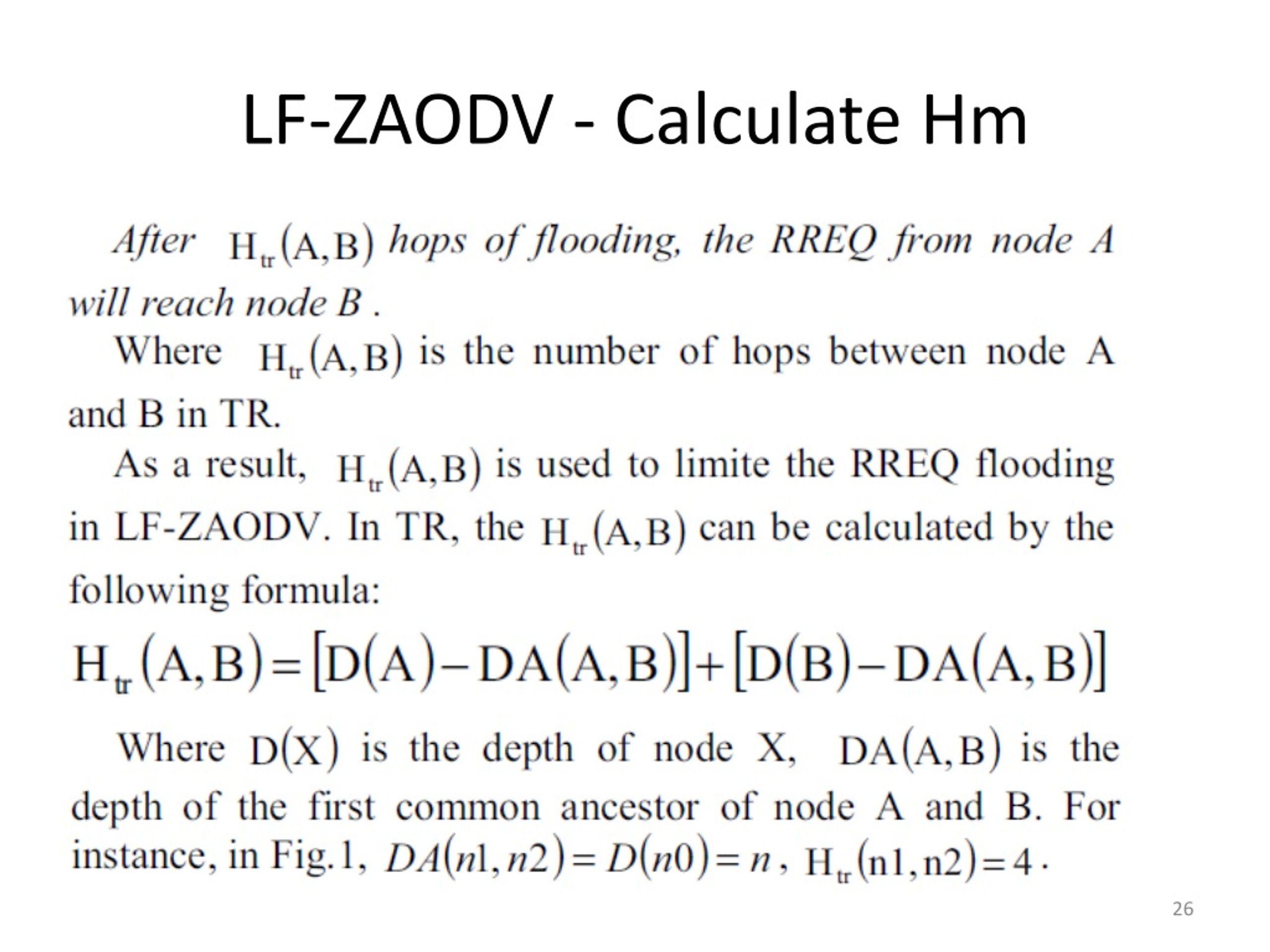

  26. LF-ZAODV - Calculate Hm

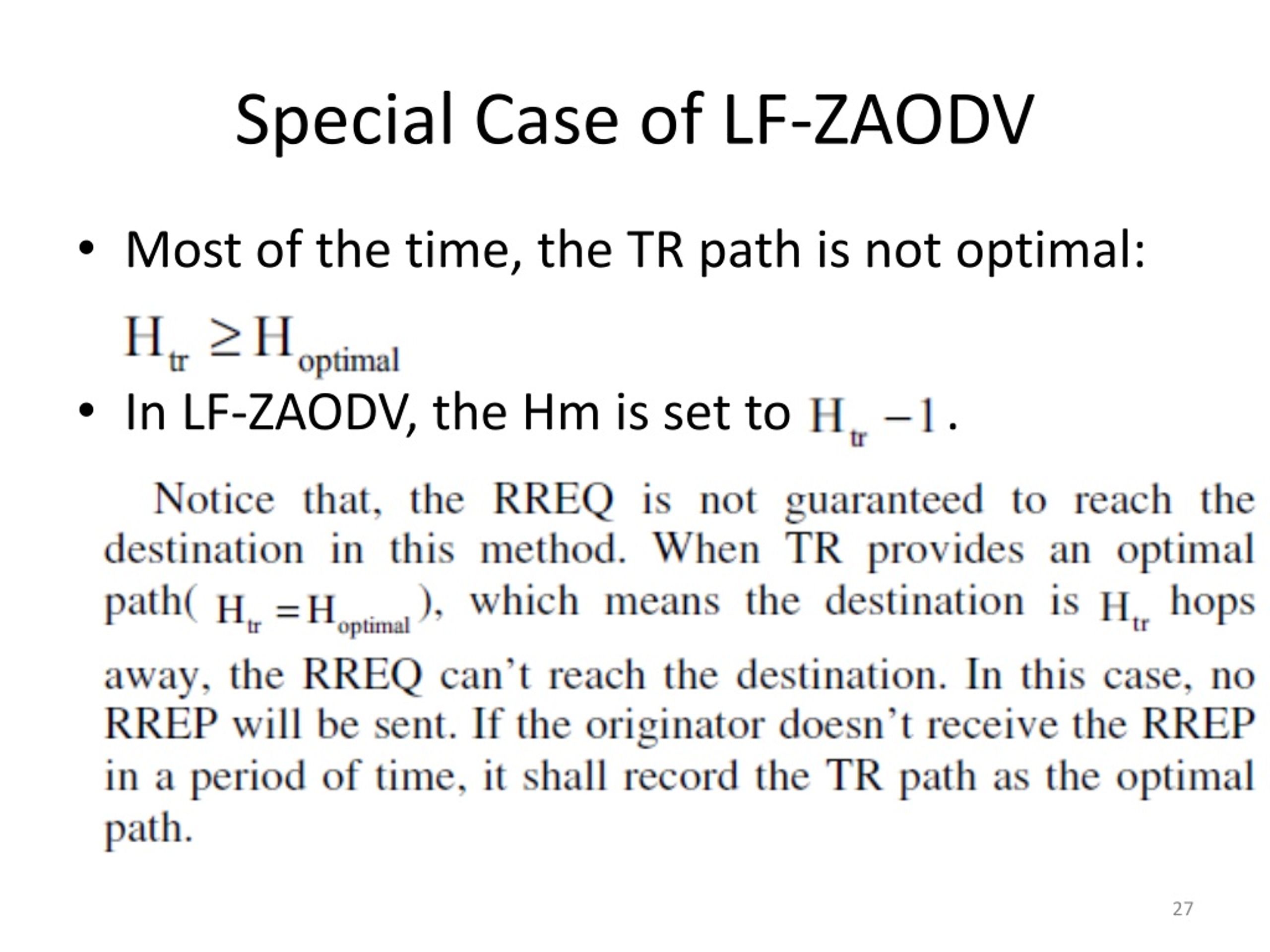

  27. Special Case of LF-ZAODV • Most of the time, the TR path is not optimal: • In LF-ZAODV, the Hm is set to .

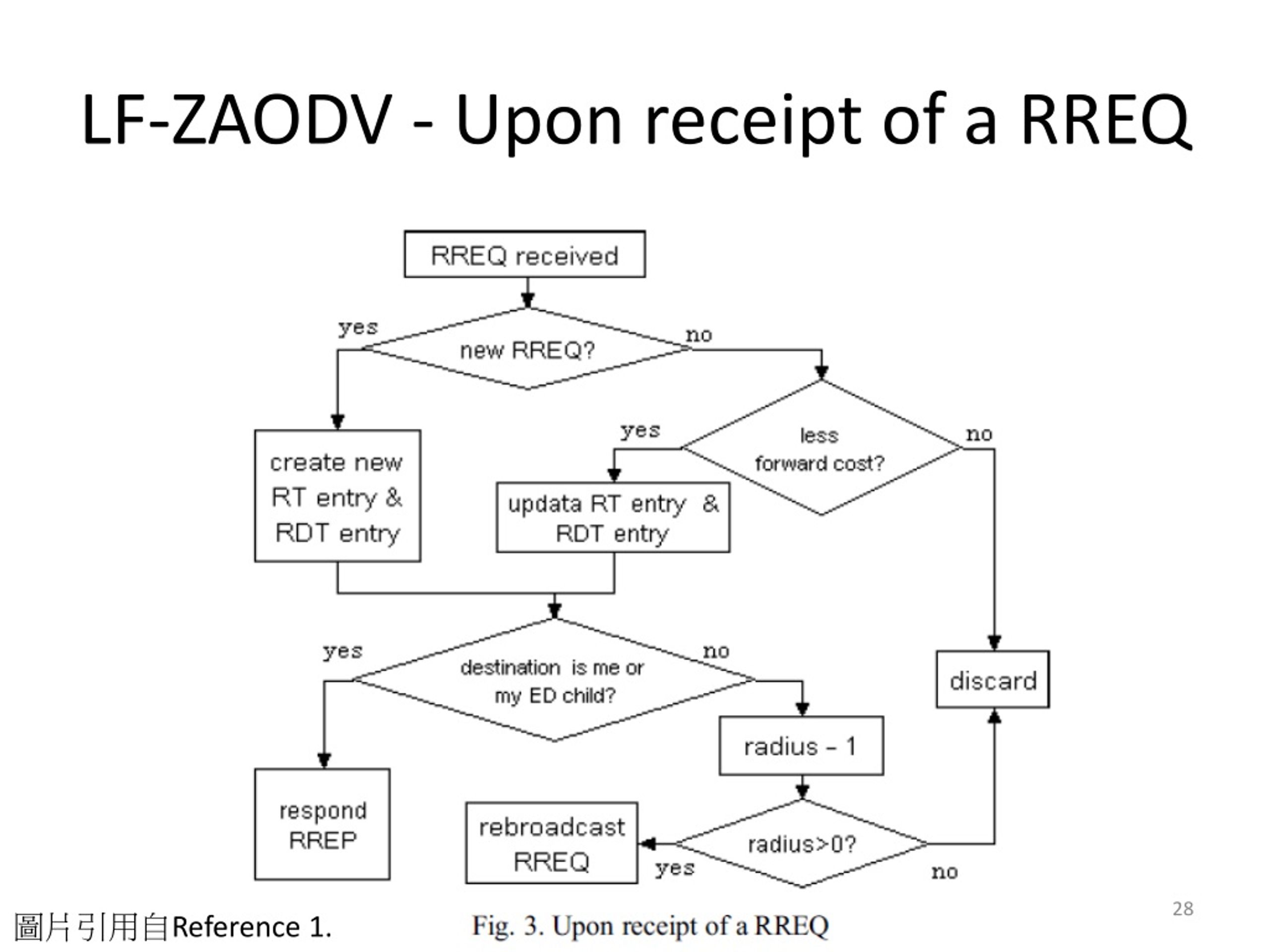

  28. LF-ZAODV - Upon receipt of a RREQ 圖片引用自Reference 1.

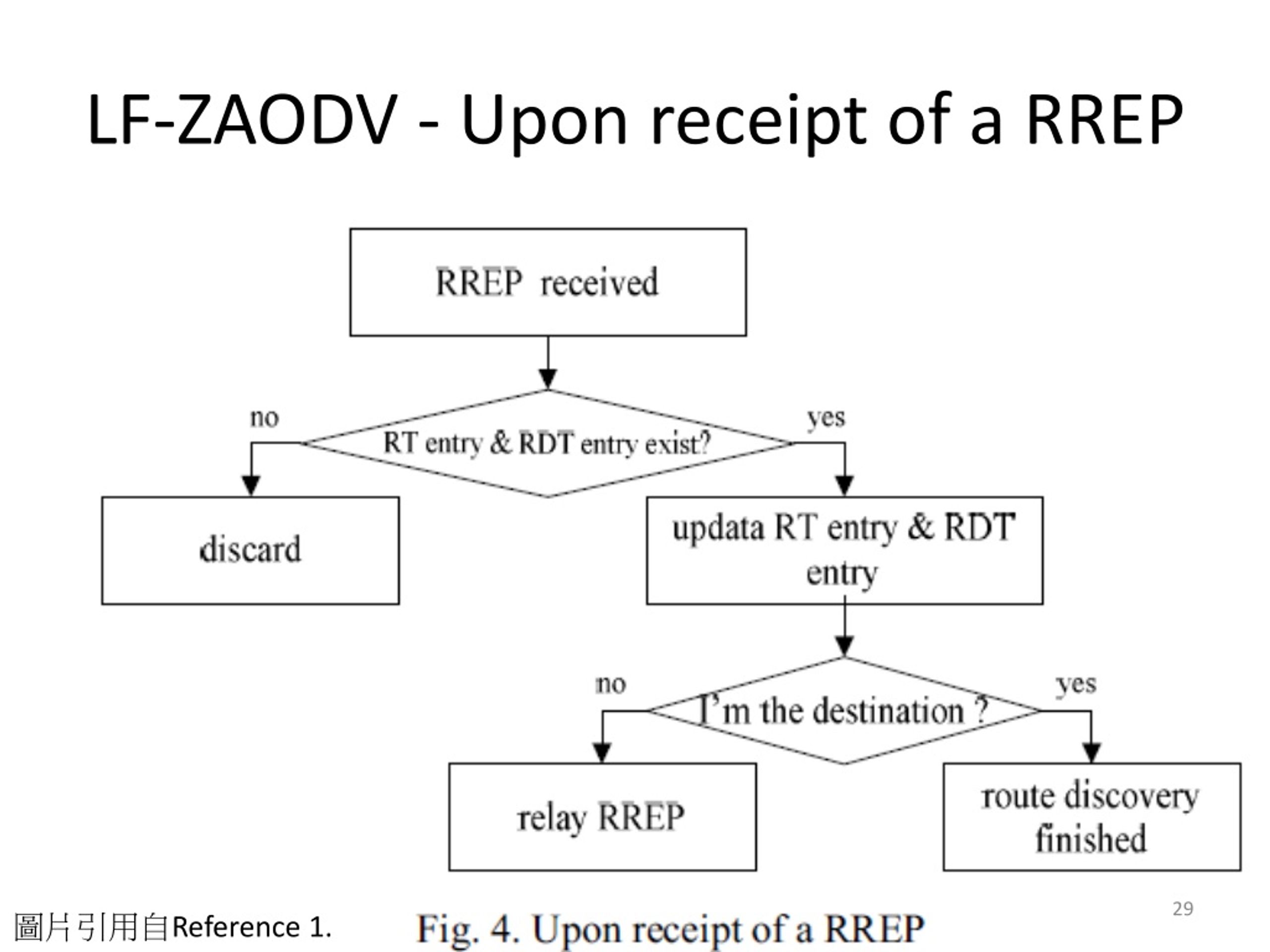

  29. LF-ZAODV - Upon receipt of a RREP 圖片引用自Reference 1.

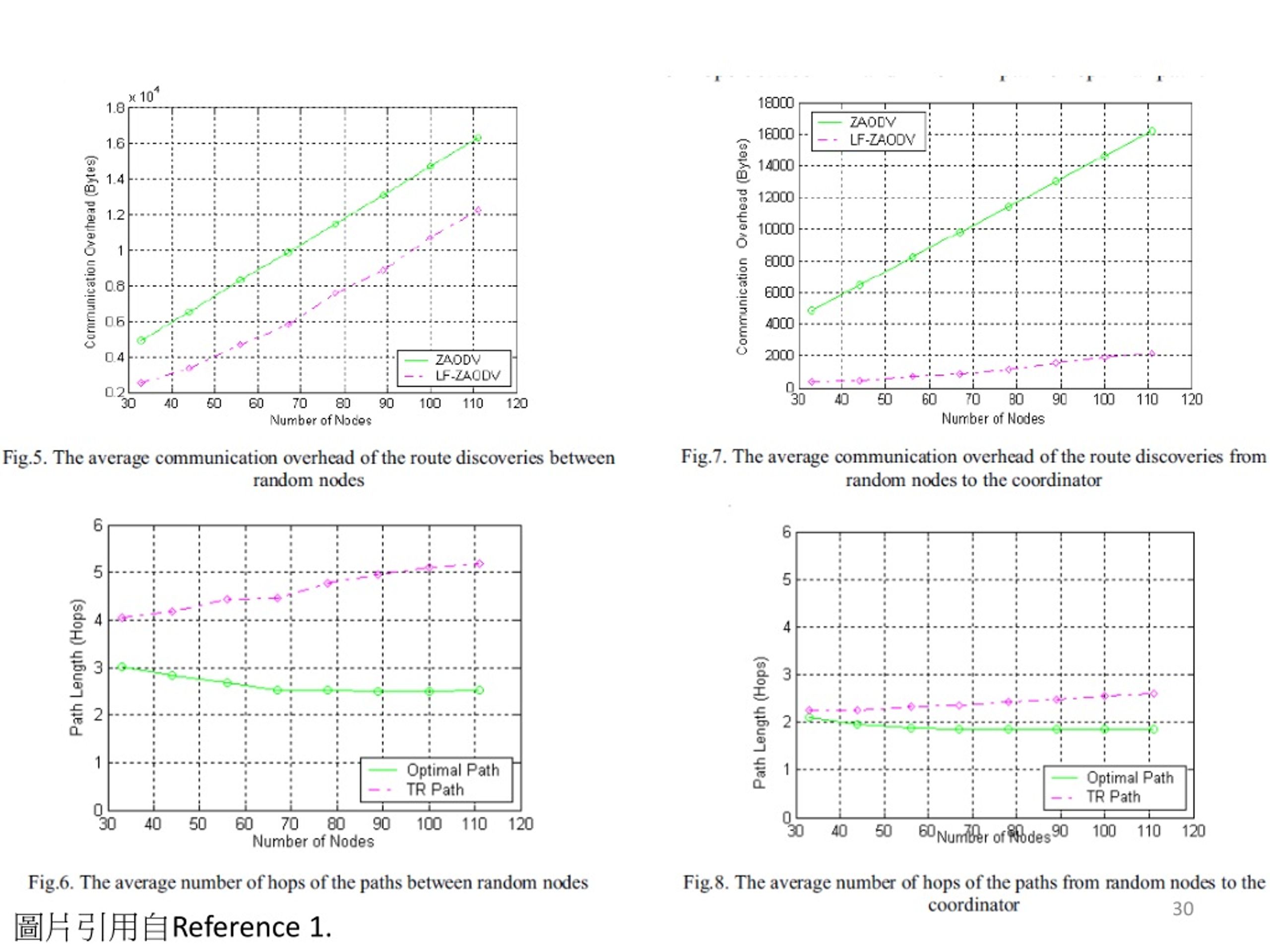

  30. 圖片引用自Reference 1.

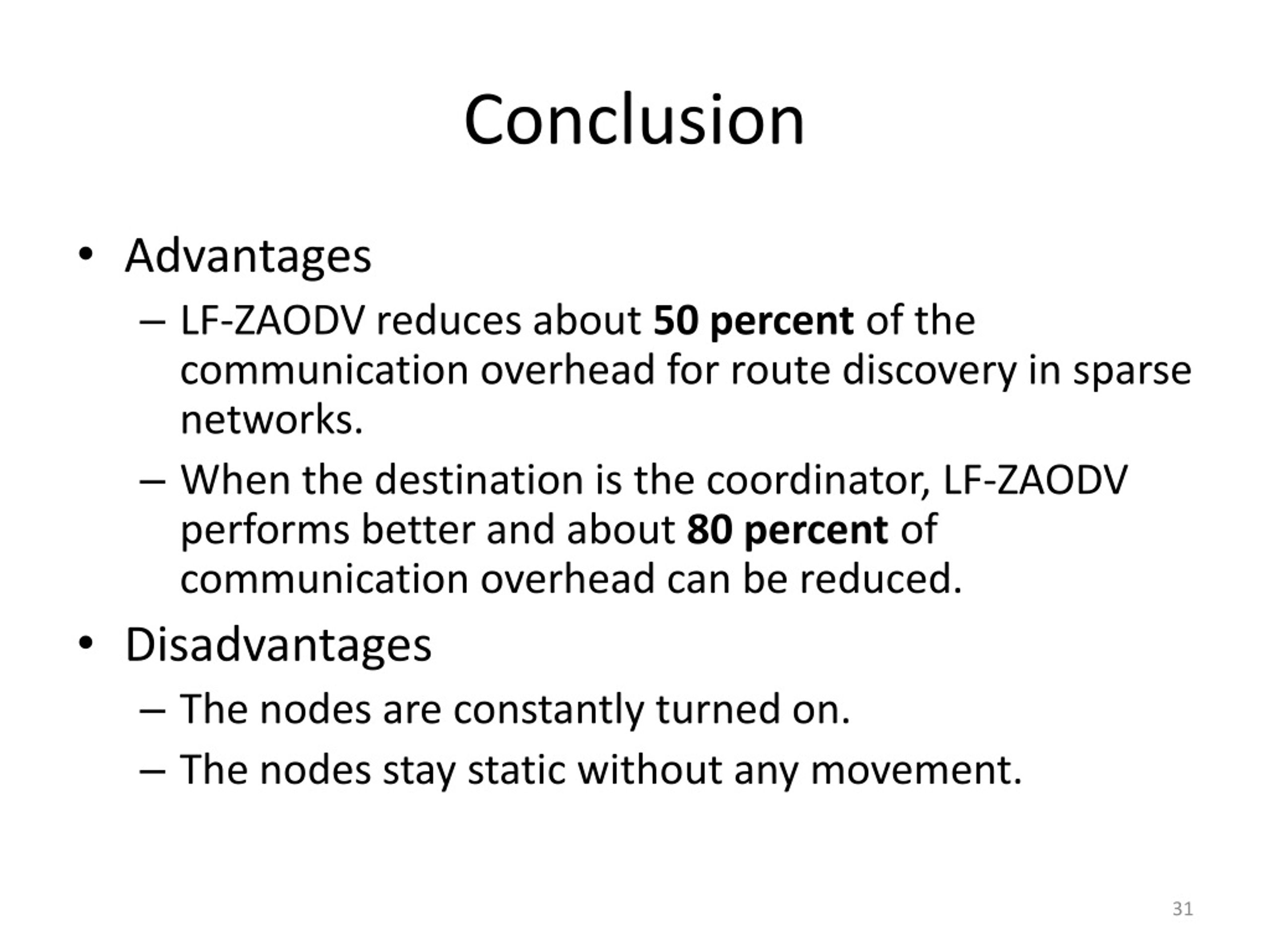

  31. Conclusion • Advantages • LF-ZAODV reduces about 50 percent of the communication overhead for route discovery in sparse networks. • When the destination is the coordinator, LF-ZAODV performs better and about 80 percent of communication overhead can be reduced. • Disadvantages • The nodes are constantly turned on. • The nodes stay static without any movement.

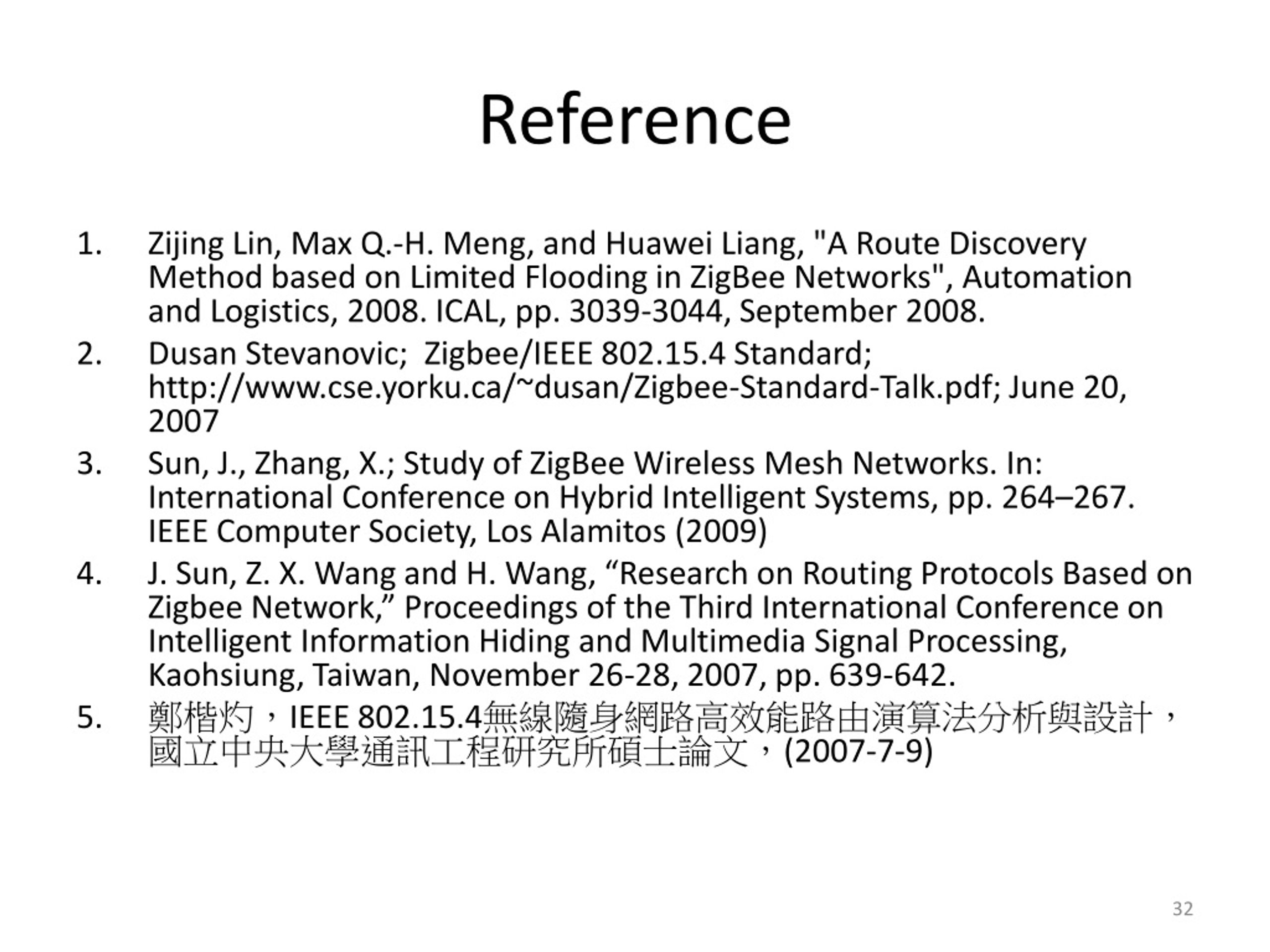

  32. Reference • Zijing Lin, Max Q.-H. Meng, and Huawei Liang, "A Route Discovery Method based on Limited Flooding in ZigBee Networks", Automation and Logistics, 2008. ICAL, pp. 3039-3044, September 2008. • Dusan Stevanovic; Zigbee/IEEE 802.15.4 Standard; http://www.cse.yorku.ca/~dusan/Zigbee-Standard-Talk.pdf; June 20, 2007 • Sun, J., Zhang, X.; Study of ZigBee Wireless Mesh Networks. In: International Conference on Hybrid Intelligent Systems, pp. 264–267. IEEE Computer Society, Los Alamitos (2009) • J. Sun, Z. X. Wang and H. Wang, “Research on Routing Protocols Based on Zigbee Network,” Proceedings of the Third International Conference on Intelligent Information Hiding and Multimedia Signal Processing, Kaohsiung, Taiwan, November 26-28, 2007, pp. 639-642. • 鄭楷灼，IEEE 802.15.4無線隨身網路高效能路由演算法分析與設計，國立中央大學通訊工程研究所碩士論文，(2007-7-9)
