1. Specification and Verificationof Hierarchical Reactive Systems Xiaosong LuTogashi LaboratoryDepartment of Computer ScienceShizuoka UniversityＡｐｒｉｌ 1999

2. Introduction • Research Background and Objective • System Properties and Requirements • Formal Specifications • Soundness and Completeness • Synthesis of Formal Specifications • Compositional Verification • Reflection

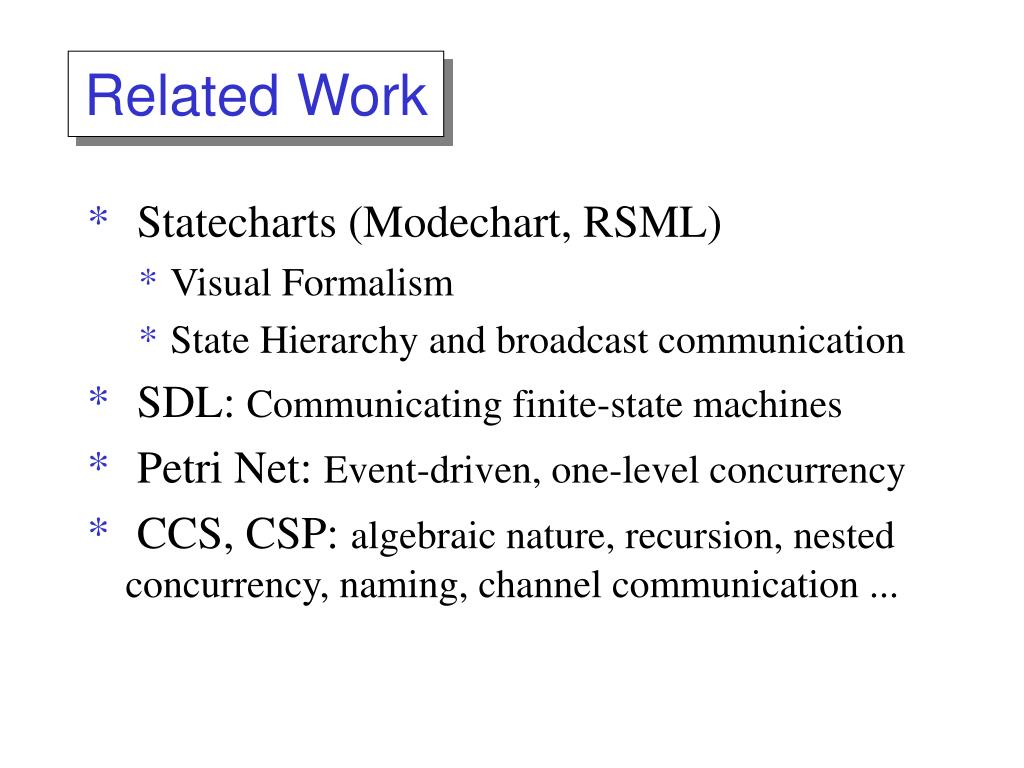

3. Related Work • Statecharts (Modechart, RSML) • Visual Formalism • State Hierarchy and broadcast communication • SDL: Communicating finite-state machines • Petri Net: Event-driven, one-level concurrency • CCS, CSP: algebraic nature, recursion, nested concurrency, naming, channel communication ...

4. Research Objective • A New Methodology for Reactive Systems • System requirements: Declarative language • Formal specifications: Hierarchical state machines • A Flexible Development Environment • Stepwise Refinement • Reflection • Automatic Synthesis and Verification • Support of Modularity and Reusability

5. System Requirements Synthesis System Simulator Verifier Formal Specifications Requirement Acquisition Compiler System Overview Present system Reflection System Programs

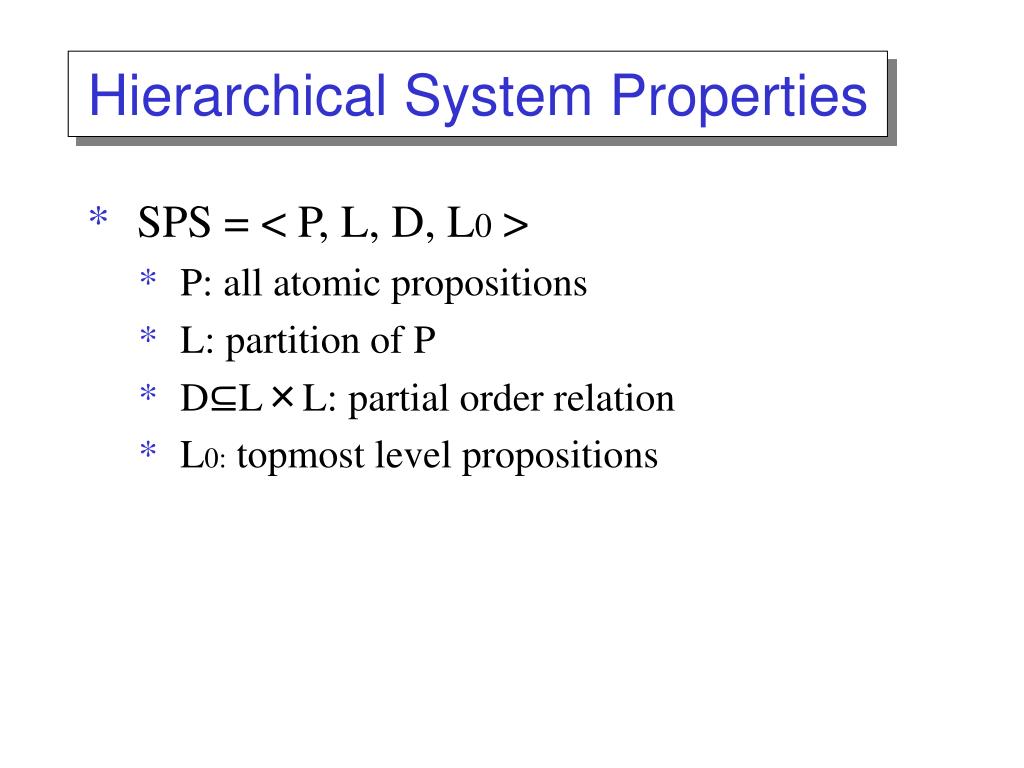

6. Hierarchical System Properties • SPS = < P, L, D, L0 > • P: all atomic propositions • L: partition of P • D⊆L×L: partial order relation • L0: topmost level propositions

7. SPS of a Radio/Tape Player Lo On P D Radio, Tape Stereo L Am, Fm Play, Pause

8. Function Requirement • ρ = < id, a, fin, o, fout > • id: name • a: input symbol • fin: pre-condition • o: output symbol • fout: post-condition • Power on : ￢On ⇒ On : • < Power on, Power, ￢On, , On > Power

9. Σ Ο Name γ0 B RM1 ￢On Power Power Power ￢On ⇒ On, On ⇒ ￢ On TF : Temporal logic formulae System Requirement Module • A Requirement Module of the Player • RM = < id, F, γ0, B, Σ, O, TF > Power

10. On RT RM2 Radio RT RT Radio ⇒ Tape, Tape ⇒ Radio TF : Temporal logic formulae RM3 On S Stereo S S ￢ Stereo ⇒ Stereo Stereo ⇒ ￢ Stereo, TF : Temporal logic formulae Other Requirement Modules Radio/Tape Stereo

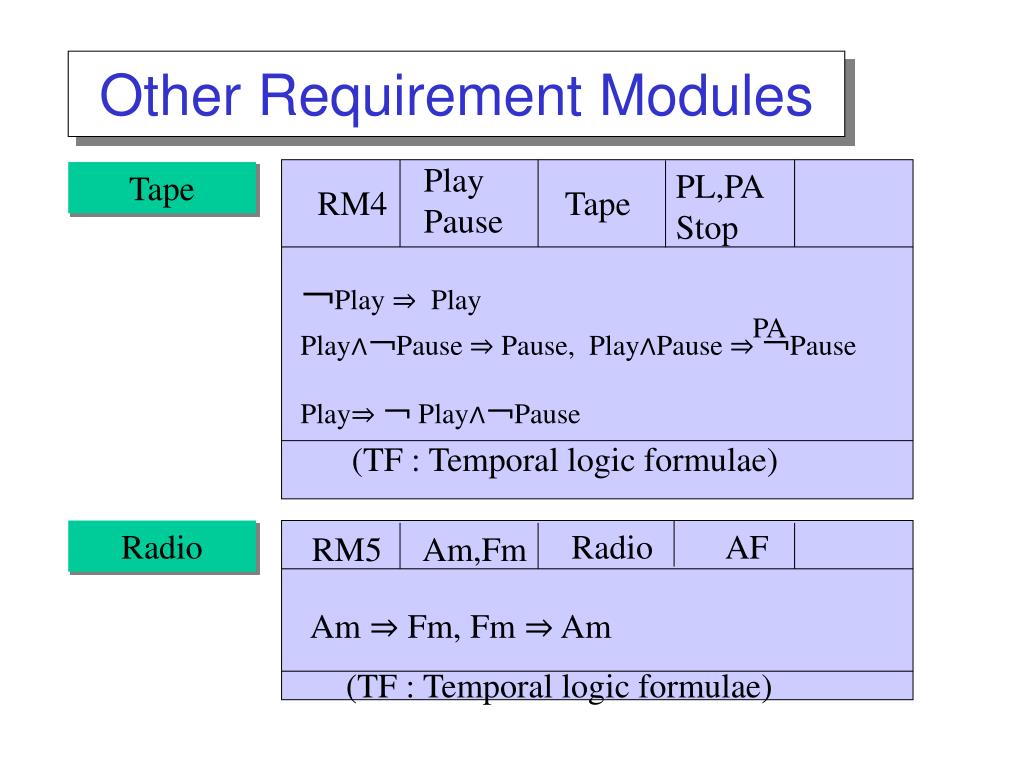

11. Play Pause PL,PA Stop RM4 Tape ￢Play ⇒ Play PA Play∧￢Pause ⇒ Pause, Play∧Pause ⇒ ￢Pause Play⇒ ￢ Play∧￢Pause (TF : Temporal logic formulae) Radio AF RM5 Am,Fm Am ⇒ Fm, Fm ⇒ Am (TF : Temporal logic formulae) Other Requirement Modules Tape Radio

12. System Requirement • R = < RM, RM0, ＞, C > • System Requirement of the Player RM0 RM1 - Power ＞ RM2 - Radio/Tape RM3 - Stereo RM5 - Radio RM4 - Tape

13. State Transition Module • TM = < id, Q, Σ, O, →, q0, B > • A State Transition Module of the Player Σ Power q0 Power Q ￢On On Power →

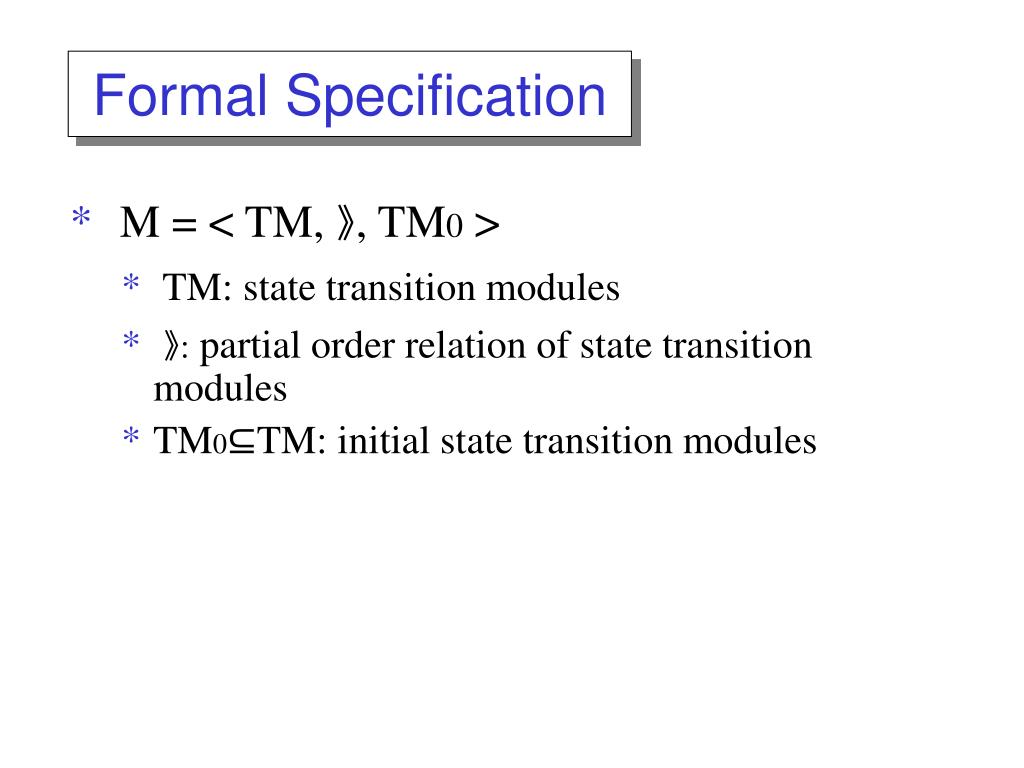

14. Formal Specification • M = < TM, 》, TM0 > • TM: state transition modules • 》: partial order relation of state transition modules • TM0⊆TM: initial state transition modules

15. Formal Specification of the Player TM0 Power 》 ￢On On S Power Stereo ￢Stereo RT S Radio Tape RT ￢Play∧￢Pause PL AF Stop Stop Play∧￢Pause Am Fm PA PA AF Play∧Pause

16. Sub-states, Sub-transition, Default TM0 Power 》 ￢On On S Power Stereo ￢Stereo Default(On) RT S Radio Tape Substates(Tape) RT ￢Play∧￢Pause PL AF Stop Stop Play∧￢Pause Am Fm PA PA AF Play∧Pause Sub-transition(Radio)

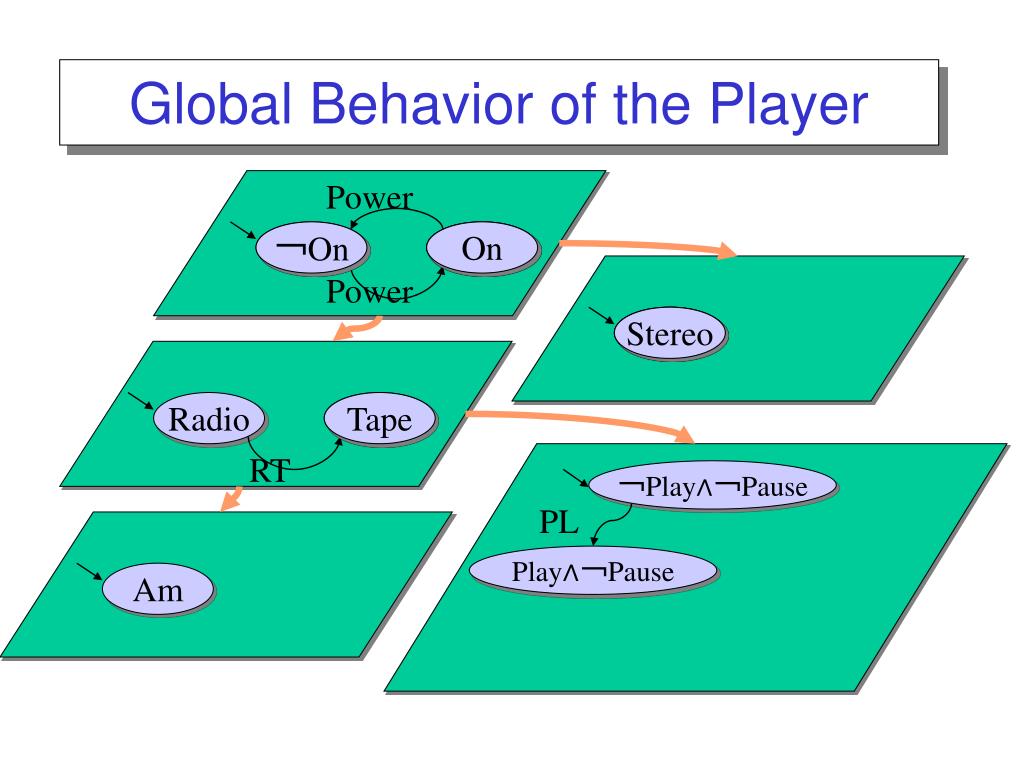

17. Power ￢On On On On Power Stereo Stereo Stereo Radio Tape Tape RT ￢Play∧￢Pause PL Play∧￢Pause Am Global Behavior of the Player ￢On

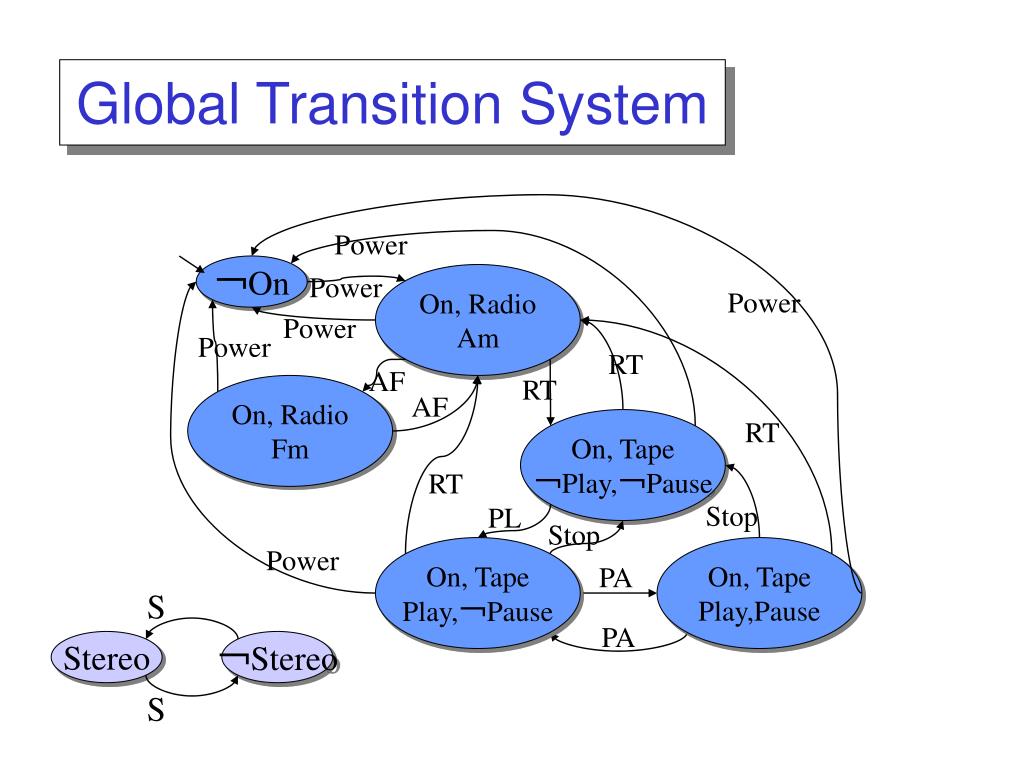

18. Global Transition System Power ￢On Power On, Radio Am Power Power Power RT AF RT On, Radio Fm AF On, Tape ￢Play,￢Pause RT RT Stop PL Stop Power On, Tape Play,￢Pause On, Tape Play,Pause PA S PA Stereo ￢Stereo S

19. Soundness • Transition ├ Function Requirement • Transition Module ├ Requirement Module • Formal Specification ├ System Requirement

20. Completeness • M is Complete w.r.t. R • M is sound w.r.t. R • ∀sound M’ w.r.t. R, • ∃homomorphism ξ: M’→M • Standard System of R • sound • complete • unique

21. Synthesis of Formal Specification • Synthesis System • Theorem on Synthesis: • The derived system is standard. system requirement module State transition module System Requirement Formal Specification

22. Compositional Verification • Verification of Linear-time Properties • reachability analysis • liveness, fairness and safeness verification • trace analysis • Verification with Branching-time Logic • TCTL • partial model checker • further discussion

23. Reachability Analysis • Bottom-up Algorithm • Time Complexity: O(|T|・logs|M|) 3. Until initial module reached [On] Power 2. Find upper module, analyze [Tape] Radio/Tape Stereo Radio Tape 1. Analyze local reachability [Play, Pause]

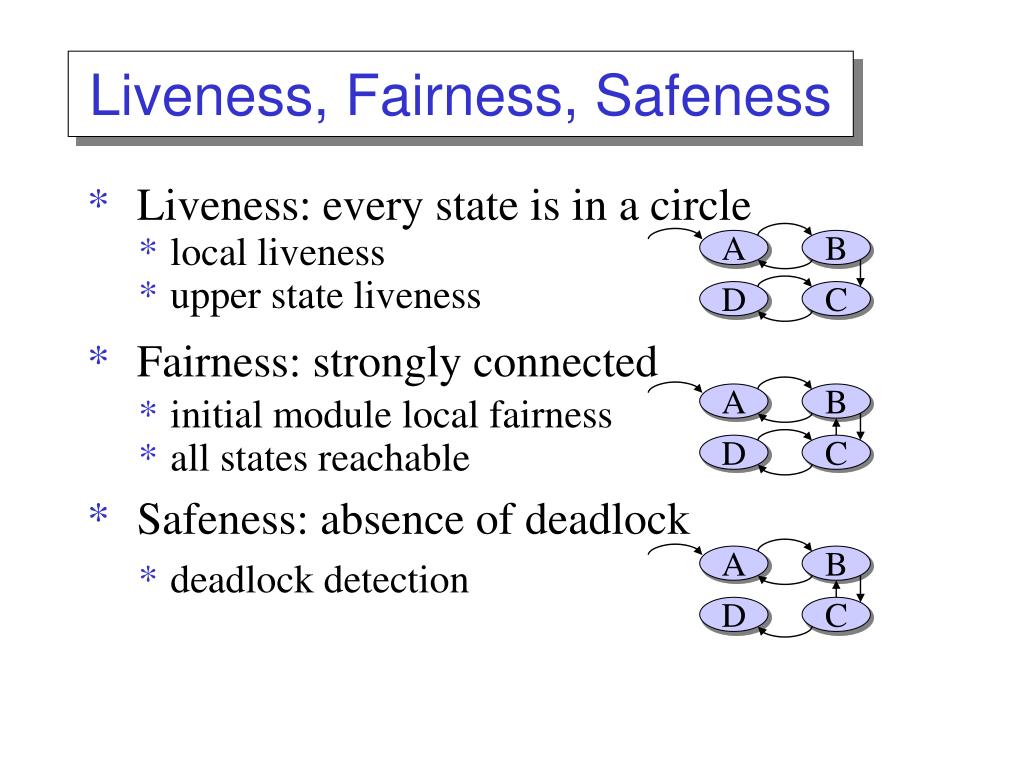

24. A B D C A B D C A B D C Liveness, Fairness, Safeness • Liveness: every state is in a circle • local liveness • upper state liveness • Fairness: strongly connected • initial module local fairness • all states reachable • Safeness: absence of deadlock • deadlock detection

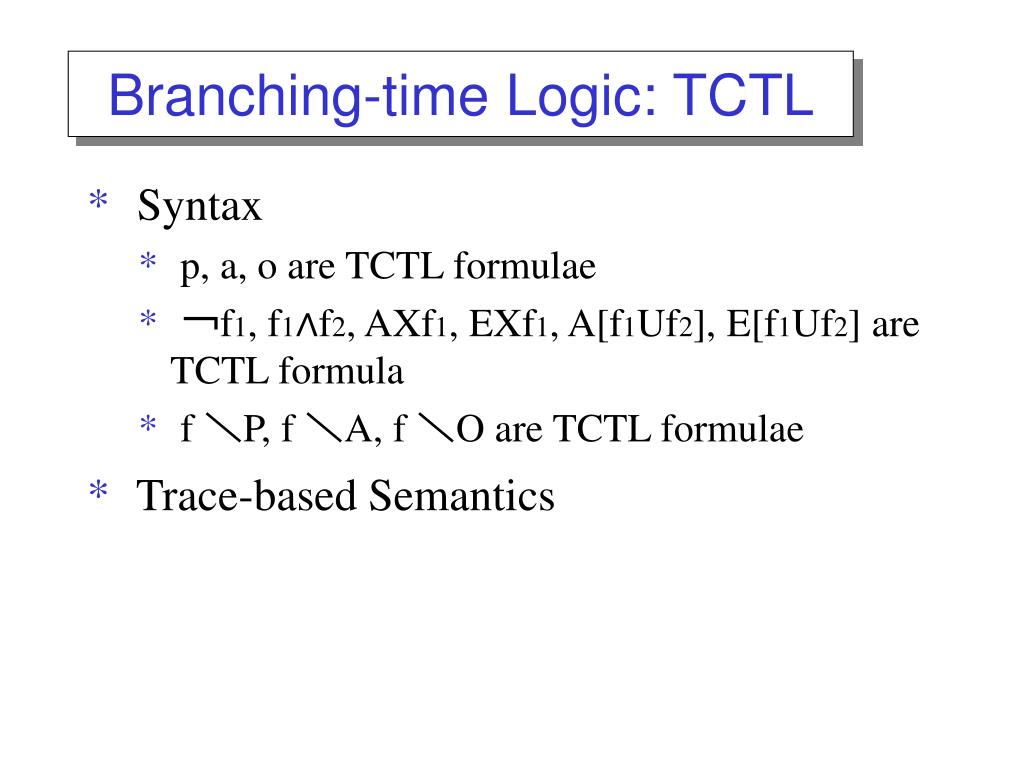

25. Branching-time Logic: TCTL • Syntax • p, a, o are TCTL formulae • ￢f1, f1∧f2, AXf1, EXf1, A[f1Uf2], E[f1Uf2] are TCTL formula • f ＼P, f ＼A, f ＼O are TCTL formulae • Trace-based Semantics

26. Partial Model Checker • Partial verification • hierarchical structure based • sequential portion of formal specification • any level specification • Partial Model Checker • obtain list of all subformulas of f to be verified • label states with formulas on the hierarchical structure • backwards search for EX and EU

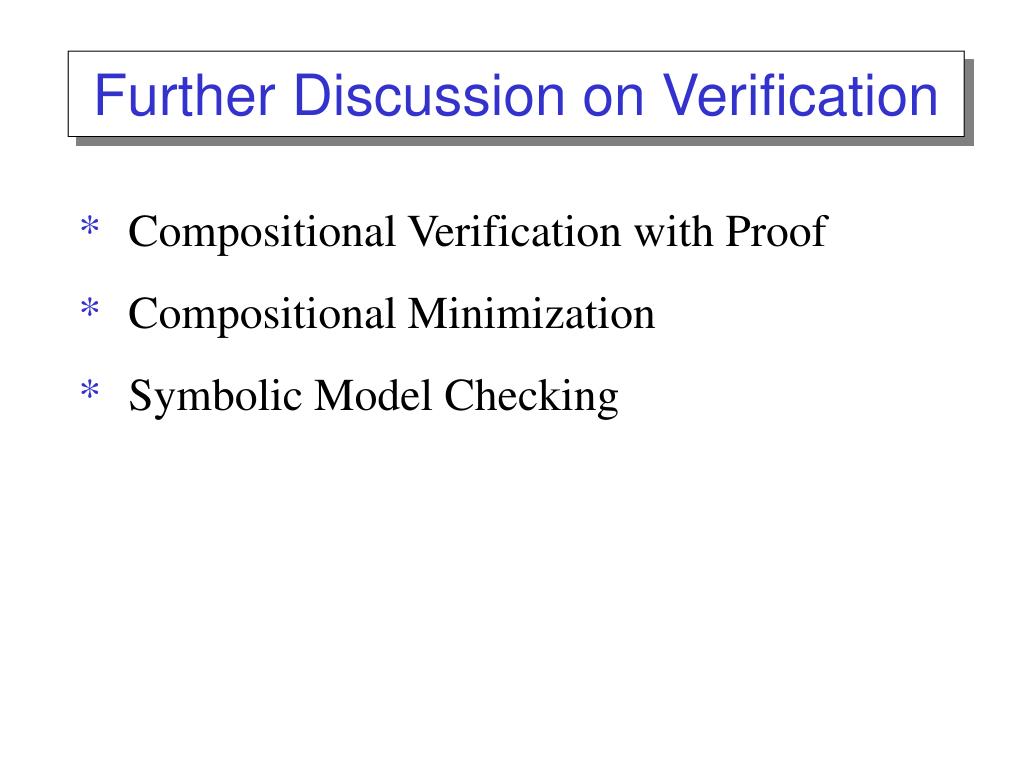

27. Further Discussion on Verification • Compositional Verification with Proof • Compositional Minimization • Symbolic Model Checking

28. Reflection • Transition Addition/Deletion/Modification • State Addition/Deletion • Nonexecutable Function Detection System Requirement Formal Specification

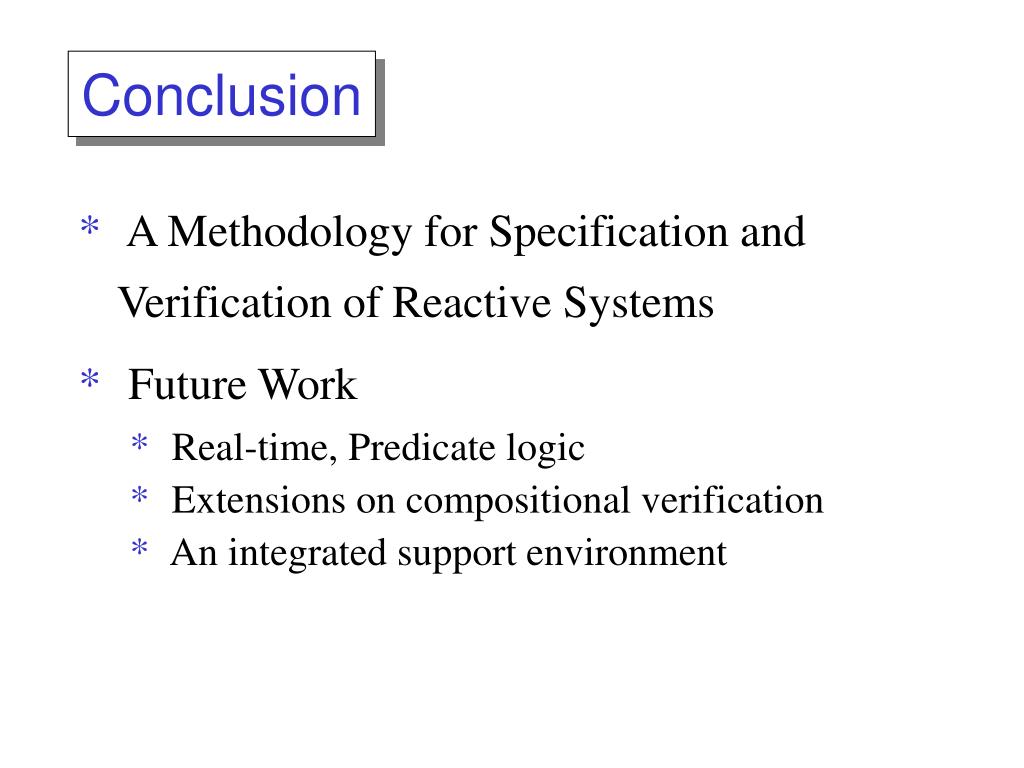

29. Conclusion • A Methodology for Specification and Verification of Reactive Systems • Future Work • Real-time, Predicate logic • Extensions on compositional verification • An integrated support environment
