  1. Software EngineeringBehavioral Design Patterns Software Engineering 2011 Department of Computer Science Ben-Gurion university Based on slides of: Mira Balaban Department of Computer Science Ben-Gurion university F. Tip. IBM T J Watson Research Center.

  2. Behavioral Patterns • concerned with algorithms and the assignment of responsibilities between objects • behavioral class patterns use inheritance to distribute behavior between classes • behavioral object patterns use composition to distribute behavior between objects Chain of Responsibility Command Interpreter Iterator Mediator Memento • Observer • State • Strategy • Template Method • Visitor

  3. Iterator: Motivation • Accessing the elements of an aggregate object without exposing its internal structure. • Traverse the aggregate in different ways, depending on needs. • Do not want to bloat the aggregate interface with operations for different traversals, even if they can be anticipated. • Need to have more than one traversal pending on the same aggregate.

  4. Iterator: Solution • Key idea: Take the responsibility for access and traversal out of the aggregate object and put it into an Iterator object. • The list objects are responsible for creating their corresponding iterator.

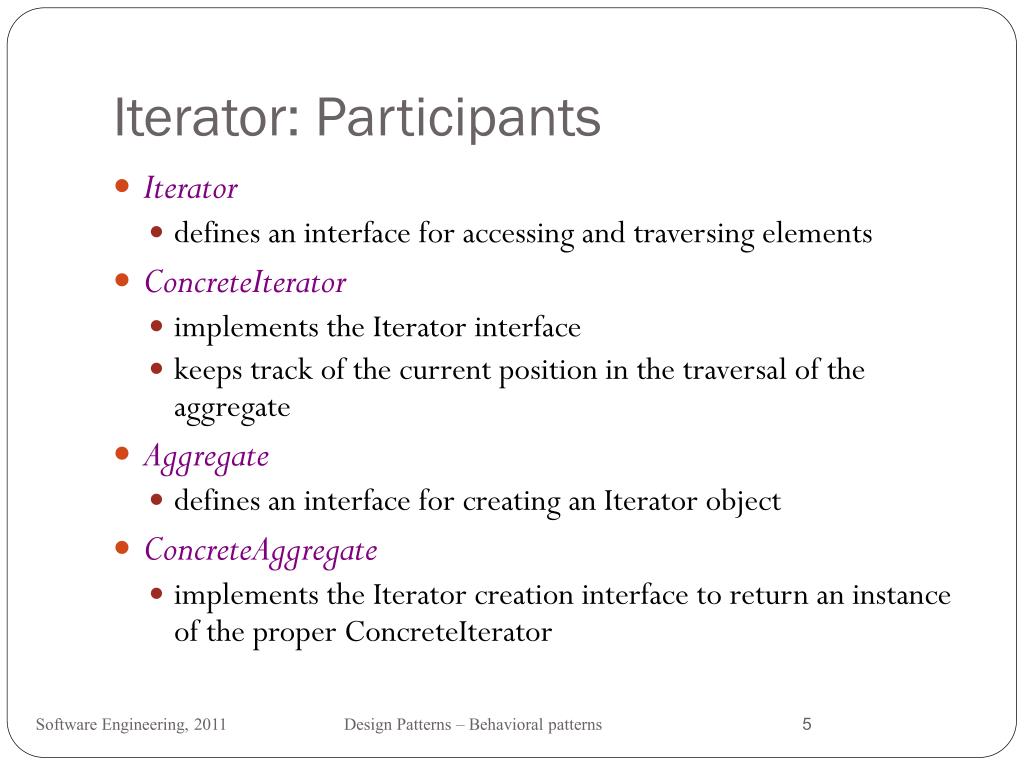

  5. Iterator: Participants • Iterator • defines an interface for accessing and traversing elements • ConcreteIterator • implements the Iterator interface • keeps track of the current position in the traversal of the aggregate • Aggregate • defines an interface for creating an Iterator object • ConcreteAggregate • implements the Iterator creation interface to return an instance of the proper ConcreteIterator

  6. Iterator: Class Diagram

  7. Iterator: intent and context • provide a way to access the elements of an aggregate object sequentially without exposing its underlying representation • apply Iterator for the following purposes: • to access an aggregate object’s contents without exposing its internal representation • to support multiple traversals of aggregate objects • to provide a uniform interface for traversing different aggregate structures (support polymorphic iteration)

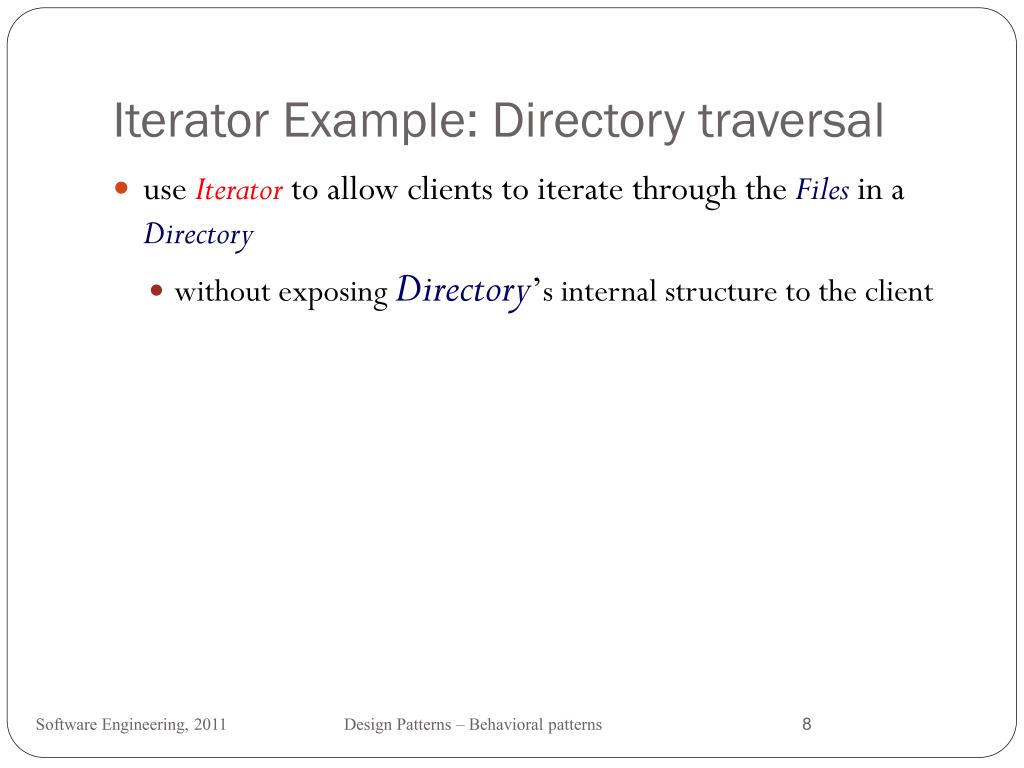

  8. Iterator Example: Directory traversal • use Iterator to allow clients to iterate through the Files in a Directory • without exposing Directory’s internal structure to the client

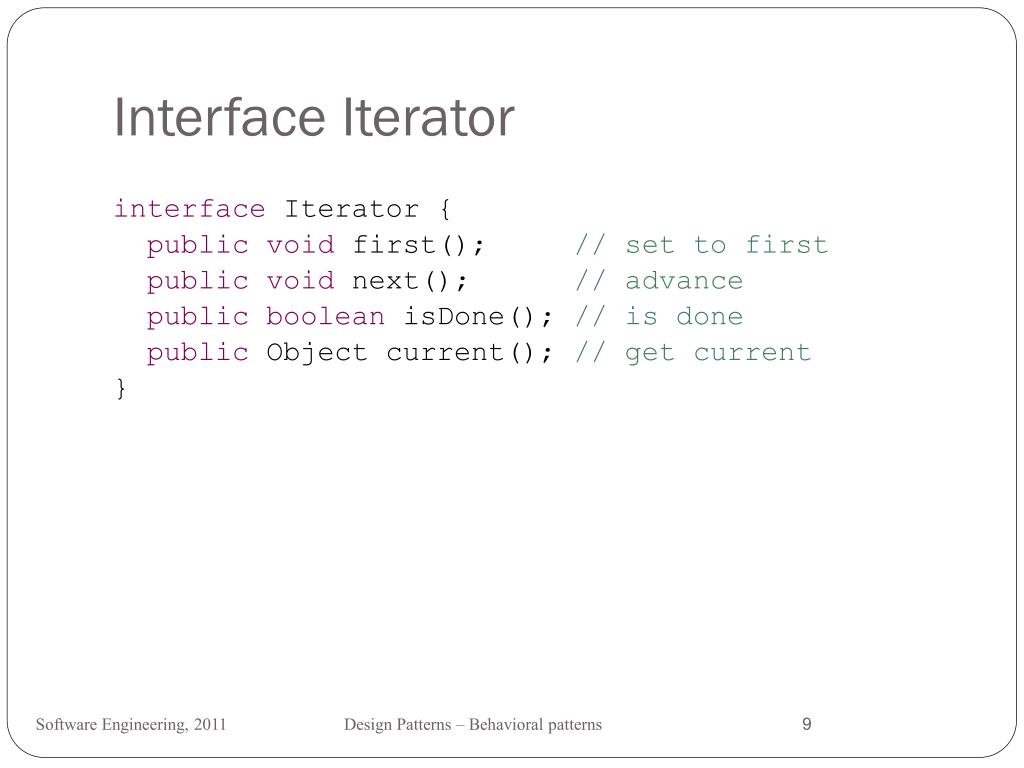

  9. Interface Iterator interface Iterator { public void first(); // set to first public void next(); // advance public booleanisDone(); // is done public Object current(); // get current }

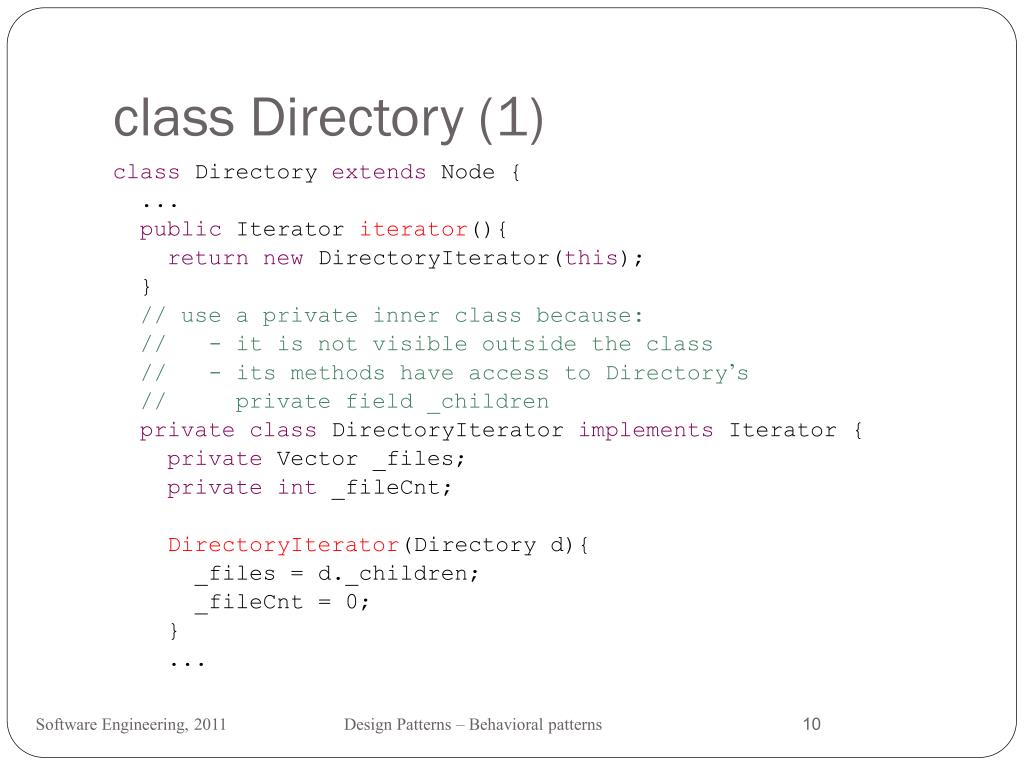

  10. class Directory (1) class Directory extends Node { ... public Iteratoriterator(){ return new DirectoryIterator(this); } // use a private inner class because: // - it is not visible outside the class // - its methods have access to Directory’s // private field _children private class DirectoryIteratorimplements Iterator { private Vector _files; private int_fileCnt; DirectoryIterator(Directory d){ _files = d._children; _fileCnt = 0; } ...

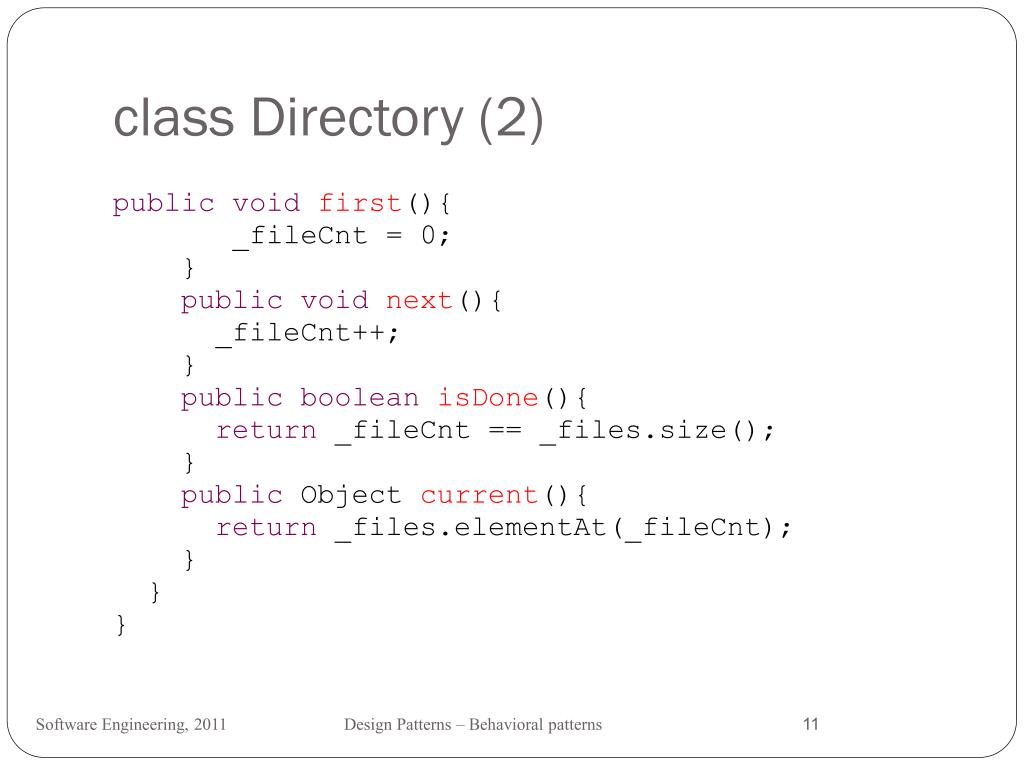

  11. class Directory (2) public void first(){ _fileCnt = 0; } public void next(){ _fileCnt++; } public booleanisDone(){ return _fileCnt == _files.size(); } public Object current(){ return _files.elementAt(_fileCnt); } } }

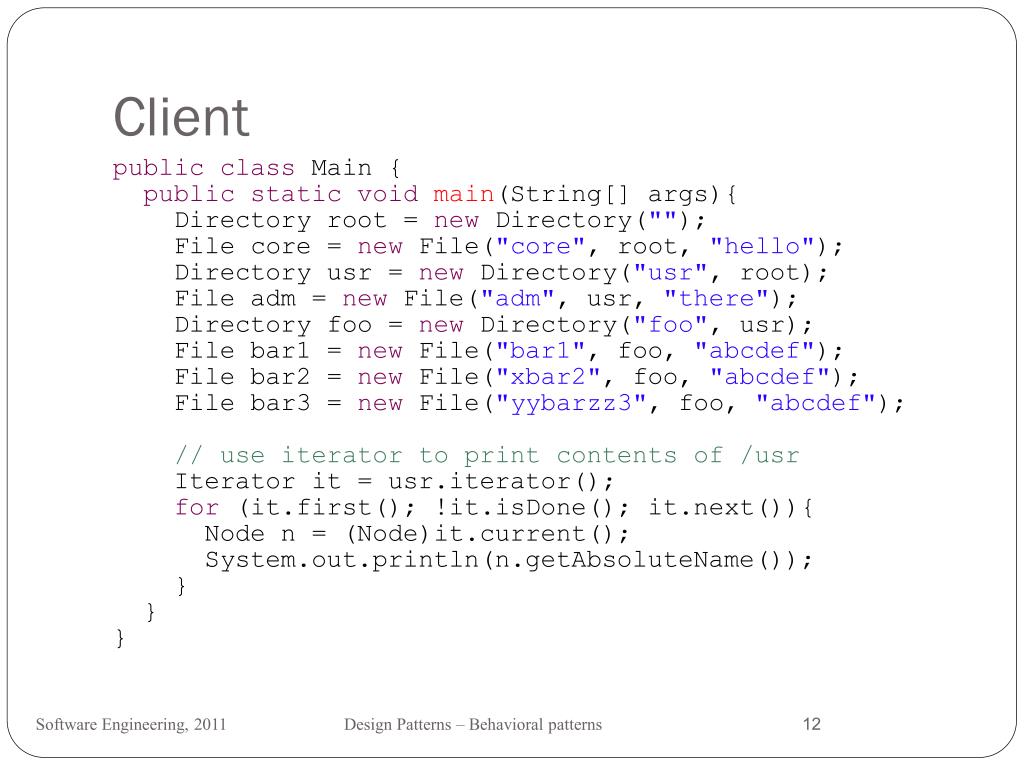

  12. Client public class Main { public static void main(String[] args){ Directory root = new Directory(""); File core = new File("core", root, "hello"); Directory usr = new Directory("usr", root); File adm = new File("adm", usr, "there"); Directory foo = new Directory("foo", usr); File bar1 = new File("bar1", foo, "abcdef"); File bar2 = new File("xbar2", foo, "abcdef"); File bar3 = new File("yybarzz3", foo, "abcdef"); // use iterator to print contents of /usr Iterator it = usr.iterator(); for (it.first(); !it.isDone(); it.next()){ Node n = (Node)it.current(); System.out.println(n.getAbsoluteName()); } } }

  13. Output /usr/adm /usr/foo/

  14. Iterator: Considerations • two kinds of Iterators: • internaliterators: iteration controlled by iterator itself. Client hands iterator an operation to perform; iterator applies op. to each element in the collection. Easier -- Define the iteration logic. • externaliterators: client controls iteration (by requesting next element). More flexible -- Enable collection comparison. • some danger associated with external iterators • e.g., an element of the underlying collection may be removed during iteration. Iterators that can deal with this are called robust. • issue: how to give the iterator access to the underlying collection’s private state • iterators may support additional operations (e.g., skipTo(int), remove) • Java contains an interface java.util.Iterator with hasNext(), next(), remove() methods

  15. Observer: Motivation • A spreadsheet object and bar chart are different presentations of the same application data object. • The data object need not to know about them. • The different presentations do not know about each other. • The presentations should be notified about changes in the data object.

  16. Observer: Solution • Key objects: subject and observer. • A subject may have any number of dependent observers. • All observers are notified whenever the subject changes its state. • Each observer can query the subject to synchronize their states.

  17. Observer: Participants • Subject • knows its observers. any number of observers may observe a subject • provides an interface for attaching/detaching observers • Observer • defines an updating interface for objects that should be notified of changes • ConcreteSubject • stores state of interest to ConcreteObserver objects • sends a notification to its observers when state changes • ConcreteObserver • maintains reference to a ConcreteSubject object • stores state that should stay consistent with subject’s • implements the Observer updating interface to keep its state consistent with the subject’s

  18. Observer: Class Diagram *

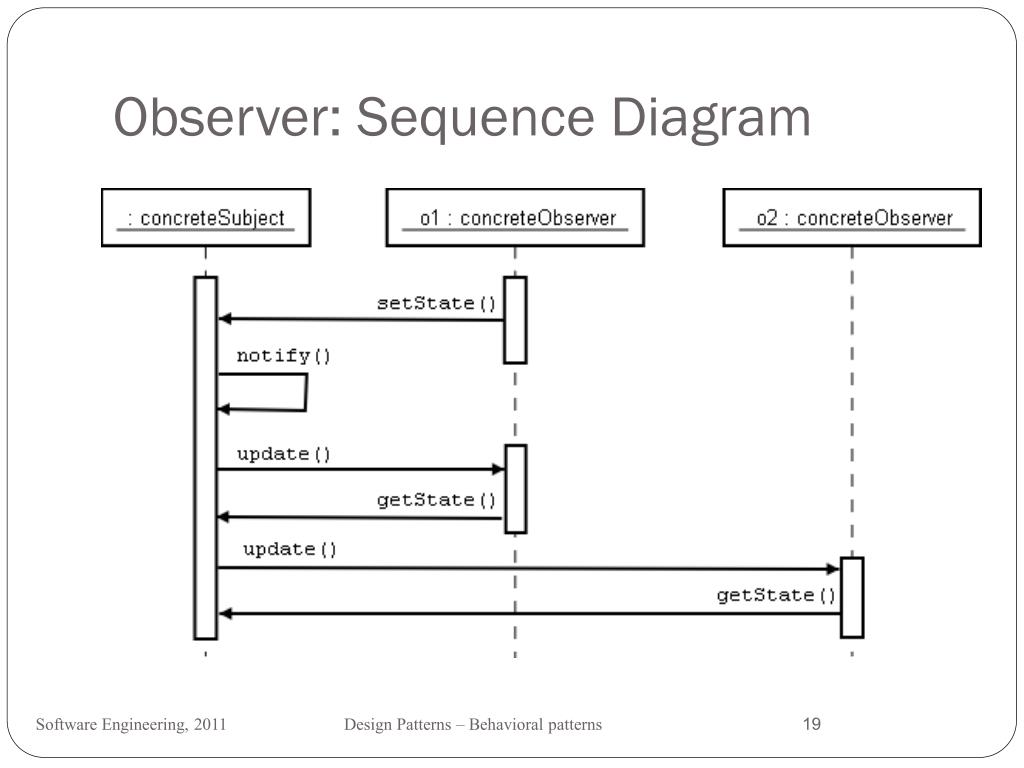

  19. Observer: Sequence Diagram

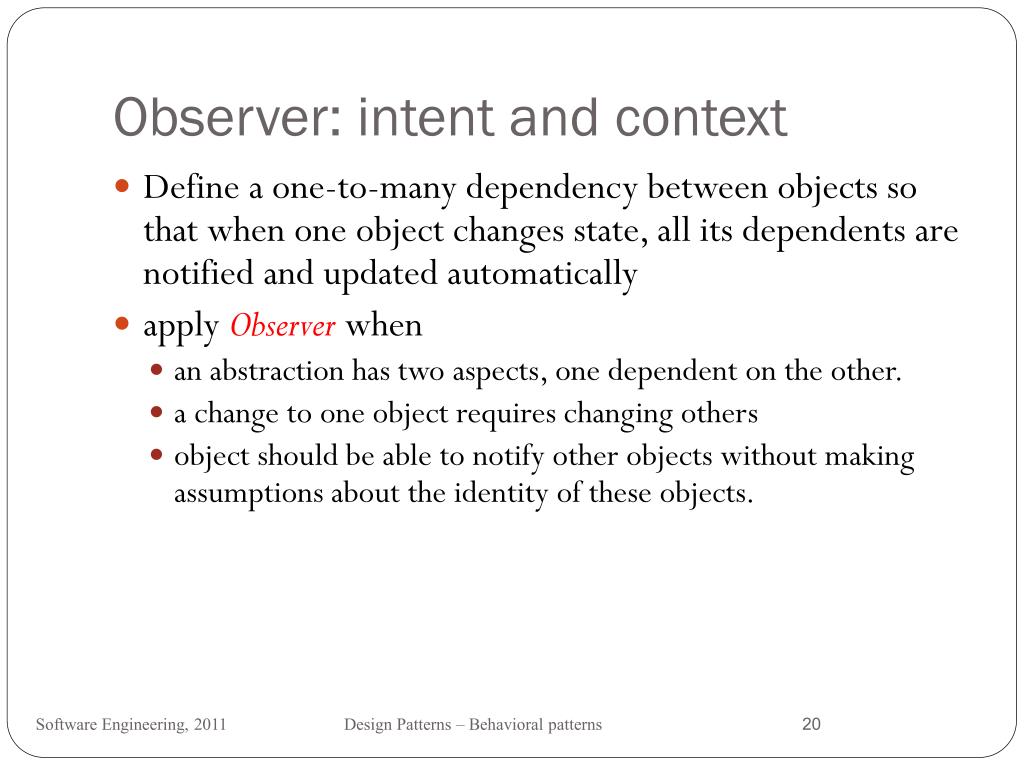

  20. Observer: intent and context • Define a one-to-many dependency between objects so that when one object changes state, all its dependents are notified and updated automatically • apply Observer when • an abstraction has two aspects, one dependent on the other. • a change to one object requires changing others • object should be able to notify other objects without making assumptions about the identity of these objects.

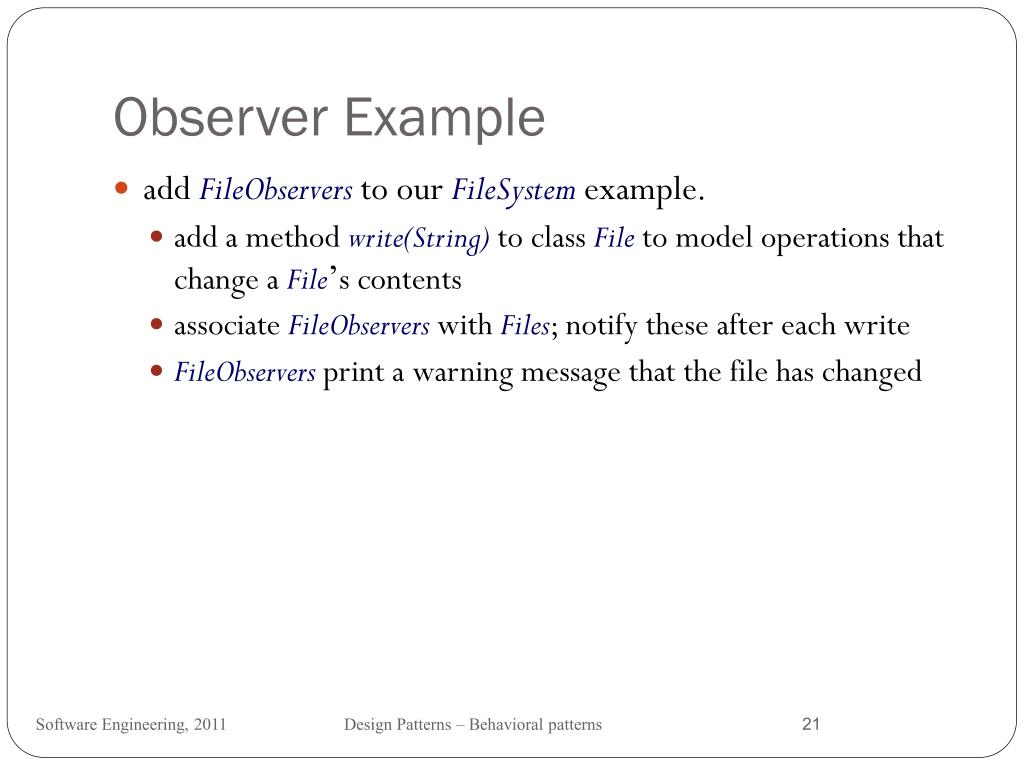

  21. Observer Example • add FileObservers to our FileSystem example. • add a method write(String) to class File to model operations that change a File’s contents • associate FileObservers with Files; notify these after each write • FileObservers print a warning message that the file has changed

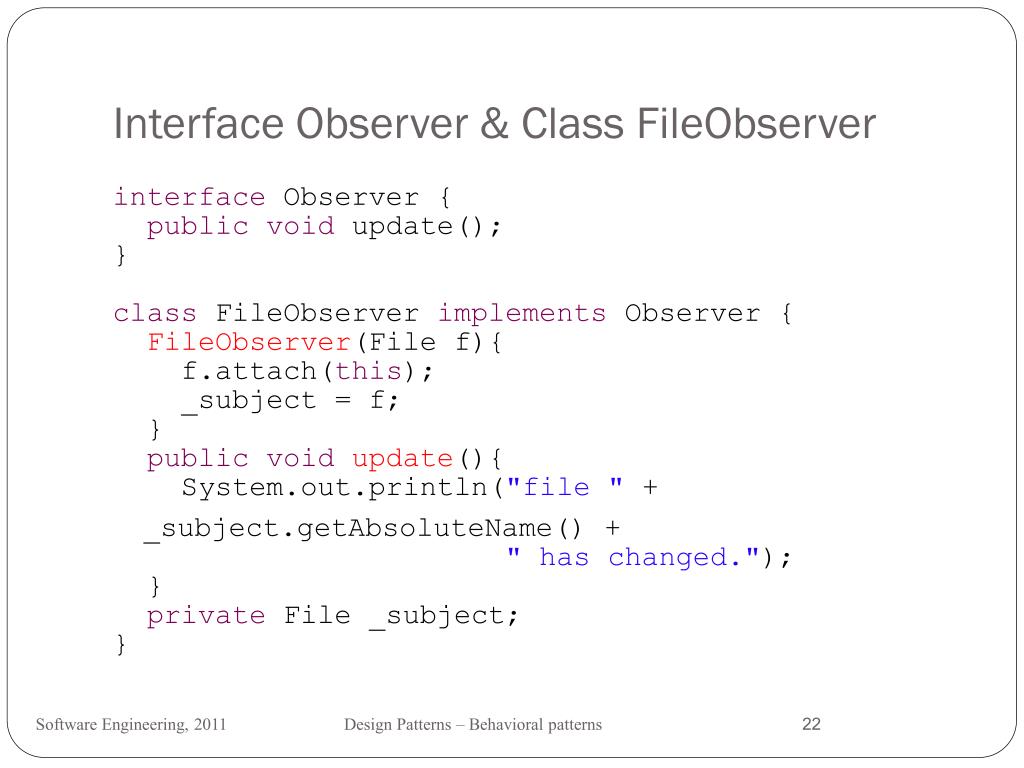

  22. Interface Observer & Class FileObserver interface Observer { public void update(); } class FileObserverimplements Observer { FileObserver(File f){ f.attach(this); _subject = f; } public void update(){ System.out.println("file " + _subject.getAbsoluteName() + " has changed."); } private File _subject; }

  23. Updated Class File (1) class File extends Node { File(String n, Directory p, String c){ super(n,p); _contents = c; } public void attach(Observer o){ if (!_observers.contains(o)){ _observers.add(o); } } public void detach(Observer o){ _observers.remove(o); } ...

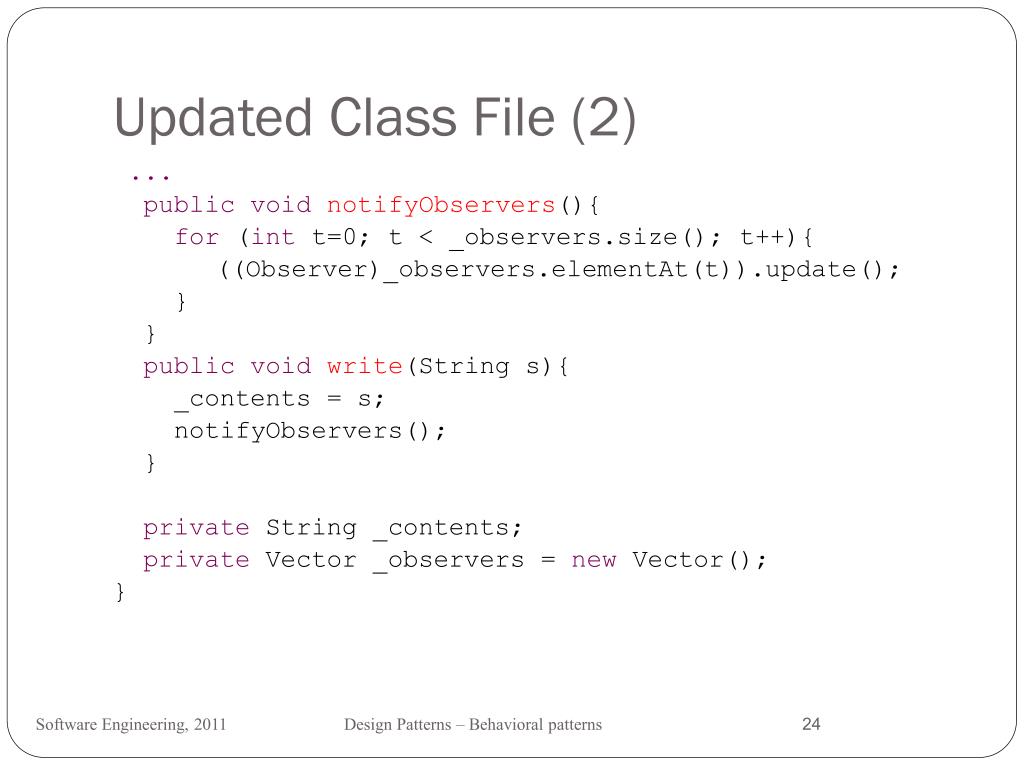

  24. Updated Class File (2) ... public void notifyObservers(){ for (intt=0; t < _observers.size(); t++){ ((Observer)_observers.elementAt(t)).update(); } } public void write(String s){ _contents = s; notifyObservers(); } private String _contents; private Vector _observers = new Vector(); }

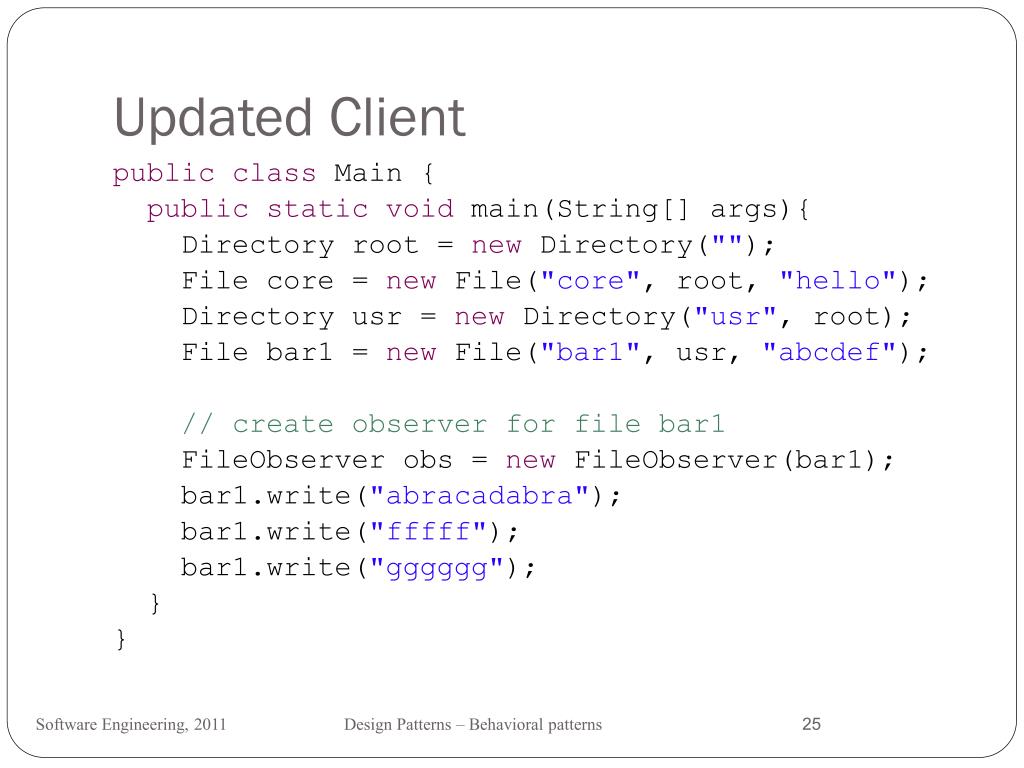

  25. Updated Client public class Main { public static void main(String[] args){ Directory root = new Directory(""); File core = new File("core", root, "hello"); Directory usr = new Directory("usr", root); File bar1 = new File("bar1", usr, "abcdef"); // create observer for file bar1 FileObserverobs = new FileObserver(bar1); bar1.write("abracadabra"); bar1.write("fffff"); bar1.write("gggggg"); } }

  26. Output • file /usr/bar1 has changed. • file /usr/bar1 has changed. • file /usr/bar1 has changed.

  27. Observer: Considerations (1) • Sometimes observers need to observe more than one subject. • who triggers the update? • state-changing subject methods call notify() method, or • make clients responsible for calling notify(). • avoid dangling references when deleting subjects -- Subject notifies its observers about its deletion. • make sure Subject’s state is self-consistent before calling notify (the observers will query the state).

  28. Observer: Considerations (2) • avoiding observer-specific update protocols • push model: subject sends its observers detailed information about the changes • pull model: subject only informs observers that state has changed; observers need to query subject to find out what has changed • specifying modifications of interest explicitly • of interest when observer are interested in only some of the state-changing events: • Subject.attach(Observer, interest) • Observer.update(Subject, interest) • encapsulating complex update semantics • when there is a highly complex relationship between subject and observer, introduce a ChangeManager class to reduce the amount of work.

  29. Visitor: Motivation • A compiler that represents a program as abstract syntax tree. • The set of node classes is fixed for a language • Applies operations like type-checking, code optimization, flow analysis, checking for variables being assigned values before they're used to all nodes. • Operations might change – depend on static semantic analysis.

  30. Visitor: Problem • Distributing all operations across node classes leads to a system that's hard to understand, maintain, and change. • It is confusing to have type-checking code mixed with pretty-printing code or flow analysis code. • Adding a new operation requires recompiling all of these classes. • It would be better if: • each new operation could be added separately • the node classes were independent of the operations that apply to them.

  31. Visitor: Solution • Package related operations in a separate object, called a visitor. • Passing it to elements of the abstract syntax tree as it's traversed. • When an element "accepts visitor ", it sends a request to that visitor , that includes the element as an argument. • The visitor executes the operation for that element—the operation that used to be in the class of the element.

  32. Visitor: Solution

  33. Visitor: Participants • Visitor • declares a visit() operation for each class of ConcreteElement in the object structure • ConcreteVisitor • implements each operation declared by Visitor • Element • defines an operation accept(Visitor) • ConcreteElement • implements operation accept(Visitor)

  34. Visitor: Class Diagram

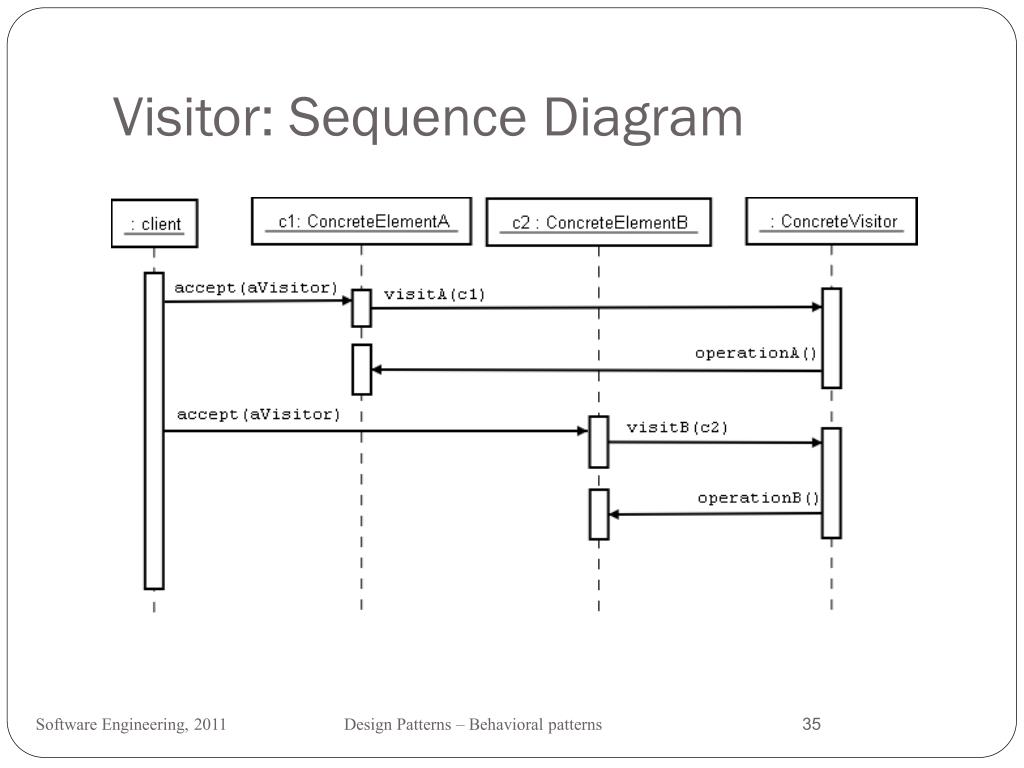

  35. Visitor: Sequence Diagram

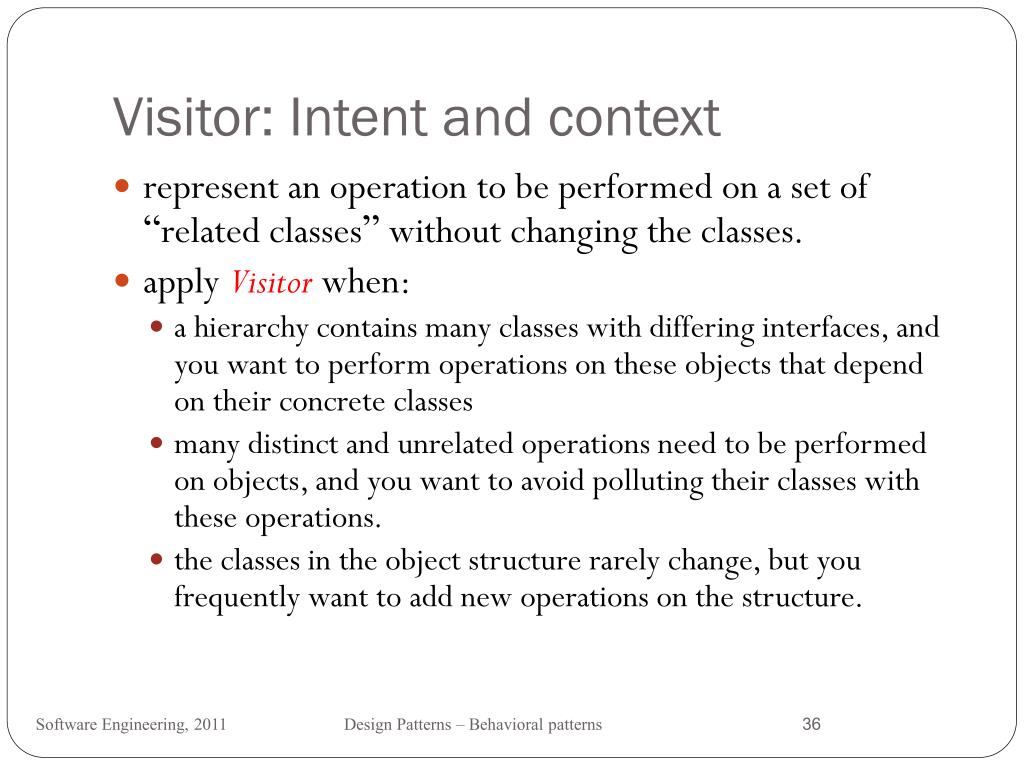

  36. Visitor: Intent and context • represent an operation to be performed on a set of “related classes” without changing the classes. • apply Visitor when: • a hierarchy contains many classes with differing interfaces, and you want to perform operations on these objects that depend on their concrete classes • many distinct and unrelated operations need to be performed on objects, and you want to avoid polluting their classes with these operations. • the classes in the object structure rarely change, but you frequently want to add new operations on the structure.

  37. Visitor: Example • a final variation on the FileSystem example • goal: implement the Unix “du”(disk usage) command using a Visitor (du counts the size of a directory and its subdirectories, usually in 512-byte blocks) • create interface Visitor with methods visit(File), visit(Directory), visit(Link) • create class DuVisitor that implements Visitor • declare accept(Visitor) method in class Node, implement in File, Directory, Link

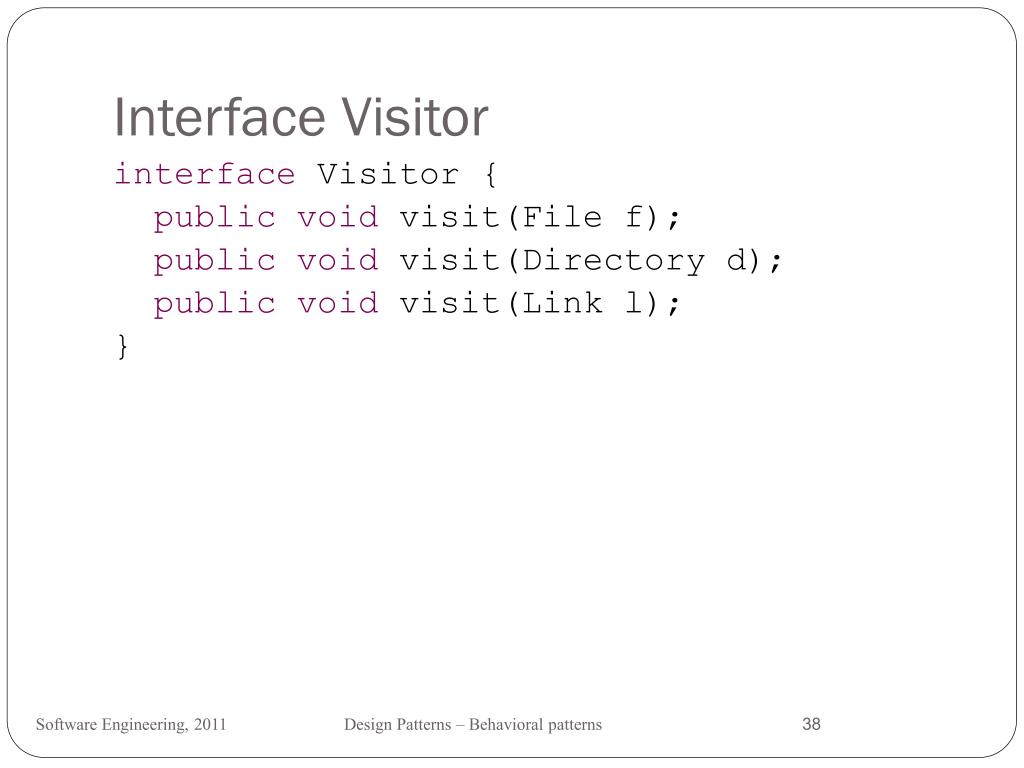

  38. Interface Visitor interfaceVisitor{ publicvoidvisit(Filef); publicvoidvisit(Directoryd); publicvoidvisit(Linkl); }

  39. Class DuVisitor (1) classDuVisitorimplements Visitor { DuVisitor(){ _nrFiles = 0; _nrDirectories = 0; _nrLinks = 0; _totalSize = 0; } // visit a file publicvoid visit(File f){ _nrFiles++; _totalSize += f.size(); } ...

  40. Class DuVisitor (2) ... // when visiting a directory, visit all its children publicvoidvisit(Directory d){ _nrDirectories++; Iterator it = d.iterator(); for (it.first(); !it.isDone(); it.next()){ Node n = (Node) it.current(); if (n instanceof File){ visit((File) n); } elseif (n instanceof Directory){ visit((Directory) n); } elseif (n instanceof Link){ visit((Link) n); } } } n.accept(this)

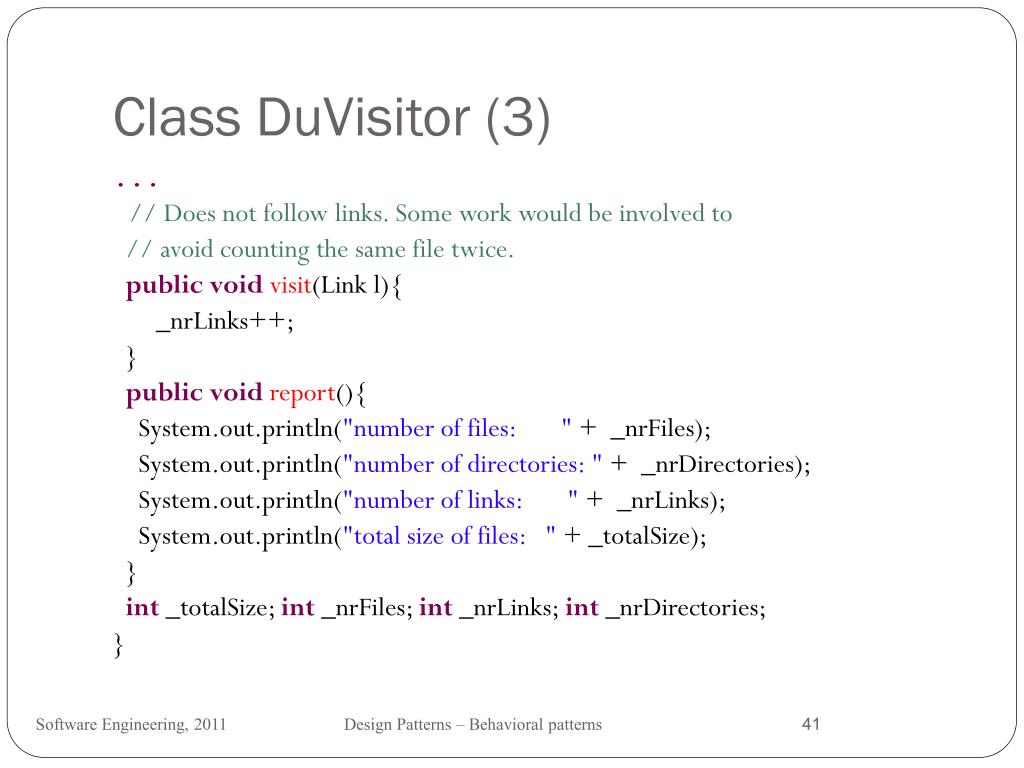

  41. Class DuVisitor (3) ... // Does not follow links. Some work would be involved to // avoid counting the same file twice. publicvoidvisit(Link l){ _nrLinks++; } publicvoidreport(){ System.out.println("number of files: " + _nrFiles); System.out.println("number of directories: " + _nrDirectories); System.out.println("number of links: " + _nrLinks); System.out.println("total size of files: " + _totalSize); } int _totalSize; int _nrFiles; int _nrLinks; int _nrDirectories; }

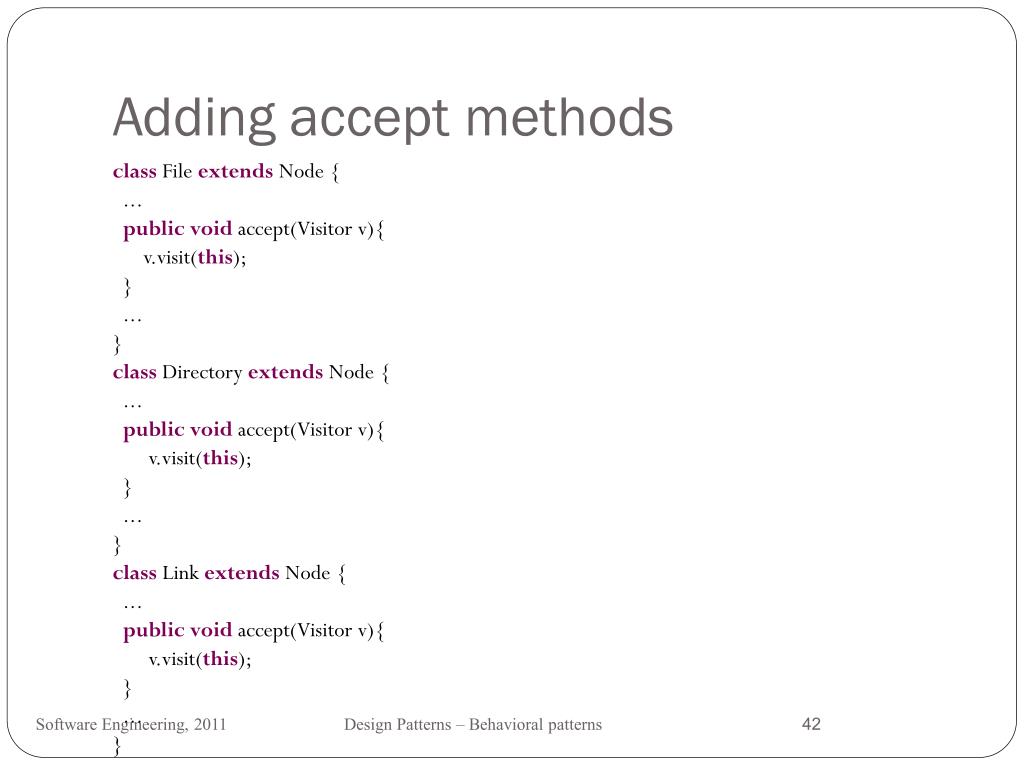

  42. Adding accept methods classFile extendsNode { ... publicvoidaccept(Visitor v){ v.visit(this); } ... } classDirectory extendsNode { ... publicvoidaccept(Visitor v){ v.visit(this); } ... } classLink extendsNode { ... publicvoidaccept(Visitor v){ v.visit(this); } ... }

  43. Client code publicclassMain { publicstaticvoidmain(String[] args){ Directory root = newDirectory(""); File core = newFile("core", root, "hello"); Directory usr = newDirectory("usr", root); File adm = newFile("adm", usr, "there"); Directory foo = newDirectory("foo", usr); File bar1 = newFile("bar1", usr, "abcdef"); File bar2 = newFile("xbar2", usr, "abcdef"); File bar3 = newFile("yybarzz3", usr, "abcdef"); Link link = newLink("link-to-usr", usr, root); Link linkToLink = newLink("link-to-link", link, root); DuVisitor visitor = newDuVisitor(); root.accept(visitor); visitor.report(); } }

  44. Output number of files: 5 number of directories: 3 number of links: 2 total size of files: 28

  45. Visitor: Considerations • adding new operations is easy • a visitor gathers related operations and separates unrelated ones • adding new ConcreteElement classes is hard • gives rise to new abstract operation on Visitor • ...and requires implementation in every ConcreteVisitor • Visitor not limited to classes in a (sub)hierarchy, can be applied to any collection of classes • provided they define accept() methods • Visitor requires that ConcreteElement classes expose enough state so Visitor can do its job • breaks encapsulation

  46. State: Motivation • TCPConnection that represents a network connection. • A TCPConnection object can be in one of several different states: Established, Listening, Closed. • Problem: A TCPConnection object responds differently to requests, depending on its current state.

  47. State: Solution • Key idea: Introduce an abstract class TCPState to represent the states of the network connection. 1

  48. State: Participants • Context • defines interface of interest to clients • maintains reference to a ConcreteState subclass that defines the current state • State • defines an interface for encapsulating the behavior associated with a particular state of the Context • ConcreteState subclasses • each subclass implements a behavior associate with a state of the Context (by overriding methods in State)

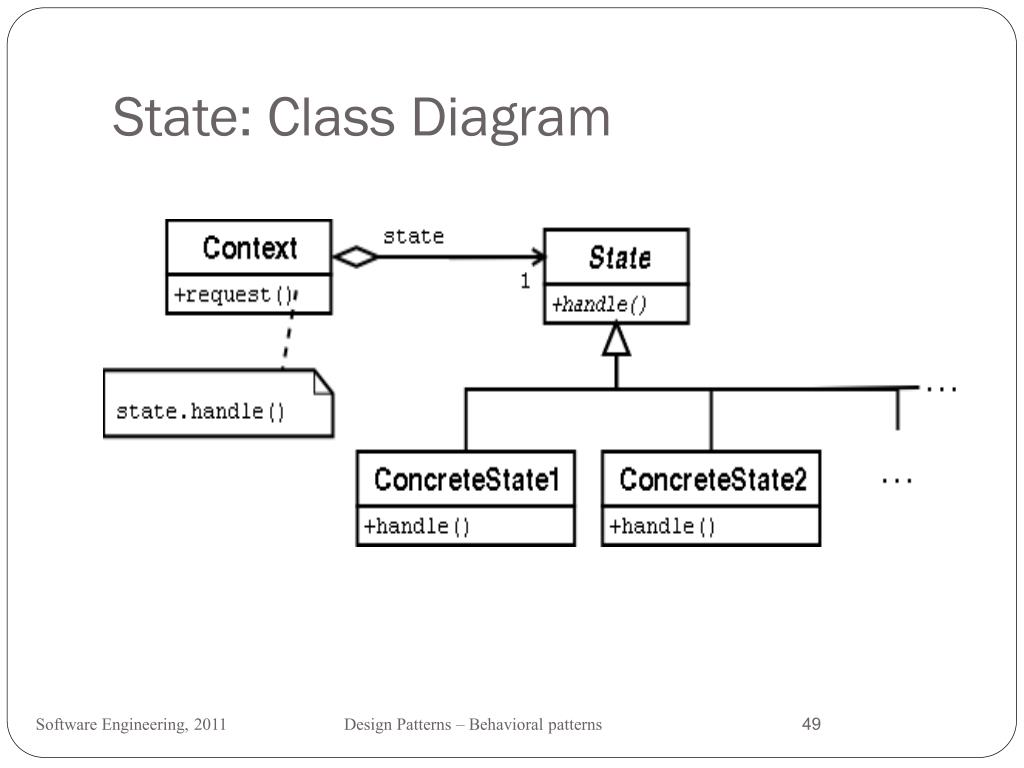

  49. State: Class Diagram

  50. State: Intent and context • Allow an object to change its behavior when its internal state changes • use State when: • an object’s behavior depends on its state • operations have large conditional statements that depend on the object’s state (the state is usually represented by one or more enumerated constants)
