Naming

Naming

Sandhya Turaga

CS-249

Fall-2005


Outline of chapter

Outline of Chapter

  • Naming in general

  • Characteristics of distributed naming

    Bindings

    Consistency

    Scaling

  • Approaches to Design a global name service

    • DEC Global Name Service ( by Lampson)

    • Stanford Design (by DAVID R. CHERITON and TIMOTHY P. MANN)


Naming in general

Naming in general

  • Names facilitate sharing.

  • Names are used for communication of objects

  • Unique identifiers

    Never reused, always bound to an object, &provides location independence

  • Pure Names

    Nothing but a bit pattern that is an identifier

    Pure names commit one to nothing –

    Eg: 123065#$21

  • Impure Names

    Carries commitments of one sort or the another

    Eg: src/dec/ibm


Characteristics

Characteristics

  • Bindings

    Machine to address binding

    Services to machine binding

  • Consistency

    How one propagates updates among replicates of a naming database (Explained more in the DEC example)


Characteristics contd

Characteristics ( contd…)

  • Scaling

    Being able to manage indefinite number of machines each providing some part of name lookup service of indefinite size which is managed by a great number of more or less autonomous administrators without any major changes to the existing environment.

    Managing name Space rather than the avoidance of scale disasters In the implementation


Approaches

Approaches

  • DEC Global Naming Service

    • Has two levels

      • Client Level

      • Administration Level

  • The Stanford Design

    • Has three levels

      • Global Level

      • Administrational Level

      • Managerial Level


Approach dec client level

Approach – DEC – client level

  • Client level

    • File structure is seen similar to a UNIX file system - like a tree of directories ( Figure 1)

  • Each directory is identified by a unique Directory Identifier (DI)

  • Each ARC of the directory is called a directory reference (DR) = DI of the child directory

  • Directory path relative to the root is Full Name (FN)

    In the figure1 finance/personal is relative to root src


File system as seen in dec client level figure 1

File system as seen in DEC – client level (Figure 1)

DR=#300

DR=#200


Dec client level contd

DEC – client level (contd…)

  • In this tree structure each node carries timestamp & a mark which is either absent/present

  • A node is present/absent can be known by the update operations.

  • A node is which is absent is denoted by a strike on the circle in figure 2.

  • Time-stamps are used to allow trees to be updated concurrently.


Figure 2

Figure 2


Dec administrational level

DEC-Administrational Level

  • Administrator allocates resources to the implementation of the service and reconfigures it to deal with failures.

  • It sees a set of directory copies (DC), each one stored on a different server (S) machine.

  • Figure 3 shows dec/src is stored on four servers.


Figure 3

Figure 3


Dec administration level contd

DEC- Administration level (Contd..)

  • A lookup can try one or more of the servers to find a copy from which to read.

  • The values on servers(10,12) are the current time which is called the last sweep time.

  • Each copy also has nextTS (next time-stamp) it will assign to a new update.

  • Updates are spread through Sweep operation which has a time-stamp sweepTS.

  • An update originates at one DC

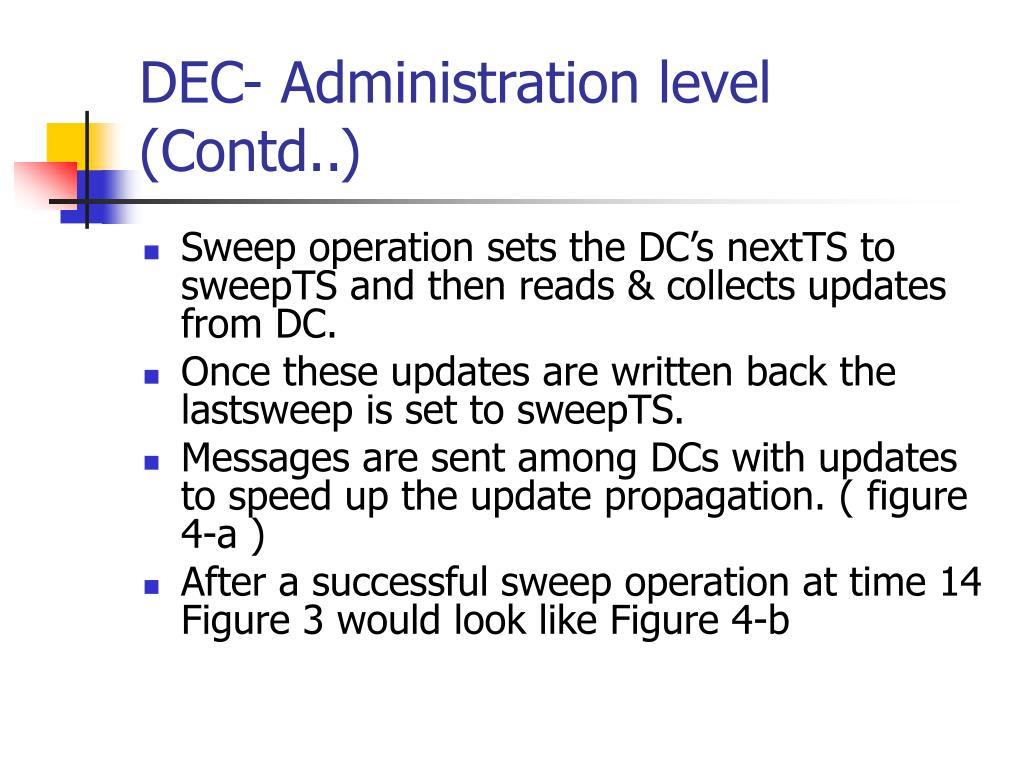

Dec administration level contd1

DEC- Administration level (Contd..)

  • Sweep operation sets the DC’s nextTS to sweepTS and then reads & collects updates from DC.

  • Once these updates are written back the lastsweep is set to sweepTS.

  • Messages are sent among DCs with updates to speed up the update propagation. ( figure 4-a )

  • After a successful sweep operation at time 14 Figure 3 would look like Figure 4-b


Figure 4 a

Figure 4-a


Figure 4 b

Figure 4-b


Dec administration level contd2

DEC- Administration level (Contd..)

  • To obtain the set of DCs reliably ,all the DCs are linked in a ring with the arrows pointing to other DC (Figure 5).

  • Sweep starts at one DC follows the arrows and completes the ring .

  • In case of a server a failure ring must be reformed. In this process updates may lost and a new sweep operation must be started.


Figure 5

Figure 5


Dec name space

DEC-Name Space

  • Expanding the name space and changing its structure without destroying the usefulness of old names is important in hierarchical naming structure.

  • Each directory in this hierarchical structure is a context within which names can be generated independently of what is going on in any other directory.

  • Thus we can have a directory name Finance under two prefixes such as src/dec/Finance & src/ibm/Finance. Each directory can have its own administrator, and they do not have to coordinate their actions.


Figure 6

Figure 6

#444

#222


Dec name space1

DEC-Name Space

  • Growth of name space in by combining existing name services ,each with its own root is:

    add a new root by making the existing root nodes as its children (Figure 6).


Figure 7

Figure 7


Dec name space contd

DEC-Name Space (Contd..)

  • How can a directory be found from its DI?

  • Root keeps a table of well-known directories that maps certain DIs into links which are FNs relative to the root.

  • See figure 7.


Dec name space contd1

DEC-Name Space (Contd..)

  • Sometimes restructuring (Moving a subtree) is required.

  • For example DEC buys IBM then the path for IBM changes as shown in figure 8.

  • Old paths as ansi/ibm won’t work now. Users should be forwarded from ansi/ibm to ansi/dec/ibm to access IBM.


Figure 8

Figure 8


Dec name space caching

DEC-Name Space - Caching

  • Caching is a good idea for lookups.

  • Caching is achieved by:

    1) Slow rate of change on the naming database

    2) Or Tolerating some inaccuracy in caching data

  • Enforcing slow rate of change can be achieved with:

    expiration time (TX) on entries in the database with an exception.


Dec name space figure 9

DEC-Name Space (Figure 9)

#999/DEC =311

Valid until 20 Nov 2006


Dec name space2

DEC Name Space

  • For example in figure 7 the result of looking up ansi/dec/src is valid until 20 Nov 2006


Stanford naming system design

Stanford Naming System Design

  • It has three levels

    Global Level

    Administrational level

    Managerial level

  • In lower levels, naming is handled by object managers

  • How do administrational & global levels differ?


Stanford naming system design contd figure 10

Stanford Naming System Design (Contd..) –(Figure 10)

Fig 10


Managerial level

Managerial level

  • Each directory is stored by a single object manager

  • Any kind of object can be named using a directory implemented by its object manager. Eg: Files

  • Object manager stores the absolute name of the root of each subtree


Managerial level contd

Managerial level (contd ..)

  • For example (in Figure l0), the subtrees rooted at the directories edu/stanford/dsg/bin and %edu/stanford/dsg/1ib are both implemented by DSG file server 1, which thus covers all the names with prefixes %edu/stanford/dsg/bin and %edu/stanford/dsg/lib.

  • Accordingly, file server 1 stores all the files and directories under these two subtrees


Managerial level contd1

Managerial level (Contd..)

  • Object manager implements all operations on the names it covers.

  • What are the advantages of integrating names with object management?

  • Managerial directories record every name-object binding


Managerial level contd2

Managerial level (contd..)

  • Requirements to construct a complete naming service:

    • Clients should know to which manager it should send the messages

    • Clients should know which name is unbound and which name is unavailable

    • Separate mechanism is needed to implement operations on directories above the managerial level.


Managerial level contd3

Managerial level (contd..)

  • Finding manager location can be provided by prefix caches & multicasting.

  • Each client in a naming system maintains a name prefix cache.

  • Each entry of cache associates a name prefix with a directory identifier.

  • Directory identifier has two fields: (m,s)

    m- Manager identifier

    S-Specific directory identifier


Managerial level contd4

Managerial level (contd..)

  • Hit

    when a cache search returns a cache entry containing the name of the managerial directory it is called “Hit”

  • near miss

    When a cache search doesn’t return the name of the directory but does return something is called near miss.


Managerial level contd5

Managerial level (contd..)

  • If cache search returns a local administrational entry then the client multicasts a “Probe” request to a group of managers specified by the cache entry.

  • If the cache search returns a directory identifier that specifies a ‘liaison server” then the client multicasts a probe request on the given name to liaison server.

  • What is liaison server?


Managerial level contd6

Managerial level (contd..)

  • What if the liaison server crashes in between?

  • What happens when the liaison server receives the probe?

  • Cache consistency is maintained by discarding stale cache entries.

  • What is Stale cache entry?


Managerial level contd7

Managerial level (contd..)

  • Advantages of name prefix caching mechanism:

    1) High cache-hit ratio & Performance.

    2) Near miss reduces the amount of work required for the shared naming system.

    3) The longer the prefix returned by the near miss the more work is saved.

    4) Correctness of cache information is automatically checked.


Administrational level

Administrational level

  • Administrational directories are implemented using object managers and administrational directory managers.

  • Administrational directory manager covers the unbound names

  • Bound names are covered by object managers


Administrational level contd

Administrational level (contd..)

  • The administrational directory manager holds a list of bound names, but it is not considered to cover these names

  • Figure 11 illustrates how information is distributed in the directory %edu/stanford/dsg/user of Figure10


Figure 11

Figure 11

Fig 11


Figure 10 same as in slide 30

Figure 10(Same as in slide 30)


Administrational level contd1

Administrational level (Contd..)

  • Managers that cooperate in implementing an administrational directory are called its participants & they form a participant group.

  • Each participant in the admin directory responds to probes on the names it covers.

  • Every name is covered by at least one participant.


Administrational level contd2

Administrational level (Contd..)

  • Directory listing is maintained by directory’s manager.

  • Clients obtain list of names from directory manager

  • What if directory managers fail?

  • Directory’s manager can coordinate access to the directory by clients located outside the local administration


Administrational level contd3

Administrational level (Contd..)

  • Remote administrational directory can be accessed through local liaison server and the global directory system.

  • Advantages of this technique – Even if directory manager is down the corresponding file server can respond to name-mapping requests

    ( see figure 12)


Figure 12

Figure 12

Global level

Administration level

managerial level


Global level

Global level

  • This design is similar to Global directory system of DEC implementation proposed by Lampson.

  • Interfacing to the global directory system

  • Liaison servers act as intermediaries for all client operations at the global level.

  • Caching performed by liaison servers improves the response time for global level queries


Global level contd

Global level (Contd..)

  • Also reduces load on the global directory system.

  • What happens if a global directory system becomes unavailable within some administration?


Performance of name prefix caching

Performance of name prefix caching

  • Load per operation

    1) A packet event is transmission or reception of network packet.

    2) Multicast with g recipients costs g+1pkt events

    3)The avg number of pkt events required to map an event

    Cmap=4h + (r + m + 7)(1 - h)


Performance of name prefix caching1

Performance of name prefix caching

  • h- Cache hit ratio

  • r- No.of retransmissions required to know the host is down

  • m-No.of object managers in the system

  • Derivation of the above equation:

    when there is cache hit name mapping costs -4 pkt events

    when there is a cache miss r+m+7pkt events


Performance of name prefix caching2

Performance of name prefix caching

  • When can Cmap reach the optimum value?

  • What is this r+m+7?

  • Is there a statistical model for computing a cache-hit ratio? (See next slide)

  • Cache-performance model


Cache performance model

Cache-performance model

  • Input parameters :

    1) No.of name-mapping requests issued per unit time

    2) The average length of time a name-cache entry is valid

    3)The average length of time a client cache remains in use before it is discarded

    4)The locality of reference


Cache performance model1

Cache-performance model

  • Avg. steady-state hit ratio of all clients :

    h=1-∑ ∑ ß/( ßj,k +vk )

    j k

    ßj,k –Avg interarrival time for requests generated by client j that reference a name in managerial sub tree k.

    Vk –Validity time for cache entry of a managerial sub tree k.

    ß-Global Avg interarrival time for name-mapping requests.


Cache performance model2

Cache-performance model

  • Steady-state ratio for single pair is:

    hj,k =1- ßj,k /( ßj,k +vk )

  • Miss-ratio=total no.of misses/total no.of requests

  • Hit-ratio=1-(Miss-ratio)


Cache performance model contd figure 13

Cache performance model (Contd..) – (Figure 13)

Fig 13


Cache performance model contd

Cache performance model (Contd..)

  • Is it reasonable to expect the ratio of h

    in the range 99.00-99.98?

  • The following graph shows h for each

    client, sub tree pair

  • Vk varies from 100-5000(on x-axis)

  • Hit-ratio is 0.9901 at Vk 100 & 0.9998 for Vk is 5000.


Cache performance model contd figure 14

Cache performance model (Contd..) – Figure 14

Fig 14


Cache performance model contd1

Cache performance model (Contd..)

  • What is startup misses ?

  • Will startup misses effect hit-ratio ?

    Depends on validity time

    ( see figures 15 )


Hit ratio as a function of time figure 15

Hit Ratio as a function of Time ( figure 15 )


Conclusions

Conclusions

  • How large can a system be built with this design ?

    • Depends on load per operation

    • Load on managers

      ( see figure 16 )


Load per server as a function of system size figure 16

Load per server as a function of system size - Figure 16


Questions

Questions ?


  • Login
