Presentation Transcript

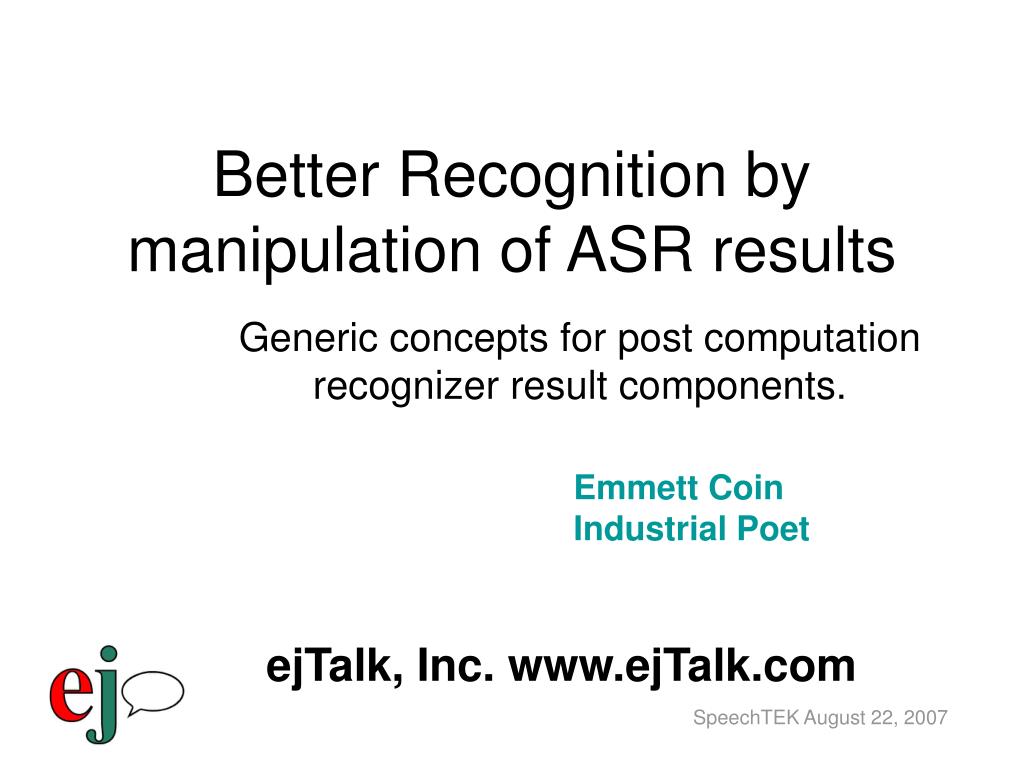

Better Recognition by manipulation of ASR results

Generic concepts for post computation recognizer result components.

Emmett Coin

Industrial Poet

ejTalk, Inc.


  • Emmett Coin

    • Industrial Poet

      • Rugged solutions via compact and elegant techniques

      • Focused on creating more powerful and richer dialog methods

  • ejTalk

    • Frontiers of Human-Computer conversation

      • What does it take to “talk with the machine”?

      • Can we make it meta?

What this talk is about

  • How applications typically use the recognition result

  • Why accuracy is not that important, BUT error rate is.

  • How some generic techniques can sometimes help reduce the effective recognition error rate.

How do most apps deal with recognition?

  • Specify a grammar (cfg or slm)

  • Specify a level of “confidence”

  • Wait for the recognizer to decide what happens (no result, bad, good)

  • Use the 1st nbest result when it is “good”

  • Leave all the errors and uncertainties to the dialog management level

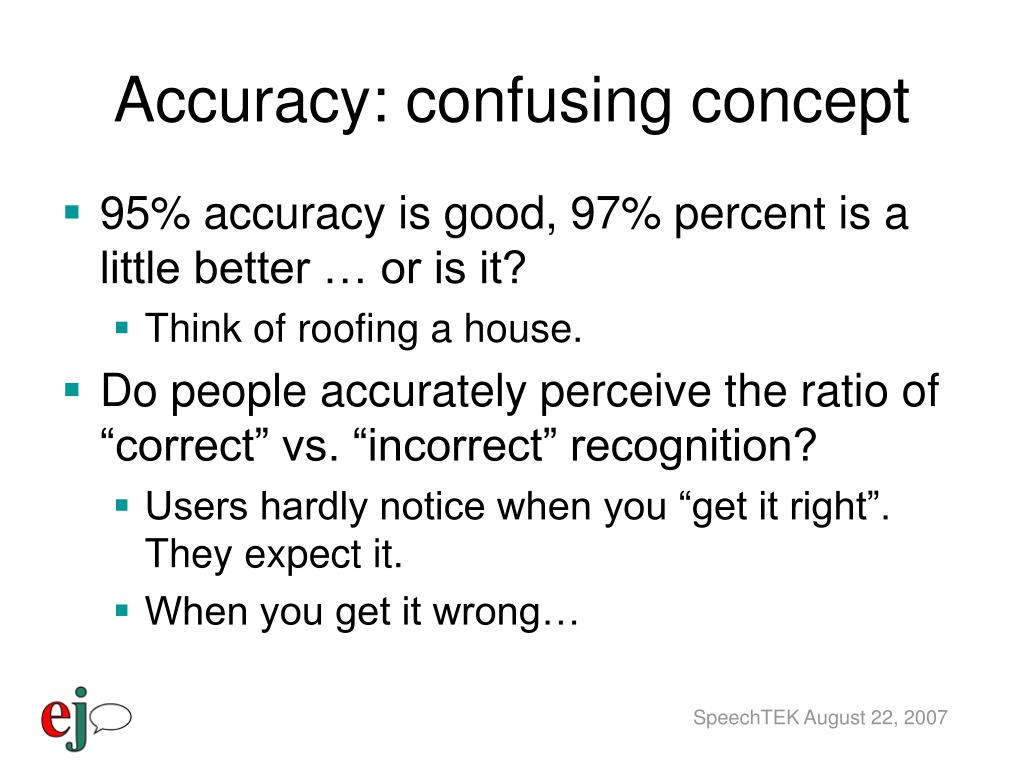

Accuracy: confusing concept

  • 95% accuracy is good, 97% percent is a little better … or is it?

    • Think of roofing a house.

  • Do people accurately perceive the ratio of “correct” vs. “incorrect” recognition?

    • Users hardly notice when you “get it right”. They expect it.

    • When you get it wrong…

Confidence: What is it?

  • A sort of “closeness” of fit

    • Acoustic scores

      • How well it matches the expected sounds

    • Language model scores

      • How much work it took to find the phrase

    • A splash of recognizer vendor voodoo

      • How voice-like, admix of noise, etc.

    • All mixed together and reformed as a number between 0.0 and 1.0 (usually)

Confidence: How good is it?

  • Does it correlate with how a human would rank things?

  • Does it behave consistently?

    • long vs. short utterances?

    • Different word groups?

  • What happens when you rely on it?

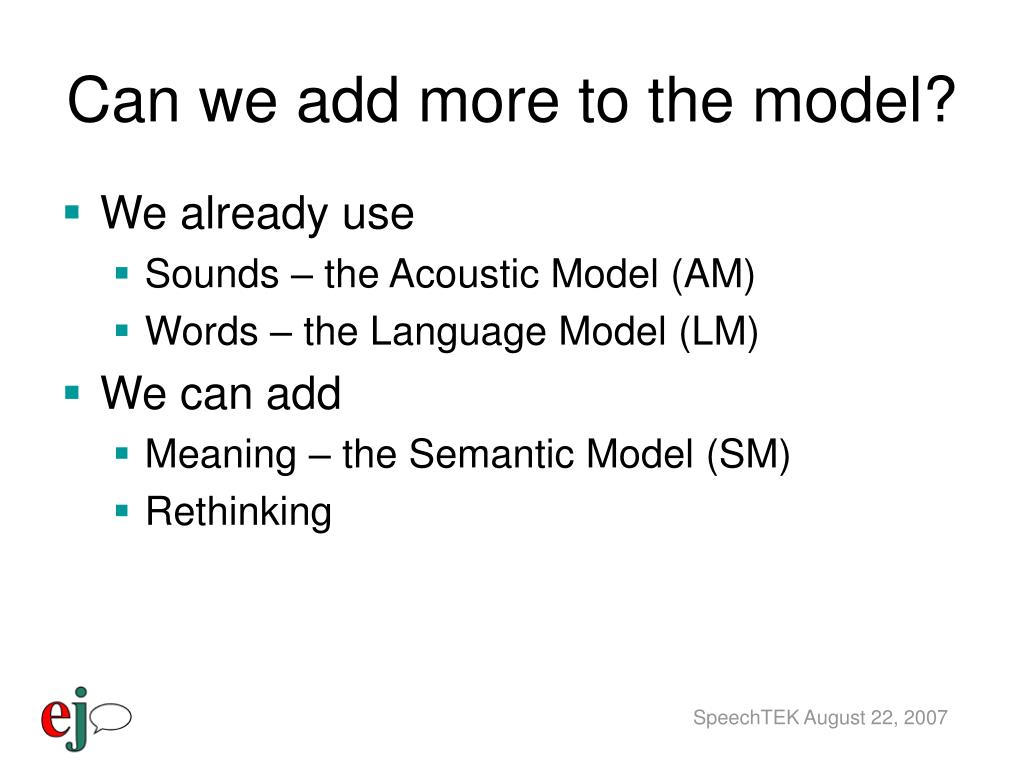

Can we add more to the model?

  • We already use

    • Sounds – the Acoustic Model (AM)

    • Words – the Language Model (LM)

  • We can add

    • Meaning – the Semantic Model (SM)

    • Rethinking

Strategies that humans use

  • Rejection

    • Don’t hear repeated wrong utterances

      • Also called “skip lists”

  • Acceptance

    • Intentionally allowing only the likely utterances

      • Aka “pass lists”

  • Anticipation

    • Asking a question where the answer is known

      • Sometimes called “hints”

Rejection (skip)

  • The people and computers should not make the same mistake twice.

    • Keep a list of confirmed mis-recs

    • Remove those from the next recognition’s nbest list

  • But, beware the dark side ...

    • …the Chinese finger puzzle.

    • Remember: knowing what to reject is based on recognition too!

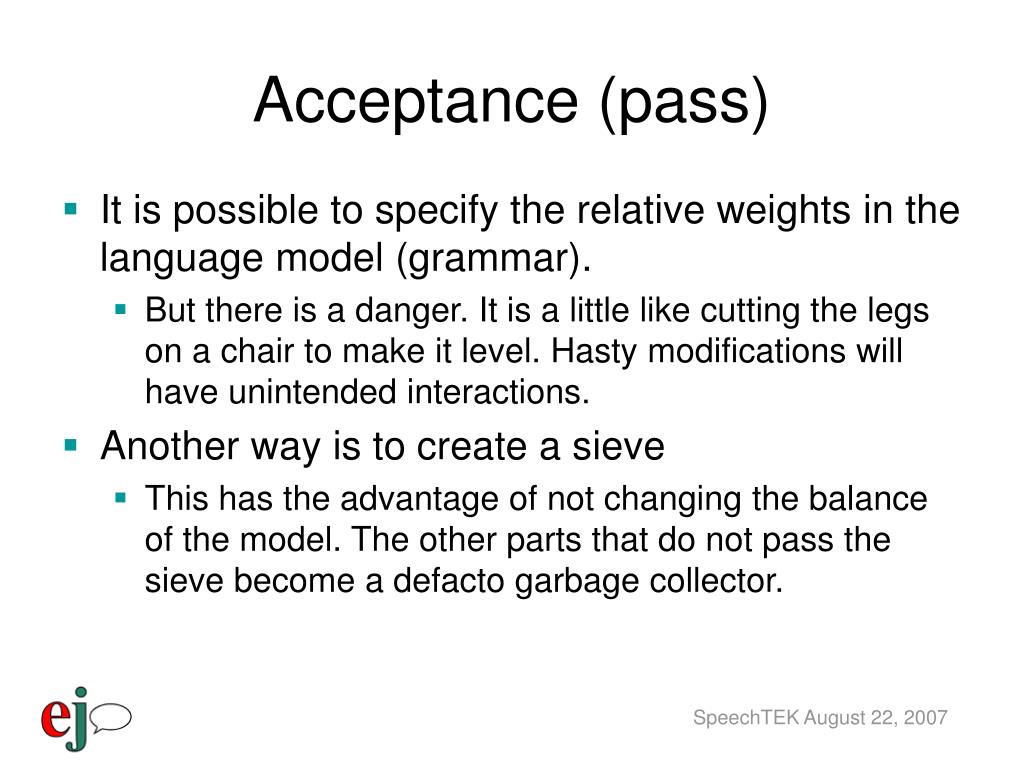

Acceptance (pass)

  • It is possible to specify the relative weights in the language model (grammar).

    • But there is a danger. It is a little like cutting the legs on a chair to make it level. Hasty modifications will have unintended interactions.

  • Another way is to create a sieve

    • This has the advantage of not changing the balance of the model. The other parts that do not pass the sieve become a defacto garbage collector.

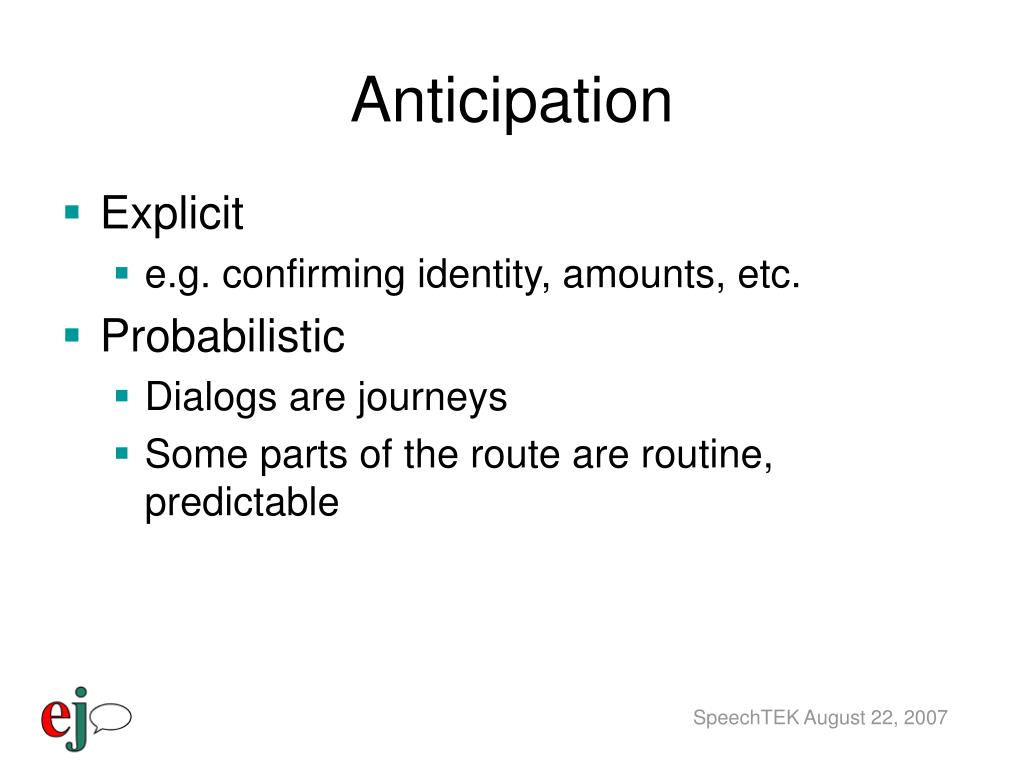

  • Explicit

    • e.g. confirming identity, amounts, etc.

  • Probabilistic

    • Dialogs are journeys

    • Some parts of the route are routine, predictable

What should we disregard?

  • When is a recognition event truly the human talking to the computer?

    • The human is speaking

      • But not to the computer

      • But saying the wrong thing

    • Some human is saying something

    • Other noise

      • Car horn, mic bump, radio music, etc.

  • As dialogs get longer we need to politely ignore what we were not intended to respond to

In and Out of Grammar (oog)

  • The recognizer returned some text

  • Was it really what was said?

  • Can we improve over the “confidence”?

    • Look at the “scores” of the nbest

    • Use them as a “feature space”

    • Use example waves to discover clusters in feature space that correlate with “in” and “out” of Vocabulary

Where do we put it?

  • Where does all this heuristic post analysis go? Out in the dialog?

  • How can we minimize the cognitive load on the application developer?

  • We need to wrap up all this extra functionality inside a new container to hide the extra complexity


  • If an utterance is going to be rejected then try again. (Re-listen to the same wave)

  • If you can infer a smaller scope then listen with a grammar that “leans” that way.

  • Merge the nbests via some heuristic

  • Re-think the combined uttererance to see if it can now be considered “good and in grammar”

Serial Listening

  • The last utterance is not “good enough”

  • Prompt for a repeat and listen again (live audio from the user)

  • If it is “good” by itself then use it

  • Otherwise, heuristically merge the nbests based on similarities

  • Re-think the combined uttererance to see if it can now be considered “good and in grammar”

Parallel Listening

  • Listen on two recognizers

    • One with the narrow “expectation” grammar

    • The other with the wide “possible” grammar

  • If utterance is in both results process the “expectation” results

  • If not process the “possible” results


  • Error rate is the metric to watch

  • There is more information in the recognition result than the 1st good nbest

  • Putting conventional recognition inside a heuristic “box” makes sense

  • The information needed by the “box” is a logical extension of the listening context

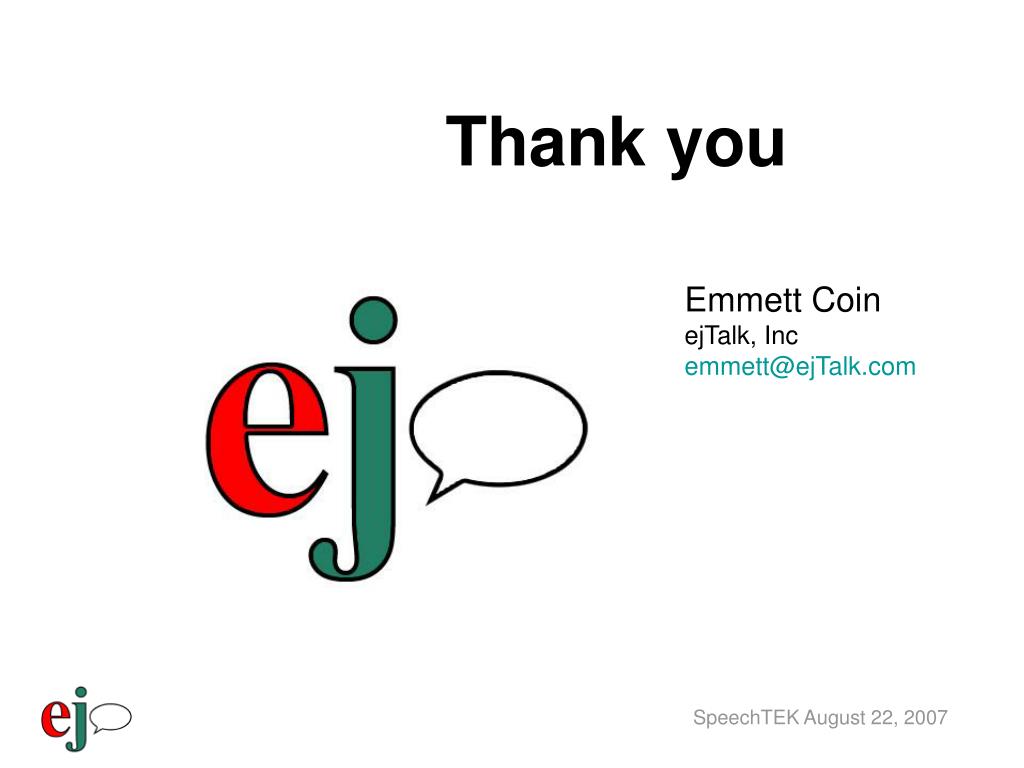

Thank you

Emmett Coin

ejTalk, Inc
