Microsoft ResearchCERN-Pasadena at 1 GBps (8 Gbps)World Wide Telescope

Jim Gray

Researcher

Microsoft Research


Microsoft research l.jpg

Microsoft Research

  • Organizational goal: Advance state of the art

  • More than 700 staff, 55 areas

  • Labs in US, Europe, Asia Internationally recognized teams

  • University organizational modelOpen research environmentClose ties to universities

  • Close working relations with development.


My research goal l.jpg

Experiments &

Instruments

facts

questions

facts

?

Other Archives

facts

answers

Literature

facts

Simulations

My Research Goal

  • Information at your fingertips

  • Bring all scientific literature and data online

  • Focus on large database issues, and scalable servers.


Challenge move da ta from cern to remote centers @ 1gbps l.jpg

Filter

~PBps

~1 GBps

Experiment

~5 GBps

~1 GBps

CERN

~1 GBps

Tier 1

Tier 2

FNAL

INFN

INP3

RAL

Physics data cache

.1 GBps

Workstations

Tier 2

Tier 2

Tier 2

Tier 2

Tier 2

Tier 3

Tier 4

OC192= 9.9 Gbps

Institute

Institute

Institute

Institute

Challenge: Move Data from CERN to Remote Centers @ 1GBps

  • Disk-to-Disk

  • gigabyte / second data rates

  • 80TB/day

  • 30petabytes by 2008

  • 1 exabyte by 2014

Graphics courtesy of Harvey Newman @ Caltech


Current status cern pasadena l.jpg

Multi Stream tpc/ip 7.1 Gbps ~900 MBps

New speed record @ http://ultralight.caltech.edu/lsr-winhec/

Single Stream tpc/ip 6.5 Gbps ~800 MBps

File Transfer Speed ~450 MBps

Current Status: CERN → Pasadena

7,000

6,000

5,000

4,000

mbps per second

3,000

2,000

1,000

0

2000

2001

2002

2003

2004

2005


World wide telescope l.jpg

World Wide Telescope

  • Premise: Most Astronomy data is online

  • The Internet is the world’s best telescope

    • It has data on every part of the sky

    • In every measured spectral band:

    • As deep as the best instruments

    • It is up when you are up.The “seeing” is always great(no working at night, no clouds no moons no..).

    • It’s a smart telescope: links objects and data with literature.


Skyserver sdss org built with johns hopkins u l.jpg

SkyServer.SDSS.orgBuilt with Johns Hopkins U.

  • A modern archive

    • Raw data in file servers

    • Catalog data (derived objects) in Database

    • 10 billon records, 2 TB

    • Online query to any and all

  • Also used for education

    • 150 hours of online Astronomy

    • Implicitly teaches data analysis

  • Interesting things

    • Based on Web Services

    • Spatial data search

    • Cloned by other surveys (a design template)


Service oriented architecture data federations of web services l.jpg

DB

DB

DB

DB

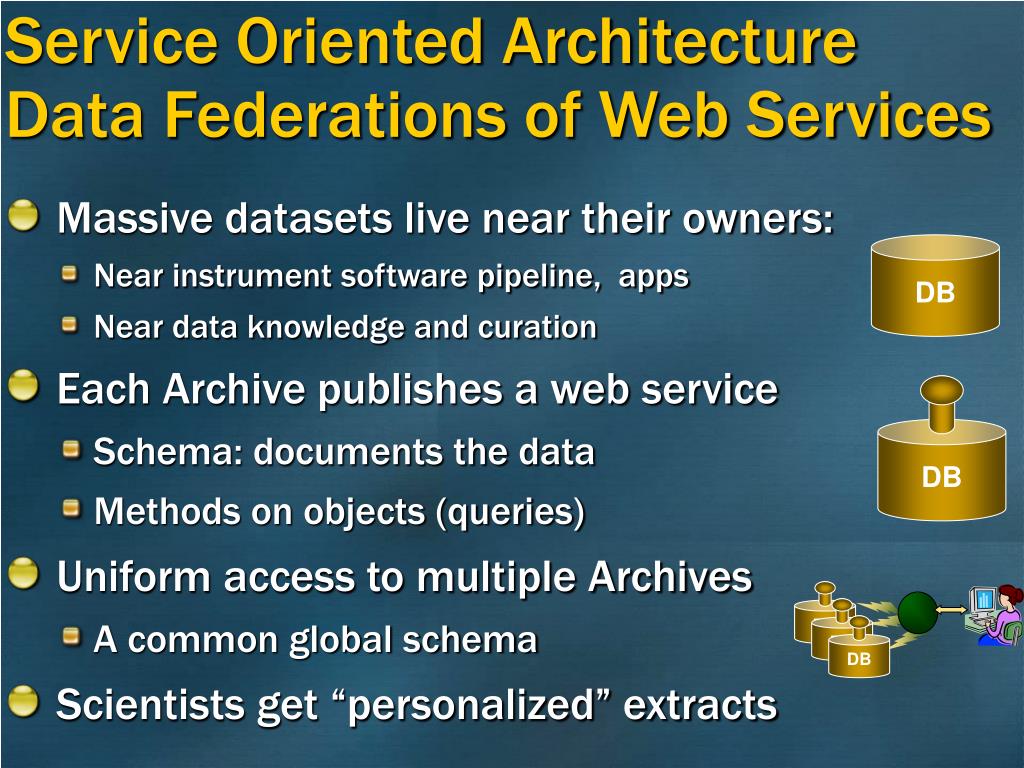

Service Oriented ArchitectureData Federations of Web Services

  • Massive datasets live near their owners:

    • Near instrument software pipeline, apps

    • Near data knowledge and curation

  • Each Archive publishes a web service

    • Schema: documents the data

    • Methods on objects (queries)

  • Uniform access to multiple Archives

    • A common global schema

  • Scientists get “personalized” extracts

DB


Federation skyquery net l.jpg

Federation: SkyQuery.Net

  • Combines 15 archives

  • Send query to portal, portal joins data from archives.

  • Problem: want to do multi-step data analysis (not just single query).

  • Solution: Allow personal databases on portal

  • Problem: some queries are monsters

  • Solution: “batch scheduler” on portal server, Deposits answer in personal database.


Skyquery structure l.jpg

Each SkyNode publishes

Schema Web Service

Data Query Web Service

Portal

Plans Query (2 phase)

Integrates answers

Is itself a web service

ImageCutout

SkyQuery

Portal

2MASS

INT

SDSS

FIRST

SkyQuery Structure


Summary l.jpg

Summary

  • Microsoft Research is active inside and outside Microsoft.

  • 10Gbps Networking is coming,x-64 is comingand we are investing to make them real.

  • World Wide Telescope is coming

  • Exemplifies service oriented architecture

  • Built with web services and databases

  • Has interesting spatial database algorithms

  • Details on my website:http://research.microsoft.com/~Gray
