  1. OSP Form Building Bootcamp August 5, 2008

  2. Components of an OSP Form • Instructions (added in Forms Tool wysiwyg editor) • XSD, aka schema (uploaded and attached to form in Forms Tool) • Custom renderer XSL (uploaded and attached to form in Forms Tool

  3. The Forms Tool The XSD file Instructions Custom renderers (XSLT files)

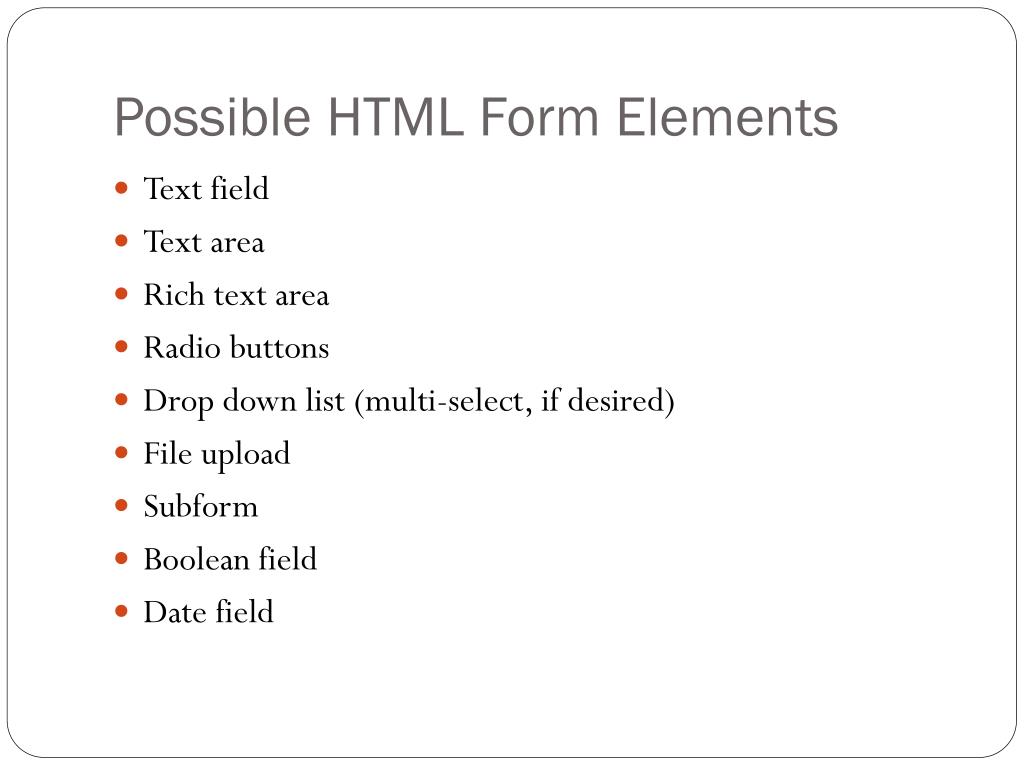

  4. Possible HTML Form Elements • Text field • Text area • Rich text area • Radio buttons • Drop down list (multi-select, if desired) • File upload • Subform • Boolean field • Date field

  5. Parts of an XSD file <element name=“rootElement”> <xs:complexType> <xs:sequence> <xs:elementname=“myTextfield” <xs:annotation> <xs:documentation source="ospi.label">My Label</xs:documentation> </xs:annotation> <xs:simpleType> <xs:restriction base="xs:string"> <xs:maxLength value="100" /> </xs:restriction></xs:simpleType> </xs:element> </xs:sequence> </xs:complexType> </element>

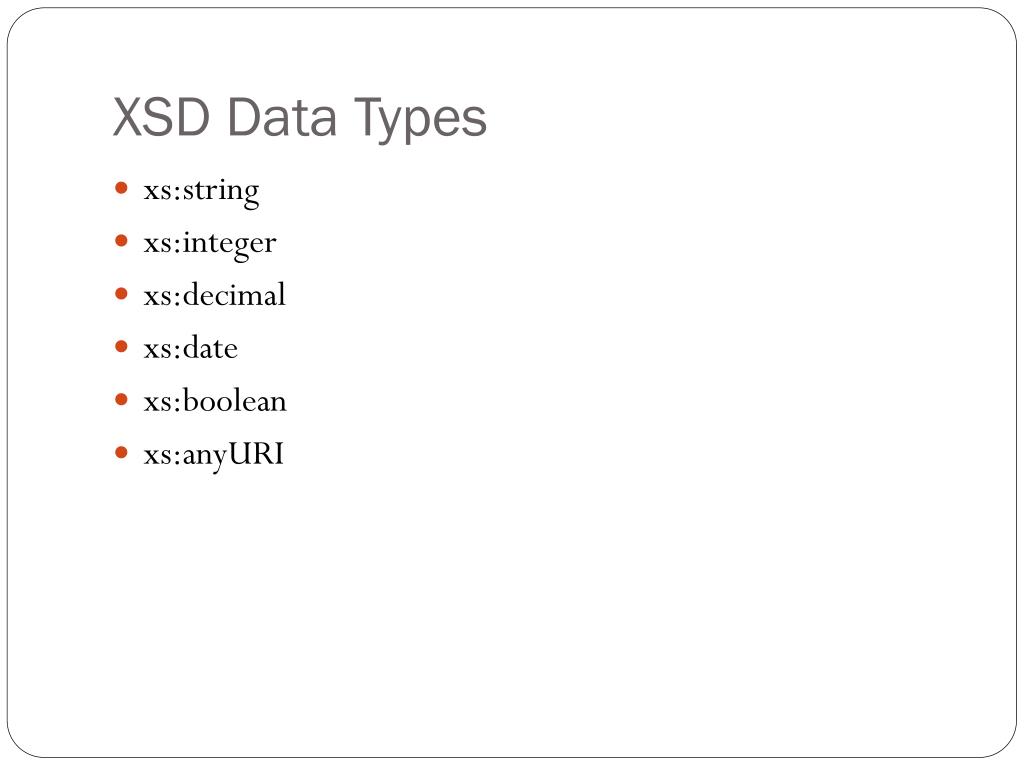

  6. XSD Data Types • xs:string • xs:integer • xs:decimal • xs:date • xs:boolean • xs:anyURI

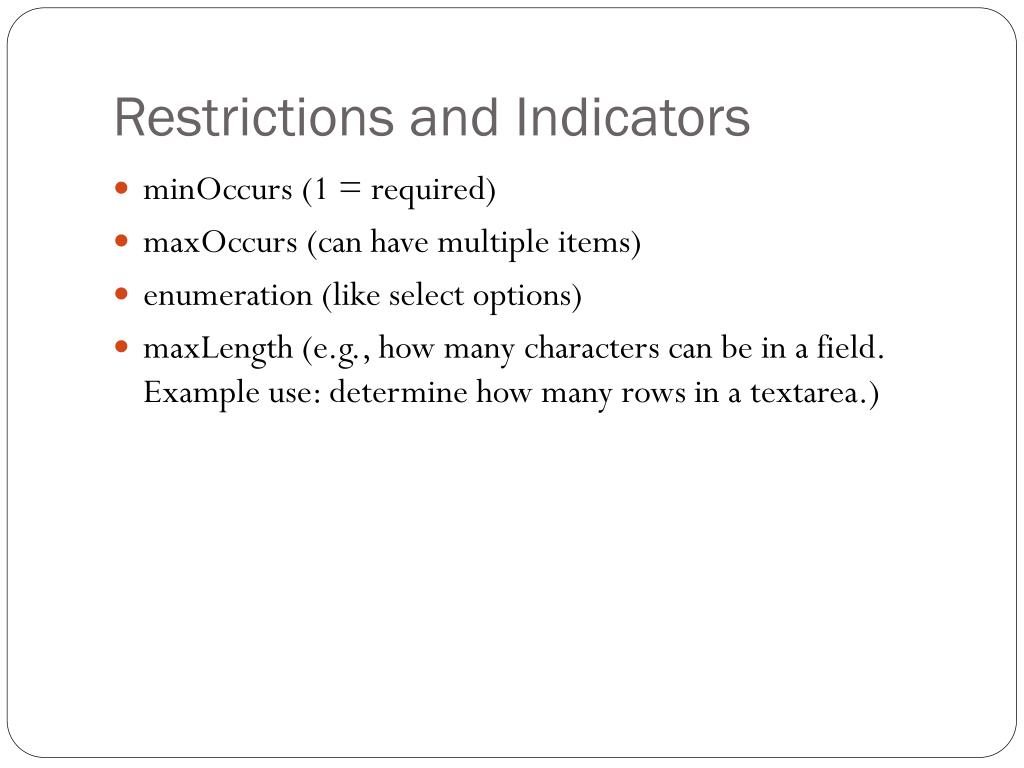

  7. Restrictions and Indicators • minOccurs (1 = required) • maxOccurs (can have multiple items) • enumeration (like select options) • maxLength (e.g., how many characters can be in a field. Example use: determine how many rows in a textarea.)

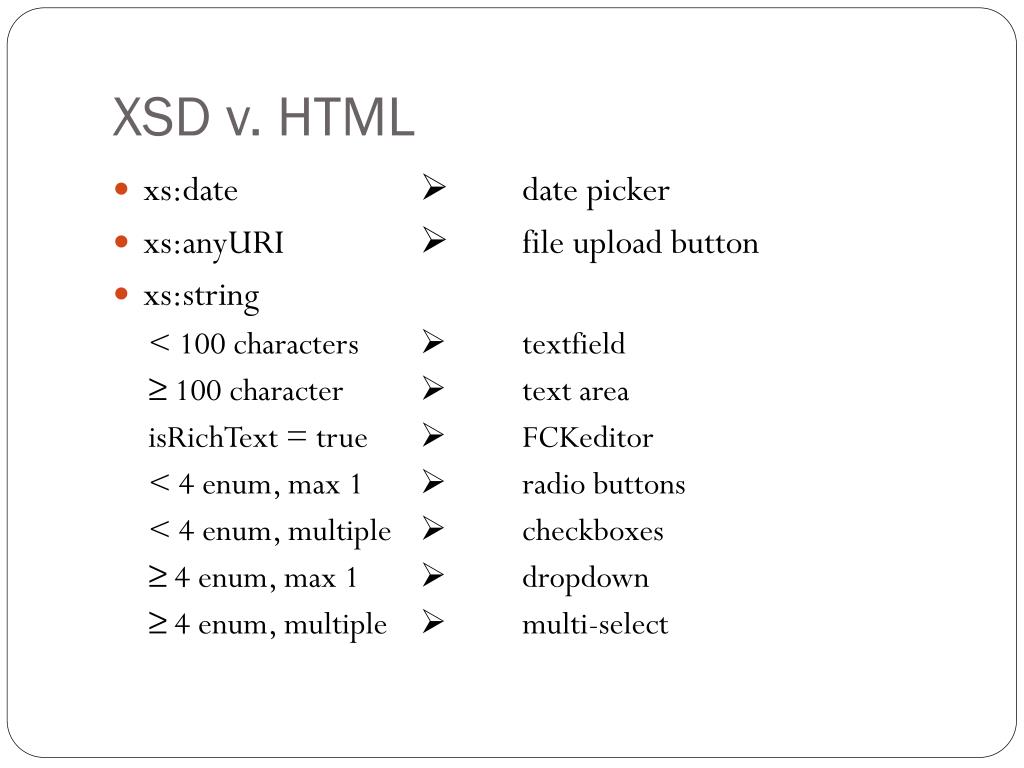

  8. XSD v. HTML • xs:date date picker • xs:anyURI file upload button • xs:string < 100 characters textfield ≥ 100 character  text area isRichText = true  FCKeditor < 4 enum, max 1  radio buttons < 4 enum, multiple checkboxes ≥ 4 enum, max 1 dropdown ≥ 4 enum, multiple  multi-select
