  1. Scalable behaviors for crowd simulation By Mankyu Sung, Michael Gleicher andStephen Chenney

  2. Mankyu Sung Scalable, Controllable, Efficient and convincing crowd simulation (2005) Michael Gleicher “I have a bad case of Academic Attention Deficit Disorder” Stephen Chenney Flow Tiles authors

  3. Overview Related Work Low level (probabilistic action selection) High level (situations and compositions) Results Conclusion Related Future Work Assessment Outline

  4. Overview Main observations: • Anonymity in the crowd • what instead of who • action individual matter only in short time contribution • A character is only in a few situations at once

  5. Rules based (Reynolds) Not scalable from authoring perspective • Hierarchical (Musse) No complex individual behaviour • Physics inspired (Helbing) Limited behaviour and interaction • Annotated environment (The Sims, Kallmann) Related work

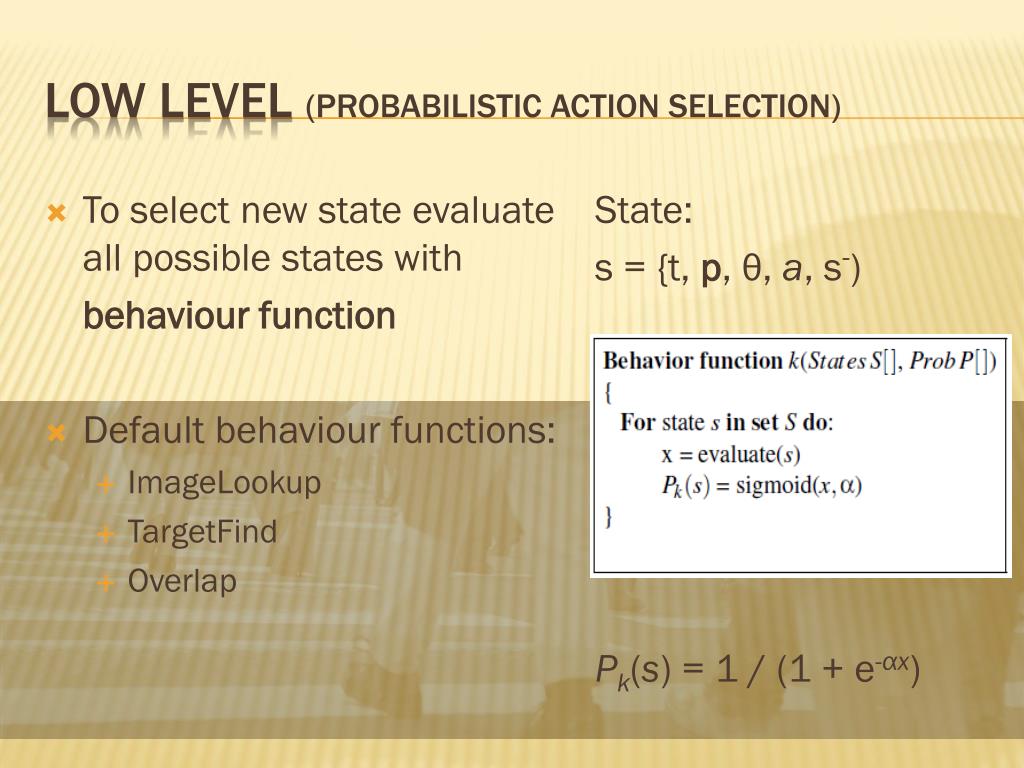

  6. Low level (probabilistic action selection) • To select new state evaluate all possible states with behaviour function • Default behaviour functions: • ImageLookup • TargetFind • Overlap State: s = {t, p, θ, a, s-) Pk(s) = 1 / (1 + e-αx)

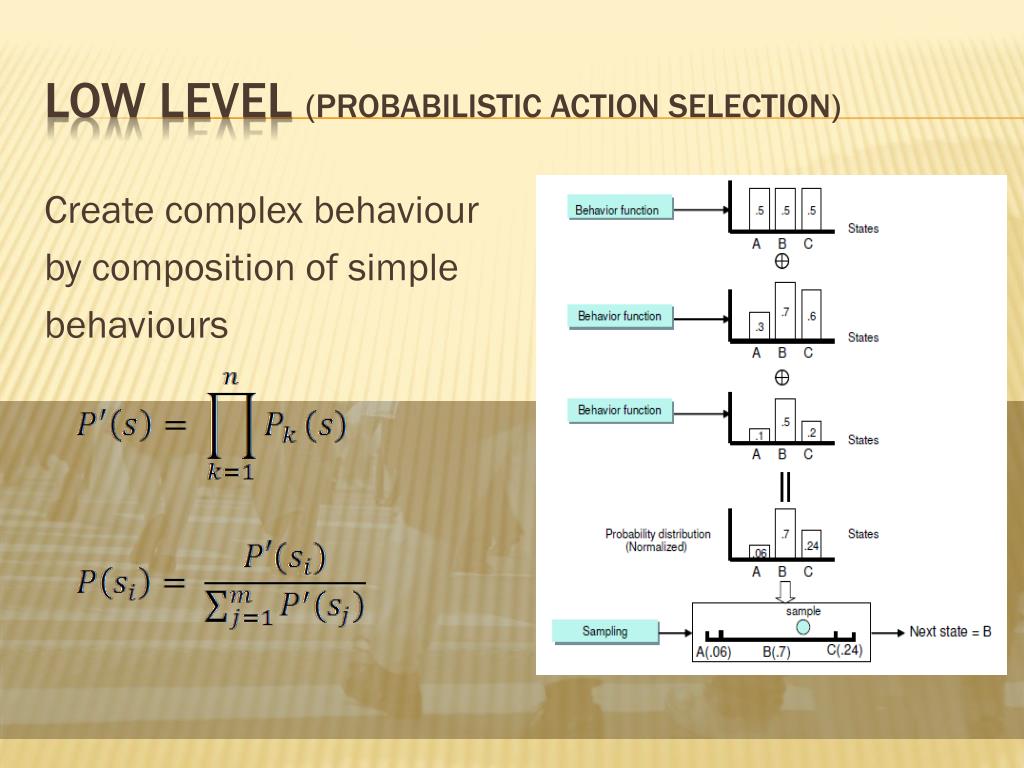

  7. Low level (probabilistic action selection) Create complex behaviour by composition of simple behaviours

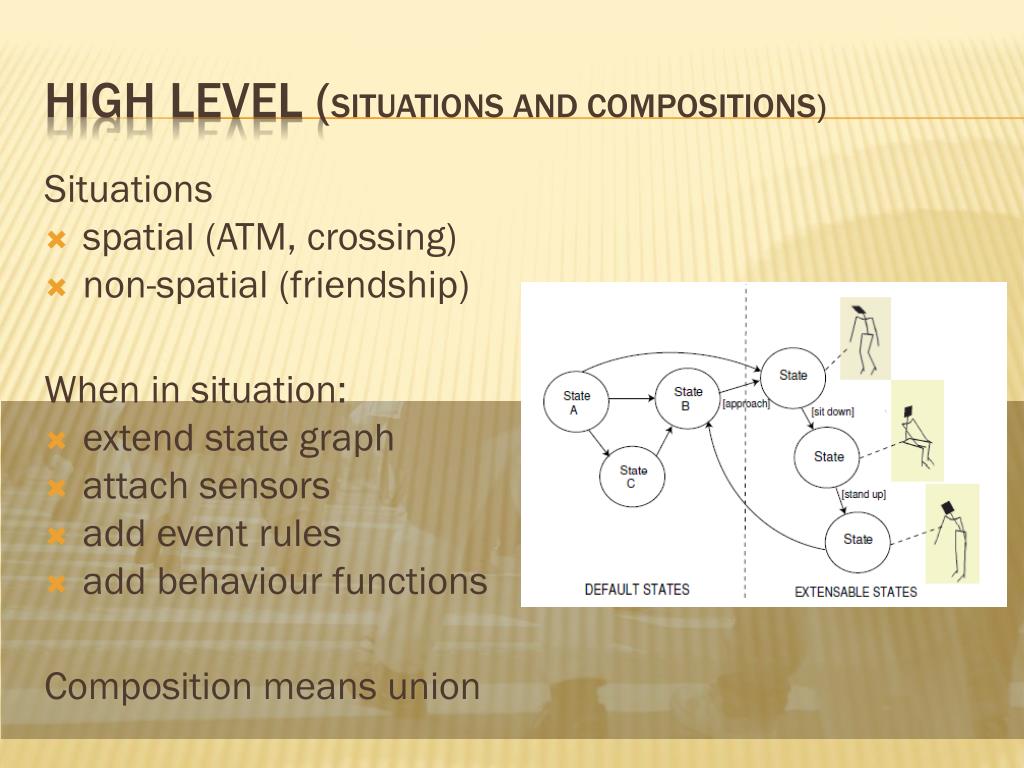

  8. High level (situations and compositions) Situations • spatial (ATM, crossing) • non-spatial (friendship) When in situation: • extend state graph • attach sensors • add event rules • add behaviour functions Composition means union

  9. Tested on 3 scenarios: • Street environment crossing street, traffic sign, in-a-hurry • Theatre environment horizontal queue, follow, gathering, stay-in ... • Field environment follow, group, close results

  10. results 1,3 GHz processor 1GB memory • 500 agents with increasing number of situations • increasing number of agents with 10 situations

  11. Framework can create complex behaviours while minimising data stored in each agent • Future work: • take into account multi-agent statistics such as crowd density • more efficient simulation so not all crowd members go through simulation step at same time • explore other mechanisms to combine behaviours to avoid time scale problem Conclusion

  12. Situation Agents: Agent-based Externalized Steering Logic Schuerman, M., Singh, S., Kapadia, M., Faloutsos P., The Journal of Computer Animation and Virtual Worlds, Special Issue CASA 2010, Wiley, pp. 1-10, 2010, in press. • Motion patches: building blocks for virtual environments annotated with motion data Lee, K. H., Choi, M. G., and Lee, J. 2006., SIGGRAPH ’06: ACM SIGGRAPH 2006 Papers, 898–906. Related future work

  13. Goals clearly specified Situation approach seems to indeed limit the complexity of the agents Problems and possible solutions presented Clearly structured and well written Assessment

  14. Claims and assumptions • Anonymity justifies probabilistic method? Not for low density crowds • People stopping in middle of crosswalk • Waiting for traffic light, then not moving when it is green Assessment

  15. Implementation details • Naive default behaviours • Path planning PRM + Dijkstra PRM pre-computed, no dynamic obstacle handling How are states judged to make the character move towards position? Possible local minima? • Collision detection No prediction, possible oscillations Assessment

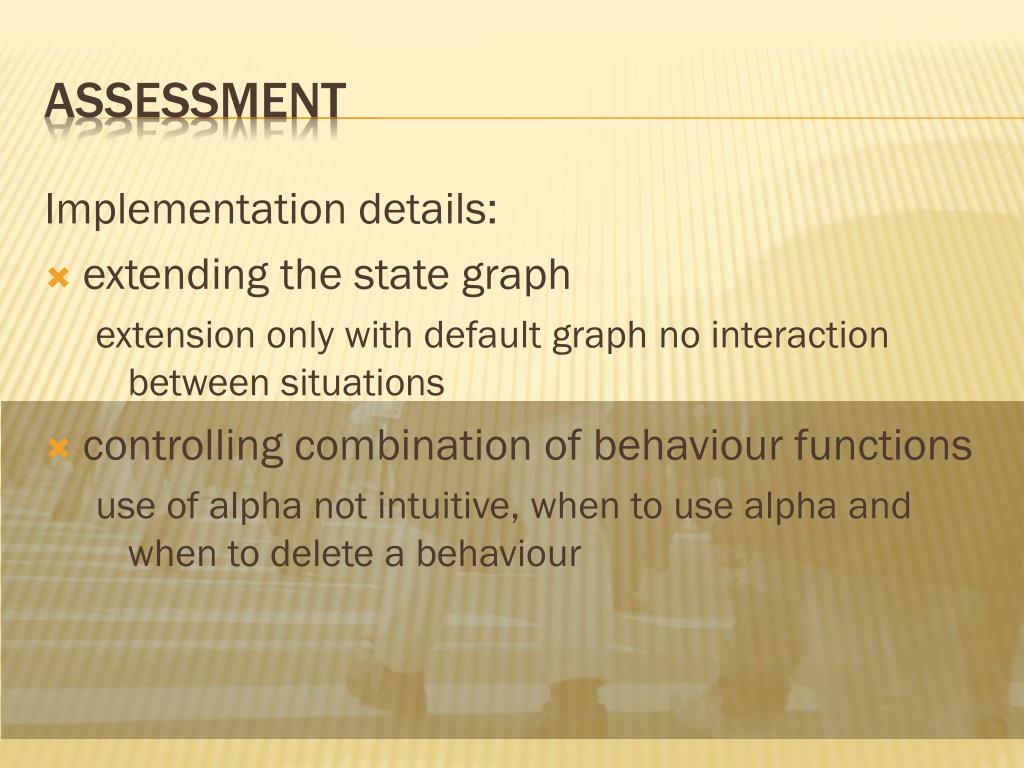

  16. Implementation details: • extending the state graph extension only with default graph no interaction between situations • controlling combination of behaviour functions use of alpha not intuitive, when to use alpha and when to delete a behaviour Assessment

  17. Limited experiments maximum of 10 situations maximum of 500 agents random situations added, does this include composite situations? Assessment

  18. Impact and applications • Limitation on kind of applications no evacuation simulation • Situational approach might be a good idea but should be combined with other methods • Inspiration for further research Assessment
