Who am i
Who am I?

  • Roland Geraerts

    • Assistant professor

    • Robotics background

    • Research on path planning andcrowd simulation


Who are you
Who are you?

  • Master GMTE?

  • Course Game Design?

  • Course Motion and Manipulation?

  • Interest in Games?

  • Why do you follow the seminar?

  • Interest in thesis projects?

  • Who has exciting hobbies?


Goal of the seminar
Goal of the seminar

  • To obtain knowledge of current research in path planning and crowd simulation

    • Study and discuss papers

  • To understand the limitations of the current techniques

    • Determine the limitations and open problems in the papers

  • To become a very critical reader

    • Hand in many assessments of papers

  • To understand the state-of-the-art in current games and how this could be improved

    • Study path planning in existing games

    • Write paper about the applicability of new techniques


Why this seminar
Why this seminar

  • Path planning and crowd simulation are important research topics in Utrecht

    • Mark Overmars, Roland Geraerts, Frank van der Stappen, PhD students (Ioannis Karamouzas, Saskia Groenewegen)

    • Relation to animation research

  • Gate project

    • 19 million Euro Dutch project on game technology and applications

  • Thesis projects

  • Future PhD positions


Practical aspects
Practical aspects

  • Meetings

    • Tuesday 13.15-15.00 BBL-069

    • Friday 15.15-17.00 BBL-071

  • Presence is mandatory

    • If you cannot come for a good reason

      • Let me know beforehand

      • Hand in abstracts before meeting

  • Website

    • http://www.cs.uu.nl/docs/vakken/mcrs/

    • Check regularly for announcements and changes

    • Download papers

    • Find the secret page


Assignments
Assignments

  • Present two papers

    • Each 30 minutes plus 15 minutes discussion

  • Write paper abstracts/assessments

    • Read papers before the presentation

    • One page per paper

      • Abstract in your own words

      • Critical assessment

        • Main limitations and open problems

        • Surprising and innovative elements

        • Do the authors claim too much, make many assumptions, draw conclusions that are too general, not correctly setup their experiments?

      • Two-three questions or points for discussion

    • Hand in the two pages (on paper) on the day of the presentation

      • Use headings: Summary, Assessment, Questions


Assignments1
Assignments

  • Study path planning in a modern game

    • Investigate what goes wrong (path planning, crowds)

    • Make a video (.wmv to make sure it works)

    • Make 3 slides

    • Bring them with you next Tuesday (May 3) for discussion

  • Paper on path planning/crowd simulation in games

    • At the end of the seminar (July 1)

    • Write a paper (10 pages) on how the new techniques can be used in games

    • Based on the problems in two example videos


Grading
Grading

  • Game study 5%

  • Presentations 15% + 25%

  • Abstracts 20%

  • Paper 25%

  • Active participation 10%

  • To qualify for second change exam

    • The original mark should at least be a 4;

    • Actively participate in at least 75% of the meetings;

    • Give both presentations satisfactory.



Path planning
Path planning

  • Goal: bring characters (or a camera) from A to B

    • Also vehicles, animals, camera, …

  • Requirement: fast and flexible

    • Real-time planning for thousands of characters

    • Individuals and groups

    • Dealing with local hazards

    • Different types of environments

  • Requirement: visually convincing paths

    • The way humans move

    • Smooth

    • Short

    • Keep some distance (clearance) to obstacles

    • Avoid other characters


Do we need a new path planning algorithm
Do we need a new path planning algorithm?

typical differences

Nr. entities a few robots many characters

Nr. DOFs many DOFs a few DOFs

CPU time much time available little time available

Interaction anti-social social

Type pathnice path visually convincing path

Environment 2D (or terrain), 3D 2D, 2.5D (e.g. bridges)

Algorithms can be simple must be simple

Correctness fool-proof may be incorrect


Path planning algorithms in games
Path planning algorithms in games

  • Networks of waypoints

  • Scripting

  • Grid-based A* Algorithms

  • Navigation meshes

  • Local approaches

  • Flocking

  • Cheating



Errors in path planning1
Errors in path planning

  • Networks of waypoints are incorrect

    • Hand designed

    • Do not adapt to changes in the environment

    • Do not adapt to the type of character

  • Local methods fail to find a route

    • Keep stuck behind objects

    • Lead to repeated motion

  • Groups split up

    • Not planned as a coherent entity

  • Paths are unnatural

    • Not smooth

    • Stay too close to network/obstacles

  • Methodology is not general enough to handle all problems


What we study in the seminar
What we study in the seminar

  • Methodology/framework that solved these problems

    • Developed in Utrecht (still in development)

    • Applications (characters, cameras, groups, crowds, …)

  • Local character behavior

    • How do people walk toward locations

    • How do they avoid each other

    • Social force models

  • Crowd behavior

    • Flow models

    • Planning approaches

    • Crowd evaluation

    • Massive crowds

    • Crowd rendering


The explicit corridor map full generic representation free space
The Explicit Corridor Map: Full/generic representation free space

  • The Explicit Corridor Map

    • Navigation mesh, or: a system of collision-free corridors

    • Data structure: Medial axis + closest points

    • Computed efficiently by using the GPU

Explicit Corridor Map (2D)

Explicit Corridor Map (multi-layered)


The explicit corridor map experiments
The Explicit Corridor Map:Experiments

Footprint and Explicit Corridor Map: 0.3s

City environment


Corridors macro scale
Corridors (macro scale)

  • Computing a corridor: provides a global route Connect the start and goal to the Medial axis

    • Find corresponding shortest path in graph

    • Corridor: concatenation of cells of the ECM

Corridor

A corridor with small obstacles


The indicative route method meso scale introducing flexibility
The Indicative Route Method (meso scale):Introducing flexibility

  • A path planning algorithm should NOT compute a path

    • A one-dimensional path limits the character’s freedom

    • Humans don’t do that either

  • It should produce

    • An Indicative/Preferred Route

      • Guides character to goal

    • A corridor

      • Provides a global (homotopic) route

      • Allows for flexibility


The Indicative Route Method (meso scale):Introducing flexibility

  • “Algorithm”

    • Compute a collision free indicative route from A to B

    • Compute a corridor containing the route

    • Move an attraction point along the indicative route

      • The attraction point attracts the character

      • The boundary of the corridor pushes it away

      • Other characters and local hazards push the character away


Local method micro scale
Local method (micro scale)

  • Boundary force

    • Find closest point on corridor boundary

    • Perpendicular to boundary

    • Increases to infinity when closer to boundary

    • Force is 0 when clearance is large enough (or when on the MA)

      • Depends on the maximal speed of the character

      • Should be chosen such as to avoid oscillations

  • Steering force

    • Towards attraction point

    • Can be constant

  • Obtain path

    • Force leads to an acceleration term

    • Integration over time, update velocity/position/attraction point

    • Yields a smooth (C1-continuous) path


Irm method
IRM method

  • Resulting vector field

    • Indicative Route is short path


Irm method experiments
IRM method:Experiments

City environment

Corridor and path: 2.8ms


Crowd simulation
Crowd simulation

  • Method can plan paths for a large number of characters

    • Force model is used for local avoidance

    • Path variation models are integrated, adding more realism

    • Additional models can be incorporated easily

  • Goal oriented behavior

    • Each character has its own long term goal

    • When a character reaches its goal, a new goal is chosen

  • Wandering behavior

    • Attraction points do a random walk on the underlying graph


Collision avoidance model
Collision-avoidance model

  • Particle-based approaches

    • E.g. Helbing model

    • When characters get close to each other they push each other away

    • Force depends on the distance between their personal spaces and whether they can see each other

  • Disadvantages

    • Reaction is late

    • Also reaction when no collision

    • Artifacts

Goal force

Avoidance force

Resulting force


Improved collision avoidance model
Improved collision-avoidance model

  • Collision-predication approach

    • When characters are on collision course we compute the positions at impact (of personal spaces)

    • Direction depends on their relative position at impact

    • Force depends on the distance to impact

    • Care must be taken when combining forces

Goal force

Avoidance force

Resulting force


Improved collision avoidance model1
Improved collision-avoidance model

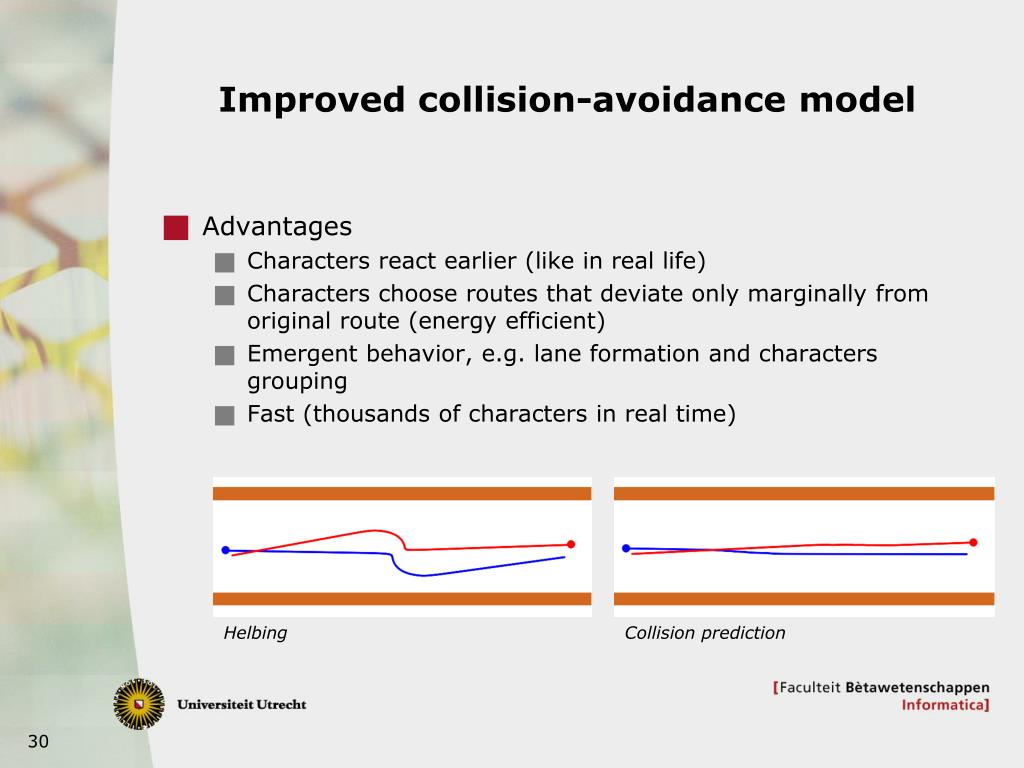

  • Advantages

    • Characters react earlier (like in real life)

    • Characters choose routes that deviate only marginally from original route (energy efficient)

    • Emergent behavior, e.g. lane formation and characters grouping

    • Fast (thousands of characters in real time)

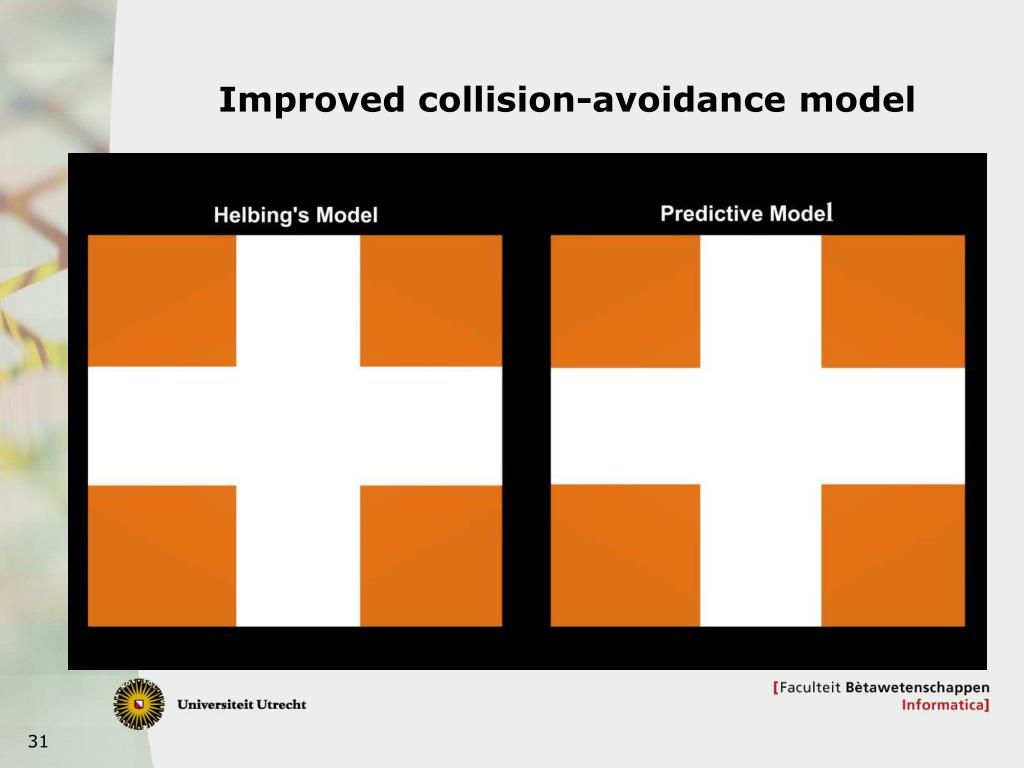

Helbing

Collision prediction




Current work
Current work

  • Also allow speed changes

  • Deal with small groups


Further work
Further work

  • Get different types of high-level crowd behavior

    • Wandering

    • Shopping

    • Hanging around

  • Combine different types of moving entities

    • People

    • Bikes

    • Cars

    • Animals

  • Path planning in 3D


First assignment
First assignment

  • Study path planning/crowd simulation in a modern game

    • Pick a game in which there is a lot of motion

      • Dynamic changes in the environment

      • Computer controlled characters (enemies, buddies, …)

      • Groups of characters (e.g. in RTS games)

      • Crowds (e.g. GTA, Assassin’s Creed, Sim games)

    • Investigate what goes wrong

      • Deliberately try to create problems

        • Destroy objects/buildings

        • Stand in the way of moving characters

        • Park a car on the sidewalks

      • Look at

        • Quality of motion

        • Occurrence of collisions

        • Repeated motions (lack of variation), …

    • Bonus points for spotting errors in 2.5D/3D games, dynamic situations


First assignment1
First assignment

  • Study path planning/crowd simulation in a modern game

    • Make a video (preferably a .wmv file)

      • Fraps

      • Use a camera or webcam

      • Sometimes in-game possible

    • Make (at least) three slides in PowerPoint

      • Name of the game, your name, picture, type of game

      • Video(s)

      • Description of the main things that go wrong and why (according to you)

    • Take with you on USB stick next Tuesday!

      • Explain and discuss (5 - 7.5 minutes)
