Virtualizing your Datacenter with Windows Server 2012 R2 & System Center 2012 R2

1. Virtualizing your Datacenter with Windows Server 2012 R2 & System Center 2012 R2

2. Course Introduction

3. Modules

4. Meet Symon Perriman • Senior Technical Evangelist, Microsoft • Private Cloud, System Center & Hyper-V • MCSE Private Cloud, Microsoft Certified Trainer (MCT) and VMware Certified Professional (VCP); several patents • Recognized Industry Expert, Author & Speaker • Datacenter management, cloud, virtualization, high-availability, disaster recovery, mobile technologies and social media • Co-Author of Introducing Microsoft System Center 2012 R2 (Microsoft Press, 2013) • Co-host of the Edge Show for IT Professionals (aka.ms/Edge) @SymonPerriman

5. Meet Matt McSpirit • Senior Technical Product Manager, Microsoft • Focus on analyzing competitive technologies within the virtualization, systems management and private cloud spaces • MCSE, Microsoft Virtualization certified, VMware VCP • Extensive experience across broad portfolio of both Microsoft and non-Microsoft technologies. • Frequently requested speaker (TechEd, MMS, Windows Server launches, Private Cloud Roadshows) @mattmcspirit

6. Contoso Lab Environment - Networks Corp Network You will RDP into SCVMM01 SCVMM01 DC01 SMB/iSCSI Networks FS01 HYPER-V01 HYPER-V02 Live Migration Cluster Communication

7. Introduction to Microsoft VirtualizationModule 1

8. Key Technologies Automation vCloud Suite& vCenter System Center 2012 R2 Orchestrator vCenter Orchestrator Service Mgmt. Service Manager vCloud Automation Center Protection Data Protection Manager vSphere Data Protection Monitoring Operations Manager vCenter Ops Mgmt. Suite Self-Service App Controller vCloud Director VM Management Virtual Machine Manager vCenter Server Hypervisor Hyper-V vSphere Hypervisor

9. Key Technologies - Licensing Automation Orchestrator vCenter Orchestrator Service Mgmt. Service Manager vCloud Automation Center Protection Data Protection Manager vSphere Data Protection Monitoring Operations Manager vCenter Ops Mgmt. Suite Self-Service App Controller vCloud Director VM Management Virtual Machine Manager vCenter Server vSphere 5.5 Standalone Per CPU Pricing (Excl. S&S):Standard = $995Enterprise = $2,875 Enterprise Plus = $3,495 Hypervisor Windows Server 2012 R2 Inc. Hyper-V Hyper-V Server 2012 R2 = Free Download vSphere Hypervisor

10. Hyper-V Deployment Options • Windows Server • Server with a GUI • Server Core Installation • Many roles available incl. Hyper-V • Hyper-V Server • Free Standalone Download • Contains hypervisor, driver model &key virtualization components • Server Core minus other roles • From a Hyper-V perspective,all 3 deployment optionshave identical capabilities

11. Before Windows Server 2012 R2 Windows Server 2008 R2 Hyper-V & Hyper-V Server 2008 R2 launched SP1 for Windows Server 2008 R2 & Hyper-V Server 2008 R2 launched Windows Server 2012 Hyper-V & Hyper-V Server 2012 Launched Hyper-V introduced inWindows Server 2008 Hyper-V Server 2008 launched Huge Scalability Storage Spaces Metering & QoS Migration Enhancements Extensibility Hardware Offloading Network Virtualization Replication Live Migration Cluster Shared Volumes Processor Compatibility Hot-Add Storage Performance & Scalability Improvements Dynamic Memory RemoteFX June 2008 September 2012 October 2008 October 2009 February 2011

12. Physical & Virtual Scalability Massive scalability for the most demanding workloads Enterprise Class Scale for Key Workloads VirtualCPU 64 • Hosts • Support for up to 320 logical processors& 4TB physical memory per host • Support for up to 1,024 virtual machines per host • Clusters • Support for up to 64 physical nodes & 8,000 virtual machines per cluster • Virtual Machines • Support for up to 64 virtual processors and 1TB memory per VM • Supports in-guest NUMA VirtualMemory 1TB 4TB 320 LogicalProcessors ClusterNodes Physical Memory 64

13. VMware Comparison • vSphere 5.5 Enterprise Plus is the only vSphere edition that supports 64 vCPUs. Enterprise edition supports 32 vCPU per VM with all other editions supporting 8 vCPUs per VM • For clustering/high availability, customers must purchase vSphere vSphere Hypervisor / vSphere 5.x Ent+ Information: http://www.vmware.com/pdf/vsphere5/r55/vsphere-55-configuration-maximums.pdf and http://www.vmware.com/products/vsphere-hypervisor/faq.html, http://www.vmware.com/files/pdf/vsphere/VMware-vSphere-Platform-Whats-New.pdf

14. Compares with vCenter Server Virtualization Management Centralized, Scalable Management of Hyper-V { System CenterVirtual Machine Manager 2012 R2VM and Cloud management • Supports up to 1,000 Hyper-V hosts & 25,000 virtual machines per VMM Server • Supports Hyper-V hosts in trusted & untrusted domains, disjointednamespace & perimeter networks • Supports Hyper-V from 2008 R2 SP1 through to 2012 R2 • Comprehensive fabric management capabilities across Compute, Network & Storage • End to end VM management across heterogeneous hosts & clouds Hyper-V Hosts

15. VMM Architecture SQL App Controller Management Server Management Console Library Hosts (1000 Per Management Server)

16. Compares with vCenter Heartbeat VMM Architecture - HA SQL Cluster Management Console Management Server Cluster NLB App Controller Hosts (1000 Per Management Server) Library on Clustered File Server

17. System Center for the Datacenter } App ControllerVM & applicationself-service Operations ManagerInfrastructure & application monitoring & alerting { Service ManagerIT Service Management & IaaS Self-Service Virtual Machine ManagerVM & cloud management OrchestratorIntegration & automation of key technologies & processes Data Protection ManagerContinuous protection of key applications & workloads Hyper-V Hosts

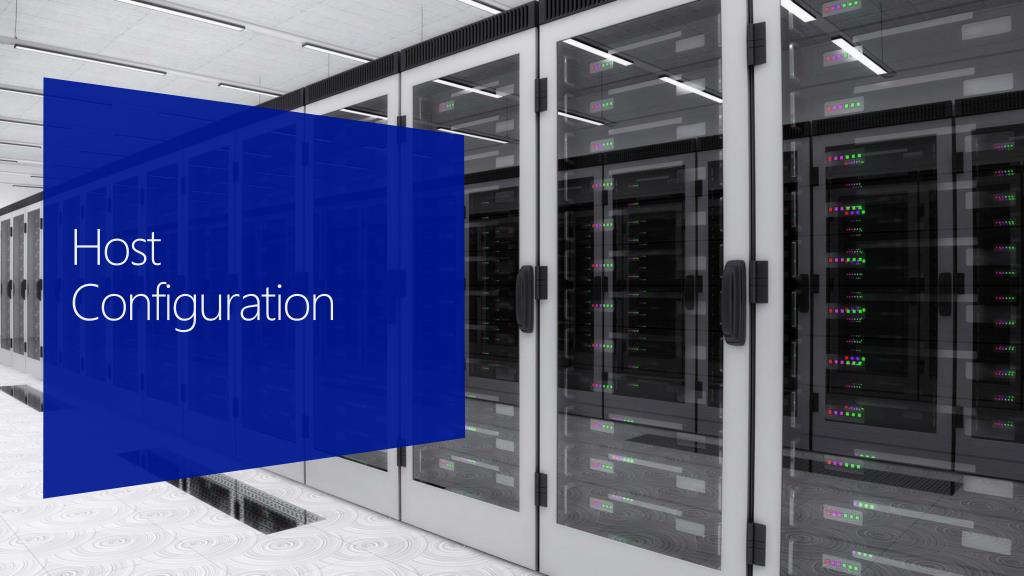

18. Host Configuration

19. Compares with PXE & Auto Deploy Deploying Hyper-V Deploy from DVD/ISO Create bootable DVD from Windows Server/Hyper-V Server source ISO Deploy from USB Disk Create bootable USB from Windows Server/Hyper-V Server source media Network Deployment PXE boot physical hosts and deploy a Windows Server/Hyper-V Server image over the network

20. Virtualization Deployment with VMM Deep Discovery Prior to Hyper-V Deployment • Through integration with the BMC, VMM can wake a physical server & collect information to determine appropriate deployment • OOB Reboot • Boot from PXE • Authorize PXE boot • Download VMM customized WinPE • Execute a set of calls in WinPE to collect hardware inventory data (network adapters and disks) • Send hardware data back to VMM Bare-metal server WDS server 4 2 5 3 VMM server 6 1

21. Virtualization Deployment with VMM Centralized, Automated Bare Metal Hyper-V Deployment • Post-deep discovery, VMM will deploy a Hyper-V image to the physical server • OOB Reboot • Boot from PXE • Authorize PXE boot • Download VMM customized WinPE • Run generic command execution scripts and configure partitions • Download VHD & Inject Drivers • The host is then domain joined, added to VMM Management & post-install scripts executed Bare-metal server WDS server 2 4 3 VMM server Virtual Hard Disk 5 1 Physical Hardware Drivers Library server 6 Physical Computer Profile

22. VMware Comparison A Stateful option for Auto Deploy was introduced in vSphere 5.1 after previously only providing a stateless, in-memory version in 5.0.

23. Virtualization Host Configuration Granular, Centralized Configuration of Hosts • Virtual Machine Manager 2012 R2 provides complete, centralized hardware configuration for Hyper-V hosts • Hardware – Allows the admin to configure local storage, networking, BMC settings etc. • Storage – Allows the admin control granular storage settings, such as adding an iSCSI or FC array LUN to the host, or an SMB share. • Virtual Switches – A detailed view of the virtual switches associated with physical network adaptors. • Migration Settings – Configuration of Live Migration settings, such as LM network, simultaneous migrations

24. Hyper-V Hosts and Storage

25. Compares with MPIO & VAMP Compares with VAAI Hyper-V Storage Support iSCSI & Fibre Channel Integrate with existing storage investments quickly and easily Offloaded Data Transfer Offloads storage-intensive tasks to the SAN Native 4K Disk Support Take advantage of enhanced densityand reliability Multi-Path I/O Support Inbox for resiliency, increased performance & partner extensibility

26. VMM Storage Management { Centralized Management & Provisioning of Storage System CenterVirtual Machine Manager 2012 R2Storage Management • VMM can discover & manage local and remote storage, including SANs, Pools, LUNs, disks, volumes, and virtual disks. • VMM supports iSCSI & Fibre Channel Block Storage & File-based Storage • VMM integrates with WS SMAPI for discovery of: • SMI-S, SMP, and Spaces Devices • Disk & Volume management • iSCSI/FC/SAS HBA initiator management • R2: 10x faster enumeration of storage Block Storage File Storage

27. Integrated iSCSI Target Transform Windows Server 2012 R2 into an iSCSI SAN • Integrated Role within Windows Server & manageable via GUI, PowerShell • Ideal for Network & Diskless Boot, Server Application Storage, Heterogeneous Storage & Development, Test & Lab Deployments • Supports up to 64TB VHDX, Thin Provisioning, Dynamic & Differencing. Also supports secure zeroing of disk for Fixed size disk deployments. • Scalable up to 544 sessions & 256 LUNs per iSCSI Target Server & can be clustered for resilience • Complete VMM Management via SMI-S

28. VMM iSCSI & Fibre Channel Integration Improved Support for Fibre Channel Fabrics System CenterVirtual Machine Manager 2012 R2Storage Management • Once discovered, VMM can centrally manage key iSCSI & Fibre Channel capabilities. • iSCSI - Connects Hyper-V hosts to iSCSI portal and logs on to iSCSI target ports including multiple sessions for MPIO. • Fibre Channel - Add target ports to Zone • Zone Management, Member Management, Zoneset Management • Once connected, VMM can create and assign LUNs, initialize disks, create partitions, volumes etc. • VMM can also remove capacity, unmounts volumes, mask LUNs etc. FC Fabric iSCSI SAN FC SAN

29. Deconstructing a SAN Physical Disks Controllers Connectivity Adaptors The brains of the SAN – typically now with x86 CPU, Memory, and provides enterprise features like Thin Provisioning, Deduplication, Storage Tiering etc. Multiple controllers provide resiliency. Resilient connectivity to external sources viaiSCSI, FC, FCoE, NFS, SMB Flash-based (SSD) or spinning media (HDD) to provide the raw storage capacity for your data. Pooled by the controllers,and sliced into LUNs (Simple, Mirrored, Parity etc.)

30. Microsoft Storage Management Physical Disks Controllers Connectivity Adaptors Clustered Windows Server 2012 R2 File Servers (SOFS)creates disk pools, then slices them into Storage Spaces.Spaces can be Thin Provisioned & support Deduplication.Spaces can be Simple, Mirrored or Parity. Windows Server File Servers have resilient connectivity to external sources using regular 1GbE, 10GbE Network Adaptors. Support for up to 56Gb RDMA Adaptors. Support via iSCSI, SMB 3.0 & NFS Connectivity Low cost, low complexity JBOD shelf with SSD/HDD mixand multiple SAS connectivity ports

31. Hyper-V Host Storage Support Hyper-V over SMB 3.0 Ease of provisioning, increased flexibility & seamless integration with high performance Storage Spaces Transform high-volume, low cost disks into flexible, resilient virtualized storage Storage Tiering* Pool HDD & SSD and automatically move hot data to SSD for increased performance Data Deduplication Reduce file storage consumption, now supported for live VDI virtual hard disks* New in Windows Server 2012 R2 *

32. Storage Spaces Inbox solution for Windows to manage storage • Virtualize storage by grouping industry-standard disks into storage pools • Pools are sliced into virtual disks, or Spaces. • Spaces can be Thin Provisioned, and can be striped across all physical disks in a pool. Mirroring or Parity are alsosupported. • Windows then creates a volume on the Space, and allows data to be placed on the volume. • Spaces can use DAS only (local to the chassis, or via SAS) F:\ } } } } DAS Disks Pools Spaces Volumes

33. Storage Tiering for Spaces Optimizing storage performance on Spaces • Disk pool consists of both high performance SSDs and higher capacity HDDs • Hot data is moved automatically to SSD and cold data to HDD usingSub-File-Level data movement • With write-back-caching, SSD absorb random writes that are typical in virtualized deployments • Admins can pin hot files to SSDs manually to drive high performance • New PowerShell cmdlets are available for the management of storage tiers Storage Space SSD Tier - 400GB EMLC SAS SSD Hot Data Cold Data HDD Tier - 4TB 7200RPM SAS

34. Hyper-V over SMB 3.0 Store Hyper-V VMs on SMB 3.0 File Shares • Simplified Provisioning & Management • Low OPEX and CAPEX • Adding multiple NICs in File Servers unlocks SMB Multichannel – enables higher throughput and reliability. Requires NICs of same type and speed. • Using RDMA capable NICs unlocks SMB Direct offloading network I/O processing to the NIC. • SMB Direct provides high throughput and low latency and can reach 40Gbps (RoCE) and 56Gbps (Infiniband) speeds \\SOFSFileServerName\VMs Scale-out file server Storagespaces Storagepools Physical disks

35. File Storage Integration Comprehensive, Integrated File Storage Management • VMM supports network shares via SMB 3.0 on NAS device from storage vendors such as EMC and NetApp • VMM supports integration and management with standalone and clustered file servers • VMM will quickly discover and inventory selected File Storage • VMM allows the selection, and now, the classification of existing File Shares to streamline VM placement • VMM allows IT Admin to assign Shares to Hyper-V hosts for VM placement, handling ACL’ing automatically.

36. Scale-Out File Server Low Cost, High Performance, Resilient Shared Storage • Clustered file server for storing Hyper-V virtual machine files, on file shares • High reliability, availability, manageability, and performance that you would expect from a SAN • Active-Active file shares - file shares online simultaneously • Increased bandwidth – as more SOFS nodes are added • CHKDSK with zero downtime & CSV Cache • Created & Managed by VMM, both from existing Windows Servers & Bare Metal Scale Out File Server (4 Nodes) FS2 FS4 FS3 FS1 Clustered Spaces Clustered Pools JBOD Storage via Shared SAS

37. Scale-Out File Server Deployment Centralized, Managed Deployment of File Storage • VMM can not only manage standalone File Servers, but can deploy Scale-Out File Servers, even to Bare Metal • For Bare Metal deployment, a physical profile determines the characteristics of the File Server • Existing Windows Servers can be transformed into a SOFS, right within VMM • Once imported, VMM can transform individual disks into highly available,dynamic pools, complete with classification. • VMM can then create the resilient Spaces & File Shares within the Storage Pool

38. Storage & Fabric Classification Granular Classification of Storage & FC Fabrics • VMM can classify storage at a granular level to abstract storage detail: • Volumes (including local host disks & Direct Attached Storage) • File Shares (Standalone & SOFS-based) • Storage Pools & SAN LUNs • Fibre Channel Fabrics - Helps to identify fabric using friendly names. • Support for efficient & simplifieddeployment of VMs to classifications • Now integrated with Clouds

39. BitLockerDrive Encryption VHD on Traditional LUNE:\VM2 In-box Disk Encryption to Protect Sensitive Data • Data Protection, built in • Supports Used Disk Space Only Encryption • Integrates with TPM chip • Network Unlock & AD Integration • Multiple Disk Type Support • Direct Attached Storage (DAS) • Traditional SAN LUN • Cluster Shared Volumes • Windows Server 2012 File Server Share VHD on DASF:\VM1 VHD on Cluster Shared VolumesC:\ClusterStorage\Volume1\VM4 VHD on File Server\\FileServer\VM3

40. VMware Comparison Hyper-V integrates with key hardware investments with no SKU-specific restrictions or upgrades required vSphere API for Multipathing (VAMP) is only available in Enterprise & Enterprise Plus editions of vSphere 5.5 vSphere API for Array Integration (VAAI) is only available in Enterprise & Enterprise Plus editions of vSphere 5.5 vSphere vSAN is still in beta vSphere Flash Read Cache has a write-through caching mechanism only, so reads only are accelerated. vSAN also has SSD caching capabilities built in, acting as a read cache & write buffer. vSphere Hypervisor / vSphere 5.x Ent+ Information: http://www.vmware.com/pdf/vsphere5/r55/vsphere-55-configuration-maximums.pdf, http://www.vmware.com/files/pdf/vsphere/VMware-vSphere-Platform-Whats-New.pdf, http://www.vmware.com/products/vsphere/compare.html,

41. Hyper-V Hosts and Networking

42. NIC Teaming Integrated Solution for Network Card Resiliency • Vendor agnostic and shipped inbox • Provides local or remote management through Windows PowerShell or UI • Enables teams of up to 32 network adapters • Aggregates bandwidth from multiple network adapters whilst providing traffic failover in the event of NIC outage • Includes multiple nodes: switch dependent and independent • Multiple traffic distribution algorithms: Hyper-V Switch Port, Hashing and Dynamic Load Balancing Operating system Virtual adapters Team network adapter Team network adapter NIC Teaming

43. Hyper-V Networking Basics Connecting VMs to each other, and the outside world Hyper-V Host VM1 VM2 • 3 Types of Hyper-V Network • Private = VM to VM Communication • Internal = VM to VM to Host (loopback) • External = VM to Outside & Host • Each vNIC can have multiple VLANs attached to it, however if using the GUI, only a single VLAN ID can be specified. • Set-VMNetworkAdapterVlan -VMName VM01-Trunk -AllowedVlanIdList 14,22,40 • Creating an external network transforms the chosen physical NIC into a switch and removes TCP/IP stack and other protocols • Optional host vNIC is created to allow communication of host out of the physical NIC Private External Internal Host vNIC

44. Compares with VMware vSwitch (Not VDS) Hyper-V Extensible Switch Layer-2 Network Switch for Virtual Machine Connectivity Hyper–V host • Extensible Switch • Virtual Ethernet switch that runs in the management OS of the host • Exists on Windows Server Hyper-V, and Windows Client Hyper-V • Managed programmatically • Extensible by partners and customers • Virtual machines connect to theextensible switch with theirvirtual network adaptor • Can bind to a physical NIC or team • Bypassed by SR-IOV Virtual machine Virtual machine Virtual machine Networkapplication Networkapplication Networkapplication Virtual network adapter Virtual networkadapter Virtual networkadapter Hyper‑VExtensible Switch Physical networkadapter Physical switch

45. Hyper-V Extensible Switch Layer-2 Network Switch for Virtual Machine Connectivity Hyper–V host • Granular In-box Capabilities • Isolated (Private) VLAN (PVLANs) • ARP/ND Poisoning (spoofing)protection • DHCP Guard protection • Virtual Port ACLs • Trunk Mode to VMs • Network Traffic Monitoring • PowerShell & WMI Interfaces for extensibility Virtual machine Virtual machine Virtual machine Networkapplication Networkapplication Networkapplication Virtual network adapter Virtual networkadapter Virtual networkadapter Hyper‑VExtensible Switch Physical networkadapter Physical switch

46. Extending the Extensible Switch Build Extensions for Capturing, Filtering & Forwarding Virtual Machine Virtual Machine Physical NIC VM NIC VM NIC Host NIC • 2 Platforms for Extensions • Network Device Interface Specification (NDIS) filter drivers • Windows Filtering Platform (WFP) callout drivers • Extensions • NDIS filter drivers • WFP callout drivers • Ingress filtering • Destination lookup and forwarding • Egress filtering Parent Partition Extension Protocol Virtual Switch Extension A Capture Extensions Filtering Extensions Extension C Extension D Forwarding Extension Extension Miniport Hyper‑V Extensible Switch architecture

47. Extending the Extensible Switch Build Extensions for Capturing, Filtering & Forwarding Virtual Machine Virtual Machine • Many Key Features • Extension monitoring & uniqueness • Extensions that learn VM life cycle • Extensions that can veto state changes • Multiple extensions on same switch • Several Partner Solutions Available • Cisco – Nexus 1000V & UCS-VMFEX • NEC – ProgrammableFlow PF1000 • 5nine – Security Manager • InMon - SFlow Physical NIC VM NIC VM NIC Host NIC Parent Partition Extension Protocol Virtual Switch Extension A Capture Extensions Filtering Extensions Extension C Extension D Forwarding Extension Extension Miniport Hyper‑V Extensible Switch architecture

48. VMware Comparison The Hyper-V Extensible Switch is open and extensible, unlike VMware’s vSwitch, which is closed, and replaceable The vSphere Distributed Switch (required for PVLAN capability) is available only in the Enterprise Plus edition of vSphere 5.5 and is replaceable (By Partners such as Cisco/IBM) rather than extensible. ARP Spoofing, DHCP Snooping Protection & Virtual Port ACLs require the vCloud Networking & Security package, which is part of the vCloud Suite or a Partner solution, all of which are additional purchases Trunking VLANs to individual vNICs, Port Monitoring and Mirroring at a granular level requires vSphere Distributed Switch, which is available in the Enterprise Plus edition of vSphere 5.5 vSphere Hypervisor / vSphere 5.x Ent+ Information: http://www.vmware.com/products/cisco-nexus-1000V/overview.html, http://www-03.ibm.com/systems/networking/switches/virtual/dvs5000v/, http://www.vmware.com/technical-resources/virtualization-topics/virtual-networking/distributed-virtual-switches.html, http://www.vmware.com/files/pdf/techpaper/Whats-New-VMware-vSphere-51-Network-Technical-Whitepaper.pdf, and http://www.cisco.com/en/US/prod/collateral/switches/ps9441/ps9902/data_sheet_c78-492971.html, http://www.vmware.com/products/vcloud-network-security,

49. Comprehensive Network Management Integrated management of the software defined network • Top of rack switch management and integration for configuration and compliance • Logical network management: named networks that serve particular functions in your environment i.e. backend • IP address pool management and integration with IP address management • Host and VM network switch management • Load balancer integration and automated deployment • Network virtualization deployment and management Blue Network Red Network VMNetworks 10.10.10.10 10.10.10.10 10.10.10.11 10.10.10.11 HostNICs Logical Networks CorpNet ToRSwitches

50. Top of Rack Switch Integration Synchronize & Integrate ToR Settings with VMM • Physical switch management and integration built into VMM using in-box or partner-supplied provider • Switches running Open Management Infrastructure (OMI) • Switch Management PowerShell Cmdlets • Common management interface across multiple network vendors • Automate common network management tasks • Manage compliancy between VMM, Hyper-V Hosts & physical switches. PowerShell CIM Cmdlets Communicating using WS-MAN OMI OMI OMI
