Presentation Transcript


U s national grid l.jpg

U.S. National Grid


Objectives l.jpg

Objectives

In this lesson you will learn how to:

  • Understand and read USNG coordinates

  • Identify locations by usinggrid coordinates

  • Relay grid coordinates in reference to a given location


Background l.jpg

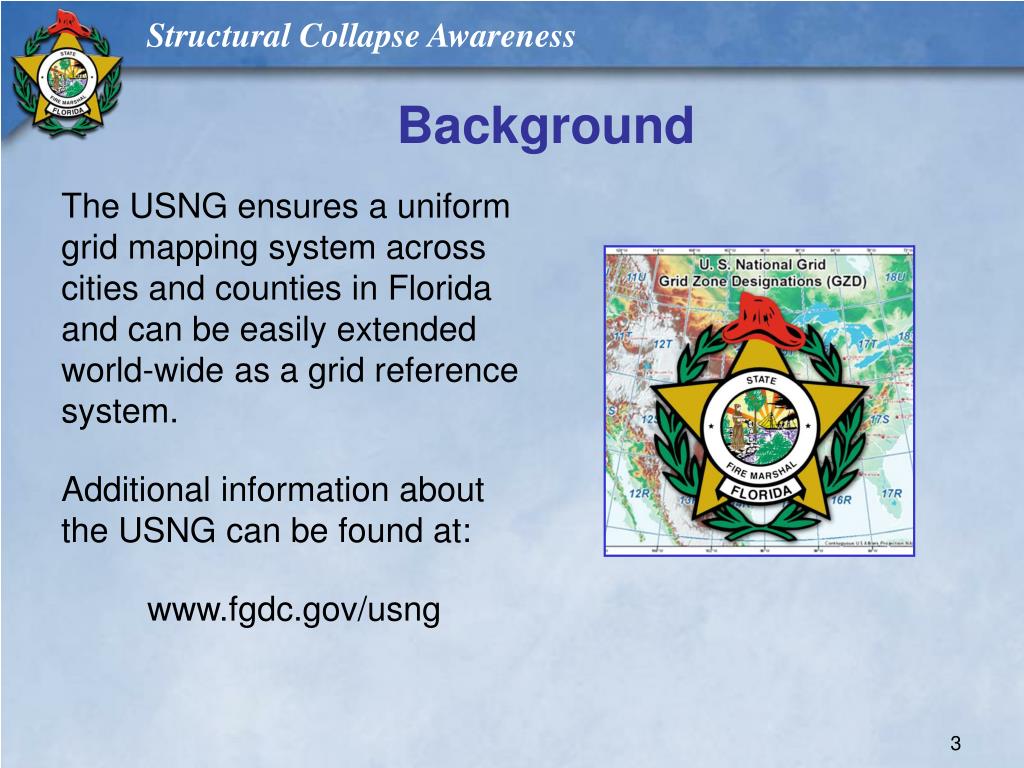

Background

The USNG ensures a uniform grid mapping system across cities and counties in Florida and can be easily extended world-wide as a grid reference system.

Additional information about the USNG can be found at:

www.fgdc.gov/usng


Features of the usng l.jpg

Features of the USNG

USNG expands the utility of street and other mapsby adding the following commanding features:

  • Provides a grid reference system that is seamless across jurisdictional boundaries

  • Is the foundation for a universal map index

  • Describes point locations on appropriately gridded paper and digital maps

  • Allows geo-positioning using Global Positioning System (GPS) receivers

  • Supports World Wide Web map portals that link digital maps and GPS data


Longitude and latitude l.jpg

Longitude and Latitude

Using longitude and latitude can be confusing because different agencies cite different coordinates to identify the same location.

All of the longitude and latitude coordinatesbelow describe the same location:

  • DD -85.990151, 30.272240

  • DM -85 59.409089, 30.16.334386

  • DMS 85 59’24.545”W, 30 16’20.063”N


Usng overlay l.jpg

USNG Overlay

As a responder, you may be given a map or an aerial photograph of the response area with a USNG overlay.


Usng coordinates l.jpg

USNG Coordinates

The first step in reading a USNG map is to understand the letters and numbers that make

up a grid coordinate.


Grid zone designation l.jpg

Grid Zone Designation

17R LL 573 918

The 17R is the Grid Zone Designation (GZD) for aworld-wide unique address.


Meter square identification l.jpg

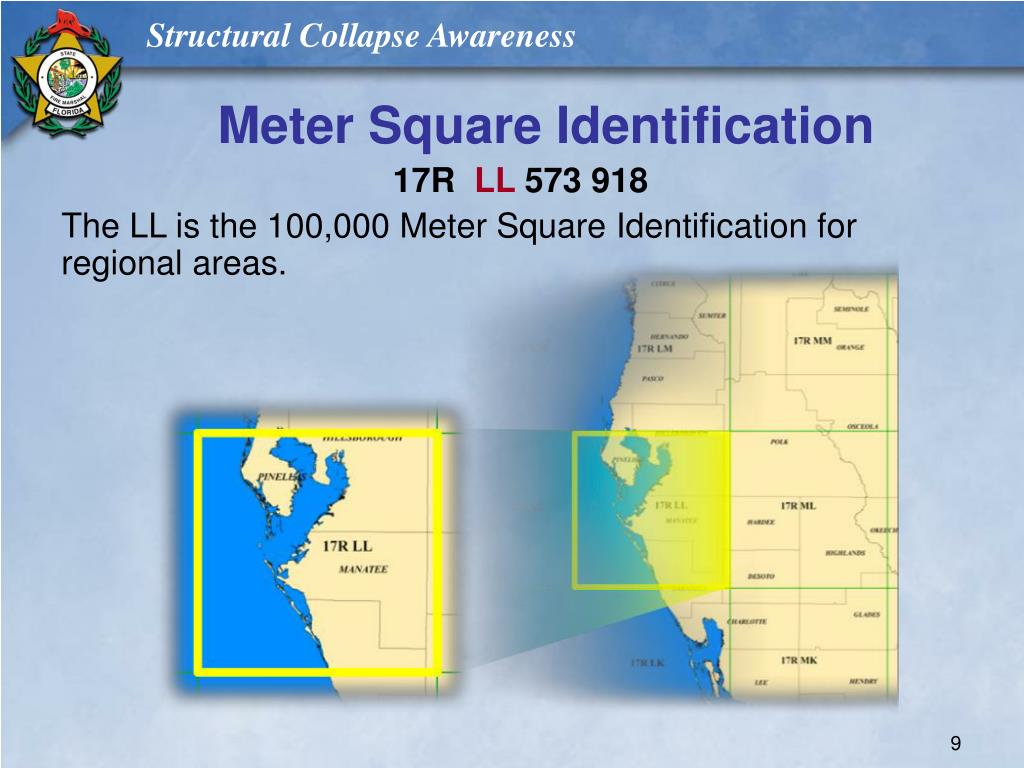

Meter Square Identification

17R LL 573 918

The LL is the 100,000 Meter Square Identification for regional areas.


Easting and northing grid coordinates l.jpg

Easting and NorthingGrid Coordinates

17R LL 573 918

The numbers 573 918 are the Easting and Northing coordinates of a specific location.


Easting and northing number of digits l.jpg

Easting and NorthingNumber of Digits

The more digits used, the smaller the grid coordinates and the more accurate the location.

  • 57323 91820 10 digits locates the area within a1 x 1 meter square

  • 5732 9182 8 digits locates the area within a10 x 10 meter square

  • 573 9186 digits locates the area within a100 x 100 meter square

  • 57 914 digits locates the area within a1000 x 1000 meter square


Knowledge check l.jpg

Knowledge Check

Given the coordinates 17R NN 17938 01505 what is the 100,000 Meter Square Identification for regional areas?

  • 17R

  • 17R NN

  • NN

  • 17938 01505


Knowledge check13 l.jpg

Knowledge Check

You are responding to an area flooded by the storm surge during Hurricane Michael, and were given the coordinates 6612 5811. What size area will you be able to locate with these coordinates?

  • 1 x 1 meters

  • 10 x 10 meters

  • 100 x 100 meters

  • 1000 x 1000 meters


Area identified with a usng coordinate l.jpg

Area Identified with a USNG Coordinate


Knowledge check15 l.jpg

Knowledge Check

You are given the coordinates of a rescue team on-scene as 507 030. Find and mark this location on the map.


Knowledge check answer l.jpg

Knowledge Check (Answer)‏

You are given the coordinates of a rescue team on-scene as 507 030. Find and mark this location on the map.


Identifying the coordinates of a known location l.jpg

Identifying the Coordinatesof a Known Location


Knowledge check18 l.jpg

Knowledge Check

This map is labeled with points A and B. Identify the coordinates for the location of Point A, your location.

  • 572 914

  • 571 913

  • 913 571

  • 914 572


Knowledge check answer19 l.jpg

Knowledge Check (Answer)‏

This map is labeled with points A and B. Identify the coordinates for the location of Point A, your location.

  • 572 914

  • 571 913

  • 913 571

  • 914 572


Knowledge check20 l.jpg

Knowledge Check

A nearby rescue crew has located additional victims needing immediate attention. Your crew has been asked to report to the other crew’s location at Point B. Identify the coordinates in which you’ve been asked to report.

  • 578 915

  • 578 921

  • 917 578

  • 577 917


Knowledge check answer21 l.jpg

Knowledge Check (Answer)‏

  • A nearby rescue crew has located additional victims needing immediate attention. Your crew has been asked to report to the other crew’s location at Point B. Identify the coordinates in which you’ve been asked to report.

    • 578 915

    • 578 921

    • 917 578

    • 577 917


Summary l.jpg

Summary

In this lesson, you have learned:

  • Why the U.S. National Grid (USNG) was developed

  • How to find a location withina devastated area if giventhe USNG coordinate

  • How to read a USNG to find and relay the grid coordinate for a location
