Status of the xmm newton slew survey

Status of the XMM-Newton Slew Survey

P. Esquej,

R. Saxton, B. Altieri, A. Read,

M. Freyberg, D. Bermejo, V. Lazaro

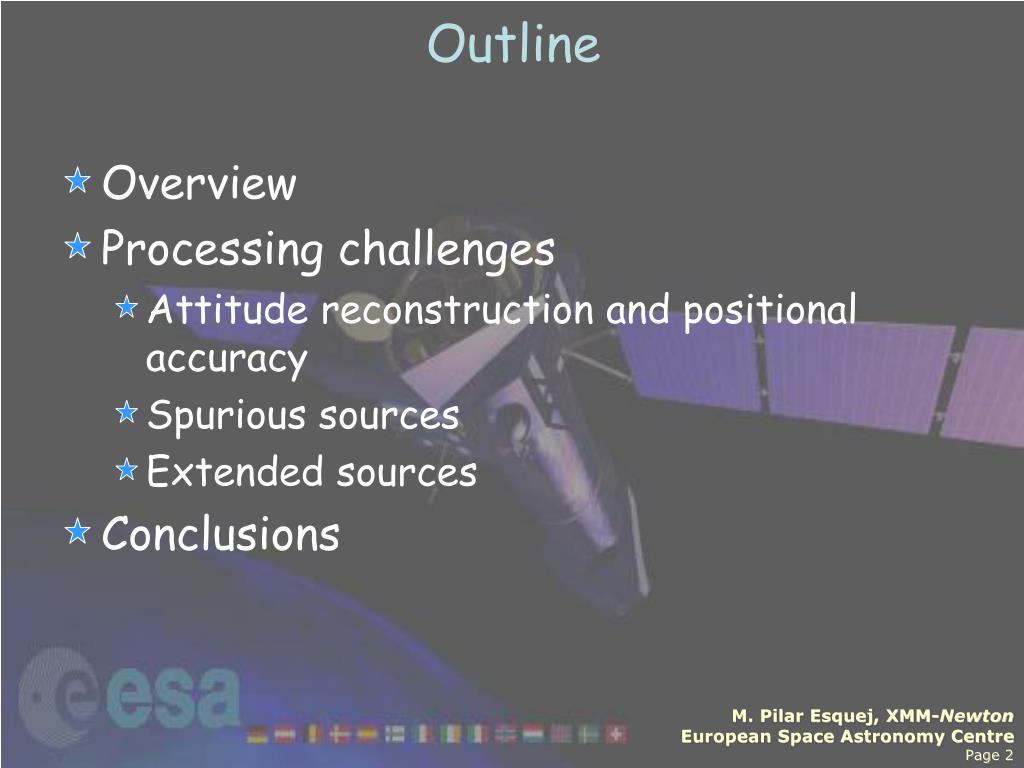

Outline

Outline

  • Overview

  • Processing challenges

    • Attitude reconstruction and positional accuracy

    • Spurious sources

    • Extended sources

  • Conclusions


Overview

Overview

-PN exposures in Medium filter in FF, eFF and LW modes

  • Open-slew speed = 90 degrees / hour, i.e. on-source time ~14 secs

  • Very low background of average ~0.1 c/arcmin2

  • Area covered to date ~6300 deg2 (~15% of sky)

ecliptic coordinates


Processing strategy

Processing strategy

  • Slew data processing using a small s/w change (available in SAS 6.5)

  • Tangential projection not valid over whole slew. Divide slew into 1 deg2 images and recalculate sky positions.

  • Source search using near-standard pipeline eboxdetect/emldetect combination tuned for ~zero background.

  • Use sources with DET_ML>10 (equivalent to 3.9 )

  • Search independently in three bands and produce three catalogues :

    • soft (0.2-2 keV)

    • hard (2-12 keV)

    • total (0.2-12 keV)


Current status

Current Status

- Initial processing of 424 slews (FF, eFF or LW) – 25% have high background

- Images & exposure maps created and source searched for 220 slews giving

4178 sources in total (0.2-12 keV) band

2750 sources in soft (0.2-2.0 keV) band

844 sources in hard (2.0-12.0 keV) band

Source density: ~0.65 sources per square degree

~56% have RASS counterpart within 60 arcsec

Completeness

* Including high background slews

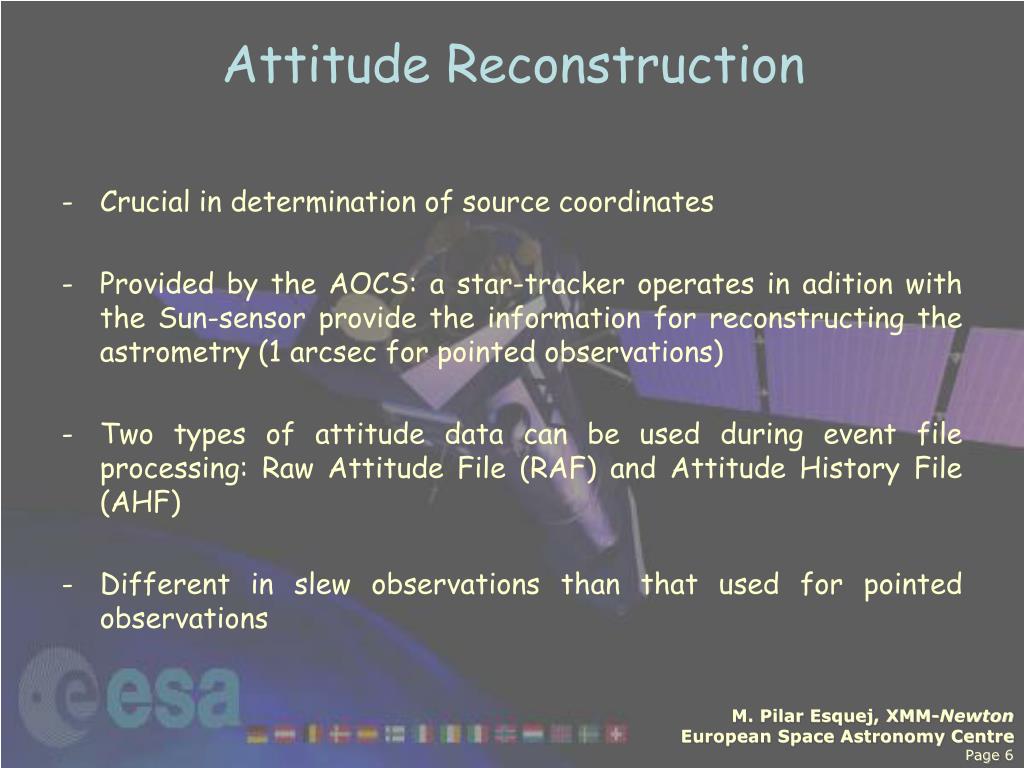

Attitude reconstruction

Attitude Reconstruction

  • Crucial in determination of source coordinates

  • Provided by the AOCS: a star-tracker operates in adition with the Sun-sensor provide the information for reconstructing the astrometry (1 arcsec for pointed observations)

  • Two types of attitude data can be used during event file processing: Raw Attitude File (RAF) and Attitude History File (AHF)

    -Different in slew observations than that used for pointed observations


Status of the xmm newton slew survey

Astrometry: initial comparison

Two types of positional error

(1) Real error of ~15″

(2) Error of 0-60″ (mean 30″)

  • Comparison with ROSAT survey positions shows a wide distribution, with a tail up to 1 arcmin


Status of the xmm newton slew survey

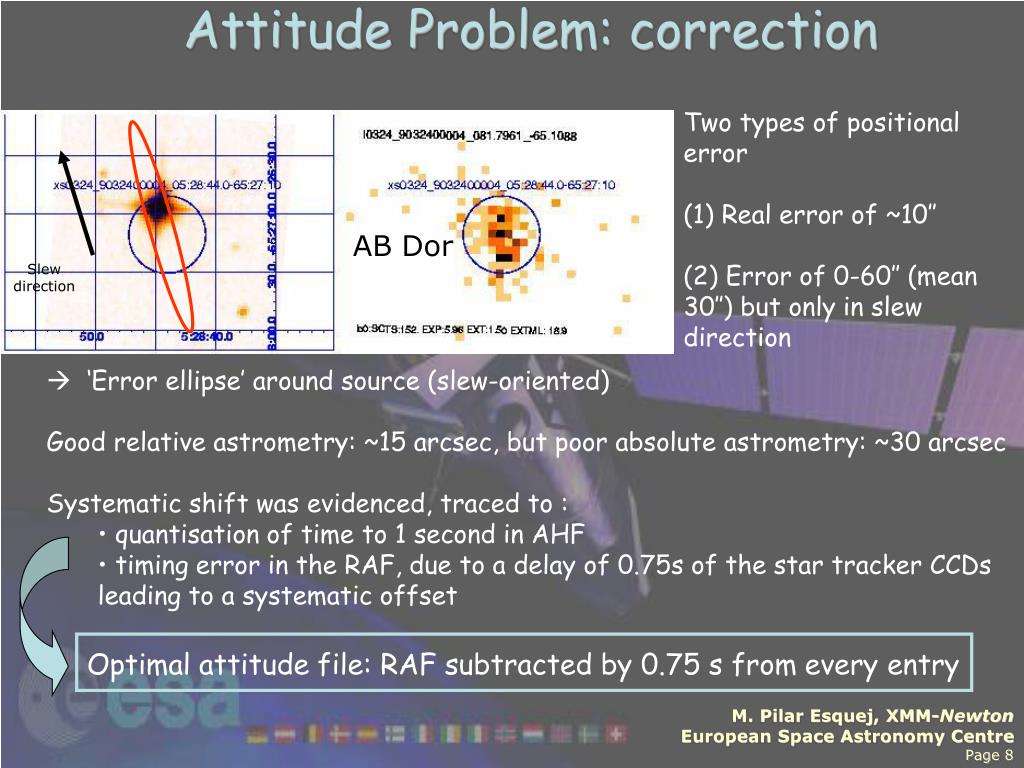

Attitude Problem: correction

Optimal attitude file: RAF subtracted by0.75 s from every entry

Two types of positional error

(1) Real error of ~10″

(2) Error of 0-60″ (mean 30″) but only in slew direction

AB Dor

Slew

direction

  •  ‘Error ellipse’ around source (slew-oriented)

  • Good relative astrometry: ~15 arcsec, but poor absolute astrometry: ~30 arcsec

  • Systematic shift was evidenced, traced to :

    • quantisation of time to 1 second in AHF

    • timing error in the RAF, due to a delay of 0.75s of the star tracker CCDs leading to a systematic offset


Status of the xmm newton slew survey

Achieved astrometric accuracy

RASS : 15” (1)

SIMBAD : 8” (1)


Spurious sources

Spurious sources

  • Detector flashes: due to low-energy events

  • Within extended or within halo of bright source: look for images with high number of sources

  • High background images: spurious detections due to localised background flares

  • Position suspect: several cases

  • False detection: background related?


Extended vs point like sources

Point-like source

Extended source

Extended vs point-like sources

Low background and tight PSF gives good sensitivity to extended sources

FF mode point sources are fitted

well by a PSF, e.g. source 4

Enough counts to detect extension in brightest sources


Example of extended sources

Example of extended sources


Status of the xmm newton slew survey

Comparison ROSAT / XMM-Newton

Mean count rate ratio XMM/ROSAT ~ 10

We can study source variability

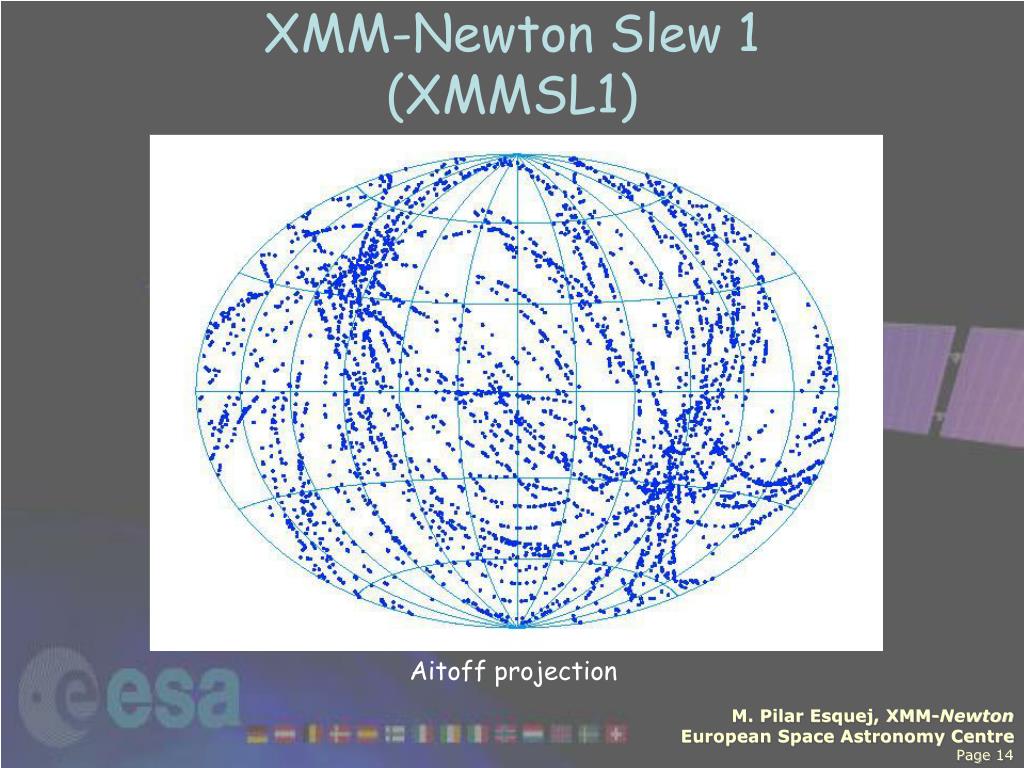

Xmm newton slew 1 xmmsl1

XMM-Newton Slew 1(XMMSL1)

Aitoff projection


Status of the xmm newton slew survey

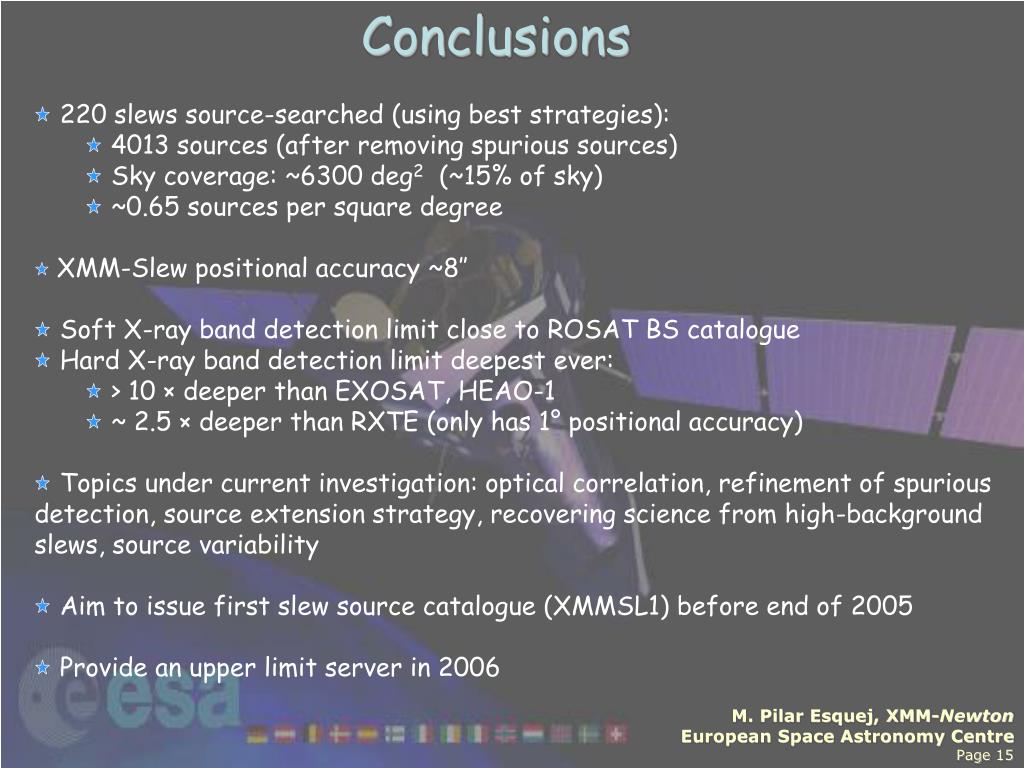

Conclusions

  • 220 slews source-searched (using best strategies):

    • 4013 sources (after removing spurious sources)

    • Sky coverage: ~6300 deg2 (~15% of sky)

    • ~0.65 sources per square degree

  • XMM-Slew positional accuracy ~8″

  • Soft X-ray band detection limit close to ROSAT BS catalogue

  • Hard X-ray band detection limit deepest ever:

    • > 10 × deeper than EXOSAT, HEAO-1

    • ~ 2.5 × deeper than RXTE (only has 1° positional accuracy)

  • Topics under current investigation: optical correlation, refinement of spurious detection, source extension strategy, recovering science from high-background slews, source variability

  • Aim to issue first slew source catalogue (XMMSL1) before end of 2005

  • Provide an upper limit server in 2006
