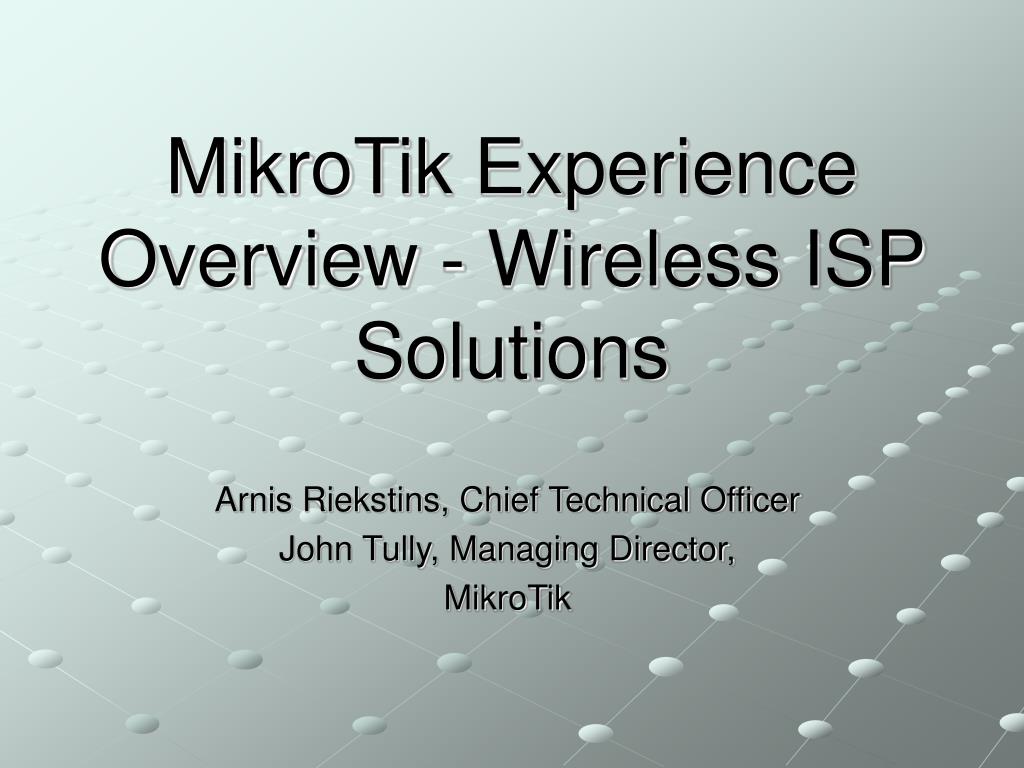

  1. MikroTik Experience Overview - Wireless ISP Solutions Arnis Riekstins, Chief Technical Officer John Tully, Managing Director, MikroTik

  2. Wireless Presentation Program • Overview of MikroTik experience • Basics of Wireless ISP solutions • “Question and answer” to clarify the most important topics for the attendees • Wireless ISM issues – interference • Network infrastructure • Traffic shaping • AP setup and backbone routing • Low cost wireless client setups with PPPoE MikroTik Overview

  3. Contents • MikroTik Company Overview • What’s new in MikroTik RouterOS V2.5 • PPPoEOverview and Applications • PPTP Applications • OSPF Routing and Backup Links • Combining PPTP and OSPF for Backup Links MikroTik Overview

  4. MikroTik Mission • We create Intel (PC) based network solutions, because: • Hardware cost can be adjusted to the client’s needs – contemporary or ‘server-quality’ • Intel is the most powerful and most price attractive platform • Easy hardware upgrade • RouterOS can be easily upgraded with new functionality MikroTik Overview

  5. MikroTik Mission (cont.) • How do we do things?: • We are a small WISP ourselves, therefore we are able to develop solutions for our customers based on our own experience • Our customers are: • Internet Service Providers (ISPs) • Hardware wireless ISPs – more than 45 countries • Software RouterOS – almost all countries (120+) • Organizations requiring IP network solutions for their own needs – corporate networks (Intranets) MikroTik Overview

  6. MikroTik’s History • Active in WISP solutions since 1995 • Incorporated in 1996 • Wireless ISP Projects around the World • Since 1996 Development of own Software for Intel (PC) based routing solutions • 2002: 20+ employees (programmers, engineers, sales, technical support, administrative) MikroTik Overview

  7. MikroTik News • New Hardware platforms • Software V2.5 released • MikroTik provides training on wireless installations and network setup – next seminar in Prague, Czech Republic, June 26-28 MikroTik Overview

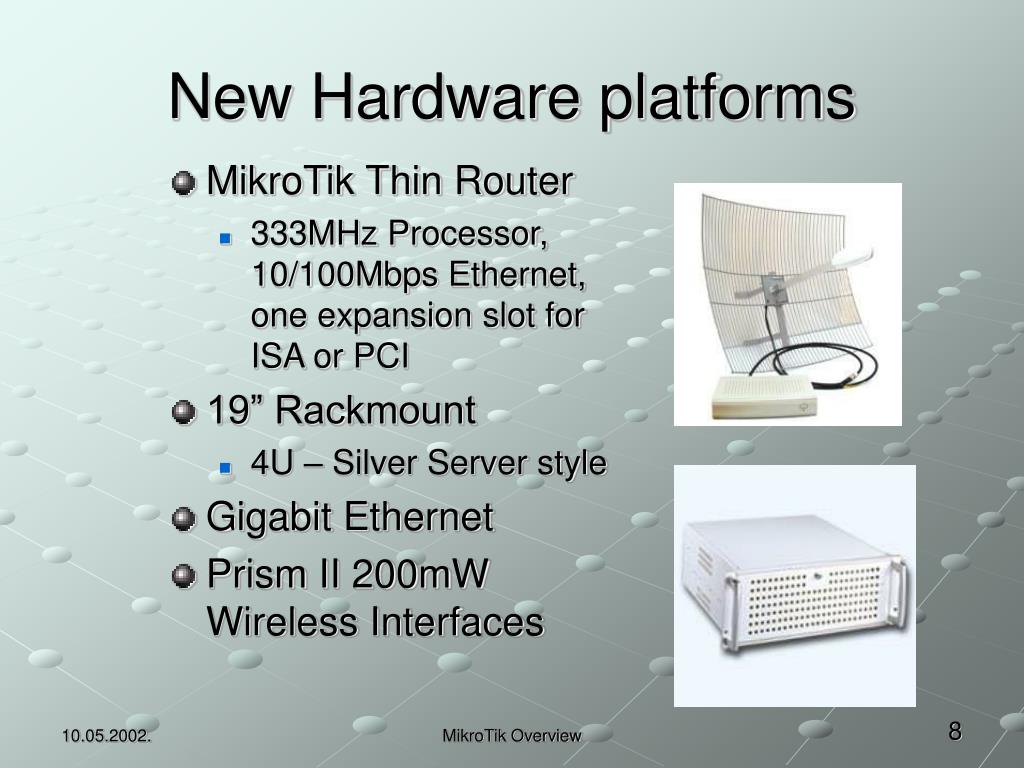

  8. New Hardware platforms • MikroTik Thin Router • 333MHz Processor, 10/100Mbps Ethernet, one expansion slot for ISA or PCI • 19” Rackmount • 4U – Silver Server style • Gigabit Ethernet • Prism II 200mW Wireless Interfaces MikroTik Overview

  9. MikroTik RouterOS V2.5 • PPPoE Access Concentrator • 2.4GHz Access Point • VPN (PPTP tunnels between routers) • PPTP Access Concentrator (PPTP tunnels between the router and workstations) • EoIP tunnels – for transparent bridging of networks MikroTik Overview

  10. PPPoE Access Concentrator • Usage: • For Ethernet LANs, to assign IP addresses to workstations, e.g.: • Multi-apartment buildings • Offices, to provide user authentication and accounting • Schools and universities, computer classes • Connections to Wireless ISPs • Connections to xDSL providers MikroTik Overview

  11. PPPoE Access Concentrator • Advantages • User authentication • 128bit tunnel between the workstation and the PPPoE Access Concentrator • Easy user management using RADIUS server MikroTik Overview

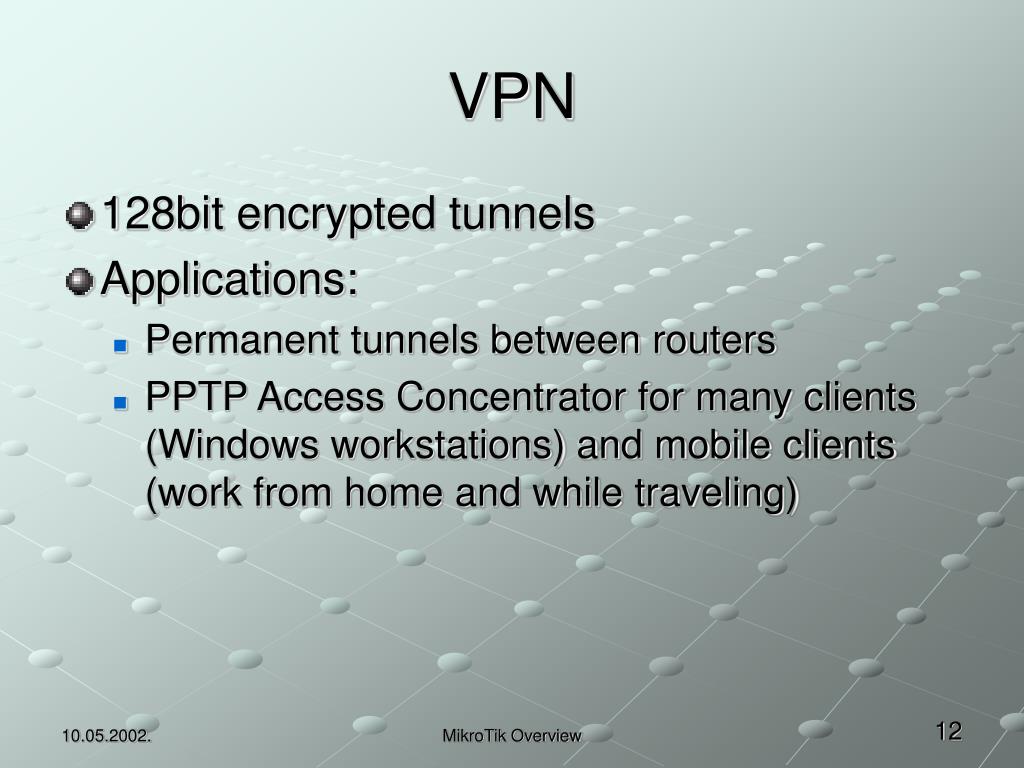

  12. VPN • 128bit encrypted tunnels • Applications: • Permanent tunnels between routers • PPTP Access Concentrator for many clients (Windows workstations) and mobile clients (work from home and while traveling) MikroTik Overview

  13. Ethernet over IP (EoIP) Tunnels • Application: • To bridge Ethernet LANs • Can be used together with PPTP tunnels • Bandwidth can be limited over the tunnels • Providers can sell bandwidth to the corporate customers for their Intranet needs MikroTik Overview

  14. 2.4GHz Access Point • Can be used as IEEE 802.11b AP in several ways: • Simple Access Point • Wireless AP and Ethernet router in one box • Wireless AP and PPPoE Access Concentrator • Can have several wireless interfaces • Can be a wireless client and an AP • Can be used to register other APs and bridge the networks MikroTik Overview

  15. Synchronous Adapters • Cyclades PC300 V.35 Synchronous • For leased lines with baseband modems, supports Frame Relay • Cyclades PC300 E1/T1 • For leased lines • MOXA C101 V.35 Synchronous MikroTik Overview

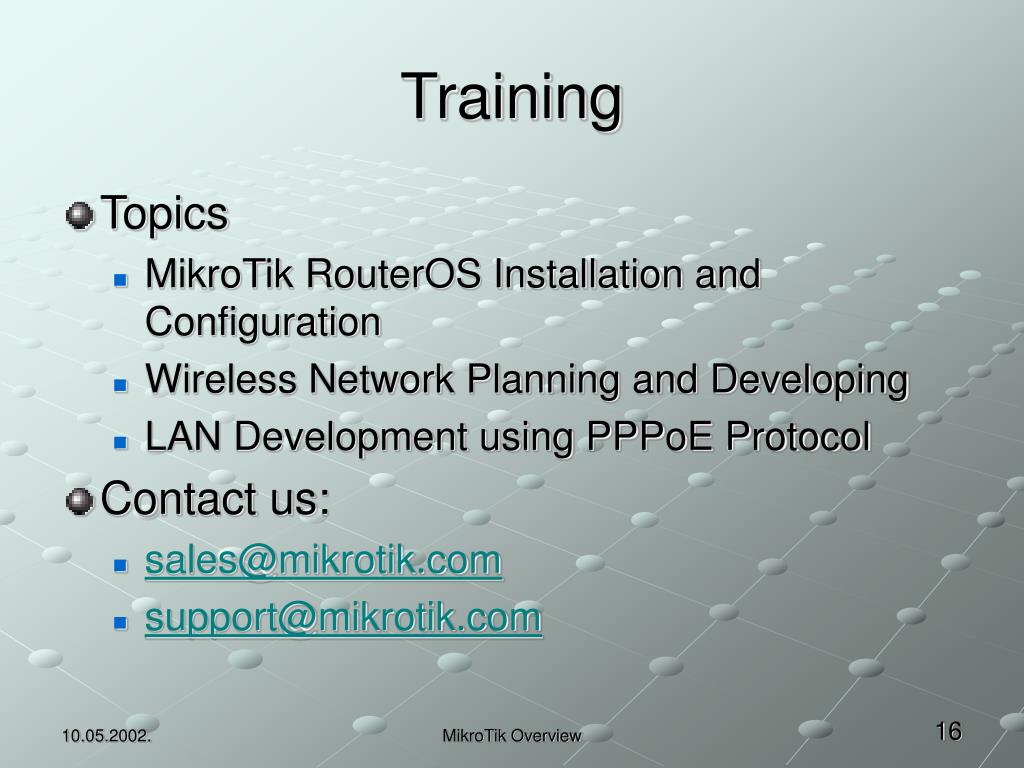

  16. Training • Topics • MikroTik RouterOS Installation and Configuration • Wireless Network Planning and Developing • LAN Development using PPPoE Protocol • Contact us: • sales@mikrotik.com • support@mikrotik.com MikroTik Overview

  17. PPTP Protocol • Virtual Private Networks (VPN) • Data Encryption over PPTP Links • PPTP and Corporate Networks • Bandwidth Management on PPTP Tunnels MikroTik Overview

  18. PPTP Applications MikroTik Overview

  19. Interconnecting Offices MikroTik Overview

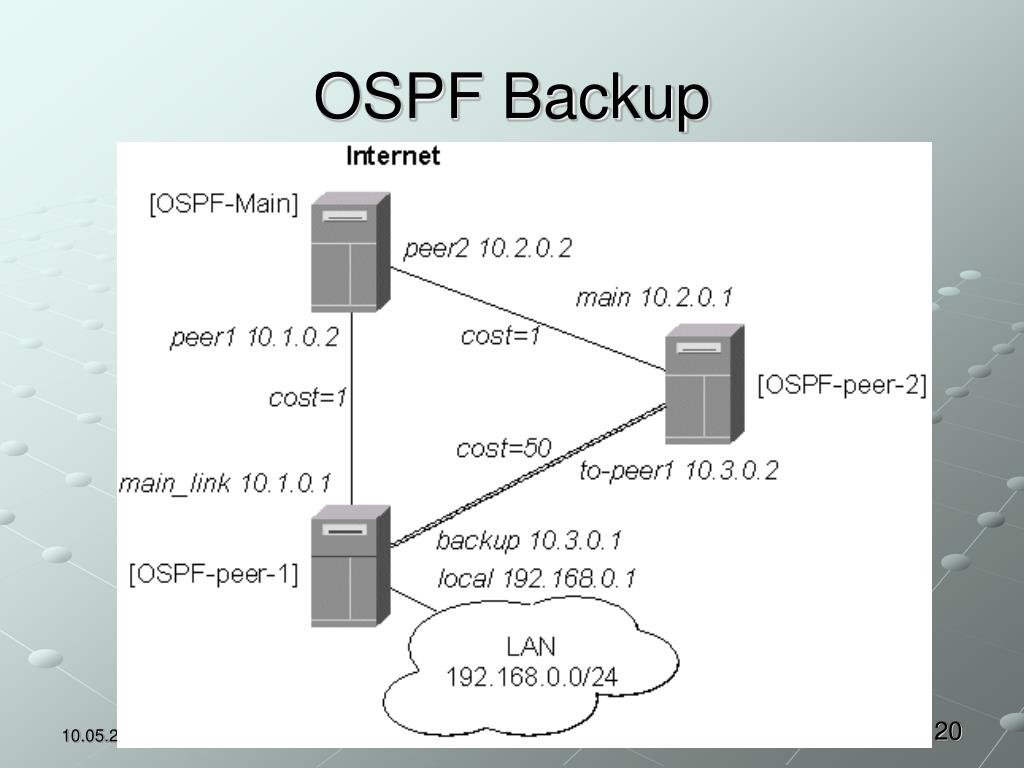

  20. OSPF Backup MikroTik Overview

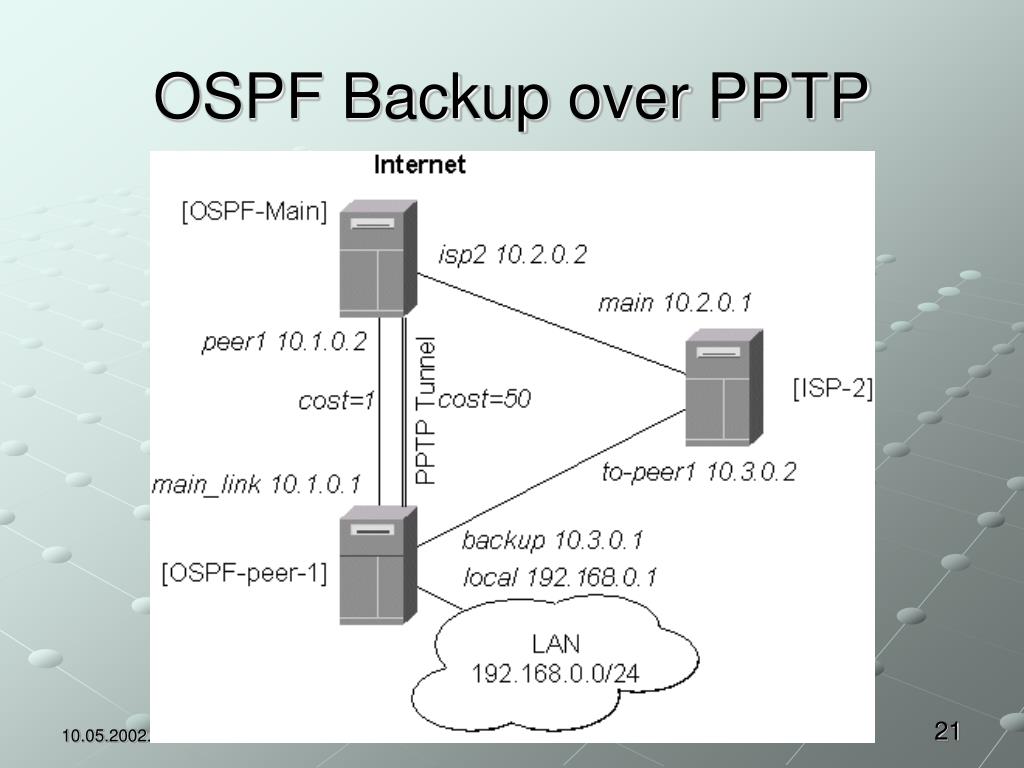

  21. OSPF Backup over PPTP MikroTik Overview

  22. Conclusions • OSPF to be used for routing and connection backup • VPNs (PPTP) to be used for secure (128bit encryption) tunnels • EoIP for bridging the Ethernet LANs • PPPoE Access Concentrator for secure access to IP networks MikroTik Overview
