Arrays – Part 2. 2. Creating vectors. There are LOTS of ways to create vectors, based on three simple ideas: The values in the vector are pre-defined . For example: [ 2 -5 4.4 -96.6] The values have an addition pattern . For example:

dermot
Download Presentation

Arrays – Part 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Arrays – Part 2

  2. 2. Creating vectors • There are LOTS of ways to create vectors, based on three simple ideas: • The values in the vector are pre-defined. For example: [ 2 -5 4.4 -96.6] • The values have an addition pattern. For example: [10, 20, 30 ,…100] or [-10 -8 -6 -4 -2 0] • Or even, the total number of values is known! For example: 25 points evenly spaced from 0 to 100.

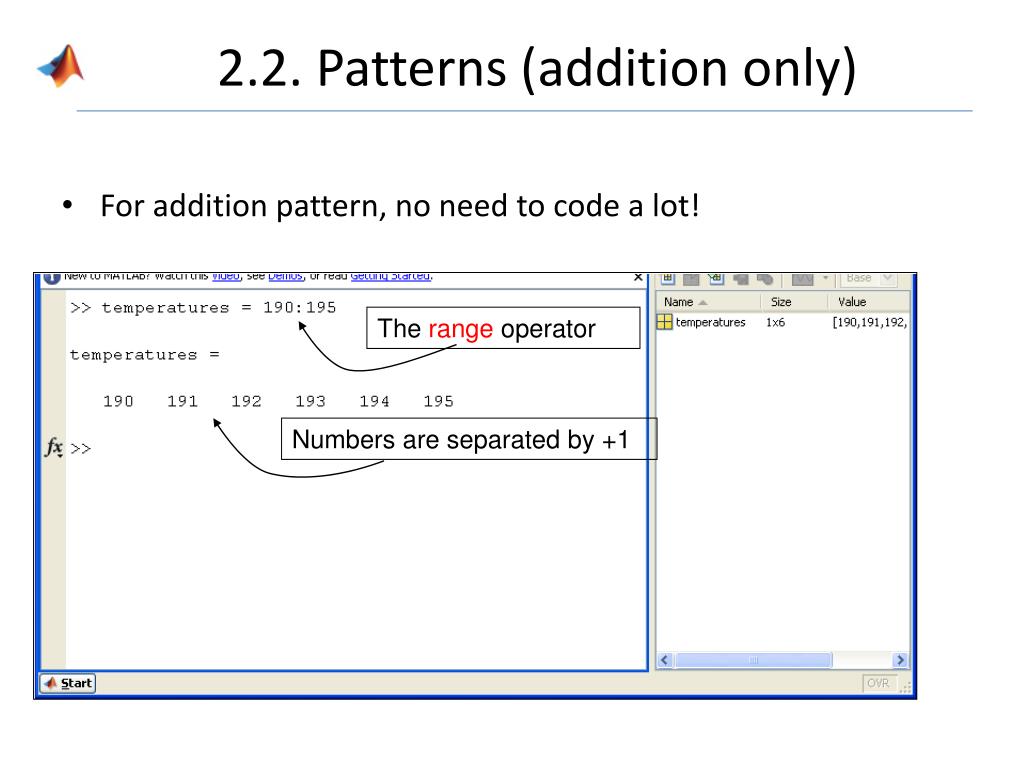

  3. 2.2. Patterns (addition only) • For addition pattern, no need to code a lot! The range operator Numbers are separated by +1

  4. 2.2. Patterns, cont. • Add an increment to increase by a different amount than +1 An additional value in the middle specifies the increment (aka step-size). +3 +3 +3 +3 +3 +3 +3 +3 >32 

  5. 2.2. Patterns, cont. • Create a decreasing pattern by using a negative increment! CAUTION: the beginning number must be > the end number. Here 10>3. Note: it works with fractional values. -2.5 -2.5 -2.5 < 3 

  6. 2.3. Specific amount of data points • Sometimes, the increment isn’t so important (or known) vs. HOW MANY points there are. • A built-in function called linspace() spaces elements linearly in an array. • What does this mean? • The distance between consecutive data points is a constant across the array.

  7. >>doc linspace<enter> linspace Generate linearly spaced vectors Syntax y = linspace(a,b)y = linspace(a,b,n) Description The linspace function generates linearly spaced vectors. It is similar to the colon operator ":", but gives direct control over the number of points. y = linspace(a,b) generates a rowvector y of 100 points linearly spaced between and including a and b. y = linspace(a,b,n) generates a row vector y of n points linearly spaced between and including a and b. For n < 2, linspace returns b.

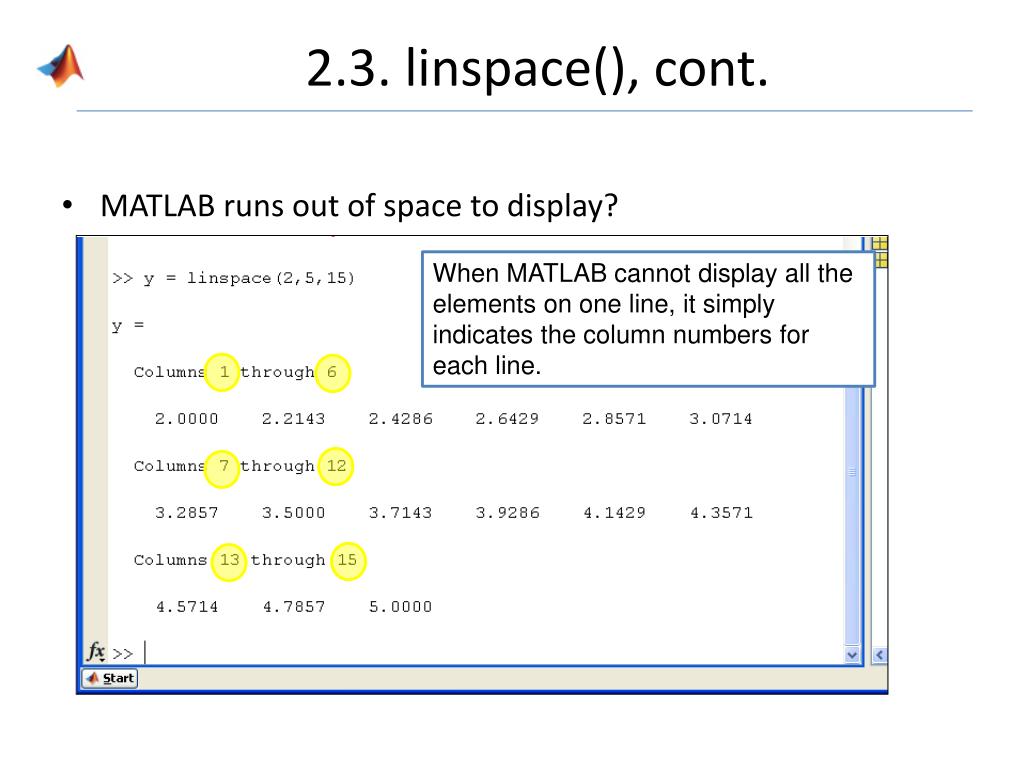

  8. 2.3. linspace(), cont. • MATLAB runs out of space to display? When MATLAB cannot display all the elements on one line, it simply indicates the column numbers for each line.

  9. 2.3. linspace(), cont. • Transpose the return value of linspace() to create a column vector

  10. 2.3. linspace(), cont. ?????? %no third argument Omitthe third argument uses a default of _______ data points!

  11. 3. Creating Matrices • Simply a combination of all operators introduced with vectors! • Square brackets [ ] • Spaces or commas , , • Semi-colons ; • Apostrophes ‘ • Just keep in mind: only RECTANGULAR matrices

  12. 3.1. Matrices: hard-coding • Use semi-colons to create new rows. • Good or bad? Why? 2 by 3 3 by 2

  13. 3.2. Concatenating matrices • Assume variable a from the previous slide. Use it as a reference to create a new variable: “CONCATENATING” The art of “gluing” vectors and matrices together

  14. 3.3 Using colons • Combine ALL methods necessary JUST KEEP THE ARRAY RECTANGULAR

  15. Array Math

  16. I. Definition • MATLAB is known for its mathematical power! • It does vector and MATRIX operations automatically (most languages require you to do this by hand). • It follows the rules of ANY math book • Rules of addition and subtraction are straightforward and highly common sense: think MATH • Rules of multiplication and division require basic knowledge of matrix math Wikipedia This is an “n-by-p” matrix. n rows, p columns.

  17. II. addition/subtraction (example1) • Assume the vectors (actual math vectors) shown here >>v1+v2+v3 <enter> results in? v1 = 2 -3 v2 = 4 -2 v3 = -1 4 ans = 2 4 -1 -3 -2 4 ans = 5 -1 (a) (b)

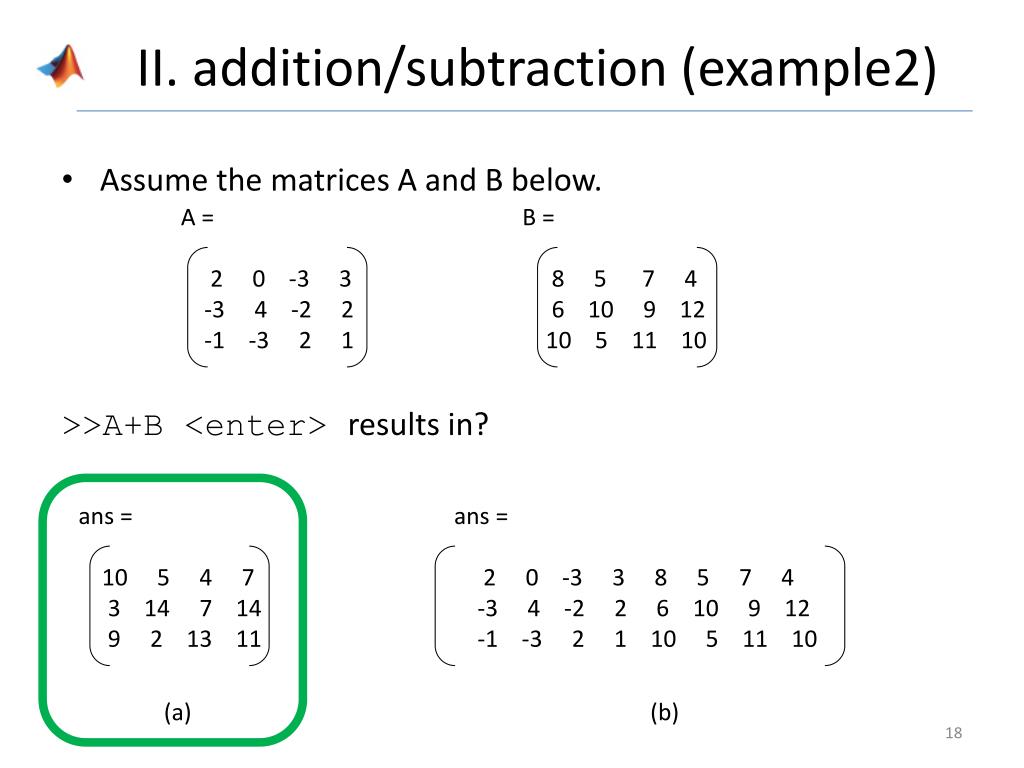

  18. II. addition/subtraction (example2) • Assume the matrices A and B below. >>A+B <enter> results in? A = 2 0 -3 3 -3 4 -2 2 -1 -3 2 1 B = 8 5 7 4 6 10 9 12 10 5 11 10 ans = 10 5 4 7 3 14 7 14 9 2 13 11 ans = 2 0 -3 3 8 5 7 4 -3 4 -2 2 6 10 9 12 -1 -3 2 1 10 5 11 10 (a) (b)

  19. II. addition/subtraction (example3) • Assume the matrices A and B below. >>A+B <enter> results in? A = 2 0 -3 3 -3 4 -2 2 -1 -3 2 1 B = 8 5 7 6 10 9 10 5 11 ans = 10 5 4 3 3 14 7 2 9 2 13 1 ans = 2 0 -3 3 8 5 7 -3 4 -2 2 6 10 9 -1 -3 2 1 10 5 11 (a) (b) (c)

  20. II. addition/subtraction (example4) • Assume the matrices A and B below. >>C = B-A <enter> results in? A = 2 3 -2 5 1 2 -2 -2 B = 4 11 5 8 9 10 7 12 ans = 2 8 7 3 8 8 9 14 ??? Error using ==> minus Matrix dimensions must agree. Neither (a) nor (b) (c) (a) (b)

  21. II. addition/subtraction (Rule #1) • Addition and subtraction between arrays (vectors OR matrices) can be done if and only if BOTH dimensions match. (2 x 3) (2 x 3) • By “dimensions”, understand “number of rows of A and B are equal, and number of columns of A and B are equal” • This does not mean “Square” • A 3by4 can be added or subtracted to a 3by4. • A 100by200 can be added or subtracted to a 100by200. • A 5by4 cannot be added to a 4by5. • A 5by5 can be added to a 5by5.

  22. Exception to rule #1 • Adding or subtracting a scalar (a 1 by 1 array) to any array is possible. • MATLAB assumes the operation is done on each element per default. A = 2 4 5 3 3 8 2 2 4 3 6 4 6 6 6 >> A+2 <enter> results in? ans = 4 6 7 5 5 10 4 4 6 5 8 6 8 8 8 Answer: 2 is a 1by1 A is a 3by5 It still works!

  23. Multiplication/Division/Power • Linear Algebra has its own way of multiplying matrices. You’ll learn all about it in MA 345. • MATLAB defaults to matrix multiplication.

  24. Matrix Multiplication the Linear Algebra way • Matrices can be multiplied together if and only if the inner dimensions match (2 x 3) * (3 x 3) = (2 x 3) (4 x 3) * (3 x 1) = (4 x 1) • The resulting dimension is the outer dimensions. “inner dimensions”

  25. Matrix Multiplication the Linear Algebra way • A is a (2by3) matrix and B is a (3by4) matrix: True or False >>A*B <enter> is a valid statement True or False >>B*A <enter> is a valid statement >>C = A*B C will be a __ by __ matrix. 4 2 >> B*A Error using * Inner matrix dimensions must agree.

  26. Matrix Division • To divide a matrix A by a matrix B really means: “To multiply matrix A by the inverse of matrix B” “inverse” does not mean “transpose”.  All the rules of multiplications apply • The inverse of a matrix is possible if and only if it is “square”: it has the same amount of rows as columns. >> A/B for example: (2by3) / (3by3) means (2by3) * inv(3by3) means (2by3) * (3by3) will work. a/b is really a*(1/b)

  27. But I’m not in MA 345 yet… • The majority of how you’ll use matrices in EGR115 will NOT be using the linear algebra method.

  28. Multiplying/Dividing by a Scalar • Multiplying together a matrix and a scalar (a 1 by 1 array) to any array is possible. • MATLAB assumes the operation is done on each element per default. • Note: the inner dimension obviously don’t match, so A*A wouldn’t work. A = 2 4 5 3 3 8 2 2 4 3 6 4 6 6 6 >> A*2 <enter> results in? Answer:

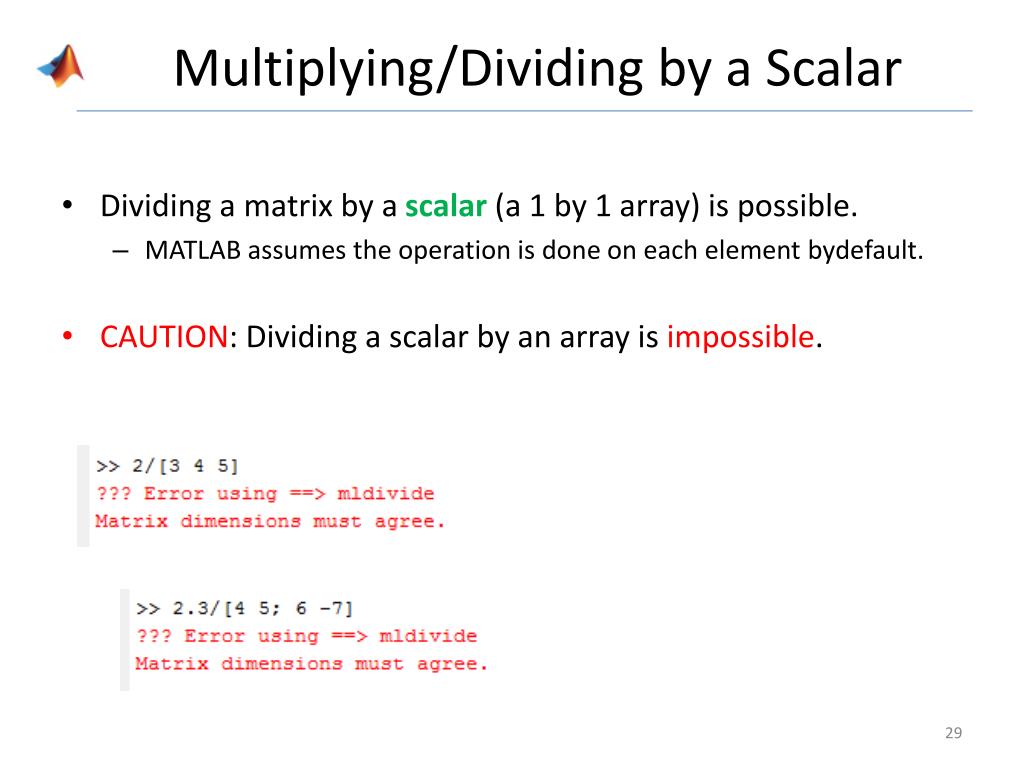

  29. Multiplying/Dividing by a Scalar • Dividing a matrix by a scalar (a 1 by 1 array) is possible. • MATLAB assumes the operation is done on each element bydefault. • CAUTION: Dividing a scalar by an array is impossible.

  30. What if arrays don’t represent MATRICES • In MATLAB, an array of multiple dimensions represents a MATRIX. • Any operation (+-*/^) on these is dealt with following strict mathematical rules • What if an array is simply used as a database of numbers? • use the element by element operators .* ./ .^ A = 5 5 8 9 A^3 = 5 5 8 9 A^3IS NOT 5^3 5^3 8^3 9^3 5 5 8 9 5 5 8 9 885 955 1528 1649 * * =

  31. Example Calculating Prices Assume the two following vectors: • One is the quantity bought of each item (1-5) • The second is the price of each item (1-5) Calculate the total bill ($) So: quantities.*prices , then add all? quantities prices + + + + = $219.50

  32. The Dot Operator • Any time you need to do math on an element-by-element basis (which will be most of the time in EGR115), you need to use the dot before the multiplication, division, and exponentiation sign. A^3IS NOT 5^3 5^3 8^3 9^3 A = 5 5 8 9 A^3 = 5 5 8 9 A.^3IS 5^3 5^3 8^3 9^3 5 5 8 9 5 5 8 9 885 955 1528 1649 = * *

  33. Basic functions on arrays CAUTION: A function will return different values depending on whether the argument is a vector or a matrix!

  34. Basic functions on arrays • Rule of thumb: • If your input is a vector, it will apply the function to all the elements in the array, regardless of if the vector is a row or column vector • If your input is a matrix, it will apply the function to each column and return a vector corresponding to the results from each column.

  35. Ex. vector: Temperatures clc clear % engine temperature temps = [45.5,56.7,99.9,42,12,29]; % determine minimum,maximum,average temperature minTemp = min(temps) maxTemp = max(temps) avgTemp = mean(temps) Do not use min =, or max=…, or mean= … These keywords are reserved by MATLAB!

  36. Ex. matrix: Scores clc clear % scores from playing. Col1 = player1, col2 = player2…etc. scores = [45,34,56; 67,3,45; 22,55,99]’; %transposed! % determine minimum,maximum,averagescores minScores= min(scores) ? maxScores= ______________ avgScores= ______________

  37. ARRAY Referencing 37

  38. II. Array Referencing • Assume an array has values. It is useful to “refer to” the elements contained within it – as smaller portions of the array or even individually. • Because the values contained within the array may change when the program runs, the index(i.e. position) of the elements allows a mean of accessing them. • MATLAB starts counting at 1. 3RD

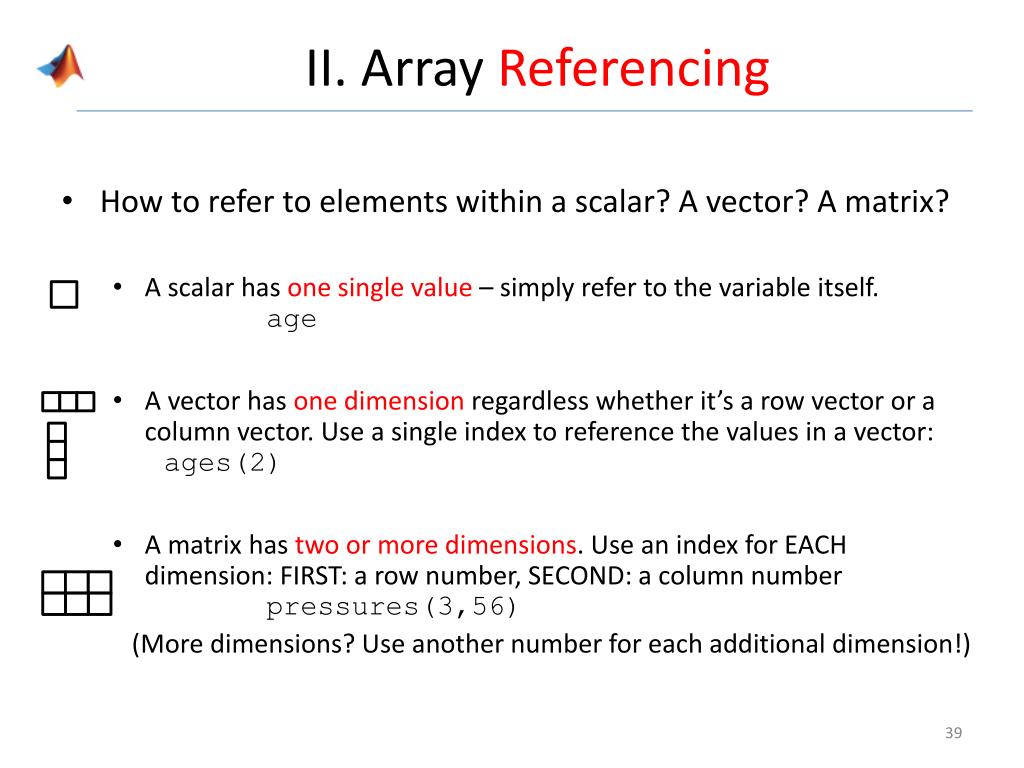

  39. II. Array Referencing • How to refer to elements within a scalar? A vector? A matrix? • A scalar has one single value – simply refer to the variable itself. age • A vector has one dimension regardless whether it’s a row vector or a column vector. Use a single index to reference the values in a vector: ages(2) • A matrix has two or more dimensions. Use an index for EACH dimension: FIRST: a row number, SECOND: a column number pressures(3,56) (More dimensions? Use another number for each additional dimension!)

  40. Array Referencing - Vectors • Vectorsuse a single value. Each value is called an “index”: x = [5; -1; 4]; %original vector sum = 0; %start sum at zero sum = sum + x(1); %add first element sum = sum + x(2); %add second element sum = sum + x(3); %add third element Index This process of repeatedly adding numbers to a single variable is called a “running sum”

  41. Array Referencing - Vectors • Vectors use a single value. Each value is called an “index”: x = [5; -1; 4]; %original vector sum = 0; %start sum at zero sum = sum + x(1); %add first element sum = sum + x(2); %add second element sum = sum + x(3); %add third element • Vectors have one dimension, so use a single index in parentheses to specify which element to use. Indexing starts at 1, and can go as high as how-many-elements-there-are. Yes, it seems quite repetitive… wouldn’t a loop make it easier? Hang in there…

  42. Array Referencing - Matrices • Matrices are similar. To access the 6 in this matrix: M = [1, 2, 3; 4, 5, 6; 7, 8, 9] Use :M(2,3) Row number alwaysfirst! Column number always second!

  43. Array Referencing - Matrices • Matrices are similar. To access the 6 in this matrix: M = [1, 2, 3; 4, 5, 6; 7, 8, 9] Use :M(2,3) • It can be used directly: x = 7 * M(2,3); %Result? _____ Row number alwaysfirst! Column number always second! 42

  44. Array Referencing - Matrices • Matrices are similar. To access the 6 in this matrix: M = [1, 2, 3; 4, 5, 6; 7, 8, 9] Use :M(2,3) • It can be used directly: x = 7 * M(2,3); %Result? _____ • The row and column positions specified in the parentheses are referred to as “indices” (plural of “index”): 2 is the “row index” and 3 is the “column index”. Row number alwaysfirst! Column number always second! 42

  45. Referencing • To refer to “all” of a column or row, use the range operator by itself: V = M(:, 3); %from M, copy all rows in columns 3 to V The same can be done with columns! V = M(2, :); % V gets a copy of all columns of row 2 45

  46. Accessingmore than one element of an array ARRAY SLICING 46

  47. Array Slicing In general, a slice is a "smaller piece" of something. The range operator is frequently used when getting a slice. % Copy all elements in rows 1 and 2, % columns 1 through 4

  48. Array Slicing In general, a slice is a "smaller piece" of something. The range operator is frequently used when getting a slice. % Copy all elements in rows 1 and 2, % columns 1 through 4 M1 = M(___ ,____);

  49. Array Slicing In general, a slice is a "smaller piece" of something. The range operator is frequently used when getting a slice. % Copy all elements in rows 1 and 2, % columns 1 through 4 M1 = M(1:2 ,____);

  50. Array Slicing In general, a slice is a "smaller piece" of something. The range operator is frequently used when getting a slice. % Copy all elements in rows 1 and 2, % columns1 through 4 M1 = M(1:2 ,____);
