Files – Chapter 2

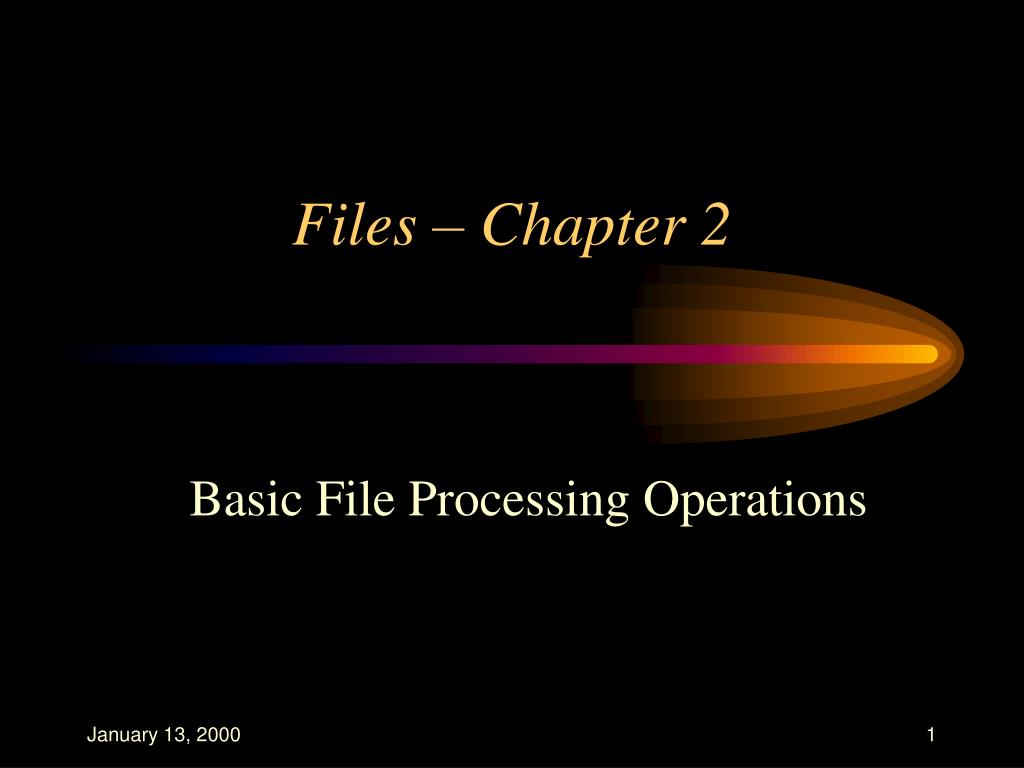

1. Files – Chapter 2 Basic File Processing Operations

2. Outline • Physical versus Logical Files • Opening and Closing Files • Reading, Writing and Seeking • Special Characters in Files • The Unix Directory Structure • Physical Devices and Logical Files • Unix File System Commands

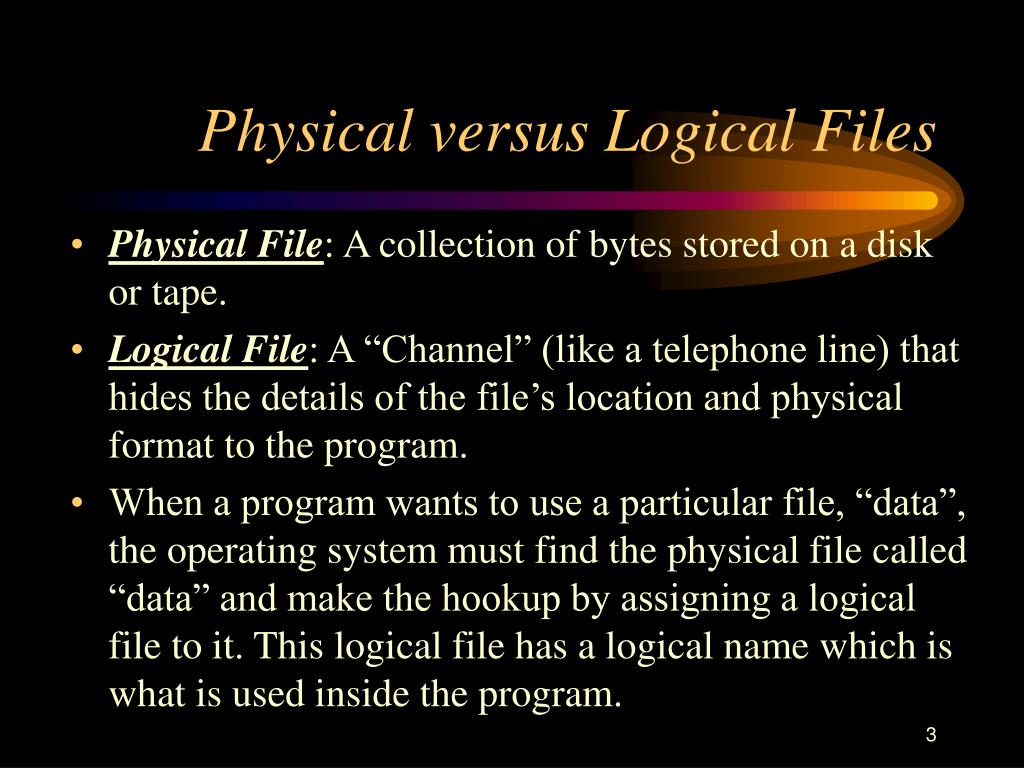

3. Physical versus Logical Files • Physical File: A collection of bytes stored on a disk or tape. • Logical File: A “Channel” (like a telephone line) that hides the details of the file’s location and physical format to the program. • When a program wants to use a particular file, “data”, the operating system must find the physical file called “data” and make the hookup by assigning a logical file to it. This logical file has a logical name which is what is used inside the program.

4. Opening Files • Once we have a logical file identifier hooked up to a physical file or device, we need to declare what we intend to do with the file: • Open an existing file • Create a new file • That makes the file ready to use by the program • We are positioned at the beginning of the file and are ready to read or write.

5. Opening Files in UNIX/C • The UNIX system function open( ) is used to open an existing file or create a new file. fd = open(filename, flags, [pmode]); • fd: the file description -- the logical file name. The fdis an integer. If there is an error in the attempt to open the file, fd is negative (-1). • filename: the physical file name. The filename argument can be a pathname.

6. flags: an integer argument that controls the operation of the open function. The values of flag is set by performing a bitwise OR of the following values: • O_APPEND: Append every write operation to the end of the file. • O_CREAT: Create and open a file for writing. • O_EXCL: Return an error if O_CREAT opens an existing file. • O_RDONLY: Open a file for reading only. • O_RDWR: Open a file for reading and writing. • O_TRUNC: Truncate an existing file to a length of 0, destroying its contents. • O_WRONLY: Open a file for writing only. • and many others for synchronization.

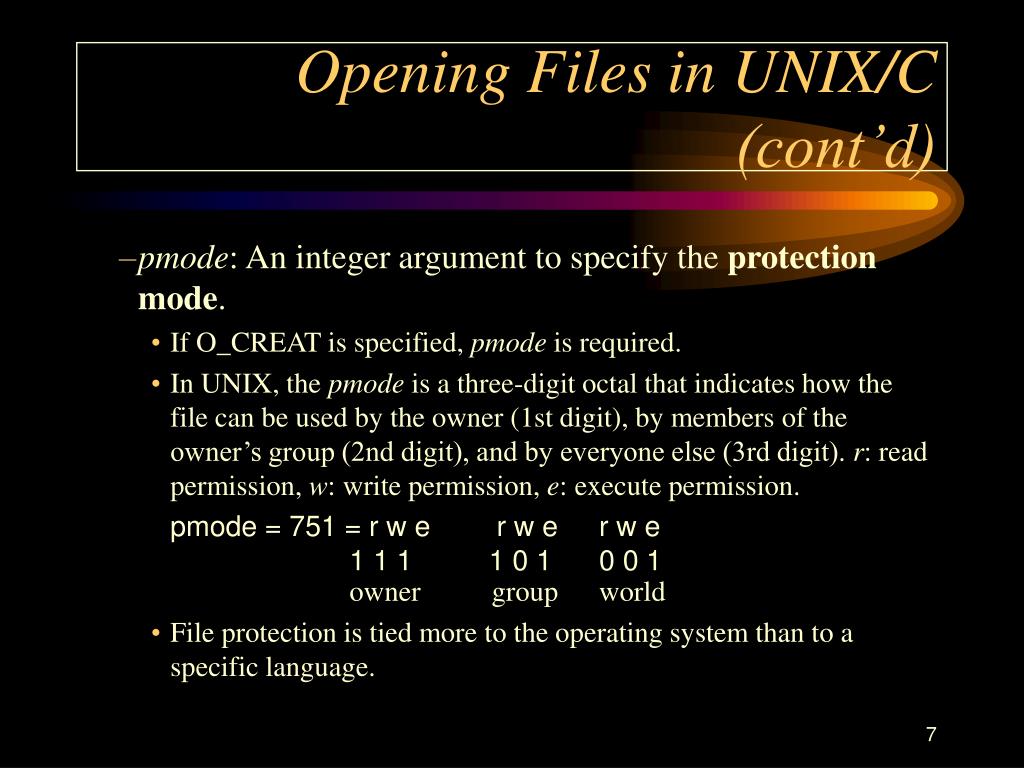

7. Opening Files in UNIX/C (cont’d) • pmode: An integer argument to specify the protection mode. • If O_CREAT is specified, pmode is required. • In UNIX, the pmode is a three-digit octal that indicates how the file can be used by the owner (1st digit), by members of the owner’s group (2nd digit), and by everyone else (3rd digit). r: read permission, w: write permission, e: execute permission. pmode = 751 = r w e r w e r w e 1 1 1 1 0 1 0 0 1 owner group world • File protection is tied more to the operating system than to a specific language.

8. Examples: fd = open(filename, O_RDWR | O_CREAT, 0751); fd = open(filename, O_RDWR | O_CREAT | O_TRUNC, 0751); fd = open(filename, O_RDWR | O_CREAT | O_EXCL, 0751);

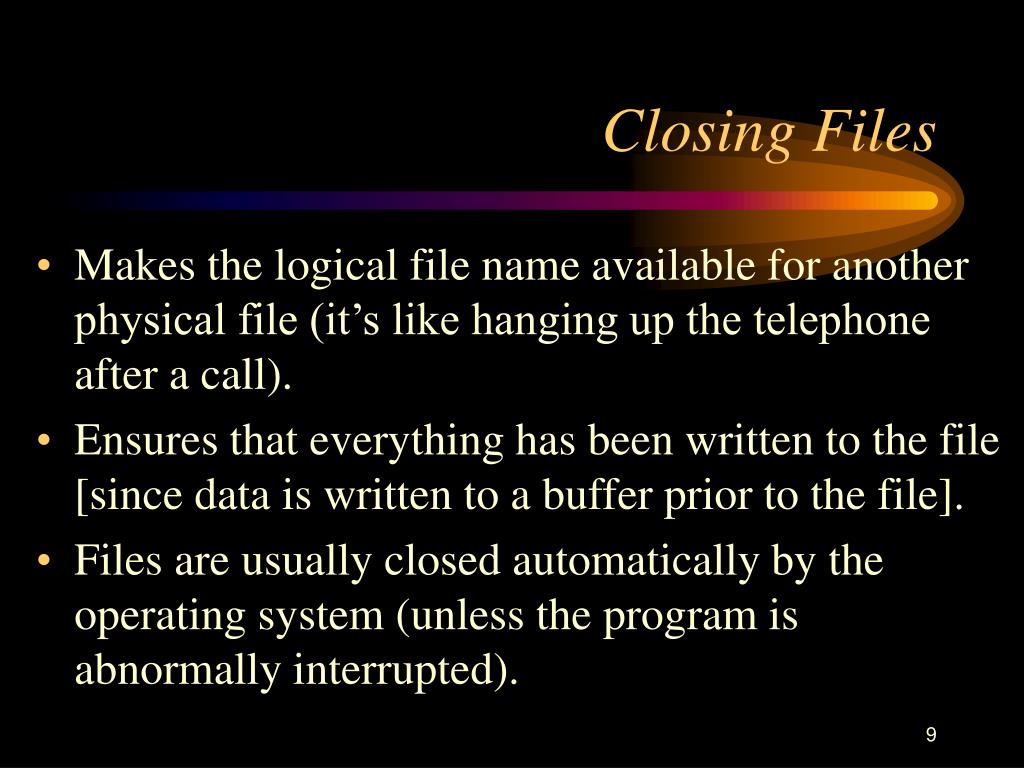

9. Closing Files • Makes the logical file name available for another physical file (it’s like hanging up the telephone after a call). • Ensures that everything has been written to the file [since data is written to a buffer prior to the file]. • Files are usually closed automatically by the operating system (unless the program is abnormally interrupted).

10. Reading • Read(Source_file, Destination_addr, Size) • Source_file = location the program reads from, i.e., its logical file name • Destination_addr = first address of the memory block where we want to store the data. • Size = how much information is being brought in from the file (byte count).

11. Writing • Write(Destination_file, Source_addr, Size) • Destination_file = the logical file name where the data will be written. • Source_addr = first address of the memory block where the data to be written is stored. • Size = the number of bytes to be written.

12. A program does not necessarily have to read through a file sequentially: It can jump to specific locations in the file or to the end of file so as to append to it. • The action of moving directly to a certain position in a file is often called seeking. • Seek(Source_file, Offset) • Source_file = the logical file name in which the seek will occur • Offset = the number of positions in the file the pointer is to be moved from the start of the file.

13. The seek function in UNIX/C: lseek( ) pos = lseek(fd, byte_offset, origin) • pos: a long integer value returned by lseek( ) equal to the number of bytes from the beginning to the file pointer after it has been moved. • fd: the file descriptor. • byte_offset: the number of bytes to move from some origin in the file. The byte_offset is a long integer and can be a negative value. • origin: a value that specifies the starting position from which the byte_offset is to be taken. The values of origin: • SEEK_SET: lseek( ) from the beginning of the file; • SEEK_CUR: lseek( ) from the current position; • SEEK_END: lseek( ) from the end of the file.

14. C/C++ streams • In C/C++, a file (and other devices like keyboard) is a stream of data. • There are two sets of I/O operations. • C streams in stdio.h • C++ stream classes in iostream.h and fstream.h • Comparison between UNIX/C operations and C/C++ streams • both support a complete set of file operations • UNIX/C • Available mostly on UNIX, (also in Microsoft Visual C++) • Fast • Low level • C/C++ Streams • Standard C/C++ features, available on almost all operating systems • Provide structured I/O

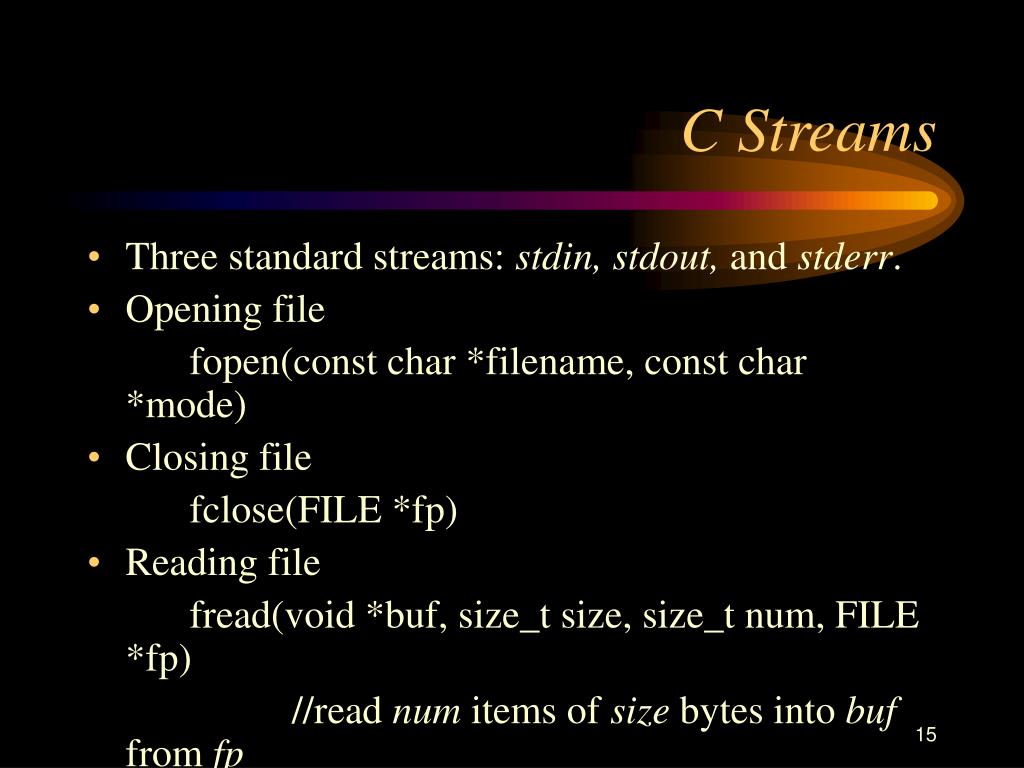

15. C Streams • Three standard streams: stdin, stdout, and stderr. • Opening file fopen(const char *filename, const char *mode) • Closing file fclose(FILE *fp) • Reading file fread(void *buf, size_t size, size_t num, FILE *fp) //read num items of size bytes into buf from fp fgetc(FILE *fp) // return the next character from fp fgets(char *buf, int size, FILE *fp) // read a line or up to size bytesinto buf from fp fscanf(FILE *fp, const char *format, …) // read and format data from fp

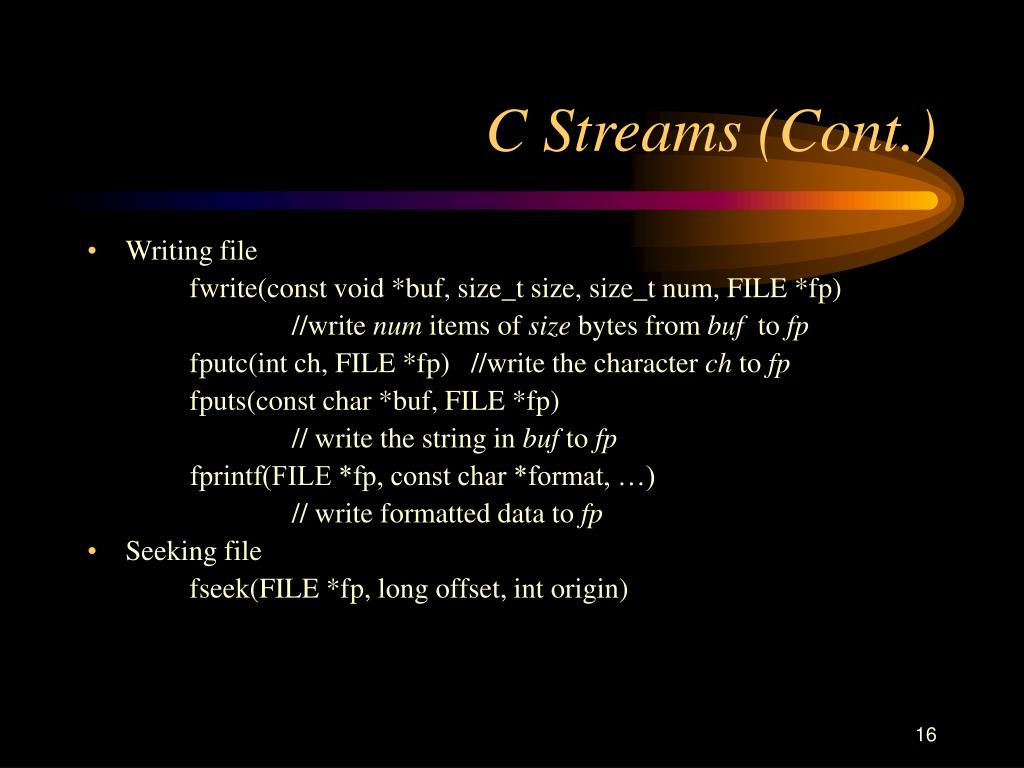

16. C Streams (Cont.) • Writing file fwrite(const void *buf, size_t size, size_t num, FILE *fp) //write num items of size bytes from buf to fp fputc(int ch, FILE *fp) //write the character ch to fp fputs(const char *buf, FILE *fp) // write the string in buf to fp fprintf(FILE *fp, const char *format, …) // write formatted data to fp • Seeking file fseek(FILE *fp, long offset, int origin)

17. C++ handles file I/O by creating objects of the stream classes. • Standard stream objects: cin, cout, cerr, clog • Stream classes: in file iostream.h: ios, istream, ostream, iostream, in file fstream.h: ifstream, ofstream, fstream ios istream ostream ifstream iostream ofstream fstream

18. Opening file constructor member function open • Closing file destructor member function close • Reading file overloaded extracting operator << many others: read, get, getline • Writing file overloaded inserting operator >> many others: write, put • Seeking file seekg: set the read/get pointer seekp: set the write/put pointer

19. The LIST Program • A simple file processing program: LIST • Display a prompt for the name of the input file. • Read the user’s response from the keyboard into a variable called filename. • Open the file for input. • While there are still characters to be read from the input file, • read a character from the file and, • write the character to the terminal screen. • Close the input file.

20. /* read characters from a file and write them to the terminal screen */ #include <stdio.h> #include <fcntl.h> main( ) { char c; int fd; /* file descriptor */ char filename[20]; printf(“Enter the name of the file: “); /* step 1 */ gets(filename); /* step 2 */ fd = open(filename, O_RDONLY); /* step 3 */ while (read(fd, &c, 1) != 0) /* step 4a */ putchar(c); /* write(stdout, &c, 1); does not work step 4b */ close(fd); /* step 5 */ }

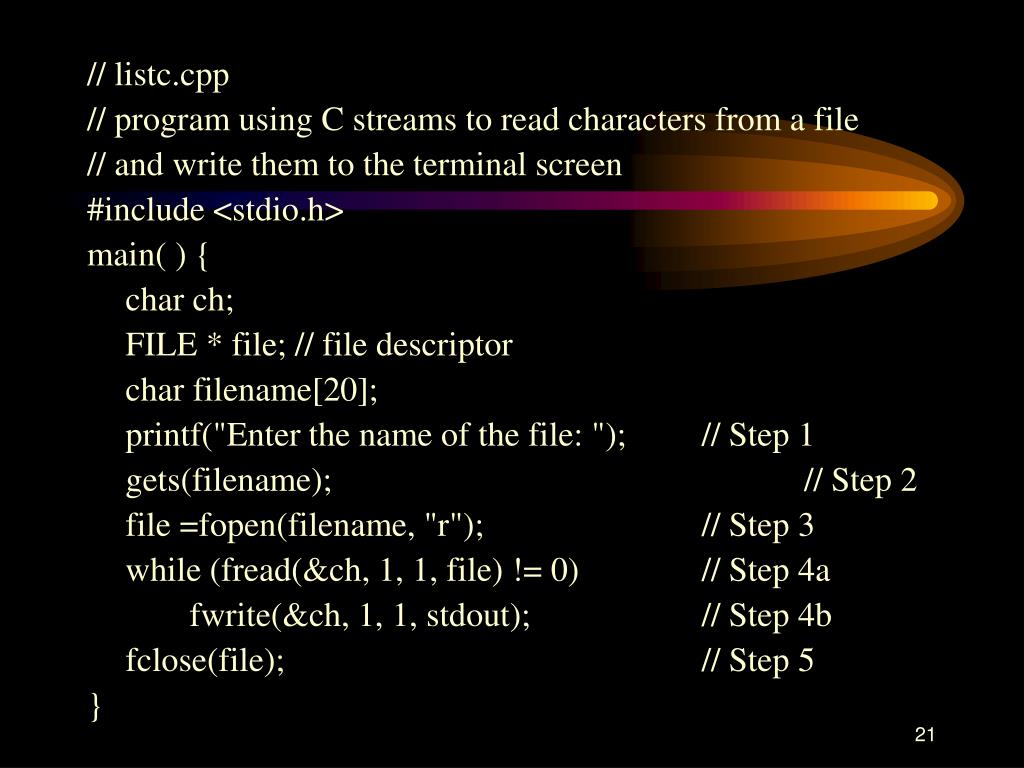

21. // listc.cpp // program using C streams to read characters from a file // and write them to the terminal screen #include <stdio.h> main( ) { char ch; FILE * file; // file descriptor char filename[20]; printf("Enter the name of the file: "); // Step 1 gets(filename); // Step 2 file =fopen(filename, "r"); // Step 3 while (fread(&ch, 1, 1, file) != 0) // Step 4a fwrite(&ch, 1, 1, stdout); // Step 4b fclose(file); // Step 5 }

22. // listcpp.cpp DO THIS ONE... // list contents of file using C++ stream classes #include <fstream.h> void main () { char ch; fstream file; // declare fstream unattached char filename[20]; cout <<"Enter the name of the file: " // Step 1 <<flush; // force output cin >> filename; // Step 2 file.open(filename, ios::in); // Step 3 file.unsetf (ios::skipws); // include white space in read while (1) { file >> ch; // Step 4a if (file.fail()) break; cout << ch; // Step 4b } file.close(); // Step 5 }

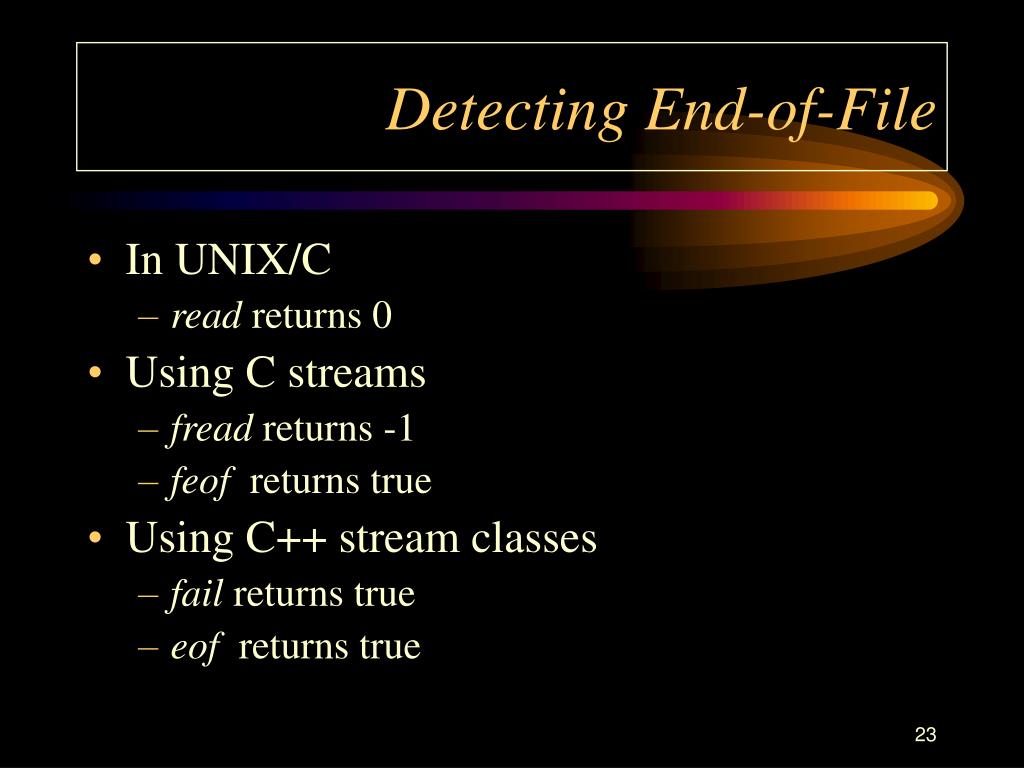

23. Detecting End-of-File • In UNIX/C • read returns 0 • Using C streams • fread returns -1 • feof returns true • Using C++ stream classes • fail returns true • eof returns true

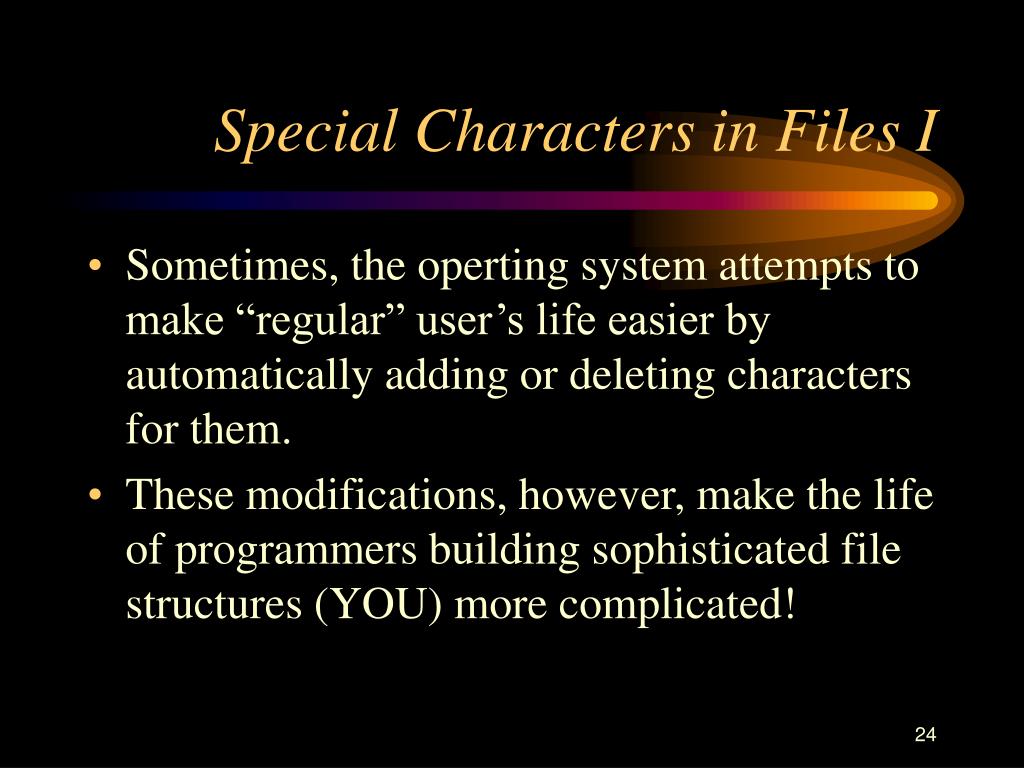

24. Special Characters in Files I • Sometimes, the operting system attempts to make “regular” user’s life easier by automatically adding or deleting characters for them. • These modifications, however, make the life of programmers building sophisticated file structures (YOU) more complicated!

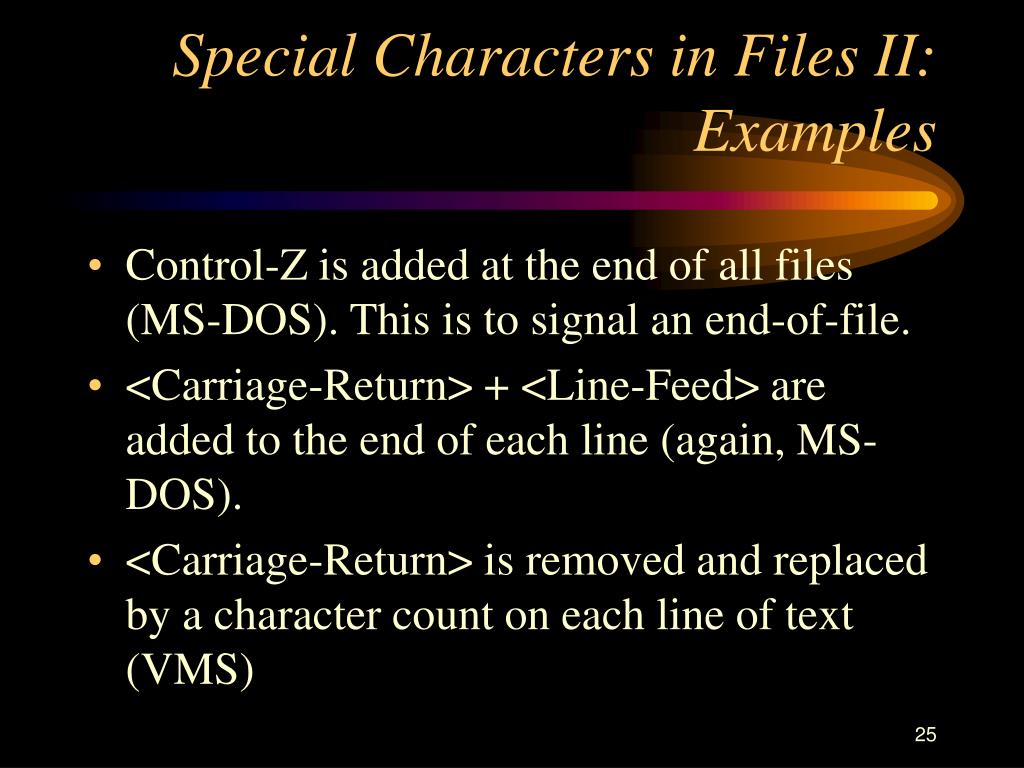

25. Special Characters in Files II: Examples • Control-Z is added at the end of all files (MS-DOS). This is to signal an end-of-file. • <Carriage-Return> + <Line-Feed> are added to the end of each line (again, MS-DOS). • <Carriage-Return> is removed and replaced by a character count on each line of text (VMS)

26. The Unix Directory Structure I • In any computer systems, there are many files (100’s or 1000’s). These files need to be organized using some method. In Unix, this is called the File System. • The Unix File System is a tree-structured organization of directories. With the root of the tree represented by the character “/”. • Each directory can contain regular files or other directories. • The file name stored in a Unix directory corresponds to its physical name.

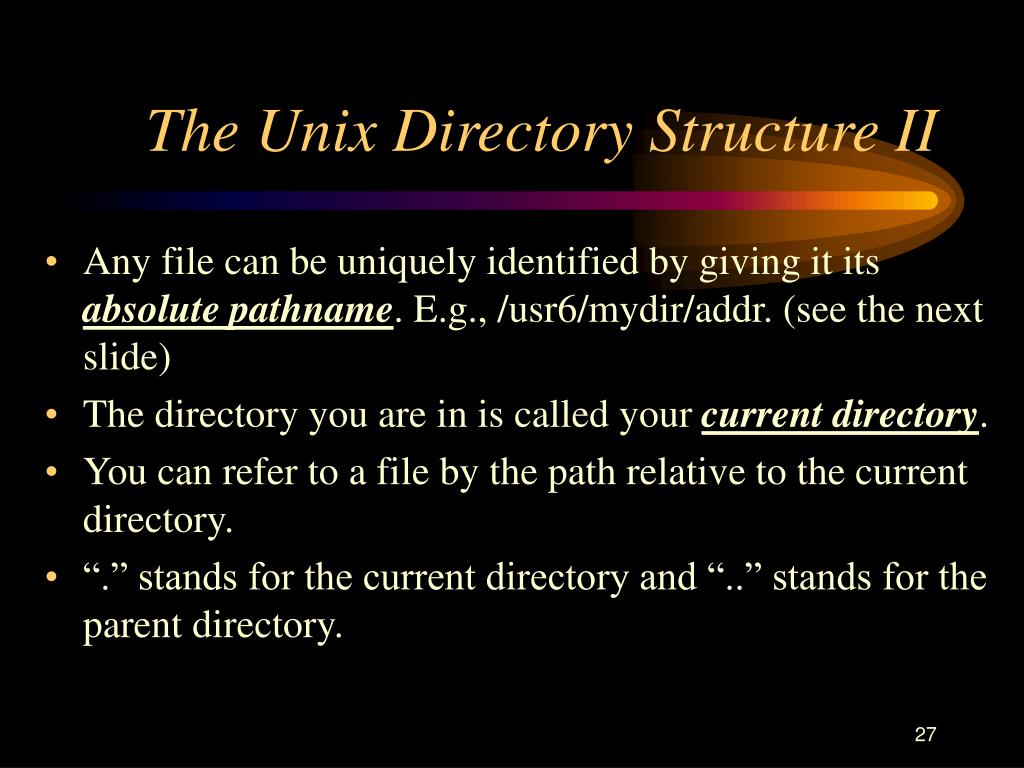

27. The Unix Directory Structure II • Any file can be uniquely identified by giving it its absolute pathname. E.g., /usr6/mydir/addr. (see the next slide) • The directory you are in is called your current directory. • You can refer to a file by the path relative to the current directory. • “.” stands for the current directory and “..” stands for the parent directory.

29. Physical Devices and Logical Files • Unix has a very general view of what a file is: it corresponds to a sequence of bytes with no worries about where the bytes are stored or where they come from. • Magnetic disks or tapes can be thought of as files and so can the keyboard and the console. • No matter what the physical form of a Unix file (real file or device), it is represented in the same way in Unix: by an integer.

30. Stdout, Stdin, Stderr • Stdout --> Console • fwrite(&ch, 1, 1, stdout); • Stdin --> Keyboard • fread(&ch, 1, 1, stdin); • Stderr --> Standard Error (again, Console) • [When the compiler detects an error, the error message is written in this file]

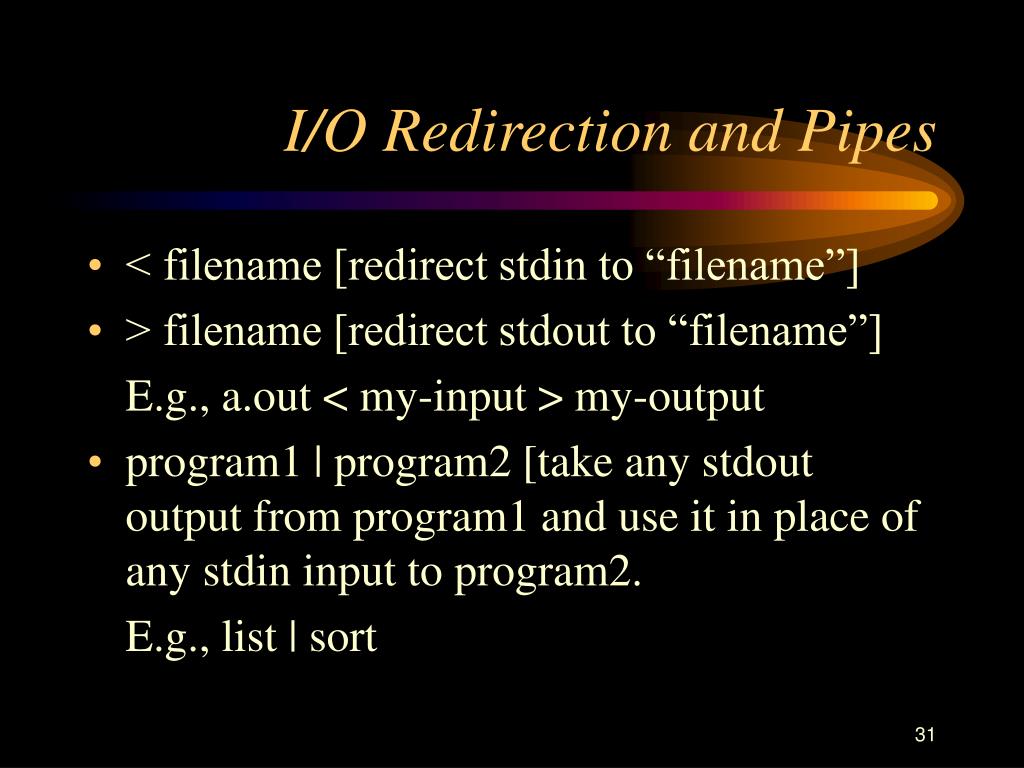

31. I/O Redirection and Pipes • < filename [redirect stdin to “filename”] • > filename [redirect stdout to “filename”] • E.g., a.out < my-input > my-output • program1 | program2 [take any stdout output from program1 and use it in place of any stdin input to program2. • E.g., list | sort

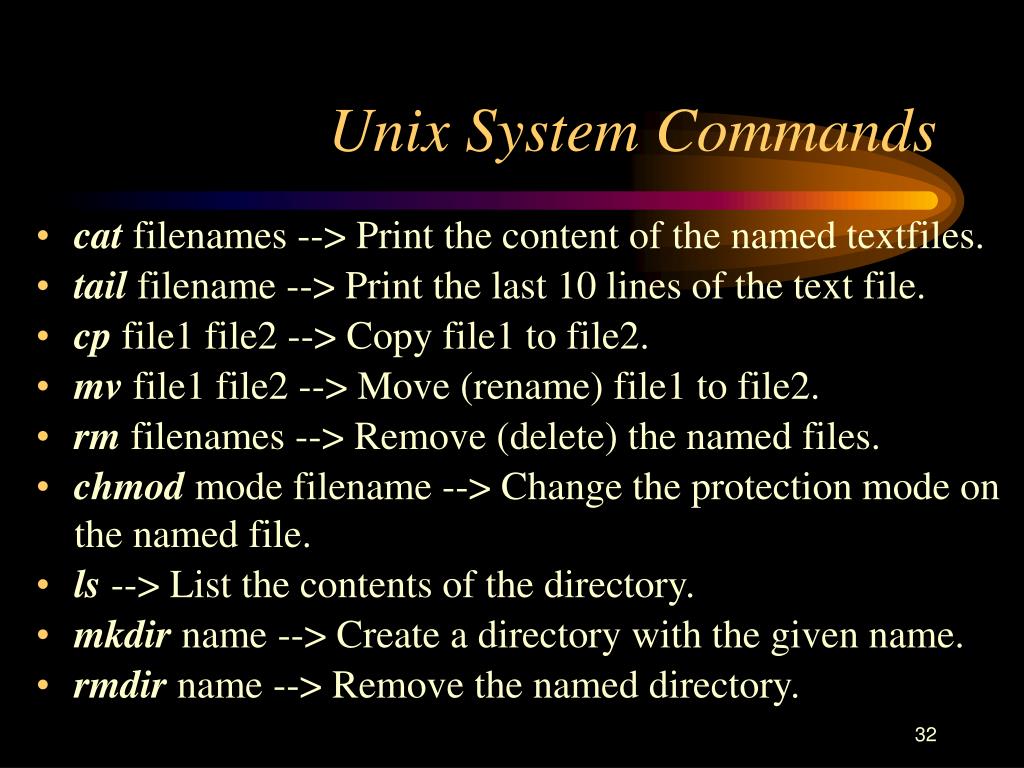

32. Unix System Commands • cat filenames --> Print the content of the named textfiles. • tail filename --> Print the last 10 lines of the text file. • cp file1 file2 --> Copy file1 to file2. • mv file1 file2 --> Move (rename) file1 to file2. • rm filenames --> Remove (delete) the named files. • chmod mode filename --> Change the protection mode on the named file. • ls --> List the contents of the directory. • mkdir name --> Create a directory with the given name. • rmdir name --> Remove the named directory.
