Probability and statistics

Probability and Statistics

June 4, 2009

Dr. Lisa Green


Goals

Goals

  • Main goal: Understand the difference between probability and statistics.

  • Also will see:

    • Binomial Model

    • Law of Large Numbers

    • Monte Carlo Simulation

    • Confidence Intervals


Probability vs statistics

Probability vs. Statistics

Probability

Model

Data

Statistics

Model: An idealized version of how the world works.

Data: Collected observations.

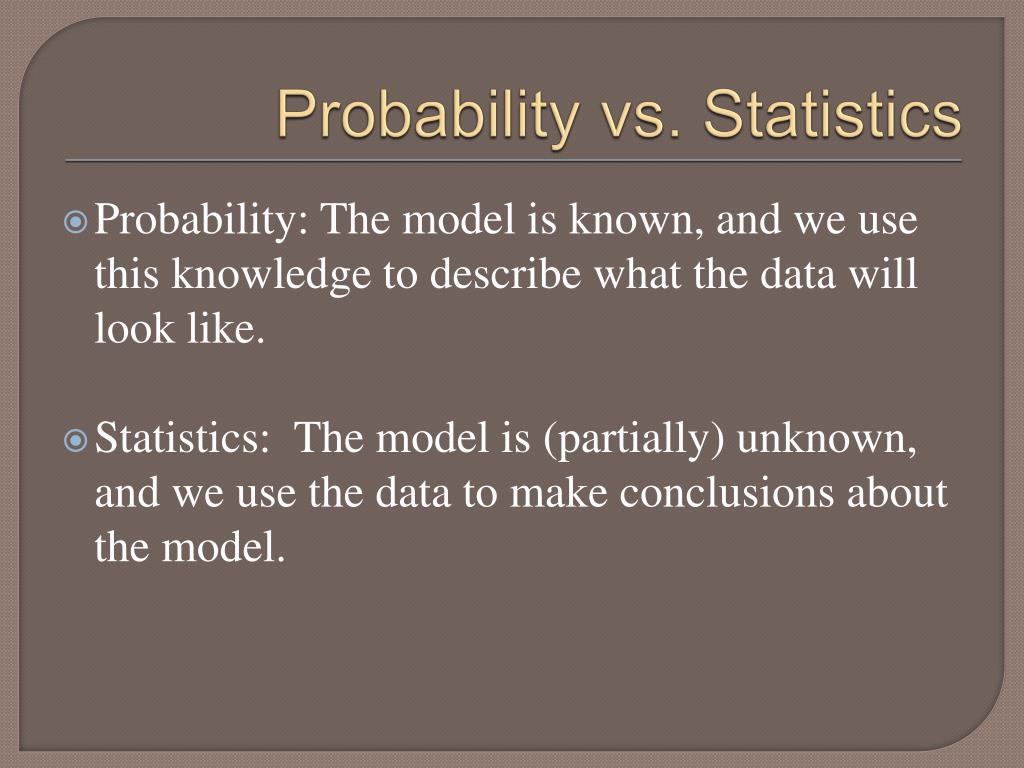

Probability vs statistics1

Probability vs. Statistics

Probability: The model is known, and we use this knowledge to describe what the data will look like.

Statistics: The model is (partially) unknown, and we use the data to make conclusions about the model.

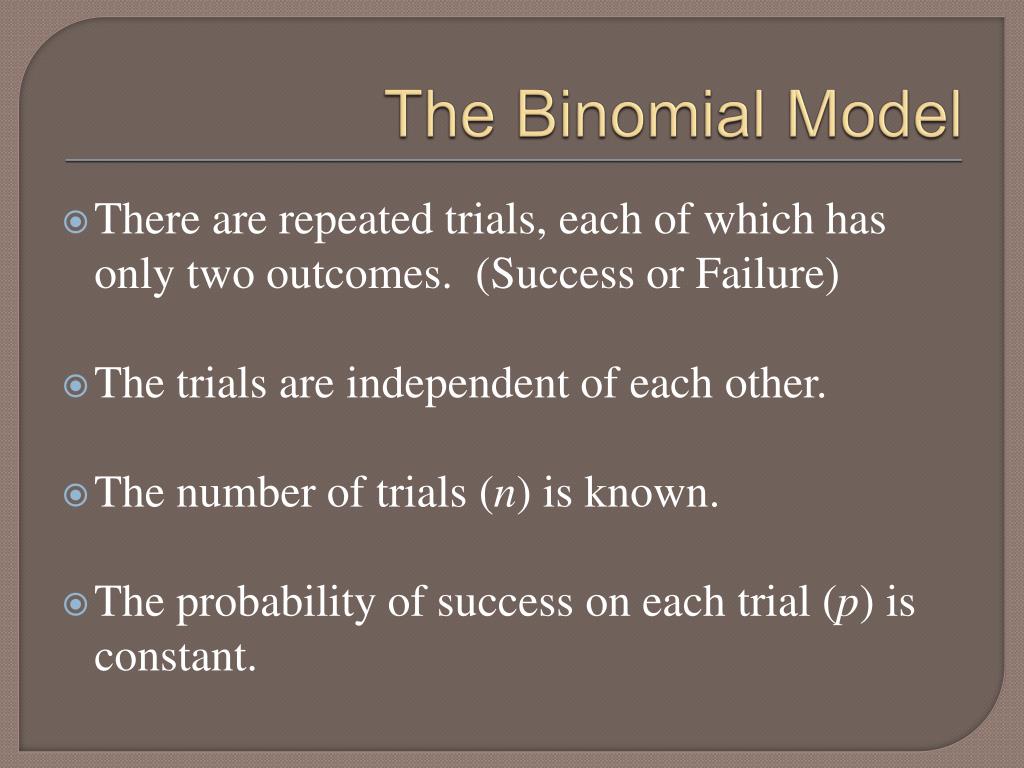

The binomial model

The Binomial Model

There are repeated trials, each of which has only two outcomes. (Success or Failure)

The trials are independent of each other.

The number of trials (n) is known.

The probability of success on each trial (p) is constant.

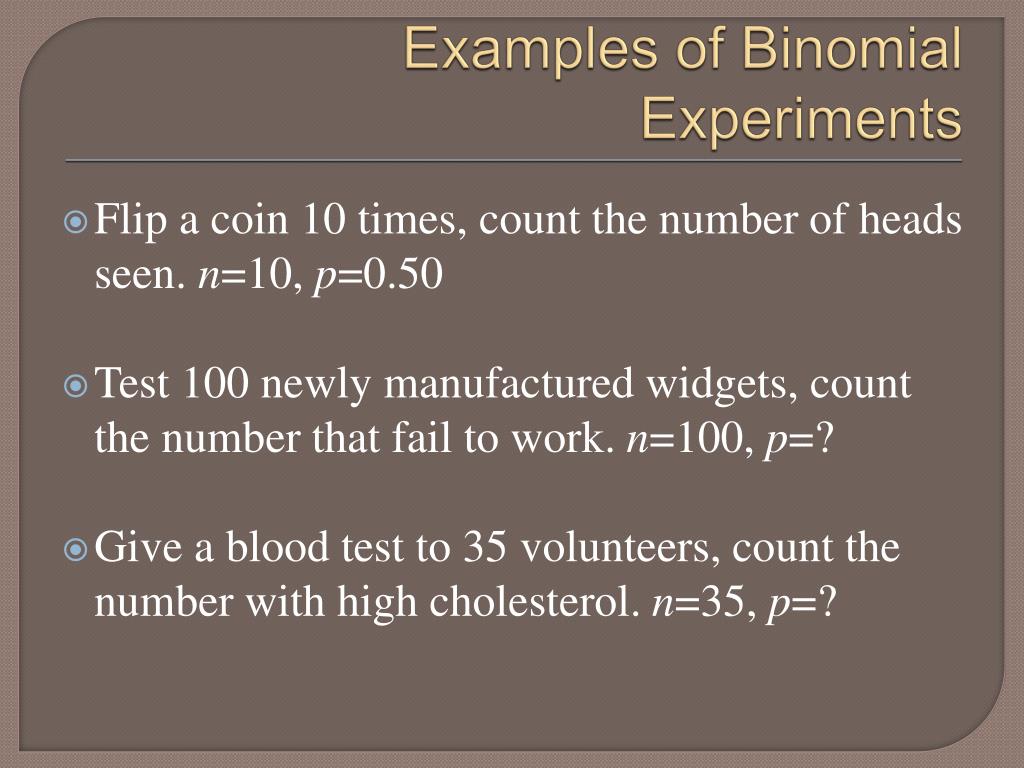

Examples of binomial experiments

Examples of Binomial Experiments

Flip a coin 10 times, count the number of heads seen. n=10, p=0.50

Test 100 newly manufactured widgets, count the number that fail to work. n=100, p=?

Give a blood test to 35 volunteers, count the number with high cholesterol. n=35, p=?


A trial

A trial

1 unit

  • Pick a point at random inside the unit square.

  • If it is also inside the arc of the unit circle, count it as a success. If not, count it as a failure.

  • What is the probability of a success?


An experiment

An experiment

We know that the probability of success is π/4.

If we repeat this trial n times, we have a binomial experiment.

If n=100, we expect between 71 and 86 of the trials to end up successes. (95% of the time)


Estimating pi

Estimating Pi

7851438/10000000 * 4 = 3.1406 and 7856526/10000000 * 4 = 3.1426

This is the law of large numbers in action.

If we didn’t already know the value of pi, and we had a lot of time, we could use this to estimate pi. Using random processes to estimate constant numbers is called Monte Carlo Simulation.

A simulation of this is at http://polymer.bu.edu/java/java/montepi/montepiapplet.html


This was a probability problem

This was a probability problem

We knew the model.

We knew the values of all constants.

We used that knowledge to make predictions about what was going to happen.

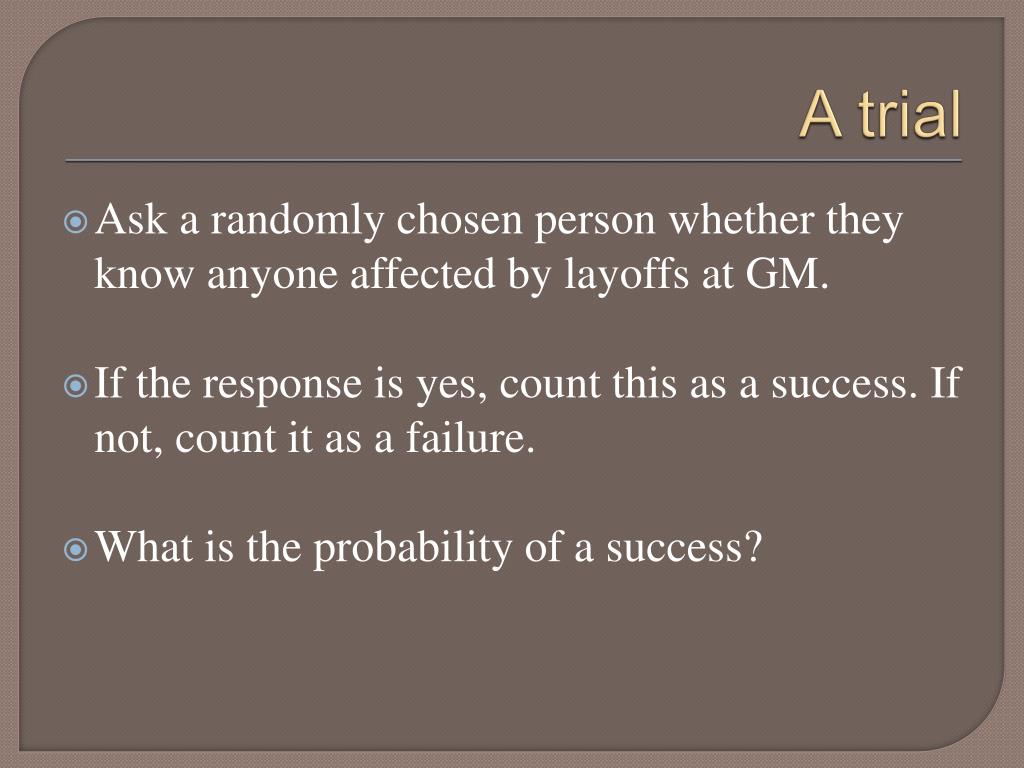

A trial1

A trial

Ask a randomly chosen person whether they know anyone affected by layoffs at GM.

If the response is yes, count this as a success. If not, count it as a failure.

What is the probability of a success?


An experiment1

An experiment

  • We don’t know the probability of success. Let’s call it p for now.

  • If we repeat the trial n times, and are careful about which people we talk to, we have a binomial experiment.

  • If we talk to 100 people, and 17 say they know someone affected by layoffs at GM, then the value of p is somewhere between 0.096 and 0.244 (95% confidence).


Confidence intervals

Confidence Intervals

Note: There are obviously logistical difficulties in asking a million people a question.

Confidence intervals have confidence levels. The ones above are at the 95% confidence level. Here is an applet that lets you explore what the confidence level means: http://www.rossmanchance.com/applets/Confsim/Confsim.html

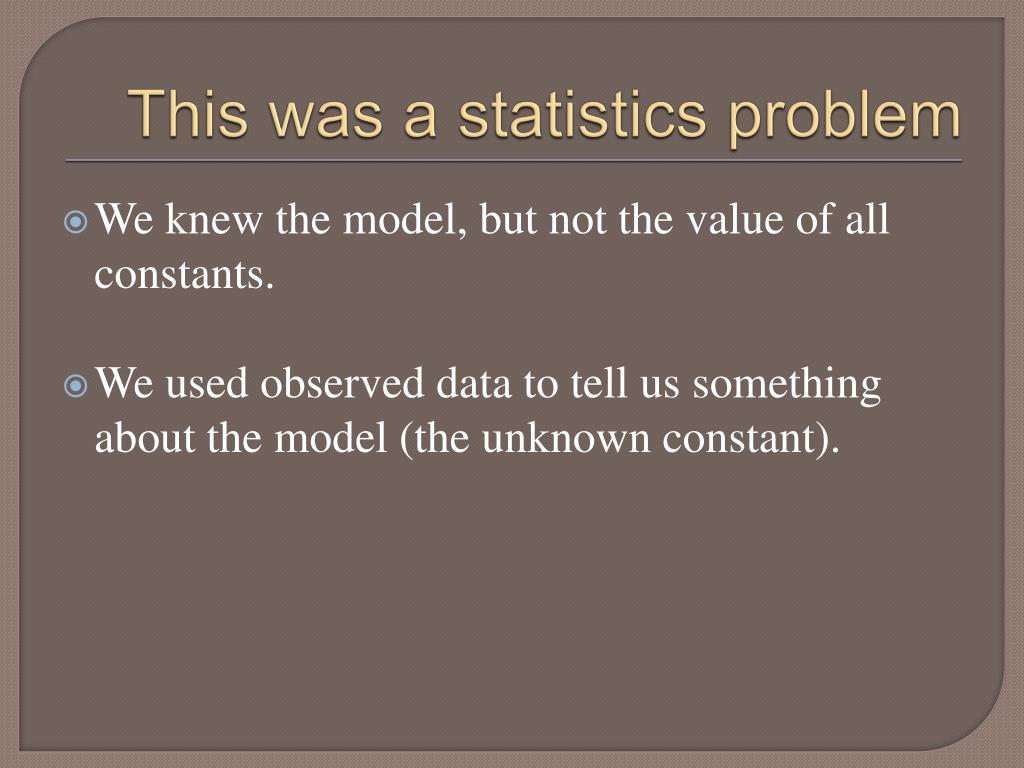

This was a statistics problem

This was a statistics problem

We knew the model, but not the value of all constants.

We used observed data to tell us something about the model (the unknown constant).


Other web pages

Other Web Pages

Buffon’s Needle http://www.mste.uiuc.edu/reese/buffon/buffon.html

Reese’s Pieces Applet http://www.rossmanchance.com/applets/Reeses/ReesesPieces.html

CAUSEweb http://www.causeweb.org/


The binomial distribution

The Binomial Distribution

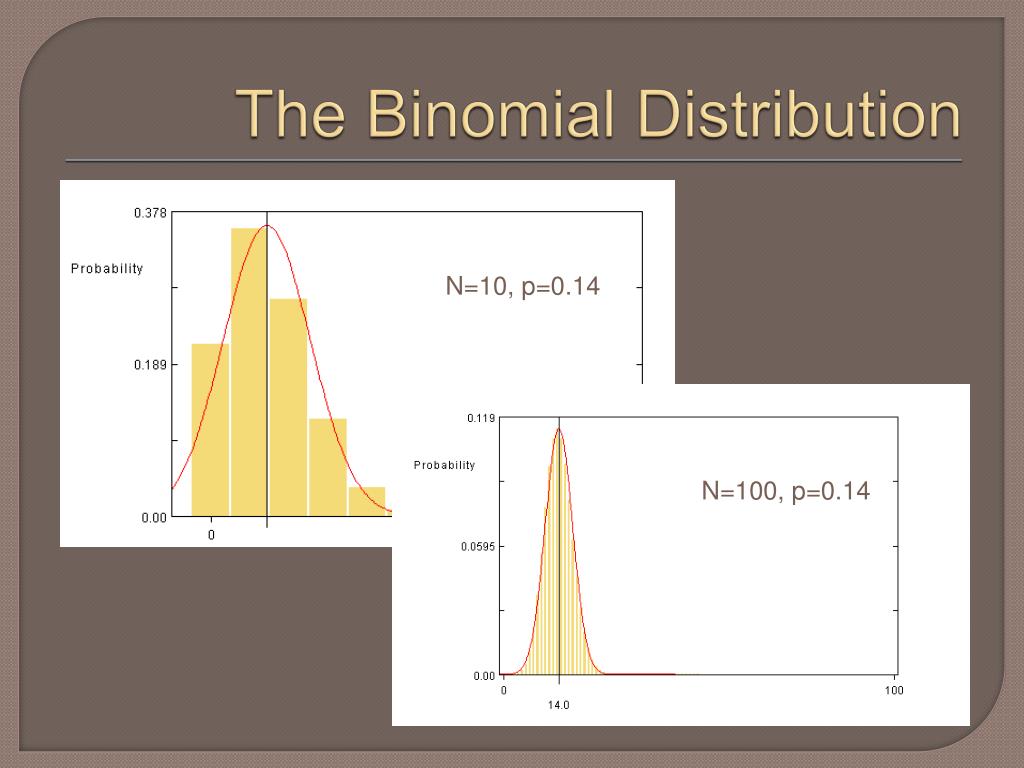

The binomial distribution1

The Binomial Distribution

N=10, p=0.14

N=100, p=0.14
