  1. 4-Slot Layer 3 IPv6/IPv4 Routing Chassis Switch XGS3-42000R

  2. Presentation Outline • Product Overview • Product Benefits • Product Features • Application • Comparison

  3. Product Overview • The Advantages of XGS3-42000R • Extensive Layer 2 / 3 / 4 Serve every kind of network application • IPv6 Next Generation IP Protocol • 10G Ultra High Speed and Bandwidth

  4. Product Overview • Chassis-Based IPv6/IPv4 10G Routing Switch Redundant Management System Redundant Power System High Performance High Density 188 10/100/1000 Copper Ports Flexible Scalable 156 xGigabit Fiber Ports 13 x 10G Copper Ports Reliable

  5. Redundant Power Slots 400W 100~240V AC Power Supply Mgt Module Slots 6U high 265mm Standard Module Slots FAN Tray Product Overview – The Chassis • Front Panel of XGS3-42000R

  6. Dust Gauze Product Overview – The Chassis • Rear Panel of XGS3-42000R 100~240V AC IEC Power Connector

  7. Product Overview – Optional Modules • Management Modules • Drive the all manage features of the chassis • Modules • XGS3-M24GX • XGS3-M44G • Standard Modules • Provide port density, port flexibility of the chassis for different network applications • XGS3-S24G • XGS3-S48G • XGS3-S48GF • XGS3-S4XG

  8. 10G XFP Slot RJ-45 Console 24 x 10/100/1000Base-T, RJ-45 1000SX/LX SFP slots Product Overview – Optional Modules • Management Modules • XGS3-M24GX • 24-Port 10/100/1000Base-T RJ-45 • 12 for 3.3VDC mini-GBIC/SFP slots • Shared with Port-13 and Port-24 • Compatible with 1000Base-SX / LX / ZX / WDM SFP modules • 1-Port 10GBase-SR/LR XFPslot • 1 RJ-45 serial console Interface

  9. 44 x 10/100/1000Base-T, RJ-45 RJ-45 Console Product Overview – Optional Modules • Management Modules • XGS3-M44G • 44-Port 10/100/1000Base-T RJ-45 • 1 RJ-45 serial console Interface

  10. 48 x 10/100/1000Base-T, RJ-45 24 x 10/100/1000Base-T, RJ-45 1000SX/LX SFP slots Product Overview – Optional Modules • Standard Modules • XGS3-S24G • XGS3-S48G

  11. 48 x 1000Base-SX/LX, SFP 4 x 10GBase-SR/LR, XFP Product Overview – Optional Modules • Standard Modules • XGS3-S48GF • XGS3-S4XG

  12. Management Redundant Product Overview – Optional Combination • Flexible modules install by request Management Module Management Module Standard Module Standard Module Standard Module

  13. Product Overview – Optional Modules • Summary Table

  14. Product Benefits • High Performance Full Wire-Speed forward • Hardware IPv6 Technology • Abundant IPv6/IPv4 Routing Protocols • Strong IPv6/IPv4 Multicast Protocols • High Security and Reliability • Advanced Secure Network Management • Centralized Single IP Management

  15. Product Benefits – ISP / Telecom • Abundant IPv6 Support • Hardware-based IPv6 routing for maximum performance • Meet the need for larger addressing and higher security • Rich IPv6 / IPv4 Routing Protocol • RIP v1/v2, RIPng and OSPF v2/v3 provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. • VRRP prevents your system from failing by dynamically backing up multiple L3 switches for routing. • Policy-Based Route is important for customer when they need multi exit application.

  16. Product Benefits – ISP / Telecom • Strong Multicast • Rich L2 multicast features such as IGMPv1/v2/v3 and snooping • L3 multicast protocols such as DVMRP, PIM-DM, PIM-SM and PIM-SSM • Performance • The 10 Gigabit Ethernet connectivity via a hot-pluggable 10 Gigabit XFP transceiver • Q-in-Q for MAN (Metro Area Network) applications

  17. Product Benefits – Campus / Enterprise • Cost-Effective IPv6 Managed Core Layer Switch • IPv4 / IPv6 Dual Stack helps to connect to IPv6 network now and in the future • Full / Secure Management • SSH / SSL / SNMPv3 protocols ensure security management • SNMP , RMON and Trap alarm for Centralize Network Management • Excellent Layer 2 / 3 /4 , IPv6 and IPv4 Traffic Control • Layer 2 / 3 / 4 QoS Traffic Control • Layer 2 / 3 / 4 ACL Security • DDOS prevent • Reliable • Redundant Management Modules • Redundant AC Power Supplies for non-stop operating

  18. Product Key Features XGS3-42000R IPv6 / IPv4 Routing Modularized Design IPv6 / IPv4 Tunneling Enhanced Security 10Gb Ethernet IPv6 / IPv4 Dual Stack IPv6 / IPv4 ACL & QoS

  19. Product Features – Software Overview

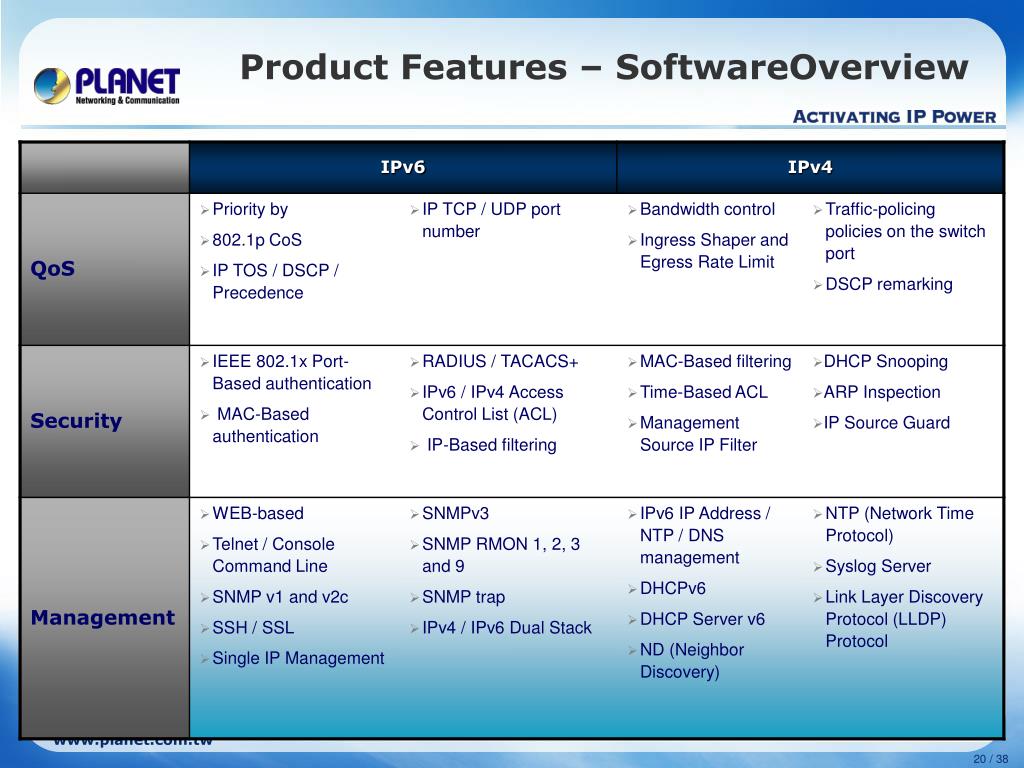

  20. Product Features – SoftwareOverview

  21. Product Features - PBR • PBR(Policy-Based Routing) • PBR is a method which determines the next-hop of the data packets by policy messages such as: • Source address • Destination address • IP priority • TOS value • IP protocol • Source port No • Destination port No

  22. IPv6 or IPv4 Host XGS3-42000R VoIP Phone Product Features - PBR • IPv6 / IPv4 Policy-Based Routing ISP 1 HTTP / Email Traffic Internet Fail ISP 2 VoIP Traffic Policy-Based Routing

  23. IPv6 network B IPv6 network A IPv4 network XGS3-42000R XGS3-42000R IPv6 Host IPv6 Host Product Features – 6to4 Tunnel • IPv6 6to4 Tunnel • IPv6 over IPv4 Tunnel 6to4 Tunnel IPv6 Traffic TunneledIPv6 Traffic IPv6 Traffic

  24. IPv6 network Application IPv4 network Transport Layer XGS3-42000R IPv4 Stack IPv6 Stack IPv6 Host IPv4 Host Product Features – Dual Stack • IPv6 / IPv4 Dual Stack SSL ICMP WEB TELNET SNMP SSH NTP DHCP

  25. IPv4 / IPv6 Internet IPv6 network IPv4 network XGS3-42000R IPv6 Host IPv4 Host Product Features – IPv6 • IPv6 / IPv4 Routing

  26. ISP / Telecom Enterprise PLANET IPv6 10G Switch XGS3-42000R Campus / Hospital Data Center Applications

  27. Applications • High Performance, High-Density,High Reliable Enterprise Backbone Switch • 10-Gigabit Ethernet supported equipment has become the fundamental unit of Enterprises and Network servers. The PLANET XGS3-42000R Chassis Switch can easily provide the cost-effective, high-density and high-bandwidth required from now on. • Dedicated Chassis architecture features built into the XGS3-42000R makes all modules in the platform operate together as a one much larger switch providing multiple high performance 10-Gigabit Ethernet network for backbone of enterprise, campus or Telecoms. • The redundant management modules and dual power supplies provide the XGS3-42000R nonstop network service ability. Moreover, all modules are hot swappable. They can be added or exchanged without interrupting the whole system operation. • The XGS3-42000R Chassis Switch is ideal to be used as a server farm switch connecting servers and perfectly suited to networking environments requiring constant access to critical business applications.

  28. Applications - Enterprise 10G 10G 10G IPv6 /IPv4 Network Routing 10G XGS3-42000R 10GbE Backbone 80G fat pipe 10G

  29. Applications • Carrier Class Backbone Switch for the Campus and Community • For small area network communication such as in campus and community, the PLANET XGS3-42000R Chassis Switch enables an affordable and scalable network deployment. • It offers a high capacity chassis platform with high quality and reliability in 10/100/1000Base-T, 1000Base-SX/LX and 10GBase-SR/LR scalable solutions that integrate easily into any large network. • The XGS3-42000R provides up to 188 high-density Gigabit Ethernet ports, in which up to 156 mini-GBIC / SFP ports are available for remote uplink connectivity in a single system and provide the uplink to the edge network through 1000Base-SX/LX SFP modules. • The XGS3-42000R offers a comprehensive set of modules for complex network and gives network manager the flexibility to expand large area network when needed.

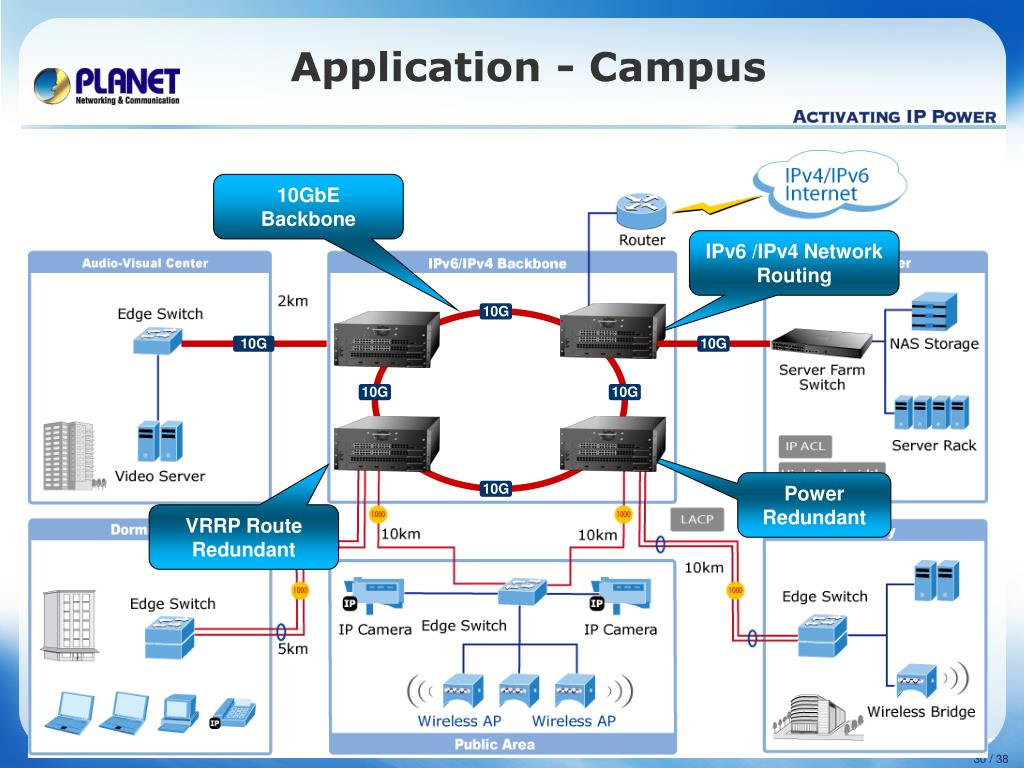

  30. 10G 10G 10G 10G 10G 10G Application - Campus 10GbE Backbone IPv6 /IPv4 Network Routing Power Redundant VRRP Route Redundant

  31. Product Comparison

  32. Product Comparison

  33. Product Comparison

  34. Product Comparison

  35. Appendix • Relative Product

  36. Appendix • Available Modules: • 10 Gigabit XFP • MTB-XSRXFP Port 10GBase-SR Fiber Optic Module (Multi-mode / 850nm / max. 300m) • MTB-XLR XFP Port 10GBase-LR Fiber Optic Module (Single mode / 1310nm / max. 10km) • Gigabit SFP • MGB-GTSFP-Port 1000Base-T Module • MGB-SXSFP-Port 1000Base-SX mini-GBIC module • MGB-LX SFP-Port 1000Base-LX mini-GBIC module • MGB-L50 SFP-Port 1000Base-LX mini-GBIC module-50KM • MGB-L70 SFP-Port 1000Base-LX mini-GBIC module-70KM • MGB-L120SFP-Port 1000Base-LX mini-GBIC module-120KM • MGB-LA10SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-10KM • MGB-LB10SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-10KM

  37. Appendix Sales Target • Target Markets –High Performance Network Service • ISP / Telecom / Network Service Provider • Tender Market • Government / Campus / Hospital • Enterprise Secure Office & Factory • Target Customers • Who needs to connect to IPv6 Network • Who needs to connect between IPv4 and IPv6 Network • Who buys our Layer 3 Switch • XGS3-24040, WGS3-24240

  38. Overview - PLANET 10G Product Line High Port Density XGS3-42000R ENW-9800 ENW-9801 XGS3-24040 Client Core Core / Backbone Chassis-Based

  39. PLANET IPv6 Product Line High Port Density XGS3-42000R SGSW-24040 Series WGSW-24040 Series XGS3-24040 WGSD-8020 Layer 3 / Layer 4 Layer 2 / Layer 4
