Bayesian and Classical Analysis of Multi-Stratum Response Surface Designs

1. Bayesian and Classical Analysis of Multi-Stratum Response Surface Designs Steven Gilmour Queen Mary, University of London Peter Goos Universiteit Antwerpen

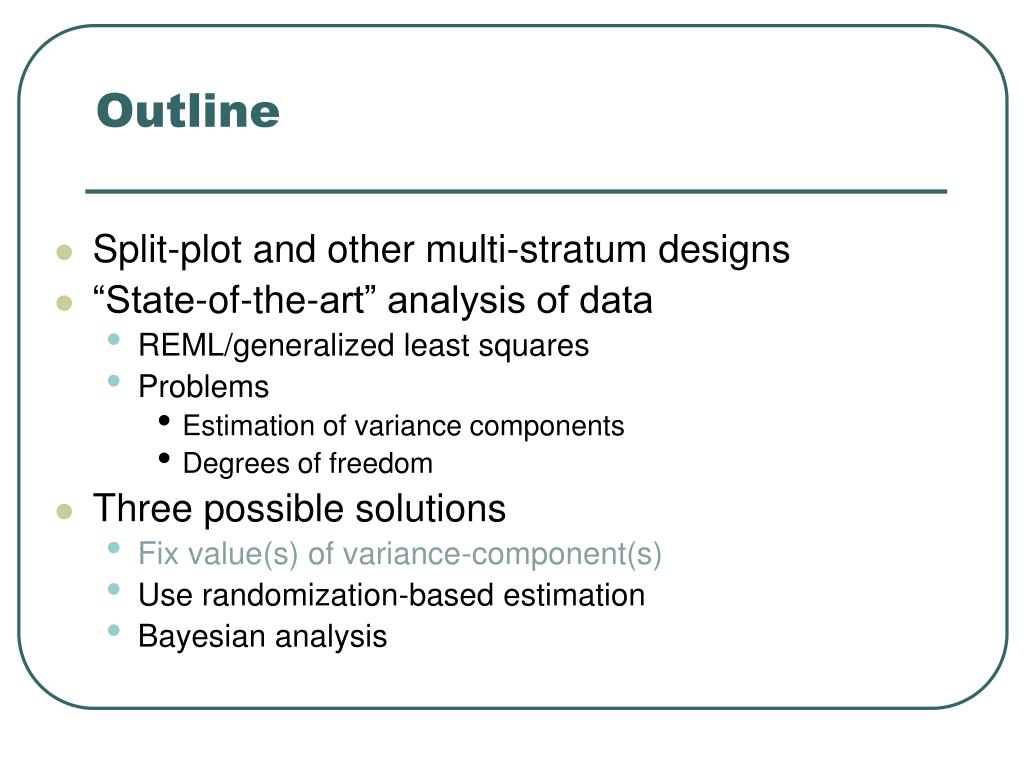

2. Outline • Split-plot and other multi-stratum designs • “State-of-the-art” analysis of data • REML/generalized least squares • Problems • Estimation of variance components • Degrees of freedom • Three possible solutions • Fix value(s) of variance-component(s) • Use randomization-based estimation • Bayesian analysis

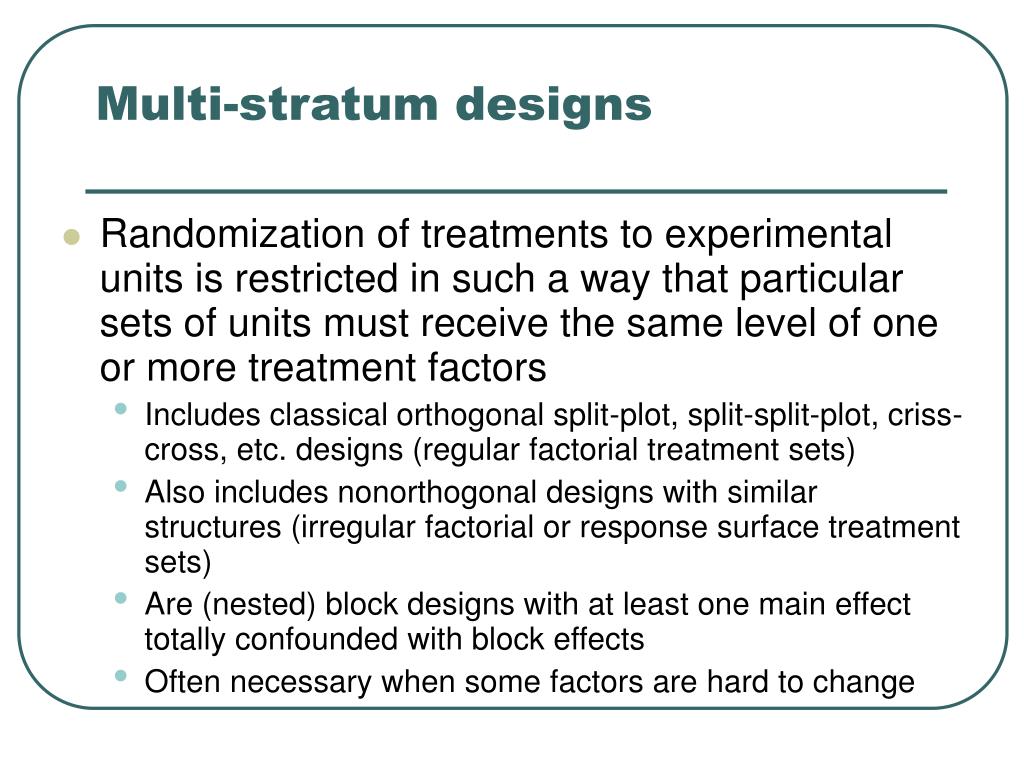

3. Multi-stratum designs • Randomization of treatments to experimental units is restricted in such a way that particular sets of units must receive the same level of one or more treatment factors • Includes classical orthogonal split-plot, split-split-plot, criss-cross, etc. designs (regular factorial treatment sets) • Also includes nonorthogonal designs with similar structures (irregular factorial or response surface treatment sets) • Are (nested) block designs with at least one main effect totally confounded with block effects • Often necessary when some factors are hard to change

4. Multi-stratumdesigns • I refer to the runs as units and the groups of units defined by the randomization restrictions as blocks, superblocks, … • Randomization is performed by randomly relabelling …, superblocks, blocks and units • Implies random effects for …, superblocks, blocks, units (error) in derived linear model • Fixed treatment effects can be modelled using usual polynomial response surface model

5. Freeze-dried coffee experiment • Response: amount of retained volatile compounds in freeze-dried coffee • Treatment factors: • Pressure in drying chamber (dial-controlled) • Heating temperature, Initial solids content, Slab thickness, Freezing rate (all easy to change) • 5 runs during each of 6 days • Randomization restricted so that all runs in a day have the same pressure

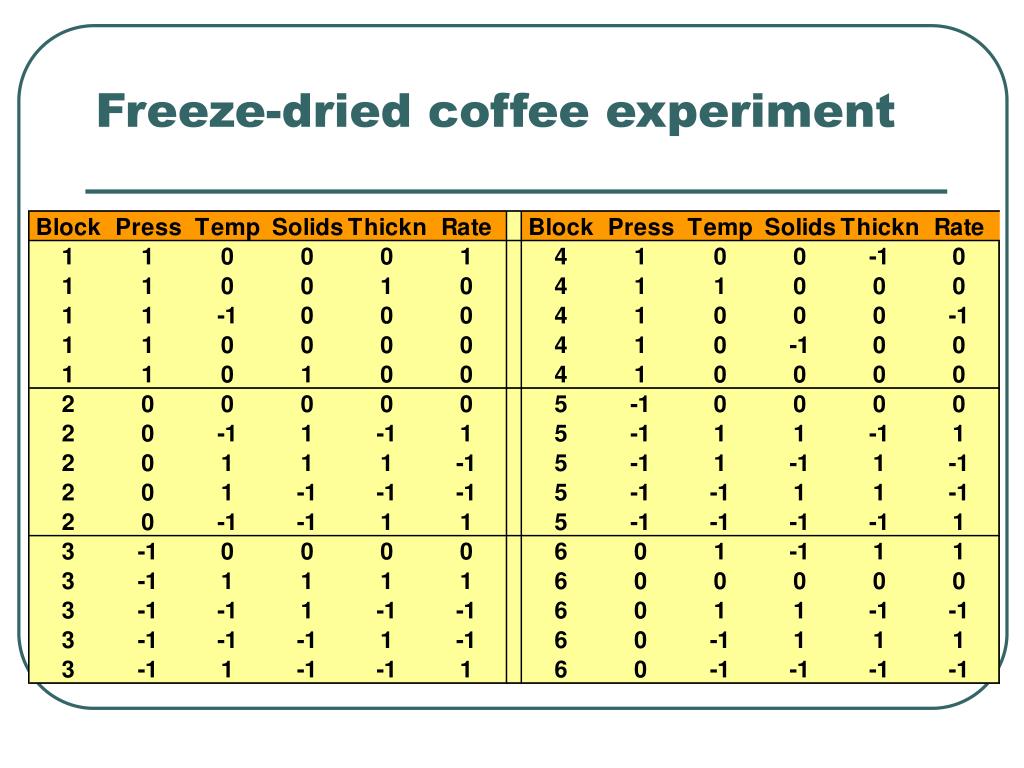

6. Freeze-dried coffee experiment

7. Model • Generalized least squares (GLS) estimation • Variance-covariance matrix Model and analysis

8. Model • Generalized least squares (GLS) estimation • Variance-covariance matrix Model and analysis ? ?

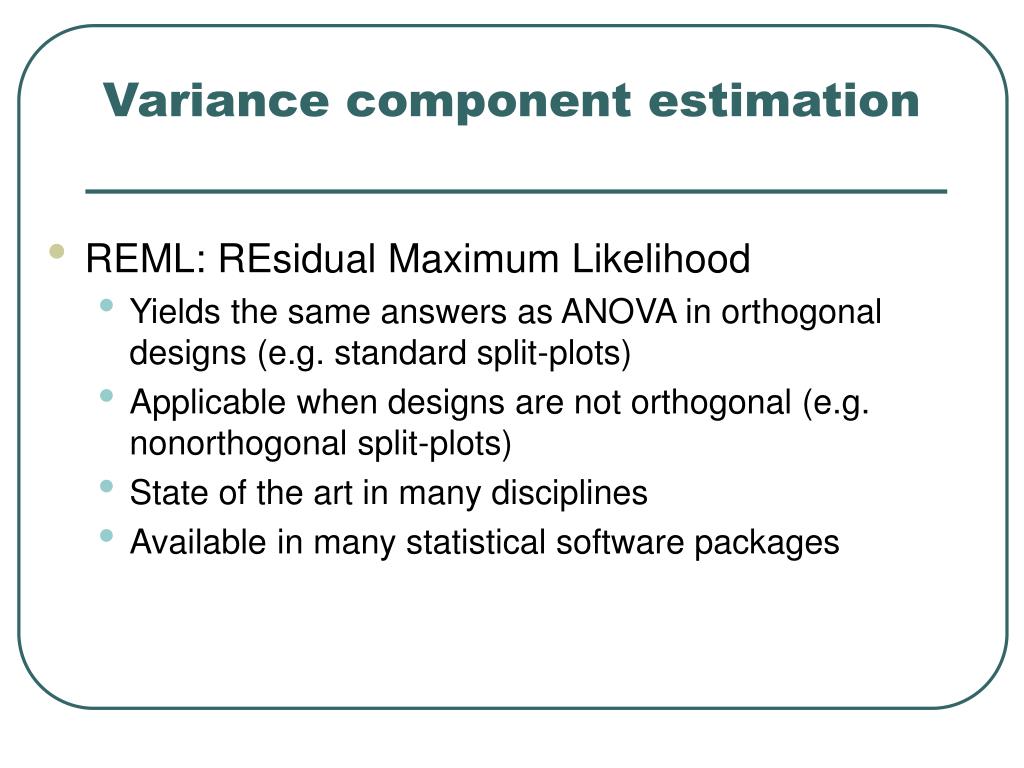

9. Variance component estimation • REML: REsidual Maximum Likelihood • Yields the same answers as ANOVA in orthogonal designs (e.g. standard split-plots) • Applicable when designs are not orthogonal (e.g. nonorthogonal split-plots) • State of the art in many disciplines • Available in many statistical software packages

10. Analysis • Different implementations: • Variance components allowed to be negative or not • Various methods for obtaining effective degrees of freedom • Estimates generally consistent with each other, given different implementations • Effective degrees of freedom can be inconsistent with each other • All methods can give surprising results

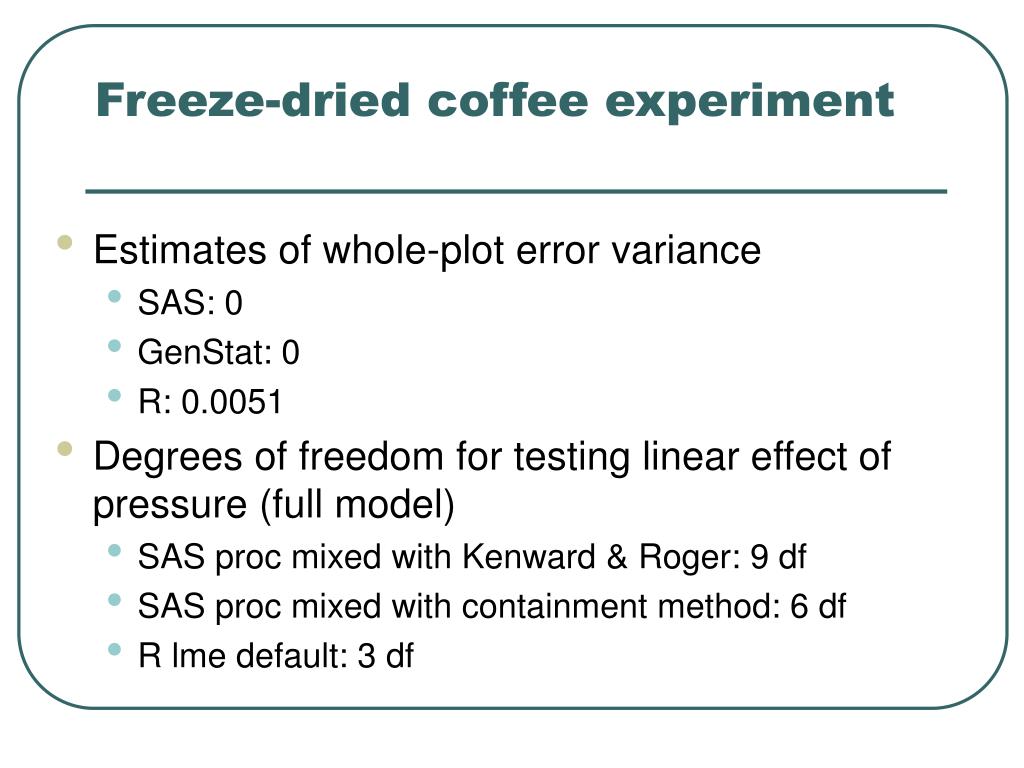

11. Freeze-dried coffee experiment • Estimates of whole-plot error variance • SAS: 0 • GenStat: 0 • R: 0.0051 • Degrees of freedom for testing linear effect of pressure (full model) • SAS proc mixed with Kenward & Roger: 9 df • SAS proc mixed with containment method: 6 df • R lme default: 3 df

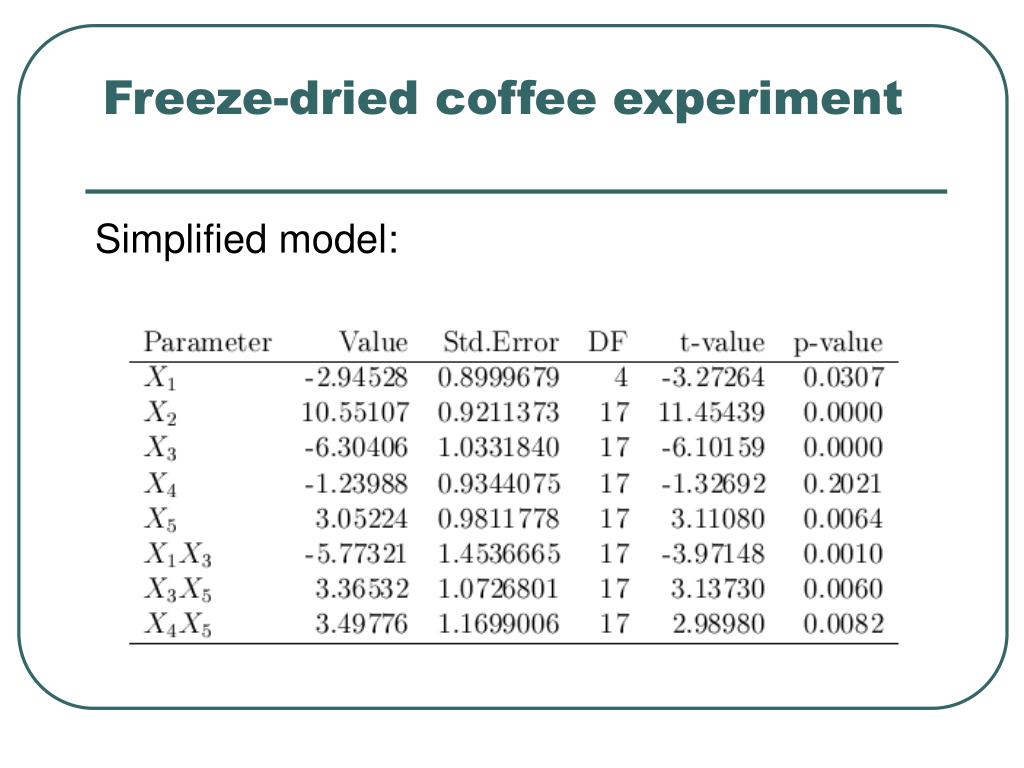

12. Freeze-dried coffee experiment Simplified model:

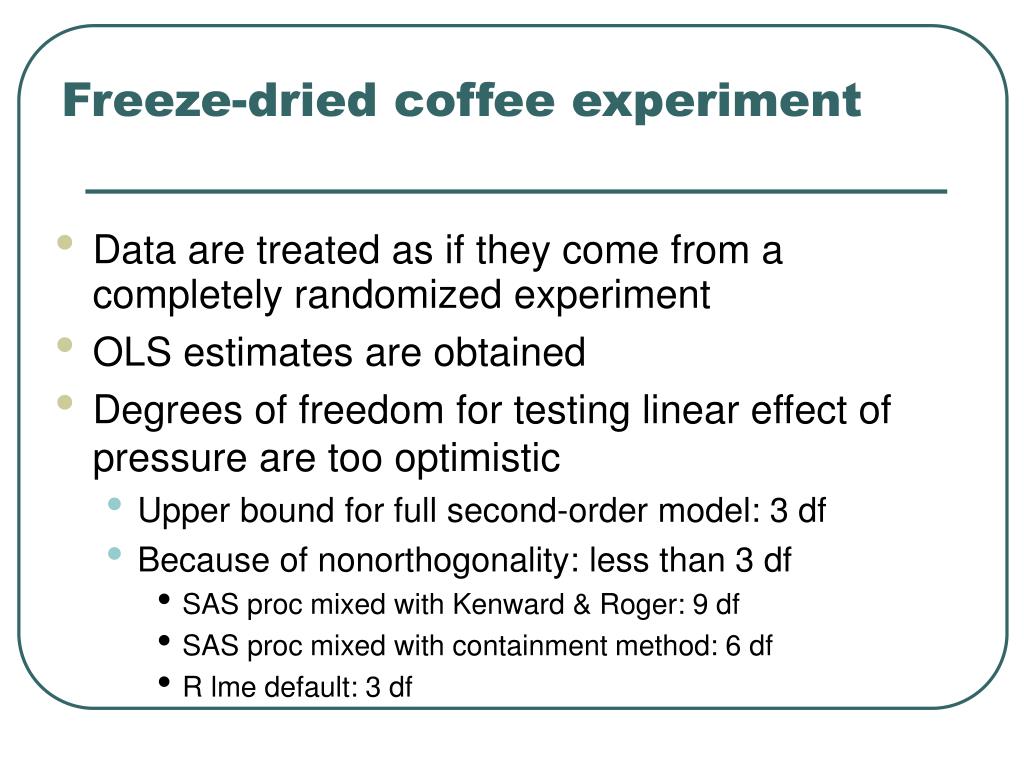

13. Freeze-dried coffee experiment • Data are treated as if they come from a completely randomized experiment • OLS estimates are obtained • Degrees of freedom for testing linear effect of pressure are too optimistic • Upper bound for full second-order model: 3 df • Because of nonorthogonality: less than 3 df • SAS proc mixed with Kenward & Roger: 9 df • SAS proc mixed with containment method: 6 df • R lme default: 3 df

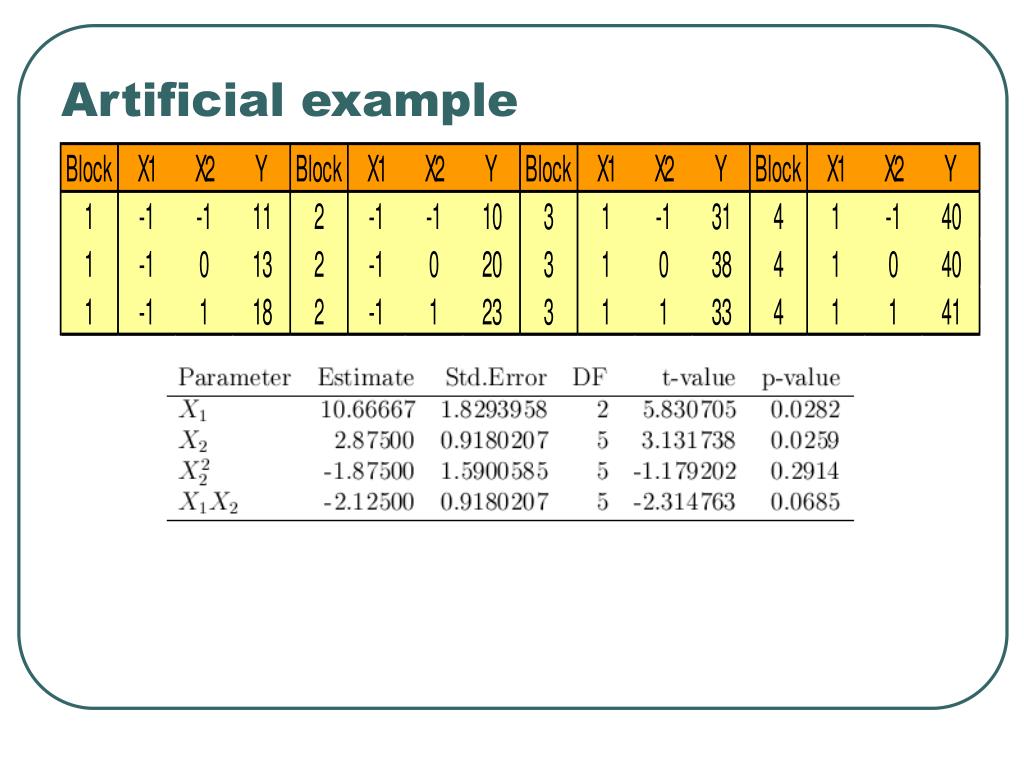

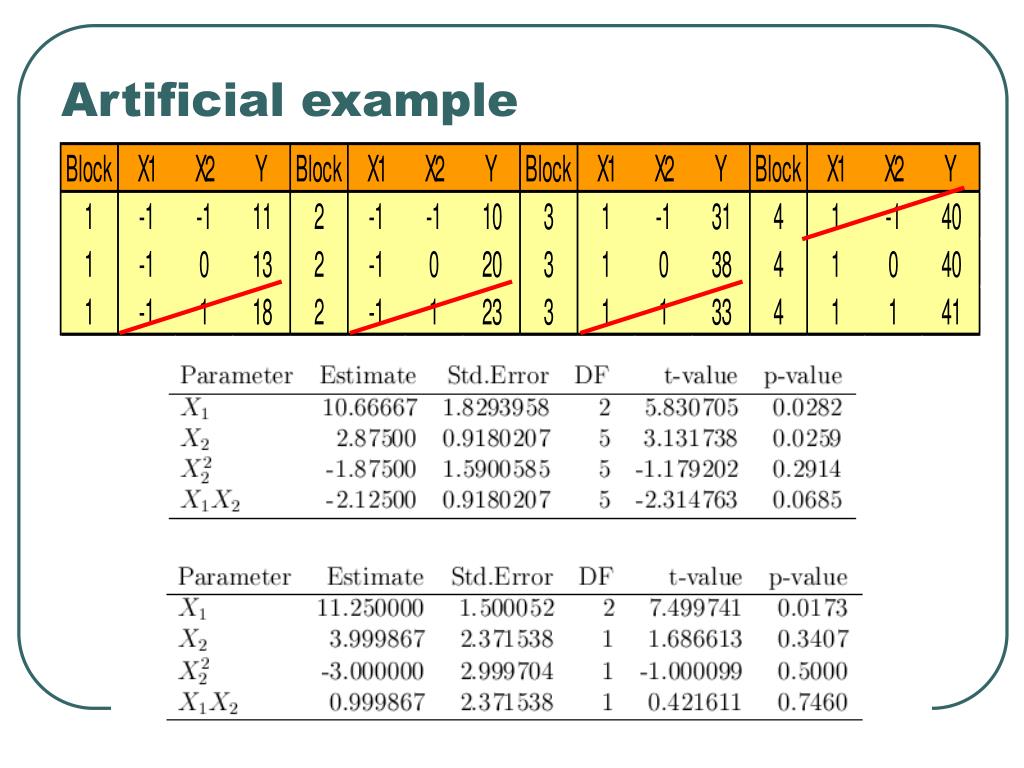

14. Artificial example

15. Artificial example

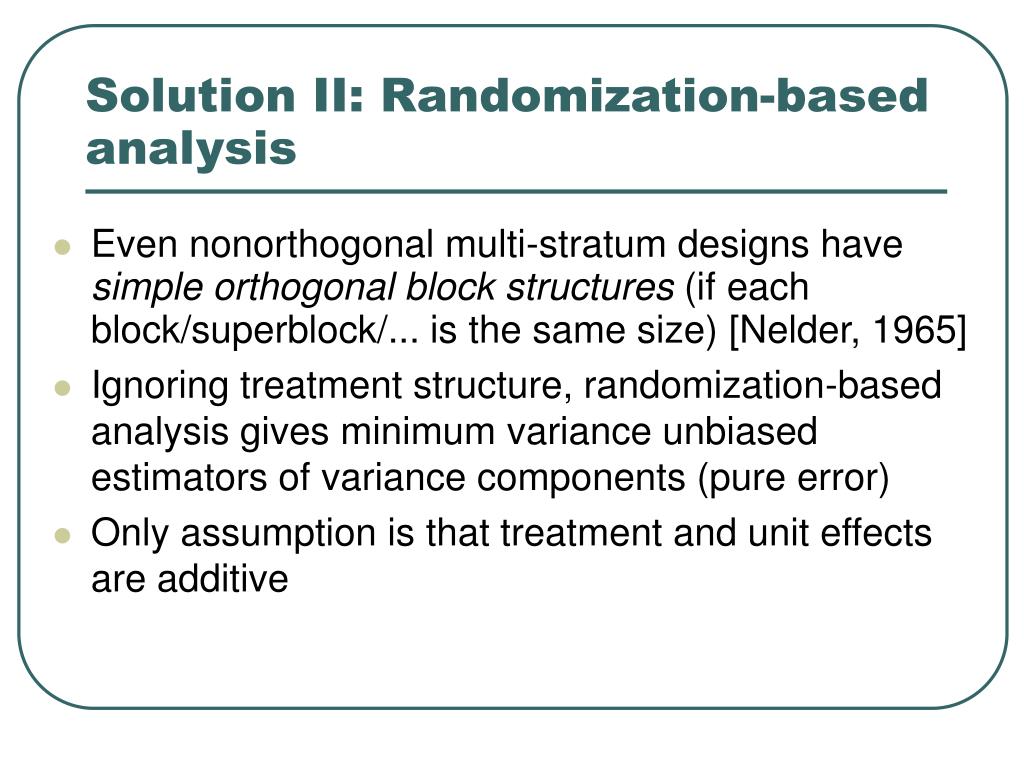

16. Solution II: Randomization-based analysis • Even nonorthogonal multi-stratum designs have simple orthogonal block structures (if each block/superblock/... is the same size) [Nelder, 1965] • Ignoring treatment structure, randomization-based analysis gives minimum variance unbiased estimators of variance components (pure error) • Only assumption is that treatment and unit effects are additive

17. Randomization-based analysis • Proposed analysis: • Use discrete treatments defined by combinations of factor levels (ignoring treatment model) • Anova gives correct estimates of variance components with correct degrees of freedom • Use these estimates to fit treatment model using GLS • Base inferences on these estimates • “Extra sums of squares” represent lack of fit • Not clear that GLS is best, but is same as with REML

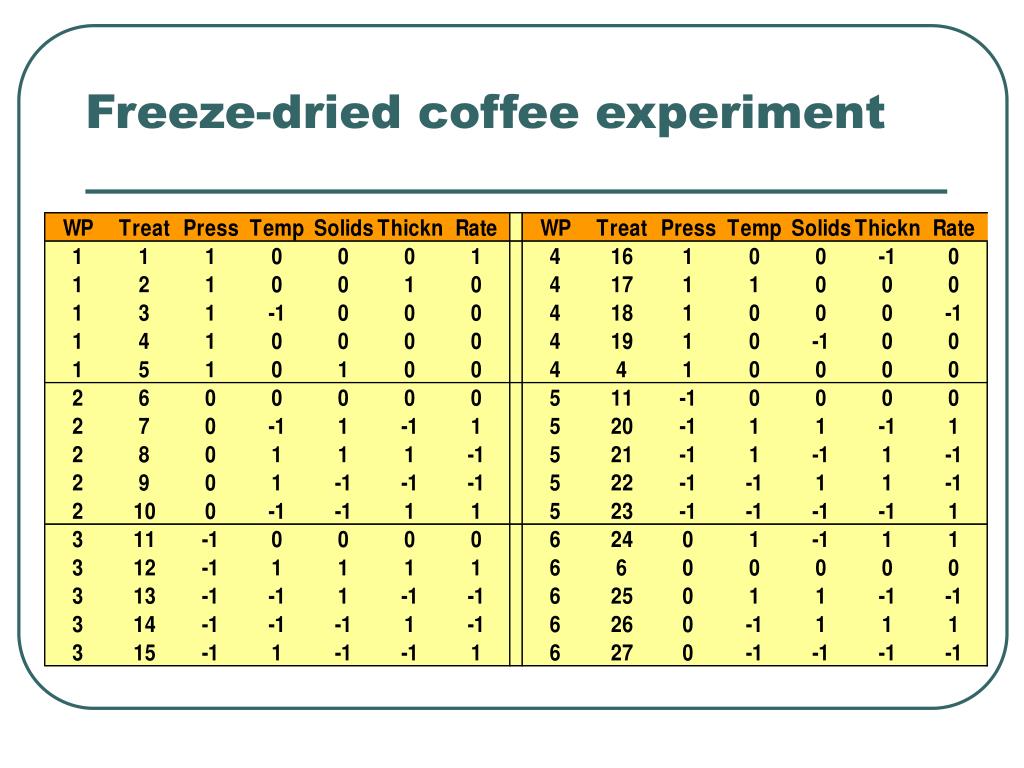

18. Freeze-dried coffee experiment

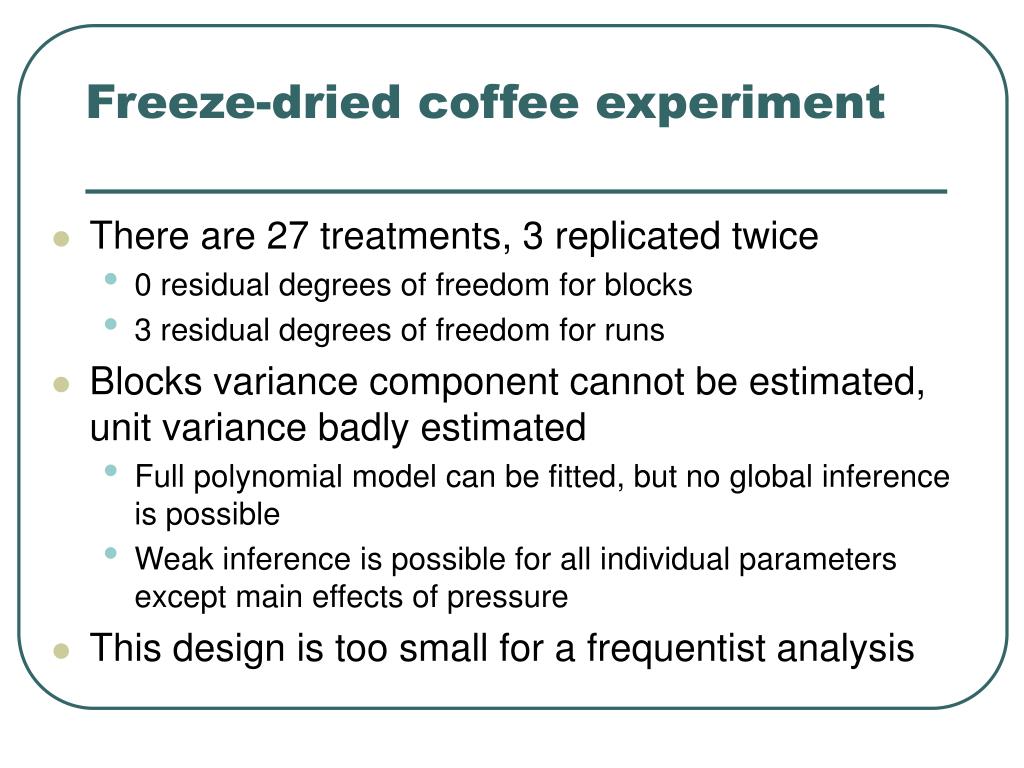

19. Freeze-dried coffee experiment • There are 27 treatments, 3 replicated twice • 0 residual degrees of freedom for blocks • 3 residual degrees of freedom for runs • Blocks variance component cannot be estimated, unit variance badly estimated • Full polynomial model can be fitted, but no global inference is possible • Weak inference is possible for all individual parameters except main effects of pressure • This design is too small for a frequentist analysis

20. Solution III: Bayesian approach • Advantages: • Takes into account uncertainty in prior beliefs • Prior beliefs can be contradicted by the data • No problems determining the appropriate degrees of freedom for hypothesis tests • WinBUGS software is free

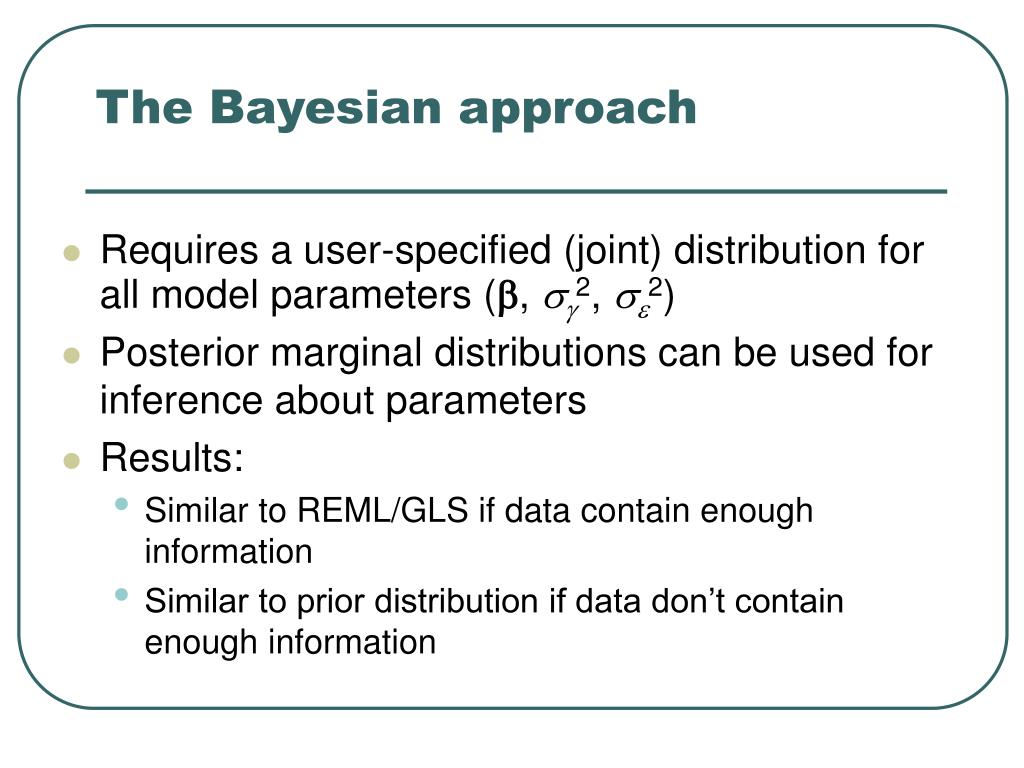

21. The Bayesian approach • Requires a user-specified (joint) distribution for all model parameters (, 2, 2) • Posterior marginal distributions can be used for inference about parameters • Results: • Similar to REML/GLS if data contain enough information • Similar to prior distribution if data don’t contain enough information

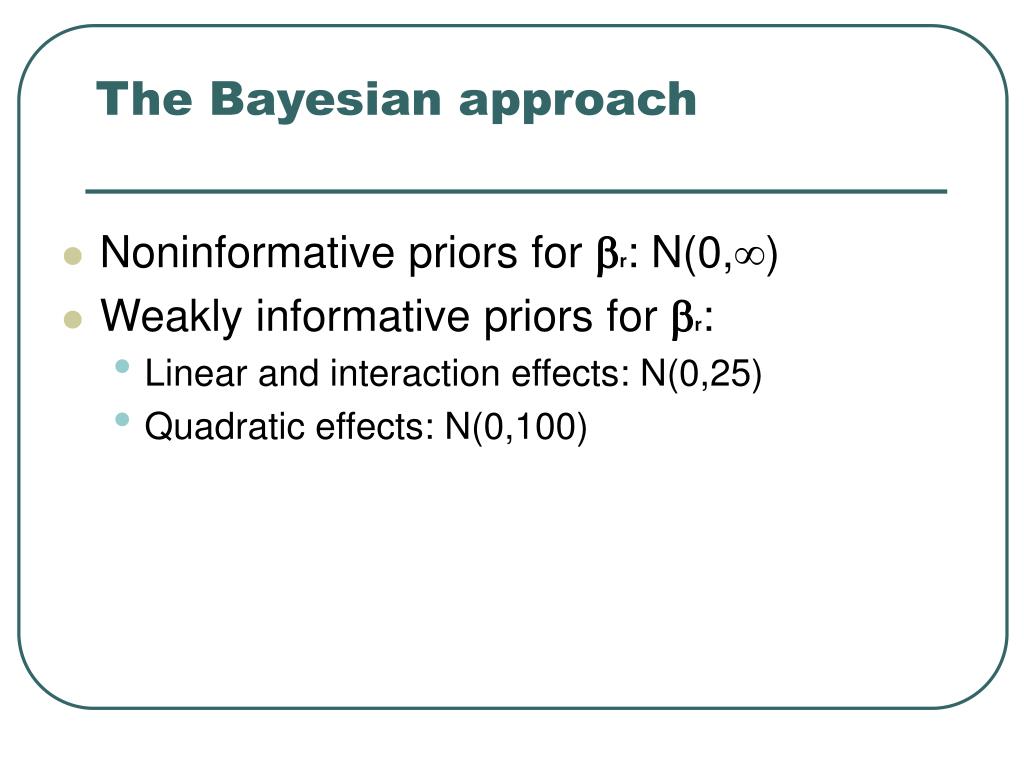

22. The Bayesian approach • Noninformative priors for r: N(0,) • Weakly informative priors for r: • Linear and interaction effects: N(0,25) • Quadratic effects: N(0,100)

23. The Bayesian approach • Variance components

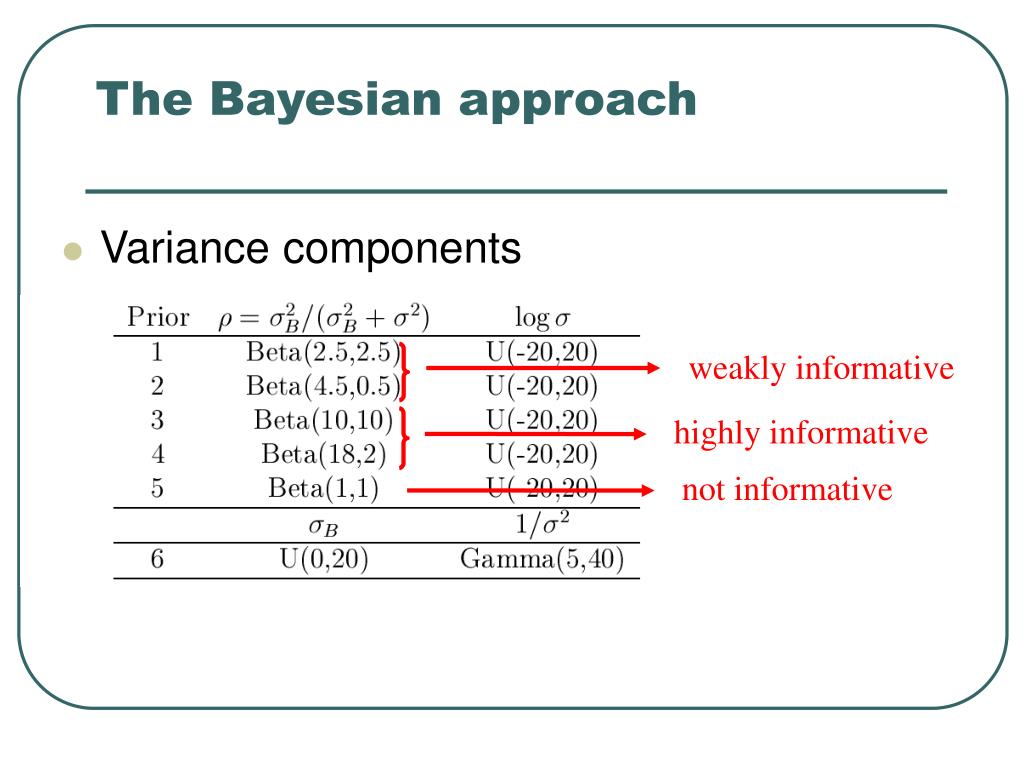

24. weakly informative highly informative not informative The Bayesian approach • Variance components

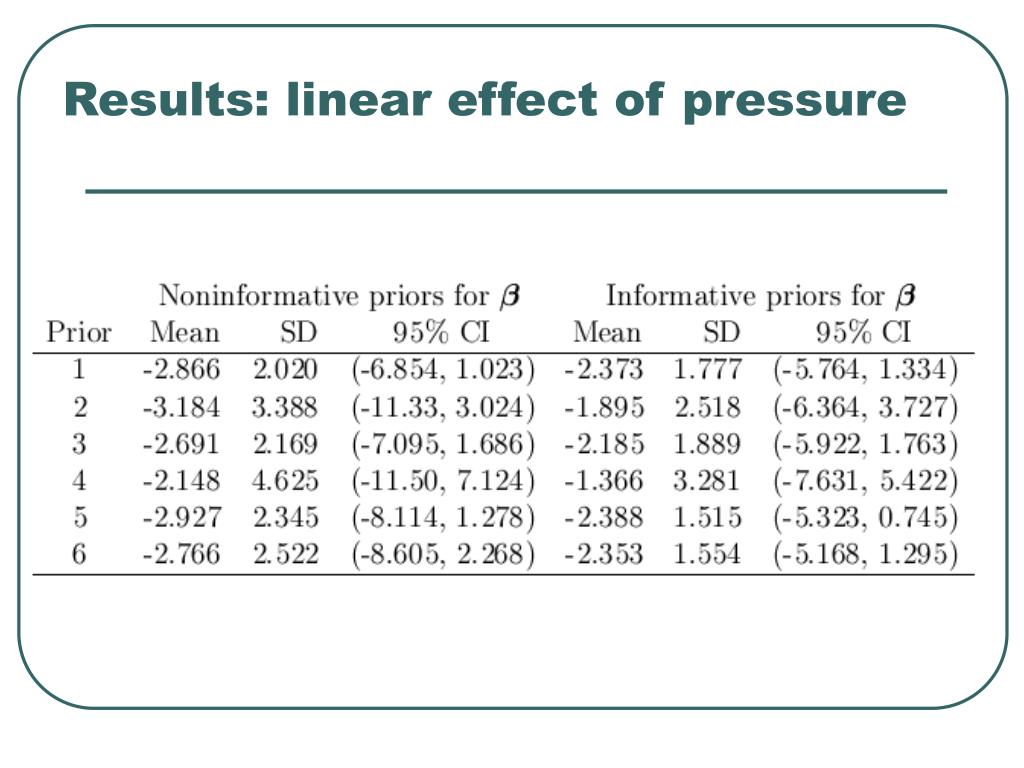

25. Results: linear effect of pressure

26. Linear effect of temperature

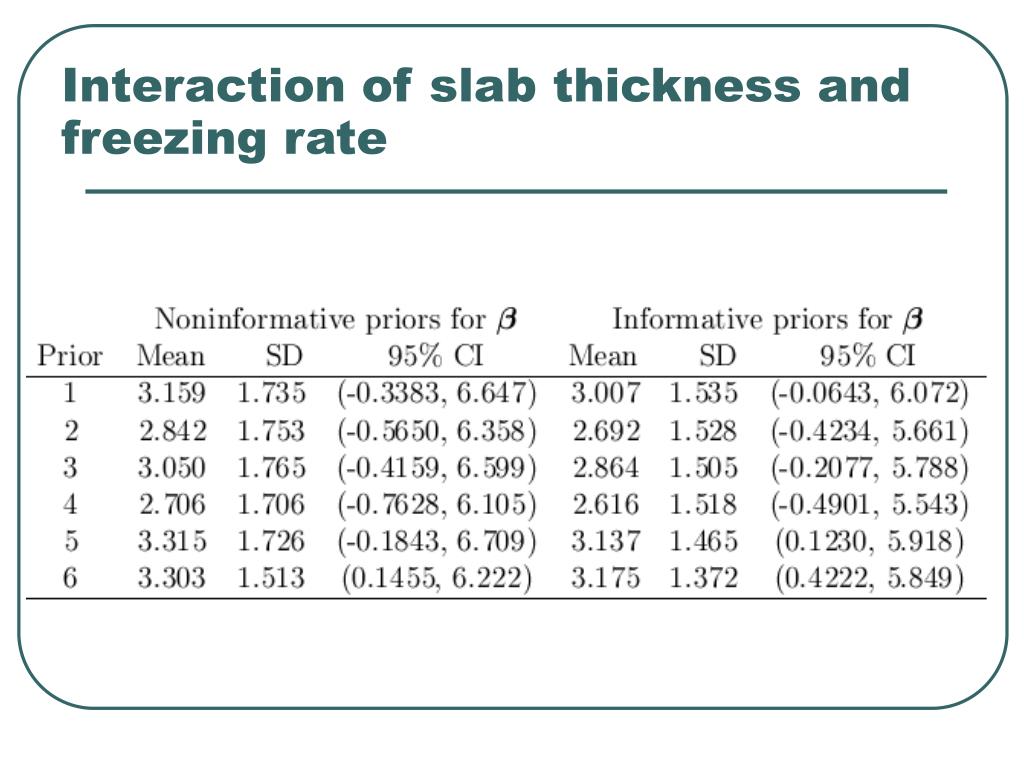

27. Interaction of slab thickness and freezing rate

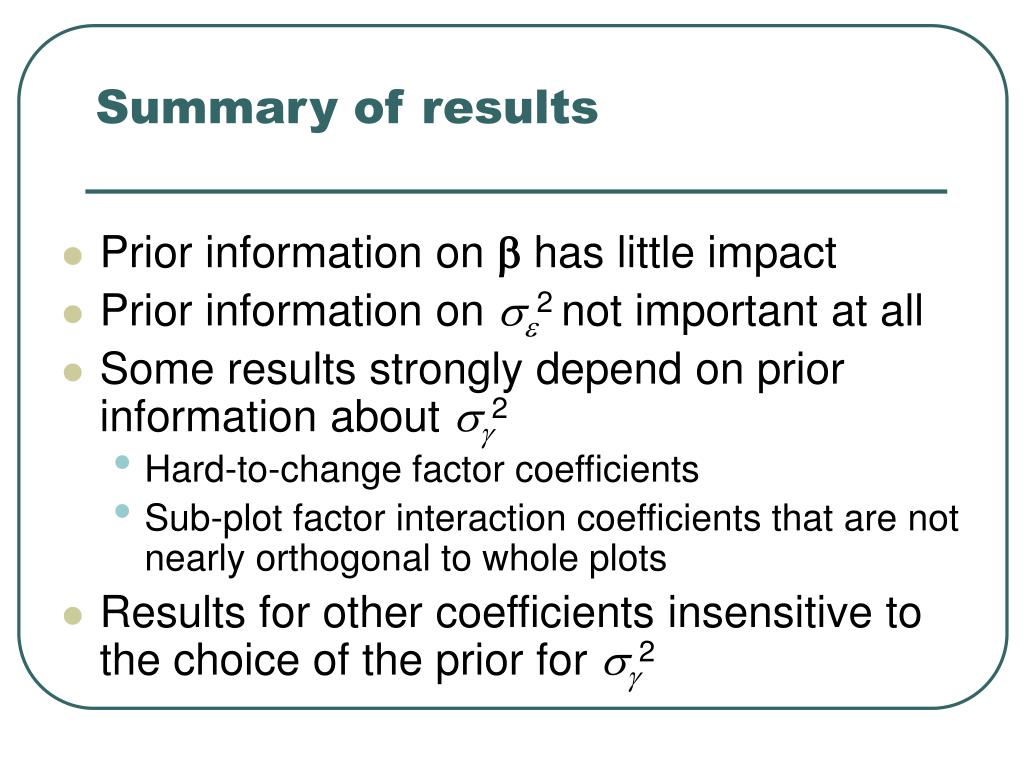

28. Summary of results • Prior information on  has little impact • Prior information on 2 not important at all • Some results strongly depend on prior information about 2 • Hard-to-change factor coefficients • Sub-plot factor interaction coefficients that are not nearly orthogonal to whole plots • Results for other coefficients insensitive to the choice of the prior for 2

29. Discussion • REML/GLS analysis can be misleading as it often leads to an analysis that ignores the multi-stratum nature of the design • Likelihood methods have good asymptotic properties, i.e. large numbers of units in each stratum, so should not be expected to work in small experiments • Problem is due to a lack of information in the blocks stratum • We should honestly admit that there is no information and/or provide prior information

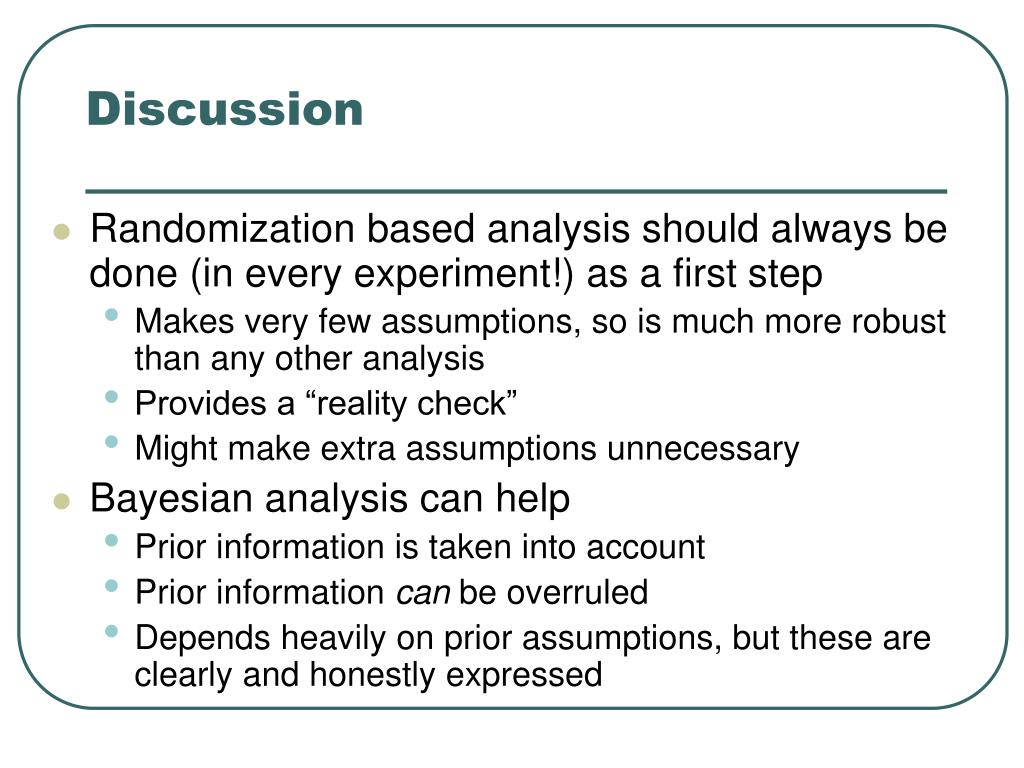

30. Discussion • Randomization based analysis should always be done (in every experiment!) as a first step • Makes very few assumptions, so is much more robust than any other analysis • Provides a “reality check” • Might make extra assumptions unnecessary • Bayesian analysis can help • Prior information is taken into account • Prior information can be overruled • Depends heavily on prior assumptions, but these are clearly and honestly expressed
