  1. REVISION

  2. يمكن الاستفادة من هذا العرض التقديمي في مراجعة ما يتعلق ب WBCs maturation & Leukemia • هذا الجزء لا يشمل RBCs • يمكن المراجعة ذاتيا عن طريق الضغط على زر العرض بحيث ستظهر الصورة بدون تعريف, وعلى الطالبة محاولة التعرف عليها وعند النقر على الماوس سيظهر تعريف الصورة.

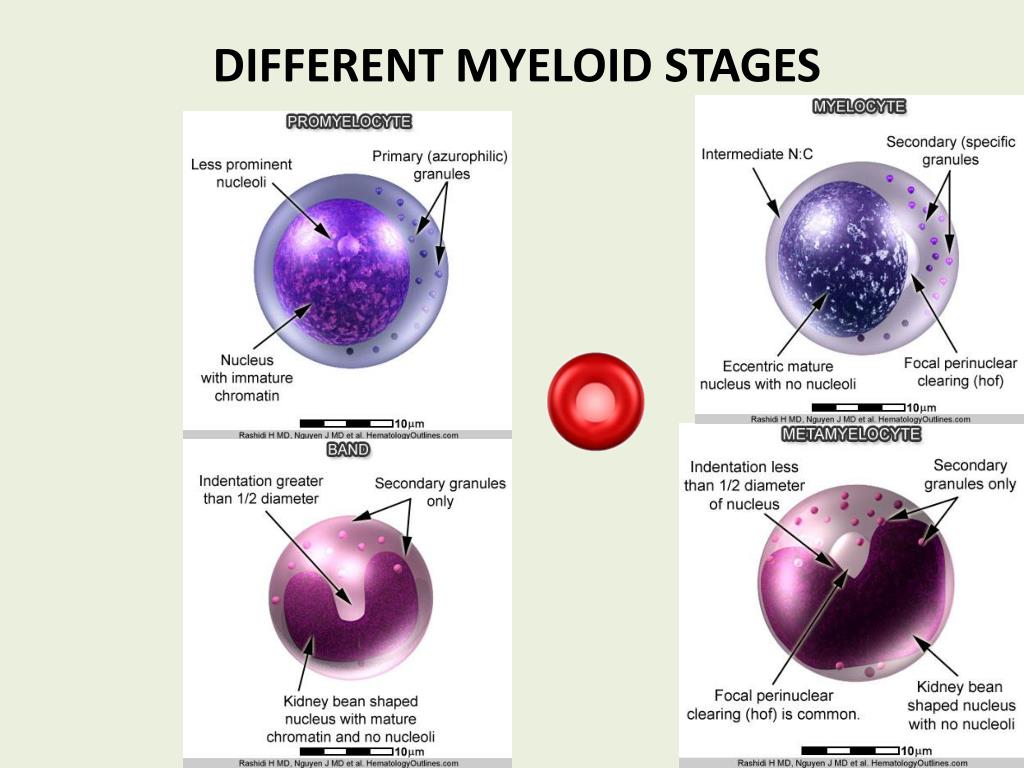

  3. DIFFERENT MYELOID STAGES

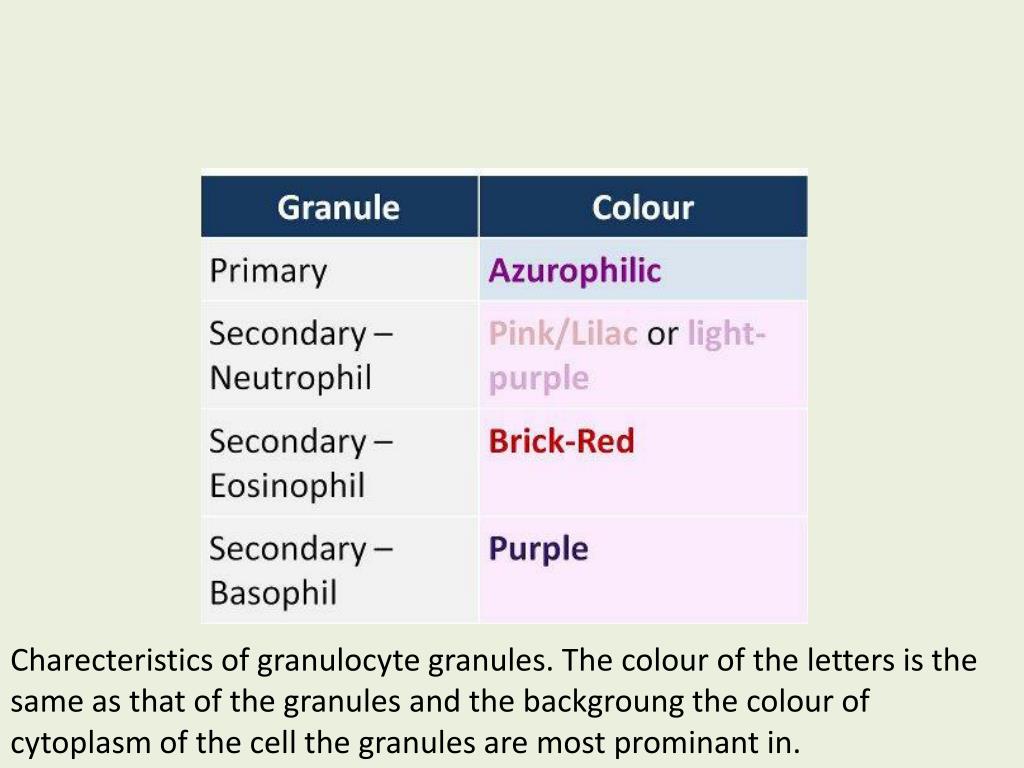

  4. Charecteristics of granulocyte granules. The colour of the letters is the same as that of the granules and the backgroung the colour of cytoplasm of the cell the granules are most prominant in.

  5. Pronormoblast

  6. Auer rods in promyelocytes of M3

  7. Toxic granulation of neutrophil

  8. orthochromicnormoblast

  9. A- Pronormoblast B- polychromatic normoblast C- orthochromicnormoblast

  10. Promonocytes (with a single fissure in the nucleus)

  11. b a A- neutrophilicmetamyelocyte • b- neutrophilicmyelocyte

  12. Promonocytes (with a single fissure in the nucleus)

  13. b b c a A- Promonocyte B- orthochromicnormoblast c- band neutrophil

  14. Peroxidase negative , PAS positive blast cells • cells of the different populations, lymphoblasts from L2 type

  15. basophilicnormoblasts

  16. b b b A-pronormoblast b- orthochromicnormoblast C- neutrophilicmyelocyte D- neutrophilicmetamyelocyte E- band neutrophil F- segmented neutrophil b b c a a b d b f e

  17. b a a a a b A- Promonocyte B- myeloid cell (both are present in M4 leukemia b

  18. a b b a- polychromatic normoblast (megaloblast) b- orthochromicnormoblast

  19. a b b a A- Promonocyte B- promyelocyte (M4 leukemia)

  20. Different maturation stages of myeloid cell in M2 leukemia.

  21. Pronormoblast

  22. Different maturation stages of myeloid cell with M2 leukemia.

  23. Myeloblasts from M1 or M0 Peroxidase will confirm diagnosis

  24. Myeloblasts from M1 Auer rods confirm diagnosis of M1 not present in M0

  25. basophilic myelocyte

  26. Peroxidase negative , PAS positive blast cells • Small cells of the same population, lymphoblasts from L1 type

  27. Peroxidase negative , PAS positive blast cells • Small cells of the same population, lymphoblasts from L1 type

  28. Peroxidase negative , PAS positive blast cells • cells of the different populations, lymphoblasts from L2 type

  29. Monocytic precursors of M5 leukemia

  30. Lymphoblasts of hairy cell leukemia (myelofibrosis)

  31. Lymphoblasts of hairy cell leukemia (myelofibrosis)

  32. Lymphoblasts of hairy cell leukemia (myelofibrosis)

  33. Plasma cells of multiple myeloma (note the multinucleated cell)

  34. PAS +ve • lymphoblast from L3 leukemia

  35. Plasma cells of multiple myeloma (note the multinucleated cell)

  36. Plasma cells of multiple myeloma (note the multinucleated cell)

  37. Peroxidase negative , PAS positive blast cells • cells of the different populations, lymphoblasts from L2 type

  38. Erythrophagocytosis

  39. Erythrophagocytosis

  40. LE cell

  41. a d b c d e d d • A- Eosinophilicmyelocyte • B- Promyelocyte • C- Basophilic normoblast • D- Polychromayicnormoblast • E- Orthochromicnormoblast

  42. Eosinophilicmyelocyte

  43. Basophilic metamyelocyte

  44. Lymphoblasts of hairy cell leukemia (myelofibrosis) • The red stain is ACP +ve hairy cell

  45. Eosinophilicmetamyelocyte
