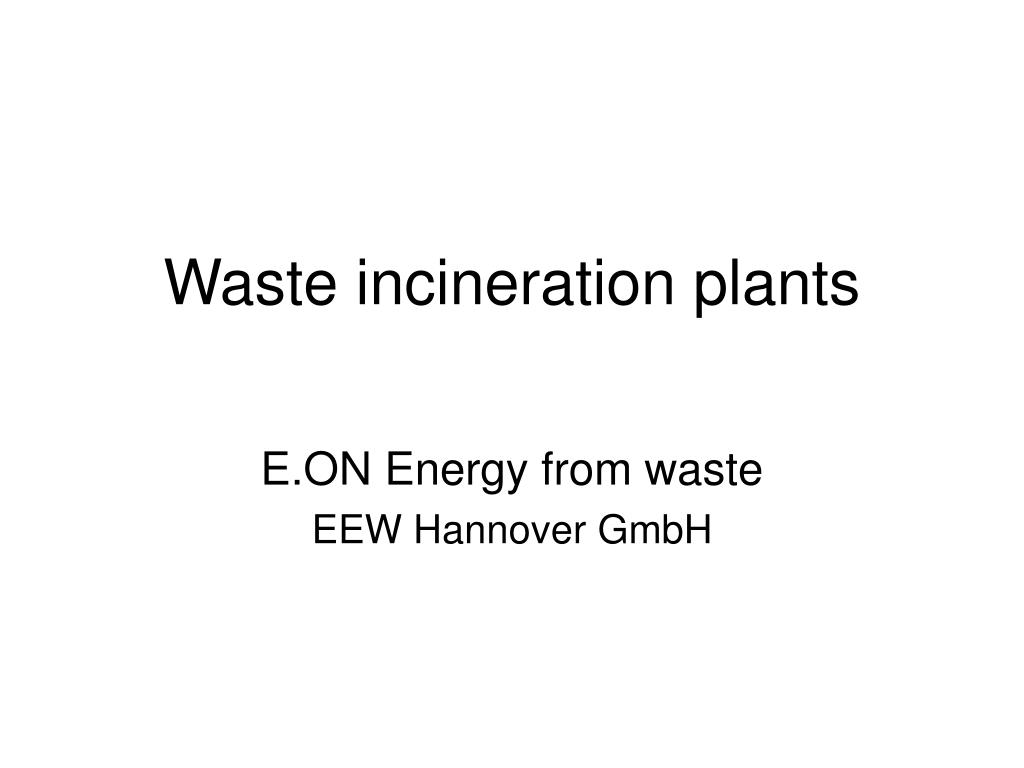

  1. Waste incineration plants E.ON Energy from waste EEW Hannover GmbH

  2. Waste incineration plants in Germany and in the Netherlands and Luxenburg

  3. Facts about the waste incineration plants • 230.000 tons per year • Only household waste and household similar industrial waste • No dangerous waste • You get energy for 40.000 households

  4. The principle 7 boiler 8 turbine 9 generator 10 condenser 11 transformer 12 spray absorber 13 absorber 14 fabric filter 15 induced draft fan 16 emission measurement 17 chimney 1 delivery 2 bunker 3 (pusher) grade 4 slag remover 5 cinder bunker 6 ammonia water

  5. Delivery and bunker • The waste is offloaded from trucks • The waste is in the bunker • A cran transports the waste into the boiler

  6. Standpoint

  7. Boiler and grade • In the boiler the waste is spreaded by grades • The fire temperature must be everytime over 870°C

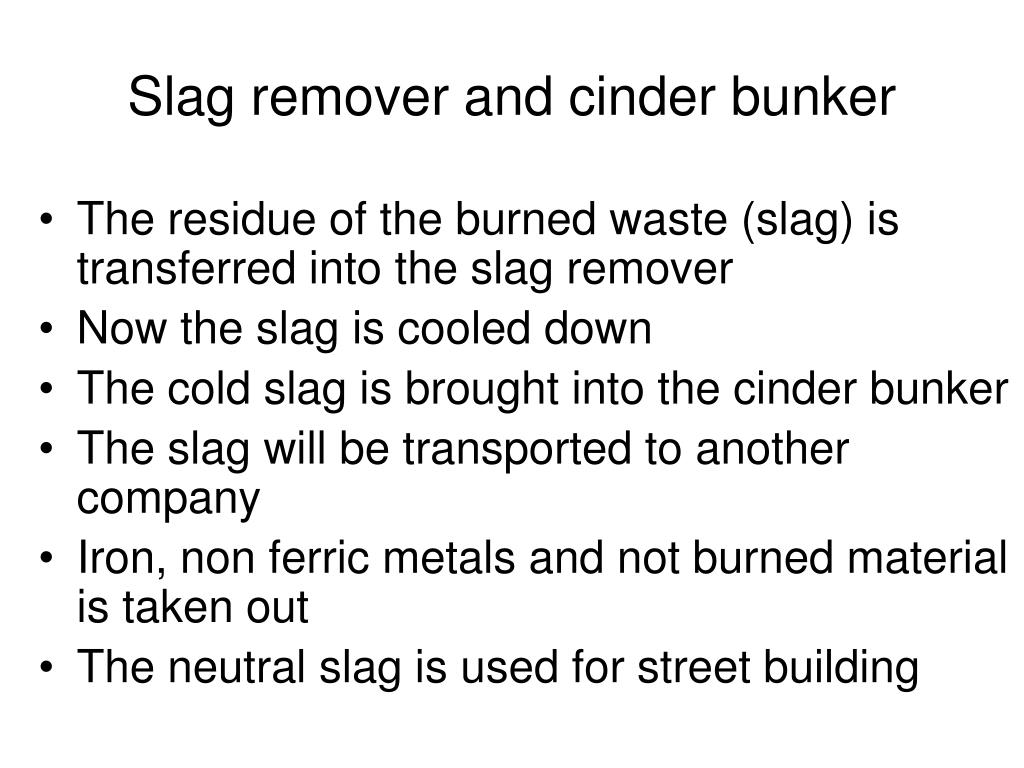

  8. Slag remover and cinder bunker • The residue of the burned waste (slag) is transferred into the slag remover • Now the slag is cooled down • The cold slag is brought into the cinder bunker • The slag will be transported to another company • Iron, non ferric metals and not burned material is taken out • The neutral slag is used for street building

  9. Standpoint

  10. But the smoke would damage the nature, wouldn‘t it ?!?

  11. No, because there is a cleaning principle!

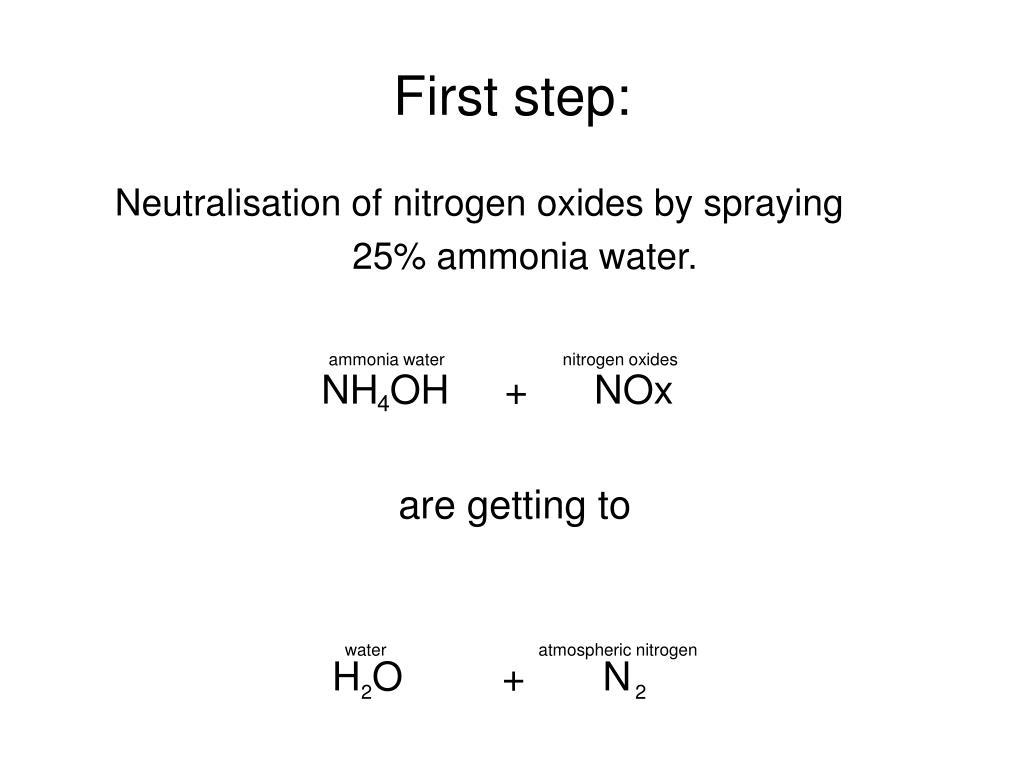

  12. Neutralisation of nitrogen oxides by spraying 25% ammonia water. NH OH + NOx are getting to H O + N First step: ammonia water nitrogen oxides 4 water atmospheric nitrogen 2 2

  13. Second step (spray absorber): By atomisation of quick lime follows various reactions: quick lime Ca(OH)2 Ca(OH)2 Ca(OH)2 + + + SO2 2 HCl 2 HF H2O + CaSO3 2H2O +CaCl2 2H2O +CaF2 hydrochloric acid sulphur oxid hydrofluoric acid water calcium sulfite water calcium chloride water calcium fluorid

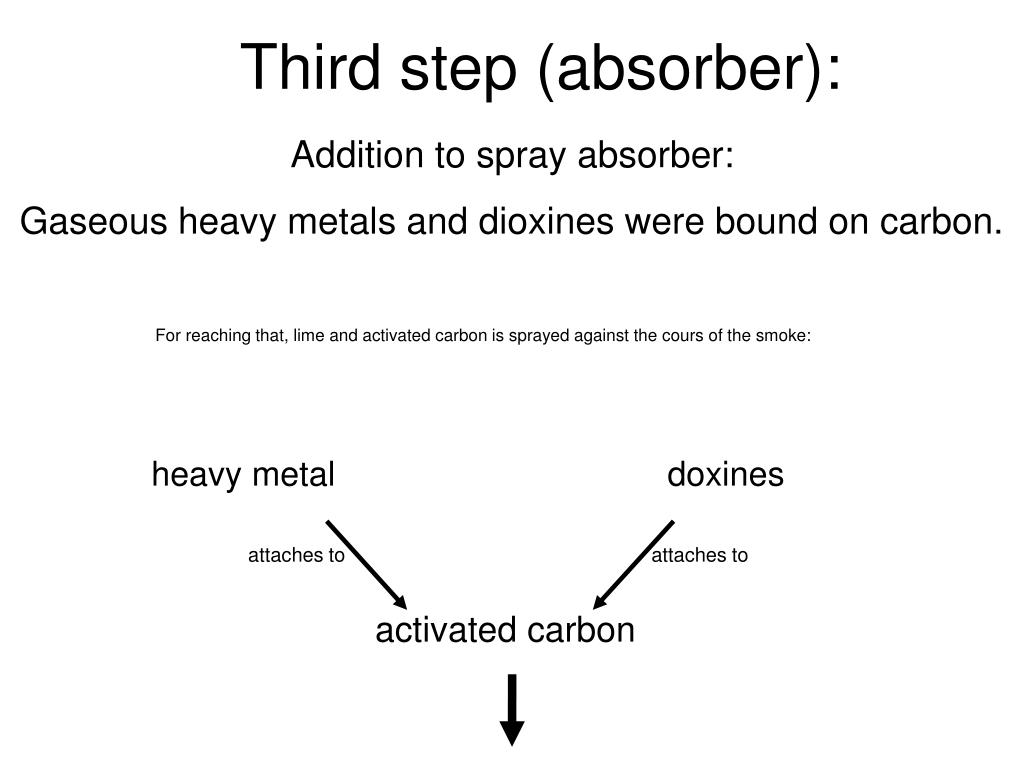

  14. Third step (absorber): Addition to spray absorber: Gaseous heavy metals and dioxines were bound on carbon. For reaching that, lime and activated carbon is sprayed against the cours of the smoke: heavy metal doxines attaches to attaches to activated carbon

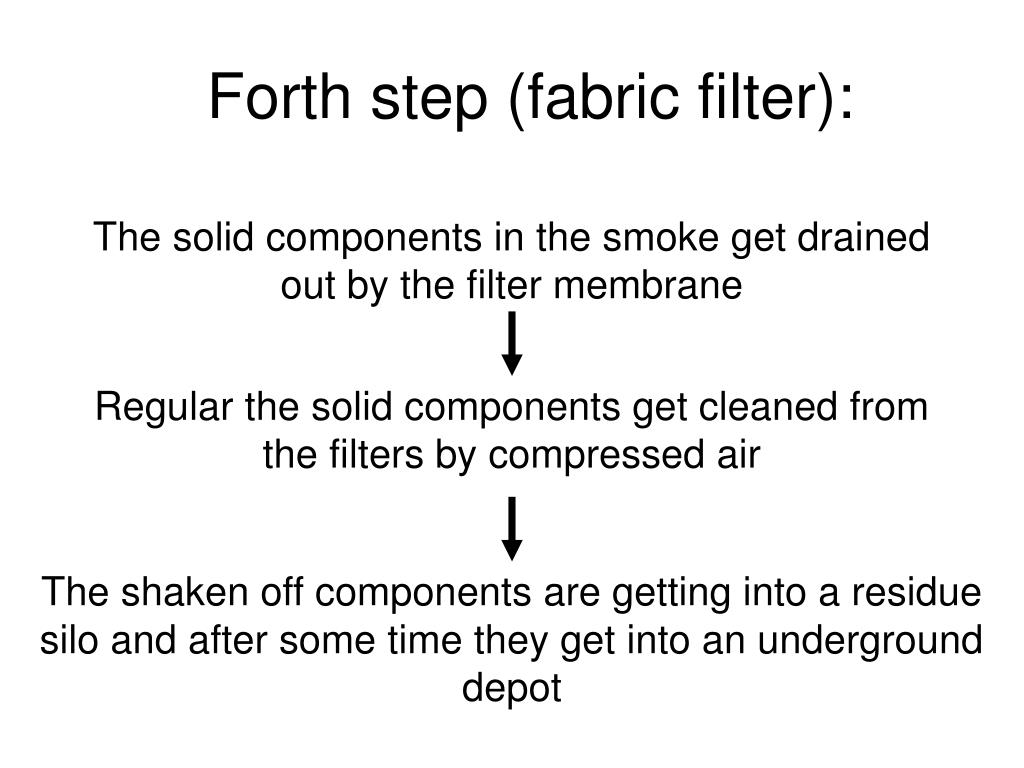

  15. Forth step (fabric filter): The solid components in the smoke get drained out by the filter membrane Regular the solid components get cleaned from the filters by compressed air The shaken off components are getting into a residue silo and after some time they get into an underground depot

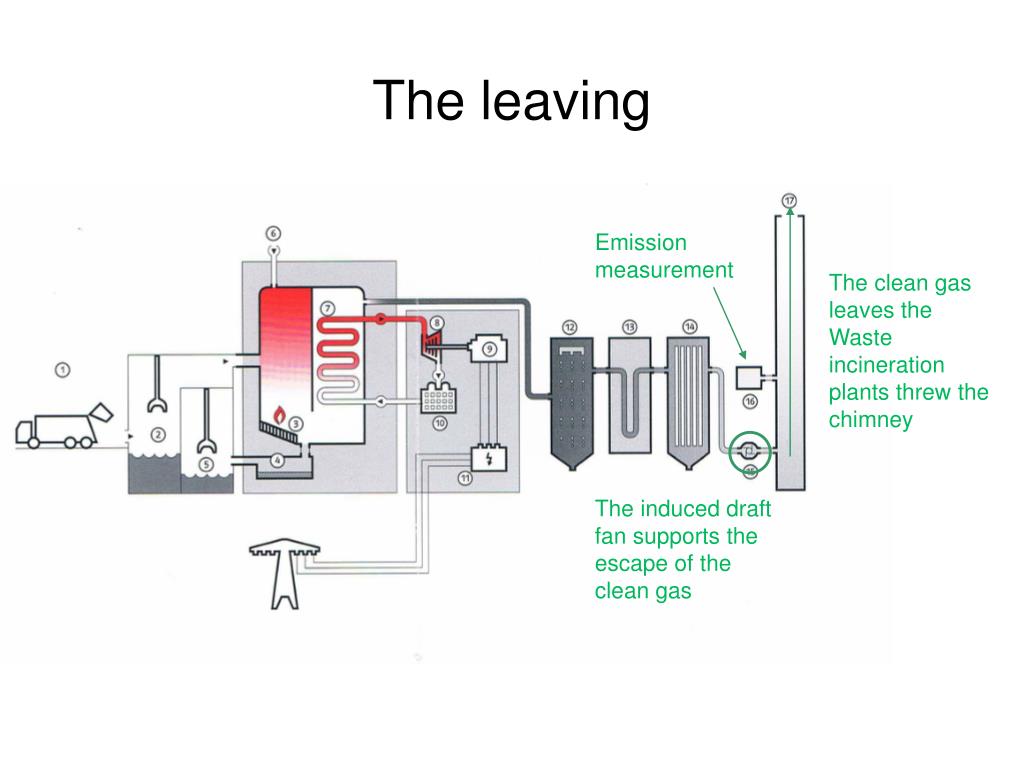

  16. The leaving Emission measurement The clean gas leaves the Waste incineration plants threw the chimney The induced draft fan supports the escape of the clean gas

  17. Water circulation and steam circuit How to get energy by burning waste…

  18. … see where it is

  19. The principle • Inside the boiler are pipes in wich water is flowing • The water is vaporized because of the heat in the boiler • The steam rises because of the big pressure • The steam powers the rator of the turbine • The generator produces electricity from the rator energy • The transformer plant leads the electricity into • The condenser cools the water down to 60°C • The circulation begins again the electricity grid

  20. The end Made by Jolanda & Joana
