Li chuan chen marian muste and larry weber

53:071 Principles of HydraulicsLaboratory Experiment #3Analysis of Open-Channel Flow Transitions Using Specific Energy Diagram

Li-Chuan Chen, Marian Muste, and Larry Weber


Objective

Objective

  • To observe the changes in the behavior of the free surface when subjected to changes in the channel bed.


Principle

Principle


Principle1

Principle

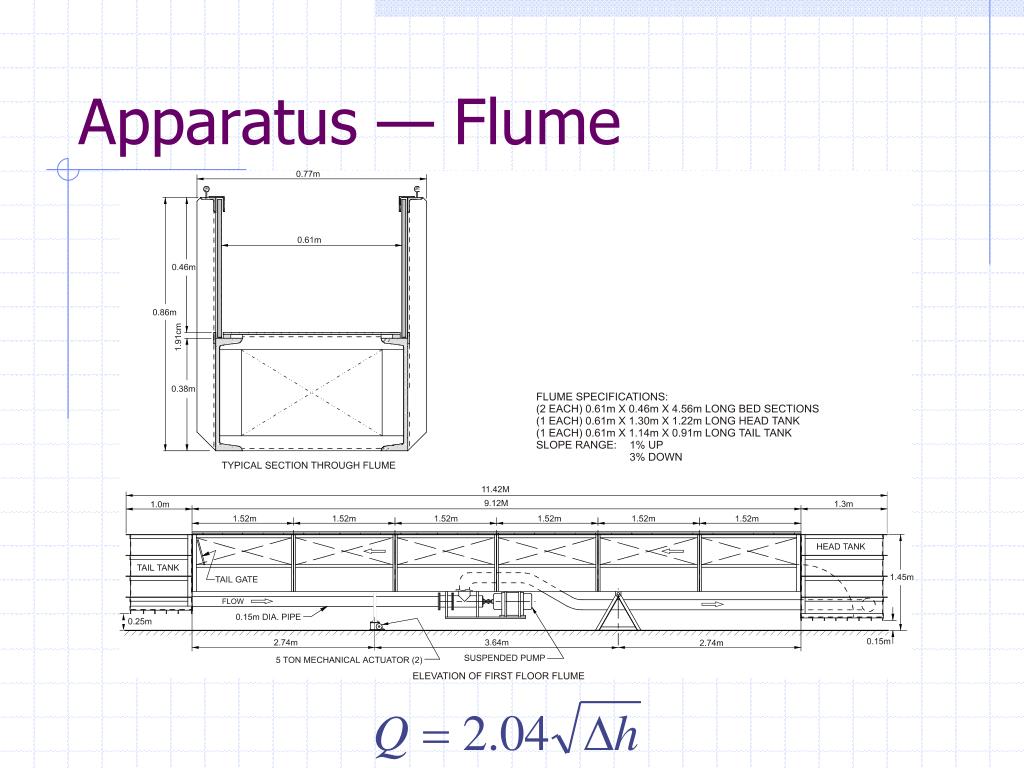

Apparatus flume

Apparatus — Flume


Apparatus obstruction

ybump (ft)

0.24

x (ft)

5

5.87

6.96

7.78

Apparatus — Obstruction

For x  5ybump = 0

For 5 < x  5.87ybump = 0.276x – 1.38

For 5.87 < x  6.96ybump = 0.24

For 6.96 < x  7.78ybump = 2.28 - 0.293x

For x > 7.78ybump = 0


What are we going to do

What are we going to do?

  • We are going to measure the water surface elevation along a open channel.

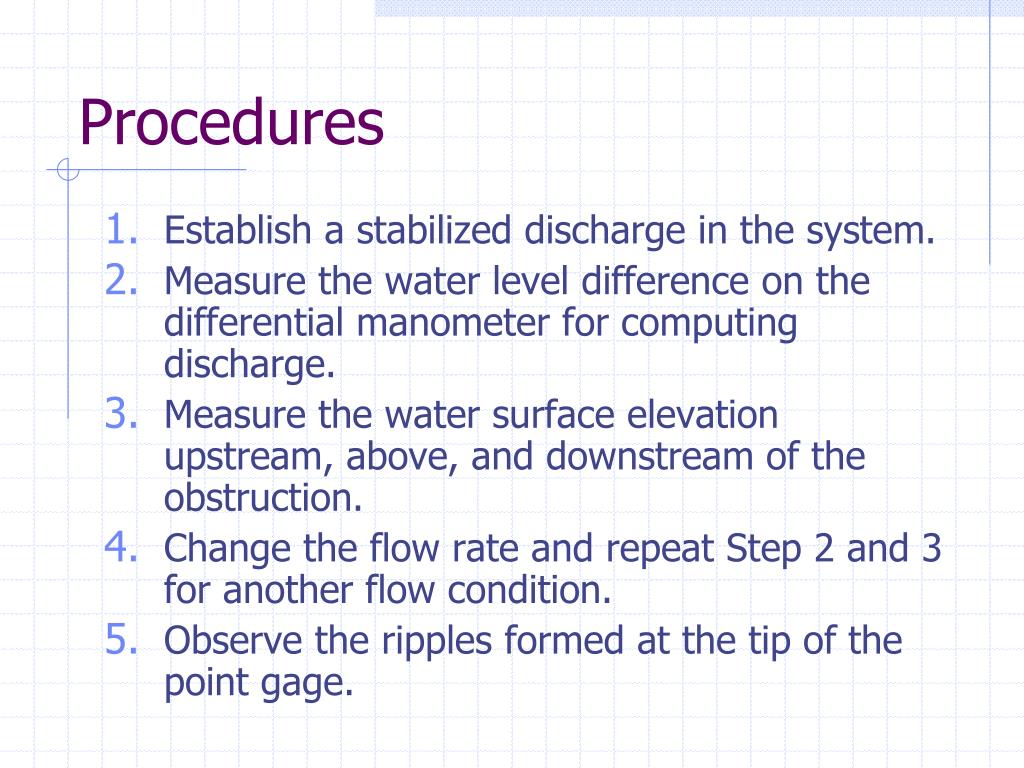

Procedures

Procedures

  • Establish a stabilized discharge in the system.

  • Measure the water level difference on the differential manometer for computing discharge.

  • Measure the water surface elevation upstream, above, and downstream of the obstruction.

  • Change the flow rate and repeat Step 2 and 3 for another flow condition.

  • Observe the ripples formed at the tip of the point gage.


Data sheet

Flow Situation I

Flow Situation II

h= (ft); Q = (cfs); yc1= (ft)

h= (ft); Q = (cfs); yc1= (ft)

Track

(ft)

Water Surface Elevation (ft)

Bump

Geometry (ft)

Actual depth

(ft)

Track (ft)

Water Surface Elevation (ft)

Bump

Geometry (ft)

Actual depth

(ft)

Data Sheet


Analysis

Analysis

  • Plot the water surface elevation in the vicinity of the channel transition.

  • Construct the specific energy diagram using the measured data.

  • Compare theoretical specific energy diagrams with the experimental curves.

  • Comment on the flow behavior in the two flow situation.


Sample result water surface profile

Sample Result — Water Surface Profile


Sample result specific energy diagram

Sample Result — Specific Energy Diagram


Further considerations

Further Considerations

  • What are the main assumptions associated with the use of the specific energy diagram?

  • Comment on the differences noticed on the ripples produced by the point gage upstream and downstream the obstruction.

  • Analyze the water surface behavior for the same unit discharges used in your experiment hypothesizing the flow enters in the obstruction as supercritical flow.
