Dna r eplication iii

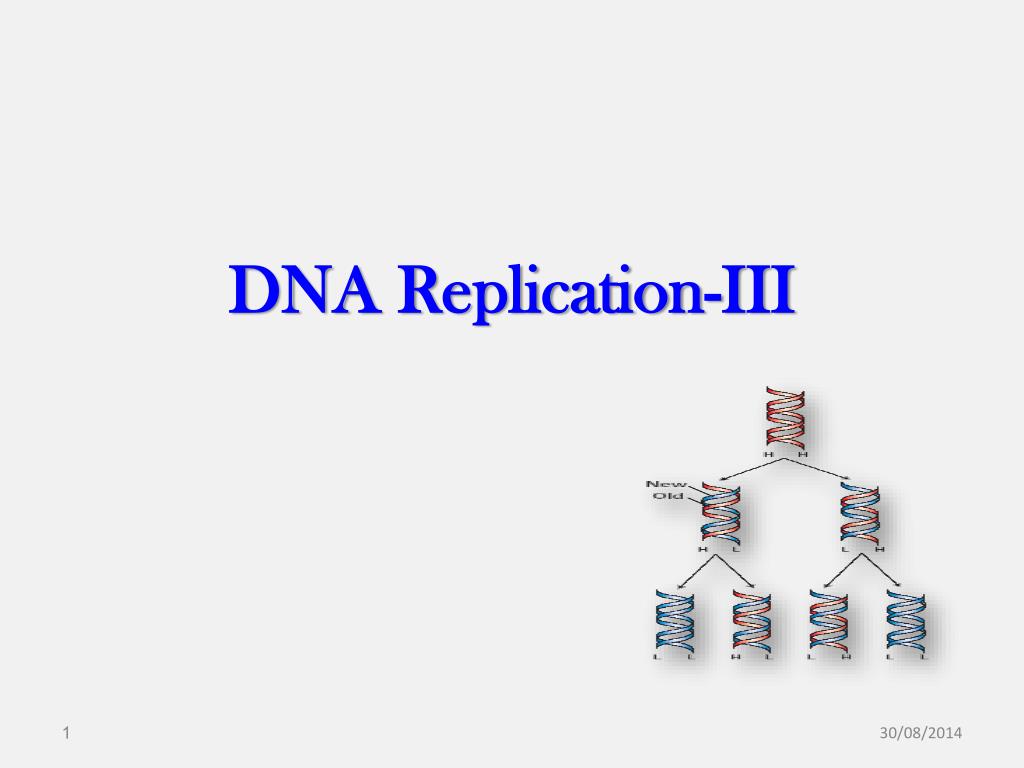

DNA Replication-III

Initiation of replication

Initiation of Replication

  • The origin of replication in E. coli is termed oriC

    • origin of Chromosomal replication

  • Important DNA sequences in oriC

    • AT-rich region

    • DnaA boxes

Dna polymerase iii is the replicative polymerase in e coli

DNA Polymerase III Is the Replicative Polymerase in E. coli

  • Pol III is responsible for replicating the E. coli chromosome.

  • The Pol III core is a heterotrimer that contains one each of α, ε, and θ subunits.

  • The DNA polymerase activity is contained in the α subunit; the γ subunit contains the proofreading 3′→5′ exonuclease.

  • The Pol III core is just one part of a much larger protein assembly called the Pol III holoenzyme, which replicates both leading and lagging strands.

  • The Pol III holoenzyme includes two Pol III cores, two ring-shaped β sliding clamps, and one clamp loader.

  • The clamp loader includes two τ subunits with C-terminal domains that protrude from the clamp loader and bind to the Pol III cores.

Dna r eplication iii

  • The Pol III core itself is capable of DNA synthesis at a slow rate, but DNA synthesis by the Pol III holoenzyme is exceedingly rapid, nearly 1 kb/s.

Many different proteins advance a replication fork

Many Different Proteins Advance a Replication Fork

  • DNA Helicase: The two strands of the parental DNA duplex are separated by a class of enzymes known as DNA helicases, which harness the energy of NTP hydrolysis (usually ATP) to drive strand separation



  • Topoisomerase: As a helicase separates the parental duplex, the strands must be untwisted.

  • In E. coli, gyrase, a type II topoisomerase, is the primary replicative topoisomerase



  • primases : synthesize short RNA primers specifically for initiating DNA polymerase action.

  • In E. coli, an RNA primer of 11 to 13 nucleotides is synthesized by the DnaG primase.

  • RNA primers are needed to initiate each of the thousands of Okazaki fragments on the lagging strand. The leading strand is also initiated by primase at a replication origin.

  • E. coli DnaG primase must bind the DNA helicase for activity, and this localizes its action to the replication fork

Dna polymerase cannot initiate new strands

DNA Polymerase Cannot Initiate new Strands



  • Pol I and Ligase RNA primers must be removed at the end of each Okazaki fragment and replaced with DNA. This is achieved through the nick translation activity of Pol I.

  • The nick in the phosphodiester backbone is then sealed by DNA ligase in a reaction that requires ATP (or NAD+ in E. coli).

  • Ligase acts only on a 5′ terminus of DNA, not on RNA.

  • This specificity ensures that all the RNA at the end of an Okazaki fragment is removed before the nick is sealed.



  • SSB protein maintains the DNA template in the single strand form in order to:

    • Prevent the dsDNA formation.

    • Protect the vulnerable ssDNA from nucleases.

Major elements

major elements:

  • Segments of single-stranded DNA are called template strands.

  • Gyrase(a type of topoisomerase) relaxes the supercoiled DNA.

  • Initiator proteins and DNA helicasebinds to the DNA at the replication fork and untwist the DNA using energy derived from ATP.

  • DNA primasebinds to helicase producing a complex called a primosome

  • Primase synthesizes a short RNA primer of 10-12 nucleotides.

  • Polymerase III adds nucleotides 5’ to 3’ on both strands beginning at the RNA primer.

  • The RNA primer is removed and replaced with DNA by polymerase I, and the gap is sealed with DNA ligase.

  • Single-stranded DNA-binding (SSB) proteins (>200) stabilize the single-stranded template DNA during the process.

Dna r eplication iii

  • The assembly of bacterial replication forks at the origin occurs in steps, starting with the binding of DnaA initiator protein, which melts an A═T-rich region.

  • A DnaB helicase is then loaded onto each of the single strands of DNA by the DnaC helicase loader.

  • As DNA is unwound by DnaB, DnaG primase synthesizes RNA primers; this is followed by entry of two Pol III holoenzymes to form a bidirectional replication

Termination of dna replication

Termination of DNA Replication

  • In E. coli, a region located halfway around the chromosome from oriC contains two clusters of 23 bp sequences called Ter sites.

  • The arrangement and orientation of Ter sites is such that bidirectional replication forks from oriC can pass through the first set of Ter sites that they encounter, but are blocked by the second set.

The end replication problem in eukaryotes

The End Replication Problem in Eukaryotes

  • At the end of a chromosome, after the leading strand has been completely extended to the last nucleotide, the lagging strand has a single-strand DNA gap that must be primed and filled in.

  • The problem arises when the RNA primer at the extreme end is removed for replacement with DNA .

  • There is no 3′ terminus for DNA polymerase to extend from, so this single-strand gap cannot be converted to duplex DNA.

  • The genetic in formation in the gap will be lost in the next round of replication.

Dna r eplication iii

The problem is solved by telomerase

  • The eukaryotic cells use telomerase to maintain the integrity of DNA telomere.

  • The telomerase is composed of

  • Telomerase RNA

  • Telomerase association protein

  • Telomerase reverse transcriptase

  • It is able to synthesize DNA using RNA as the template.

  • Telomerase may play important roles is cancer cell biology and in cell aging.

C ontinue


  • Telomerase carries its own template strand in the form of a tightly bound noncoding RNA.

  • Telomeres at the ends of eukaryotic chromosomes are composed of a repeating unit of a 6-mer DNA sequence (repeating 5′-TTGGGG-3′)

  • Telomerase extends the 3′ single-stranded DNA end with dNTPs, using its internal RNA molecule as template.

  • The extended 3′ single strand of DNA is filled in by RNA priming and DNA synthesis. Removal of the RNA primer for this fill-in reaction still leaves a 3′ single-stranded DNA overhang; this end is sequestered by telomere DNA–binding proteins.
