Motivation and objectives

Valencia Testbed Site:IFIC (Instituto de Física Corpuscular) CSIC-ValenciaICMoL (Instituto de Ciencia Molecular) UV-Valencia28/08/2002


Motivation and objectives

Motivation and Objectives

  • Motivation the involvement in Grid Testbeds

    • Participation in LHC experiments (HEP):

      • ATLAS

    • Participation in Air Pollution Modelling

  • Objectives:

    • Initial development and exploitation of a Grid infrastructure in Valencia.

    • Physics and Chemistry analysis preparation for Grid computing.

    • Provide support and infrastructure for:

      • Development of Grid applications;

      • Test and validation of Grid applications.


Grid projects

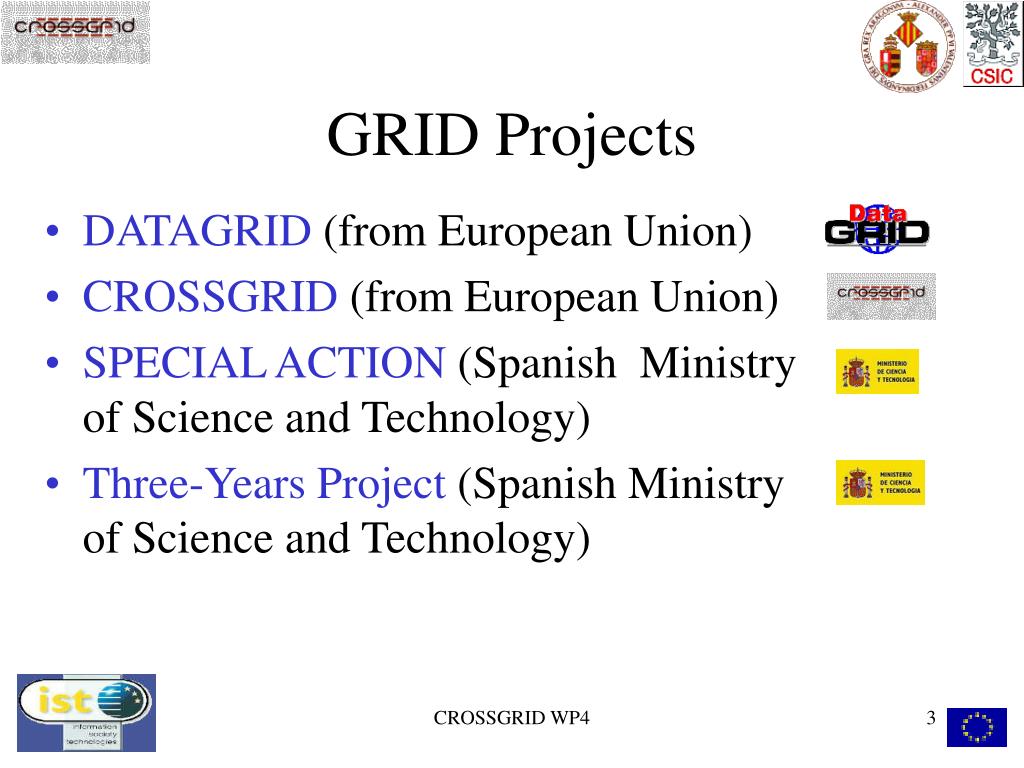

GRID Projects

  • DATAGRID (from European Union)

  • CROSSGRID (from European Union)

  • SPECIAL ACTION (Spanish Ministry of Science and Technology)

  • Three-Years Project (Spanish Ministry of Science and Technology)


Current grid activities

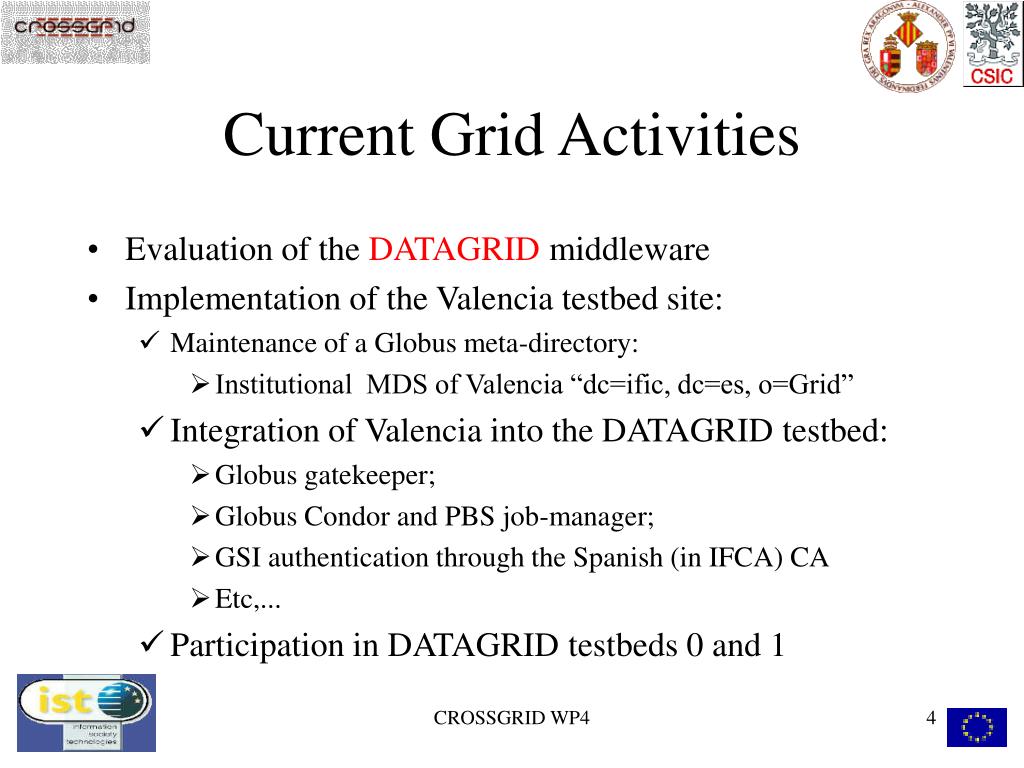

Current Grid Activities

  • Evaluation of the DATAGRID middleware

  • Implementation of the Valencia testbed site:

    • Maintenance of a Globus meta-directory:

      • Institutional MDS of Valencia “dc=ific, dc=es, o=Grid”

    • Integration of Valencia into the DATAGRID testbed:

      • Globus gatekeeper;

      • Globus Condor and PBS job-manager;

      • GSI authentication through the Spanish (in IFCA) CA

      • Etc,...

    • Participation in DATAGRID testbeds 0 and 1


Current grid activities1

Current Grid Activities

  • We are participating in this year in the DATA CHALLENGE 1 (DC1) of ATLAS experiment with two goals:

    • Event productions in our farm in order to provide samples for physics studies and make the Technical Design Report for the end of 2002.

    • To test in our farm the new software, including Geant4, the new event data model and the evaluation of two database technologies, Objectivity and Root-I/O.

  • 400k events have been simulated in DC1 phase 1 (non EDG used, but foreseen for phase 2 )

    • Total CPU time: 21 Khours

    • Total disk space: 1.1 TBytes


Networking in spain

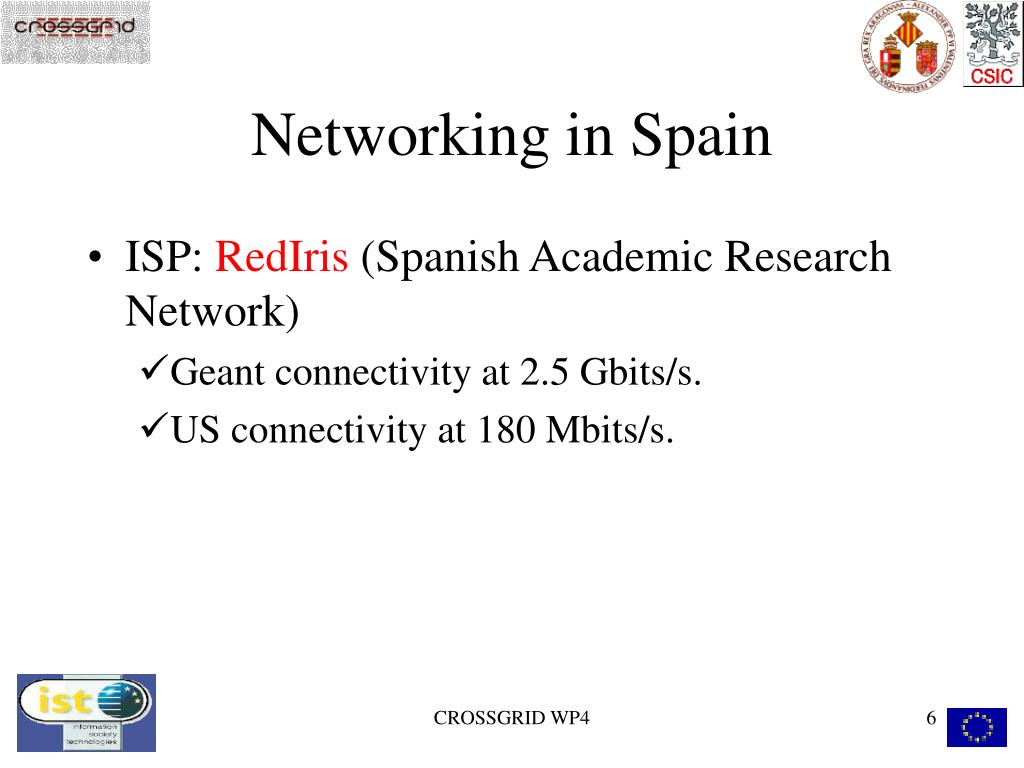

Networking in Spain

  • ISP: RedIris (Spanish Academic Research Network)

    • Geant connectivity at 2.5 Gbits/s.

    • US connectivity at 180 Mbits/s.


Valencia networking

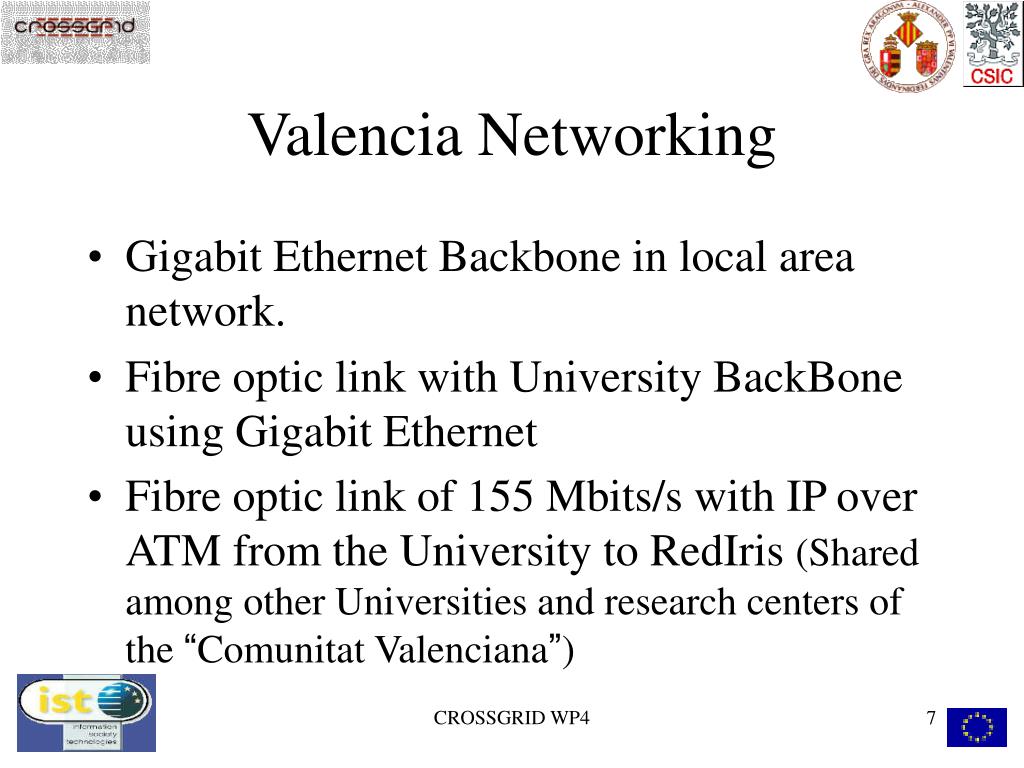

Valencia Networking

  • Gigabit Ethernet Backbone in local area network.

  • Fibre optic link with University BackBone using Gigabit Ethernet

  • Fibre optic link of 155 Mbits/s with IP over ATM from the University to RedIris (Shared among other Universities and research centers of the “Comunitat Valenciana”)


Production farm

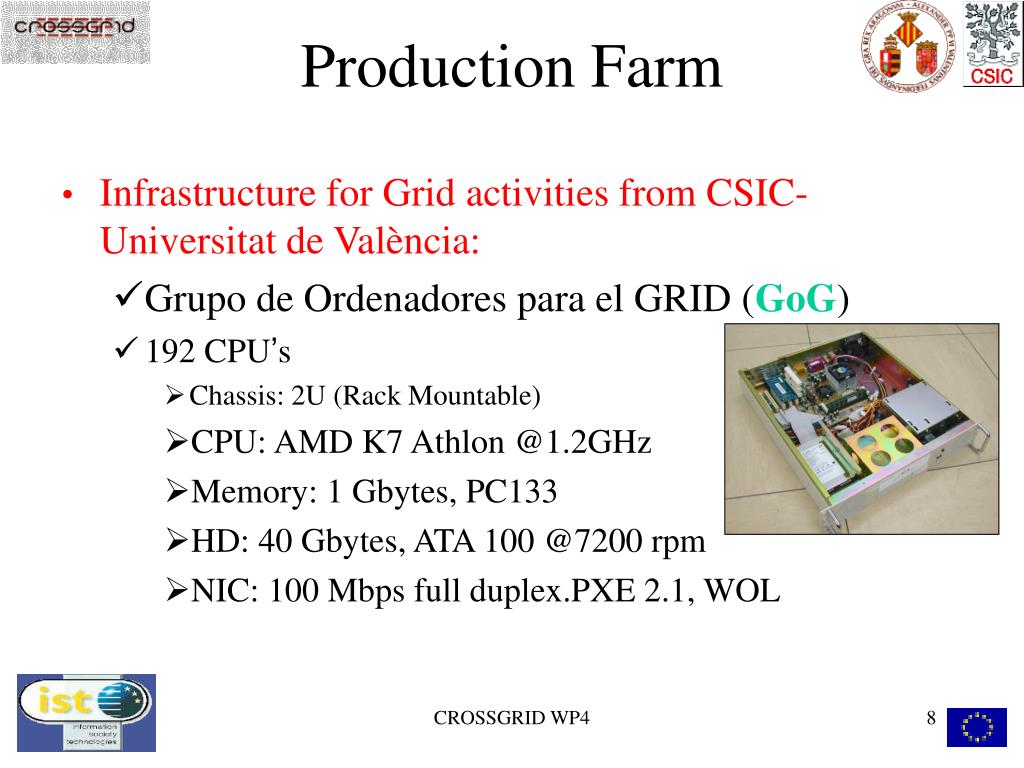

Production Farm

  • Infrastructure for Grid activities from CSIC-Universitat de València:

    • Grupo de Ordenadores para el GRID (GoG)

    • 192 CPU’s

      • Chassis: 2U (Rack Mountable)

      • CPU: AMD K7 Athlon @1.2GHz

      • Memory: 1 Gbytes, PC133

      • HD: 40 Gbytes, ATA 100 @7200 rpm

      • NIC: 100 Mbps full duplex.PXE 2.1, WOL


Production farm1

Production Farm

  • 9 Racks 19”

  • 9 switches (

  • 2 switches (Gigabit Ethernet 12 ports)

  • Running Linux RH 6.2 (considering RH 7.2)

  • Job scheduling by CONDOR (looking at PBS)

Catalyst 3524 XL fast Ethernet with Gigabit Ethernet uplink)


Production farm2

Production Farm

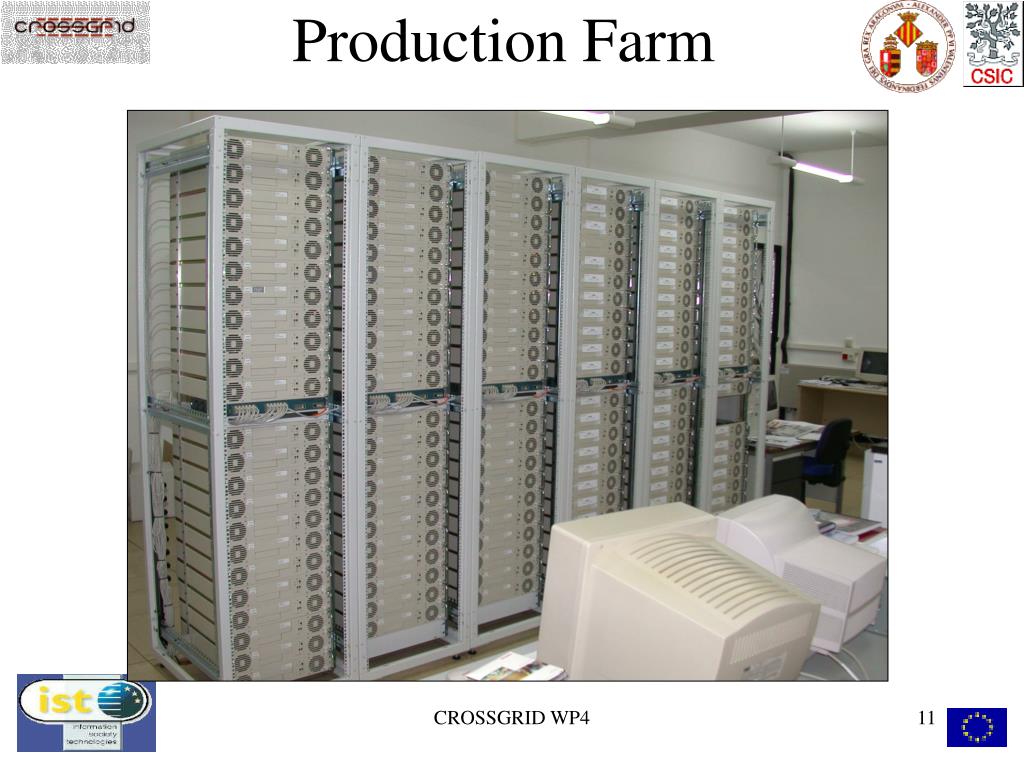

Production farm3

Production Farm

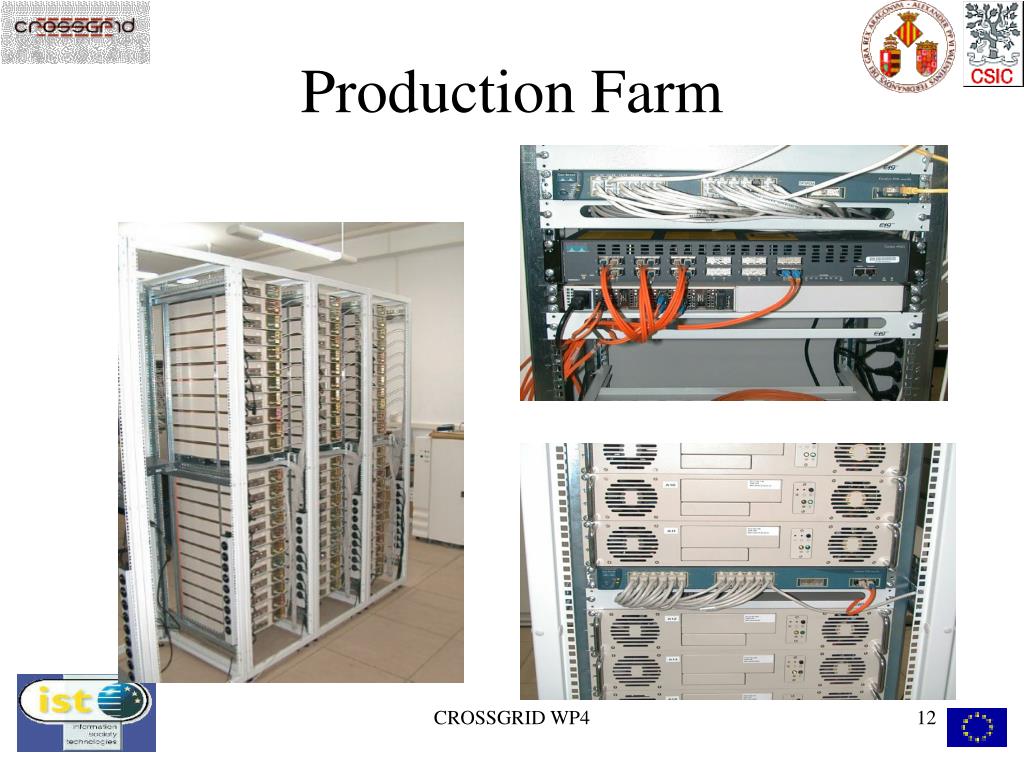

Production farm4

Production Farm


Grid test farm

GRID test FARM

  • Farm 1 (EDG v1.2.0)

    • 5 AMD processor:

      • K7 1 GHz, 512 MB of RAM and 40GB HD;

    • Running Linux RH 6.2

    • Job scheduling by PBS

    • Being used to test DATAGRID testbed1:

      • CE: bee001.ific.uv.es

      • WN: bee002.ific.uv.es

      • SE: bee003.ific.uv.es

      • UI:grid1.ific.uv.es

      • LCFG:lcfg2.ific.uv.es


Grid test farm1

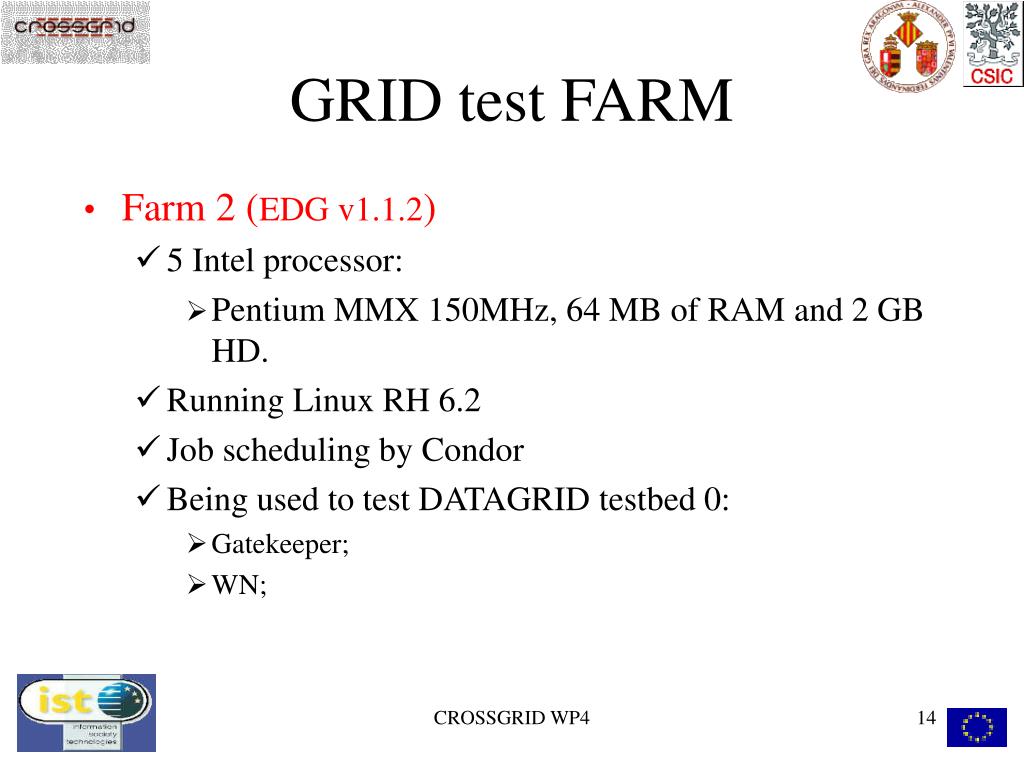

GRID test FARM

  • Farm 2 (EDG v1.1.2)

    • 5 Intel processor:

      • Pentium MMX 150MHz, 64 MB of RAM and 2 GB HD.

    • Running Linux RH 6.2

    • Job scheduling by Condor

    • Being used to test DATAGRID testbed 0:

      • Gatekeeper;

      • WN;


Grid test farm being used to test datagrid

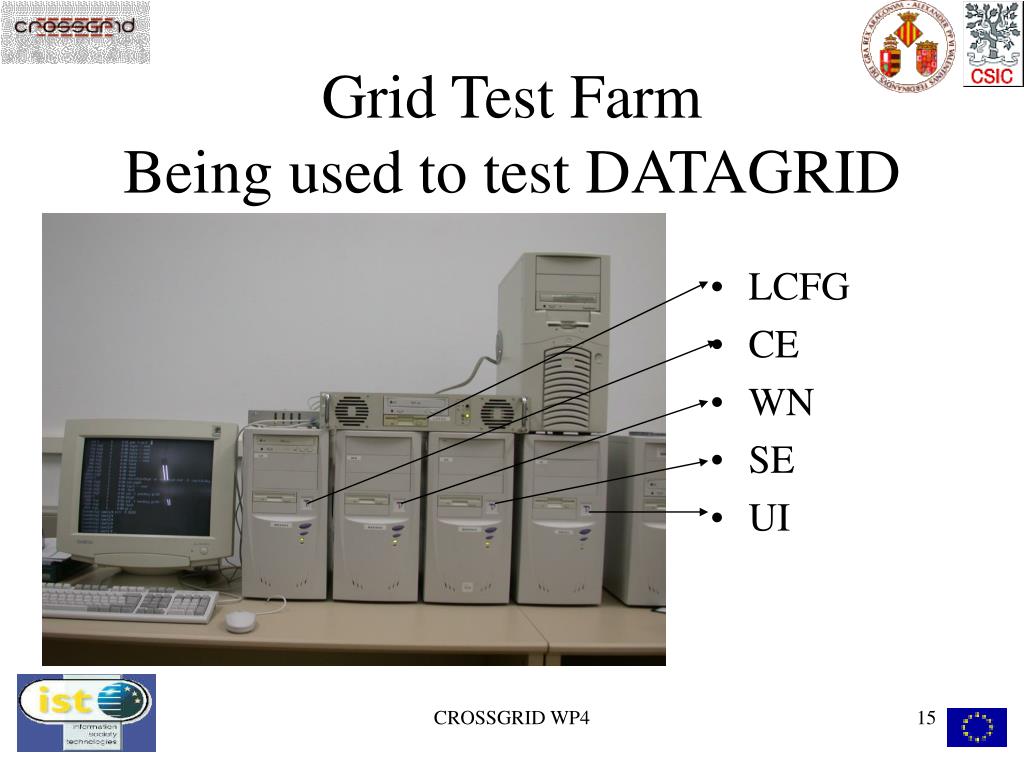

Grid Test FarmBeing used to test DATAGRID

  • LCFG

  • CE

  • WN

  • SE

  • UI


Human resources

Human Resources

  • IFIC and ICMoL have:

    • 2 Engineers;

    • 2 Physicists;

    • 2 Chemists;

    • 2 Post-doc;

  • Two new positions for the IFIC and ICMoL are being created (Using CrossGrid contract).

  • IFIC and ICMoL Computer and Technical personnel.


Human resources1

Human Resources

  • CROSSGRID involvement:

    • Dr. José Salt Cairols (Main Contact)

    • Dr. Eduardo Ros Martínez

    • Dr. Santiago González de la Hoz

    • Mr. Fco. Javier Sánchez Martínez

    • Dr. Raúl Crespo Crespo

    • Dr. Roberto Tejero Toquero

    • Mr. Martín Córdoba

    • Dr. Mª Carmen Piqueras


Valencia and crossgrid

Valencia and CROSSGRID

  • Valencia is involved in the following tasks:

    • task 1.3 Distributed Data Analysis in HEP

    • task 1.4 Weather Forecast and Air Pollution Modelling

    • task 3.2 Grid Resource Management

    • task 3.5 (Valencia task leader) Integration, Testing and Refinement

    • task 4.1 Testbed Setup and Incremental Evolution

    • task 4.3 (Valencia task leader) Infrastructure Support


Videoconference support

Videoconference support

  • VRVS and ISDN support.

  • List of equipment:

    • Polyspan ViewStation SP video conference

    • Document camera

    • 2 video projectors (Proxima Ultralight LX2 and Hitachi CP-X960W/E)

    • Several webcams in Desktop PC’s
