  1. Emergency Ultrasound in Trauma Fahad Khan, MD St. Luke’s/Roosevelt Hospital Center Columbia University, New York City April 24, 2009

  2. E-FAST • Focused Assessment with Sonograghy for Trauma • Cardiac • RUQ • LUQ • Pelvis • Extended • Lung bases for pleural fluid • Anterior lung apices for pneumothorax

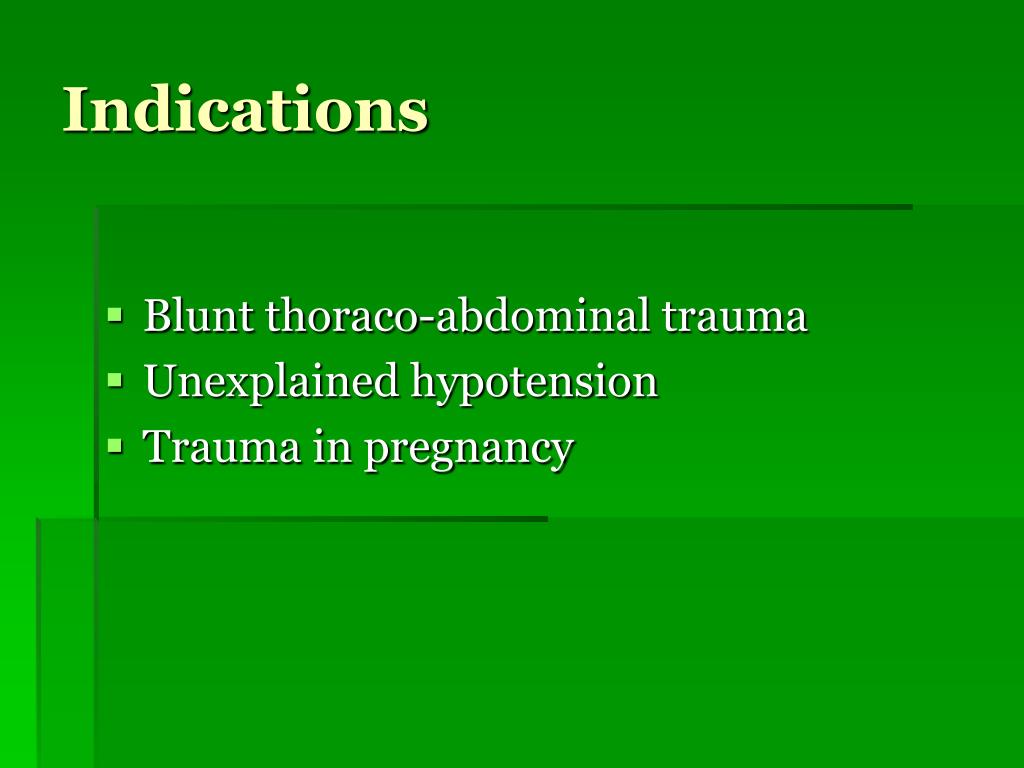

  3. Indications • Blunt thoraco-abdominal trauma • Unexplained hypotension • Trauma in pregnancy

  4. Key Questions • Is there FREE FLUID present? • In the pericardial space • In the peritoneal cavity • In the pleural space • Is there a PNEUMOTHORAX?

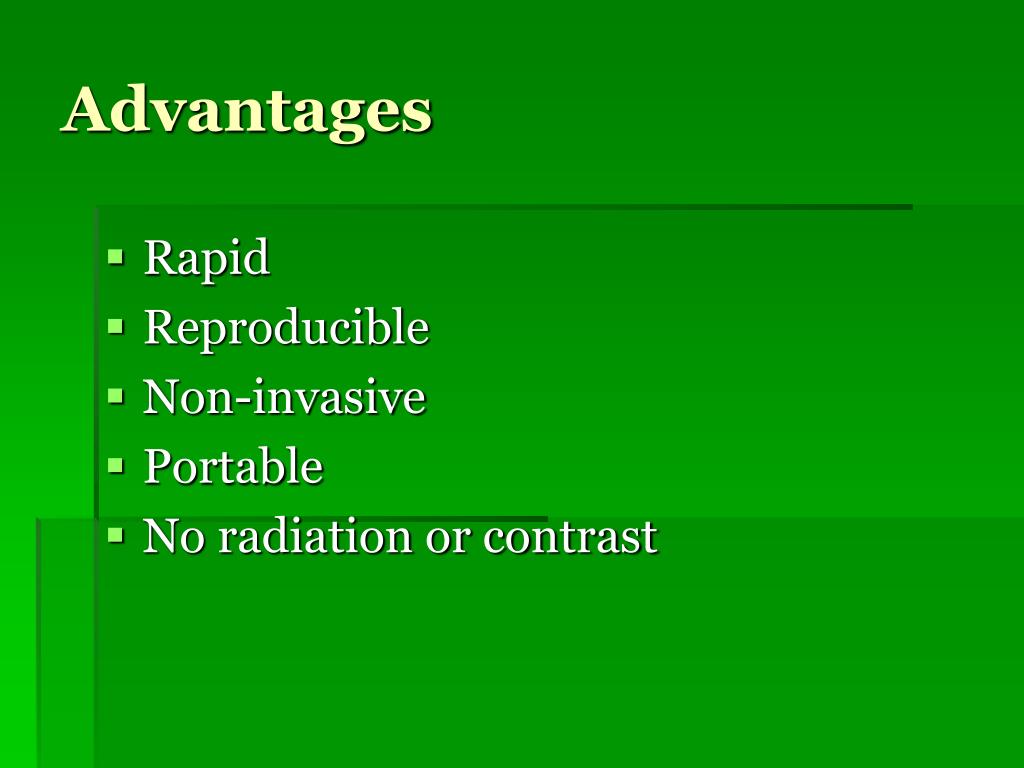

  5. Advantages • Rapid • Reproducible • Non-invasive • Portable • No radiation or contrast

  6. Disadvantages • Difficult to distinguish • Type of fluid • Solid organ injury • Cannot evaluate retroperitoneum • Difficult in the obese patient

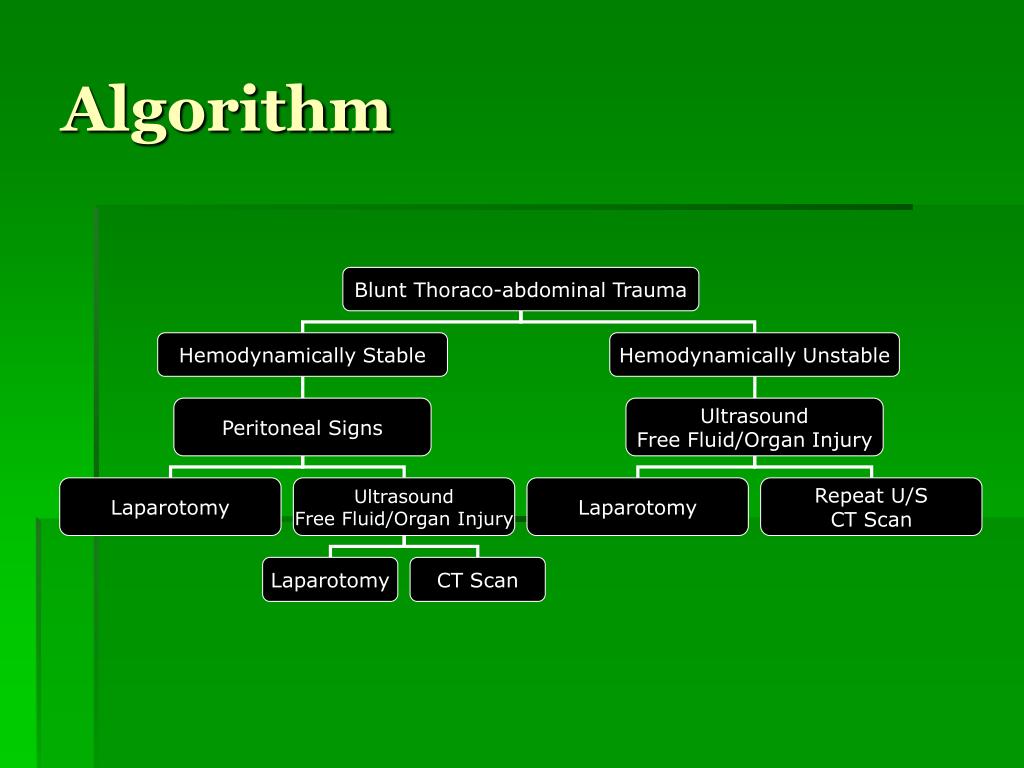

  7. Blunt Thoraco-abdominal Trauma Hemodynamically Stable Hemodynamically Unstable Peritoneal Signs Ultrasound Free Fluid/Organ Injury Laparotomy Ultrasound Free Fluid/Organ Injury Laparotomy Repeat U/S CT Scan Laparotomy CT Scan Algorithm

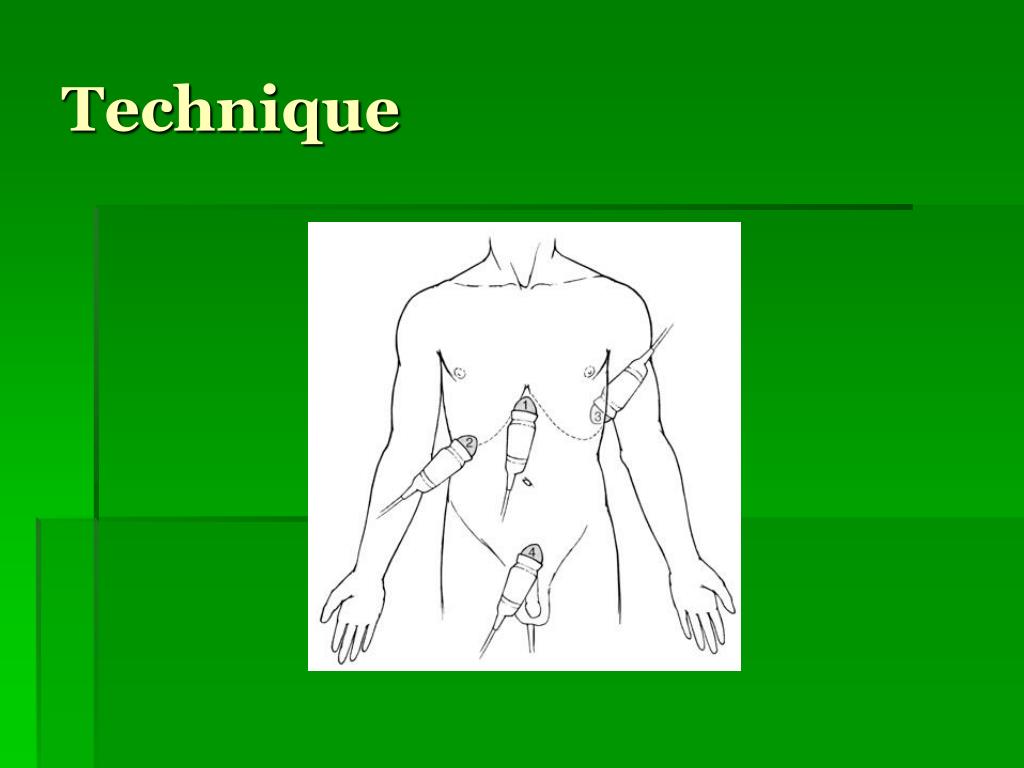

  8. Technique

  9. Intraperitoneal Fluid Flow

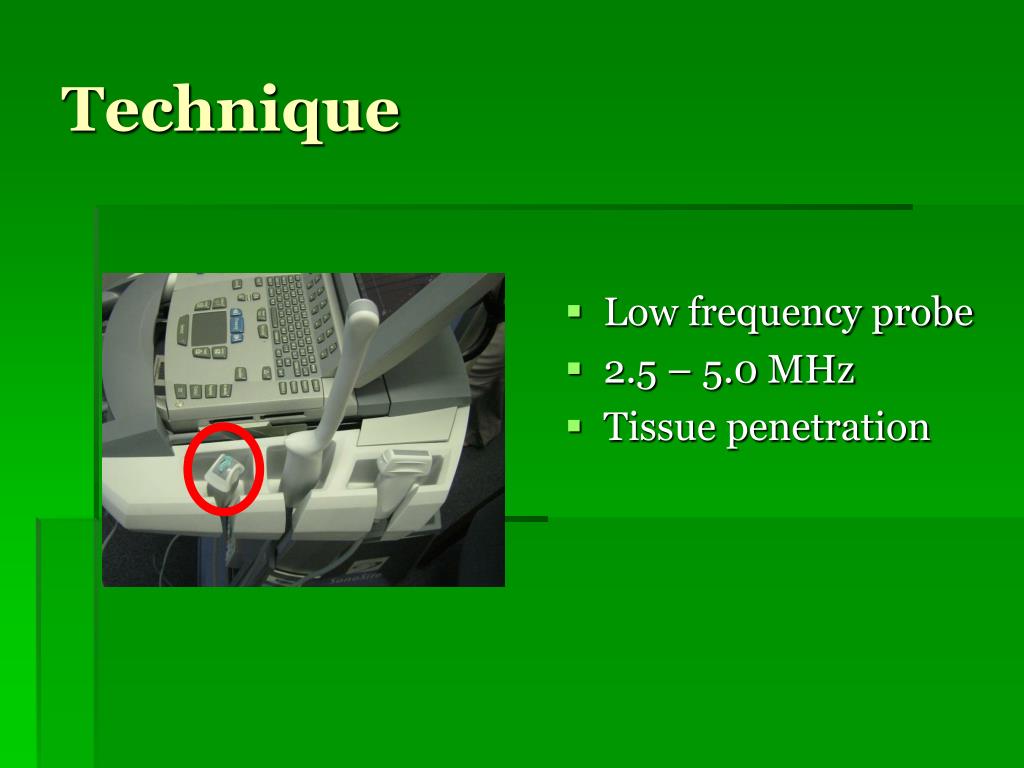

  10. Technique • Low frequency probe • 2.5 – 5.0 MHz • Tissue penetration

  11. Sub-xiphoid

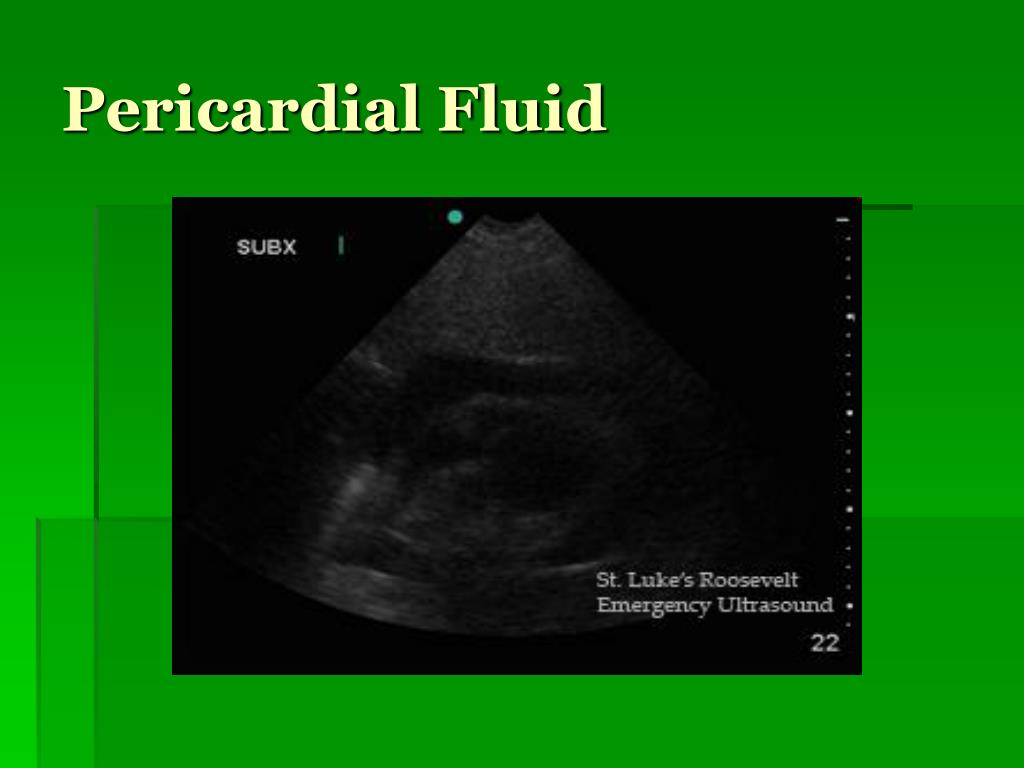

  12. Pericardial Fluid

  13. Pericardial Effusion

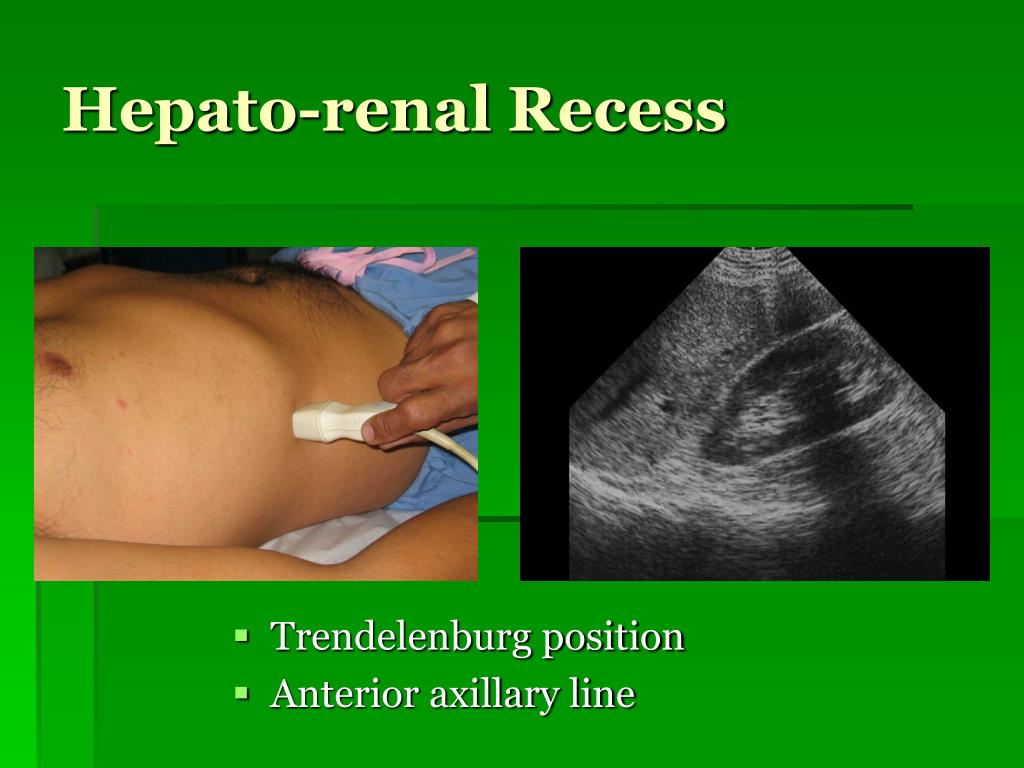

  14. Hepato-renal Recess • Trendelenburg position • Anterior axillary line

  15. Hepato-renal Fluid

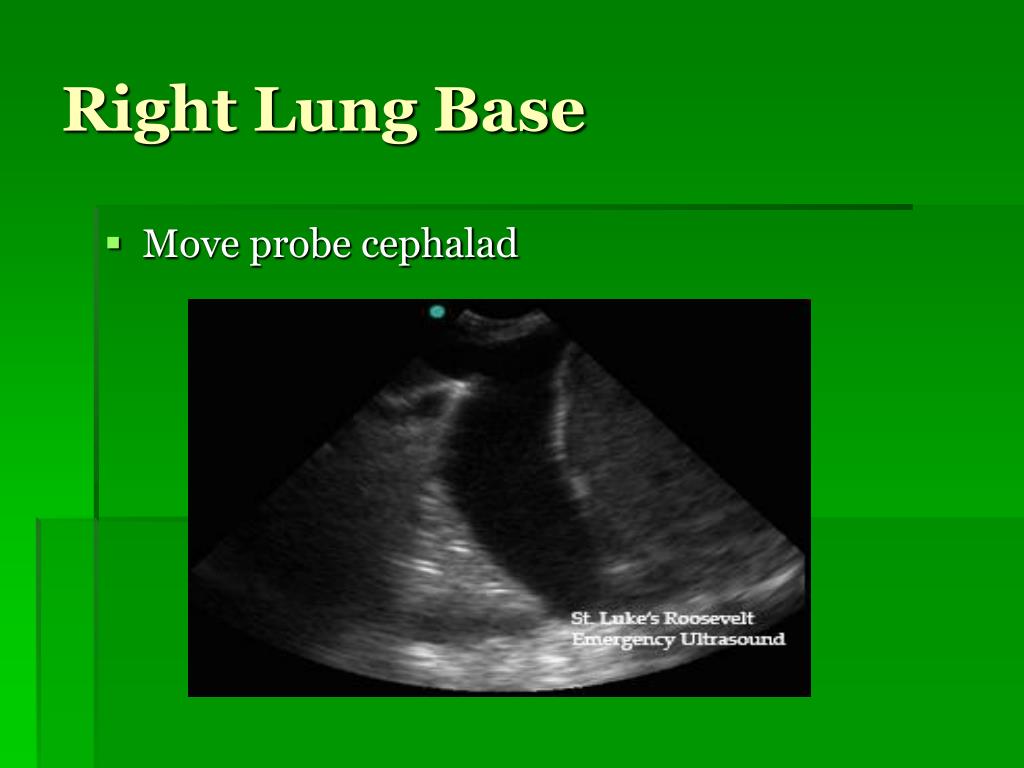

  16. Right Lung Base • Move probe cephalad

  17. Spleno-renal Recess

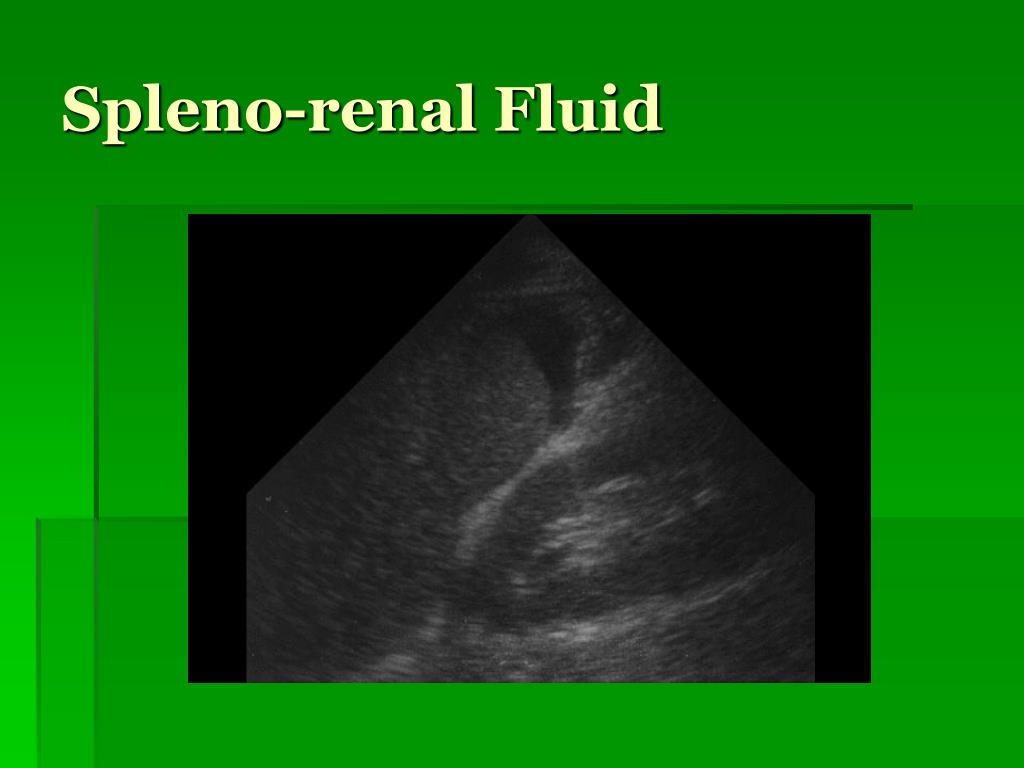

  18. Spleno-renal Fluid

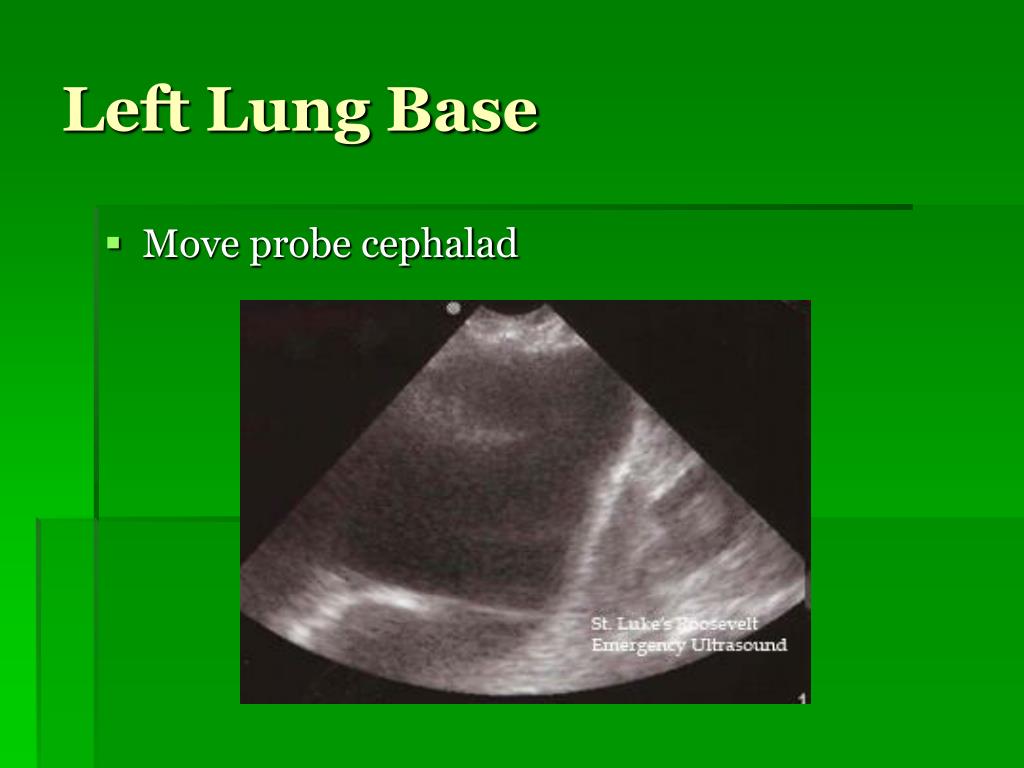

  19. Left Lung Base • Move probe cephalad

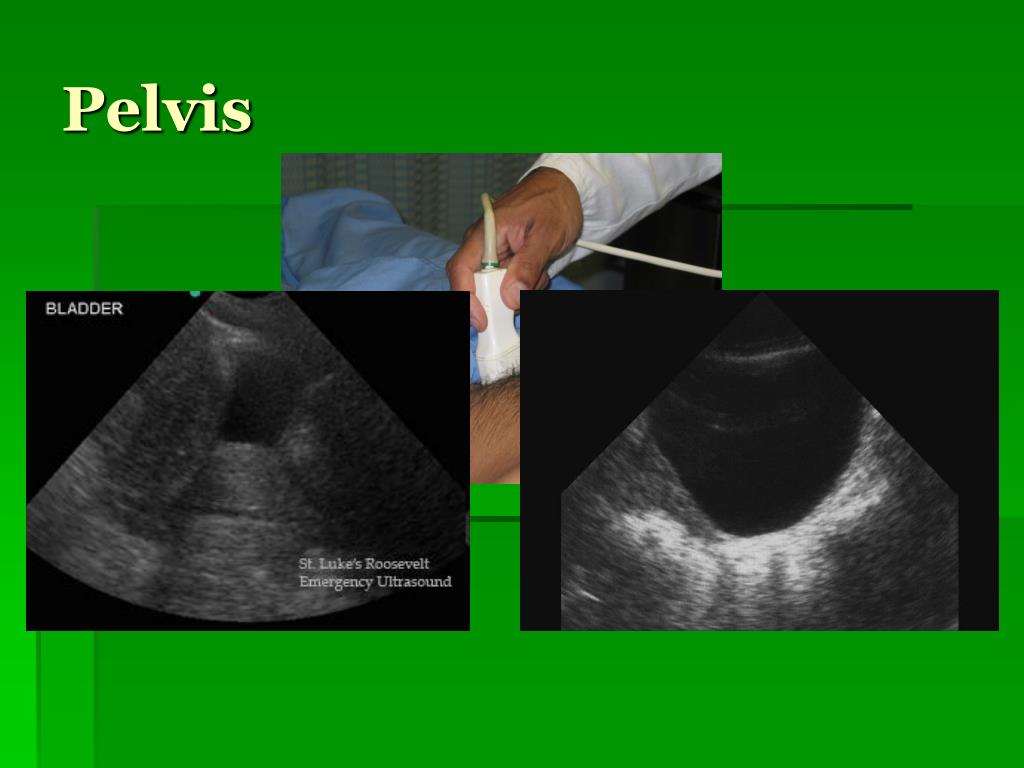

  20. Pelvis

  21. Pelvic Free Fluid

  22. Technique

  23. Lung Scanning for Pneumothorax “Bat” Sign Comet tails

  24. Normal Lung

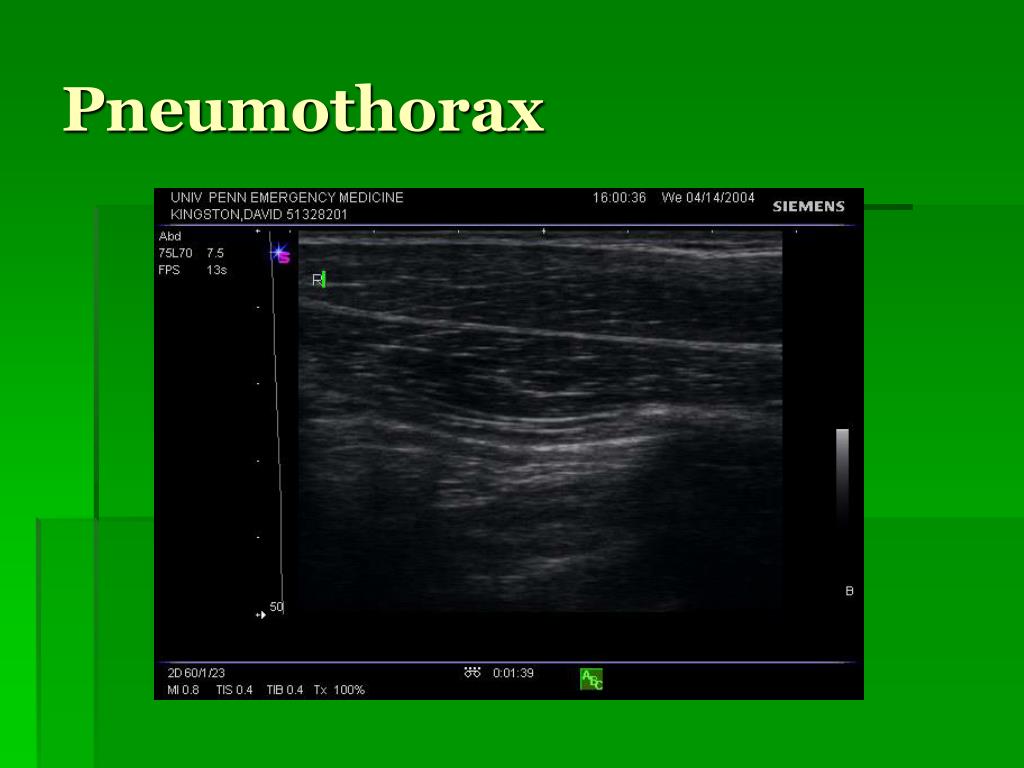

  25. Pneumothorax

  26. Pitfalls • Scan all quadrants • Repeating scans • Inferior poles • Solid organ injuries • Fat • Retroperitoneum

  27. After a short training program, physicians can use FAST in early assessment of trauma patients with sufficient specificity to expedite decision making.

  28. Increased physician ultrasound experience is associated with increased physician accuracy in FAST examinations. • This can directly lead to a reduction in the use of CT scans, and ultimately, medical costs.

  29. Questions?
